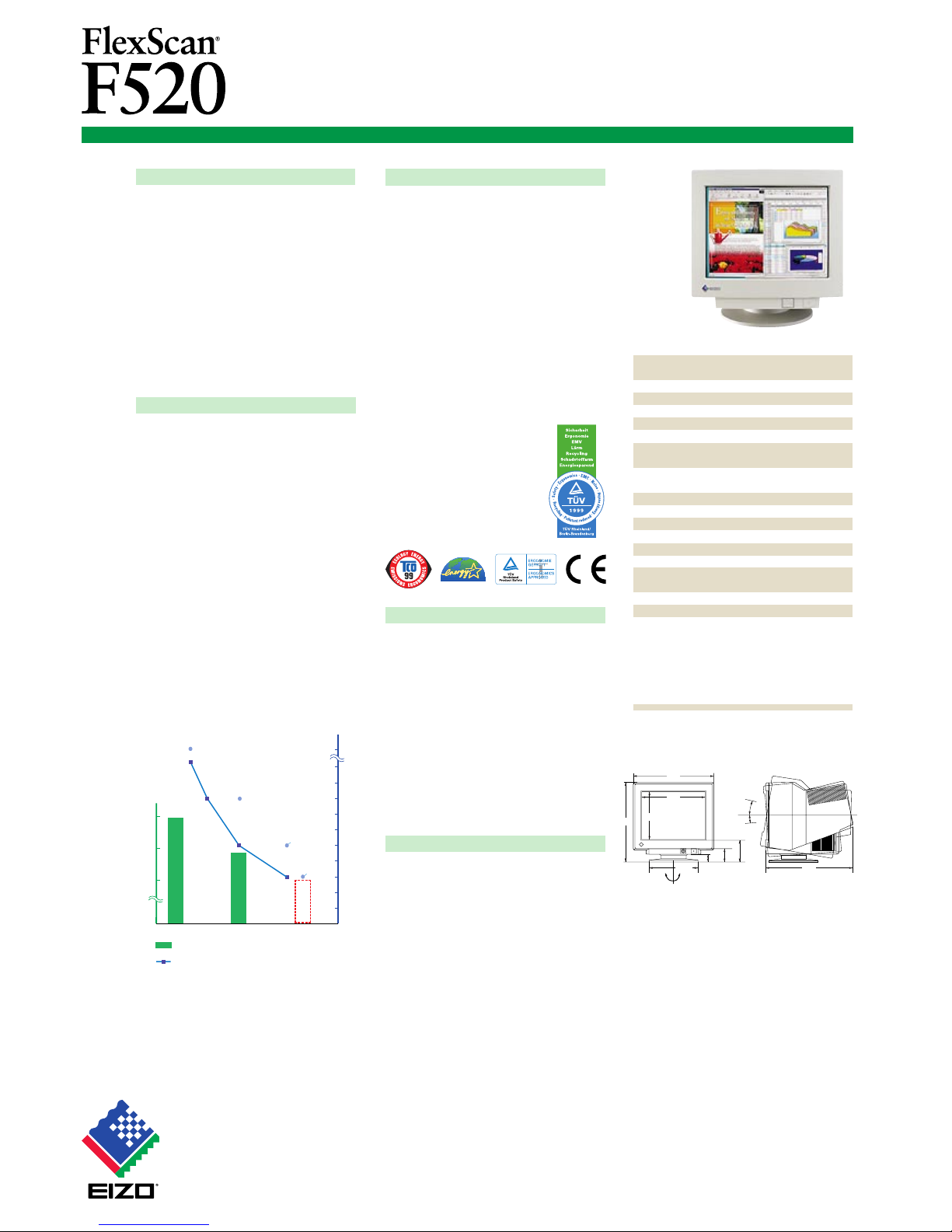

45cm (17 inch) Class Color Display Monitor
Quality, Reliability & Performance
655 Fukudome, Matto, Ishikawa 924-8533 Japan
Phone : +81 76 277-3310 Fax : +81 76 277-3450
http://www.eizo.co.jp/
Specifications are subject to change without notice.
ENERGY STAR
®
is a U.S. registered mark. As an ENERGY STAR® Partner, Eizo Nanao Corporation has
determined that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
Copyright© 1999 Eizo Nanao Corporation. All rights reserved. All product names are trademarks of their respective
companies. PowerManager, i.Sound, and i.Station are trademarks, and FlexScan, EIZO, ScreenManager, and
ErgoCoat are registered trademarks of Eizo Nanao Corporation
Basic Specifications
Low Power Consumption
i⋅SoundTM Sound Unit
Ergonomic Design
For user safety and preservation of
the environment, the F520
complies with the most stringent
ergonomic standards. The F520 is
also the first monitor in the world
to obtain TÜV ECO Circle 1999
certification. This new standard
covers safety, ergonomics, EMC,
noise, energy savings, pollutant
reduction, and recycling, and
assures the user that the F520 is at
the forefront of ergonomic design.
Other standards the F520
complies with
include the CE Mark,
TÜV Rheinland/
Ergonomie, and
TCO'99.
45cm (17 inch) Class Color Display Monitor
Designed for everyday business use, the EIZO FlexScan F520 delivers sharp and
accurate image reproduction, high performance standards, and power saving features.
The F520 complies with the most stringent ergonomic standards and earned
the distinction of being the first monitor in the world to receive TÜV ECO Circle
1999 certification.
CRT Size
CRT Phosphor Pitch
CRT Surface Treatment
Scanning Frequency
Input Signals
Input Terminal
Active Display Size
Recommended Resolution
Screen Control
Power Management System
Power Consumption
Power Save Mode 1
Power Save Mode 2 (Off)
Plug & Play
∗
Dimensions
Net Weight
Safety Standards
Ergonomic/Environmental
Standards
45 cm (17 inch) class, 90°
deflection Invar Shadow Mask
0.26 mm / 0.23 mm (H)
SuperErgoCoat
®
H: 30 - 96 kHz V: 50 - 160 Hz
RGB Analog
D-Sub mini 15 pin
318 mm (H) × 238 mm (V)
(Diagonal: 397 mm)
1024 dots
× 768 lines,
flicker-free at 118 Hz (max.)
ScreenManager
®
VESA DPMS
80 W
Less than 10 W
Less than 3 W
VESA DDC 1/2B
410 mm (W)
× 439 mm (D)
× 413 mm (H)
17.0 kg
TÜV Rheinland/GS, CB, CE Mark
∗ Only valid when computer system supports all Plug & Play
functions (personal computer, graphics board, Windows
®
95/98).
For more details, please refer to the Windows 95/98, personal
computer, and graphics board manuals or contact the
manufacturers.
For the enhancement of multimedia
applications, EIZO offers the
i⋅Sound, a separately sold speaker
unit which comfortably attaches to
the control panel console of the
F520. The i⋅Sound is equipped with
two speakers, two stereo mini-jack
cables, and a microphone. The unit
is powered directly from the
monitor.
• Decline in Monitor Power Consumption
TCO'99 standards
established :
under 5 W (1999)
Energy 2000:
under 3 W
(1999)
5
10
30W
(Power Save Mode)
F520
1998 1999 1991 1992 1993 1994 1995 1996 1997
Changes in power consumption levels of EIZO 17 inch monitors.
Changes in power save mode for all EIZO monitors.
Compliance with EPA ENERGY STAR®
Program (under 8 W)
EIZO first to
lower power to
under 5 W
80
100
120W
(Power Consumption)
PowerManager function installed
TCO'95 standards established :
under 8 W (1995)
EPA ENERGY STAR® Program established :
under 30 W (1992)
First in the
industry to
lower power to
under 3 W
FlexScan® F520 Specifications
TÜV Rheinland/Ergonomie
Geprüft (including ISO 9241-3,
ISO 9241-7 [Positive/Class I,
Negative/Class I], ISO 92418 and MPR-II), EPA ENERGY
STAR
®
Program, Energy 2000,
TCO'99, TÜV ECO Circle 1999
EIZO NANAO CORPORATION
i⋅StationTM USB Hub
The F520 employs a newly
developed power saving mini-neck
CRT which requires only 80 watts
for normal operation to make it
one of the most energy efficient
17'' CRT monitors on the market.
With EIZO's PowerManagerTM,
power consumption is reduced to
less than 3 watts when the F520 is
on but not in use. The F520 also
includes an off timer function
which allows the user to set the
monitor to enter a secondary
power off state (less than 3 watts)
at a predetermined time.
The F520 has a fine dot pitch of
0.26 mm to guarantee clear
picture definition for both text
and graphics applications. A wide
horizontal scanning range of 30 96 kHz allows for both the
recommended resolution of 1024
×
768 / 118 Hz refresh rate and a
maximum resolution of 1280 ×
1024 / 89 Hz refresh rate.
To simplify the installation of
desktop peripherals, EIZO
manufactures the i⋅Station, an
attachable USB hub unit. The
i⋅Station fits around the front
cabinet to seamlessly blend with
the design of the monitor and
occupy no additional desktop
space. The unit is also sold
separately.
439
4
°
10
°
(Unit : mm)
413
238
46.9
74.5
124
265
410
318
45
° 45°
φ
