Eizo FlexScan EV2451-BK User manual

User’s Manual

Color LCD Monitor

Important

Please read PRECAUTIONS, this User’s Manual, and the Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage.

• Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC to using the monitor.

• For the latest product information including the User’s Manual, refer to our web site :

http://www.eizoglobal.com

Location of Caution Statement

WARNING

AVERTISSEMENT

WARNUNG

This product has been adjusted specically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specications.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information condential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specications are subject to change without notice.

Notice for this monitor

This product is suited to general purposes like creating documents, viewing multimedia content (Assuming usage of approximately 12 hours per day). If using this product for the following kinds of applications, where an extremely high degree of reliability and safety is required, then measures should be in place to maintain safety while using this product.

• Transportation equipment (ships, aircraft, trains, and automobiles)

• Safety devices (Disaster prevention systems, security control systems, etc.)

• Life-critical devices (medical devices, such as life-support devices and operating room devices)

• Nuclear energy control devices (Nuclear energy control systems, security control systems of nuclear facilities, etc.)

• Major system communication devices (operation control systems of transportation systems, air trafc control systems,

etc.)

This product has been adjusted specically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specied in the specications.

This product may not be covered by warranty for uses other than those described in this manual.

The specications noted in this manual are only applicable when the following are used:

• Power cords provided with the product

• Signal cables specied by us

Only use optional products manufactured or specied by us with this product.

If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use.

It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more after the monitor power has been turned on, and then adjust the monitor.

Monitors should be set to a lower brightness to reduce changes in luminosity caused by long-term use and maintain a stable display.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time. Depending on the image, an afterimage may appear even if it was displayed for a short period of time. To remove such a phenomenon, change the image or keep the power turned off for several hours.

If the monitor displays continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer

to “Cleaning” (page 4)).

The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994 % or higher.

The backlight of the LCD panel has a xed lifetime. Depending on the usage pattern, such as usage for long continuous periods, the lifespan of the backlight may run out sooner, requiring replacement. When the screen becomes dark or begins to icker, please contact your local EIZO representative.

Notice for this monitor

Do not press on the LCD panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. If pressure is continuously applied to the LCD panel surface, the liquid crystal may deteriorate or the LCD panel may be damaged. (If the pressure marks remain on the panel, leave the monitor with a black or white screen. The symptom may disappear.)

Do not scratch or press on the LCD panel with any sharp objects, at this may result in damage to the LCD panel. Do not attempt to brush with tissues as this may scratch the panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the monitor.

Cleaning

Attention

• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or LCD panel, and also quality deterioration of the image.

• Never use thinner, benzine, wax, or abrasive cleaner as they may damage the cabinet or LCD panel surface.

Note

• It is recommended that ScreenCleaner (available as an option) be used to clean the cabinet and LCD panel surface.

The stains on the cabinet and LCD panel surface can be removed by moistening part of a soft cloth with water.

To use the monitor comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions.

• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

Notice for this monitor

Notice for this monitor ......................................... 3

Cleaning .................................................................... 4

To use the monitor comfortably ............................. 4

CONTENTS ............................................................. 5

Chapter 1 Introduction ....................................... 6

1-1. Features ......................................................... 6

High Degree of Flexibility for Installation ........ 6

●

Reduction of Power Consumption .................. 7

●

Realizing More Convenient Operations

●

Using Screen InStyle ...................................... 7

1-2. Controls and Functions ............................... 8

Front ................................................................ 8

●

Rear ................................................................. 9

●

1-3. Supported Resolutions ...............................10

1-4. Setting the Resolution ................................11

Windows 10 ....................................................11

●

Windows 8.1 / Windows 7 ..............................11

●

OS X Mountain Lion (10.8) or later .................11

●

Mac OS X 10.7 ...............................................11

●

Chapter 2 Basic Adjustment/Setting .............. 12

2-1. Switch Operation Method ...........................12

2-2. Switching Input Signals ..............................12

Switching Display Modes (Color Modes)

2-3.

Display Modes ................................................13

●

2-4. Conserving Energy ...................................... 13

2-5. Adjusting Brightness ..................................15

2-6. Adjusting Volume.........................................16

Chapter 3 Advanced Adjustment/Setting ...... 17

3-1. Basic Operation of the Setting menu ........17

3-2. Setting Menu Functions ..............................18

Color Adjustment ............................................18

●

Signal Settings ...............................................21

●

Preference Settings .......................................24

●

Language ...................................................... 25

●

Information .................................................... 25

●

Chapter 4 Administrator Settings ................... 26

4-1. Basic Operation of the “Administrator

Settings” Menu ............................................ 26

4-2. Functions of the “Administrator

Settings” Menu ............................................ 27

Chapter 5 Troubleshooting .............................. 28

5-1. No Picture .................................................... 28

5-2. Imaging Problems (For Both Digital and

Analog) ......................................................... 29

5-3. Imaging Problems (For Analog Only) ....... 30

...13

5-4. Other Problems ............................................31

Chapter 6 Reference ........................................ 32

6-1. Attaching the Optional Arm ....................... 32

Attaching the Optional Arm (or Optional

●

Stand) ............................................................ 33

Attaching the original stand .......................... 33

●

6-2. Detaching / Attaching the Cable Holder ... 34

Detaching the cable holder ........................... 34

●

Attaching the cable holder ............................ 34

●

6-3. Detaching / Attaching the Cable Cover .... 35

Attaching the cable cover .............................. 35

●

Detaching the cable cover ............................ 36

●

6-4. Connecting Multiple PCs ............................37

Connection examples ....................................37

●

6-5. Making Use of USB (Universal Serial

Bus) ............................................................... 38

Required System Environment ..................... 38

●

Connection Procedure (Setup of USB

●

Function) ........................................................ 38

6-6. Specications ............................................. 39

Main Default Settings .................................... 40

●

Accessories ................................................... 40

●

Appendix .............................................................. 41

Trademark ................................................................41

License .....................................................................41

ENERGY STAR .........................................................41

TCO .......................................................................... 42

FCC Declaration of Conformity ............................ 43

LIMITED WARRANTY ............................................. 44

Recycling Information ........................................... 45

CONTENTS

Chapter 1 Introduction

Thank you very much for choosing an EIZO color LCD monitor.

1-1. Features

High Degree of Flexibility for Installation

●

• This product can be used as an external monitor of a notebook computer.

• This product can be used in a multi-monitor conguration in which multiple monitors are connected

to a single PC.

• Mounting the monitor on an arm enables this product to be used in a multiple-monitor conguration in which the screen is rotated by 180° (ipped vertically).

Note

• PC settings must be congured to rotate the monitor display by 180°.

Chapter 1 Introduction

Reduction of Power Consumption

●

This product provides a function that automatically adjusts the screen brightness to reduce power consumption *1. Power Reduction, CO2 Reduction, and Eco Performance Level can be checked on the "EcoView Settings" menu.

• Auto EcoView The ambient light sensor on the front of the monitor detects the ambient brightness to automatically

adjust the screen brightness to a comfortable level.

• EcoView Optimizer 2 The monitor automatically adjusts the screen brightness according to the white level of the input

signal. This function can reduce power consumption while maintaining the brightness specied by the input signal.

*1 Reference values:

Maximum power consumption: 42 W (when a USB device is connected, speaker working), standard power consumption: 13 W (brightness 120 cd/m default settings)

Realizing More Convenient Operations Using Screen InStyle

●

The "Screen InStyle" monitor control utility enables you to use the monitor more conveniently.

• The monitor color mode can be switched automatically to suit the software to be used.

• When multiple monitors are installed, you can turn the power on and off or change the color mode

of all monitors at the same time.

Note

• Screen InStyle can be downloaded from our web site (http://www.eizoglobal.com).

• The Windows operating systems are only supported.

, when no USB device is connected, speaker not working, at

Chapter 1 Introduction

1-2. Controls and Functions

Front

●

Setting menu

1 3 4

1. Ambient light sensor Detects ambient brightness (Auto EcoView function (page 14)).

2. Operation switches Displays menus. Operate the switches according to the operation guide.

3. Power switch Turns the power on or off.

4. Power indicator Indicates the monitor’s operation status.

White: Screen display Orange: Power saving mode OFF: Main power / power off

*1 For details on usage, see “3-1. Basic Operation of the Setting menu” (page 17).

Attention

• The operation switches and Power switch are capacitance switches that can be operated not only by touching the front part of the switch but also by touching the bezel bottom of the switch. When turning the monitor screen or changing the angle, be careful not to touch the bezel bottom of the switch.

Chapter 1 Introduction

Rear

●

13 13

5 6 7

5. Main power switch Turns the main power on or off. : On, : Off

6. Power connector Connects the power cord.

7. Input signal connectors The following connectors are available on the monitor rear in order of left

to right. D-Sub mini 15-pin connector DisplayPort connector HDMI connector DVI-D connector

8. Handle This handle is used for transportation

9. USB downstream port Connects to a peripheral USB device.

10. USB upstream port Connects to the USB cable when using software that needs a USB

connection, or when using the USB Hub function.

11. Headphone jack Connects to headphones.

12. Stereo mini jack Connects to a stereo mini jack cable.

13. Speakers Outputs audio.

14. Security lock slot Complies with Kensington’s MicroSaver security system.

15. Cable holder Holds the monitor cables.

16. Stand

*2 An optional arm (or optional stand) can be attached by removing the stand section (see “6-1. Attaching

the Optional Arm” (page 32)).

Adjusts the height and angle (tilt, swivel, and rotation) of the monitor.

Chapter 1 Introduction

1-3. Supported Resolutions

The monitor supports the following resolutions.

Resolution

640 × 480 640 × 480 CEA-861 60Hz Progressive √ √ - 640 × 480 VESA 72.81Hz /

720 × 400 VGA TEXT 70.09Hz Progressive √ √ √ √ 720 × 480 CEA-861 59.94Hz /

720 (1440) ×

480

720 × 576 CEA-861 50Hz Progressive - √ - -

720 (1440) ×

576

800 × 600

800 × 600 VESA 60.32Hz Progressive √ √ √ √ 1024 × 768 VESA 60Hz Progressive √ √ √ √ 1024 × 768

1280 × 720 1280 × 720 CEA-861 1280 × 720 CEA-861 60Hz Progressive √ √ √ √ 1280 × 800 VESA CVT 59.81Hz Progressive √ √ √ √

1280 × 1024 VESA 60.02Hz Progressive √ √ √ √ 1280 × 1024 VESA 75.03Hz Progressive - - - √

1600 × 900 VESA RB 60Hz Progressive √ √ √ √

1680 × 1050 VESA CVT 59.95Hz Progressive √ √ √ √ 1680 × 1050 VESA CVT RB 59.88Hz Progressive √ √ √ √

1920 × 1080

1920 × 1080 1920 × 1080 1920 × 1080

*1 Recommended resolution

Applicable

Signals

VGA / CEA-861

CEA-861 59.94Hz /

CEA-861

VESA

CEA-861

CEA-861 50Hz /

CEA-861 50Hz Progressive - √ - -

CEA-861

CEA-861 60Hz Progressive √ √ √ √

Vertical Scan

Frequency

59.94Hz Progressive √ √ √ √

75Hz

60Hz

50Hz

56.25Hz /

72.19Hz / 75Hz

70.07Hz /

75.03Hz 50Hz Progressive - √ - -

59.94Hz

59.94Hz / 60Hz

59.94Hz

Scan Typ e

Progressive - - - √

Progressive √ √ - -

Interlace - √ - -

Progressive - - - √

Progressive √ √ - -

Interlace - √ - -

Progressive √ √ - -

DisplayPort

HDMI DVI D-Sub

Chapter 1 Introduction

1-4. Setting the Resolution

If the resolution is incorrect after connecting the monitor to a PC or if you want to change the resolution, follow the procedure below.

Windows 10

●

1. Right-click the mouse anywhere on the desktop except on icons.

2. From the displayed menu, click “Display Settings”.

3. On the "Customize your display" dialog box, click "Advanced display settings".

4. Select a monitor, then choose a resolution from the "Resolution" pull-down menu.

5. Click the "Apply" button.

6. When a conrmation dialog box is displayed, click “Keep changes”.

Windows 8.1 / Windows 7

●

1. For Windows 8.1, click the "Desktop" tile on the Start Screen to display the desktop.

2. Right-click the mouse anywhere on the desktop except on icons.

3. From the displayed menu, click “Screen resolution”.

4. Select a monitor, then choose a resolution from the "Resolution" pull-down menu.

5. Click the "OK" button.

6. When a conrmation dialog box is displayed, click “Keep changes”.

OS X Mountain Lion (10.8) or later

●

1. Select “System Preferences” from the Apple menu.

2. When the “System Preferences” dialog box is displayed, click “Displays”. (For OS X Mountain Lion (10.8), click "Displays" for "Hardware".)

3. On the displayed dialog box, select the “Display” tab, then choose "Change" for “Resolutions”.

4. The list of selectable resolutions is displayed. Select the desired resolution. If the desired resolution is not displayed in the list, hold down the Option key and select "Change".

5. Your selection will be reected immediately. When you are satised with the selected resolution, close the window.

Mac OS X 10.7

●

1. Select “System Preferences” from the Apple menu.

2. When the “System Preferences” dialog box is displayed, click “Displays” for “Hardware”.

3. On the displayed dialog box, select the “Display” tab and select the desired resolution in the “Resolutions” eld.

4. Your selection will be reected immediately. If you are satised with the selected resolution, close the window.

Chapter 1 Introduction

Chapter 2 Basic Adjustment/Setting

This monitor enables users to change the brightness according to personal preference or to suit the usage environment and reduce power consumption to conserve energy.

This chapter describes the basic functions that can be adjusted and set using the switches on the front of the monitor. For advanced adjustment and setting procedures using the Setting menu, see “Chapter 3 Advanced

Adjustment/Setting” (page 17).

2-1. Switch Operation Method

Displaying the operation guide

1. Touch any switch (except ).

The operation guide appears on the screen.

Adjusting/setting

1. Touch a switch for adjustment/setting.

The Adjustment/Setting menu appears. (A submenu may also be displayed. In this case, select the item for adjustment/setting using

select

2. Perform adjustment/setting with the switches and select to accept the changes.

Exiting

1. Select to exit the menu.

2. When no menu is displayed, the operation guide will automatically disappear after a few seconds if no switches are operated.

2-2. Switching Input Signals

When a monitor has multiple signal inputs, the signal to display on-screen can be changed.

and

Chapter 2 Basic Adjustment/Setting

2-3. Switching Display Modes (Color Modes)

This product is preinstalled with color modes for various display purposes. Switch the mode according to the purpose and content for display. This allows the monitor to display images in a manner appropriate to the display content.

Display Modes

●

Color Mode Purpose

User1 User2 sRGB

Paper

Movie

DICOM

Select either of these modes to set a user-dened display mode.

This mode is suitable for matching color reproduction with peripheral devices that support sRGB, such as when printing photos taken using a digital camera.

This mode uses color tones and contrast similar to that of paper to produce a printed paper effect. It is suitable for displaying images from media such as books and documents.

This mode displays moving images brightly and with a clear-cut three-dimensional appearance. It is suitable for playing back video content.

Select this mode to simply display medical purpose digital images based on DICOM Part 14

Attention

• This is not intended to be used for diagnostic purposes.

Note

• “Screen InStyle” allows you to select the color mode automatically according to the application in use.

• In Paper mode, the amount of blue light emitted from the screen is reduced by changing the color tone and

controlling the brightness.

2-4. Conserving Energy

This monitor is equipped with EcoView functions to enable users to conserve energy. Use this function to curtail unnecessary power consumption and save on electricity expenses. Saving power also reduces carbon dioxide emissions.

Chapter 2 Basic Adjustment/Setting

Note

• The power saving level (Power Reduction, CO2 Reduction, and Eco Performance Level) can be checked on the “EcoView Settings” menu. The more indicators that light up representing the Eco Performance Level, the higher the power saving level attained.

- Power Reduction: the reduction in the backlight’s power consumption as a result of the adjusted brightness value.

- CO

Reduction: converted from the “Power Reduction” value, this is an estimate of the quantity of CO2

emissions reduced when using the monitor for 1 hour.

• The numeric value is a result of calculation based on a default setting (0.000555t-CO2/kWh) determined by a Japanese ministerial ordinance (2006, Ministry of Economy, Trade and Industry, Ministry of Environment, civil code article 3) and may differ depending on country and year.

Auto EcoView

Function

Setting

Range

On Off

Description

The ambient light sensor on the front of the monitor detects the ambient brightness to automatically adjust the screen brightness to a comfortable level using Auto EcoView. The power consumption of the backlight can be curtailed by adjusting the brightness to an appropriate level. This function can also mitigate eye strain and tiredness caused by a screen that is too bright or too dark.

Use the “Advanced Settings” to set the automatic adjustment range to suit the monitor’s usage environment or personal preference.

Note

• Be careful not to block the ambient light sensor on the lower side of the monitor when using Auto EcoView.

• Even when the Auto EcoView setting is “On”, the operation switch on the front of the monitor or color adjustment can be used to change the “Brightness” to suit your personal preference. Moreover, the manner in which the Auto EcoView function changes brightness also differs according to the changed value.

• When “DICOM” is selected for the color mode, the Auto EcoView setting is turned “Off”.

Chapter 2 Basic Adjustment/Setting

Function

Advanced Settings

EcoView Optimizer 2

Maximum Minimum

Reset - Return the advanced settings to their default values.

Setting

Range

Brightness 0 to 100 Set the range for automatic brightness adjustment.

By setting the maximum value and minimum value of the adjustment range in advance, the brightness will be adjusted automatically within the set range.

Note

• The maximum and minimum brightness values cannot be set to the same value.

Ambient Light

Bright

Standard

Dark

On Off

Using the default setting is recommended. (Default setting: “Bright” for maximum value, “Dark” for minimum value)

Note

• For details on the “Ambient Light” setting, refer to our web site (http://www.eizoglobal.com/i/autoecoview/).

The monitor automatically adjusts the screen brightness according to the white level of the input signal. This function can reduce power consumption while maintaining the brightness specied by the input signal.

Note

• The setting is turned “Off” in the following cases:

- When “Movie” or “DICOM” is selected for the color

mode

• When set to “On”, the appearance of pale colors may change. If this bothers you, set this function to “Off”.

Description

2-5. Adjusting Brightness

The brightness of the screen can be adjusted to suit the installation environment or personal preference. The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel).

Setting Range

0 to 100

Note

• When Auto EcoView is set to “On”, the adjustment range is restricted as follows. (For details on Auto EcoView, see “Auto EcoView” (page 14).)

- The brightness setting cannot be increased or decreased past the maximum and minimum brightness values

specied in the advanced settings of Auto EcoView.

- Brightness may not be adjusted when the installation environment of the monitor is excessively bright or dark.

Chapter 2 Basic Adjustment/Setting

2-6. Adjusting Volume

The volume of the speakers and headphones can be set individually.

Setting Range

0 to 30

Chapter 2 Basic Adjustment/Setting

Chapter 3 Advanced Adjustment/Setting

This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For basic functions, see “Chapter 2 Basic Adjustment/Setting” (page 12).

3-1. Basic Operation of the Setting menu

Menu display

1. Touch any switch (except ).

The operation guide appears.

2. Select .

The Setting menu appears.

Adjusting/setting

1. Select a menu to adjust/set with and select .

The Sub menu appears.

2. Select an item to adjust/set with and select .

The Adjustment/Setting menu appears.

3. Perform adjustment/setting with or and select to accept the changes.

The Sub menu appears. Selecting

making changes.

during adjustment/setting will cancel the adjustment/setting and restore the state prior to

Exiting

1. Selecting several times will terminate the Setting menu.

Chapter 3 Advanced Adjustment/Setting

3-2. Setting Menu Functions

Color Adjustment

●

The color mode setting status can be adjusted according to personal preference.

Functions that can be adjusted differ depending on the color mode.

Function

Brightness √ √ √ √ Contrast √ - - √ Temperature √ - √ √ Gamma √ - - - Advanced

Settings

Reset √ √ √ √ -

Overdrive √ - - - -

Hue √ - - √ - Saturation √ - - √ -

Gain √ - - - -

User1 User2

√: Adjustable -: Not adjustable

Color Mode

sRGB Paper Movie DICOM

Attention

• It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more after power to the monitor has been turned on before adjusting the monitor.

• The same image may be observed in different colors on multiple monitors due to monitor-specic characteristics. Make ne color adjustments visually when matching colors across multiple monitors.

Function Setting Range Description

Color Mode User1

User2 sRGB

Paper

Movie DICOM

Brightness 0 to 100

Select the desired mode according to the monitor application.

The color setting status can also be adjusted according to personal preference. Select the mode for adjustment and perform adjustment using the relevant functions.

Note

• For details on the adjustment status of each mode, see

“2-3. Switching Display Modes (Color Modes)” (page

13).

The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel).

Note

• If the image is too dark even when the brightness is set to 100, adjust the contrast.

Chapter 3 Advanced Adjustment/Setting

Function Setting Range Description

Contrast 0 to 100 The brightness of the screen is adjusted by varying the video

signal level.

Note

• A contrast of 50 displays every color gradation.

• When adjusting the monitor, it is recommended to

perform brightness adjustment, which does not lose gradation characteristics, prior to contrast adjustment.

• Perform contrast adjustment in the following cases.

- If the image is too dark even when the brightness is

set to 100 (Set the contrast to higher than 50.)

Temperature

Gamma 1.8

Off 4000 K to 10000 K (in increments of 5

. 9300 K is

00 K

included.)

2.0

2.2

2.4

Adjust the color temperature. The color temperature is normally used to express the hue of “White” and/or “Black” with a numerical value. The value is expressed in degrees “K” (Kelvin). The screen becomes reddish at low color temperatures and bluish at high color temperatures, similar to the temperatures of a ame. A gain preset value is set for each color temperature setting value.

Note

• The value shown in “K” is available only as a reference.

• “Gain” allows you to perform more advanced adjustment.

• If set to “Off”, the image is displayed in the preset color

of the monitor (Gain: 100 for each RGB channel).

• When the gain is changed, the color temperature setting changes to “Off”.

Adjust the gamma. While the brightness of the monitor varies depending on the input signal, the variation rate is not proportional to the input signal. Maintaining the balance between the input signal and brightness of the monitor is referred to as “Gamma correction”.

Note

• If “ displayed for the gamma value.

• If “Paper” is selected for the color mode, “Paper” is displayed for the gamma value.

• If “DICOM” is selected for the color mode, “DICOM” is displayed for the gamma value.

” is selected for the color mode, “

sRGB

” is

Chapter 3 Advanced Adjustment/Setting

Function Setting Range Description

Advanced Settings

Reset - Reset any color adjustments for the currently selected color

Overdrive Enhanced

Standard

Off

Hue -50 to 50

Saturation -50 to 50

Gain 0 to 100

This function allows you to set the overdrive intensity based on the use of the monitor. Image lag can be reduced by using the “Enhanced” setting when displaying moving images.

Attention

• Depending on the combination of “Picture Expansion” (page 21) setting and resolution, this function may not work.

Adjust the hue.

Note

• Using this function may prevent some color gradations from being able to be displayed.

Adjust the color saturation.

Note

• Using this function may prevent some color gradations from being able to be displayed.

• The minimum value (-50) changes the screen to monochrome.

The brightness of each red, green, and blue color component is referred to as “Gain”. The hue of “white” can be changed by adjusting the gain.

Note

• Using this function may prevent some color gradations from being able to be displayed.

• The gain value changes according to the color temperature.

• When the gain is changed, the color temperature setting changes to “Off”.

mode back to the default settings.

Chapter 3 Advanced Adjustment/Setting

Signal Settings

●

Set the method for outputting the signal input from the PC to the monitor.

Function Setting Range Description

Picture Expansion Auto

Full Screen Aspect Ratio Dot by Dot

The screen size of the monitor display can be changed.

• “Auto” The monitor automatically changes the screen size according to the aspect ratio and resolution information from the PC.

• “Full Screen” Images are stretched to full screen. Since aspect ratios are not maintained, images may be distorted in some cases.

• “Aspect Ratio” Images are enlarged to full screen without changing the aspect ratio. Since aspect ratios are maintained, blank horizontal or vertical borders may appear.

• “Dot by Dot” Displays the image at the set resolution or size specied by the input signal.

Note

• Example settings

- Full Screen

- Aspect Ratio

- Dot by Dot

*1 Only enabled when input signal information according to which the setting can be automatically

determined is detected during HDMI input

Function Setting Range Description

Sharpness 2 to -2 When a low-resolution image is displayed in “Full

Screen” or “Aspect Ratio” mode, text or lines in the displayed image may be blurred. This function reduces this blurring effect.

Note

• The sharpening setting may not be required depending on the display resolution. (“Sharpness” cannot be selected in such cases.)

Chapter 3 Advanced Adjustment/Setting

Function Setting Range Description

Input Color Format Auto

*2 Only enabled when input signal information according to which the setting can be automatically

determined is detected *3 Only enabled during HDMI input *4 Only enabled during DisplayPort input

YUV 4:2:2 YUV 4:4:4

YUV RGB

Try changing this setting if colors are not displayed correctly.

Note

• This can only be set during DisplayPort or HDMI input.

• This setting is required when a DVI device is connected to the monitor via the HDMI connector port using a DVI-HDMI conversion connector.

• This setting is xed to “RGB” when receiving a DVI signal from the DVI connector.

The color format of the input signal can be specied.

Function Setting Range Description

Input Range Auto

Full Limited

Depending on the PC, black and white of the video level of the signal output to the monitor may be limited. If a limited signal is displayed on the monitor, black will appear faint and white will appear dull, leading to a reduction in contrast. The output range of such signals can be extended to match the actual contrast ratio of the monitor.

• “Auto” Automatically identies the brightness range of the input signal and displays the image accordingly.

• “Full” Extension of the signal output range is not performed.

• “Limited” Extends the signal output range through 0 to 255 and displays the image.

Note

• This can only be set during DisplayPort or HDMI input.

• This setting is xed to “Full” for DVI signal input.

Function Description

Analog Adjustment

Chapter 3 Advanced Adjustment/Setting

Auto

Screen

Adjust

Screen ickering, display position, and size can be adjusted automatically. Selecting “Auto Screen Adjust” displays a message. Select “Yes” to enable this function.

Note

• The automatic screen adjustment function works correctly when an image is fully displayed over the entire displayable area of the screen. It does not work properly in the following cases:

- When an image is only displayed on part of the screen (command prompt window, for example)

- When a black background (wallpaper, etc.) is used

Also, this function may not work properly with some graphic boards.

• When a signal is input into the monitor for the rst time or when a resolution or vertical/horizontal scan frequency not used before is set, adjustment is performed automatically (only for signals with a resolution of 800×600 (SVGA) or higher).

Function Description

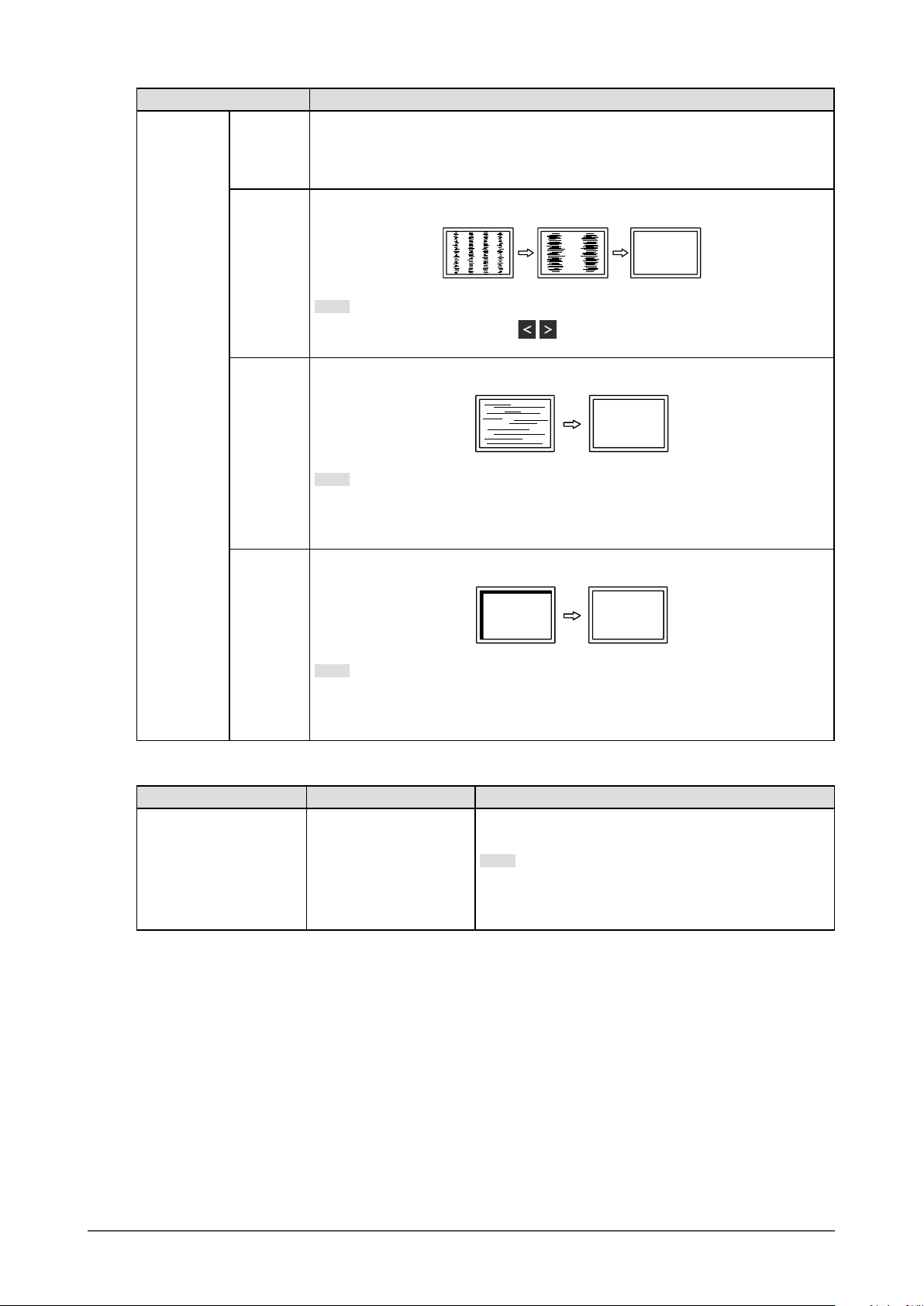

Auto Range Adjust

Every color gradation (0 to 255) can be displayed by automatically adjusting the signal output level. Selecting “Auto Range Adjust” displays a message. Select “Yes” to enable this function.

Clock

Phase

Hor.

Position

Ver.

Position

Flickering of vertical lines on the screen or part of the screen can be reduced.

Note

• Use the operation switches ( ) to make ne adjustments so as not to miss any adjustment points.

Flickering and blurring over the entire screen can be reduced.

Note

• Flickering and blurring may not be completely eliminated depending on your PC or graphics board.

• After setting, adjust the “Clock” again if vertical bars appear.

The display position (horizontal and vertical) of the screen can be adjusted.

Note

• Since the number of pixels and pixel positions are xed on the LCD monitor, only one position is provided to display images correctly. Position adjustment is made to shift an image to the correct position.

*5 Only enabled during D-sub input

Function Setting Range Description

Sound Source Stereo Mini Jack

DisplayPort HDMI

*6 Only enabled during DisplayPort input *7 Only enabled during HDMI (video signal) input

The audio source can be changed when receiving DisplayPort signal input or HDMI signal input.

Note

• This setting is xed to “Stereo Mini Jack” when receiving DVI signal input, HDMI (PC signal) input, or D-Sub signal input.

Chapter 3 Advanced Adjustment/Setting

Preference Settings

●

The monitor’s settings can be congured to suit the usage environment or personal preference.

Function Setting Range Description

Menu Rotation 0°

90° 270°

Power Save On

Off

Change the orientation of the Setting menu when using the monitor screen in the portrait display position.

Note

• Make sure that the cables are correctly connected.

• PC settings must be congured to use the monitor in a portrait

position. For details, refer to our web site. (http://www.eizoglobal.

com).

• The menu cannot be rotated by 180˚. To install the monitor rotated by 180˚, perform monitor adjustment/settings before rotating the monitor.

The monitor can be set to enter power saving mode according to the state of the PC. The monitor changes to power saving mode about 15 seconds after signal input ceases to be detected. When the monitor has shifted to power saving mode, images are not displayed on the screen.

Power Indicator On

Off

Monitor Reset -

• Exiting power saving mode

- If the monitor receives input, it automatically exits power saving

mode and returns to the normal display mode.

Note

• At the time of shifting to power saving mode, a message that indicates the transition is displayed 5 seconds in advance.

• When not using the monitor, you can turn off the main power supply or disconnect the power plug so that the power is cut completely.

• When the monitor is in power saving mode, devices connected to the USB downstream port will still work. Therefore, power consumption of the monitor varies with connected devices even in power saving mode.

• Power consumption varies even when the stereo mini jack cable is connected.

The power indicator (white) can be turned off during screen display.

Restore all settings to their default values except for the following settings.

• Settings on the “Administrator Settings” menu

Note

• For details on default settings, see “Main Default Settings” (page

40).

Chapter 3 Advanced Adjustment/Setting

Language

●

The display language for menus and messages can be selected.

Setting Range

English, Deutsch, Français, Español, Italiano, Svenska, Japanese, Simplied Chinese, Traditional Chinese

Attention

• The display language of the “Administrator Settings” menu cannot be changed.

Information

●

Monitor information (product name, serial number, usage time, resolution, and input signal) can be checked.

Example:

Chapter 3 Advanced Adjustment/Setting

Chapter 4 Administrator Settings

This chapter describes how to congure monitor operation using the “Administrator Settings” menu. This menu is for administrators. Conguration on this menu is not required for normal monitor use.

4-1.

Basic Operation of the “Administrator Settings” Menu

Menu display

1. Touch to turn off the monitor.

2. While touching the leftmost switch, touch

The “Administrator Settings” menu appears.

for more than 2 seconds to turn on the monitor.

Setting

1. Select an item to set with and select .

The Adjustment/Setting menu appears.

2. Set with and select .

The “Administrator Settings” menu appears.

Applying and exiting

1. Select “Apply” and then .

The settings are applied and the “Administrator Settings” menu exits.

Attention

• The language (English) of the “Administrator Settings” menu cannot be changed.

Chapter 4 Administrator Settings

4-2. Functions of the “Administrator Settings” Menu

Function Setting Range Description

Auto Input Detection On

Off

Compatibility Mode On

Off

On-Screen Logo On

Off

Key Lock Off

All

This function automatically recognizes the connector through which PC signals are input, and displays images on the screen accordingly.

• “On” When the monitor is connected to multiple PCs, if a specic PC enters power saving mode or no signals are input to the monitor, the connector is automatically changed to another one to which signals are input.

• “Off” This function displays the signal from the selected connector regardless of whether a signal is input or not. In this case,

you can select the input signal to display using the operation switch on the front of the monitor. For details, see

“2-2. Switching Input Signals” (page 12).

Note

• This product automatically recognizes the connector through which PC signals are input, and displays images on the screen accordingly regardless of whether this function is set to On or Off just after the main power switch on the rear side of the monitor has been turned on.

• When this function is set to “On”, the monitor only enters power saving mode after all connected PCs have entered power saving mode or have been switched off.

When the monitor power is turned off/on with a PC connected via the DisplayPort connector, window and icon positions may have shifted or the image may not be displayed normally. If this happens, set this function to “On”.

When the monitor is turned on, the EIZO logo appears on the screen. When this function is set to “Off”, the EIZO logo does not appear.

In order to prevent changes to settings, the operation switches on the front of the monitor can be locked.

• “Off”

Enable all switches.

• “Menu”

Lock the

• “All”

Lock all switches except the power switch.

switch.

Chapter 4 Administrator Settings

Chapter 5 Troubleshooting

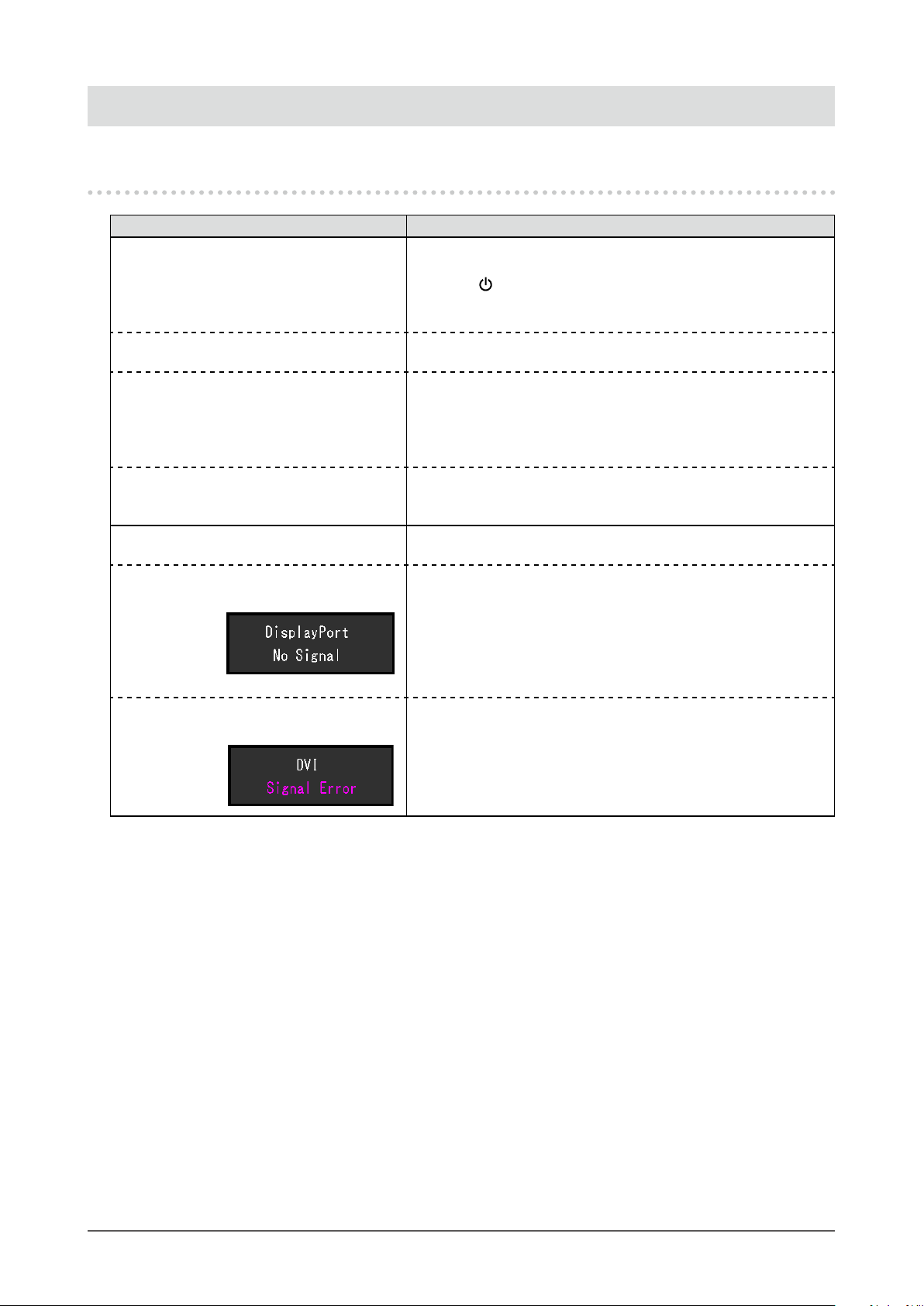

5-1. No Picture

Problem Possible cause and remedy

1. No picture

• Power indicator does not light up.

• Power indicator is lighting white. • Increase “Brightness”, “Contrast”, or “Gain” in the Setting menu

• Power indicator is lighting orange. • Switch the input signal.

• Power indicator is ashing orange and

white.

2. The message below appears. This message appears when the signal is not input correctly even

• This message appears when no signal is input.

Example:

• The message shows that the input signal is out of the specied frequency range.

Example:

• Check whether the power cord is connected properly.

• Turn on the main power switch on the rear side of the monitor.

• Tou c h

• Turn off the main power switch on the rear side of the monitor,

and then turn it on again a few minutes later.

(see “Color Adjustment” (page 18)).

• Move the mouse or press any key on the keyboard.

• Check whether the PC is turned on.

• Turn off the main power switch on the rear side of the monitor,

and then turn it on again.

• This symptom may occur when the PC is connected to the DisplayPort connector. Use a signal cable recommended by us for the connection. Turn the monitor off and on.

though the monitor is functioning properly.

• The message shown left may appear, because some PCs do not output the signal immediately after power-on.

• Check whether the PC is turned on.

• Check whether the signal cable is connected properly.

• Switch the input signal.

• Turn off the main power switch on the rear side of the monitor,

and then turn it on again.

• Check whether the PC is congured to meet the resolution and vertical scan frequency requirements of the monitor (see “1-3.

Supported Resolutions” (page 10)).

• Reboot the PC.

• Select an appropriate setting using the graphics board’s utility.

Refer to the User’s Manual of the graphics board for details.

Chapter 5 Troubleshooting

5-2. Imaging Problems (For Both Digital and Analog)

Problem Possible cause and remedy

1. The screen is too bright or too dark. • Use “Brightness” or “Contrast” in the Setting menu to

adjust it (see “Color Adjustment” (page 18)). (The LCD monitor backlight has a limited life span. If the screen becomes dark or begins to icker, contact your local EIZO representative.)

• If the screen is too bright, try changing the Auto EcoView setting to “On”. The monitor detects the ambient brightness to adjust the screen brightness automatically (see “Auto EcoView” (page 14)).

2. “Brightness” cannot be adjusted When Auto EcoView is set to “On”, “Brightness” may not be adjustable due to the advanced settings of Auto EcoView.

• Cannot increase/decrease setting value (“

or “

” is displayed in gray)

- “Brightness” adjustment menu via operation switch

- “Brightness” adjustment menu in color adjustment

• Cannot increase/decrease setting value (“

and “

” are displayed in gray)

- “Brightness” adjustment menu via operation switch

- “Brightness” adjustment menu in color adjustment

• The bright adjustment range of the Auto EcoView function

”

can be limited to ensure that the screen is neither too bright nor too dark. When the adjustment range is limited, values outside the range cannot be set. If you want to set a value outside the range, try changing the following settings.

- Change the maximum and minimum values for “Brightness” in the Auto EcoView advanced settings.

- Set Auto EcoView to “Off”.

For details on Auto EcoView settings, see “Auto EcoView”

(page 14).

• Brightness adjustment may not be possible when the

”

installation environment of the monitor is excessively bright or dark. In this case, try changing the following settings.

- Change the maximum and minimum values for “Ambient Light” in the Auto EcoView advanced settings.

- Set Auto EcoView to “Off”.

For details on Auto EcoView settings, see “Auto EcoView”

(page 14).

3. Text is blurred

4. Afterimages appear • Afterimages are particular to LCD monitors. Avoid

5. Green / red / blue / white dots or dark dots remain on the screen.

6. Interference patterns or pressure marks remain on the screen.

• Check whether the PC is congured to meet the resolution and vertical scan frequency requirements of the monitor (see “1-3. Supported Resolutions” (page 10)).

• When an image is displayed with a resolution other than recommended, text or lines in the displayed image may blur. In this case, try adjusting “Sharpness” in the Setting menu (see “Sharpness” (page 21)).

displaying the same image for a long time.

• Use the screen saver or power saving function to avoid displaying the same image for extended periods of time. Depending on the image, an afterimage may appear even if it was displayed for a short period of time. To remove such a phenomenon, change the image or keep the power turned off for several hours.

• This is due to LCD panel characteristics and not a malfunction.

• Leave the monitor with a white or black screen. The symptom may disappear.

Chapter 5 Troubleshooting

Problem Possible cause and remedy

7. Noise appears on the screen. • In the Setting menu, set “Overdrive” to “Off” (see

“Overdrive” (page 20)).

• When inputting HDCP system signals, normal images may not be displayed immediately.

8. (DisplayPort signal input) When you switch the power back on or return from power save mode, windows or icons may have shifted position.

9. (DisplayPort or HDMI input) The color shown on the screen is not correct.

10. The image does not display on the entire screen.

• Turn the setting “On” for “Compatibility Mode” on the “Administrator Settings” menu (see “Compatibility Mode”

(page 27)).

• Try changing “Input Color Format” in the Setting menu (see

“Input Color Format” (page 22)).

• Try changing “Picture Expansion” in the Setting menu (see

“Picture Expansion” (page 21)).

5-3. Imaging Problems (For Analog Only)

Problem Possible cause and remedy

1. Display position is incorrect. • Use “Position” in the Setting menu to correct the image

position (see “Hor. Position”, “Ver. Position” (page 23)).

• If the problem persists, use the graphics board’s utility if available to change the display position.

2. Vertical bars appear on the screen or a part

oftheimageisickering.

3. Wholescreenisickeringorblurring.

• Use “Clock” in the Setting menu to adjust it (see “Clock”

(page 23)).

• Use “Phase” in the Setting menu to adjust it (see “Phase”

(page 23)).

Chapter 5 Troubleshooting

5-4. Other Problems

Problem Possible cause and remedy

1. The Setting menu does not appear. • Check whether the switch operation lock function is active

(see “Key Lock” (page 27)).

2. No audio output. • Check whether the stereo mini jack cable is connected properly.

• Check whether volume is set to 0.

• Check the PC and audio playback software to see

whether they are congured correctly.

• Check the “Sound Source” setting when using DisplayPort input or HDMI input (see “Sound Source”

(page 23)).

3. USB devices connected to the monitor do not work.

4. Powerindicatorisashingorangeand white.

• Check whether the USB cable is connected correctly (see

“6-5. Making Use of USB (Universal Serial Bus)” (page

38)).

• Try using a different USB port on the monitor.

• Try using a different USB port on the PC.

• Reboot the PC.

• If the peripheral devices work correctly when they are

directly connected to the PC, contact your local EIZO representative.

• Check whether the PC and OS are USB compliant. (For USB compliance of the respective devices, consult their manufacturers.)

• Depending on the USB 3.0 host controller that you are using, connected USB devices may not be recognized correctly. Update to the latest USB 3.0 driver provided by each manufacturer, or connect the monitor to the USB 2.0 port.

• Check the PC’s BIOS setting for USB when using Windows. (Refer to the manual of the PC for details.)

• This symptom may occur when the PC is connected to the DisplayPort connector. Use a signal cable recommended by us for the connection. Turn the monitor off and on.

• Check the connection and condition of the USB devices connected to the monitor.

• Turn off the main power switch on the rear side of the monitor, and then turn it on again.

Chapter 5 Troubleshooting

Chapter 6 Reference

6-1. Attaching the Optional Arm

An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the supported optional arm (or optional stand). http://www.eizoglobal.com

Attention

• When attaching an arm or stand, follow the instructions of the respective User’s Manual.

• When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to

the VESA standard. Use the VESA mounting screws supplied with this product when attaching the arm or stand.

- Clearance between screw holes: 100 mm × 100 mm

- VESA mount of the arm or stand, external dimensions: 122 mm x 122 mm or less

- Plate thickness: 2.6 mm

- Strong enough to support weight of the monitor unit (excluding the stand) and attachments such as cables.

• When attaching an arm or stand, the installable orientations and movement range (tilt angle) are as follows:

Orientation

Movement range (tilt angle)

Up: 45˚ Down: 45˚

*1 When installed in this orientation, periodically clean the area around the power connector. Dust, water, or

oil adhered to this area may result in re.

• Connect the cables after attaching an arm or stand.

• Do not move the removed stand up and down. Doing so may result in injury or device damage.

• The monitor, arm, and stand are heavy. Dropping them may result in injury or equipment damage.

Chapter 6 Reference

Attaching the Optional Arm (or Optional Stand)

●

1. Lay the LCD monitor on a soft cloth spread over a stable and at surface with the panel surface facing down.

2. Remove the stand.

As shown in the gure, while holding down the lock button (1), slide the stand toward the stand base until it touches the stand base (2). Then, lift the stand up (3).

(3)

(2)

(1)

3. Attach the arm or stand to the monitor.

Use the VESA mounting screws supplied with this product when attaching the arm or stand.

Attaching the original stand

●

1. Remove the xing screws on the optional arm (or optional stand), and detach the optional arm (or optional stand).

2. To prevent damaging the panel surface, lay the monitor with its panel surface facing down on a soft cloth spread on a stable surface.

3. Attach the original stand.

As shown below, insert the four tabs on the stand into the square holes on the back panel (1) and slide the stand towards the upper portion of the monitor until it makes a clicking sound (2).

(1)

(2)

Click

Chapter 6 Reference

6-2. Detaching / Attaching the Cable Holder

Detaching the cable holder

●

1. Slide the cable holder to the left, and detach it from the stand.

Attaching the cable holder

●

1. Align the tabs of the cable holder with the attachment parts of the stand.

2. Slide the cable holder to the right, and attach it to the stand.

Chapter 6 Reference

6-3. Detaching / Attaching the Cable Cover

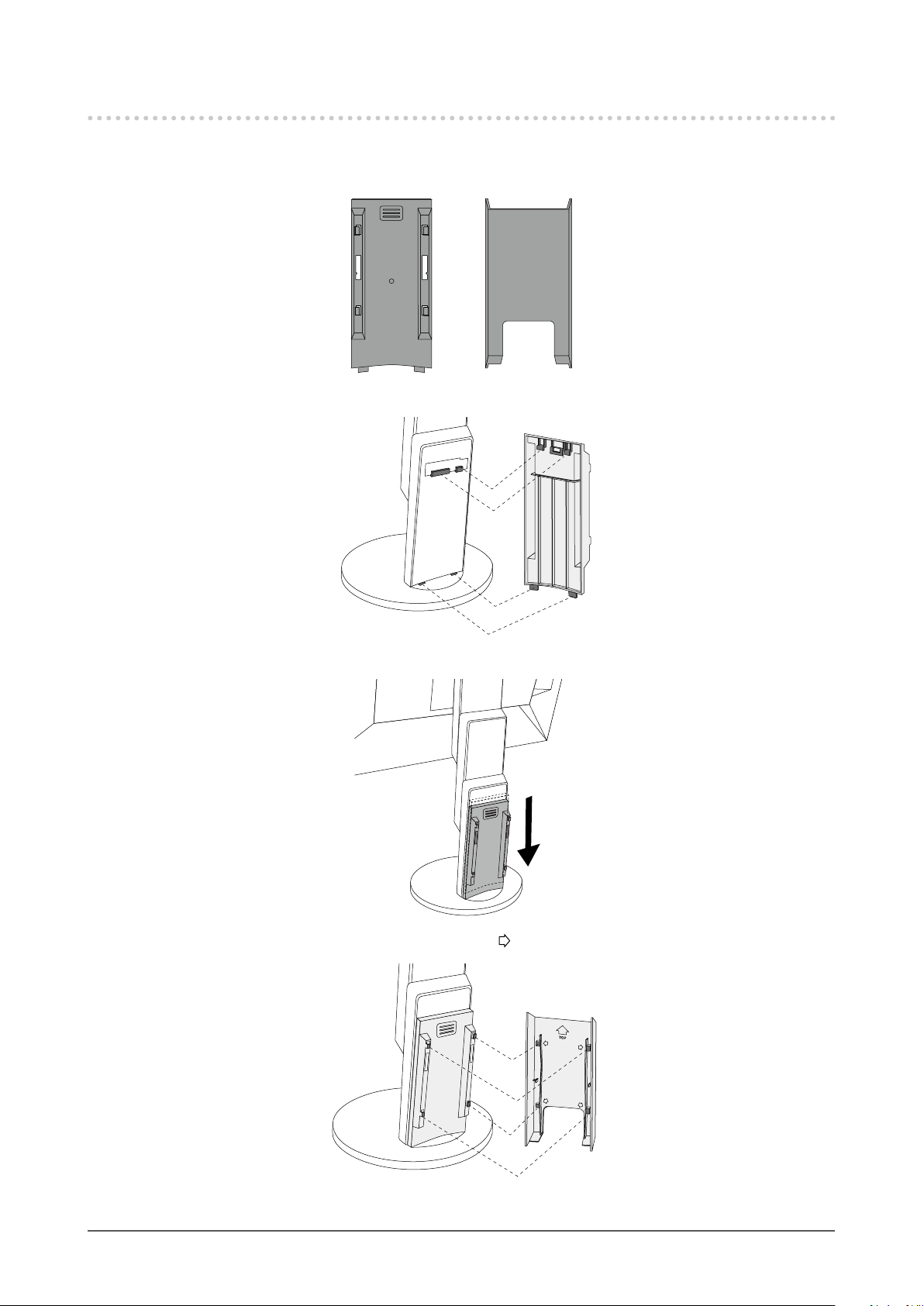

Attaching the cable cover

●

1. Align the tabs of (A) with the attachment parts of the stand.

2. Slide (A) downward to secure the tabs to the attachment parts of the stand.

3. Check the tabs of (B) (four locations indicated by ) and the attachment locations of (A).

4. Pass the cables between (A) and (B), and align (B) with (A) to t in.

Chapter 6 Reference

5. Slide (B) downward and secure it to (A).

Detaching the cable cover

●

1. Slide (B) upward, and detach it from (A).

2. While holding down of (A) lightly, slide (A) upward to detach it from the stand.

Chapter 6 Reference

6-4. Connecting Multiple PCs

This product can be connected to multiple PCs and allows you to switch between the connections for display.

Connection examples

●

Analog Input (D -Sub)

Signal cable MD-C87 (option)

D-Sub mini

15-pin connector

To PC 1 To PC 2 To PC 3 To PC 4

Note

• You can select the input signal to display using the operation switch on the front of the monitor. For details, see “2-2. Switching Input Signals” (page 12).

• This product provides a function that automatically recognizes the connector through which PC signals are input,

and displays images on the screen accordingly. For details, see “Auto Input Detection” (page 27).

Digital (DisplayPor)

Signal cable PP200 (supplied)

DisplayPort

connector

Digital (HDMI)

Signal cable HH200HS (option)

Digital (DVI)

Signal cable FD-C39 (option)

DVI connectorHDMI connector

Chapter 6 Reference

6-5. Making Use of USB (Universal Serial Bus)

This monitor is equipped with a USB hub. It functions as a USB hub when connected to a USBcompatible PC, allowing the connection of peripheral USB devices.

Note

• This product supports USB 3.0. When connecting to peripheral devices that support USB 3.0, high-speed data communication is possible (however, only when the USB cable used to connect the PC and peripheral device is USB 3.0 compliant).

Required System Environment

●

• A PC equipped with a USB port

• USB cable

Attention

• This monitor may not work depending on the PC, OS, or peripheral devices to be used. For USB compatibility of peripheral devices, contact their manufacturers.

• Even when the monitor is in power saving mode, devices connected to the USB downstream port will still work. Therefore, power consumption of the monitor varies with connected devices even in power saving mode.

• When the main power of the monitor is off, a device connected to the USB downstream port will not operate.

Connection Procedure (Setup of USB Function)

●

1. Connect the monitor rst to a PC using the signal cable, and start the PC.

2. Connect the USB cable between the USB downstream port of the PC and the USB upstream port of the monitor.

The USB hub function is set up automatically upon connection of the USB cable.

3. Connect a peripheral USB device to the USB downstream port of the monitor.

USB

downstream

port

USB upstream

port

Chapter 6 Reference

6-6. Specications

LCD Panel Ty p e IPS (Anti-Glare)

Backlight LED Size 60 cm (23.8 inch) Native Resolution 1920 dots × 1080 lines Display Size (H × V) 527.0 mm × 296.5 mm Pixel Pitch 0.2745 mm Display Colors 8-bit colors: 16.77 million colors

Viewing Angle (H / V, typical) 178˚ / 178˚ Response Time (typical) Gray-to-gray: 14 ms

Video Signals Input Terminals DisplayPort (HDCP) × 1, HDMI TypeA (HDCP)

(HDCP) × 1, and D-Sub mini 15-pin × 1

Digital Scanning Frequency (H / V)

Analog Scanning Frequency (H / V)

Synchronization Signal Separate Max. Dot Clock 148.5 MHz

USB Port Upstream port × 1, downstream port × 2

Standard USB Specication Revision 3.0 Communication Speed 5 Gbps (super), 480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low) Supply Current Downstream: Max. 900 mA per port

Audio Audio Input Format DisplayPort: 2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz / 88.2

Speakers 1 W + 1 W Headphones 2 mW + 2 mW (32 Ω) Input Terminals Line: Stereo mini jack × 1

Output Terminals Headphones: Stereo mini jack × 1

Power Input 100 - 240 VAC ±10 %, 50 / 60 Hz 0.75 A - 0.40 A

Maximum Power Consumption 42 W or less Power Save Mode 0.5 W or less (no USB device connected, default settings) Standby Mode 0.5 W or less (no USB device connected, default settings)

Physical Specications

Operating Environmental Requirements

Dimensions Min. height: 537.7 mm × 322.7 mm × 190 mm (W × H × D)

Dimensions (Without Stand) 537.7 mm × 313.1 mm × 45.5 mm (W × H × D) Net Weight Approx. 5.5 kg Net Weight (Without Stand) Approx. 3.5 kg Height Adjustment Range 180 mm (Tilt: 35˚) / 172.7 mm (Tilt: 0˚) Tilt Up 35˚, down 5˚ Swivel 344˚ Vertical Rotation Left 90˚, right 90˚ Temperature 5 ˚C to 35 ˚C (41 ˚F to 95 ˚F) Humidity 20 % to 80 % R.H. (no condensation) Air Pressure 540 hPa to 1060 hPa

31 kHz to 68 kHz (DisplayPort, DVI), 15 kHz to 68 kHz (HDMI) / 59 Hz to 61 Hz (DisplayPort, DVI), 49 Hz to 61 Hz (HDMI) (VGA TEXT: 69 Hz to 71 Hz)

31 kHz to 81 kHz / 55 Hz to 76 Hz

kHz / 96 kHz)

HDMI: 2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz)

DisplayPort × 1, HDMI TypeA × 1 (shared with video signal)

(Tilt: 0˚)

Max. height: 537.7 mm × 506.6 mm × 199.1 mm (W × H × D)

(Tilt: 35˚)

× 1, DVI-D

Chapter 6 Reference

Transportation/ Storage Environmental Requirements

*1 HDMI CEC (or mutual control) is not supported.

Main Default Settings

●

Auto EcoView On EcoView Optimizer 2 On Color Mode User 1 Picture Expansion DisplayPort input Aspect Ratio

Input Color Format DisplayPort input Auto

Power Save On Language English Power Indicator On Auto Input Detection Off Compatibility Mode Off On-Screen Logo On Key Lock Off

Temperature -20 ˚C to 60 ˚C (-4 ˚F to 140 ˚F) Humidity 10 % to 90 % R.H. (no condensation) Air Pressure 200 hPa to 1060 hPa

HDMI (PC signal) input Aspect Ratio HDMI (video signal) input Auto DVI-D input Aspect Ratio D-Sub input Aspect Ratio

HDMI (PC signal) input RGB HDMI (video signal) input Auto

Accessories

●

Signal cable • HH200HS (HDMI-HDMI)

• FD-C39 (DVI-DVI)

• MD-C87 (D-Sub-D-Sub)

Cleaning Kit EIZO “ScreenCleaner” For the latest information about accessories, refer to our web site. http://www.eizoglobal.com

Chapter 6 Reference

Appendix

Trademark

The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

The DisplayPort Compliance Logo and VESA are registered trademarks of the Video Electronics Standards Association.

The SuperSpeed USB Trident Logo is a registered trademark of USB Implementers Forum, Inc.

Kensington and Microsaver are registered trademarks of ACCO Brands Corporation. Thunderbolt is a trademark of Intel Corporation in the United States and/or other countries. Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation in the United

States and other countries. Adobe is a registered trademark of Adobe Systems Incorporated in the United States and other

countries. Apple, macOS, Mac OS, OS X, Macintosh and ColorSync are registered trademarks of Apple Inc. EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor

and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorEdge Tablet Controller, ColorNavigator, CuratOR, EcoView NET, EIZO EasyPIX, EIZO Monitor

Congurator, EIZO ScreenSlicer, G-Ignition, i • Sound, Quick Color Match, RadiLight, Re/Vue, Screen Administrator, Screen InStyle and UniColor Pro are trademarks of EIZO Corporation.

All other company and product names are trademarks or registered trademarks of their respective owners.

License

The bitmap font used for this product is designed by Ricoh Industrial Solutions Inc.

ENERGY STAR

As an ENERGY STAR Partner, EIZO Corporation has determined that this product meets the ENERGY STAR guidelines for energy efciency.

Appendix

TCO

This product has acquired the TCO standard that relates to the safety, ergonomics, environment and so forth of ofce equipment.

Congratulations!

ThisproductisTCOCertied–forSustainableIT

TCO Certi ed is an international third party sustainability certi cation for IT products. TCO Certi ed ensures that the manufacture, use and recycling of IT products re ect environmental, social and economic responsibility. Every TCO Certi ed product model is veri ed by an accredited independent test laboratory.

This product has been veri ed to meet all the criteria in TCO Certi ed, including:

Corporate Social Responsibility

Socially responsible production – working conditions and labor law in manufacturing country

EnergyEfciency

Energy ef ciency of product and power supply. Energy Star compliant, where applicable

Environmental Management System

Manufacturer must be certi ed according to either ISO 14001 or EMAS

Minimization of Hazardous Substances

Limits on cadmium, mercury, lead & hexavalent chromium including requirements for mercury-free products, halogenated substances and hazardous  ame retardants

Design for Recycling

Coding of plastics for easy recycling. Limit on the number of different plastics used.

Product Lifetime, Product Take Back

Minimum one-year product warranty. Minimum three-year availability of spare parts. Product takeback

Packaging

Limits on hazardous substances in product packaging. Packaging prepared for recycling

Ergonomic, User-centered design

Visual ergonomics in products with a display. Adjustability for user comfort (displays, headsets) Acoustic performance – protection against sound spikes (headsets) and fan noise (projectors, computers) Ergonomically designed keyboard (notebooks)

Electrical Safety, minimal electro-magnetic Emissions Third Party Testing

All certi ed product models have been tested in an independent, accredited laboratory.

A detailed criteria set is available for download at www.tcodevelopment.com, where you can also  nd a searchable database of all TCO Certi ed IT products.

TCO Development, the organization behind TCO Certi ed, has been an international driver in the  eld of Sustainable IT for 20 years. Criteria in TCO Certi ed are developed in collaboration with scientists, experts, users and manufacturers. Organizations around the world rely on TCO Certi ed as a tool to help them reach their sustainable IT goals. We are owned by TCO, a non-pro t organization representing of ce workers. TCO Development is headquartered in Stockholm, Sweden, with regional presence in North America and Asia

For more information, please visit

www.tcodevelopment.com

Appendix

FCC Declaration of Conformity

For U.S.A., Canada Only

FCC Declaration of Conformity

We, the Responsible Party EIZO Inc.

5710 Warland Drive, Cypress, CA 90630 Phone: (562) 431-5011

declare that the product Trade name: EIZO

Model: FlexScan EV2451

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help.

Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould

void the user’s authority to operate the equipment.

Note

UsetheattachedspeciedcablebeloworEIZOsignalcablewiththismonitorsoastokeep

interference within the limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable (enclosed)

Canadian Notice

This Class B information technology equipment complies with Canadian ICES-003. Cet équipement informatique de classe B est conforme à la norme ICES-003 du Canada.

Appendix

LIMITED WARRANTY

EIZO Corporation (hereinafter referred to as “EIZO”) and distributors authorized by EIZO (hereinafter referred to as the

“

”) warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the

“

”) who purchased the product

speci ed in this document (hereinafter referred to as the “

”) from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (de ned below) that the Product malfunctions or is damaged in the course of normal use of the Product in accordance with the description in the instruction manual attached to the Product (hereinafter referred to

as the “

The period of this Warranty is limited to (i) five (5) years from the date of purchase of the Product; or, limited to the expiration of (ii) 30,000 hours of its use of the Product (hereinafter referred to as the “

”). EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty.

EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon expiration of  ve (5) years after the production of the product is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards. If the unit cannot be repaired due to its condition or the stockout of

a relevant

part, EIZO and Distributors may offer the replacement by a product with equivalent performance instead of repairing it. The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict

any legal rights of the Original Purchaser. Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty

whatsoever in any of the cases as set forth below:

(a) Any defect of the Product caused by freight damage, modi cation, alteration, abuse, misuse, accident, incorrect

and/or backlight, etc. (e.g. changes in brightness, changes in brightness uniformity, changes in color, changes in

(g) Any normal deterioration of the product, particularly that of consumables, accessories, and/or attachments (e.g.

To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of such purchase when requesting services under the Warranty.

The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period.

EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.

EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE. IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND DISTRIBUTORS ARISING OUT OF THIS LIMITED WARRANTY AND/OR SALES.

Distributors Warranty”), to the original purchaser (hereinafter referred to as the “Original Purchaser

Product

User’s Manual”).

installation, disaster, faulty maintenance and/or improper repair by third party other than EIZO and Distributors; (b) Any incompatibility of the Product due to possible technical innovations and/or regulations; (c) Any deterioration of the sensor; (d) Any deterioration of display performance caused by the deterioration of expendable parts such as the LCD panel

color uniformity, defects in pixels including burnt pixels, etc.); (e) Any defect of the Product caused by external equipment; (f) Any defect of the Product on which the original serial number has been altered or removed;

buttons, rotating parts, cables, User’s Manual, etc.); and (h) Any deformation, discoloration, and/or warp of the exterior of the product including that of the surface of the LCD

panel.

Warranty Period

Appendix

Recycling Information

This product, when disposed of, is supposed to be collected and recycled according to your country’s legislation to reduce environmental burden. When you dispose of this product, please contact a distributor or an af liate in your country. The contact addressees are listed on the EIZO website below. http://www.eizoglobal.com

For recycling information for customers in Switzerland, please refer to the following website. http://www.swico.ch

For customers in the United States, a free take-back program for the product and packaging materials is available. Please refer to the following website for details. http://www.eizo.com/warranty/recycling/

Dieses Produkt muss gemäß den Vorschriften Ihres Landes zur Entlastung der Umwelt recyclet werden. Wenden Sie sich bei der Entsorgung dieses Produkts an einen Verteiler oder eine Tochtergesellschaft in Ihrem Land. Die Adressen zur Kontaktaufnahme sind auf der unten angegebenen Website von EIZO aufgeführt. http://www.eizoglobal.com

Kunden in der Schweiz entnehmen Informationen zum Recycling der folgenden Website: http://www.swico.ch

Ce produit doit être jeté aux points de collecte prévus à cet effet et recyclé conformément à la législation de votre pays, a n de réduire l’impact sur l’environnement. Lorsque vous jetez ce produit, veuillez contacter un distributeur ou une société af liée de votre pays. Les adresses des distributeurs sont répertoriées sur le site Web EIZO ci-dessous. http://www.eizoglobal.com

Pour les clients en Suisse, veuillez consulter le site Web suivant afin d’obtenir des informations sur le recyclage. http://www.swico.ch

Este producto debe desecharse y reciclarse según la legislación del país para reducir el impacto medioambiental. Cuando desee deshacerse de este producto, póngase en contacto con un distribuidor o una  lial de su país. Encontrará las direcciones de contacto en el sitio web de EIZO que se indica a continuación. http://www.eizoglobal.com

Per lo smaltimento e il riciclaggio del presente prodotto, attenersi alle normative vigenti nel proprio paese per ridurre l’impatto ambientale. Per lo smaltimento, rivolgersi ad un distributore o un af liato presenti nel proprio paese. Gli indirizzi sono elencati nel sito Web EIZO riportato di seguito. http://www.eizoglobal.com

Per informazioni sul riciclaggio per i clienti in Svizzera, consultare il sito Web riportato di seguito. http://www.swico.ch

Informationen zum Thema Recycling

Informations sur le recyclage

Información sobre reciclaje

Informazioni sul riciclaggio

Appendix

Återvinningsinformation

När denna produkt kasseras ska den hanteras och återvinnas enligt landets föreskrifter för att reducera miljöpåverkan. När du kasserar produkten ska du kontakta en distributör eller representant i ditt land. Kontaktadresserna listas på EIZO-webbplatsen nedan. http://www.eizoglobal.com

Πληροφορίεςανακύκλωσης

Το προϊόν αυτό, όταν απορρίπτεται, πρέπει να συλλέγεται και να ανακυκλώνεται σύμφωνα με τη νομοθεσία της χώρας σας έτσι ώστε να μην επιβαρύνει το περιβάλλον. Για να απορρίψετε το προϊόν, επικοινωνήστε με έναν αντιπρόσωπο ή μια θυγατρική εταιρεία στη χώρα σας. Οι διευθύνσεις επικοινωνίας αναγράφονται στην τοποθεσία web της EIZO παρακάτω. http://www.eizoglobal.com

По истечении срока службы данного продукта его следует принести на сборный пункт и утилизировать в соответствии с действующими предписаниями в вашей стране, чтобы уменьшить вредное воздействие на окружающую среду. Прежде чем выбросить данный продукт, обратитесь к дистрибьютору или в местное представительство компании в вашей стране. Контактные адреса можно найти на веб-узле EIZO. http://www.eizoglobal.com

Wanneer u dit product wilt weggooien, moet het uit milieu-overwegingen worden verzameld en gerecycled volgens de betreffende wetgeving van uw land. Wanneer u dit product wilt weggooien, moet u contact opnemen met een distributeur of een partner in uw land. De contactadressen worden vermeld op de volgende EIZO-website. http://www.eizoglobal.com

Este produto, quando o deitar fora, deve ser recolhido e reciclado de acordo com a legislação do seu país para reduzir a poluição. Quando deitar fora este produto, contacte um distribuidor ou uma  lial no seu país. Os endereços de contacto estão listados no website do EIZO, abaixo. http://www.eizoglobal.com

Dette produkt forventes ved bortskaffelse at blive indsamlet og genbrugt i overensstemmelse med lovgivningen i dit land for at reducere belastningen af miljøet. Når du bortskaffer denne produkt, skal du kontakte en distributør eller et tilknyttet selskab i dit land. Adresserne på kontaktpersonerne er angivet på EIZO’s websted nedenfor. http://www.eizoglobal.com

Tuote tulee hävittää kierrättämällä maan lainsäädännön mukaisesti ympäristön kuormittumisen vähentämiseksi. Kun hävität tuotteen, ota yhteyttä jälleenmyyjään tai tytäryhtiöön maassasi. Yhteystiedot löytyvät EIZOn Internet-sivustolta. http://www.eizoglobal.com

Сведенияпоутилизации

Informatie over recycling

Informação sobre reciclagem

Oplysninger om genbrug

Kierrätystä koskevia tietoja

Appendix

Wykorzystanie surowców wtórnych

Ten produkt po zużyciu powinien być zbierany i przetwarzany zgodnie z krajowymi przepisami dotyczącymi ochrony środowiska. Wyrzucając ten produkt, należy skontaktować się z lokalnym dystrybutorem lub partnerem. Adresy kontaktowe można znaleźć we wskazanej poniżej witrynie internetowej  rmy EIZO. http://www.eizoglobal.com

Informace o recyklaci

Při likvidaci produktu musí být produkt vyzvednut a recyklován podle zákonů příslušné země, aby nedocházelo k zatěžování životního prostředí. Zbavujete-li se produktu, kontaktujte distributora nebo pobočku ve své zemi. http://www.eizoglobal.com

Keskkonnakoormuse vähendamiseks tuleks kasutatud tooted kokku koguda ja võtta ringlusse vastavalt teie riigi seadustele. Kui kõrvaldate käesoleva toote, võtke palun ühendust turustaja või  liaaliga oma riigis. Kontaktisikud on toodud EIZO veebilehel järgmisel aadressil: http://www.eizoglobal.com

Jelen terméket, amikor eldobjuk, az illető ország törvényei alapján kell összegyűjteni és újrahasznosítani, hogy csökkentsük a környezet terhelését. Amikor ezt a terméket eldobja, kérjük lépjen kapcsolatba egy országon belüli forgalmazóval vagy társvállalkozással. A kapcsolat címei az EIZO alábbi weboldalán találhatók felsorolva: http://www.eizoglobal.com

Ob koncu uporabe odslužen izdelek izročite na zbirno mesto za recikliranje v skladu z okoljevarstveno zakonodajo vaše države. Prosimo, da se pri odstranjevanju izdelka obrnete na lokalnega distributerja ali podružnico. Kontaktni naslovi so objavljeni na spodaj navedenih spletnih straneh EIZO: http://www.eizoglobal.com

Pri likvidácii musí byť tento výrobok recyklovaný v súlade s legislatívou vašej krajiny, aby sa znížilo zaťaženie životného prostredia. Keď sa chcete zbaviť tohto výrobku, kontaktujte prosím distribútora alebo pobočku vo vašej krajine. Zoznam kontaktných adries je uvedený na nasledovnej webovej stránke  rmy EIZO: http://www.eizoglobal.com

Utilizējot šo produktu, tā savākšana un pārstrāde veicama atbilstoši jūsu valsts likumdošanas prasībām attiecībā uz slodzes uz vidi samazināšanu. Lai veiktu šī produkta utilizāciju, sazinieties ar izplatītāju vai pārstāvniecību jūsu valstī. Kontaktadreses ir norādītas zemāk minētajā EIZO tīmekļa vietnē. http://www.eizoglobal.com

Kontaktní adresy jsou uvedeny na následující webové stránce společnosti EIZO.

Ringlussevõtu alane teave

Újrahasznosítási információ

Podatki o recikliranju

Informácie o recyklácii

Pārstrādesinformācija

Appendix

Informacijaapiegrąžinamąjįperdirbimą

Šalinant (išmetant) šiuos gaminius juos reikia surinkti ir perdirbti grąžinamuoju būdu pagal jūsų šalies teisės aktus, siekiant sumažinti aplinkos teršimą. Kai reikia išmesti šį gaminį, kreipkitės į jūsų šalyje veikiančią gaminių pardavimo atstovybę arba jos  lialą. Kontaktiniai adresatai nurodyti EIZO interneto svetainėje. http://www.eizoglobal.com

При изхвърлянето на този продукт се предлага събирането и рециклирането му съобразно законите на вашата страна за да се намали замърсяването на околната среда. Когато искате да се освободите от този продукт, моля свържете се с търговския му представител или със съответните органи отговарящи за това във вашата страна. Данните за връзка с нас са описани на следния Интернет сайт на EIZO: http://www.eizoglobal.com

Acest produs, când debarasat, trebuie colectat şi reciclat conform legislaţiei ţării rspective ca să reducem sarcina mediului. Când se debarasează de acest produs, vă rugăm să contactaţi un distribuitor sau un a liat al ţării respective. Adresele de contact le găsiţi pe pagina de web al EIZO: http://www.eizoglobal.com

Bu ürünün, atılacağı zaman, ülkenizin çevre kirliliğinin azaltılması konusundaki mevzuatına göre toplanması ve yeniden değerlendirilmesi gerekmektedir. Ürünü atacağınız zaman lütfen ülkenizdeki bir distribütör veya ilgili kuruluşla temasa geçiniz. İrtibat adresleri aşağıdaki EIZO web sitesinde verilmiştir. http://www.eizoglobal.com

Информацияотноснорециклиране

Informaţiereferitoarelareciclare

GeriDönüşümBilgisi

Appendix

2nd Edition-April, 2017

03V25976B1

(UM-EV2451)

Eizo FlexScan EV2451-BK User manual

Specifications and Main Features

Frequently Asked Questions

User Manual

User’s Manual

Notice for this monitor

Cleaning

To use the monitor comfortably

CONTENTS

1-1. Features

High Degree of Flexibility for Installation

Chapter 1 Introduction

Reduction of Power Consumption

Realizing More Convenient Operations Using Screen InStyle

1-2. Controls and Functions

Front

Rear

1-3. Supported Resolutions

1-4. Setting the Resolution

Windows 10

Windows 8.1 / Windows 7

OS X Mountain Lion (10.8) or later

Mac OS X 10.7

2-1. Switch Operation Method

2-2. Switching Input Signals

Chapter 2 Basic Adjustment/Setting

2-3. Switching Display Modes (Color Modes)

Display Modes

2-4. Conserving Energy

2-5. Adjusting Brightness

2-6. Adjusting Volume

3-1. Basic Operation of the Setting menu

Chapter 3 Advanced Adjustment/Setting

3-2. Setting Menu Functions

Color Adjustment

Signal Settings

Preference Settings

Language

Information

Basic Operation of the “Administrator Settings” Menu

Chapter 4 Administrator Settings

4-2. Functions of the “Administrator Settings” Menu

5-1. No Picture

Chapter 5 Troubleshooting

5-2. Imaging Problems (For Both Digital and Analog)

5-3. Imaging Problems (For Analog Only)

5-4. Other Problems

6-1. Attaching the Optional Arm

Chapter 6 Reference

Attaching the Optional Arm (or Optional Stand)

Attaching the original stand

6-2. Detaching / Attaching the Cable Holder

Detaching the cable holder

Attaching the cable holder

6-3. Detaching / Attaching the Cable Cover

Attaching the cable cover

Detaching the cable cover

6-4. Connecting Multiple PCs

Connection examples

6-5. Making Use of USB (Universal Serial Bus)

Required System Environment

Connection Procedure (Setup of USB Function)

Main Default Settings

Accessories

Appendix

Trademark

License

ENERGY STAR

FCC Declaration of Conformity

LIMITED WARRANTY

Recycling Information
