Eizo FlexScan EcoView FlexScan EcoView, FlexScan EV2023W, FlexScan EV2303W Specification

FlexScan EcoView

Widescreen LCD Monitors

The future of the energy saving office

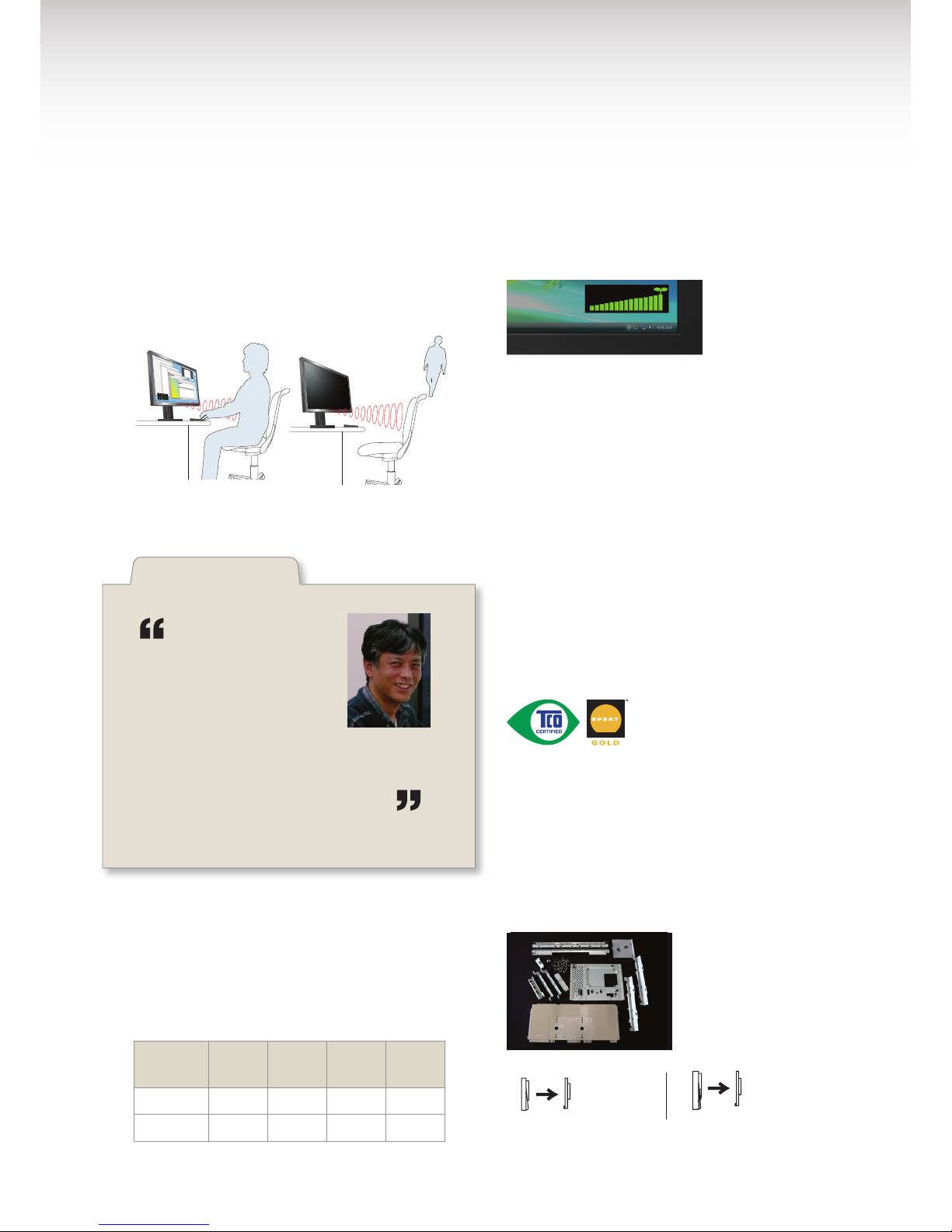

Motion Sensor for Power Savings

EIZO’s new EcoView Sense feature unites conve­nience with savings by ensuring that these monitors
automatically conserve power when they are not in
use. EcoView Sense is an integrated motion sensor
that prompts the monitor to switch to power save
mode when it does not detect the user for 40 sec­onds, and then resume normal operation when the
user returns. To accurately enter and stay in power
save mode while the user is away from the monitor,
EcoView Sense also differentiates between a still
object like an empty chair and the movement caused
by general office activity.

Optimized Brightness with Auto EcoView

A built-in Auto EcoView sensor measures ambient
light and optimizes the screen’s brightness to ideal
levels in both brightly and dimly lit rooms. This
results in improved visual ergonomics and reduced
power consumption by up to 40% compared to when
the sensor is turned off.

Zero Watts When Turned Off

When the power save mode and off timer are set,
these monitors consume less than 0.7 watts. When
turned off via the main power switch, they consume
no electricity at all.

Confirm Power Savings with EcoView Index

An EcoView Index displays the level of power savings
in correlation with the monitor’s brightness to encour­age environmental consciousness while working.

EyeCare Manager

EIZO’s EyeCare Manager prompts workers to take
scheduled breaks to avoid eye fatigue caused by pro­longed monitor use. EyeCare also totals and displays
on-screen the monitor’s usage hours for each day and
month to promote worker appreciation of improved
work habits.

First TCO Displays 5.0 Certified Monitors

These are among the world’s first TCO Displays

5.0 certified monitors. This certification addresses
ergonomics, emissions, and ecology with new cri­teria for product energy efficiency consistent with
Energy Star 4.0 requirements, as well as enhanced
monitor and packaging recyclability. These monitors
also received the Green Electronics Council and US
EPA consumer electronics environmental assessment
program’s highest rating: EPEAT Gold.

Product Life Cycle Ecology

These monitors debut an innovative compact design
that reduces the number of internal components,
making them thinner and lighter than previous
FlexScan 20" and 24" widescreen models. This
allows the monitors to be shipped in smaller con­tainers which use between 80% to 100% recycled
material. These considerations made during product
development, in tandem with the monitors’ EcoView

These monitor’s new compact cabinet design is thinner and lighter
than that of previous FlexScan widescreen models.

Previous
20" monitor

EV2023W

32% thinner
39% lighter

48% thinner
41% lighter

Previous
24" monitor

EV2303W

These monitor’s new compact cabinet design is thinner and
lighter than that of previous FlexScan widescreen models.

When EcoView
Index is fully
illuminated, the
monitor is operat­ing at optimum
energy efficiency.

Models Auto EcoView

OFF

Auto EcoView ONPower

Reduction

Reduced

Power
Consumption
in Wh per day

FlexScan
EV2023W

35 W 25 W 28% 10

FlexScan
EV2303W

30 W 18 W 40% 12

EcoView Sense automatically signals the screen to activate
and stay on, or switch to power save mode by detecting
whether the user is present or not.

Compared to a previ­ous FlexSc an 24"
widescreen monitor, the
FlexScan EV2303W’s
slimmed-down cabinet
design cuts the use and
weight of sheet metal
components, shown
here, by up to 90%.

Original EIZO-developed

(patent pending) algorithms
allow EcoView Sense’s automatic
detection function to differenti­ate between animate and inani­mate objects as well as people
just passing by. The sensor’s
highly accurate position tracking has been achieved
by adopting a special lens that suppresses diffused
reflections of infrared rays and through factory-per­formed sensor adjustment on each monitor.

Takashi Murata, Group Leader
R&D Visual Products

Inside EIZO R&D

features, reduce environmental burden at each stage
of the products’ life cycle.

Improved Efficiency, Reduced Visual Fatigue

EIZO conducted a survey in 2008 to establish the
relationship between eye fatigue and monitor use.
Results showed that features like Auto EcoView,
ergonomic stands, and the EyeCare Manager
helped reduce eye fatigue and improved work effi­ciency by 12.5%.

For a white paper regarding this study please visit

www.eizo.com/support/wp/pdf/wp_08-001.pdf

16:9 Aspect Ratio

These are the first FlexScan models to feature 16:9
aspect ratios. The 16:9 wide format is the same
aspect ratio used by HDTV and it lets you enjoy mul­timedia content without horizontal letterboxing.

Fine Contrast for Optimum Viewing

EIZO’s Fine Contrast function has five modes: Text
mode for office applications, Movie mode for video,
Picture mode for graphics, sRGB mode for web brows­ing, and Custom mode for user-defined set tings.

Individual Adjustment of Gamma

Factory-performed gamma adjustment minimizes
discrepancies among monitor gamma characteristics
for better image consistency in multi-monitor setups.

Placement Flexibility

EIZO introduces two new ergonomic stands: the
highly-versatile FlexStand and the space-saving
TriStand. Both stands offer tilt, swivel and height
adjustment. The FlexStand also offers portrait rota­tion, laptop-like screen placement, and at 225 mm,
the industry’s greatest range of height adjustment.*
The FlexStand features an innovative, bearing­less design that reduces mechanical wear and the
amount of torque required to adjust height. A quick
release feature on the FlexStand allows for easy
monitor reconfiguration.

*Statement reflects EIZO’s internal findings as of April 2009.

Accessories

Available accessories include mounting arms and
panel protectors.

For compatibility information please visit www.

eizo.com/products/accessories/

Reduced Network Power Consumption

For businesses using multiple monitors, EIZO’s
EcoView NET power management software gives
administrators centralized control over the power set­tings of networked monitors to help reduce electricity
consumption and provide long-term energy savings
and a smaller carbon footprint.

For detailed information please see www.eizo.

com/products/accessories/lcd/ecoview_net/

Customer Assurance

A five-year manufacture’s warranty offers a long
service life, and compliance with leading environ­mental and industry standards such as TCO Displays

5.0, EPEAT Gold, and TÜV Ergonomics ensures a
better work environment. The EIZO Eco Products
2009 label indicates this product meets strict internal
require ments for design, manufacturing, packaging,
usage and power consumption.

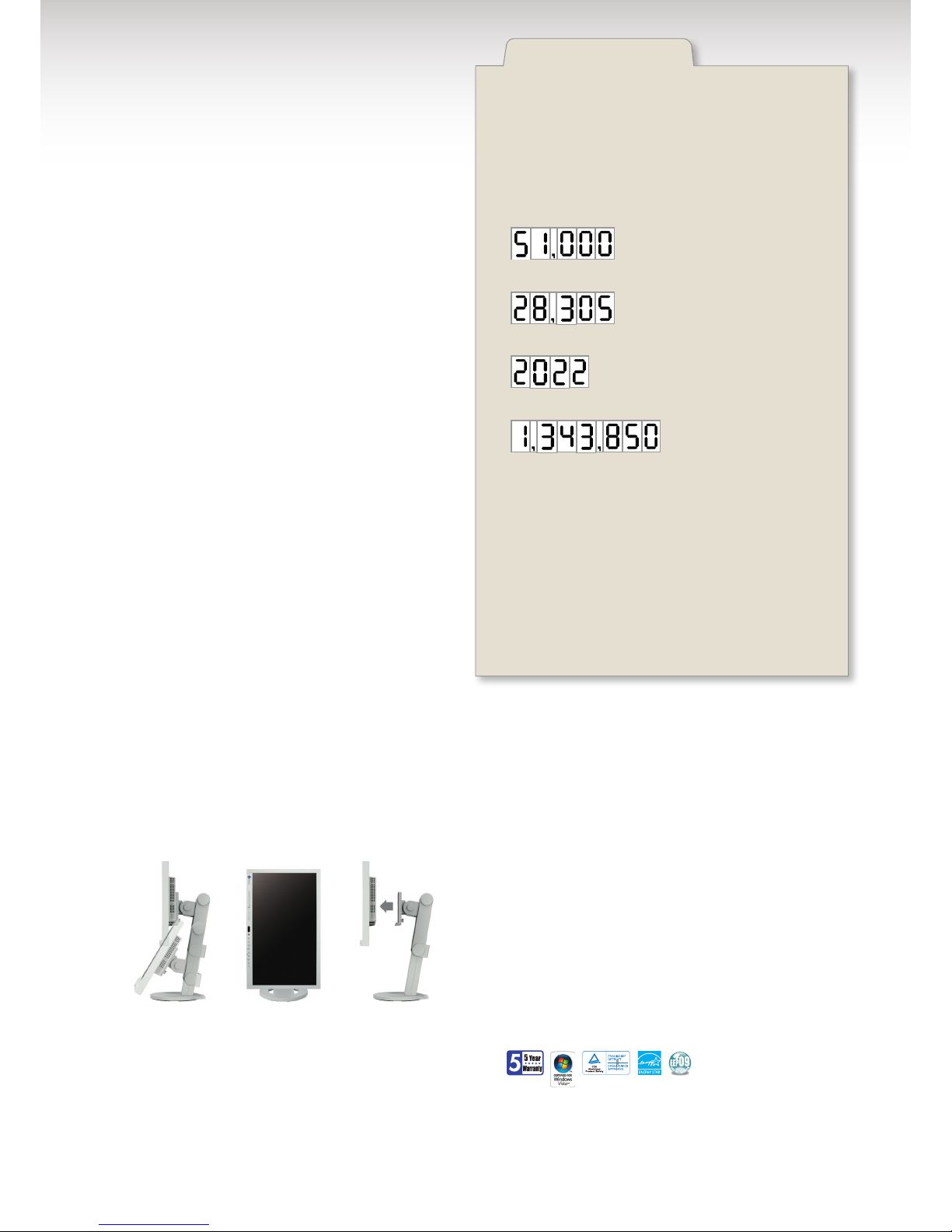

Eco Savings with

FlexScan EV2303W

73.9% Reduction in Power Consumption

With an installation of 100 FlexScan EV2303W moni­tors used for 8 hours a day, 250 days a year for five
years (the warranty period), you can expect to save1:

Power Reductions:

kWh

CO2 Emissions Reductions :

kg2

Trees Needed to Consume This CO2:

trees

3

Cost Savings :

JPY

4,5

(=10, 250 E UR or 13,6 06 US D)
(1 EUR = 131 JPY; 1 USD = 98 JPY)

6

1

Based on expected savings compared to using the FlexScan S2401W
at a brightness of 100% in t ypica l office lighting c onditions. 2 Calculated
from figures obtained from the Japanese Ministry of Economy, Trade
and Industry, Agency for Natural Resources and Energy, and Ministry of
Environment where one kWh of electri city produces 0.555 kg of CO2.

3

Calculated from figures obtained from the Japanese Ministry of
Agriculture, Forestry and Fisheries where one tree (Japanese cedar)
absorbs approximately 14 kg of CO2 per year. 4 Calculated at a cost of
4 JPY/kg of CO2 for per ca p and trade emission credit. 5 Calculated at
a cost of 24.13 JPY/kWh based on figures published by Tokyo Electric
Power Comp any effective April 2009. This is approximatel y 0.18 EUR/
kWh or 0.24 USD/kWh as of Apr il 2, 2009. 6 Based on exchange rates as
of April 2, 200 9. This usage example is provide d for estimating purposes
only. Actual energy savings may var y based on use and other factors.

FlexStand

portrait mode

FlexStand

height & tilt

FlexStand

quick release

www.eizo.com

153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan Phone [phone] Fax: [phone]

These monitors were developed, manufactured, and quality control tested by EIZO in Japan.

All product names are trademarks or registered trademarks of their respective companies. EIZO and FlexScan are registered trademarks of Eizo Nanao Corporation. Specifications are subject to change without notice. Copyright© 2009 Eizo Nanao
Corporation.

Model Var iations

FlexStand, TriStand, Without Stand FlexStand, TriStand, Without Stand

Panel Size

23" / 58 cm (584 mm diagonal) 20" / 51 cm (508 mm diagonal)

Active D isplay Size (H × V )

509.8 × 286.7 mm 442.8 × 249.1 mm

Panel Type

TN VA

Viewing A ngles ( H, V)

160°, 160° (at contrast ratio of 10:1) 178°, 178° (at contrast ratio of 10:1)

Brightness

250 cd/m2 250 cd/m2

Contrast

1000:1 3000:1

Response Time (Typical)

Black-white-black: 5 ms Black-white-black: 25 ms

Native Resolution

1920 × 1080 (16:9 aspect ratio ) 1600 × 900 (16:9 aspect ratio)

Pixel Pitch

0.2655 × 0.2655 mm 0.2768 × 0.2768 mm

Display C olors

16.77 million from a palette of 1.06 billion 16.77 million from a palette of 1.06 billion

Cabinet Color s

Gray, Black Gray, Black

Dot Clock

Analog : 148.5 MHz, Digital: 148.5 MHz Analog : 108 MHz, Digital: 108 MHz

Scanning Frequency (H, V) Analog

31 – 81 kHz, 55 – 76 Hz 31 – 68 kHz, 55 – 76 Hz

Digital

31 – 68 kHz, 59 – 61 Hz (VGA Text: 69 – 71 Hz) 31 – 60 kHz, 59 – 61 Hz (VGA Text: 69 – 71 Hz)

Input Signals

Analog : RGB Analog, Digital: DVI Standard 1.0 Analog : RGB Analog, Digital: DVI Standard 1.0

Input Terminals

D-Sub mini 15 pin, DVI-D 24 pin (switchable) D-Sub mini 15 pin, DVI-D 24 pin (switchable)

HDCP Support

DVI-D

1

DVI-D

1

Plug & Play

VESA DDC 2B VESA DDC 2B

Power Requirements

100 – 120 V / 200 – 240 V, 50 / 60 Hz 100 – 120 V / 200 - 240 V, 50 / 60 Hz

Power Consumption

33 W (maximum)
18 W (typical)

40 W (maximum)
25 W (typical)

Power Save Mode

Less than 0.7 W Less than 0.7 W

Height Adjustment Range

With FlexStand: 225 mm (171.3 mm at 0° tilt)
With TriStand: 60 mm

With FlexStand: 225 mm (192.5 mm at 0° tilt)
With TriStand: 60 mm

Tilt / Swivel / Pivot

With FlexStand: 30° Up, 0° Down / 172° Right, 172° Left / 90°
With TriStand: 25° Up, 0° Down / 172° Right, 172° Left / 90°

With FlexStand: 30° Up, 0° Down / 172° Right, 172° Left / 90°
With TriStand: 25° Up, 0° Down / 172° Right, 172° Left / 90°

Dimensions (W × H × D )

With FlexStand: 547 × 346.5 – 517.8 × 221 – 236 mm
With TriStand: 547 × 382 – 442 × 200 mm
Without Stand : 547 × 332 × 44 mm

With FlexStand: 476 × 315.4 – 498 × 219 – 236 mm
With TriStand: 476 × 362 – 442 × 200 mm
Without Stand : 476 × 292 × 47 mm

Net Weight

With FlexStand: 6.9 kg
With TriStand: 5.3 kg
WithoutStand: 4.1 kg

With FlexStand: 6.7 kg
With TriStand: 5.1 kg
Without Stand : 3.9 kg

Display Mode Options

Fine Contrast ( Text, Picture, Movie, sRGB, Custom), Auto Fine Contrast

2

Screen Adjustment

Clock, Phase, Position, Range (Auto), Signal Filter, Screen Size (full screen, enlarge, normal) , Smoothing (5 stages), Border Intensity

Color Adjustment

Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset

Power Management

Power Save ( VESA DPMS and DVI DMPM ), Of f Timer, EcoView Sense

EcoView S ettings

Auto EcoView, EcoView Index, EcoView Sense

Sound

Volume, Power Save

Other Settings

Signal Switching, Product Information (name, serial number, usage time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Languages (English, French,
German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish), Power Indicator, Reset

Audio ( speaker o ption only)

0.45 W built-in speaker, input / headphone jacks

Certifications and Standards

TCO Displays 5.0, TÜ V/Ergonomics (including ISO 13406-2), TÜ V/GS, c-Tick, CE, CB, UL (cTÜVus), CSA ( cTÜVus), FCC-B, Canadian ICES-003-B, TÜV/ S, VCCI-B,
EPA Energy Star, RoHS, WEEE, EPE AT Gold, EIZO Eco Products 2009

Supplied Accessories

AC power cord, signal cables (DVI-D – DVI-D, D-Sub – D-Sub), audio cable, EIZO LCD Utilit y Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/ CI]3, EIZO
ScreenSlicer software ), setup guide, spec sheet, 4 screws for mount option, warranty card

Warranty

Five Years

4

1

Display with audio/video devices is not supported. 2 Bundled ScreenManager Pro for LCD (DDC/CI) is necessary to activate Auto Fine Contrast. 3 ScreenManager Pro for LCD (DDC/CI) is compatible with Windows Vista. 4 The
usage time is limited to 30,000 hours or less, and the warranty period of the LCD panel and backlight is limited to three years from the date of purchase.
With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
