Page 1
MULTIMEDIA PROJECTOR
MODEL EIP-X350
OWNER’S MANUAL
Page 2
Federal Communication Commission Notice
Note : This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15
of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified
in the instructions. If such changes or modifications should be made, you could be
required to stop operation of the equipment.
Model Number : EIP-X350
Trade Name : EIKI
Responsible party : EIKI International, Inc.
Address : 30251 Esperanza Rancho Santa Margarita CA 92688-2132
Telephone No. : 800-242-3454 (949-457-0200)
EN-1
Page 3
Safety Instructions
REAR
A
b
e
m
c
Read all of these instructions before you operate your projector and save for future
reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
Allowing the proper amount of space on the top, sides, and rear of the projector
cabinet is critical for proper air circulation and cooling of the unit. The dimension
shown here indicate the minimum space required. If the projector is to be built into
a compartment or similarly enclosed, these minimum distances must be maintained.
0.7'(20cm)
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
SIDE and TOP
1.5'(50cm)
3'(1m)
n appliance and cart combination should
e moved with care. Quick stops,
xcessive force, and uneven surfaces
ay cause the appliance and cart
ombination to overturn.
EN-2
1.5'(50cm)
Page 4
1. Check that the operating voltage of your unit is identical with the voltage of your
local power supply.
2. Should any liquid or solid object fall into the cabinet, unplug the unit and have it
checked by the qualified personnel before operating it further.
3. Do not attempt to service this product yourself, as opening or removing covers may
damage the components inside and will void your warranty.
4. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
5. Unplug the unit from the wall socket if it is not to be used for several days. To
disconnect the cord, pull it out by the plug. Never pull the cord itself.
6. The wall socket should be near the unit and easily accessible.
7. Do not place the projector where the cord can be stepped on as this may result in
fraying or damage to the lead or the plug. Be alert to tripping hazards.
8. Never look into the projector lens when the lamp is switched on as the bright light
can damage your eyes. Never let children look into the lens when it is on.
9. Do not place your hand or objects near the ventilation holes. The air coming out is hot.
10. Never open any covers on the projector except the lamp cover. Dangerous electrical
voltages inside the projector can cause severe injury. Except as specifically directed
in this User’s Manual, do not attempt to service this product yourself. Refer all
servicing to qualified service personnel.
11. Unplug the projector from the wall socket before cleaning. Use a damp cloth for
cleaning the projector housing. Do not use liquid or aerosol cleaners.
12. Keep the plastic packing materials (from the projector, accessories and optional
parts) out of the reach of children as these bags may result in death by suffocation.
Be particularly careful around the small children.
13. For ventilation reasons, the fan continues to operate after the projector has been
powered off. Please do not unplug the power cord until the fan stops.
14. The projector is equipped with ventilation holes (intake) and ventilation holes
(exhaust). Do not block or place anything near these slots, or internal heat build-up
may occur, causing picture degradation or damage to the projector.
15. When you replace the projector lamp, never touch the new bulb with your bare
hands. The invisible residue left by the oil on your hands may shorten the bulb life.
Use lint-free gloves or finger cots are recommended.
EN-3
Page 5
16. The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
17. Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock.
EN-4
Page 6
CONTENTS
Introduction ............................................................................................................... 6
Projector Features ............................................................................................. 6
Package Contents .............................................................................................. 7
Projector Overview ........................................................................................... 8
Using the Product ................................................................................................... 10
Control Panel ................................................................................................... 10
Terminals ......................................................................................................... 11
Remote Control ................................................................................................ 12
Installing the Batteries ...................................................................................... 13
Notes on AC Power Cord................................................................................. 14
Remote Control Operation ................................................................................ 15
Installation ............................................................................................................... 16
Connecting the Projector .................................................................................. 16
Powering On/Off the Projector ........................................................................ 17
Adjusting the Projector .................................................................................... 18
Menu Operation ...................................................................................................... 21
Setup Menu ..................................................................................................... 22
Picture Menu .................................................................................................... 23
Source Menu ................................................................................................... 25
Help Menu ........................................................................................................ 25
Maintenance ........................................................................................................... 26
Cleaning the Lens ............................................................................................ 26
Cleaning the Projector Housing ........................................................................ 26
Replacing the Lamp .......................................................................................... 27
Specifications ......................................................................................................... 29
Appendix ................................................................................................................ 30
LED Indicator Messages .................................................................................. 30
Compatibility Modes ......................................................................................... 31
Troubleshooting ............................................................................................... 32
EN-5
Page 7
Introduction
Projector Features
The projector integrates high-performance optical engine projection and a user-friendly
design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 0.7" Texas Instruments DLP® technology
XGA (1024 x 768 pixels) real resolution
Auto image re-sizing (Auto-Sync.) to 1024 x 768 full screen with scaling compression
compatibility for VGA, SVGA, XGA and SXGA*
Compatibility with Macintosh® computers
Compatibility with NTSC, PAL, SECAM, and HDTV
Multi-function remote control
D-Sub 15-pin terminal for analog video connectivity
User-friendly, multi-language on-screen display (OSD)
Advanced electronic keystone correction
* means compressed.
EN-6
Page 8
Package Contents
When you unpack the projector, make sure you have all these components:
Projector with Lens Cap AC Power Cord VGA Cable (D-SUB to D-SUB)
Composite Video Cable
Page up
Laser
Page down
Resync
Hide
Remote Control (IR)
Owner’s Manual
Save the original shipping carton and packing material; they will come
in handy if you ever to ship your unit. For maximum protection, repack
your unit as it was originally packed at the factory.
S-Video Cable
AAA size batteries for
remote control
Quick Start Guide
Audio Cable
Projector Carrying Case
EN-7
Page 9
Projector Overview
Front View
12
11
1 Lens cap
2 Lens cap strap
3 Elevator foot
4 Front IR remote control
sensor
5 Elevator button
910
3 4 6 87
51 2
6 Projection lens
7 Focus ring
8 Tilt-adjustment foot
9 Control panel
10 Zoom ring
11 Speaker
12 Ventilation holes
12
EN-8
Page 10
Rear View
1 Rear IR remote control sensor
2 Terminals
3 Main power switch
4 AC power socket
5 Tilt-adjustment foot
6 Ventilation holes
7 Kensington lock
1 2 3
Bottom View
1 Lamp cover
2 Ceiling mount
This projector can be used with a ceiling mount for support. The ceiling
mount is not included in the package.
75
1
6
2
2
5
4
2
EN-9
Page 11
Using the Product
Control Panel
LED
1 Temp. (Temperature LED indicator)
Refer to “LED Indicator Messages”. (p.30)
2 Lamp. (Lamp LED indicator)
Refer to “LED Indicator Messages”. (p.30)
(Power LED indicator)
3
Refer to “LED Indicator Messages”. (p.30)
Button Function
3
Power
Turns the projector on or off. (p.17)
4 Four directional buttons
Use four directional buttons to select items or make adjustments to your selection. (p.21)
5 Mode
Selects the picture mode (p.24) picture and color combination can be customized
in custom mode.
6 Resync
XX
X
XX
Resynchronizes the projector to the input signal from a computer.
7 MENU
Opens the on-screen menu or acts on the selected menu item. (p. 21, 22-25)
8 Source
WW
W
WW
Manually selects an input source. (p. 17, 25, 32)
9 Back
Exits the on-screen menu, or re-enters the on-screen menu at the most recently
used item. (p. 21)
2
1
5789
6
3
4
EN-10
Page 12
Terminals
1 2 3 4
5
6
7
891011
1 Audio out
Connects to a speaker or other audio input equipment.
2 USB
This connector is for page up & down mouse control function and firmware update.
3 RS-232
When operating the projector via a computer, connect this to the controlling
computer’s RS-232C port.
4 DV I
Connects a DVI-D digital source.
5 VGA in
Connects image input signal (analog) to this jack.
6 S-Video
Connects S-Video output from video from video equipment to this jack.
7 12-Vdc trigger output
Controls a motorized screen or similar accessory device.
8 Video
Connects composite video output from video equipment to this jack.
9 VGA out
Connects to a computer display, etc.
10 YPbPr
Connects YPbPr output from video equipment to this jack.
11 Audio in
Connects an audio output from video equipment to this jack.
EN-11
Page 13
Remote Control
1 Power
Turns the projector on or off. (p.17)
2 Four directional buttons
Use four directional buttons to select
items or make adjustments to your
selection. (p.21)
3 MENU
Opens the on-screen menu or acts on
the selected menu item. (p.21)
4 Laser
Press and hold this button to activate
the laser pointer.
5 Mute
Cuts off the sound temporarily. Press
again to cancel the Mute function. (p.22)
6 Resync
Automatically adjusts frequency
and parameters. This function is available for
computer mode only. (p.10, 23, 33)
7 Hide
Hides the screen and mutes the sound. Press
again to cancel the Hide function. (p.22)
8 4:3/16:9
Press the 4:3/16:9 to switch the image
aspect ratio from 4:3 to 16:9.
9 Source
Manually selects an input source. (p.17,
25, 32)
10 Keystone + / -
Adjusts image distortion caused by tilting
the projector. (p.22)
11 Page down (Computer mode only)
Use this button to page down. This function is
only available when the projector is connected
to a computer via an USB cable.
12 Page up (Computer mode only)
Use this button to page up. This function is only
available when the projector is connected to a
computer via an USB cable.
13 Freeze
Press “Freeze” to pause the screen image.
Press again to cancel the Freeze function.
1
2
3
4
5
6
7
Laser
Mute
Resync
Page up
Page down
Hide
13
12
11
10
9
8
EN-12
Page 14
Installing the Batteries
1. Open the battery cover in the direction
shown.
2. Install batteries as indicated by the diagram
inside the compartment.
3. Close the battery cover into position.
Keep the batteries out of the reach of children. There is a danger of
death by accidentally swallowing the battery.
Remove batteries from remote control when not using for extended
periods.
Do not dispose of the used battery along with household waste. Dispose
of used batteries according to local regulations.
Danger of explosion may happen if batteries are incorrectly replaced.
Replce all the batteries with new ones.
EN-13
Page 15
Notes on AC Power Cord
AC Power Cord must meet requirement of country where you use a projector. Confirm
an AC plug type with graphics below and proper AC Power Cord must be used. If
supplied AC Power Cord does not match your AC outlet, contact your sales dealer. This
projector is equipped with a grounding type AC line plug. Make sure that your outlet fits
the plug. Do not defeat the safety purpose of this grounding type plug. We highly
recommend using a video source device also equipped with a grounding type AC line
plug to prevent from signal interference due to voltage fluctuation.
Ground
EN-14
Page 16
Remote Control Operation
Point the remote control at the infrared remote sensor and press a button.
Operating the projector from the front
5m
10
Operating the projector from the rear
5m
10
15
Laser
Page up
Page down
Resync
Hide
6m
5m
7m
6m
Frezze
15
Laser
Page up
Page do
w
n
Resync
Hide
6m
5m
7m
6m
Frezze
Do not point the laser pointer directly to the people's eyes (especially
small children). There is a danger of injuiry to the eyes.
The remote control may not operate when there is sunlight or other
strong light such as a fluorescent lamp shining on the remote sensor.
Operate the remote control from a position where the remote sensor is
visible.
Do not drop the remote control or jolt it.
Keep the remote control out of locations with excessively high temperature
or humidity.
Do not get water on the remote control or place wet objects on it.
Do not disassemble the remote control.
EN-15
Page 17

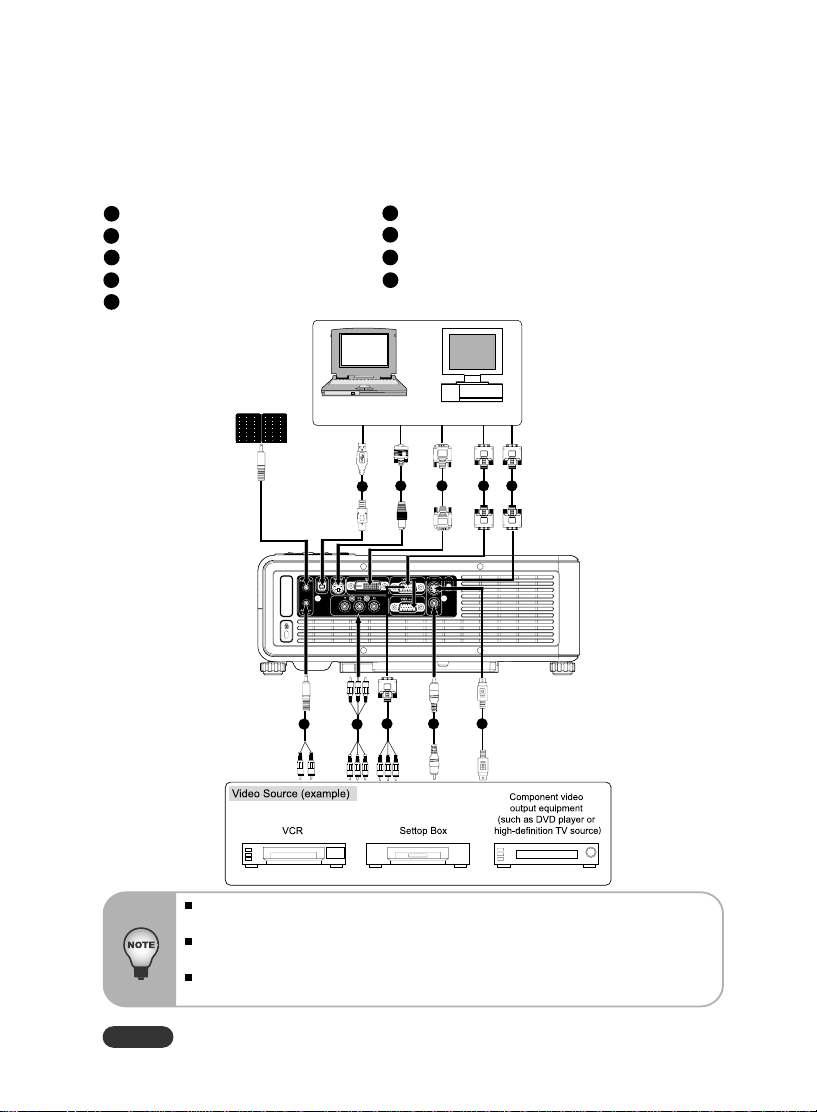

Installation
Connecting the Projector
1 USB Cable 6 Composite Video Cable
2 RS-232 Cable 7 VGA (D-Sub) to HDTV (RCA) Cable
3 DVI Cable 8 YPbPr Cable
4 VGA Cable (D-Sub to D-Sub) 9 Audio Cable
5 S-Video Cable
Laptop type
1 2
8
When connecting cable, power cords of both a projector and external
equipment should be disconnected from AC outlet.
The figure above is a sample connection. This does not mean that all of
these devices can or must be connected simultaneously.
The cables that come with the projector may differ from the above
illustration. The included cables are based on actual shipment delivery.
Desktop type
4
3
6 59 7
In case of connecting
4
to VGA Out
EN-16
Page 18
Powering On/Off the Projector
Powering on the projector:
1. Remove the projector lens cap.
2. Complete the AC power cord and peripheral signal cable(s) connections.
3. Turn on the main power switch.
4. The power LED indicator blinks blue in standby mode.
5. Press
lights on blue and fans start to turn on the projector.
6. Turn on your source (computer, notebook, DVD, etc.). The projector automatically
detects your source.
Warning:
Remove the lens cap first before powering on.
Never look into the lens when the lamp is on. This can damage your eyes. It is
especially important that children are not allowed to look into the lens.
Powering Off the Projector:
1. Press button on the control panel or remote control and warning message of
shutting down appears on the screen.
2. Press the
off and the cooling fans are operating about 120 seconds.
3. When the projector has cooled down enough to be turned on again, the power LED
indicator blinks blue.
4. Turn off the main power switch and then you can disconnect the AC power cord.
button on the control panel or remote control. The power LED indicator
If you are connecting multiple sources to the projector simultaneously, press
Source button.
button again to turn off the projector. The power LED indicator turns
Do not disconnect power cord or turn off the main power switch until the
projector has cooled down (the fan stops) and the power button stops blinking.
Otherwise, you might shorten the life of the lamp.
The projector cannot be turned on during the cooling down period (the fans are
operating).
To maintain the life of lamp, once you turn projector on, wait at least 5 minutes
before turning it off.
EN-17
Page 19
Adjusting the Projector
Adjusting the Projector Height
Elevator button
Elevator foot
Tilt-adjustment feet
The projector is equipped with an elevator foot and tilt-adjustment feet to adjust the
image height.
1. To raise or lower the image, press the elevator button and raise or lower the front of
the projector. Release the button to lock the adjustment.
2. To level the image on the screen, turn the tilt-adjustment feet to fine-tune the height.
To avoid damaging the projector, make sure that the elevator foot and
tilt-adjustment feet are fully retracted before placing the projector in its
carrying case.
EN-18
Page 20
Adjusting the Projector Zoom and Focus
1. Focus the image by rotating the focus ring.
A still image is recommended for focusing.
2. Adjust the image by rotating the zoom ring.
Rotate to the right to enlarge the image.
Rotate to the left to reduce the image.
Zoom ring
Focus ring
EN-19
Page 21
Adjusting Projection Image Size
Refer to the table below to determine the screen size and projection distance. (Tolerance: 10%)
300
240
A
B
A:B=6.45:1
250
200
180
150
120
100
60
36
50
30
1.2m
(Min.)
2.0m
4.0m
6.0m
8.0m
10.0m
(Max.)
PROJECTION
DISTANCE (METER)
4:3 SCREEN
SIZE-
DIAGONAL
(INCH)
Wide
Tele
Position the projector in a horizontal position; other positions can cause
heat build-up and damage to the projector.
Make sure the heat ventilation holes are not blocked.
Do not use the projector in a smoky environment. Smoke residue may
cause buildup on critical parts.
EN-20
1.2
36
30
2.0
60
50
4.0
120
100
6.0
180
150
8.0
240
200
10.0
300
250
Page 22
Menu Operation
The projector has multilingual on-screen display menus that allow you to make image
adjustments and change a variety of settings.
How to operate
1. Press MENU to display the on-screen menu.
2. Press S / T to select any feature in the main menu, then press X to move into that
menu.
3. Press S / T to select a setting, then press MENU to begin adjusting the setting.
4. Press W / X / S / T to adjust the setting, as prompted.
5. Press MENU to return to the menu.
6. To go to a different menu, press W and select a menu.
7. To close the on-screen menu, press Back button.
If you do nothing for a period of time, the on-screen menu closes. To change
the amount of time until the on-screen menu closes, press MENU and select
Setup > Timeout for menu.
To exit from any on-screen menu or adjustment, press Back.
EN-21
Page 23
Setup Menu
Keystone
Adjusts image distortion caused by tilting projection.
Reset keystone
Resets the keystone correction to zero (no correction).
Volume
Adjusts the loudness of the projector’s audio.
Mute
Temporarily turns off the projector’s audio.
Projector position
Adjusts the picture to match the orientation of the projector: upright or upside-down, in
front of or behind the screen. Inverts or reverses the image accordingly.
Lamp saver
Sets a lower power level for the lamp.
Language
Selects the language used by the on-screen menu.
Hide
Hides the screen and mutes the sound.
Advanced setup
Adjusts additional setup settings.
Power timeout
Sets the length of time the projector waits for an input signal before automatically
shutting down.
Clean edges
Enlarges and clips video images to remove noise from picture edges.
Timeout for menu
Sets how many seconds the on-screen menu waits for input before it closes.
Horizontal size
Fine-tunes the width of the image for multi-projector setups.
Reset lamp hours
For a new lamp, resets the hours of use.
Projector lock
Sets or cancels a secret button sequence that must be entered for the projector to
operate.
Reset all settings
Restores all menu settings to factory default settings.
EN-22
Page 24
Picture Menu
Changing these settings affects only the active source. Some picture adjustments are
available only when certain input ports are in use. Unavailable adjustments are shown
in gray in the on-screen menu.
Color settings
Adjusts the image and colors.
Brightness
Brightens or darkens the image.
Contrast
Sets the difference between light and dark areas.
Sharpness
Sharpens or softens the image.
Color saturation
Adjusts the intensity of colors.
Tint
Shifts colors toward red or green.
Reset color settings
Restores these color settings to the default settings.
Advanced color
Adjusts the individual colors in the image.
Red
Adjusts the amount of red in the image.
Green
Adjusts the amount of green in the image.
Blue
Adjusts the amount of blue in the image.
Reset advanced settings
Restores the advanced color settings to their default values.
VGA settings
Adjusts settings for a computer input.
Auto-sync
Resynchronizes the projector with the input. If a VGA input image looks incorrect,
press auto-sync to try correcting the image.
EN-23
Page 25
Frequency
Adjusts the timing of the projector relative to the computer.
Tracking
Adjusts the phase of the projector relative to the computer.
Vertical offset
Adjusts the image up or down within the projection area.
Horizontal offset
Adjusts the image left or right within the projection area.
Picture mode
Selects the Video/Graphics/Custom mode. Customize picture mode can be selected
when Custom mode is selected.
Customize picture mode
Changes settings associated with the current picture mode.
Picture enhancement
Refines the color, lightness, and other characteristics of the picture.
White intensity
Increases the brightness of white areas.
Color temperature
Shifts color toward red or blue.
Aspect ratio
Selects how the picture fits on the screen:
O Best fit: automatically fits the picture without stretching it.
O 1-to-1: shows each picture dot as one projected dot.
O Reduced: fits a standard-shape picture onto a widescreen projection screen.
O Full: uses the entire projector resolution screen size, with stretching permitted.
Reset this picture mode
Restores the current picture mode to its default settings.
EN-24
Page 26
Source Menu
VGA
Shows the source connected to the VGA-in port.
Composite video
Shows the source connected to the composite-video port.
S-video
Shows the source connected to the S-video port.
Component
Shows the source connected to the component video port.
DV I
Shows the source connected to the DVI port.
Source scan
Sets whether the projector automatically searches for input signals and displays the
next one found.
Widescreen input
Sets whether a widescreen (16:9) input device is in use. Adjusts the height of the
image accordingly.
Help Menu
Displays information and status of the projector.
EN-25
Page 27
Maintenance
The projector needs proper maintenance. You should keep the lens clean as dust, dirt
or spots will project on the screen and diminish image quality. If any other parts need
replacing, contact your dealer or qualified service personnel. When cleaning any part
of the projector, always switch off and unplug the projector first.
Warning:
Never open any of the covers on the projector. Dangerous electrical voltages inside
the projector can cause severe injury. Do not attempt to service this product yourself.
Refer all servicing to qualified service personnel.
Cleaning the Lens
Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands.
Cleaning the Projector Housing
Gently wipe with a soft cloth. If dirt and stains are not easily removed, use a soft cloth
damped with water, or water and neutral detergent, and wipe dry with a soft, dry
cloth.
Turn off the projector and remove the AC power cord from the power
outlet before beginning maintenance work.
Make sure the lens is cool before cleaning.
Do not use detergents or chemicals other than those noted above. Do
not use benzene or thinners.
Do not use chemical sprays.
Use a soft cloth or lens paper only.
EN-26
Page 28
Replacing the Lamp
As the projector operates over time, the brightness of the projector lamp gradually
decreases and the lamp becomes more susceptible to breakage. We recommend replacing
the lamp if a warning message is displayed.
The lamp becomes high temperature after turning off the projector with
the power button. If you touch the lamp, you may scald your finger.
When you replace the lamp, wait for at least 45 minutes for the lamp to
cool down.
Do not touch the lamp glass at any time. The lamp may explode due to
improper handling, including the touching of the lamp glass.
Lamp lifetime may differ from lamp to lamp and according to the
environment of use. There is no guarantee of the same lifetime for each
lamp. Some lamps may fail or terminate their lifetime in a shorter period
of time than other similar lamps.
A lamp may explode as a result of vibration, shock or degradation as a
result of hours of use as its lifetime draws to an end. Risk of explosion
may differ according to the environment or conditions in which the
projector and lamp are being used.
Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at
least for 5 minutes to turn off the projector after powering on.
Do not operate the lamp in proximity to paper, cloth, or other combustible
material nor cover it with such materials. Otherwise it could cause a fire.
Do not operate the lamp in an atmosphere containing an inflammable
substance, such as thinner. Otherwise it could cause a fire or explosion.
Thoroughly ventilate the area or the room when operating the lamp in
an oxygen atmosphere (in the air). If ozone is inhaled, it could cause
headaches, nausea, dizziness, etc.
The inorganic mercury is involved in the lamp. If the lamp bursts, the
mercury inside the lamp will go out of the projector. Leave the area
immediately if the lamp shatters while being operated and ventilate the
area for at least 30 minutes in order to avoid the inhalation of mercury
fumes. Otherwise it could be harmful to user’s health.
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection
lamp, give the following information to the dealer.
Model No. of your projector : EIP-X350
Replacement Lamp No. : P8984-1021
EN-27
Page 29
1. Turn off the projector.
2. Allow the projector to cool for at least 45 minutes.
3. Unplug the power cord.
4. Loosen the screws in the lamp cover 1 and remove the cover 2 .
5. Remove the screws from the lamp module 3 , raise the handle 4 , and lift out the
module 5 .
6. Insert the new lamp module into the projector and tighten the screws.
7. Replace the lamp cover and tighten the screws.
8. Turn on the projector. If the lamp does not turn on after the warm-up period, try
reinstalling the lamp.
9. Reset the lamp timer. Press MENU, go to Setup > Advanced setup > Reset lamp
hours, and press MENU.
Dispose of the used lamp according to local regulations.
Ensure that screws are tightened properly. Screws not tightened fully
may result in injury or accidents.
Since the lamp is made of glass, do not drop the unit and do not scratch
the glass.
Do not reuse the old lamp. This could cause the lamp to explode.
Be sure to turn off the projector and unplug the AC power cord before
replacing the lamp.
Do not use the projector with the lamp cover removed.
EN-28
Page 30
Specifications
Display Type Single 0.7" DLP panel
Resolution (Pixels) XGA (1024 × 768)
Lens Manual Zoom (1.2x)
F=2.3~2.75 f=23.6~28.25mm
Throw distance 1.2~10m
Screen size 30inch ~300inch
Contrast Ratio 2000:1
Uniformity >80%
Lamp 300W
Projection Type Front, Rear, Ceiling
Input Source D-Sub 15 pin, S-Video, Composite Video, DVI, YPbPr,
Audio in (stereo phone jack), USB, RS-232
Output Source D-Sub 15 pin, Audio out (stereo phone jack)
Video Compatibility NTSC4.43, NTSC-M
PAL-60, PAL-M, N, (B, D, G, H, I)
SECAM
Scanning Frequency
Horizontal Frequency 31 - 79 KHz
Vertical Frequency 50 - 85 Hz
Digital Keystone Correction Vertical + / - 15°
Integrated Speaker 1 x 2W
Noise Level Less than 35 dBA in Normal mode, or 32 dBA in lamp
saver mode
Environment Operating:
Temperature: 0°C to 40 °C
Humidity: 30% - 90% (No condensation)
Storage:
Temperature: -20°C to 60 °C
Humidity: 90% maximum (No condensation)
Power Requirement AC 100 – 240V, 50 / 60 Hz
Power Consumption 350W~380W Standby mode: less than 5W
Dimension 309 × 229 × 102 mm
Weight 3.2 kg (7.0lb)
Note: Design and Specifications are subject to change without prior notice.
EN-29
Page 31
Appendix
LED Indicator Messages
Power
Solid On
Blinking
Off
-
-
-
-
Indicators
Lamp
-
-
-
Solid On
Blinking
-
-
Temperature
-
-
-
-
-
Solid On
Blinking
Projector Condition
The projector is operating normally.
Standby mode
During shutdown cool-down.
During flash update.
Lamp failure.
Ballast failure.
Over-temperature error.
During flash update.
Fan, sensor, or color wheel error.
EN-30
Page 32
Compatibility Modes
Computer:
Compatibility Resolution H-Sync [KHz] V-Sync [Hz]
VGA 640x480 31.469 59.940
640x480 37.861 72.809
640x480 37.500 75.000
640x480 43.269 85.008
SVGA 800x600 35.156 56.250
800x600 37.879 60.317
800x600 48.077 72.188
800x600 46.875 75.000
800x600 53.674 85.061
XGA 1024x768 48.363 60.004
1024x768 56.476 70.069
1024x768 60.023 75.029
1024x768 68.677 84.997
SXGA 1280x1024 63.981 60.020
1280x1024 79.976 75.025
MAC 16” 832x624 49.72 74.55
MAC 19” 1024x768 60.241 75.020
Video:
Signal Horizontal Frequency (kHz) Vertical Frequency (Hz)
480i 15.734 kHz 60 Hz
480p 31.469 kHz 60 Hz
576i 15.625 kHz 50 Hz
576p 31.25 kHz 50 Hz
720p 45.0 kHz 60 Hz
720p 37.5 kHz 50 Hz
1080i 33.75 kHz 60 Hz
1080i 28.125 kHz 50 Hz
EN-31
Page 33
Troubleshooting
Refer to the statement that most closely matches the nature of the problem before
sending the projector for repairs. If the problem persists, contact your local reseller or
service center.
Please refer to “LED Indicator Messages” (p.30) as well.
Problem:
If no lights or sounds turn on:
If a “scanning” or “waiting”
message is displayed on a blank
screen:
If the wrong input source is
displayed:
If the image is out of focus:
EN-32
- Solutions
- Be sure that the power cord is securely connected
to the projector and the other end is plugged into an
outlet with power.
- Be sure the main power switch is turned on.
- Press the power button again.
- Unplug the power cord and wait for a short while,
then plug it in and press the power button again.
- Press the Source button on the projector or remote
control one or more times until the correct source
name is selected.
- Be sure the external source is turned on and
connected.
- For a computer connection, ensure your notebook
computer’s external video port is turned on. Refer
to the computer manual.
- Press the Source button on the projector or the
remote control one or more times to select another
active input source.
- Be sure the lens cover is open.
- While displaying the on-screen menu, adjust the
focus ring. (The image size should not change; if it
does, you are adjusting the zoom, not the focus.)
- Check the projection lens to see if it needs cleaning.
- For a computer connection, set the display
resolution as the computer to the same resolution
as the projector, 800 × 600 or 1024 × 768. If the
computer has multiple monitors, adjust the resolution
of the monitor assigned to the projector.
- For a computer connected to the S-video port, the
image cannot be as high resolution as what you
see on the computer display.
Page 34
If the image is flickering or
unstable for a computer
connection:
If the remote control does not
operate:
- Press the Resync button.
- Press MENU, go to Picture > VGA settings, and
adjust Frequency or Tracking.
- Be sure nothing is blocking the remote control
receiver on the front or back of the projector. Use
the remote control within the effective range.
- Aim the remote control at the screen or at the front
or back of the projector.
- Move the remote control so it is more directly in
front of or behind the projector and not as far to the
side.
EN-33
Page 35
U.S.A.
EIKI International, Inc.
30251 Esperanza
Rancho Santa Margarita
CA 92688-2132
U.S.A.
Tel : 800-242-3454 (949)-457-0200
Fax : 800-457-3454 (949)-457-7878
E-Mail : usa@eiki.com
Canada
EIKI CANADA -Eiki International, Inc.
P.O. Box 156, 310 First St. - Unit 2,
Midland, ON, L4R 4K8, Canada
Tel : 800-563-3454 (705)-527-4084
Fax : 800-567-4069 (705)-527-4087
E-Mail : canada@eiki.com
Deutschland & Österreich
EIKI Deutschland GmbH
Am Frauwald 12
65510 Idstein
Deutschland
Tel : 06126-9371-0
Fax : 06126-9371-14
E-Mail : info@eiki.de
China
EIKI (Shanghai) Co.,LTD
1. Dapu Road, Golden Magnolia Plaza
#2109 Shanghai,
200023 China
Tel : 86-21-5396-0088
Fax : 86-21-5396-031
E-Mail : info@eikichina.com.cn
WorldWide Website http://www.eiki.com
Eastern Europe
EIKI CZECH spol. s.r.o.
Umelecka 15
170 00 Praha 7
Czech Republic
Tel : +42 02 20570024 +42 02 20571413
Fax : +42 02 20571411
E-Mail : easterneurope@eiki.de
Japan & Worldwide
EIKI Industrial Company Limited.
4-12 Banzai-Cho, Kita-Ku, Osaka,
530-0028 Japan
Tel : +81-6-6311-9479
Fax : +81-6-6311-8486
03/2007 Eiki International, Inc.
Loading...
