Eiki EIP-S200 User Manual

MULTIMEDIA PROJECTOR
MODEL EIP-S200
OWNER’S MANUAL
Federal Communication Commission Notice
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :
Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : EIP-S200 Trade Name : EIKI Responsible party : EIKI International, Inc. Address : 30251 Esperanza Rancho Santa Margarita CA 92688-2132 Telephone No. : 800-242-3454 (949-457-0200)
EN-1
Safety Instructions
REAR
A b e m c
Read all of these instructions before you operate your projector and save for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimension shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.
SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.
SIDE and TOP
0.7'(20cm)
1.5'(50cm)
3'(1m)
n appliance and cart combination should e moved with care. Quick stops, xcessive force, and uneven surfaces
ay cause the appliance and cart
ombination to overturn.
EN-2
1.5'(50cm)
1. Check that the operating voltage of your unit is identical with the voltage of your
local power supply.
2. Should any liquid or solid object fall into the cabinet, unplug the unit and have it
checked by the qualified personnel before operating it further.
3. Do not attempt to service this product yourself, as opening or removing covers may
damage the components inside and will void your warranty.
4. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
5. Unplug the unit from the wall socket if it is not to be used for several days. To
disconnect the cord, pull it out by the plug. Never pull the cord itself.
6. The wall socket should be near the unit and easily accessible.
7. Do not place the projector where the cord can be stepped on as this may result in
fraying or damage to the lead or the plug. Be alert to tripping hazards.
8. Never look into the projector lens when the lamp is switched on as the bright light
can damage your eyes. Never let children look into the lens when it is on.
9. Do not place your hand or objects near the ventilation holes. The air coming out is hot.
10. Never open any covers on the projector except the lamp cover. Dangerous electrical
voltages inside the projector can cause severe injury. Except as specifically directed
in this User’s Manual, do not attempt to service this product yourself. Refer all
servicing to qualified service personnel.
11. Unplug the projector from the wall socket before cleaning. Use a damp cloth for
cleaning the projector housing. Do not use liquid or aerosol cleaners.
12. Keep the plastic packing materials (from the projector, accessories and optional
parts) out of the reach of children as these bags may result in death by suffocation.
Be particularly careful around the small children.
13. For ventilation reasons, the fan continues to operate after the projector has been
powered off. Please do not unplug the power cord until the fan stops.
EN-3
14. The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust). Do not block or place anything near these slots, or internal heat build-up may occur, causing picture degradation or damage to the projector.
15. When you replace the projector lamp, never touch the new bulb with your bare hands. The invisible residue left by the oil on your hands may shorten the bulb life. Use lint-free gloves or finger cots are recommended.
16. The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
17. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
EN-4
Notes on AC Power Cord
AC Power Cord must meet requirement of country where you use a projector. Confirm an AC plug type with graphics below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer. This projector is equipped with a grounding type AC line plug. Make sure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug. We highly recommend using a video source device also equipped with a grounding type AC line plug to prevent from signal interference due to voltage fluctuation.
Ground
EN-5
CONTENTSCONTENTS
CONTENTS
CONTENTSCONTENTS
Introduction ........................................................................................................... 7
Projector Features ............................................................................................. 7
Package Contents .............................................................................................. 8
Projector Overview ........................................................................................... 9
Using the Product ............................................................................................... 11
Control Panel ................................................................................................... 11
Terminals ......................................................................................................... 12
Remote Control ................................................................................................ 13
Remote Control Operation ................................................................................ 15
Installation ............................................................................................................ 16
Connecting the Projector .................................................................................. 16
Powering On/Off the Projector ........................................................................ 17
Adjusting the Projected Image .......................................................................... 18

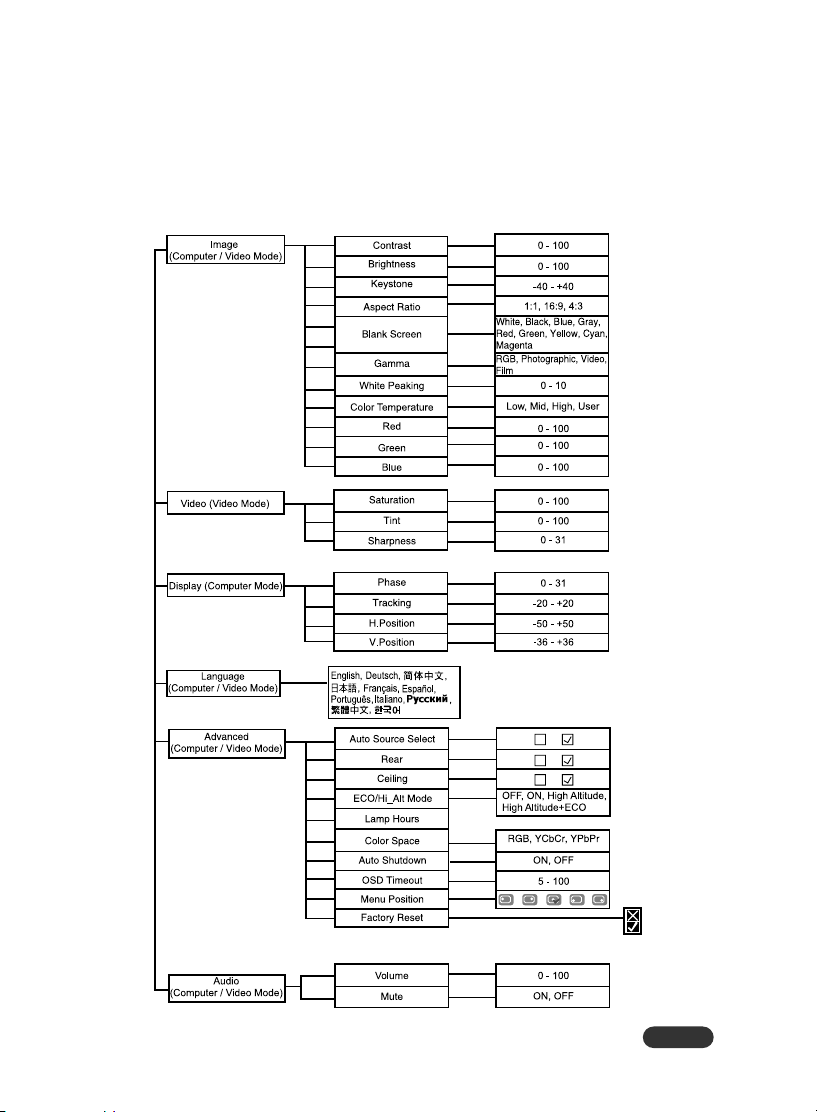

Menu Operation ................................................................................................... 21
Image (Computer / Video Mode) ....................................................................... 23
Video (Video Mode) ......................................................................................... 24
Display (Computer Mode) ................................................................................. 24
Language (Computer / Video Mode) ................................................................ 25
Advanced (Computer / Video Mode) ................................................................ 25
Audio (Computer / Video Mode) ....................................................................... 25
Maintenance ........................................................................................................ 26
Cleaning the Lens ............................................................................................ 26
Cleaning the Projector Housing ........................................................................ 26
Replacing the Lamp .......................................................................................... 27
Specifications ...................................................................................................... 29
Appendix .............................................................................................................. 30
LED Indicator Messages .................................................................................. 30
Compatibility Modes ......................................................................................... 31
Troubleshooting ............................................................................................... 32
Configurations of Terminals ............................................................................. 33
EN-6
Introduction
Projector Features
The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 0.55" Texas Instruments DLP® technology SVGA (800 x 600 pixels) true resolution
1.07x manual zoom lens Auto image re-sizing (Auto-Sync.) to 800 x 600 full screen with scaling compression compatibility for VGA, SVGA, XGA* and SXGA* Compatibility with Macintosh® computers Compatibility with NTSC, PAL, SECAM, and HDTV Multi-function remote control D-Sub 15-pin terminal for analog video connectivity User-friendly, multi-language on-screen display (OSD) Advanced electronic keystone correction
* means compressed.
EN-7
Package Contents
When you unpack the projector, make sure you have all these components:
Projector with Lens Cap AC Power Cord VGA Cable (D-Sub to D-Sub)
Composite Video Cable
Remote Control (IR) with Lithium battery
Save the original shipping carton and packing material; they will come
in handy if you ever to ship your unit. For maximum protection, repack
your unit as it was originally packed at the factory.
EN-8
Audio CableS-Video Cable
Owner’s Manual Projector Carrying
Quick Start Guide
Case
Projector Overview
Front View
1 12 3 4 5 6
78
9
1 Ventilation holes
2 Projection lens
3 Front IR remote control sensor
4 Lens cap
5 Elevator foot
6 Elevator button
7 Zoom ring
8 Focus ring
9 Control panel
EN-9
Rear View
1
2 3 2
6 5 478
1 Rear IR remote control sensor 2 Ventilation holes 3 Terminals 4 Elevator button
5 Elevator foot 6 Speaker 7 AC power socket 8 Kensington lock
Bottom View
1 Lamp cover
2 Ceiling mount
2
EN-10
2
2
1
This projector can be used with a ceiling mount for support. The ceiling
mount is not included in the package.
Using the Product
Control Panel
LED
1
1 Lamp LED indicator
Refer to “LED Indicator Messages”. (p.30)
2 Power LED indicator
Refer to “LED Indicator Messages”. (p.30)
8
7
Button Function 3 Power
Refer to “Powering On/Off the Projector”.
SS
4 Keystone
S/
SS
TT
T
TT
Adjusts image distortion caused by tilting the projector.
5 Auto
XX
X
XX
Automatically adjusts frequency, total dots. This function is available for computer mode only.
6 Menu
Displays or exits the on-screen display menus.
7 Source
WW
W
WW
Manually selects an input source.
8 Four directional buttons
Use four directional buttons to select items or make adjustments to your selection.
2
3
4
5
6
EN-11
Terminals
1
1 SERIAL
When operating the projector via a computer, connect this to the controlling computer’s RS-232C port.
2 USB(COMPUTER)
This connector is for firmware update.
3 COMPUTER IN
Connects image input signal (analog) to this jack.
4 S-VIDEO
Connects S-Video output from video equipment to this jack.
5 VIDEO
Connects composite video output from video equipment to this jack.
6 AUDIO IN
Connects an audio output from video equipment to this jack.
2 3
5 64
EN-12
Remote Control
1 Power
Refer to “Powering On/Off the Projector”. (p. 17)
2 Four directional buttons
Use four directional buttons to select items or make adjustments to your selection. (p. 22)
3 Menu
Displays or exits the on-screen display menus. (p. 22)
4 Enter
To select the desired setting. (p. 25)
5 Keystone c/d
Adjusts image distortion caused by tilting the projector. (p. 11, 23)
6 Volume c/d
Press the Volume c button to increase the volume to reduce the volume. (p. 25)
7 Source
Manually selects an input source. (p. 11, 17, 25)
8 Mute
Cuts off the sound temporarily. Press again to cancel the Mute function. (p. 25)
9 Blank
Cuts off the screen temporarily. Press again to cancel the Blank function. (p. 23, 32)
10 4:3/16:9
Press the 4:3/16:9 to switch the image aspect ratio from 4:3 to 16:9.
11 Auto
Automatically adjusts frequency, total dots. This function is available for computer mode only. (p. 11, 24, 32)
press the Volume d button
EN-13
For the first time use:
Remove the transparent insulation tape by pulling it before use.
For battery change:
1. Push the catch to the right and remove the battery holder.
2. Remove the old Lithium coin cell and install new one (CR2025). Ensure that the side with the mark “+” is up.
3. Push the battery holder back into the remote control until you feel a click.
Catch
Battery holder
EN-14
Keep the battery out of the reach of children. There is a danger of death
by accidentally swallowing the battery.
Do not recharge the used battery or expose the battery to fire or water.
Do not dispose of the used battery along with household waste. Dispose
of used batteries according to local regulations.
Danger of explosion may happen if a battery is incorrectly replaced.
Replace only with the same type recommended by the manufacturer.
Notes on Lithium Battery
(CALIFORNIA USA ONLY)
This product uses a Lithium Battery which contains Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
Remote Control Operation
10
15
7m
5m
5m
Point the remote control at the infrared remote sensor and press a button.
Operating the projector from the front
15
10
5m
7m
5m
Operating the projector from the rear
The remote control may not operate when there is sunlight or other
strong light such as a fluorescent lamp shining on the remote sensor.
Operate the remote control from a position where the remote sensor is
visible.
Do not drop the remote control or jolt it.
Keep the remote control out of locations with excessively high
temperature or humidity.
Do not get water on the remote control or place wet objects on it.
Do not disassemble the remote control.
EN-15
Installation
Connecting the Projector
1 RS232 Cable 5 Composite Video Cable 2 USB Cable 6 S-Video Cable 3 VGA Cable (D-Sub to D-Sub) 7 VGA (D-Sub) to HDTV (RCA) Cable 4 Audio Cable
Laptop type
1
7 5
When connecting cable, power cords of both a projector and external
equipment should be disconnected from AC outlet.
The figure above is a sample connection. This does not mean that all of
these devices can or must be connected simultaneously.
The cables that come with the projector may differ from the above
illustration. The included cables are based on actual shipment delivery.
Desktop type
2 3
46
EN-16
Powering On/Off the Projector
Powering on the projector:
1. Remove the projector lens cap.
2. Complete the AC power cord and peripheral signal cable(s) connections.
3. The Power LED blinks Green in standby mode.
4. Press Power LED lights on Amber and Lamp LED lights on Green when the lamp is on.
5. Turn on your source (computer, notebook, DVD, etc.). The projector automatically detects your source.
J When searching message appears on the screen, ensure that the appropriate
J The signal message will appear on the screen when the source is detected. J If you are connecting multiple sources to the projector simultaneously, press
Warning:
J Remove the lens cap first before powering on. J Never look into the lens when the lamp is on. This can damage your eyes. It is
Powering Off the Projector:
1. Press button on the control panel or remote control. “Power Off? Press Power again” message will appear on the screen.
2. Press
3. The cooling fans continue to operate for cooling cycle and the Power LED lights on Amber and Lamp LED blinks Green. When the Power LED begins flashing (Lamp LED lights off), the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press
4. Disconnect the power cord from the electrical outlet and the projector.
5. Do not turn on the projector immediately following a power off procedure.
button on the control panel or remote control to turn on the projector. The
signal cable(s) are securely connected.
Source button.
especially important that children are not allowed to look into the lens.
button again to turn off the projector.
button to restart the projector.
Please wait until the fan motor and the Lamp LED turn off before removing
the AC power cord from the projector.
EN-17
Adjusting the Projected Image

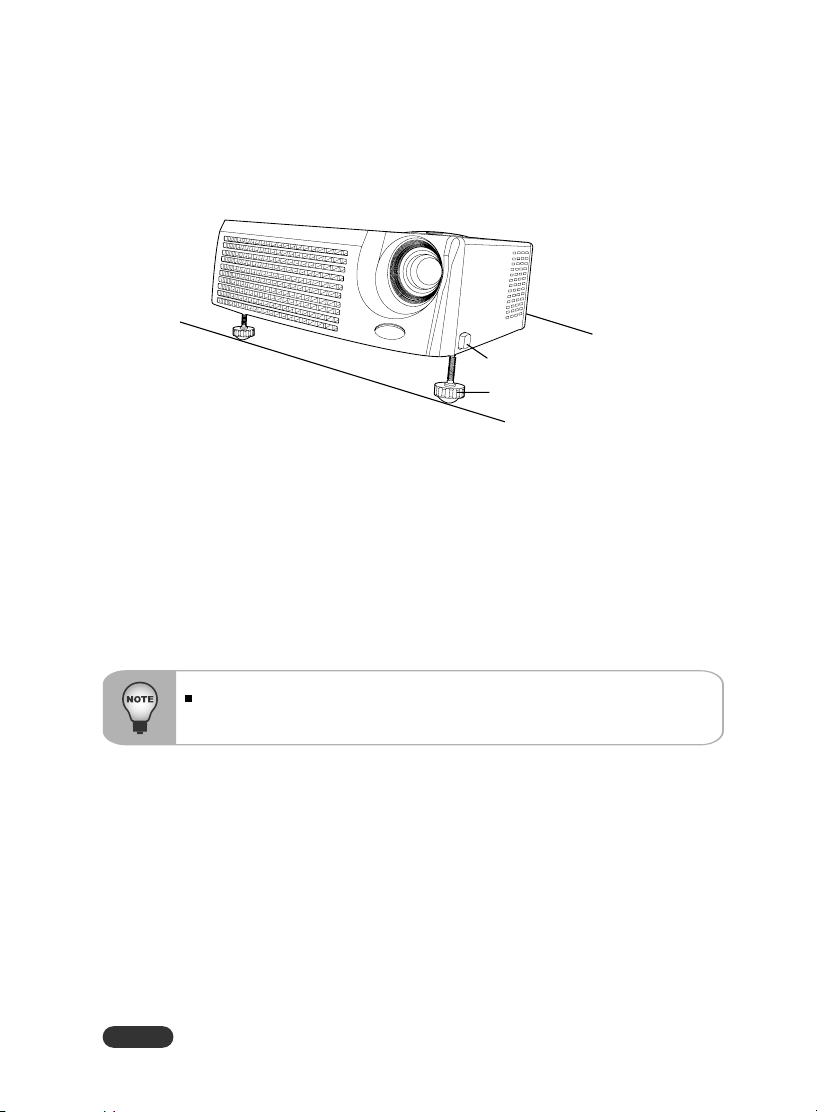

Adjusting the Projector Height
Elevator button
Elevator foot
The projector is equipped with an elevator foot to adjust the image height.
To raise the image:
1. Press the elevator button.
2. Raise the image to the desired height angle, then release the button to lock the elevator foot into position.
To lower the image:
1. Press the elevator button.
2. Lower the image, then release the button to lock the elevator foot into position.
To avoid damaging the projector, make sure that the elevator foot is
fully retracted before placing the projector in its carrying case.
EN-18
Adjusting the Projector Zoom and Focus
Zoom ring
Focus ring
1. Focus the image by rotating the focus ring. A still image is recommended for focusing.
2. Adjust the image by rotating the zoom ring. Rotate to the right to reduce the image. Rotate to the left to enlarge the image.
EN-19
Adjusting Projection Image Size
Refer to the graphic and table below to determine the screen size and projection distance. The values shown below are approximate and may vary from actual size.
277.8
A
259.62
B
A:B=8.3:1.2
PROJECTION
DISTANCE (METER)
4:3 SCREEN
SIZE-
DIAGONAL
(INCH)
Wide
Tele
1.2
33.34
31.1
138.9
129.81
83.35
77.89
2.0
55.56
51.93
55.56
51.93
3.0
83.35
77.89
33.34
31.1
1.2m
2.0m
3.0m
5.0m
10.0m
5.0
138.9
129.81
(Min.)
(Max.)
10.0
277.8
259.62
EN-20
Position the projector in a horizontal position; other positions can cause heat build-up and damage to the projector. Make sure the heat ventilation holes are not blocked. Do not use the projector in a smoky environment. Smoke residue may cause buildup on critical parts.
Menu Operation
The projector has multilingual On Screen Display menus that allow you to make image adjustments and change a variety of settings.
EN-21
How to operate
1. Press Menu button to open the OSD menu.
2. When OSD is displayed, use W / X buttons to select any feature in the main menu. After selecting the desired main menu feature, press T button to enter sub-menu for feature setting.
3. Adjust the settings with W / X buttons.
4. To return to the main menu, press Menu button.
5. To exit OSD, press Menu button. The OSD menu will close and the projector will automatically save the new settings.
EN-22
Image (Computer / Video Mode)
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.
Q Press W to decrease the contrast. Q Press X to increase the contrast.
Brightness
Adjusts brightness of the image.
Q Press W to darken the image. Q Press X to lighten the image.
Keystone
Adjusts image distortion caused by tilting the projector.
Aspect Ratio
Use this function to choose your desired image size.
Q 1 :1: Keep the image with original width-height ratio and maximize the image to fit
Q 16:9: The input source will be scaled to fit the width of the screen. Q 4:3: The input source will be scaled to fit the projection screen.
Blank Screen
Blanks the screen temporarily, and selects the screen color when this function is active.
Q Black / Blue / Gray / Red / Green / Yellow / Cyan / Magenta / White
Gamma
Selects Gamma mode.
Q RGB: Computer text mode Q Photographic: Computer photo mode Q Video: Common video mode Q Film: Dark video image mode
White Peaking
The white peaking control adjusts the white peaking level of the DMD chip. 0 stands for minimal segment, and 10 stands for maximum segment. If you prefer a stronger image, adjust towards the maximum setting. For a smooth and more natural image, adjust towards the minimum setting.
native horizontal or vertical pixels.
Color Temperature
Adjusts color temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer. If you select “User”, “Red”, “Green” and “Blue” can be adjusted.
EN-23
Red
Manually adjusts red.
Green
Manually adjusts green.
Blue
Manually adjusts blue.
Video (Video Mode)
Saturation
Adjusts a video image from black and white to fully saturated color.
Q Press W to decrease the amount of color in the image. Q Press X to increase the amount of color in the image.
Tint
Adjusts the color balance of red and green.
Q Press W to increase the amount of green in the image. Q Press X to increase the amount of red in the image.
Sharpness
Adjusts the sharpness of the image.
Q Press W to decrease the image. Q Press X to increase the image.
Display (Computer Mode)
Phase
“Phase” synchronizes the signal timing of the display with that of the graphic card. If you experience an unstable or flickering image, use the phase function to correct it.
Tracking
“Tracking” changes the display data frequency to match the frequency of your computer graphic card. If you experience a vertical flickering bar, use the tracking function to make an adjustment.
H.Position (Horizontal Position)
Q Press W to move the image left. Q Press X to move the image right.
V.Position (Vertical Position)
Q Press W to move the image down. Q Press X to move the image up.
EN-24
Language (Computer / Video Mode)
Choose the multilingual OSD menu. Use S / T to select your preferred language. PressW / X / Enter” to finalize the selection.
Advanced (Computer / Video Mode)
Auto Source Select
Automatically scans the input source. Press “W / X / Enter” to confirm or cancel the selection.
Rear
The image is reversed horizontally. Press “W / X / Enter” to confirm or cancel the selection.
Ceiling The image is inverted vertically. Press “W / X / Enter” to confirm or cancel the selection.
ECO/Hi_Alt Mode
Use this function to dim the projector lamp light output which will lower power consumption and increase lamp life, or/and turning on High Altitude mode operates the fans at full speed continuously to allow for proper high altitude cooling of the projector.
Lamp Hours
Displays Hour the lamp’s elapsed operating time (in hours).
Color Space
Manually selects signal type.
Q RGB Q YCbCr Q YPbPr
Auto Shutdown
Uses this function to automatically turn off the lamp if the projector does not detect an input signal for specified time period (30 minutes).
OSD Timeout
Duration OSD menu stays active (at idle state by second).
Menu Position
Choose the menu position on the display screen.
Factory Reset
Press “W / X / Enter” to enter its menu. Use S / T to choose “ ” and press “W / X / Enter” to return the display parameters on all menus to the factory default settings.
Audio (Computer / Video Mode)
Volume
Q Press W to decrease the volume. Q Press X to increase the volume.
Mute
Q Choose “ON” to turn mute on. Q Choose “OFF” to turn mute off.
EN-25
Maintenance
The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first.
Warning:
Never open any of the covers on the projector. Dangerous electrical voltages inside the projector can cause severe injury. Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
Cleaning the Lens
Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands or fingers.
Cleaning the Projector Housing
Gently wipe with a soft cloth. If dirt and stains are not easily removed, use a soft cloth damped with water, or water and neutral detergent, and wipe dry with a soft, dry cloth.
Turn off the projector and remove the AC power cord from the power
outlet before beginning maintenance work.
Make sure the lens is cool before cleaning.
Do not use detergents or chemicals other than those noted above. Do
not use benzene or thinners.
Do not use chemical sprays.
Use a soft cloth or lens paper only.
EN-26
Replacing the Lamp
Projector lamps have a finite life. Replace the lamp when:
J The image becomes darker and hues become weaker after a lamp has been for a
long period of time.
J The projector lamp LED indicator turns into amber. Refer to section titled “LED
Indicator Messages” (p.30) for further details.
J The lamp becomes high temperature after turning off the projector with the
power button. If you touch the lamp, you may scald your finger. When you
replace the lamp, wait for at least 45 minutes for the lamp to cool down.
J Do not touch the lamp glass at any time. The lamp may explode due to
improper handling, including the touching of the lamp glass.
J Lamp lifetime may differ from lamp to lamp and according to the
environment of use. There is no guarantee of the same lifetime for each
lamp. Some lamps may fail or terminate their lifetime in a shorter period
of time than other similar lamps.
J A lamp may explode as a result of vibration, shock or degradation as a
result of hours of use as its lifetime draws to an end. Risk of explosion
may differ according to the environment or conditions in which the
projector and lamp are being used.
J Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at
least for 5 minutes to turn off the projector after powering on.
J Do not operate the lamp in proximity to paper, cloth, or other combustible
material nor cover it with such materials. Otherwise it could cause a fire.
J Do not operate the lamp in an atmosphere containing an inflammable
substance, such as thinner. Otherwise it could cause a fire or explosion.
J Thoroughly ventilate the area or the room when operating the lamp in
an oxygen atmosphere (in the air). If ozone is inhaled, it could cause
headaches, nausea, dizziness, etc.
J The inorganic mercury is involved in the lamp. If the lamp bursts, the
mercury inside the lamp will go out of the projector. Leave the area
immediately if the lamp shatters while being operated and ventilate the
area for at least 30 minutes in order to avoid the inhalation of mercury
fumes. Otherwise it could be harmful to user’s health.
EN-27
1. Turn off the projector and unplug the AC power cord. Allow the projector to cool for at least 45 minutes.
2. Place a protective sheet (cloth) beneath the projector. Turn the projector over so you can access the lamp cover.
3. Loosen the screws on the lamp cover and open it.
4. Loosen the screws on the bottom of the lamp assembly.
5. Grasp the lamp handle and pull the lamp assembly directly out of the projector.
6. Replace with the new lamp.
7. Tighten the screws on the bottom of lamp assembly.
8. Tighten the screws on the lamp cover.
J Dispose of the used lamp according to local regulations.
J Ensure that screws are tightened properly. Screws not tightened fully
may result in injury or accidents.
J Since the lamp is made of glass, do not drop the unit and do not scratch
the glass.
J Do not reuse the old lamp. This could cause the lamp to explode.
J Be sure to turn off the projector and unplug the AC power cord before
replacing the lamp.
J Do not use the projector with the lamp cover removed.
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.
Model No. of your projector : EIP-S200 Replacement Lamp No. : P8384-1014
EN-28
Specifications
Display Type Single 0.55" DLP panel
Resolution (Pixels) 800 x 600
Uniformity 85%
Lens Manual Zoom (1.07x)
F=2.4 6mm
f=19 .91- 21.36mm
Contrast Ratio 2000 : 1
Aspect Ratio 4:3 (Default) , 16:9
Screen Size 31.1" - 277.8"
Throw Distance 1.2m - 10m
Lamp 200W
Projection Type Front, Rear, Ceiling
Video Compatibility NTSC4.43
PAL-60, PAL-M,N,(B,D,G,H,I )
SECAM
Input Source D-Sub 15 pin, S-Video, Composite Video, Stereo Phone
Jack, RS232, USB
Scanning Frequency
Horizontal Frequency 31 - 79 KHz
Vertical Frequency 50 - 85 Hz
Digital Keystone Correction Vertical + / - 15°
Integrated Speaker 1 x 2W
Acoustic Noise 36dBA
Storage Temperature -20 - + 60°C
Operation Temperature +5 - + 35°C
Operation Humidity 35% - 85% maximum (No Condensation)
Power Requirement AC 100 – 240V, 50 / 60 Hz
Power Consumption 250W Standby mode: less than 5W
Dimension (W x D x H) 255.5 x 223 x 101.5mm
Weight 3.0kg (6.6lb)
Note: Design and Specifications are subject to change without prior notice.
EN-29
Appendix
LED Indicator Messages
Projector
Status
Standby
Lamp ignition
failure
Power on
Lamp life
warning
Power off
Over
temperature
LED Type
Power LED
Color Status
Flashing
Green
Amber
Amber
Amber
Amber
Amber
Solid
Solid
Solid
Solid
Solid
Lamp LED
Color
Off
Off
Green
Amber
Green
Flashing
Amber
Flashing
Status
-
-
Solid
Solid
Meaning
The projector is powered and ready.
The projector system has some
problems with its fan, so the projector
cannot start up. The projector is operating normally.
The lamp has reached its end of life
and must be changed soon. The lamp
will continue to operate until it fails.
Change the lamp. If the lamp is off,
then the ballast will become
malfunction.
The projector is shutting down. The
fan motor is cooling the lamp for
shutdown. Do not unplug the power
cord or turn the power switch off
before the lamp LED turns off. The
fan motor will turn off when the lamp
has cooled.
Temperature is too high. The lamp will
turn off.
EN-30
Compatibility Modes
Computer:
Mode Resolution fH (kHz) fV (Hz) Timing
480P 640 x 480 31.46 59.9 60Hz
VGA 640 x 480 37.86 72.8 60Hz
VGA 640 x 480 37.5 75.0 75Hz
VGA 640 x 480 43.2 85.0 85Hz
VGA 720 x 400 31.5 70.0 60Hz
VGA 720 x 400 37.9 85.0 85Hz
SVGA 800 x 600 35.1 56.2 56Hz
SVGA 800 x 600 37.8 60.3 60Hz
SVGA 800 x 600 48.0 72.1 72Hz
SVGA 800 x 600 46.8 75.0 75Hz
XGA 1024 x 768 48.3 60.0 60Hz
XGA 1024 x 768 56.4 70.0 70Hz
XGA 1024 x 768 60.0 75.0 75Hz
XGA 1024 x 768 68.8 84.9 85Hz
Mac16” 832 x 624 49.7 74.5 60Hz
SXGA 1280 x 1024 63.98 60.0 60Hz
SXGA 1280 x 1024 79.9 75.0 75Hz
720P 1280 x 720 45.0 60.0 60Hz XGA 1024 x 768 48.3 60.0 60Hz
XGA 1024 x 768 60.2 75.0 60Hz SXGA 1152 x 870 68.6 75.0 75Hz SXGA 1152 x 864 67.5 75.0 75Hz
Mac 480-66A 640 x 480 35.0 66.7 66Hz
Video:
Signals Horizontal Frequency (kHz) Vertical Frequency (Hz)
480p 31.5 kHz 60 Hz 720p 45.0 kHz 60 Hz
1080i 33.7 kHz 30 Hz
EN-31
Troubleshooting
Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your dealer or service center. Please refer to “LED Indicator Messages” (p.30) as well.
Symptom No power.
Power goes out during use.
No image appears on screen.
Partial, scrolling or incorrectly displayed image. Image is unstable or flickering.
Image has vertical flickering bar.
Image is out of focus.
EN-32
Cause
The AC power cord is not plugged in. The AC power cord is not connected to the projector. The lamp cover is loose.
The temperature is too high.
The ventilation holes are blocked.
The projector is not turned on. The connections setup is not correctly. The connected devices are not functioning properly. Lens cap is not removed.
“Blank” function is activated. The input signal is not supported by the projector.
The signal timing of the display does not synchronize with the graphic card.
The display data frequency does not match the frequency of your computer’s graphic card.
The lens focus is not adjusted optimally. The projection distance is not within the projector’s supported range.
Solution
Plug in the AC power card.
Connect the AC power cord to the projector correctly. Tighten the screws on the lamp cover. Unplug the AC power cord and wait for a short while, then turn the power back on. Place the projector so that the ventilation holes are not blocked. Turn the projector on. Check that all connections are setup correctly. Check that all connected devices are functioning properly. Remove the lens cap and turn the projector on. Cancel “Blank” function. Press remote control’s “Auto” button.
Use “Phase” to correct it. Refer to Display section. Change the monitor color setting from your computer. Use “Tracking” to make an adjustment. Refer to Display section. Check and reconfigure the display mode of your graphic card to make it compatible with the product. Adjust the focus with the focus ring. Place the projector within the supported range.
Symptom Remote control doesn’t work.
Cause
The battery could be weak. The remote control is not being used within the effective range. There are some obstructions between the remote control and projector. There are some fluorescent or other bright lights shining at the projector’s infrared remote sensor.
Configurations of Terminals
COMPUTER INPUT/COMPONENT INPUT TERMINAL (ANALOG) Terminal : Analog RGB (Mini D-sub 15 pin)
Red (R/Cr) Input / Output
2
1
5
34
10
9 678
15
12
11
14
13
SERVICE PORT CONNECTOR Terminal : D-sub 9-pin
89 7 6
5
1234
1
Green (G/Y) Input / Output
2
Blue (B/Cb) Input / Output
3 4
Ground (Horiz.sync.)
5
Ground (Red)
6
Ground (Green)
7
Ground (Blue)
8
Serial
---
1
RX1A
2
TX1
3
---
4
GND
5 6
---
---
7
---
8 9
---
-----
Solution
Replace with a new battery. Use the remote control within the effective range. Check that there are not obstructions between the remote control and projector. Check that there are not any fluorescent or other bright lights shining at the projector’s infrared remote sensor.
5V
9
DSUB_PLUG
10
-----
11
DDC data
12
Horiz. sync. Input/Output (Composite H/V sync.)
13
Vert. sync.
14
DDC clock
15
EN-33
U.S.A.
EIKI International, Inc. 30251 Esperanza Rancho Santa Margarita CA 92688-2132 U.S.A. Tel : 800-242-3454 (949)-457-0200 Fax : 800-457-3454 (949)-457-7878 E-Mail : usa@eiki.com
Canada
EIKI CANADA -Eiki International, Inc. P.O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com
Deutschland & Österreich
EIKI Deutschland GmbH Am Frauwald 12 65510 Idstein Deutschland Tel : 06126-9371-0 Fax : 06126-9371-14 E-Mail : info@eiki.de
China
EIKI (Shanghai) Co.,LTD
1. Dapu Road, Golden Magnolia Plaza #2109 Shanghai, 200023 China Tel : 86-21-5396-0088 Fax : 86-21-5396-031 E-Mail : info@eikichina.com.cn
WorldWide Website http://www.eiki.com
Eastern Europe
EIKI CZECH spol. s.r.o. Umelecka 15 170 00 Praha 7 Czech Republic Tel : +42 02 20570024 +42 02 20571413 Fax : +42 02 20571411 E-Mail : easterneurope@eiki.de
Japan & Worldwide
EIKI Industrial Company Limited. 4-12 Banzai-Cho, Kita-Ku, Osaka, 530-0028 Japan Tel : +81-6-6311-9479 Fax : +81-6-6311-8486
03/2007 Eiki International, Inc.
Loading...
