Owner’s Manual

Multimedia Projector

Model EK-810U

EK-811W

(Projection lens is optional.)

Features and Design

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes a high luminance and Eco friendly system, a palette of 1.07 billion colors, and digital light processing (DLP) technology.

Preface

Compact Design

This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use.

Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. Up to WUXGA and WXGA resolutions can be accepted.

Useful Functions for Presentations

The digital zoom function allows you to focus on the crucial information during a presentation.

Laser Diode Control

Brightness of the projection laser diode can be manually selected (Constant Power, Constant Luminance, or Eco Mode).

Logo Function

The Logo function allows you to specify the screen background (“Logo”, “Blue”, “Black”, or “White” screen) when no signal is available.

Multilanguage Menu Display

Helpful Maintenance Function

Lens replacement function provides for better and proper maintenance of the projector.

Security Function

The Security function helps you to ensure security of the projector.

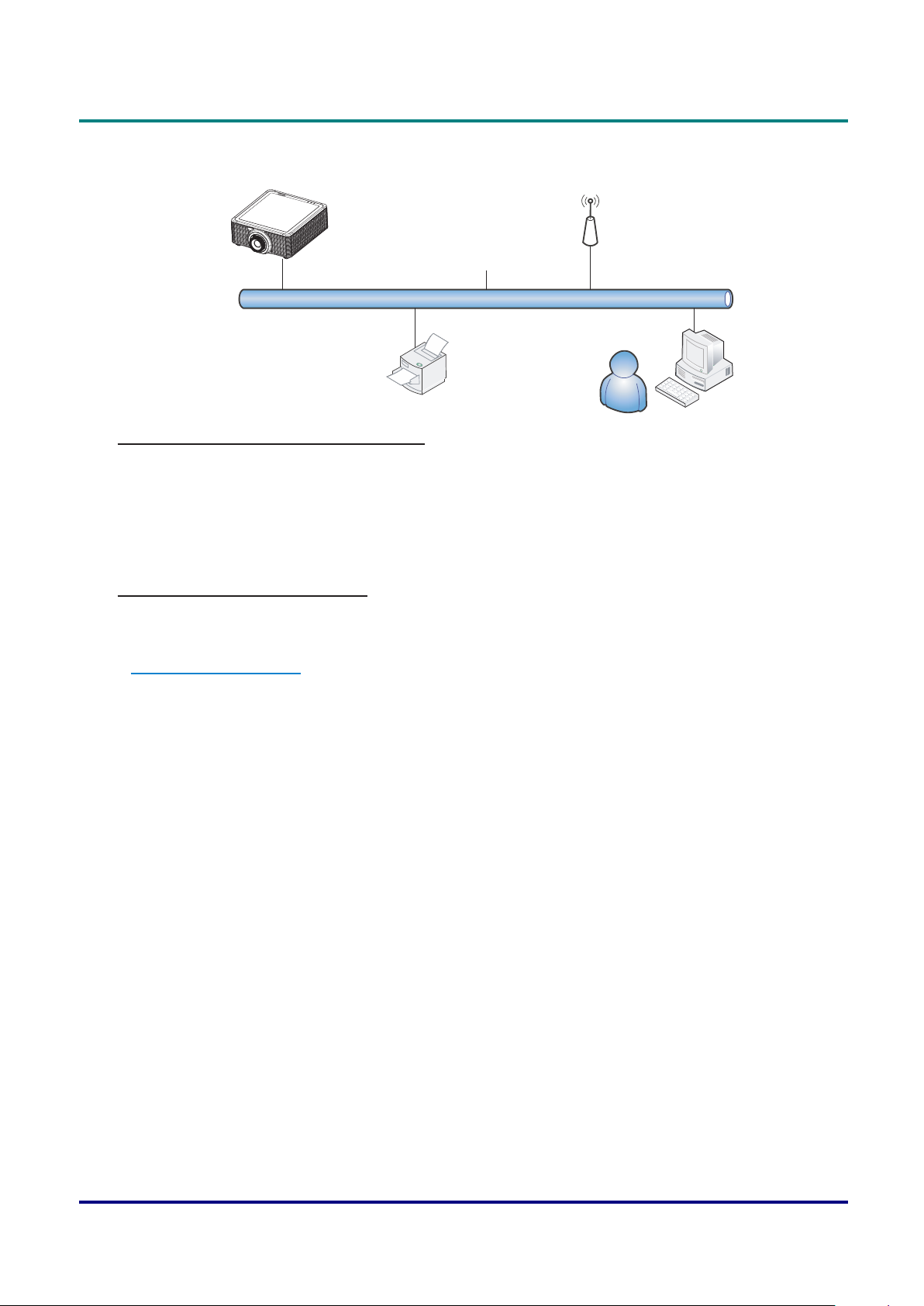

LAN Network Function

This projector is loaded with the Wired LAN network function. You can operate and manage the projector via network.

For details, refer to page 40 and pages 44-51.

Auto Setup Function

This function enables auto input search and auto signal adjustment simply by pressing the Auto button on the remote control.

Power Management

The Power management function reduces

power consumption and maintains the laser diode life.

Operation menu is available in 13 languages; English, French, Spanish, German, Italian,

Russian, Simplied Chinese, Japanese, Korean,

Portuguese, Indonesian, Dutch, and Arabic.

Note:

The screen menu and pictures in the manual may slightly differ from the real product. The manual is subject to change without prior notice.

— i —

DLP Projector — Owner’s Manual

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no

representations or warranties with respect to the contents hereof and specically disclaims any implied warranties of merchantability or tness for any particular purpose. The manufacturer reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

All other product names used in this manual are the properties of their respective owners and are acknowledged.

— ii —

Important Safety Information

Important:

It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations. The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Preface

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example:

“Push the Menu button on the remote control to open the Main menu.”

General Safety Information

¾ Do not open the unit case. There are no user-serviceable parts in the unit. For servicing, contact

qualied service personnel.

¾ Follow all warnings and cautions in this manual and on the unit case.

¾ The projection laser diode is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the laser diode is on.

¾ Do not place the unit on an unstable surface, cart, or stand.

¾ Avoid using the system near water, in direct sunlight, or near a heating device.

¾ Do not place heavy objects such as books or bags on the unit.

— iii —

DLP Projector — Owner’s Manual

Safety Instructions

• Please read this manual completely before installing and operating the projector.

• The projector provides many convenient features and functions. Proper operation may enable you to

fully utilize the features and keep it in good condition. Otherwise, it will not only shorten the service life

of the unit, but also may cause malfunction, a re, or other accidents.

• If your projector cannot work properly, please read this manual again, check the operating methods and

cable connection, and try the solutions in the part of Troubleshooting. If the problem still exists, contact the dealer or the service center.

Caution:

ELECTRIC SHOCK DO NOT OPEN

Caution:

To reduce the risk of electric shock, do not remove cover (or back), no user serviceable parts

inside. Refer servicing to qualied service personnel.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the user’s manual with this unit.

FOR EU USERS

The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.

Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.

Note:

If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators.

Please, dispose of them correctly at your local community waste collection/recycling centre. Please help us to conserve the environment we live in!

— iv —

Preface

Safety Precautions

Caution:

• The projector must be grounded.

• Donotexposetheprojectortoraindropsorhighhumiditytoavoidareorelectricshock.

• This projector produces intense light from the projection lens. Avoid staring directly into the lens, otherwise eye damage could be caused. Be especially careful that children do not stare directly into the beam.

• Place the projector in a proper position. Otherwise it may result in re hazard.

• Leave an appropriate space from the top, sides, and back of the shell in order to ventilate and cool down the projector. The gures below indicate the minimum distance to be left. It must be satised if the

projector is placed in sealed environment like a cabinet.

≥ 1m

(≥ 39.4”)

≥ 1m

(≥ 39.4”)

≥ 1m

(≥ 39.4”)

• Do not cover the vent of the projector. Poor radiation may shorten the service life or even cause

dangers.

• Remove the AC power plug if the projector is not to be used for a long time.

Caution:

• Do not set the projector in greasy, wet, or smoky conditions such as in a kitchen, to prevent a malfunction or accident. If the projector comes in contact with oil or chemicals, it may become deteriorated.

• Read and keep this manual for future reference.

• The mains plug/appliance coupler is used as disconnect device, the disconnect device shall remain

readily operable.

— v —

DLP Projector — Owner’s Manual

Safety Guide

• All the safety and operating instructions should be read before the product is operated.

• Read all of the instructions given here and retain them for later use. Unplug this projector from AC

power supply before cleaning. Do not use liquid or aerosol cleaners.

• Use a damp cloth for cleaning.

• Follow all warnings and instructions marked on the projector.

• For added protection to the projector during a lightning storm, or when it is left unattended and unused

for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

• Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

• Do not use attachments not recommended by the manufacturer as they may cause hazards.

• Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing

serious injury to a child or an adult, and serious damage to the projector.

• Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturers.

• An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

• The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

• This projector should not be placed in a build-in installation such as a book case unless proper ventilation is provided.

• Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a re or electric shock. Never spill liquid of any kind

on the projector.

• Do not install the projector near the ventilation duct of air-conditioning equipment.

• This projector should be operated only from the type of power source indicated on the marking label.

• If you are not sure of the type of power supplied, consult your authorized dealer or local power

company.

• Do not overload wall outlets and extension cords as this can result in re or electric shock. Do not allow

anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

• Do not attempt to service this projector yourself as opening or removing the covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualied service personnel.

• Unplug this projector from wall outlet and refer servicing to qualied service personnel under the

following conditions:

¾ When the power cord or plug is damaged or frayed.

¾ If liquid has been spilled into the projector.

¾ If the projector has been exposed to rain or water.

¾ If the projector does not operate normally by following the operating instructions. Adjust only those

controls that are covered by the operating instructions as improper adjustment of other controls

may result in damage and will often require extensive work by a qualied technician to restore the

projector to normal operation.

¾ If the projector has been dropped or the cabinet has been damaged.

— vi —

Preface

¾ When the projector exhibits a distinct change in performance - this indicates a need for service.

• When replacement parts are required, be sure the service technician has used replacement parts

specied by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in re, electric shock, or injury to persons.

• Upon completion of any service or repairs to this projector, ask the service technician to perform routine

safety checks to determine that the projector is in safe operating condition.

Information for users in the European Union

This is a device to project images onto a screen, etc., and is not intended for use as indoor lighting in a domestic environment. Directive 2009/125/EC.

Air circulation

Vents in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

Caution:

• Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

• Donotputanyammableobjects,orspraycanneartheprojector.Hotairisexhaustedfromtheair

vents.

• Keep the exhaust vent at least 1m away from any objects.

• Do not touch a peripheral part of the exhaust vent, especially screws and metallic part. This area

will become hot while the projector is being used.

• Do not put anything on the projector. Objects put on the cabinet will not only get damaged but also maycauserehazardbyheat.

• Cooling fans are provided to cool down the projector.

• The fan’s running speed is changed according to the temperature inside the projector.

Caution:

Contains mercury

• For more information on safe handling procedures, the measures to be taken in case of accidental breakage and safe disposal options visit: ec.gc.ca/mercure-mercury/.

• Dispose of or recycle in accordance with applicable laws.

— vii —

DLP Projector — Owner’s Manual

Air Intake Vent Exhaust Vent

Moving the projector

When moving the projector, take care of the lens and retract the adjustable foot to prevent damage to the

lens and cabinet.

Installing the projector properly

• Please set the projector on nearly-level.

• Be sure to install the projector properly. Improper installation may reduce the laser diode lifetime and

even cause a re hazard.

Caution in ceiling installation the projector

• Onlyqualiedpersonalisauthorizedforceilinginstallation.

• We are not responsible for the hurt and damage caused by ceiling bracket that purchased from

unauthorized dealer even in warranty period.

• Remove the ceiling bracket immediately while not use.

• While installing, torque screwdriver is suggested, don’t use electric or impact-type screwdriver.

• Please read the manual of bracket for details.

• The bracket is subject to change without notice.

— viii —

Preface

M6 x 4

10mm

Caution in moving or transporting the projector

• Do not drop or bump the projector, otherwise damages or malfunctions may result.

• When carrying the projector, use a suitable carrying case.

• Do not transport the projector by courier or any other transport service in an unsuitable transport

case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.

— ix —

DLP Projector — Owner’s Manual

Compliance

FCC Caution

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class A limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modications to the equipment unless otherwise specied in the instructions. If such changes or modications should be made, you could be required to stop operation of the

equipment.

Model Number : EK-810U/EK-811W

Trade Name : EIKI

Responsible party : EIKI International, Inc.

Address : 30251 Esperanza Rancho Santa Margarita CA 92688-2132

Telephone No. : 800-242-3454 (949-457-0200)

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and

certied by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will t

into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

Warning:

Aplugwithbaredexiblecordishazardousifengagedinalivesocketoutlet.

— x —

Preface

The Wires in this mains lead are coloured in accordance with the following code:

• Green-and-yellow ......... Earth

• Blue .............................. Neutral

• Brown ........................... Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Warning:

This apparatus must be earthed.

Note:

The socket-outlet should be installed near the equipment and easily accessible.

— xi —

DLP Projector — Owner’s Manual

Contents

GETTING STARTED ................................................................................................................ 1

Packing Checklist ..................................................................................................................... 1

Views of Projector Parts ........................................................................................................... 2

Front-right View .....................................................................................................................................2

Rear View ..............................................................................................................................................3

Built-in Keypad .......................................................................................................................................4

Bottom View ...........................................................................................................................................5

Remote Control Parts .............................................................................................................. 6

Remote Control Operating Range .......................................................................................... 8

Projector and Remote Control Buttons .................................................................................... 8

Inserting the Remote Control Batteries ................................................................................... 9

SETUP AND OPERATION .................................................................................................... 10

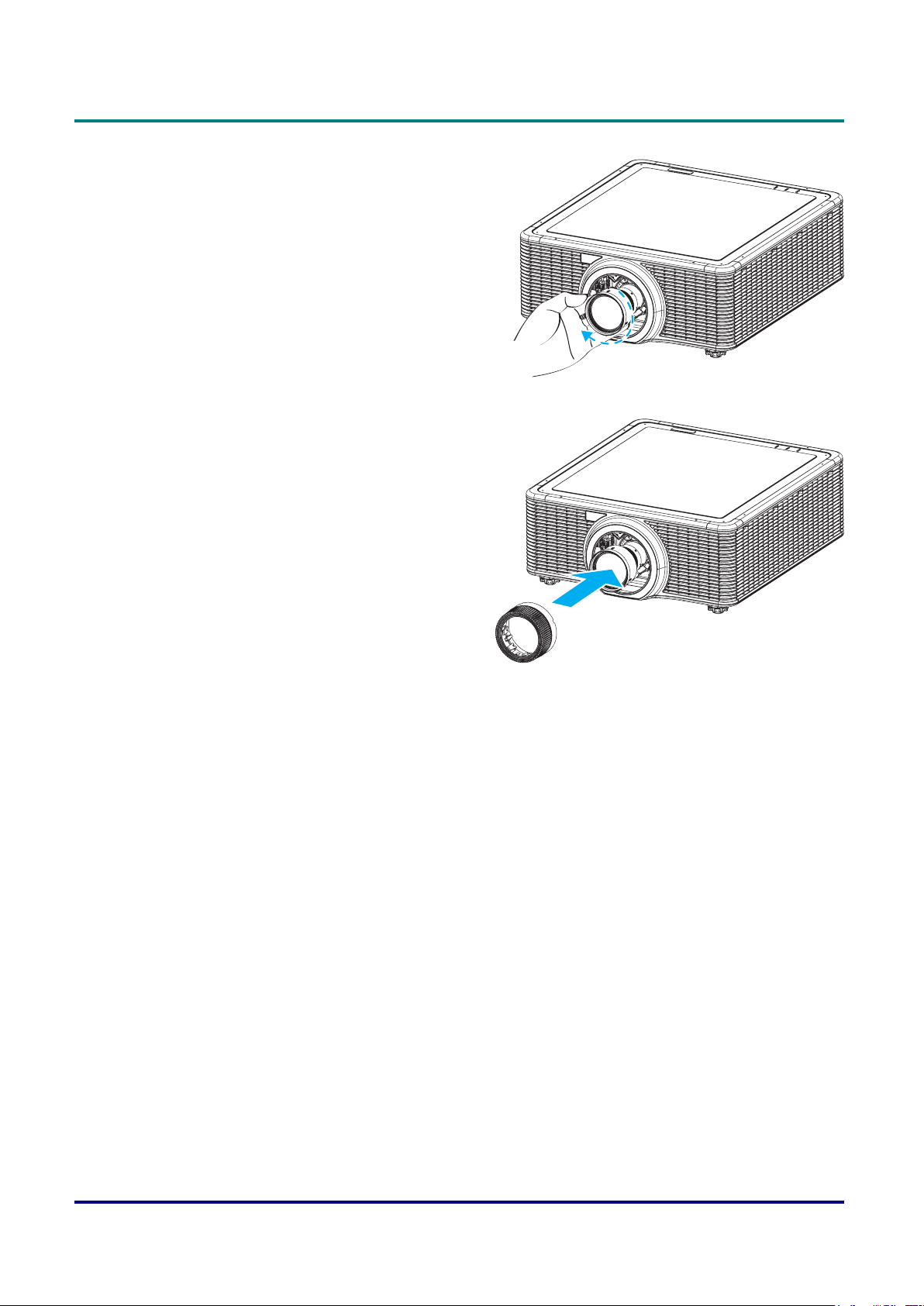

Installing the Projection Lens.................................................................................................. 10

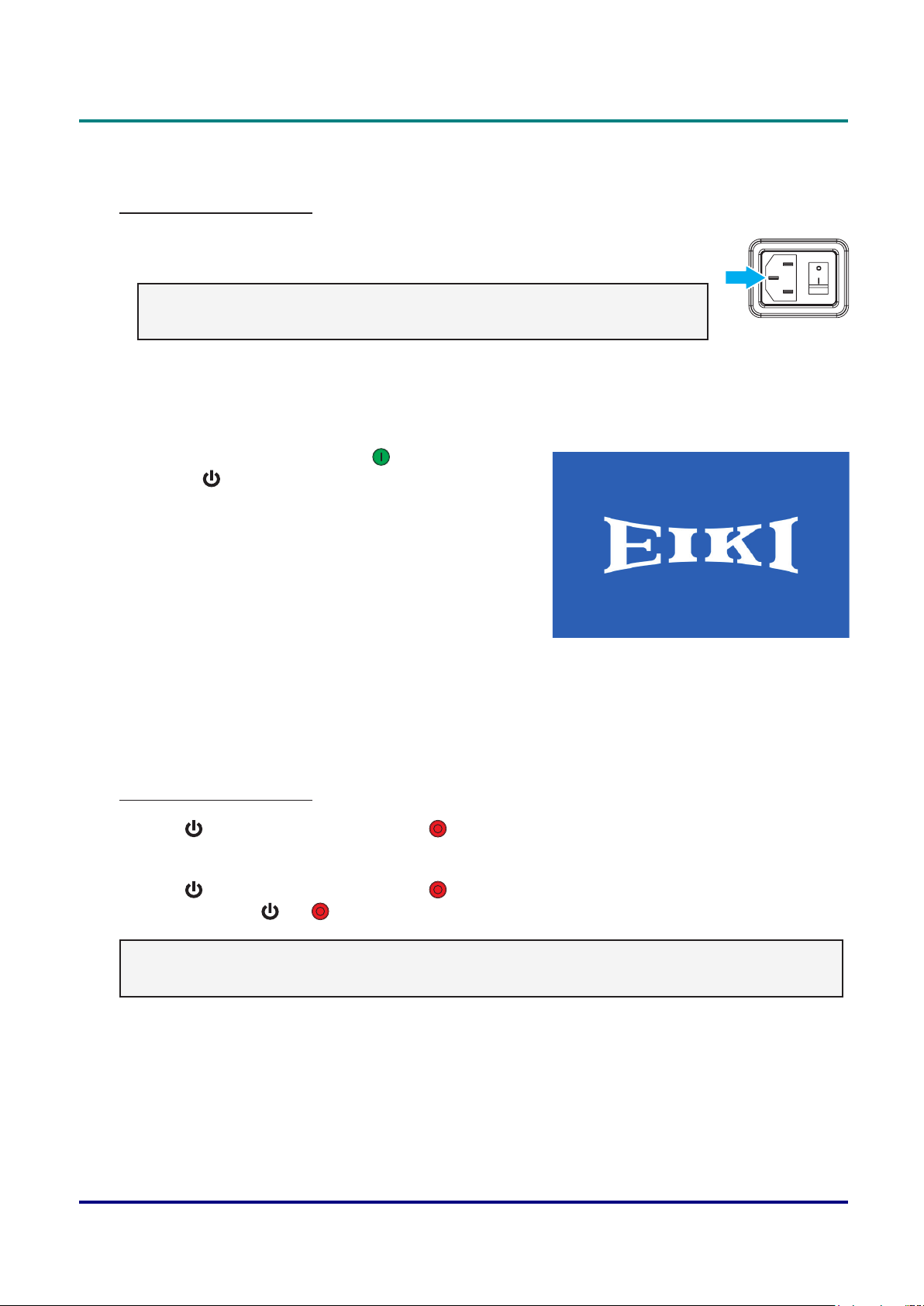

Starting and Shutting down the Projector ............................................................................... 12

Turn the Projector On ..........................................................................................................................12

Turn the Projector Off ..........................................................................................................................12

Adjusting the Projector Level .................................................................................................. 13

Adjusting the Zoom, Focus, and Keystone ............................................................................. 14

Using the Lens Shift Adjustment............................................................................................. 15

Vertical / Horizontal Lens Shift .............................................................................................................15

Optional Lenses and Projection Size...................................................................................... 17

Projection Lens ....................................................................................................................................17

Projection Size v.s Throw Distance......................................................................................................19

ON-SCREEN DISPLAY (OSD) MENU SETTINGS ............................................................... 20

OSD Menu Controls ............................................................................................................... 20

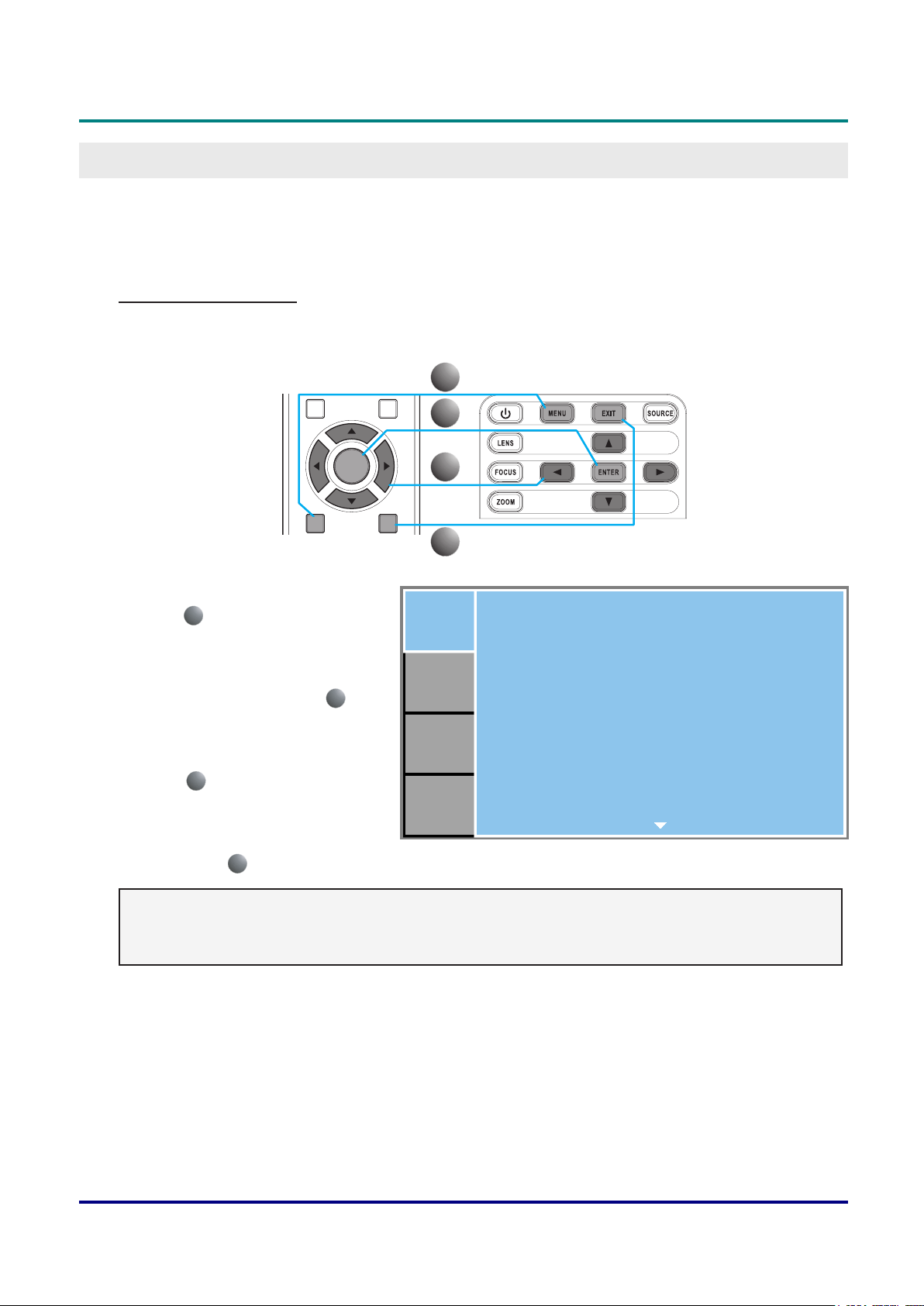

Navigating the OSD .............................................................................................................................20

Setting the OSD Language..................................................................................................... 21

OSD Menu Overview .............................................................................................................. 22

Picture Menu .......................................................................................................................... 28

3D Display Menu .................................................................................................................................29

HSG Adjustment Menu ........................................................................................................................30

Advanced Menu ...................................................................................................................................31

— xii —

Preface

Output Menu ........................................................................................................................... 32

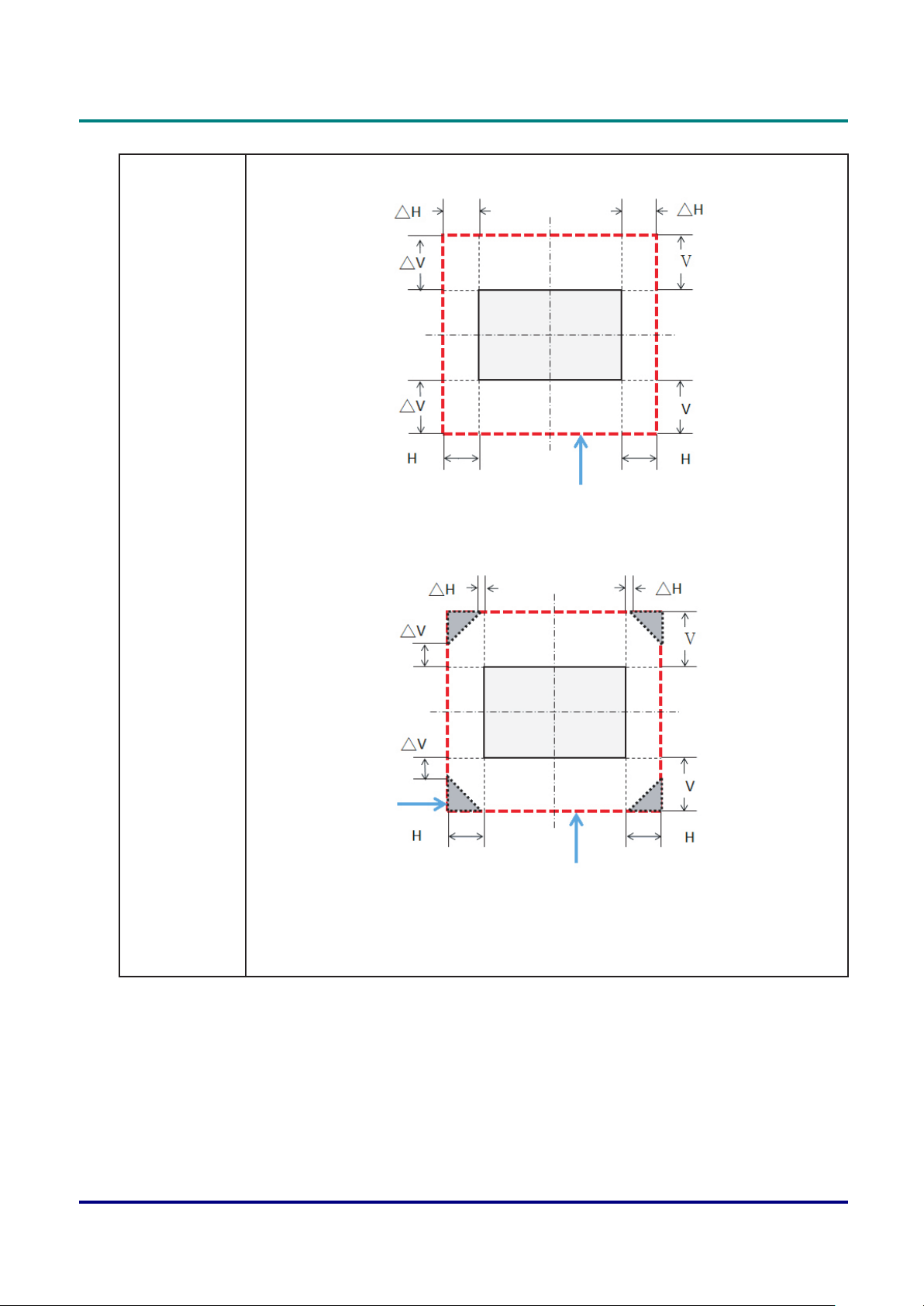

Image Warping Menu...........................................................................................................................33

PIP/PBP Menu .....................................................................................................................................34

Setup Menu ............................................................................................................................ 36

Lens Function Menu ............................................................................................................................37

Menu Preferences Menu .....................................................................................................................38

Pin Menu ..............................................................................................................................................39

Communications Menu ........................................................................................................................40

Option Menu ........................................................................................................................... 41

Power Settings Menu ...........................................................................................................................42

Light Source Settings Menu .................................................................................................................43

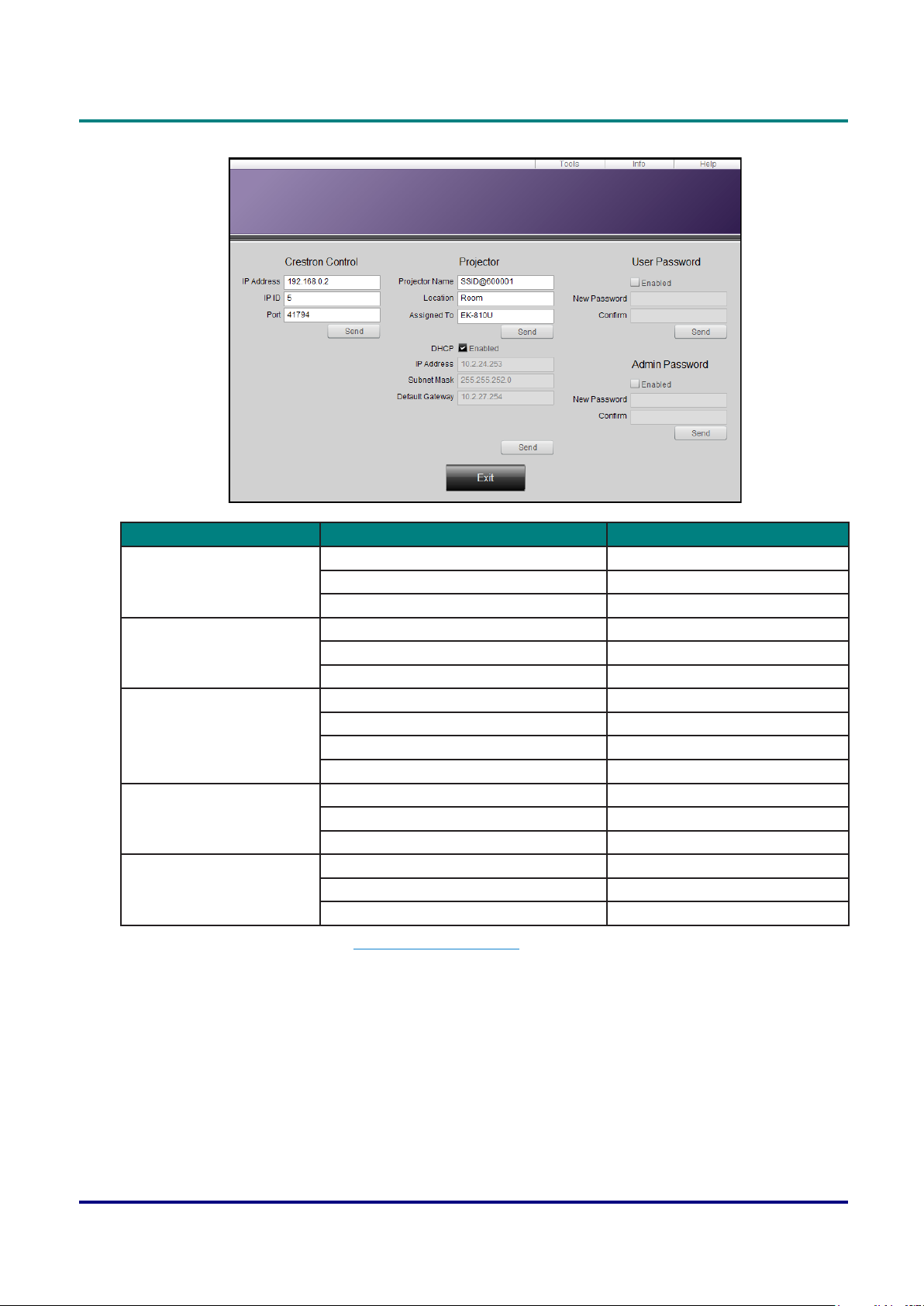

Control Your Projector Using Web Browser ............................................................................ 44

Wired LAN Terminal functionalities ......................................................................................................44

Supported External Devices ................................................................................................................44

LAN_RJ45 ...........................................................................................................................................45

RS232 by Telnet Function ....................................................................................................................49

MAINTENANCE AND SECURITY ........................................................................................ 52

Replacing the Projection Lens ................................................................................................ 52

Cleaning the Projector ............................................................................................................ 53

Cleaning the Lens ................................................................................................................................53

Cleaning the Case ...............................................................................................................................53

Using the Kensington® Lock ................................................................................................... 54

TROUBLESHOOTING .......................................................................................................... 55

Common Problems and Solutions .......................................................................................... 55

Tips for Troubleshooting ......................................................................................................... 55

LED Error Messages .............................................................................................................. 56

Image Problems ..................................................................................................................... 57

Laser Diode Problems ............................................................................................................ 57

Remote Control Problems ...................................................................................................... 58

Having the Projector Serviced ................................................................................................ 58

HDMI Q & A ............................................................................................................................ 59

— xiii —

DLP Projector — Owner’s Manual

SPECIFICATIONS ................................................................................................................. 60

Specifications ......................................................................................................................... 60

Projection Distance vs. Projection Size .................................................................................. 61

Projection Distance and Size Table .....................................................................................................61

Timing Mode Table ................................................................................................................. 62

Projector Dimensions ............................................................................................................. 64

REGULATORY COMPLIANCE ............................................................................................. 65

FCC Warning .......................................................................................................................... 65

Canada ................................................................................................................................... 65

Safety Certifications................................................................................................................ 65

— xiv —

Packing Checklist

Carefully unpack the projector and check that the following items are included:

DLP PROJECTOR

OFF

Mode

Source

Info

Auto

Enter

Exit

PIP

Cont.

Bright

Gamma

Focus

Lens H

Lens V

Zoom

Keystone H

Pattern

Keystone V

Hot Key

Shutter (AV Mute)

DLP Projector — Owner’s Manual

Getting Started

REMOTE CONTROL

(WITH TWO AAA BATTERIES)

LENS COVER

* For A06 lens

* For other regions except China:

VGA CABLE LENS COVER

* For A01, A03, and A13 lens

POWER CORD

QUICK START GUIDE

(BOOKLET)

POWER CORD x 2 (US and EU)

* For China: POWER CORD x 1

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service.

Note:

• Avoid using the projector in dusty environments.

— 1 —

DLP Projector — Owner’s Manual

Views of Projector Parts

Front-right View

Item Label Description See page

1 Projection Lens Allows automated lens control and adjustment: vertical and

horizontal offsets, zoom and focus.

2 Front IR Sensor Receives signals from the IR remote. Keep the signal path to

the sensor unobstructed for uninterrupted communication with

3 Top IR Sensor

4 LED Status

the projector.

Displays the status of the projector. 56

Indicators

5 Cooling Air Vents

(Intake)

Keep these vents unobstructed to prevent the projector from overheating.

6 Adjustable Feet Raise or lower the feet to level the projector. 13

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector laser diode cool. Do not obstruct any of the ventilation openings.

— 2 —

Rear View

DLP Projector — Owner’s Manual

1 2 3 4 5

6 7 8 9 10

1316 1517

Item Label Description See page

1 3D Sync OUT Connect the 3D IR glasses transmitter

(Note: For Specic 3D IR glasses only)

2 HDBaseT Connect a RJ45 Cat5/Cat6 Ethernet cable to input

uncompressed high-denition video control signals.

3 DVI-D Connect to DVI source. -

4 Ethernet Connect a LAN cable from Ethernet. -

5 VGA IN Connect the VGA cable from a computer or component device. -

6 RS-232C Connect RS-232 serial port cable for remote control. -

7 VGA OUT Connect the VGA cable to a display. -

8 HDMI OUT Connect the HDMI cable to a display. -

9 HDMI IN Connect the HDMI cable from a HDMI device. -

10 Service Service only. -

11 USB Connect the WIFI dongle. -

12 Remote IN Connect to the remote control wired terminal for serial control

projector.

13 Power Switch Switch the power button to turn on the power source. 12

14 AC Input Connect to the supplied power adapter. 12

15 Kensington Lock Use to secure the projector to countertops, tables, etc. 54

16 Security Bar Use to secure the projector. -

17 Built-in Keypad Control the projector. 4

Note:

• To use this feature, you must plug in the connector before turn on/off the projector.

• Do not use this jack for anything other than intended use.

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

— 3 —

DLP Projector — Owner’s Manual

Built-in Keypad

2 3 4

567

Item Label Description See page

1 Power Turn the projector on or off. 12

2 Menu Display menus. 20

3 Exit Return to previous level or exit menus if at top level. 20

4 Source Select an input for the main or PIP/PBP image. -

5 Enter • Select a highlighted menu item.

• Change or accept a value.

6 Arrow keys • Adjust a setting UP or DOWN.

• Navigate within a menu.

7 Zoom Adjust zoom. 14

8 Focus Adjust focus. 14

9 Lens Adjust the lens vertical or horizontal offset setting. -

— 4 —

Bottom View

140mm 140mm

310mm

DLP Projector — Owner’s Manual

280mm

310mm

Item Label Description See page

1 Adjustable Feet Raise or lower the feet to level the projector. 13

2 Ceiling support

holes

Contact your dealer for information on mounting the projector on a ceiling.

Note:

• When installing, ensure that you use only UL Listed ceiling mounts.

• For ceiling installations, use approved mounting hardware and M6 screws with a maximum screw

depth of 10 mm (0.39 inch).

• The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount load capacity must exceed the weight of the installed equipment, and as an additional precaution be capable of withstanding three times the weight of the equipment (not less than 71.4 kg) over a period of 60 seconds.

— 5 —

DLP Projector — Owner’s Manual

Remote Control Parts

ON OFF

21 3

54 6

87 9

Info

Auto

Mode

Source

Enter

Menu Exit

Gamma Bright Cont. PIP

Hot Key

Focus

Zoom

Pattern

Keystone H

Keystone V

Shutter

(AV Mute)

Lens H

Lens V

Important:

1.Avoidusingtheprojectorwithbrightuorescentlightingturnedon.Certainhigh-frequency uorescentlightscandisruptremotecontroloperation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain

reectivesurfacessuchasprojectorscreens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This owner’s manual describes the functions based on the remote control.

Note:

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

— 6 —

DLP Projector — Owner’s Manual

Item Label Description See page

1 Power on Turn projector ON. 12

2 Number Keys Enter a number (such as PIN code) or source hotkey.

Source Hotkey Key:

1: VGA

2: HDMI

3: DVI-D

4: HDBaseT

3 Info Display source image information. -

4 Auto Automatically optimize image. -

5 Enter • Select a highlighted menu item.

• Change or accept a value.

6 Arrow Keys • Adjust a setting UP or DOWN.

• Navigate within a menu.

7 Menu Display menus. 20

8 Gamma Adjust mid-range levels. -

9 Bright Adjust amount of light in the image. -

10 Lens H Adjust the position of the image horizontally. -

11 Lens V Adjust the position of the image vertically. -

12 Keystone H Adjust the horizontal keystone. 14

13 Keystone V Adjust the vertical keystone. 14

14 Shutter

(AV Mute)

15 Hot Key Select your preset keys quickly. -

16 OFF Turn projector OFF. 12

17 Mode Select the preset display mode. -

18 Source Select an input for the main or PIP/PBP image. -

19 Exit Return to previous level or exit menus if at top level. 20

20 PIP Turn PIP/PBP ON/OFF. -

21 Cont. Adjust difference between dark and light. -

22 Focus Adjust focus to improve image clarity as desired. 14

23 Zoom Adjust zoom to achieve a desired image size. 14

24 Pattern Display a test pattern. -

Display or blank the video image. -

Caution:

Useofcontrols,adjustmentsorperformanceofproceduresotherthanthosespeciedhereinmay

result in hazardous laser light exposure.

— 7 —

DLP Projector — Owner’s Manual

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 10 meters (32.8 feet) and 30 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the rear of the projector. All operations can be carried out with the remote control; however, the buttons on the projector are limited in use.

— 8 —

Inserting the Remote Control Batteries

1. Remove the battery compartment cover as shown in the

illustration.

2. Insert the batteries with correct polarity (+/-) as shown inside

the battery compartment.

DLP Projector — Owner’s Manual

3. Replace the cover.

Caution:

• Only use AAA batteries (Alkaline batteries are recommended).

• Dispose of used batteries according to local ordinance regulations.

• Remove the batteries when not using the projector for prolonged periods.

— 9 —

DLP Projector — Owner’s Manual

Setup and Operation

Installing the Projection Lens

Before setting up the projector, install the projection lens on the projector.

Important:

• Beforeinstallation,checkwheretheprojectorisusedandprepareasuitablelens.

• Fordetails,contactthesalesdealerwhereyoupurchasedtheprojector.

1. Press “ ” on the built-in keypad or press “ ” on the remote control twice to turn off the projector after

cooling down.

2. Rotate the lens cap counter-clockwise. Then remove the lens cap.

3. Remove both lens caps (front and back) on the lens.

4. Install the lens assembly into the lens mount.

— 10 —

5. Rotate the lens clockwise to lock the lens in place.

6. Firmly install the lens cover onto the lens.

DLP Projector — Owner’s Manual

— 11 —

DLP Projector — Owner’s Manual

Starting and Shutting down the Projector

TurntheProjectorOn

1. Connect the power cord to the projector. Then connect the other end to a wall outlet.

The Power button on the built in keypad is illuminated.

Important:

MakesurethatthePowerswitchisintheONposition.

2. Turn on the connected devices.

3. Turn on the projector by pressing “ ” on the remote control

or press “ ” on the built-in keypad. The Status LED is Orange with a long blink.

The projector splash screen displays and connected devices are detected.

4. If more than one input device is connected, press the Source key on the remote control to select an

input source (VGA, HDMI, HDBaseT, or DVI).

5. The projector detects the source you selected and displays the image.

TurntheProjectorOff

1. Press “ ” on the built-in keypad or press “ ” on the remote control to turn off the projector. A warning

message will appear on the displayed image.

2. Press “ ” on the built-in keypad or press “ ” on the remote control again to conrm your selection. If

you do not press “ ” or “ ” again, the warning message will disappear after 10 seconds.

Caution:

Donotunplugthepowercorduntilalloffansarestop–indicatingtheprojectorhascooleddown.

— 12 —

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.

• Position the projector so that it is perpendicular to the screen.

• Ensure the cables are in a safe location. You could trip over them.

DLP Projector — Owner’s Manual

1. To raise the level of the projector, lift the projector

2. Locate the adjustable foot you wish to modify on the underside of the projector.

3. Rotate the adjustable foot clockwise to raise the projector or counter-clockwise to lower it. Repeat with

the remaining feet as necessary B.

— 13 —

DLP Projector — Owner’s Manual

Adjusting the Zoom, Focus, and Keystone

1. Use the Zoom button to resize the projected

image and screen size B.

Lens H

Lens V

Focus

2. Use the Focus button to sharpen the

projected image A.

Shutter

(AV Mute)

Keystone H

Keystone V

Hot Key

Zoom

Pattern

3. Use the Keystone H buttons (on the remote control) to adjust the keystone

horizontally and make a squarer image. Use the Keystone V buttons (on the remote control) to adjust keystone vertically and make a squarer image.

Keystone H

Keystone V

Shutter

(AV Mute)

Lens H

Lens V

Hot Key

Focus

Zoom

Pattern

— 14 —

DLP Projector — Owner’s Manual

Using the Lens Shift Adjustment

The projection lens can be moved up, down, right, and left with the motor-driven lens shift function. This function makes the positioning of images easy on the screen. Lens shift is generally expressed as a percentance of the image height or width, see below illustration.

Vertical/HorizontalLensShift

Vertical Image Offset: 0% Offset (WUXGA)

No offset is applied - 0% offset.

Half of the image appears above lens center and half of the image appears below lens center.

600 pixels above lens center.

Lens center

Vertical Image Offset: 120% Offset (WUXGA)

720 pixels of shift above lens center.

Lens center

Image has been offset 720 pixels above lens center, so the center of the image is now 720 pixels above where the center of the image was at 0% offset (or lens center).

The offset is +720/600 * 100% = +120%

— 15 —

DLP Projector — Owner’s Manual

Vertical Image Offset: -120% Offset (WUXGA)

720 pixels of shift below lens center.

Total of 1440 pixels (720+720) of display are below lens center.

Image has been offset 720 pixels below lens center, so the image has an offset of

-720/600 * 100% = -120%

Lens center

Horizontal Image Offset: +/-50% Offset (WUXGA)

-480 pixels

1920 pixels +480 pixels

Lens center

Image has been offset 480 pixels left or right of lens center.

The image has an offset of +480/960 * 100% = +50%, or

-480/960 * 100% = -50%

— 16 —

Optional Lenses and Projection Size

ProjectionLens

The complete projection lens series as below table.

Item

Lens Model

Name

Wide Zoom Standard Long Zoom

A01 A06 A03 A13 A15

Lens Type

DLP Projector — Owner’s Manual

Ultra-Long

Zoom

Short Throw

Zoom

Focal Length

(f)

F number 2.30-2.57 2.00-2.32 2.30-3.39 2.30-2.74 2.30-2.53

Focus spec

(MTF)

Zoom Range

(Ratio)

Zoom & Focus

Adjustment

Throw Ratio 0.95-1.22 1.22-1.52 1.53-2.92 2.90-5.50 0.75-0.95

Throw

Distance

Projection

Image Size

Brightness (%)

Motorized Lens

Shift

(Lens shift range

based on 1/2

screen width and

height)

14.03-17.96 18.07-22.59 22.56-42.87 42.60-80.90 11.11-14.06

67 lp/mm 47 lp/mm 67 lp/mm 67 lp/mm 67 lp/mm

1.28X 1.25X 1.9X 1.9X 1.26X

Motorized

1.02~7.88m 1.32~9.82m 1.64~18.87m 3.12~35.54m 0.81-6.13m

50~300”

85%

(Wide)

Horizontal: ±30%

Vertical: ±100%

76%

(Tele)

Projection

Lens

A01

A13

A06 30% 100% 5% 50%

A15 30% 100% 2% 50%

100%

(Wide)

87%

(Tele)

H V

30% 100% 30% 100%A03

85%

(Wide)

52%

(Tele)

93%

(Wide)

71%

(Tele)

rH rV

93%

(Wide)

83%

(Tele)

— 17 —

DLP Projector — Owner’s Manual

A01/A03/A13 lens shift range:

Motorized Lens

Shift

(Lens shift range

based on 1/2

screen width and

height)

A06/A15 lens shift range:

Lens shift range

Darker

Lens shift range

Lens shift accuracy: 0.5 pixel per step

When the lens is shifted beyond the described range of operation, the screen edges may become darker or the images may become out of focus.

— 18 —

DLP Projector — Owner’s Manual

ProjectionSizev.sThrowDistance

A01 A06 A03 A13 A15

Projection Lens

Throw Distance 1.02~7.88m 1.32~9.82m 1.64~18.87m 3.12~35.54m 0.81-6.13m

Projection Size Projection Distance

Diagonal

(inch)

50 0.67 1.08 1.02 1.32 1.32 1.64 1.65 3.14 3.13 5.94 0.81 1.03

60 0.81 1.29 1.23 1.57 1.57 1.96 1.98 3.77 3.74 7.1 0.97 1.23

70 0.94 1.51 1.43 1.84 1.84 2.30 2.31 4.4 4.38 8.31 1.13 1.43

80 1.08 1.72 1.64 2.1 2.10 2.61 2.64 5.03 4.99 9.46 1.29 1.63

90 1.21 1.94 1.84 2.36 2.37 2.95 2.97 5.66 5.63 10.67 1.46 1.84

100 1.35 2.15 2.05 2.63 2.62 3.27 3.3 6.29 6.24 11.83 1.61 2.04

110 1.48 2.37 2.25 2.89 2.89 3.60 3.62 6.92 6.87 13.04 1.78 2.25

120 1.62 2.58 2.46 3.15 3.15 3.92 3.95 7.55 7.48 14.19 1.94 2.45

130 1.75 2.8 2.66 3.42 3.42 4.26 4.28 8.18 8.12 15.4 2.1 2.66

140 1.88 3.02 2.86 3.68 3.68 4.59 4.61 8.8 8.76 16.61 2.27 2.87

150 2.02 3.23 3.07 3.94 3.94 4.91 4.94 9.43 9.37 17.77 2.42 3.07

160 2.15 3.45 3.27 4.2 4.21 5.24 5.27 10.06 10.01 18.98 2.59 3.28

170 2.29 3.66 3.48 4.47 4.47 5.56 5.6 10.69 10.61 20.13 2.75 3.48

180 2.42 3.88 3.68 4.73 4.73 5.90 5.93 11.32 11.25 21.34 2.91 3.69

190 2.56 4.09 3.89 4.99 4.99 6.22 6.26 11.95 11.86 22.5 3.07 3.89

200 2.69 4.31 4.09 5.25 5.26 6.55 6.59 12.58 12.5 23.71 3.23 4.09

250 3.37 5.38 5.11 6.57 6.56 8.18 8.24 15.72 15.6 29.59 4.04 5.11

300 4.04 6.46 6.14 7.88 7.88 9.82 9.89 18.87 18.73 35.53 4.85 6.13

Height

(m)

Width

(m)

Wide Zoom Standard Long Zoom

Min

(m)

Max

(m)

Min

(m)

Max

(m)

Min

(m)

Max

(m)

Ultra-Long

Zoom

Min

(m)

Max

(m)

Short Throw

Min

(m)

Zoom

Max

(m)

— 19 —

DLP Projector — Owner’s Manual

On-Screen Display (OSD) Menu Settings

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the projector keypad to navigate and make changes to the OSD.

Auto

Enter

Menu Exit

1. To enter the OSD, press the Menu

button A.

2. Use the arrow keys (pqtu)

to navigate within the menu and adjust a setting up or down B.

3. Press the Enter button to enter the

submenu or conrm the selection/

setting C.

4. Press the Exit button to return to

the previous menu or exit menus if at top level D.

Source


OUTPUT

SETUP

OPTION

Display Mode

Brightness

Contrast

Sharpness

Color

Tint

Phase

Frequency

Horz Position

Vert Position


Presentation

Caution:

Depending on the video source, not all items in the OSD are available. Items that are not available cannot be accessed and are grayed out.

— 20 —

Setting the OSD Language

Set the OSD language to your preference before continuing.

1. Press the Menu button.

DLP Projector — Owner’s Manual


OUTPUT

SETUP

OPTION

Display Mode

Brightness

Contrast

Sharpness

Color

Tint

Phase

Frequency

Horz Position

Vert Position

Presentation

2. Use the arrow keys (pq) to select SETUP and press the Enter button to enter the SETUP menu.


OUTPUT

SETUP

Language

Ceiling Mount

Rear Projection

Lens Function

Menu Preferences

Keypad LED Settings

Communications

SETUP

English

Auto

Off

OPTION

3. Use the arrow keys (pq) to select Language and press the Enter

button to enter its submenu.

4. Use the arrow keys (pqtu) to select the desired language and press

the Enter button to conrm.

5. Press the Exit button several times to exit the menu.

— 21 —

Language

DLP Projector — Owner’s Manual

OSD Menu Overview

Use the following illustration to quickly nd a setting or determine the range for a setting.

Main Menu Sub Menu / Settings Default

Presentation

Video

Bright

Display Mode

Brightness 0 ~ 100 50

Contrast 0 ~ 100 50

Sharpness 0 ~ 4 2

Color 0 ~ 100 50

Tint 0 ~ 100 50

Phase 0 ~ 100 50

Frequency 0 ~ 100 50

Horz Position 0 ~ 100 50

Vert Position 0 ~ 100 50

3D Display


HSG Adjustment

Blending

2D High Speed

User

Save to User

3D Enable

3D Invert

HSG Enable

Auto Test Pattern

Red H. 0 – 254 127

Red S. 0 – 254 127

Red G. 0 – 254 127

Green H. 0 – 254 127

Green S. 0 – 254 127

Green G. 0 – 254 127

Blue H. 0 – 254 127

Blue S. 0 – 254 127

Blue G. 0 – 254 127

Cyan H. 0 – 254 127

Cyan S. 0 – 254 127

Cyan G. 0 – 254 127

Magenta H. 0 – 254 127

Magenta S. 0 – 254 127

Magenta G. 0 – 254 127

Yellow H. 0 – 254 127

Yellow S. 0 – 254 127

Yellow G. 0 – 254 127

Off

By source set

Off

— 22 —

DLP Projector — Owner’s Manual

Main Menu Sub Menu / Settings Default

White R Gain 0 – 254 127

White G Gain 0 – 254 127

White B Gain 0 – 254 127

Reset to Default

White Peaking 0 - 100 By source set

Video

Gamma

Color Temperature

Color Space

Color Settings

Color Enhancement 0 ~ 2 0

Film Mode

Extreme Black

Auto

4:3

16:10

Native

Off

H Keystone 0 ~ 40 20

V Keystone 0 ~ 40 20

H Pincushion 0 ~ 100 50

V Pincushion 0 ~ 100 50

Film

Bright

CRT

Warm

Cool

Bright

RGB

REC709

REC601

RGB Video

Auto

Red Gain 0 ~ 100 50

Green Gain 0 ~ 100 50

Blue Gain 0 ~ 100 50

Red Offset 0 ~ 100 50

Green Offset 0 ~ 100 50

Blue Offset 0 ~ 100 50

Reset RGB Gain/

Offset

Off

By source set

Auto

Off

Auto

By source set


OUTPUT

HSG Adjustment

Advanced

Aspect Ratio

Overscan

H Digital Zoom 50% ~ 400% 100

V Digital Zoom 50% ~ 400% 100

H Digital Shift 0 ~ 100 50

V Digital Shift 0 ~ 100 50

Image Warping

— 23 —

DLP Projector — Owner’s Manual

Main Menu Sub Menu / Settings Default

Off

VGA

HDMI

HDBaseT

DVI-D

VGA

HDMI

HDBaseT

DVI-D

Small

Large

PBP, Main Left

PBP, Main Top

PBP, Main Right

PBP, Main Bottom

PIP-Bottom Right

PIP-Bottom Left

PIP-Top Left

PIP-Top Right

OUTPUT PIP/PBP

Language

SETUP

Ceiling Mount

Rear Projection

PIP/PBP Enable

Main Source

Sub Source

Swap

Size

Layout

English

French

Spanish

German

Italian

Russian

Chinese Simplied

Japanese

Korean

Portuguese

Indonesian

Dutch

Arabic

Off

Auto

Off

VGA

LargeMedium

PBP, Main Left

English

AutoOn

Off

— 24 —

DLP Projector — Owner’s Manual

Main Menu Sub Menu / Settings Default

Focus in - motor stop

Focus in - motor go step

Focus in - motor run

Focus out - motor stop

Focus out - motor go step

Focus out - motor run

Zoom in - motor stop

Zoom in - motor go step

Zoom in - motor run

Zoom out - motor stop

Zoom out - motor go step

Zoom out - motor run

Left shift up - motor stop

Left shift up - motor go step

Left shift up - motor run

Left shift down - motor stop

Left shift down - motor go step

Left shift down - motor run

Left shift right - motor stop

Left shift right - motor go step

Left shift right - motor run

Left shift left - motor stop

Left shift left - motor go step

Left shift left - motor run

Off

by set

Off

SETUP

Focus

Zoom

Lens Function

Lens Shift

Lens Calibration Yes/No (Dialog box)

Lens Lock

Menu Preferences

Keypad LED Settings

Communications LAN

Menu Transparency 0 ~ 9 0

Show Messages

Off

Pin Protect

Change PIN

Yes

Off

DHCP

IP Address by set

Subnet Mask by set

Default Gateway by set

MAC Address by set

Apply

— 25 —

DLP Projector — Owner’s Manual

Main Menu Sub Menu / Settings Default

Enable by set

Start IP by set

End IP by set

SETUP Communications

Auto Source

High Altitude

Test Pattern

OPTION

Background Color

Hot-Key settings

Power Settings Standby Power Mode

WLAN

Network

Serial Port Baud Rate

Serial Port Path

Projector Address 0 - 9 0

Off

Grid

Red

Green

Blue

Yellow

Magenta

Cyan

White

Black

Logo

Blue

Black

White

Blank Screen

Aspect Ratio

Freeze Screen

Overscan

Subnet Mask by set

Default Gateway by set

MAC Address by set

SSID by set

Projector Name by set

Restart Network

Network Factory Reset

9600

14400

19200

38400

57600

115200

RS232

HDBaseT

0.5W mode

Communication mode

19200

RS232

Off

Logo

Blank Screen

Communication mode

— 26 —

DLP Projector — Owner’s Manual

Main Menu Sub Menu / Settings Default

Off

5 Mins

10 Mins

15 Mins

20 Mins

25 Mins

30 Mins

2 Hours

4 Hours

6 Hours

Constant Power

Constant Luminance

Eco Mode

0 - 10

Off

Constant Power

OPTION

Direct Power On

Auto Power Off

Power Settings

Sleep Timer

Light Source Mode

Light Source Settings

Light Sensor

Information

Factory Reset Yes/No (Dialog box)

Service

Constant Power Settings 0 - 10 10

Constant Luminance Settings

Total Projector Hours

Light Sensor Calibration

Calibrated? (Display Yes/No)

Model Name

Serial Number

Native Resolution

Firmware

Main Source

- Resolution

- Signal Format

- Pixel Clock

- Horz Refresh

- Vert Refresh

Sub Source

- Resolution

- Signal Format

- Pixel Clock

- Horz Refresh

- Vert Refresh

Light Source Mode

Total Projector Hours

Standby Power Mode

IP Address

DHCP

— 27 —

DLP Projector — Owner’s Manual

Picture Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select PICTURE and press the Enter button to enter the PICTURE menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

Display Mode

Brightness

Contrast

Sharpness

Color

Tint

Phase

Frequency

Horz Position

Vert Position

Presentation

Item Description

Display Mode Optimize the projector for displaying images under certain conditions, such

as Presentation, Video, Bright, Blending, 2D High Speed, 3D, and

user-denable preset.

Brightness Adjust the intensity of the image.

Contrast Adjust the degree of difference between the lightest and darkest parts of

the picture and change the amount of black and white in the image.

Sharpness Select the edge clarity of the image.

Color Adjust a video image from black and white to fully saturated color. The color

setting applies to video sources only.

Tint Adjust the red-green color balance in the image of video images. The tint

setting applies to video sources only.

Phase Analog signals only. Adjust pixel phase when the image still shows shimmer

or noise after pixel tracking is optimized. Pixel phase can adjust the phase of the pixel-sampling clock relative to the incoming signal.

Frequency Analog signals only. Steady ickering or several soft vertical stripes or

bands across the entire image indicates poor frequency. Proper frequency ensures that the image quality is consistent across the screen, the aspect ratio is maintained, and that the pixel phase can be optimized.

Horz Position Move the image right or left within the area of available pixels.

Vert Position Move the image up or down within the area of available pixels.

3D Display Congure the 3D display settings. See “3D Display Menu” on page 29.

HSG Adjustment Congure the color management settings. See “HSG Adjustment Menu” on

page 30.

Advanced Congure the advanced image settings. See “Advanced Menu” on page

31.


— 28 —

DLP Projector — Owner’s Manual

3D Display Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select PICTURE and press the Enter button to enter the PICTURE menu. Press the arrow keys (pq) to select 3D Display and press the Enter button to enter the 3D Display menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


3D Enable

3D Invert

OUTPUT

SETUP

OPTION

3D Display

Off

Item Description

3D Enable Enable/Disable display of 3D image.

3D Invert Invert 3D sync signal for the application of using single projector.

— 29 —

DLP Projector — Owner’s Manual

HSG Adjustment Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select PICTURE and press the Enter button to enter the PICTURE menu. Press the arrow keys (pq) to select HSG Adjustment and press the Enter button to enter the HSG Adjustment menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or

adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

HSG Enable

Auto Test Pattern

Red H.

Red S.

Red G.

Green H.

Green S.

Green G.

Blue H.

Blue S.

254

Item Description

HSG Enable Enable/Disable the HSG adjustment function.

Auto Test Pattern Set to “On” to enable displaying a test pattern for the target color or set to

“Off” to disable the auto test pattern.

HSG Adjustment

Red H. / Green H. / Blue H. / Cyan H. /

Adjust the hue of the red, green, blue, cyan, magenta, or yellow channel of the image.

Magenta H. / Yellow H.

Red S./ Green S./ Blue S./ Cyan S./ Magenta

Adjust the saturation of the red, green, blue, cyan, magenta, or yellow channel of the image.

S./ Yellow S.

Red G. / Green G. / Blue G. / Cyan G. /

Adjust the gain of the red, green, blue, cyan, magenta, or yellow channel of the image.

Magenta G. / Yellow G.

White R Gain /

Adjust the white balance of the red, green, or blue channel of the image. White G Gain / White B Gain

Reset to Default Reset the hue, saturation, gain, and white balance adjustments to the

factory defaults.

— 30 —

DLP Projector — Owner’s Manual

Advanced Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select PICTURE and press the Enter button to enter the PICTURE menu. Press the arrow keys (pq) to select Advanced and press the Enter button to enter the Advanced menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

White Peaking

Gamma

Color Temperature

Color Space

Color Settings

Color Enhancement

Film Mode

Extreme Black

100

Bright

RGB

Off

Item Description

White Peaking (Video source only) Increase the brightness of whites that are near 100%.

Gamma Select the appropriate gamma from Video, Film, Bright, and CRT.

Color Temperature Change the intensity of the colors. Select a listed relative warmth value.

Color Space Select a color space that has been specically tuned for the input signal.

Use only for analog signals and certain digital sources.

Color Settings Adjust the gain of the red, green, or blue channel of the image. It will affect

the black and white.

Adjust the offset of the red, green, or blue channel of the image. It will affect the black and white.

Reset RGB gain/offset to return the factory default settings for color

adjustments.

Color Enhancement The Color Enhancement control can improve the picture quality of pictures

with a high saturation of color.

Film Mode Control lm mode detection and determine whether the original source of

the input video was lm or video.

Extreme Black Analyze the current input image and calculate an offset value which is then

added to the analog to digital converter black level value. This ensures optimum black level for each analog source.

Advanced

— 31 —

DLP Projector — Owner’s Manual

Output Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OUTPUT and press the Enter button to enter the OUTPUT menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

Aspect Ratio

Overscan

H Digital Zoom

V Digital Zoom

H Digital Shift

V Digital Shift

Image Warping

PIP/PBP

Auto

Off

100

Item Description

Aspect Ratio Display an image with the detected size, or resize the image by maximizing

either the height, width or both, or resize to the maximum size possible while keeping the original aspect ratio.

Overscan Remove noise around the image.

H Digital Zoom Change the size of projector’s display area horizontally. If the display area

has been resized by this setting, it can be moved by changing the H Digital Shift and V Digital Shift settings.

V Digital Zoom Change the size of projector’s display area vertically. If the display area has

been resized by this setting, it can be moved by changing the H Digital Shift and V Digital Shift settings.

H Digital Shift Move the display area horizontally if its size has been changed by the

Digital Zoom setting.

V Digital Shift Move the display area vertically if its size has been changed by the Digital

Zoom setting.

Image Warping Congure the image warping settings. See “Image Warping Menu” on page

33.

PIP/PBP Congure the PIP/PBP settings. See “PIP/PBP Menu” on page 34.

OUTPUT

— 32 —

DLP Projector — Owner’s Manual

Image Warping Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OUTPUT and press the Enter button to enter the OUTPUT menu. Press the arrow keys (pq) to select Image Warping and press the Enter button to enter the Image Warping menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

H Keystone

V Keystone

H Pincushion

V Pincushion

Image Warping

Item Description

H Keystone Adjust the keystone horizontally and make a squarer image.

Horizontal keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length. This is intended for use with horizontally on-axis applications.

V Keystone Adjust the keystone vertically and make a squarer image.

Vertical keystone is used to correct a keystoned image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with vertically on-axis applications.

H Pincushion Adjust the pincushion horizontally and make a more square image.

V Pincushion Adjust the pincushion vertically and make a more square image.

— 33 —

DLP Projector — Owner’s Manual

PIP/PBP Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OUTPUT and press the Enter button to enter the OUTPUT menu. Press the arrow keys (pq) to select PIP/PBP and press the Enter button to enter the PIP/PBP menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

PIP/PBP Enable

Main Source

Sub Source

Swap

Size

Layout

PIP/PBP

VGA

DVI-D

Large

PBP, Main Left

Item Description

PIP/PBP Enable Toggle between displaying two sources at once (Main and PIP/PBP

images) or one source only.

Main Source From the list of active inputs, select one to be used as the main image.

Sub Source From the list of active inputs, select one to be used as the PIP/PBP.

Swap Change the main image to PIP/PBP, and the PIP/PBP to main image.

Swapping is available only when PIP/PBP is enabled.

Size Select the PIP/PBP size. Available options: Small, Medium, or Large.

Layout Set the location of the PIP/PBP image on the screen.

PIP/PBP layout and size table as described below.

¾ P : indicates primary source region (lighter color).

¾ * : Both source regions are the same size.

PIP/PBP Layout

Small Medium Large

PBP, Main Left

PBP, Main Top

PBP, Main Right

— 34 —

PIP/PBP Size

P P

DLP Projector — Owner’s Manual

PIP/PBP Layout

PBP, Main Bottom

PIP-Bottom Right

PIP-Bottom Left

PIP-Top Left

PIP-Top Right

PIP/PBP Size

Small Medium Large

P P

— 35 —

DLP Projector — Owner’s Manual

Setup Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUP and press the Enter button to enter the SETUP menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

Language

Ceiling Mount

Rear Projection

Lens Function

Menu Preferences

Keypad LED Settings

Communications

English

Auto

Off

Item Description

Language This item allows you to select an available language for the OSD display.

Ceiling Mount Turn the image upside down for ceiling-mounted projection.

Rear Projection Reverse the image so you can project from behind a translucent screen.

Lens Function Congure the lens function settings. See “Lens Function Menu” on page

37.

Menu Preferences Congure the menu preferences settings. See “Menu Preferences Menu”

on page 38.

Keypad LED Settings Turn the backlight of keypad on/off.

Pin Congure the pin settings. See “Pin Menu” on page 39.

Communications Congure the communications settings. See “Communications Menu” on

page 40.

SETUP

— 36 —

DLP Projector — Owner’s Manual

Lens Function Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUP and press the Enter button to enter the SETUP menu. Press the arrow keys (pq) to select Lens Function and press the Enter button to enter the Lens Function menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

Focus

Zoom

Lens Shift

Lens Calibration

Lens Lock

Lens Function

Item Description

Focus Adjust focus function on the projected image.

Zoom Adjust zoom function on the projected image.

Lens Shift Shift the projected image.

Lens Calibration Perform calibration and return lens to the center position.

Lens Lock Select this function to prevent all lens motors from moving.

• Yes: Lens shift will be locked.

• No: Lens shift can be used by user.

— 37 —

DLP Projector — Owner’s Manual

Menu Preferences Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUP and press the Enter button to enter the SETUP menu. Press the arrow keys (pq) to select Menu Preferences and press the Enter button to enter the Menu Preferences menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


Menu Preferences

Menu Transparency

Show Messages

OUTPUT

SETUP

OPTION

Item Description

Menu Transparency Change OSD menu background to be transparent.

Show Messages Display status messages on the screen.

— 38 —

DLP Projector — Owner’s Manual

Pin Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUP and press the Enter button to enter the SETUP menu. Press the arrow keys (pq) to select Pin and press the Enter button to enter the Pin menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


Change PIN

OUTPUT

SETUP

OPTION

OffPin Protect

Item Description

PIN Protect The PIN (personal identication number) feature allows you to password

protect your projector. Once you enable the PIN feature, you must enter the PIN before you can project an image. (PIN Default : 12345)

Change PIN Change the PIN.

— 39 —

DLP Projector — Owner’s Manual

Communications Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select SETUP and press the Enter button to enter the SETUP menu. Press the arrow keys (pq) to select Communications and press the Enter button to enter the Communications menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

LAN

WLAN

Network

Serial Port Baud Rate

Serial Port Path

Projector Address

Communications

19200

RS232

Item Description

LAN Congure the local area network (LAN) settings.

• DHCP: Turn the DHCP ON/OFF.

• IP Address: Assign Network IP Address.

• Subnet Mask: Assign Network Subnet Mask.

• Default Gateway: Assign Network Default Gateway.

• MAC Address: Display the network MAC Address value.

• Apply: Apply Network settings.

WLAN Congure the wireless local area network (WLAN) settings.

• Enable: Enable/Disable WLAN.

• Start IP: Start of IP Address.

• End IP: End of IP Address.

• Subnet Mask: Assign Network Subnet Mask.

• Default Gateway: Assign Network Default Gateway.

• MAC Address: Display network MAC Address value.

• SSID: Assign Network Service Set Identier.

Network Congure the general network settings.

• Projector Name: Display the projector hostname for Network.

• Restart Network: Restart the network.

• Network Factory Reset: Perform factory reset on the network settings.

The Projector Name, LAN IP, WLAN IP, and SNMP settings will be reset.

Serial Port Baud Rate Select the serial port and baud rate.

Serial Port Path Select the serial port path from either RS232 or HDBaseT.

Projector Address Set the projector address. The projector will respond to IR remotes set

either at the same address as the projector or to IR remotes set to address

— 40 —

DLP Projector — Owner’s Manual

Option Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OPTION and press the Enter button to enter the OPTION menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

Auto Source

High Altitude

Test Pattern

Background Color

Hot-Key settings

Power Settings

Light Source Settings

Light Sensor

Information

Factory Reset

OPTION

Off

Logo

Blank Screen

Item Description

Auto Source Select “On” to allow the projector to search for other signals if the current

input signal is lost. When the setting is disabled, the projector will only search current input connection.

High Altitude Set high altitude mode On/Off. When On, the fan will operate at high speed

to ensure sufcient air ow for high altitudes.

Test Pattern Choose the desired internal test pattern to display. Press the Pattern button

to display next test pattern.

Background Color Use this feature to display a “Logo”, “Blue”, “Black” or “White” screen when

no signal is available.

Hot-Key settings Assign a different function to the hot-key on the remote control by

highlighting the function in the list and pressing the Enter button. Choose a function that does not already have a dedicated button, and assign the hot-key to that function, allowing you to quickly and easily use the chosen function.

Power Settings Congure the power settings. See “Power Settings Menu” on page 42.

Light Source Settings Congure the light source settings. See “Light Source Settings Menu” on

page 43.

Light Sensor Calibrate the Light Sensor for use with the Constant Luminance mode,

which allows the projector to be set for constant brightness. If the Light Sensor has not been calibrated, Constant Luminance mode will be disabled.

Information Display the projector information for source, resolution, and software

version on the screen.

Factory Reset Restore all settings to their default value. It will not reset network.

WARNING: After resetting, lens calibration is necessary.

Service For service only.

— 41 —

DLP Projector — Owner’s Manual

Power Settings Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OPTION and press the Enter button to enter the OPTION menu. Press the arrow keys (pq) to select Power Settings and press the Enter button to enter the Power Settings menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

Standby Power Mode

Direct Power On

Auto Power Off

Sleep Timer

Power Settings

Communication mode

Off

20 Mins

Item Description

Standby Power Mode Set the standby power mode.

• 0.5W mode: The projector is in standby mode when connected to AC power. (<0.5W)

• Communication mode: The projector could be controlled via the LAN terminal during power standby.

Direct Power On The projector automatically turns on when electrical power is connected.

Auto Power Off Automatically turns the projector off after no signals are detected for

a preset number of minutes. If an active signal is received before the projector powers down, the image will be displayed.

Sleep Timer This item allows the projector to automatically power off after it has been on

for a specied amount of time.

— 42 —

DLP Projector — Owner’s Manual

Light Source Settings Menu

Press the Menu button to open the OSD menu. Press the arrow keys (pq) to select OPTION and press the Enter button to enter the OPTION menu. Press the arrow keys (pq) to select Light Source Settings and press the Enter button to enter the Light Source Settings menu. Press the arrow keys (pq) to select the menu option and press the Enter button to enter its submenu. Press the arrow keys (pqtu) to select or adjust the desired settings and press the Enter button to conrm.


OUTPUT

SETUP

OPTION

Light Source Mode

Constant Power Settings

Constant Luminance Settings

Total Projector Hours

Light Source Settings

Constant Power

Item Description

Light Source Mode Select Constant Power, Constant Luminance, or Eco Mode. When in

Eco Mode, the projector will adjust to the lowest fan speed and switch the

light source power to the minimum setting.

Constant Power Settings Set the value of the light source power (in Watts).

Constant Luminance Settings

Set the value for the Constant Luminance to maintain constant brightness. The light sensor will monitor the light level and will apply more power as the light source brightness decays naturally over time. When the light source setting reaches maximum power, it will remain at this setting. Note that the light sensor needs to be calibrated for Constant Luminance mode to work properly.

Total Projector Hours Display the projection time.

— 43 —

DLP Projector — Owner’s Manual

Control Your Projector Using Web Browser

Projector

Ethernet

Wired LAN Terminal functionalities

Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible.

Compatibility with Crestron control boxes enables not only collective projector management on a network but also management from a control panel on a PC (or Laptop) browser screen.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.

Supported External Devices

This projector is supported by the specied commands of the Crestron Electronics controller and related

software (ex, RoomView ®).

http://www.crestron.com/

For more detail of information about the diverse types of external devices which can be connected to the

Ethernet port and remote/control the projector, as well as the related control commands supporting for

each external device, kindly please get contact with the Support-Service team directly.

— 44 —

DLP Projector — Owner’s Manual

LAN_RJ45

1. Connect an RJ45 cable to Ethernet port on the projector and the PC (Laptop).

2. On the PC (Laptop), select Start → Control Panel → Network and Internet.

3. Right-click on Local Area Connection, and select Properties.

— 45 —

DLP Projector — Owner’s Manual

4. In the Properties window, select the Networking tab, and select Internet Protocol (TCP/IP).

5. Click Properties.

6. Click Use the following IP address and ll in the IP address and Subnet mask, then click OK.

— 46 —

DLP Projector — Owner’s Manual

7. Press the Menu button on the projector.

8. Select SETUP → Communications → LAN.

9. After getting into LAN, input the following:

• DHCP: Off

• IP Address: 10.10.10.10

• Subnet Mask: 255.255.255.0

• Default Gateway: 0.0.0.0

10. Press the Enter / ► button to conrm settings.

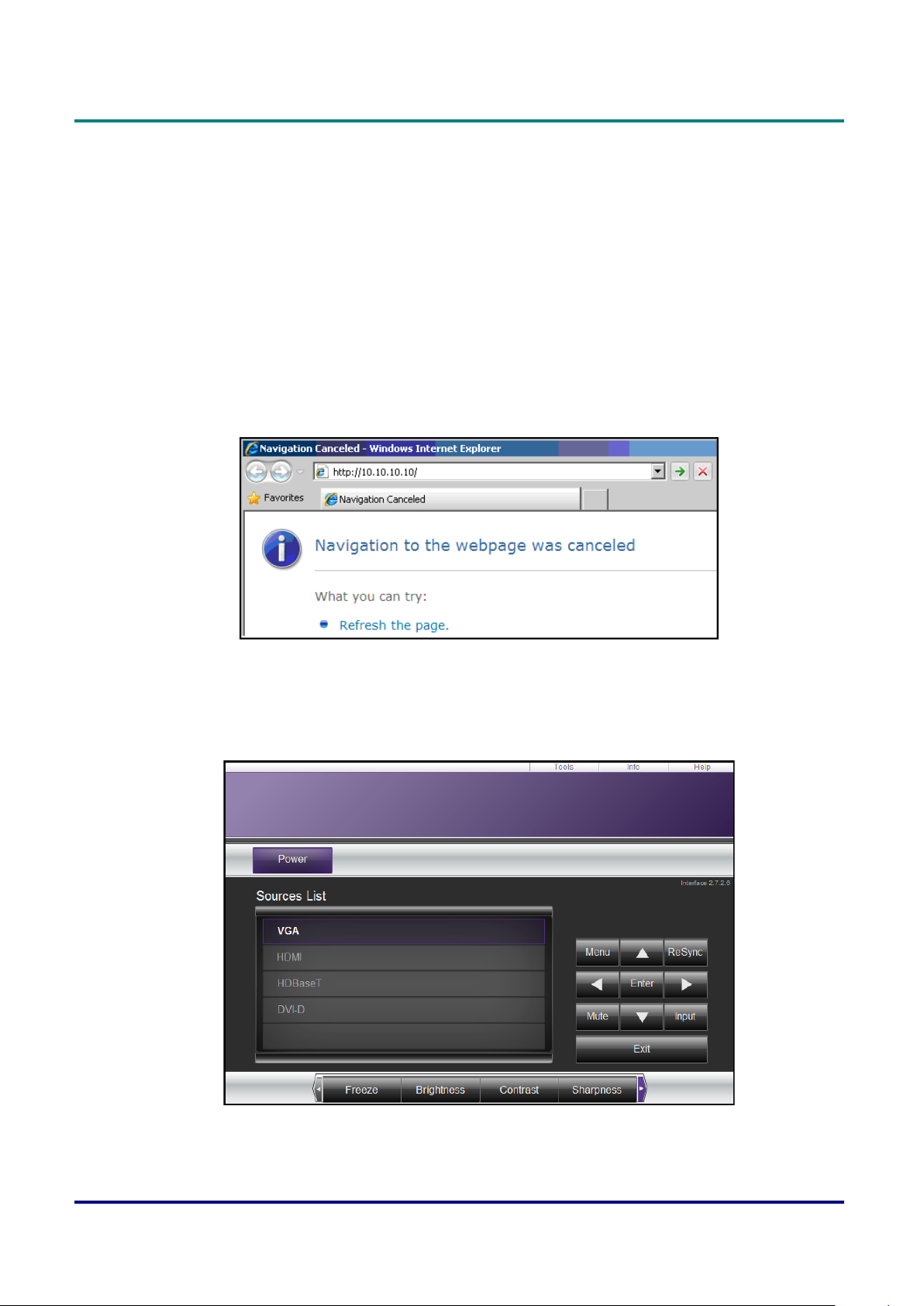

Open a web browser (for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).

11. In the Address bar, input the IP address: 10.10.10.10.

12. Press the Enter / ► button.

The projector is setup for remote management. The LAN/RJ45 function displays as follows.

— 47 —

DLP Projector — Owner’s Manual

Category Item Input-Length

IP Address 15

Crestron Control

Projector

Network Conguration

User Password

Admin Password

IP ID 3

Port 5

Projector Name 10

Location 10

Assigned To 10

DHCP (Enabled) (N/A)

IP Address 15

Subnet Mask 15

Default Gateway 15

Enabled (N/A)

New Password 10

Conrm 10

Enabled (N/A)

New Password 10

Conrm 10

For more information, please visit http://www.crestron.com.

— 48 —

DLP Projector — Owner’s Manual

RS232 by Telnet Function

Besides projector connected to RS232 interface with “Hyper-Terminal” communication by dedicated RS232 command control, there is alternative RS232 command control way, so called “RS232 by TELNET” for LAN/RJ45 interface.

Quick Start-Guide for “RS232 by TELNET”

Check and get the IP-Address on OSD of the projector.

Make sure that laptop/PC can access the web-page of the projector.

Make sure that “Windows Firewall” setting to be disabled in case of “TELNET” function ltering out by laptop/PC.

Start → All Programs → Accessories → Command Prompt

Input the command format like the below:

telnet ttt.xxx.yyy.zzz 3023 (the Enter button is pressed)

(ttt.xxx.yyy.zzz: IP-Address of the projector)

If Telnet-Connection ready, and user can have RS232 command input, then press the Enter button, the RS232 command will be workable.

— 49 —

DLP Projector — Owner’s Manual

How to have TELNET enabled in Windows VISTA / 7

By default installation for Windows VISTA, “TELNET” function is not included. But end-user can have it by way of “Turn Windows features On or Off” to be enabled.

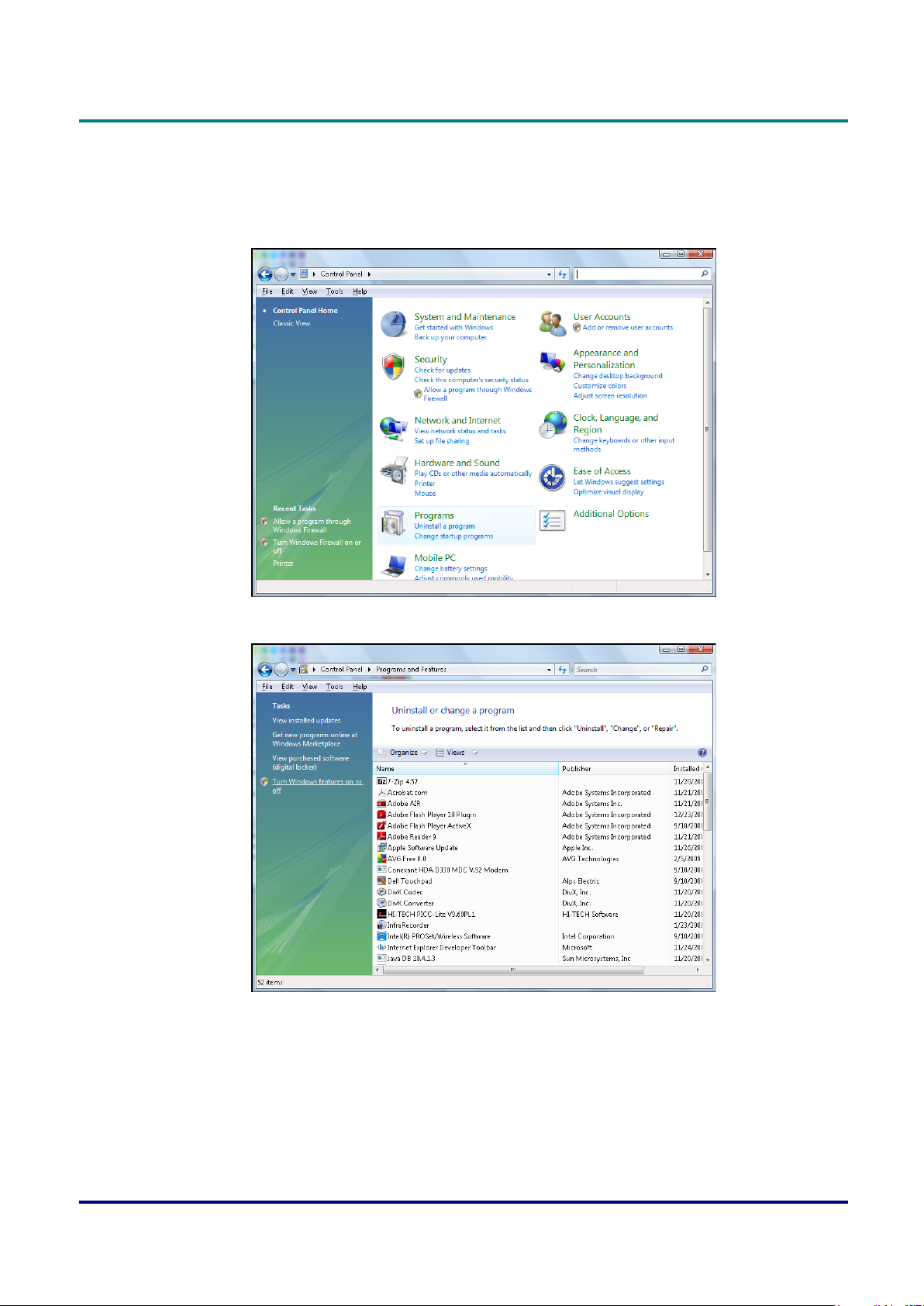

1. Open “Control Panel” in Windows VISTA.

2. Open “Programs”.

— 50 —

3. Select “Turn Windows features on or off” to open.

4. Have “Telnet Client” option checked, then click OK.

DLP Projector — Owner’s Manual

Specsheet for “RS232 by TELNET”:

1. Telnet: TCP

2. Telnet port: 3023

(for more detail, kindly please get contact with the service agent or team)

3. Telnet utility: Windows “TELNET.exe” (console mode)

4. Disconnection for RS232-by-Telnet control normally: Close Windows Telnet utility directly after TELNET

connection ready.

5. Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for

Telnet-Control application.

Limitation 2 for Telnet-Control: there is less than 31 bytes for one complete RS232 command for Telnet-Control.

Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

(*, In Windows built-in “TELNET.exe” utility, pressing the Enter button will create a “Carriage-Return” and “New-Line” code.)

— 51 —

DLP Projector — Owner’s Manual

Maintenance and Security

Replacing the Projection Lens

Perform the following to replace the projection lens:

1. Center the lens. Use the Lens H or Lens V button (on the remote control) to adjust the lens at its center

position.

Important:

• Ensurethatthelensisatornearitscenterposition.

• Attemptingtoremovethelenswhenatalargeoffsetmaycausedamagetothelensassembly.

2. Press “ ” on the built-in keypad or press “ ” on the remote control twice to turn off the projector after

cooling down.

3. Remove the lens cover from the lens.

4. Rotate the lens counter-clockwise to disengage it from

the lens mount.

5. Remove the lens out of the lens mount.

6. Install the new lens. See “Installing the Projection Lens”

on page 10.

— 52 —

DLP Projector — Owner’s Manual

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

• Besuretoturnoffandunplugtheprojectoratleast30minutesbeforecleaning.Failuretodoso couldresultinasevereburn.

• Useonlyadampenedclothwhencleaning.Donotallowwatertoentertheventilationopeningson theprojector.

• Ifalittlewatergetsintotheprojectorinteriorwhilecleaning,leaveunpluggedinawell-ventilated roomforseveralhoursbeforeusing.

• Ifalotofwatergetsintotheprojectorinteriorwhencleaning,havetheprojectorserviced.

CleaningtheLens

You can purchase Optical lens cleaner from most camera stores. Refer to the following to clean the projector lens.

1. Apply a little Optical lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)

2. Lightly wipe the lens in a circular motion.

Caution:

• Donotuseabrasivecleanersorsolvents.

• Topreventdiscolorationorfading,avoidgettingcleanerontheprojectorcase.

CleaningtheCase

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe the

case.

3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

Topreventdiscolorationorfadingofthecase,donotuseabrasivealcohol-basedcleaners.

— 53 —

DLP Projector — Owner’s Manual

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

Note:

ContactyourvendorfordetailsonpurchasingasuitableKensingtonsecuritycable. ThesecuritylockcorrespondstoKensington’sMicroSaverSecuritySystem.Ifyouhaveanycomment,

contact:Kensington,2853CampusDrive,SanMateo,CA94403,U.S.A.Tel:800-535-4242,

http://www.Kensington.com.

— 54 —

DLP Projector — Owner’s Manual

Troubleshooting

Common Problems and Solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If

the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose

connection. Check the following before proceeding to the problem-specic solutions.

¾ Use some other electrical device to conrm that the electrical outlet is working.

¾ Ensure the projector is turned on.

¾ Ensure all connections are securely attached.

¾ Ensure the attached device is turned on.

¾ Ensure a connected PC is not in suspending mode.

¾ Ensure a connected notebook computer is congured for an external display.

(This is usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

• In each problem-specic section, try the steps in the order suggested. This may help you to solve the

problem more quickly.

• Try to pin point the problem and thus avoid replacing non-defective parts. For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

• Keep a record of the steps you take when troubleshooting: The information may be useful when calling

for technical support or for passing on to service personnel.

— 55 —

DLP Projector — Owner’s Manual

LED Error Messages

The LED status indicators are located on the top of the projector. Each LED is dened below.

Message

Standby State - - - Flashing - - - -

Power on (Warm up)

Power on & Laser diode on

Power off (Cooling down)

AV mute is off (Image is displayed)

AV mute is on (Image is black)

Projector communication

Firmware upgrade - - - Flashing Flashing - - -

Laser diode time has

expired

Unit loses over 60% initial luminance

Green Orange Red Green Orange Red Green Orange

Steady light

Light LED Status LED AV Mute LED

- - - - Flashing - - -

- -

- - - - Flashing - - -

- -

- - Flashing - -

Steady

light

- - Flashing - - - - -

Steady light

- - - - - -

- -

- - -

Steady light

Error (Over temperature)

Error (Fan failure)

- - - - -

- - - - - Flashing - -

Steady light

- -

— 56 —

DLP Projector — Owner’s Manual

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power on again in the correct order.

Problem: The image is blurred

1. Press the Focus button to adjust the focus on the projector.

2. Press the Auto button on the remote control to automatically optimize image.

3. Ensure the projector-to-screen distance is within the specied range.

4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.

2. Press the Keystone H or Keystone V button on the remote control to correct the problem.

Problem: The image is reversed

Check the Rear Projection on the Setup menu of the OSD.

Problem: The image is streaked

1. Set the Phase and Frequency settings on the Picture menu of the OSD to the default settings.

2. Ensure the problem is not caused by a connected PC’s video card, connect to another computer.

Problem: The image is at with no contrast

Adjust the Contrast setting on the Picture menu of the OSD.

Problem: The color of the projected image does not match the source image

Adjust the Color Temperature and Gamma settings on the Picture > Advanced menu of the OSD.

Laser Diode Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Light LED is in green.

— 57 —

DLP Projector — Owner’s Manual

Problem: The laser diode goes off

1. Power surges can cause the laser diode to turn off. Re-plug power cord. If the Light LED is in orange,

this indicates that the laser diode time has expired. Then press “ ” on the built-in keypad or press “ ” on the remote control to turn off the projector.

2. Have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any uorescent lights in the room.

4. Make sure that the batteries are installed with the correct polarity.

5. Replace the batteries.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the

original carton. Include a description of the problem and a checklist of the steps you took when trying to x

the problem. The information may be useful to service personnel. For servicing, return the projector to the place you purchased it.

— 58 —

DLP Projector — Owner’s Manual

HDMI Q & A

Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable?

Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High- Speed cables.

• Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or up to

2.25Gbps, which is the equivalent of a 720p/1080i signal.

• High Speed (or “category 2”) HDMI cables have been tested to perform at speeds of 340Mhz or up to

10.2Gbps, which is the highest bandwidth currently available over an HDMI cable and can successfully handle 1080p signals including those at increased color depths and/or increased refresh rates from the Source. High-Speed cables are also able to accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of 2560 x 1600).

Q. How do I run HDMI cables longer than 10 meters?

There are many HDMI Adopters working on HDMI solutions that extend a cable’s effective distance from the typical 10 meter range to much longer lengths. These companies manufacture a variety of solutions that include active cables (active electronics built into cables that boost and extend the cable’s signal), repeaters, ampliers as well as CAT5/6 and ber solutions.

Q. How can I tell if a cable is an HDMI certied cable?

All HDMI products are required to be certied by the manufacturer as part of the HDMI Compliance Test Specication. However, there may be instances where cables bearing the HDMI logo are available but

have not been properly tested. HDMI Licensing, LLC actively investigates these instances to ensure that the HDMI trademark is properly used in the market. We recommend that consumers buy their cables from a reputable source and a company that is trusted.

For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49.

— 59 —

DLP Projector — Owner’s Manual

Specications

Item Description

Display type “TI” 0.67” WUXGA DMD / “TI” 0.65” WXGA DMD, Type A, DC3

Resolution WUXGA (1920 x 1200) / WXGA (1280 x 800)

Zoom/focus Motorized

Zoom ratio Depend on Lens

Keystone correction Vertical: +/- 20 degrees, Horizontal: +/- 20 degrees

Projection methods Front, Rear, Desktop/Ceiling (Rear, Front)

Data compatibility VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, Mac

Video compatibility 1080 i/p, 720p, 576 i/p, 480 i/p

H-Sync 15, 31~91.4KHz

V-Sync 24~30Hz, 47~120Hz

Specifications

Safety Certication UL/cUL, FCC, CE, CB, CCC, KC/KCC, EAC

Operation temperature 5° ~ 40°C

Dimensions (W x H x D) 484 x 181 x 509 mm (without lens and elevators)

AC Input AC 100 – 240 V @ 50/60 Hz

Laser Diode Power 35W@3A (Normal Mode)

Laser Diode Life 20,000 Hours Standard @ 35W (Normal Mode)

Input Terminals 1 x HDMI (version1.4) (with locking screw)

1 x DVI-D (only support digital signal)

1 x VGA IN (D-Sub 15pin) (Computer In)

1 x HDBaseT

Output Terminals 1 x HDMI (version1.4) (with locking screw)

1 x VGA Out (Support VGA loops through to monitor) (Monitor Out)

1 x 3D SYNC Out

Control Terminals 1 x RS232 (D-sub 9 pin) (PC Control)

1 x Wired in (3.5mm phone jack) (Remote In)

1 x USB type A (for WiFi dongle purpose)

1 x Mini USB (for LAN FW upgrade only) (Service)

1 x RJ45 (LAN)

1 x IR Receiver (On the Front side and Top side)

Security Kensington lock

Security bar

Note:

For questions regarding product specications, please contact your local distributor.

— 60 —

Projection Distance vs. Projection Size

Projection Distance and Size Table

DLP Projector — Owner’s Manual

Image Height

Projection Distance

Lens Model Name A01 A06 A03 A13 A15
