Sukhoi SU-29MM (Gen 2)

Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni

Page 2

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury. WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁ cial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

AGE RECOMMENDATION: Not for children under 14

years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found

in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

Safety Precautions and Warnings

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.

• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

Sukhoi SU-29MM

Page 3

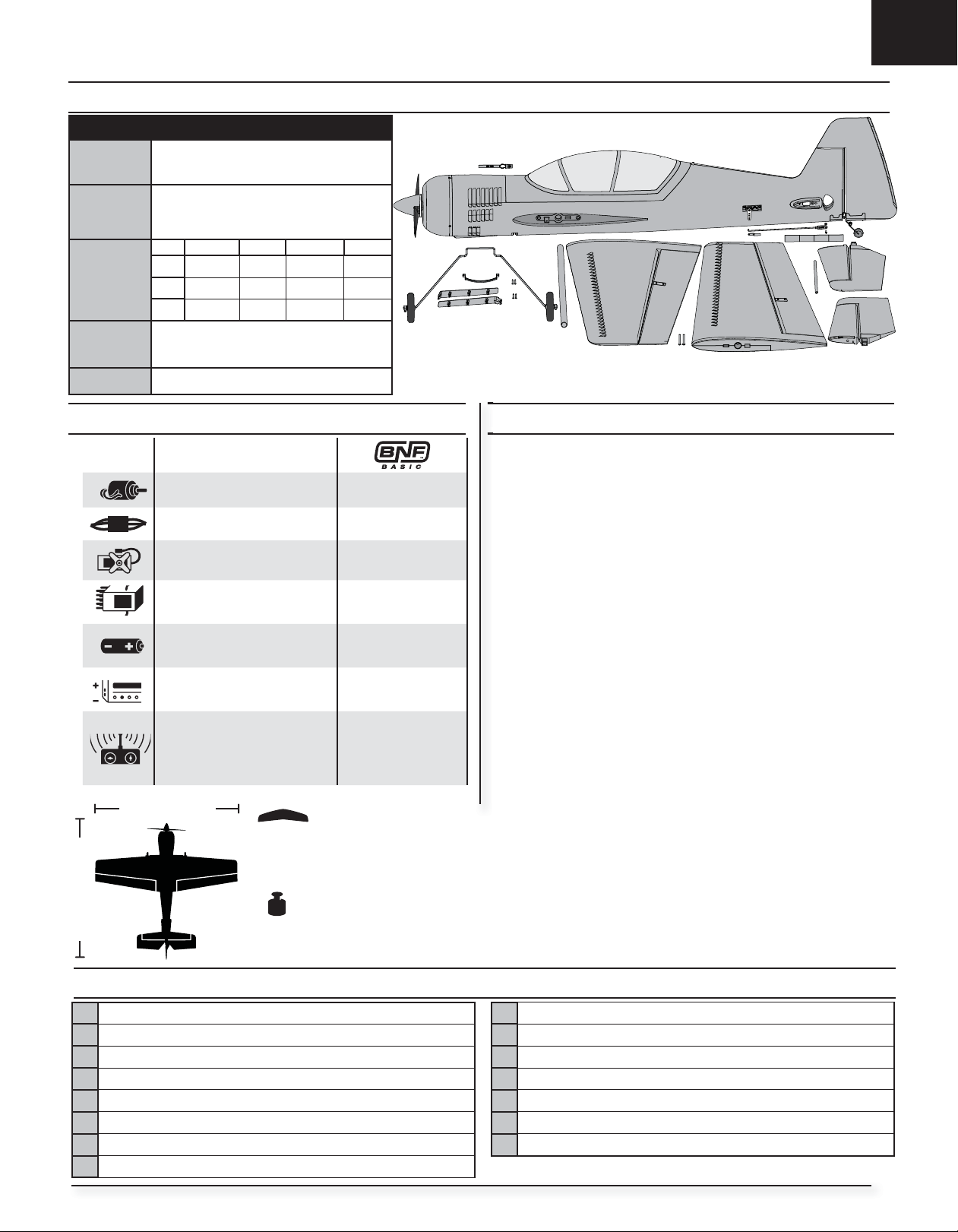

Box Contents

Quick Start Information

Panic

Feature

Choose to ﬂ y your aircraft with the Panic

feature ON or OFF and bind accordingly.

Using the

Panic

Feature

Panic feature ON, you will need to follow the

transmitter setup section of this manual.

Set

(Dual Rates

& Expo) in

your

Transmitter

Center of

Ail

Ele

Rud

82mm +/- 3.23 inches back from leading

Gravity (CG)

Flight Timer

Speciﬁ cations

Motor: 10-size BL10 brushless

outrunner, 1250Kv (EFLM7225) ESC: 40-Amp Switch-Mode BEC

Brushless ESC (EFLA1040LB) (4) 13 gram Digital Micro Servo

(EFLR7155) Receiver: Spektrum™ AR636A

6-Channel Sport Receiver (SMPAR636)

Recommended Battery:

11.1V 3S 2200mAh 30C Li-Po (EFLB22003S30)

Recommended Battery Charger: 3-cell Li-Po battery balancing charger

Recommended Transmitter:

Full-Range 4 channel (or more)

2.4GHz with Spektrum DSM2 adjustable Dual Rates.

(44.0 in 1120mm)

If you choose to ﬂ y with the

Hi Rate Expo Low Rate Expo

100% 40% 45% 10% 100% 35% 25% 10% 100% 15% 70% 8%

edge of wing at the fuselage.

5 minutes

/DSMX® technology with

403 sq in.

To receive product updates, special offers and more, register your product at www.e-ﬂ iterc.com

Table of Contents

Transmitter and Receiver Binding / Switching ON and OFF

Panic Recovery Feature ..................................................................4

Installed

Required to

Complete

Required to

Complete

Required to

Complete

Transmitter Setup ...........................................................................5

Model Assembly .............................................................................6

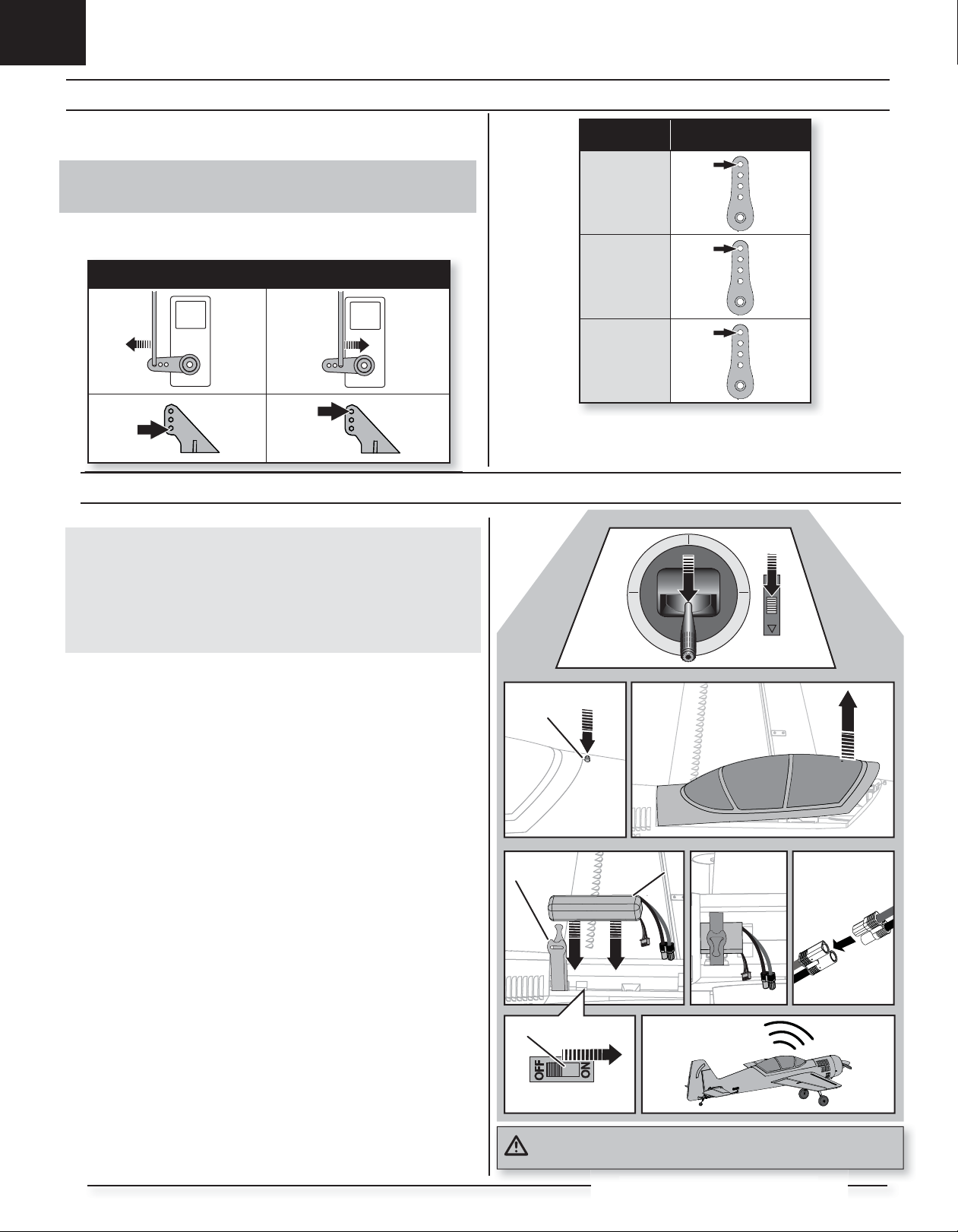

Control Horn and Servo Arm Settings ..............................................8

Battery Installation and ESC Arming ................................................8

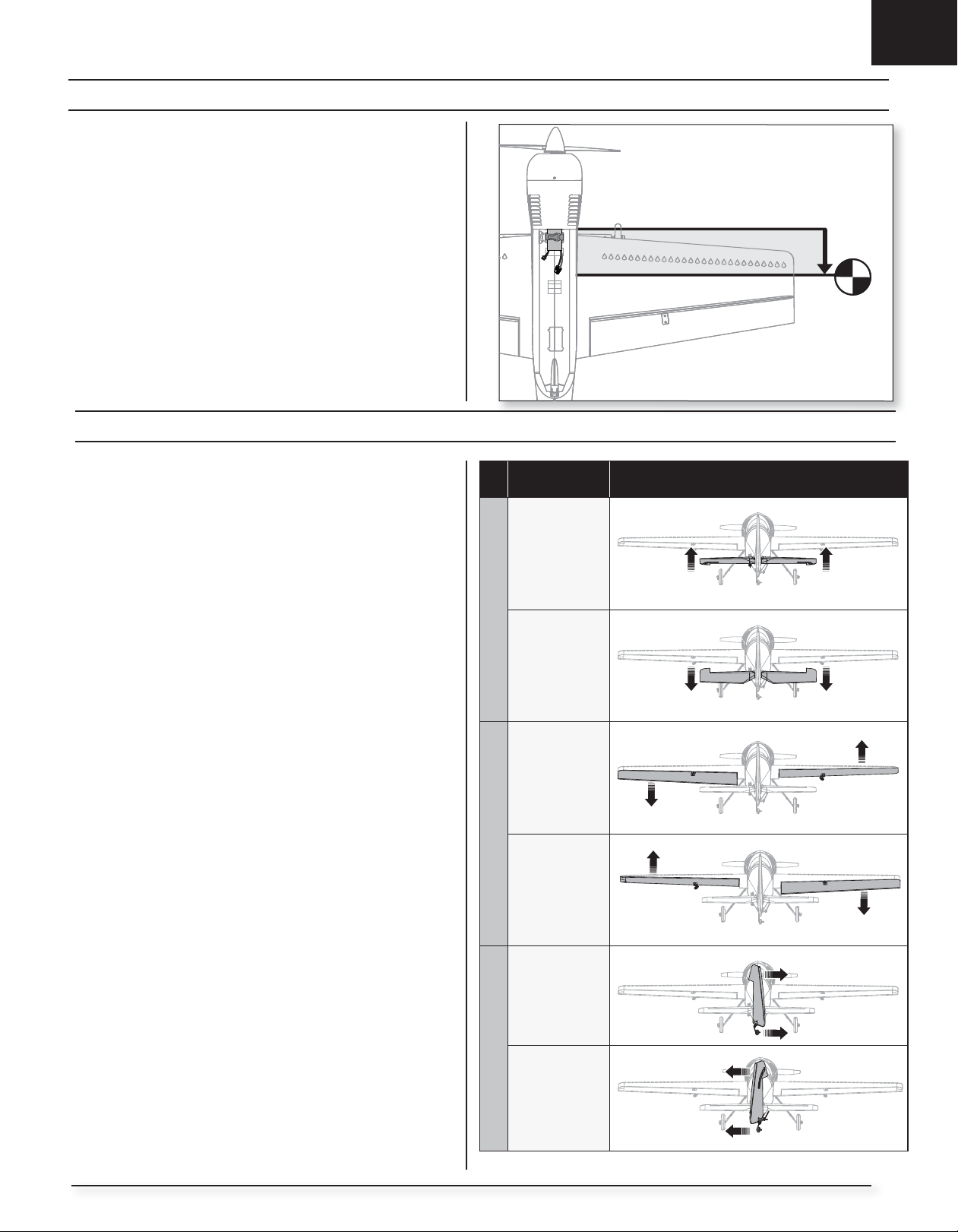

Center of Gravity (CG) .....................................................................9

Control Direction Test .....................................................................9

AS3X Control Direction Test ..........................................................10

In Flight Trimming .........................................................................10

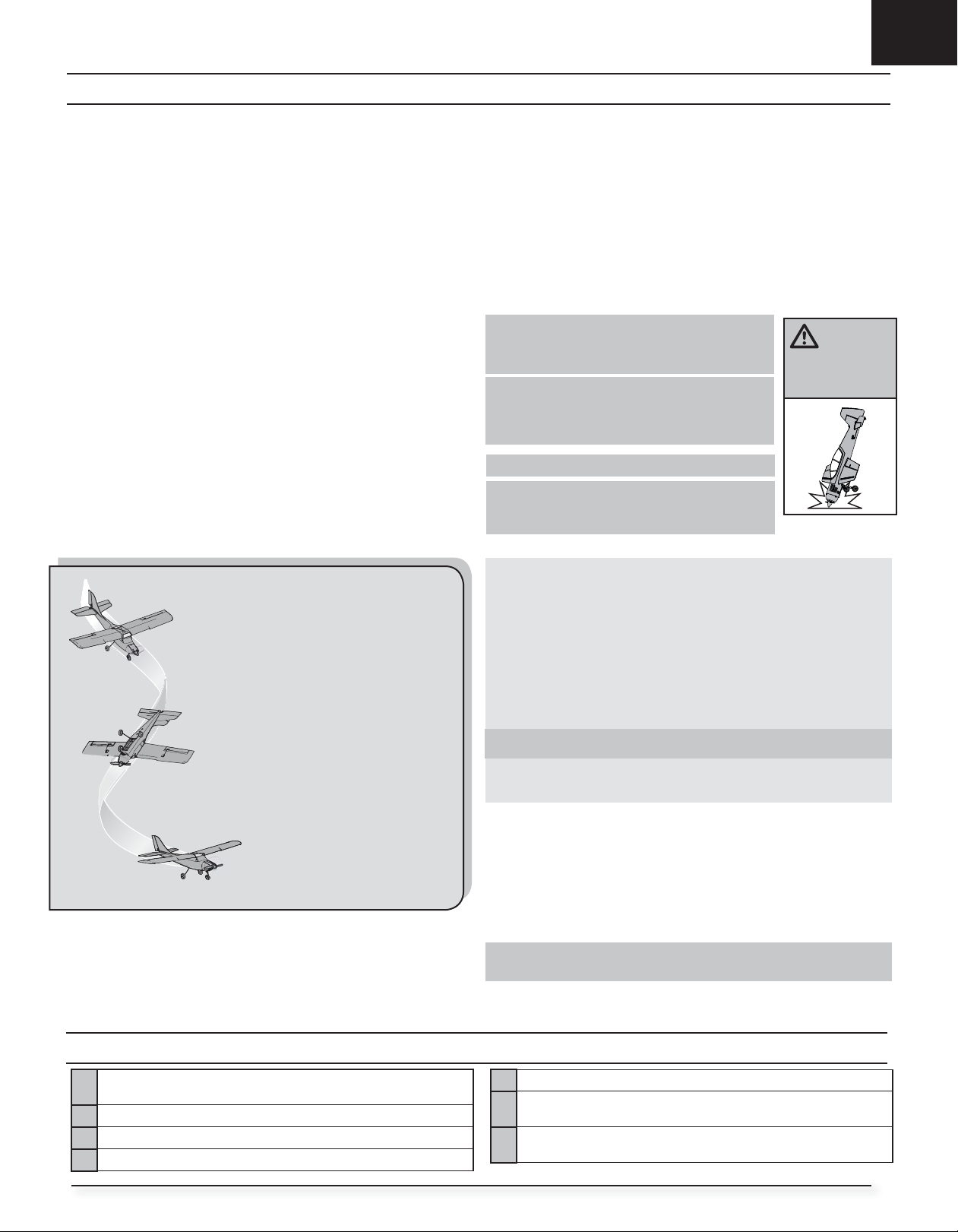

Flying Tips and Repairs .................................................................11

Post Flight ....................................................................................11

Motor Service ...............................................................................12

Troubleshooting Guide AS3X .........................................................12

Troubleshooting Guide ..................................................................13

AMA National Model Aircraft Safety Code ......................................14

Limited Warranty ..........................................................................15

Contact Information ......................................................................16

FCC Information ............................................................................16

IC Information ...............................................................................16

Compliance Information for the European Union ............................16

Replacement Parts ........................................................................59

Optional Parts ...............................................................................59

42.3 in (1074mm).

40.6 OZ (1150 g)

As of this printing, you are required to register with the FAA if you own this product. For up-to-date information on how to register with the FAA, please visit https://registermyuas.faa.gov/. For additional assistance on regulations and guidance on UAS usage, visit knowbeforeyouﬂ y.org/.

Preﬂ ight

1 Remove and inspect contents. 2 Read this instruction manual thoroughly. 3 Charge the ﬂ ight battery. 4 Decide if Panic feature is wanted and Bind appropriately. 5 Setup Transmitter using transmitter setup chart. 6 Fully assemble the airplane. 7 Install the ﬂ ight battery in the aircraft (once it has been fully charged). 8 Check the Center of Gravity (CG).

9 Make sure linkages move freely. 10 Perform the Control Direction Test with the transmitter. 11 Perform the AS3X Control Direction Test with the aircraft. 12 Adjust ﬂ ight controls and transmitter. 13 Perform a radio system Range Test. 14 Find a safe open area to ﬂ y. 15 Plan ﬂ ight for ﬂ ying ﬁ eld conditions.

Page 4

Transmitter and Receiver Binding / Switching ON and OFF Panic Recovery Feature

™

This product requires an approved Spektrum transmitter. Visit www.bindnﬂ y.com for a complete list of approved transmitters.

The aircraft has an optional panic feature, which can be switched ON or OFF easily by binding in a speciﬁ c manner as described below.

IMPORTANT: Before binding a transmitter, read the Transmitter Setup section of this manual to ensure that your transmitter is properly programmed for this aircraft.

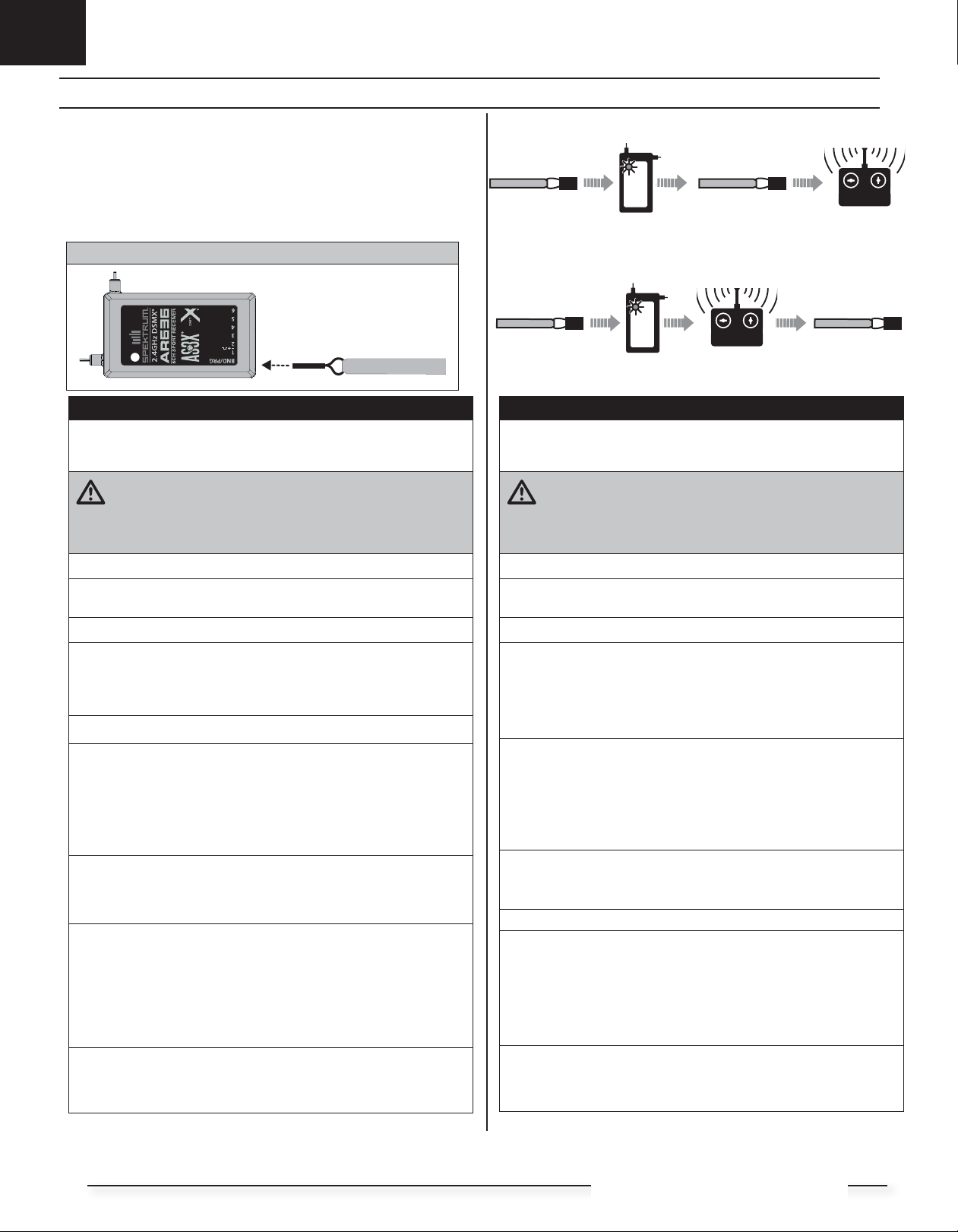

Bind Plug Installation

DSM2®/DSMX® compatible

Switching ON Panic Feature Binding Sequence

Install Bind Plug

Switching OFF Panic Feature Binding Sequence

Remove Bind Plug

RX in Bind Mode

Bind TX to RX

BIND PLUG

Binding Procedure / Switching ON Panic Recovery

IMPORTANT: The included AR636 receiver has been programmed for opera- tion speciﬁ cally for this aircraft. Refer to the receiver manual for correct setup if the receiver is replaced or is used in another aircraft.

CAUTION: When using a Futaba® transmitter with a Spektrum DSM

module, you must reverse the throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.

1. Make sure the transmitter is powered off.

2. Move the transmitter controls to neutral (ﬂ ight controls: rudder, elevators and ailerons) or to low positions (throttle, throttle trim).*

3. Install a bind plug in the receiver bind port.

4. Place the aircraft level on its wheels, connect the ﬂ ight battery to the ESC, then turn ON the switch. The ESC will produce a series of sounds. One long tone, then 3 short tones conﬁ rm that the LVC is set correctly for the ESC. The orange bind LED on the receiver will begin to ﬂ ash rapidly.

5. Remove the bind plug from the bind port.

6. Take 3 steps away from the aircraft /receiver and then power ON the transmitter while holding the transmitter bind button or switch. Refer to your transmitter’s manual for speciﬁ c binding instructions.

IMPORTANT: Do not to point the transmitter’s antenna directly at the

receiver while binding.

IMPORTANT: Keep away from large metal objects while binding.

7. The receiver is bound to the transmitter when the orange bind light on the receiver stays orange. The ESC will also produce a series of three ascending tones. The tones indicate the ESC is armed, provided the throttle stick and throttle trim are low enough to trigger arming.

IMPORTANT: Once bound, the receiver will retain its bind and last Panic setting until it has been intentionally changed, even when power is cycled ON and OFF. However, if you notice that bind has been lost, simply repeat the binding processs.

Panic ON Indication

Every time the receiver is powered ON the surfaces will cycle back and forth twice with a slight pause at neutral position to indicate that Panic feature is switched ON.

IMPORTANT: The throttle will not arm if the transmitter’s throttle control is not put at the lowest position. If you encounter problems, follow the binding instructions and refer to the transmitter troubleshooting guide for other instructions. If needed, contact the appropriate Horizon Product Support ofﬁ ce.

Install Bind Plug

Bind TX to RX

RX in Bind Mode

Remove Bind Plug

Binding Procedure / Switching OFF Panic Recovery

CAUTION: When using a Futaba® transmitter with a Spektrum DSM

1. Make sure the transmitter is powered off.

2. Move the transmitter controls to neutral (ﬂ ight controls: rudder, elevators and ailerons) or to low positions (throttle, throttle trim). *

3. Install a bind plug in the receiver bind port.

The orange bind LED on the receiver will begin to ﬂ ash rapidly. DO NOT

remove the bind plug at this time.

5. Take 3 steps away from the aircraft /receiver and then power ON the transmitter while holding the transmitter bind button or switch. Refer to your transmitter’s manual for speciﬁ c binding instructions.

IMPORTANT: Do not to point the transmitter’s antenna directly at the

receiver while binding.

IMPORTANT: Keep away from large metal objects while binding.

6. The receiver is bound to the transmitter when the orange bind light on the receiver stays orange. The ESC will also produce a series of three ascending tones. The tones indicate the ESC is armed, provided the throttle stick and throttle trim are low enough to trigger arming.

7. Remove the bind plug from the bind port.

Panic OFF Indication

Every time the receiver is powered ON the surfaces will cycle back and forth once to indicate that Panic feature has been switched OFF.

*Failsafe

If the receiver loses transmitter communication, the failsafe will activate. When activated, failsafe moves the throttle channel to its preset failsafe position (low throttle) that was set during binding. All other channels move to actively level the aircraft in ﬂ ight.

Sukhoi SU-29MM

Page 5

Transmitter Setup

If you intend on using the Panic Recovery feature, it is important to follow this transmitter setup chart to assign your transmitter switches correctly to operate the Panic Recovery feature.

Use the provided charts to guide you through transmitter setup. Locate your speciﬁ c transmitter in the chart and follow the numbered setup sequence. The ending results will be as follows:

Panic Recovery : Flap Switch (DX6i)

Trainer/Bind button (DX7S, DX8, DXe) Bind button (DX6, DX8G2, DX9, DX18, DX20) R-Tip (DX10t)

If you don’t intend to use Panic recovery, you do not need to follow this transmitter setup.

Computerized Transmitter Setup

(DX6i, DX6, DX7, DX7S, DX8, DX8G2, DX9, DX10t, DX18 and DX20)

Start all transmitter programming with a blank ACRO model (do a model reset), then name the model.

Set Servo Travel to: 100%

1. Go to the SETUP LIST MENU

2. Set MODEL TYPE: ACRO

DX6i

DX7S DX8

DX6 DX7 DX8 (Gen2) DX9 DX10t DX18 DX20

3. Go to ADJUST LIST MENU

4. Set FLAPS: Norm 100 Flap LAND 100 Flap

1. Go to the SYSTEM SETUP

2. Set MODEL TYPE: AIRPLANE

3. Set SWITCH SELECT: Change all to INH: Then TRAINER: AUX1

1. Go to the SYSTEM SETUP

2. Set MODEL TYPE: AIRPLANE

3. Set AICRAFT TYPE: WING: NORMAL

4. Go to CHANNEL ASSIGN: NEXT: Channel Input Conﬁ g: Set AUX1: I (DX10t: AUX1: R-TIP)

DXe Transmitter

Your aircraft is also compatible with Spektrum DXe transmitter. However, it is recommended to download the latest AirWare com before downloading the model setup for this aircraft. The USB programming cable (SPMA3065) (sold separately) must be used for AirWare™ software updates.

Model Setup

We recommend downloading the Sukhoi SU-29MM DXe model setup available at www.spektrumrc.com. Use your PC and USB programming cable SPMA3065 (sold separately).

™

software from SpektrumRC.

Dual Rates and Expo

Set Dual Rates and Expo per the chart for initial ﬂ ights. After ﬁ rst ﬂ ight you may adjust these in your transmitter to suit your ﬂ ying style.

Factory Gain Settings

The following chart is a list of the default factory gain settings that are programmed into your AR636 receiver for this aircraft.

To adjust these gain settings, or program them into a new AR636 receiver, use your PC and USB programming cable SPMA3065 (sold separately), or mobile app with audio interface programming cable SPMA3081 (sold separately).

Scan the QR code for model setup page for the DXe Transmitter. Then locate the sukhoi SU-29MM in the list of aircaft.

High Rate Expo Low Rate Expo

Aileron 100% 40% 45% 10% Elevator 100% 35% 25% 10% Rudder 100% 15% 70% 8%

Roll Pitch Yaw

Rate Gain 17% 17% 40% Heading Gain NA NA NA Priority 160% 160% 160%

Page 6

Model Assembly

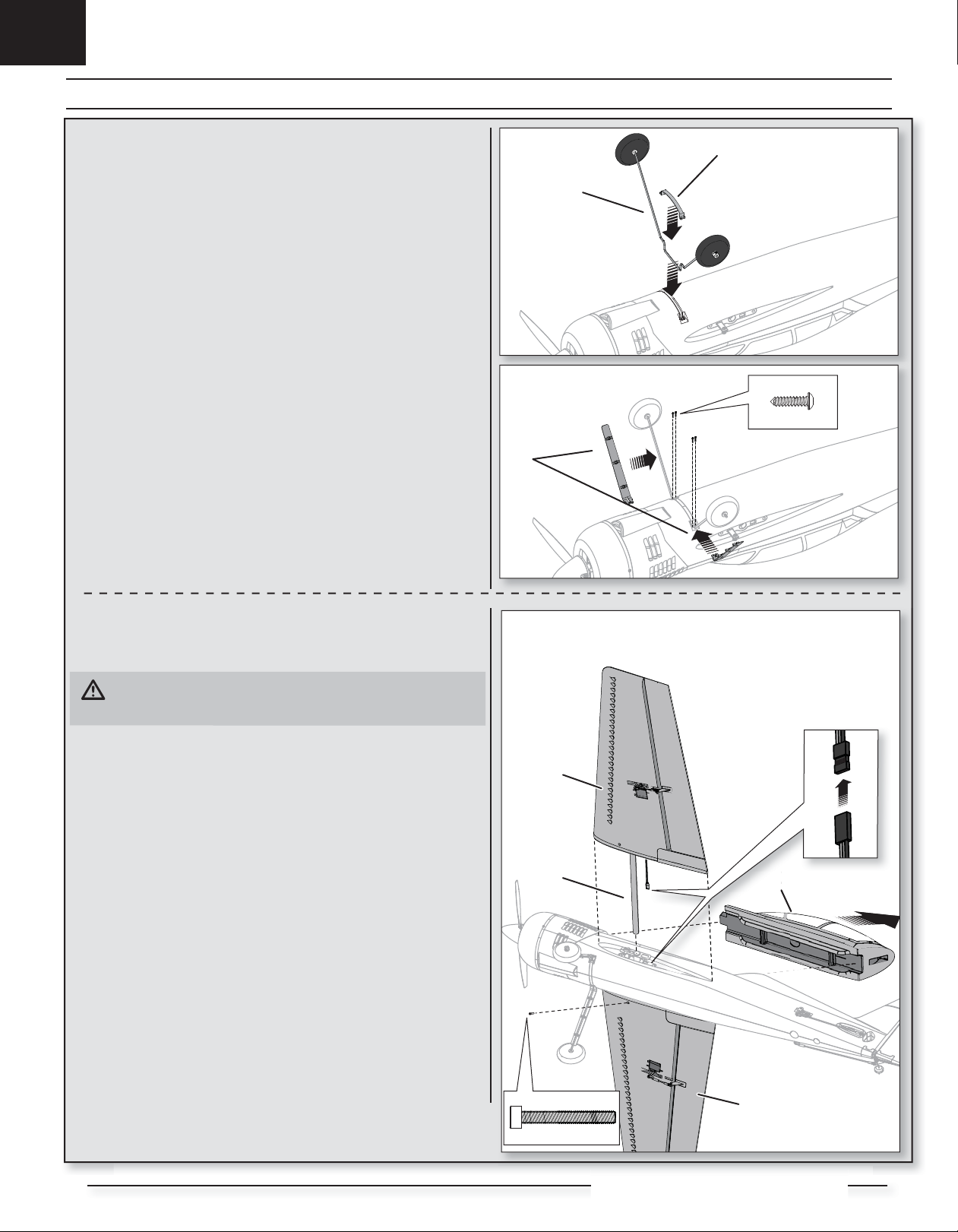

Landing Gear Installation

1. Install the landing gear strut (A) as shown.

2. Install the U-cover (B) on the fuselage.

3. Install the fairings (C) on the strut.

4. Secure the landing gear assembly by using 4 screws (D).

Tip: Carefully support the aircraft while installing or removing screws.

Disassemble in reverse order.

2 X 10mm (4)

Wing Installation

1. Slide the wing tube (A) into the fuselage.

CAUTION: DO NOT crush or otherwise damage the wiring when

attaching the wing to the fuselage.

2. Install the left and right wing (B and C) over the wing tube and into the

wing slot of the fuselage while inserting the aileron servo connectors through the provided holes.

3. Invert the fuselage so the landing gear is facing up. Secure the left and

right wings to the fuselage using the included screws (D).

4. Remove the canopy (E) from the fuselage.

Tip: If needed, use hemostats or pliers to pull the servo connectors into the fuselage.

5. Connect the aileron servos from the wings to the Y-harness connectors in the fuselage. The left and right aileron servos can be connected to either side of the Y-harness.

6. Replace the canopy.

Disassemble in reverse order.

IMPORTANT: Correct operation of the AS3X system requires connection of

both ailerons to the included Y-harness and the AILE channel of the receiver.

3 X 22mm (2)

Sukhoi SU-29MM

Page 7

Model Assembly Continued

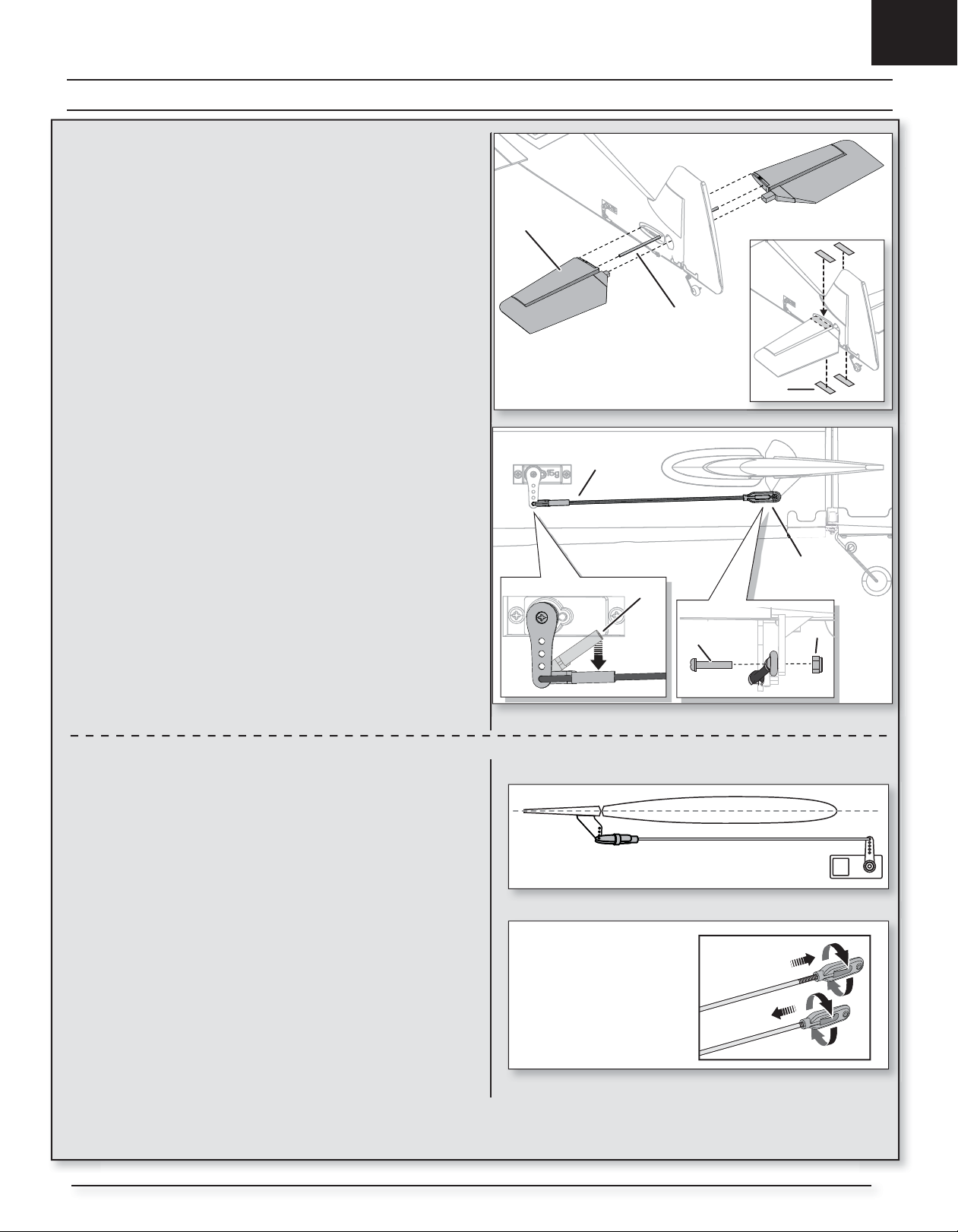

Horizontal Tail Installation

1. Slide the horizontal tail tube (A) into the hole in the rear of the fuselage.

2. Install the left and right horizontal tails (B) onto the fuselage as shown.

Ensure the control horn faces down.

3. Apply 4 pieces of tape (C) to the fuselage mounts (one on the top and

bottom of each half of the horizontal tail).

4. Attach the linkage (D) to the outermost hole in the elevator servo arm using the link keeper (E).

5. Attach the ball link (F) to the elevator control horn using the included nut (G) and screw (H).

6. Ensure the elevator servo arm is in the correct position, then adjust the linkage to center the elevator.

When needed, disassemble in reverse order.

Control Surface Centering

After assembly and transmitter setup, conﬁ rm that the control surfaces are centered. If the control surfaces are not centered, mechanically center the control surfaces by adjusting the linkages.

If adjustment is required, turn the clevis on the linkage to change the length of the linkage between the servo arm and the control horn.

After binding a transmitter to the aircraft receiver, set the trims and sub-trims to 0, then adjust the clevises to center the control surfaces.

• Turn the linkage clockwise or counterclockwise until the control surface is centered.

• Attach the linkage to the servo arm or control horn after adjustment.

Page 8

Control Horn and Servo Arm Settings

The table to the right shows the factory settings for the control horns and servo arms. Fly the aircraft at factory settings before making changes.

NOTICE: If control throws are changed from the factory settings, the AR636 gain values may need to be adjusted. Refer to the Spektrum AR636 manual for adjustment of gain values.

After ﬂ ying, you may choose to adjust the linkage positions for the desired control response. See the table to the right.

More control throw Less control throw

Battery Installation and ESC Arming

Battery Selection

We recommend the E-ﬂ ite® 2200mAh 11.1V 3S 30C Li-Po battery (EFLB22003S30). Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-ﬂ ite Li-Po battery packs to ﬁ t in the fuselage. Be sure the model balances at the recommended CG.

Arms

Elevator

Ailerons

Rudder

1. Lower the throttle and throttle trim to the lowest settings. Power on the Transmitter, then wait 5 seconds.

2. Push the button (A) into the fuselage and remove the battery hatch.

3. Install the fully charged battery (B) all the way to the front of the battery

compartment. See the Adjusting the Center of Gravity instructions for more information.

4. Make sure the ﬂ ight battery is secured using the hook and loop strap (C).

5. Connect the battery to the ESC.

6. Power on the ESC Switch (D). Keep the aircraft immobile on its landing gear

and away from wind for 5 seconds or the system will not initialize.

• The ESC will sound a series of tones (refer to step 6 of the binding instructions for more information).

• An LED will light on the receiver.

If the ESC sounds a continuous double beep after the ﬂ ight battery is connected, recharge or replace the battery.

7. Reinstall the battery hatch. Push the rear of the battery hatch securely to ensure the latch is fully engaged.

CAUTION: Always keep hands away from the propeller. When armed,

the motor will turn the propeller in response to any throttle movement.

Sukhoi SU-29MM

Page 9

Center of Gravity (CG)

The CG location is 82mm back from the leading edge of the wing at the root.

For ﬁ rst ﬂ ights, install the recommended ﬂ ight battery all the way forward. Secure the battery with the strap as shown.

Aircraft CG and weight is based on an E-ﬂ ite 11.1V 2200mAh 30C battery (EFLB22003S30) installed.

Control Direction Test

82mm

3.23 inches back from the leading edge of the wing at the root.

Move the controls on the transmitter to make sure the aircraft control surfaces move in the proper direction.

Transmitter

Command

Up Elevator

Command

Down

Elevator

Command

Stick Right

Aileron

Stick Left

Aircraft Reaction

Stick Right

Rudder

Stick Left

Page 10

AS3X Control Direction Test

This test ensures that the AS3X® control system is functioning properly. Assemble the aircraft and bind your transmitter to the receiver before performing this test.

1. Raise the throttle just above 25%, then lower the throttle to activate AS3X technology.

CAUTION: Keep all body parts, hair and loose clothing away

from a moving propeller, as these items could become entangled.

IMPORTANT: The AR636 programming for this aircraft increases control surface movement when landing gear is down.

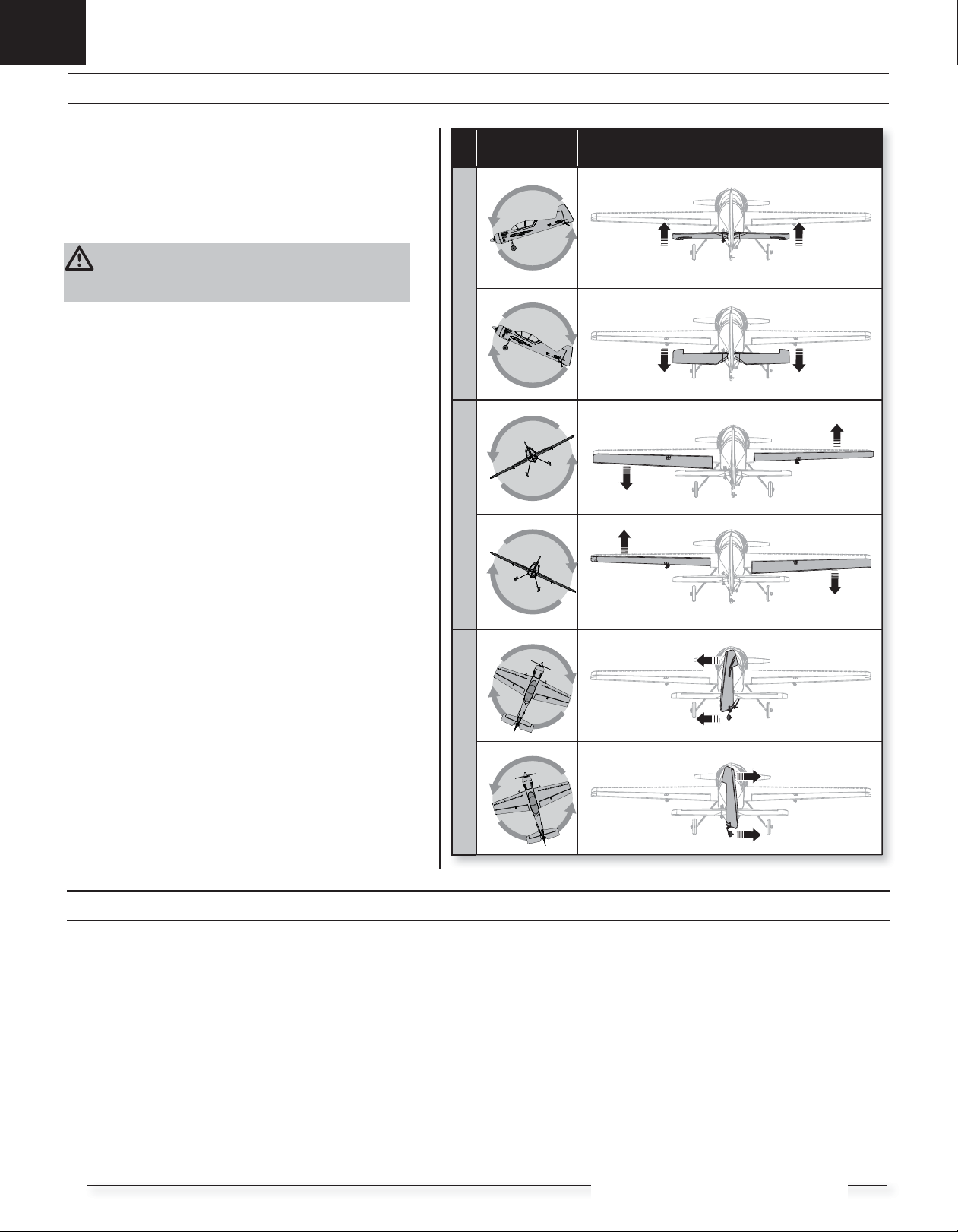

2. Move the entire aircraft as shown and ensure the control surfaces move in the direction indicated in the graphic. If the control surfaces do not respond as shown, do not ﬂ y the aircraft. Refer to the receiver manual for more information.

Once the AS3X system is active, control surfaces may move rapidly. This is normal. AS3X remains active until the battery is disconnected.

Aircraft

movement

ElevatorAileronRudder

AS3X Reaction

In Flight Trimming

During your ﬁ rst ﬂ ight, trim the aircraft for level ﬂ ight at 3/4 throttle. Make small trim adjustments with your transmitter’s trim switches to straighten the aircraft’s ﬂ ight path.

If more than 4 clicks of trim are required for straight and level ﬂ ight, land the aircraft and cycle the power OFF/ON. This will allow the receiver to learn the correct trim settings to optimize AS3X performance.

Sukhoi SU-29MM

Page 11

Flying Tips and Repairs

Consult local laws and ordinances before choosing a ﬂ ying location.

Range Check your Radio System

Before you ﬂ y, range check the radio system. Refer to your speciﬁ c transmitter instruction manual for range test information.

Oscillation

Once the AS3X system is active (after advancing the throttle for the ﬁ rst time), you will normally see the control surfaces react to aircraft movement. In some ﬂ ight conditions you may see oscillation (the aircraft rocks back and forth on one axis due to overcontrol). If oscillation occurs, refer to the Troubleshooting Guide for more information.

Takeoff

Place the aircraft facing into the wind. Set your transmitter in low rate. Gradually increase the throttle to ¾ and steer with the rudder. As the tail comes off the ground, pull back gently on the elevator and climb to a comfortable altitude.

Flying

For your ﬁ rst ﬂ ights with the recommended battery pack (EFLB22003S30), set your transmitter timer or a stopwatch to 5 minutes. After ﬁ ve minutes, land the aircraft. Adjust your timer for longer or shorter ﬂ ights once you have ﬂ own the model. If at any time the motor pulses, land the aircraft immediately to recharge the ﬂ ight battery. See the Low Voltage Cutoff (LVC) section for more details on maximizing battery health and run time.

at the same time. When the aircraft touches down, reduce back pressure on the elevator stick to prevent the plane from becoming airborne again.

Keep the throttle on until the aircraft is ready to ﬂ are. During ﬂ are, keep the wings level and the aircraft pointed into the wind. Gently lower the throttle while pulling back on the elevator to bring the aircraft down on its wheels.

If landing on grass, it is best to hold full up elevator after touchdown and when taxiing to prevent nosing over.

Once on the ground, avoid sharp turns until the plane has slowed enough to prevent scraping the wingtips.

NOTICE: If a crash is imminent, reduce the throttle and trim fully. Failure to do so could result in extra damage to the airframe, as well as damage to the ESC and motor.

NOTICE: After any impact, always ensure the receiver is secure in the fuselage. If you replace the receiver, install the new receiver in the same orientation as the original receiver or damage may result.

NOTICE: Crash damage is not covered under warranty.

NOTICE: When you are ﬁ nished ﬂ ying, never leave the

aircraft in direct sunlight or in a hot, enclosed area such as a car. Doing so can damage the aircraft.

WARNING:

Always decrease throttle at propeller strike.

Panic Recovery Mode

(If you have activated Panic recovery during binding)

• If you feel you have lost control of the aircraft, hold the Panic Recovery button or switch and reduce throttle. The SAFE the aircraft to upright ﬂ ight.

• Release the Panic Recovery button to return to normal ﬂ ight with full stick control again.

IMPORTANT: Always ﬂ y at a safe altitude, as Panic Recovery may cause the aircraft to lose some altitude when leveling the wings.

IMPORTANT: If the aircraft is upside down when the Panic Recovery button is pressed, sufﬁ cient altitude is required for the aircraft to return to upright ﬂ ight.

technology will return

Landing

To land the aircraft, ﬂ y the aircraft down to the ground using 1/4 –1/3 throttle to allow for enough energy for a proper ﬂ are. The aircraft is easiest to

land doing a wheel landing (two point), where the aircraft touches down on the main landing gear ﬁ rst while the tailwheel is still off the ground. The aircraft can also be landed in a three-point attitude, where all three wheels touch down

Low Voltage Cutoff (LVC)

When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The ESC protects the ﬂ ight battery from over-discharge using Low Voltage Cutoff (LVC). Before the battery charge decreases too much, LVC removes power supplied to the motor. Power to the motor pulses, showing that some battery power is reserved for ﬂ ight control and safe landing.

Disconnect and remove the Li-Po battery from the aircraft after use to prevent trickle discharge. Charge your Li-Po battery to about half capacity before storage. During storage, make sure the battery charge does not fall below 3V per cell. LVC does not prevent the battery from over-discharge during storage.

NOTICE: Repeated ﬂ ying to LVC will damage the battery.

Tip: Monitor your aircraft battery’s voltage before and after ﬂ ying by using a

Li-Po Cell Voltage Checker (EFLA111, sold separately).

Repairs

Thanks to the Z-Foam™ material in this aircraft, repairs to the foam can be made using virtually any adhesive (hot glue, regular CA, epoxy, etc). When parts are not repairable, see the Replacement Parts List for ordering by item number. For a listing of all replacement and optional parts, refer to the list at the end of this manual.

NOTICE: Use of CA accelerant on your aircraft can damage paint. DO NOT handle the aircraft until accelerant fully dries.

Post Flight

Disconnect the ﬂ ight battery from the ESC (Required for Safety

and battery life). 2 Power OFF the transmitter. 3 Remove the ﬂ ight battery from the aircraft. 4 Recharge the ﬂ ight battery.

5 Repair or replace all damaged parts.

Store the ﬂ ight battery apart from the aircraft and monitor the

battery charge. Make note of the ﬂ ight conditions and ﬂ ight plan results, planning for

future ﬂ ights.

Page 12

Motor Service

CAUTION: Always disconnect the ﬂ ight battery from the aircraft before

removing the propeller.

Disassembly

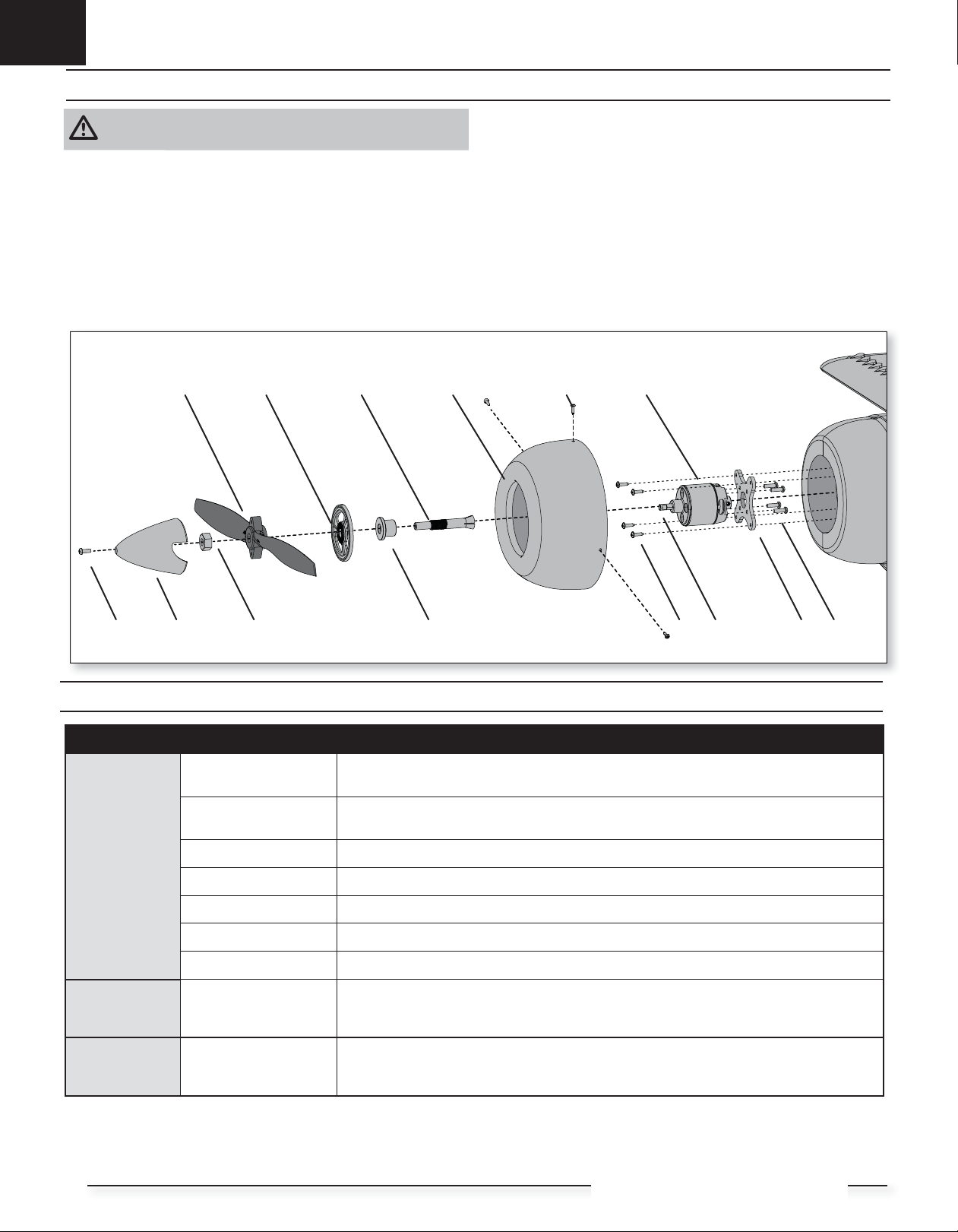

1. Remove the screw (A) and spinner (B) from the collet (C).

2. Remove the spinner nut (D), propeller (E), spinner backplate (F), backplate (G) and collet from the motor shaft (H). You will need a tool to turn the spinner nut.

3. Remove the 3 screws (I) from the cowling (J). Carefully remove the cowling from the fuselage. Paint may keep the cowling attached to the fuselage.

4. Remove the 4 screws (K) from the motor mount (L) and the fuselage.

5. Disconnect the motor wires from the ESC wires.

6. Remove the 4 screws (M) and motor (N) from the motor mount.

Not all wiring shown.

Assembly

Assemble in reverse order.

• Correctly align and connect the motor wire colors with the ESC wires.

• The propeller size numbers (12 x 4) must face out from the motor for correct propeller operation.

• A tool is required to tighten the spinner nut on the collet.

• Ensure the spinner is fully connected to the spinner backplate for safe operation.

Troubleshooting Guide AS3X

Problem Possible Cause Solution

Damaged propeller or spinner

Imbalanced propeller

Replace propeller or spinner

Balance the propeller. For more information, view John Redman’s propeller balancing video at www. horizonhobby.com

L MH

Oscillation

Inconsistent ﬂ ight performance

Incorrect response to the AS3X Control Direction Test

Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed

Loose receiver Align and secure receiver in fuselage

Loose aircraft controls Tighten or otherwise secure parts (servo, arm, linkage, horn and control surface)

Worn parts Replace worn parts (especially propeller, spinner or servo)

Irregular servo movement Replace servo

Aircraft was not kept immobile for 5 seconds after battery connection

Incorrect direction settings in the receiver, which can cause a crash

With the throttle stick in lowest position. Disconnect battery, then reconnect battery and keep the aircraft still for 5 seconds

DO NOT ﬂ y. Correct the direction settings (refer to the receiver manual), then ﬂ y

Sukhoi SU-29MM

Page 13

Troubleshooting Guide

Problem Possible Cause Solution

Aircraft will not respond to throttle but responds to other controls

Extra propeller noise or extra vibration

Reduced ﬂ ight time or aircraft underpowered

Aircraft will not Bind (during binding) to transmitter

Aircraft will not connect (after binding) to transmitter

Control surface does not move

Controls reversed Transmitter settings are reversed

Motor power pulses then motor loses power

Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater

Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from ESC Make sure motor is connected to the ESC Damaged propeller and spinner, collet or motor Replace damaged parts Propeller is out of balance Balance or replace propeller Prop nut is too loose Tighten the prop nut

Flight battery charge is low Completely recharge ﬂ ight battery Propeller installed backwards Install propeller with numbers facing forward

Flight battery damaged Replace ﬂ ight battery and follow ﬂ ight battery instructions Flight conditions may be too cold Make sure battery is warm before use Battery capacity too low for flight conditions Replace battery or use a larger capacity battery

Transmitter too near aircraft during binding process

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

The bind plug is not installed correctly in the bind port Install bind plug in bind port and bind the aircraft to the transmitter Flight battery/transmitter battery charge is too low Replace/recharge batteries Bind switch or button not held long enough during

bind process Transmitter too near aircraft during connecting

process Aircaft was not upright resting on landing gear durring

binding process Aircraft or transmitter is too close to large metal

object, wireless source or another transmitter Bind plug left installed in bind port Rebind transmitter to the aircraft and remove the bind plug before cycling power Aircraft bound to different model memory

(ModelMatch Flight battery/Transmitter battery charge is too low Replace/recharge batteries Transmitter may have been bound to a different air-

craft using different DSM protocol Control surface, control horn, linkage or servo

damage Wire damaged or connections loose Do a check of wires and connections, connect or replace as needed Transmitter is not bound correctly or the incorrect

airplanes was selected Flight battery charge is low Fully recharge ﬂ ight battery BEC (Battery Elimination Circuit) of the ESC is

damaged

ESC uses default soft Low Voltage Cutoff (LVC) Recharge ﬂ ight battery or replace battery that is no longer performing Weather conditions might be too cold Postpone flight until weather is warmer Battery is old, worn out, or damaged Replace battery Battery C rating might be too small Use recommended battery

radios only)

Move powered transmitter a few feet from aircraft, disconnect and reconnect ﬂ ight battery to aircraft

Move aircraft and transmitter to another location and attempt binding again

Power off transmitter and repeat bind process. Hold transmitter bind button or switch until receiver is bound

Move powered transmitter a few feet from aircraft, disconnect and reconnect ﬂ ight battery to aircraft

Rebind with the aircarft upright resting on landing gear

Move aircraft and transmitter to another location and attempt connecting again

Select correct model memory on transmitter

Bind aircraft to transmitter

Replace or repair damaged parts and adjust controls

Re-bind or select correct airplanes in transmitter

Replace ESC

Perform the Control Direction Test and adjust the controls on transmitter appropriately

Page 14

AMA National Model Aircraft Safety Code

Effective January 1, 2014

A. GENERAL

A model aircraft is a non-human-carrying aircraft capable of sustained ﬂ ight in the atmosphere. It may not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. All model ﬂ ights must be conducted in accordance with this safety code and any additional rules speciﬁ c to the ﬂ ying site.

1. Model aircraft will not be ﬂ own: (a) In a careless or reckless manner. (b) At a location where model aircraft activities are prohibited.

2. Model aircraft pilots will: (a) Yield the right of way to all man carrying aircraft. (b) See and avoid all aircraft and a spotter must be used when appropriate. (AMA Document #540-D.) (c) Not ﬂ y higher than approximately 400 feet above ground level within three (3) miles of an airport, without notifying the airport operator. (d) Not interfere with operations and trafﬁ c patterns at any airport, heliport or seaplane base except where there is a mixed use agreement. (e) Not exceed a takeoff weight, including fuel, of 55 pounds unless in compliance with the AMA Large Model Aircraft program. (AMA Document 520-A.) (f) Ensure the aircraft is identiﬁ ed with the name and address or AMA number of the owner on the inside or afﬁ xed to the outside of the model aircraft. (This does not apply to model aircraft ﬂ own indoors). (g) Not operate aircraft with metal-blade propellers or with gaseous boosts except for helicopters operated under the provisions of AMA Document #555. (h) Not operate model aircraft while under the inﬂ uence of alcohol or while using any drug which could adversely affect the pilot’s ability to safely control the model. (i) Not operate model aircraft carrying pyrotechnic devices which explode or burn, or any device which propels a projectile or drops any object that creates a hazard to persons or property.

Exceptions:

• Free Flight fuses or devices that burn producing smoke and are

securely attached to the model aircraft during ﬂ ight.

• Rocket motors (using solid propellant) up to a G-series size may

be used provided they remain attached to the model during ﬂ ight. Model rockets may be ﬂ own in accordance with the National Model Rocketry Safety Code but may not be launched from model aircraft.

• Ofﬁ cially designated AMA Air Show Teams (AST) are authorized to

use devices and practices as deﬁ ned within the Team AMA Program Document (AMA Document #718). (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A).

3. Model aircraft will not be ﬂ own in AMA sanctioned events, air shows or

model demonstrations unless: (a) The aircraft, control system and pilot skills have successfully demonstrated all maneuvers intended or anticipated prior to the speciﬁ c event. (b) An inexperienced pilot is assisted by an experienced pilot.

B. RADIO CONTROL

1. All pilots shall avoid ﬂ ying directly over unprotected people, vessels, vehicles or structures and shall avoid endangerment of life and property of others.

2. A successful radio equipment ground-range check in accordance with manufacturer’s recommendations will be completed before the ﬁ rst ﬂ ight of a new or repaired model aircraft.

3. At all ﬂ ying sites a safety line(s) must be established in front of which all ﬂ ying takes place (AMA Document #706.) (a) Only personnel associated with ﬂ ying the model aircraft are allowed at or in front of the safety line. (b) At air shows or demonstrations, a straight safety line must be established. (c) An area away from the safety line must be maintained for spectators. (d) Intentional ﬂ ying behind the safety line is prohibited.

4. RC model aircraft must use the radio-control frequencies currently allowed by the Federal Communications Commission (FCC). Only individuals properly licensed by the FCC are authorized to operate equipment on Amateur Band frequencies.

5. RC model aircraft will not operate within three (3) miles of any pre-existing ﬂ ying site without a frequency-management agreement (AMA Documents #922 and #923.)

6. With the exception of events ﬂ own under ofﬁ cial AMA Competition Regulations, excluding takeoff and landing, no powered model may be ﬂ own outdoors closer than 25 feet to any individual, except for the pilot and the pilot’s helper(s) located at the ﬂ ight line.

7. Under no circumstances may a pilot or other person touch a model aircraft in ﬂ ight while it is still under power, except to divert it from striking an individual.

8. RC night ﬂ ying requires a lighting system providing the pilot with a clear view of the model’s attitude and orientation at all times. Hand-held illumi nation systems are inadequate for night ﬂ ying operations.

9. The pilot of a RC model aircraft shall: (a) Maintain control during the entire ﬂ ight, maintaining visual contact without enhancement other than by corrective lenses prescribed for the pilot. (b) Fly using the assistance of a camera or First-Person View (FPV) only in accordance with the procedures outlined in AMA Document #550. (C) Fly using the assistance of autopilot or stabilization system only in accordance with the procedures outlined in AMA Document #560.

Please see your local or regional modeling association’s guidelines for proper, safe operation of your model aircraft.

4. When and where required by rule, helmets must be properly worn and

fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE approved or comply with comparable standards.

Sukhoi SU-29MM

Page 15

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modiﬁ cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, ﬁ nal assembly, modiﬁ cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http:// www.horizonhobby.com/content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support ofﬁ ce.

Warranty Requirements For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have

been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service Should your service not be covered by warranty, service will be

completed and payment will be required without notiﬁ cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the

service without notiﬁ cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/ content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold non-compliant Product for a period of 60 days from notiﬁ cation, after which it will be discarded.

Law

These terms are governed by Illinois law (without regard to conﬂ ict of law principals). This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional

10/15

Page 16

Contact Information

Country of Purchase Horizon Hobby Phone Number/Email Address Address

United States of

America

United Kingdom

Germany

France

Horizon Service Center

(Repairs and Repair Requests)

Horizon Product Support

(Product Technical Assistance)

Sales

Service/Parts/Sales:

Horizon Hobby Limited Horizon Technischer Service [email protected] Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100

Service/Parts/Sales:

Horizon Hobby SAS

servicecenter.horizonhobby.com/

RequestForm/

[email protected]

877-504-0233

[email protected]

800-338-4639

[email protected]

+44 (0) 1279 641 097

[email protected] 11 Rue Georges Charpak

+33 (0) 1 60 18 34 90

Champaign, Illinois, 61822 USA

Units 1–4 , Ployters Rd, Staple Tye

Harlow, Essex, CM18 7NS, United Kingdom

Christian-Junge-Straße 1

25337 Elmshorn, Germany

FCC Information

4105 Fieldstone Rd

77127 Lieusaint, France

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modiﬁ cations not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

IC Information

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not

cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Compliance Information for the European Union

EFL Sukhoi SU-29MM BNF Basic (EFL8850)

EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provi-

sions of the R&TTE and EMC Directive.

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city ofﬁ ce, your household waste disposal service or where you purchased the product.

Sukhoi SU-29MM

Page 17

Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio

Part # | Nummer Numéro | Codice

EFL8802 Decal Set: SU-29MM (Gen 2) Dekorbogen: SU-29MM (Gen 2)

EFL8808 Spinner: SU-29MM (Gen 2) Spinner: SU-29MM (Gen 2) SU-29MM (Gen 2) - Cône Ogiva: SU-29MM (Gen 2) PKZ8006 Main gear set: SU-29MM Fahrwerksset: SU-29MM Jambes de train principal : SU-29MM Set ingranaggio principale: SU-29MM PKZ8021 Wing Tube: SU-29MM Flächenverbinder: SU-29MM Clé d’aile : SU-29MM Tubo ala: SU-29MM

EFL8805

EFL8825 Horizontal Stab: SU-29MM (Gen 2) Seitenleitwerk : SU-29MM (Gen 2) SU-29MM (Gen 2) - Stabilisateur

PKZ8022 Pushrod set: SU-29MM Gestängeset: SU-29MM Set de tringleries : SU-29MM Set rinvii di comando: SU-29MM

EFL8867 Bare Fuse: SU-29MM (Gen 2)

EFL8820 Wing Set: SU-29MM (Gen 2) Tragﬂ äche : SU-29MM (Gen 2) SU-29MM (Gen 2) - Aile Set ala: SU-29MM (Gen 2

EFL8826

EFL8813 Cowl: SU-29MM (Gen 2) Motorhaube: SU-29MM (Gen 2) SU-29MM (Gen 2) - Capot Capottina motore: SU-29MM (Gen 2) PKZ6528 Motor mount: VisionAire Motorbefestigung: VisionAire Support moteur : VisionAire Supporto del motore: VisionAire

EFLM7225 BL10 Motor: VisionAire

EFLM72252 Prop Adapter: VisionAire

EFLA1040LB

SPMAR636

EFLP12040E Propeller: 12 x 4E Propeller: 12 x 4E Hélice 12x4E Elica: 12x4E EFLR7155 13 g Digital Micro Servo E-ﬂ ite 13g Digital Micro Servo Micro servo digital 13g Micro servo digitale 13g

EFLM72251 BL10 Motor Shaft: VisionAire

Description Beschreibung Description Descrizione

Hatch and Canopy SU-29MM (Gen 2)

Rudderw/tail wheel: SU-29MM (Gen 2)

40-Amp Lite Pro Switch-Mode BEC Brushless ESC (V2)

AR636 6-Channel AS3X Receiver

Sport

Akkuklappe und Kabinenhaube: SU29MM (Gen 2)

Rumpf ohne Einbauten SU-29MM (Gen 2)

Seitenruder mit Spornrad: SU-29MM (Gen 2)

Parkzone VisionAire BL10 Motor: VisionAire

Parkzone VisionAire Propeller Adapter: VisionAire

E-ﬂ ite 40-Amp Lite Pro Switch-Mode BEC Brushless Regler (V2)

AR636 6-Channel AS3X Sport Empfänger

Parkzone VisionAire BL10 Motorwelle: VisionAire

SU-29MM (Gen 2) - Planche de décoration

SU-29MM (Gen 2) - Trappe/Cockpit Portello e capottina SU-29MM (Gen 2)

SU-29MM (Gen 2) - Fuselage nu Solo fusibile: SU-29MM (Gen 2)

SU-29MM (Gen 2) - Dérive/Roulette de queue

Moteur BL10 : VisionAire Motore BL10: VisionAire

Adaptateur d’hélice : VisionAire Adattatore elica: VisionAire

Contrôleur Brushless 40A Lite Pro Switch mode BEC V2

Récepteur AR636 6 voies avec AS3X Ricevente AR636 6-canali AS3X Sport

Axe de moteur BL10 Albero motore BL10: VisionAire

Set adesivi: SU-29MM (Gen 2)

Impennaggio orizzontale: SU-29MM (Gen 2)

Timone c/ruotino di coda: SU-29MM (Gen 2)

Regolatore 40-Amp Pro Switch-Mode BEC Brushless ESC (V2)

Optional Parts • Optionale Bauteile • Pièces optionnelles • Pezzi opzionali

Part # | Nummer Numéro | Codice

EFLA250

RVO1005 Ball Link Pliers Revolution Deluxe Kugelkopfzange Pince à rotules Pinze per attacchi a sfera

EFLAEC302

EFLAEC303 EC3 Device/Battery Connector,

EFLB22003S50 DYNC2020A

DYNC2010CA Prophet Sport Plus 50W AC DC

SPMA3801 AS3X Programming Cable - Audio

SPMA3065 AS3X Programming Cable - USB

EFLA111 DYN1405

DYN1400

Description Beschreibung Description Descrizione

Park Flyer Tool Assortment, 5 pc Park Flyer Werkzeugsortiment, 5 teilig Assortiment d'outils park ﬂ yer, 5pc Park Flyer assortimento attrezzi, 5 pc

EC3 Battery Connector, Female (2) EC3 Akkukabel, Buchse (2) Prise EC3 femelle (2pc)

Male/Female

11.1V 3S 50C 2200MAH Li-Po 11.1V 3S 50C 2200mAh LiPo 11.1V 3S 50C 2200MAH Li-Po 11.1V 3S 50C 2200MAH Li-Po

Prophet Sport Duo 50W x 2 AC Battery Charger

Charger

Interface

Li-Po Cell Voltage Checker Li-Po Cell Voltage Checker Testeur de tension d’éléments Li-Po Voltmetro veriﬁ ca batterie LiPo Li-Po Charge Protection Bag,

Large Li-Po Charge Protection Bag,

Small DXe DSMX 6-Channel Transmitter Spektrum DXe DSMX 6-Kanal Sender Emetteur DXe DSMX 6 voies DXe DSMX Trasmettitore 6 canali DX6i DSMX 6-Channel Transmitter Spektrum DX6i DSMX 6-Kanal Sender Emetteur DX6i DSMX 6 voies DX6i DSMX Trasmettitore 6 canali DX6 DSMX 6-Channel Transmitter Spektrum DX6 DSMX 6-Kanal Sender Emetteur DX6 DSMX 6 voies DX6 DSMX Trasmettitore 6 canali DX7 DSMX 7-Channel Transmitter Spektrum DX7 DSMX 7 Kanal Sender Emetteur DX7 DSMX 7 voies DX7 DSMX Trasmettitore 7 canali DX8G2 DSMX 8-Channel

Transmitter DX9 DSMX 9-Channel Transmitter Spektrum DX9 DSMX 9 Kanal Sender Emetteur DX9 DSMX 9 voies DX9 DSMX Trasmettitore 9 canali DX18 DSMX 18-Channel

Transmitter DX20 DSMX 20-Channel

Transmitter

EC3 Kabelsatz, Stecker/Buchse Prise EC3 male/femelle

Dynamite Prophet Sport Duo 50W x 2 AC Ladegerät, EU

Dynamite Ladegerät Prophet Sport Plus 50W AC/DC EU

Spektrum Audio-Interface AS3X Empfänger Programmierkabel

Spektrum USB-Interface AS3X Empfänger Programmierkabel

Dynamite LiPoCharge Protection Bag groß

Dynamite LiPoCharge Protection Bag klein

Spektrum DX8G2 DSMX 8 Kanal Sender

Spektrum DX18 DSMX 18 Kanal Sender

Spektrum DX 20 DSMX 20 Kanal Sender

Chargeur Prophet Sport Duo 50W x 2 AC

Chargeur Prophet Sport Plus 50W ACDCCaricabatterie Prophet Sport Plus

Câble de programmation audio AS3X pour smartphone

Câble de programmation USB AS3X pour PC

Sac de charge Li-Po, grand modèle.

Sac de charge Li-Po, petit modèle

Emetteur DX8G2 DSMX 8 voies DX8G2 DSMX Trasmettitore 8 canali

Emetteur DX18 DSMX 18 voies DX18 DSMX Trasmettitore 18 canali

Emetteur DX 20 DSMX 20 voies DX 20 DSMX Trasmettitore 20 canali

EC3 Connettore femmina x batteria (2)

EC3 Connettore batteria maschio/ femmina

Caricabatterie Prophet Sport Duo 50W x 2 AC

50W AC DC

Cavo di programmazione AS3X Interfaccia audio

Cavo di programmazione AS3X Interfaccia USB

Sacchetto grande di protezione per carica LiPo

Sacchetto piccolo di protezione per carica LiPo

Sukhoi SU-29MM

5959

Page 18

Sukhoi SU-29MM

EFL8850

E-ﬂ ite, AS3X, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, SAFE, Z-Foam, ModelMatch, Dynamite, EC3, Prophet

and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.

The Spektrum trademark is used with permission of Bachmann Industries, Inc.

Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.

All other trademarks, service marks and logos are property of their respective owners.

US 9,056,667. Other patents pending.

http://www.e-ﬂ iterc.com/

Created 04/16 48911
