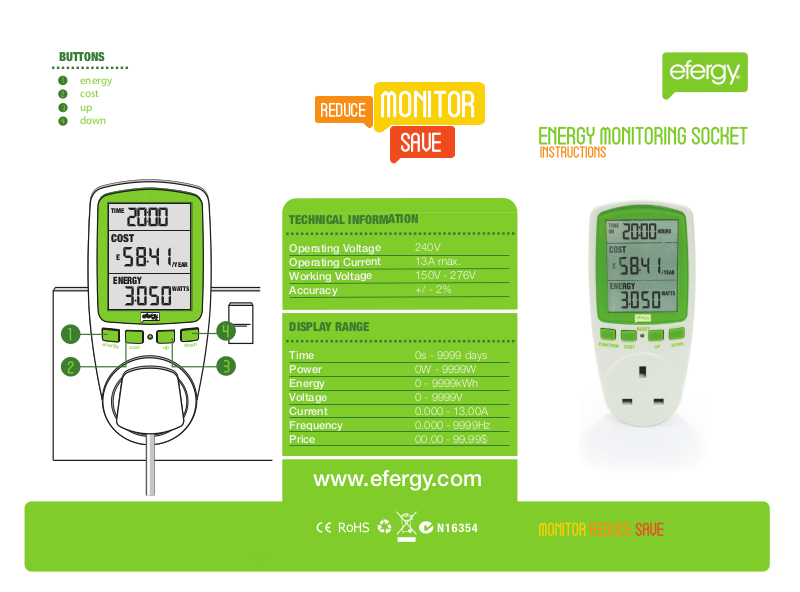

Page 1
BUTTONS
1
energy
2
cost
3
up
4
down
REDUCE
MONITOR
SAVE
TIME
TECHNICAL INFORMATION
COST
£
ENERGY
1
e
n
e
r
g
y
c
o
s
2
/YEAR
WATTS
4
n
w
o
d
p
u
t
3
Operating Voltage 240V
Operating Current 13A max.
Working Voltage 150V - 276V
Accuracy +/ - 2%
DISPLAY RANGE
Time 0s - 9999 days
Power 0W - 9999W
Energy 0 - 9999kWh
Voltage 0 - 9999V
Current 0.000 - 13.00A
Frequency 0.000 - 9999Hz
Price 00.00 - 99.99$
www.efergy.com
up
Page 2
SINGLE TARIFF SET-UP
Press and hold the cost button to enter set-up
•
You will then see the currency symbol flashing
•
Use up & down buttons to choose your currency. Press cost
•
Use up & down buttons to choose TARIFF 1. Press cost
•
Use up and down buttons to set the tariff cost
•
Press the cost button to move on to the next digit
•
Repeat the process until you have entered each digit
•
Press cost once more to exit
•
DUAL TARIFF SET-UP
Enter set-up as descibed above, but select DUAL TARIFF
•
Use the up and down buttons to set tariff 1 start time
•
Press the cost button to move on to the next digit
•
Repeat the process to set tariff 2 start time. Press cost
•
Again, use the same process to set tariff 1 & tariff 2 cost
•
Press cost to exit after setting cost details for both tariffs
•
Plug in the EMS product to start saving money and energy now
•
TIME SET-UP
•
Press and hold up to enter set-up. Press energy to begin
•
Use up and down to set each digit. Press energy to confirm
HOW IT WORKS
The energy monitoring socket is a simple
plug-in device that sits between the
appliance and the wall socket. When you
plug in an appliance, the efergy energy
monitoring socket displays the consumption
of that appliance in watts and the cost per
year. You can also view the cost
accumulated so far and the cost per day by
pressing the cost button.
INSTANT SAVINGS
The energy monitoring socket uses real
time data to help you become more aware of
how much electricity an appliance is using.
With this knowledge you can make more
informed choices about what, when and
how to use the appliance according to your
energy saving objectives
CUMULATIVE DATA
The energy monitoring socket adds up
your energy data cumulatively so that you
can see how much energy you’ve used
since the appliance was switched on. Also
you can check how long the appliance has
been running for by pressing the up and
down buttons.
DIFFERENT MODES
The energy monitoring socket is flexible in
the way you can view data. Press the cost
button to switch between cost settings, the
energy button to switch between energy
settings, and you can change the time
setting by pressing the up button (see the
set-up instructions left).
COST
So Far
Per Day
Per Year
ENERGY
Watt (W)
Kilowatt Hours (kWh)
Voltage (V)
Current (A)
Frequency (Hz)
Power Factor (%)
Max. Watts (W)
TIME
Seconds
Minutes
Hours
Days
•
Press cost to exit
