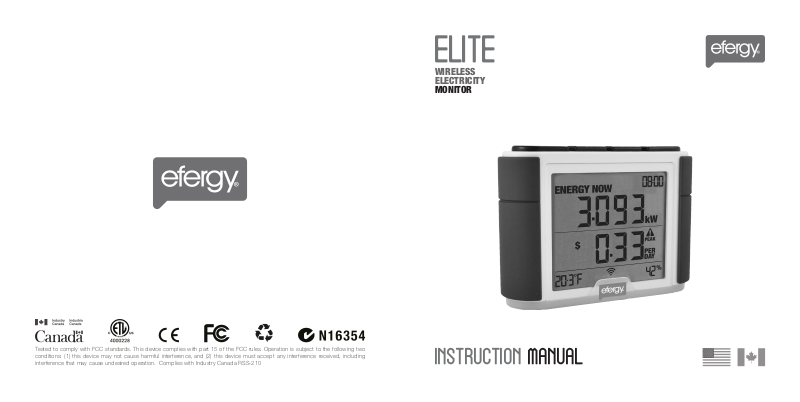

Efergy Elite User Manual

ELITE

WIRELESS

ELECTRICITY MONITOR

Tested to comply with FCC standards. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Complies with Industry Canada RSS-210

INSTRUCTION MANUAL

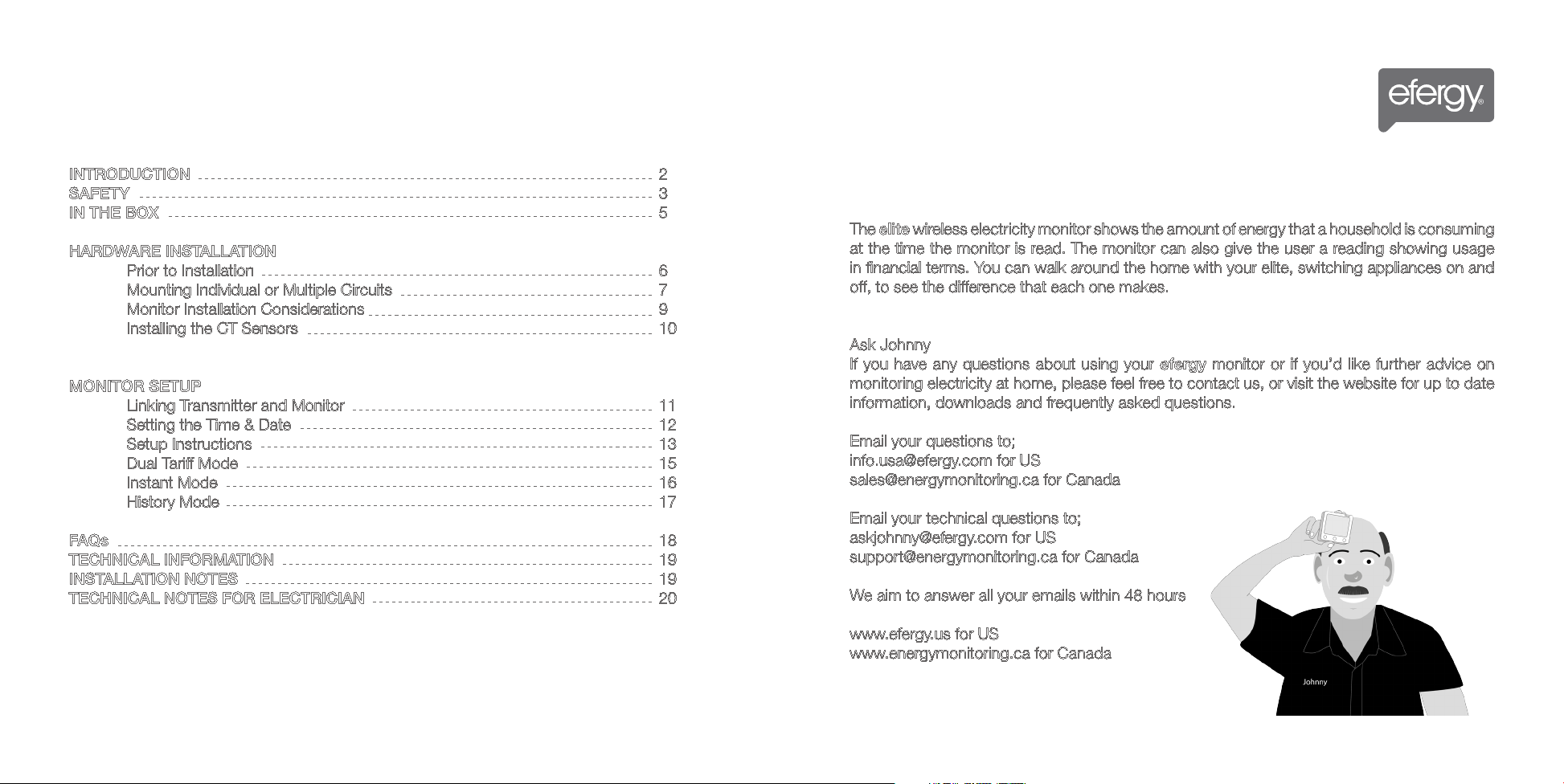

CONTENTS

INTRODUCTION	2
SAFETY	3
IN THE BOX	5
HARDWARE INSTALLATION
Prior to Installation	6

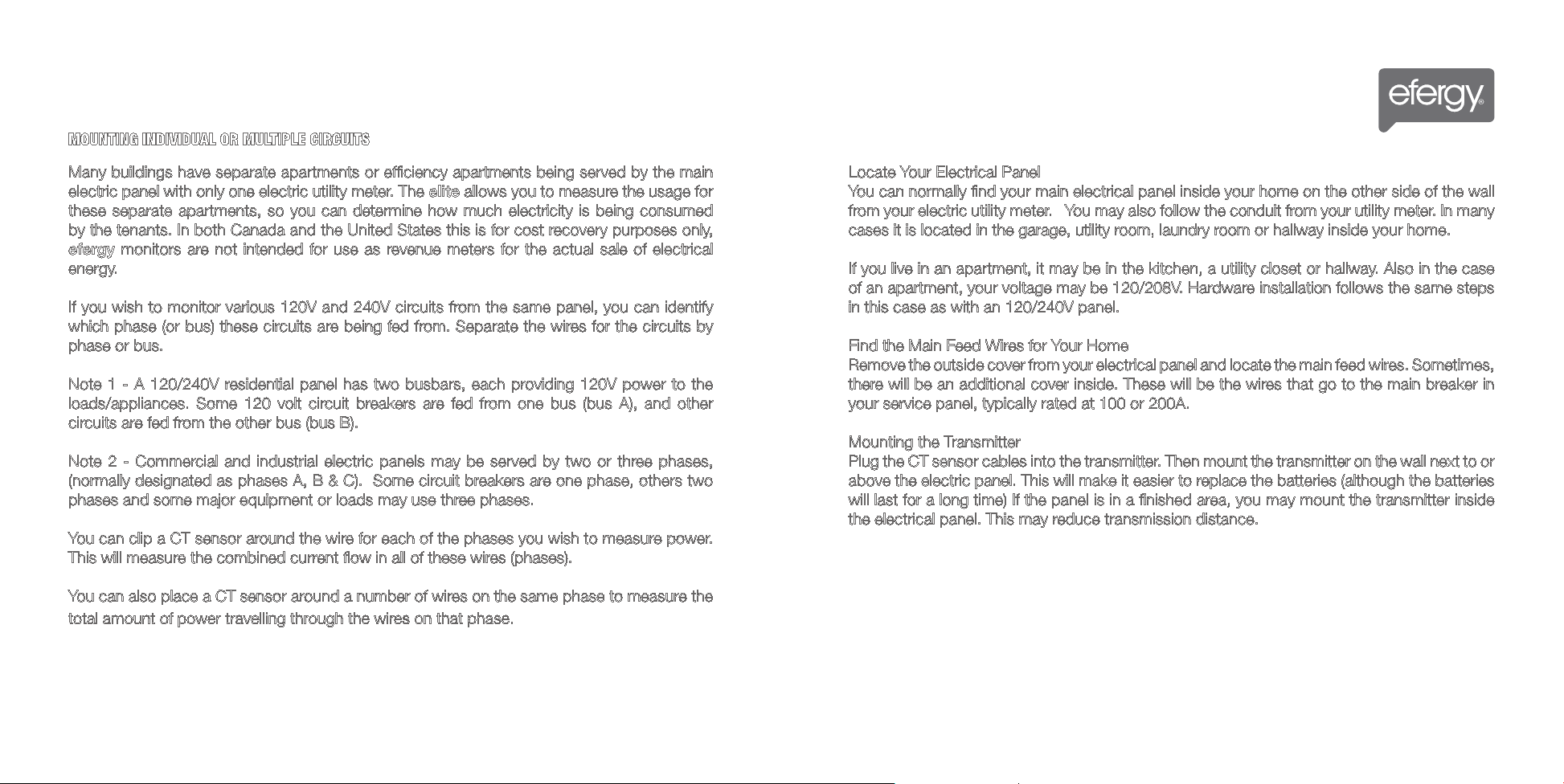

Mounting Individual or Multiple Circuits	7

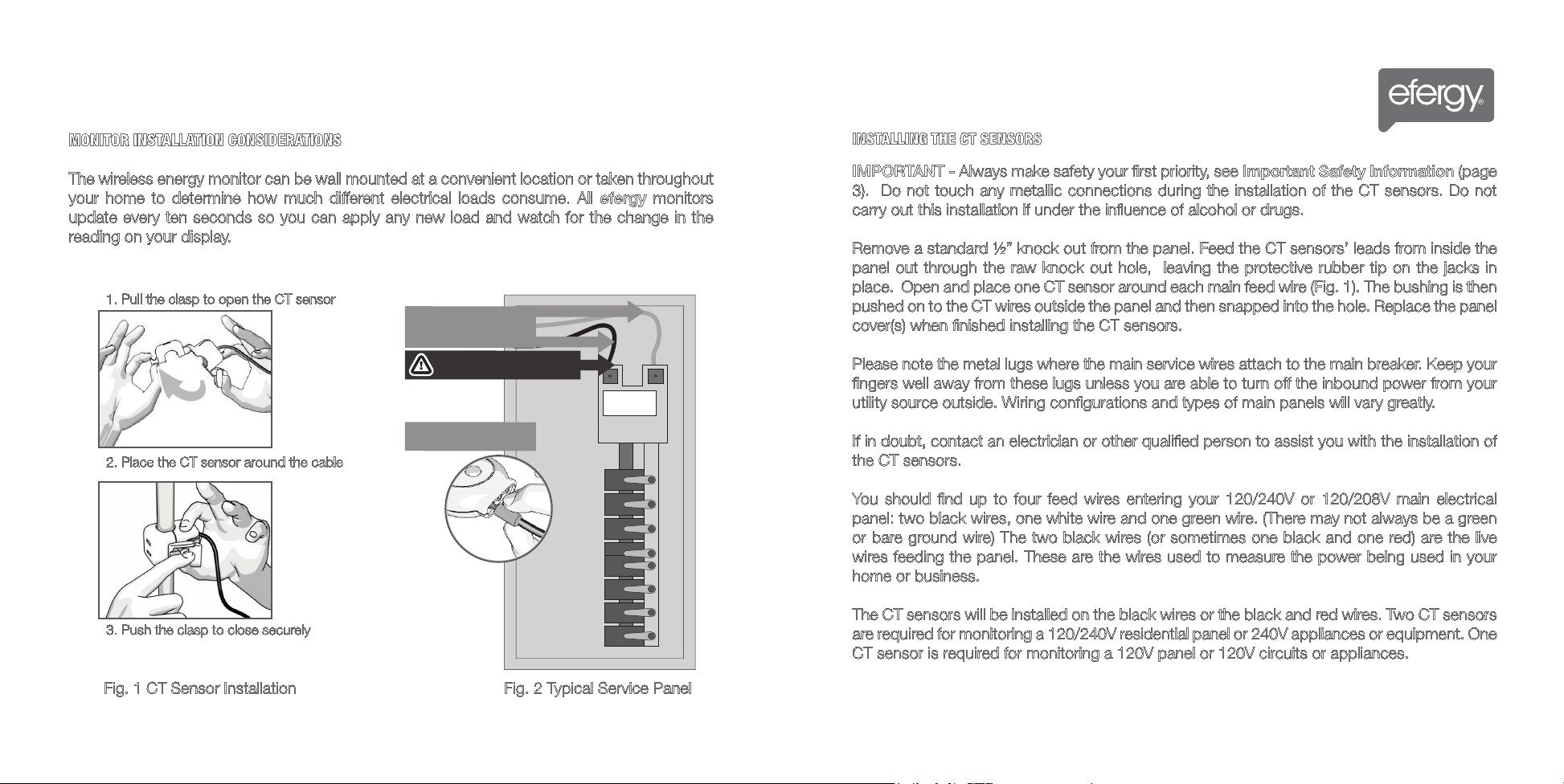

Monitor Installation Considerations	9
Installing the CT Sensors	10
MONITOR SETUP

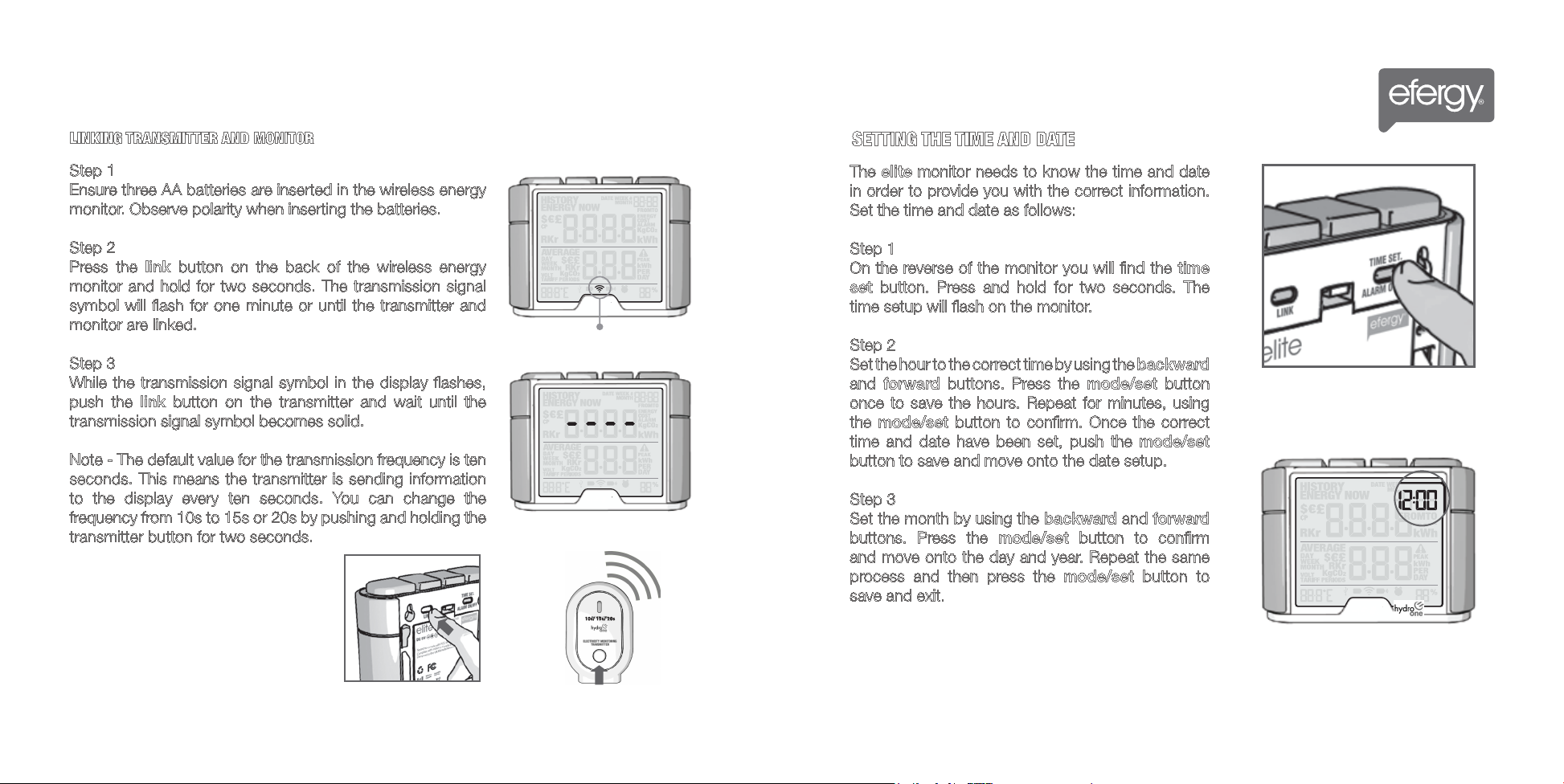

Linking Transmitter and Monitor	11
Setting the Time & Date	12

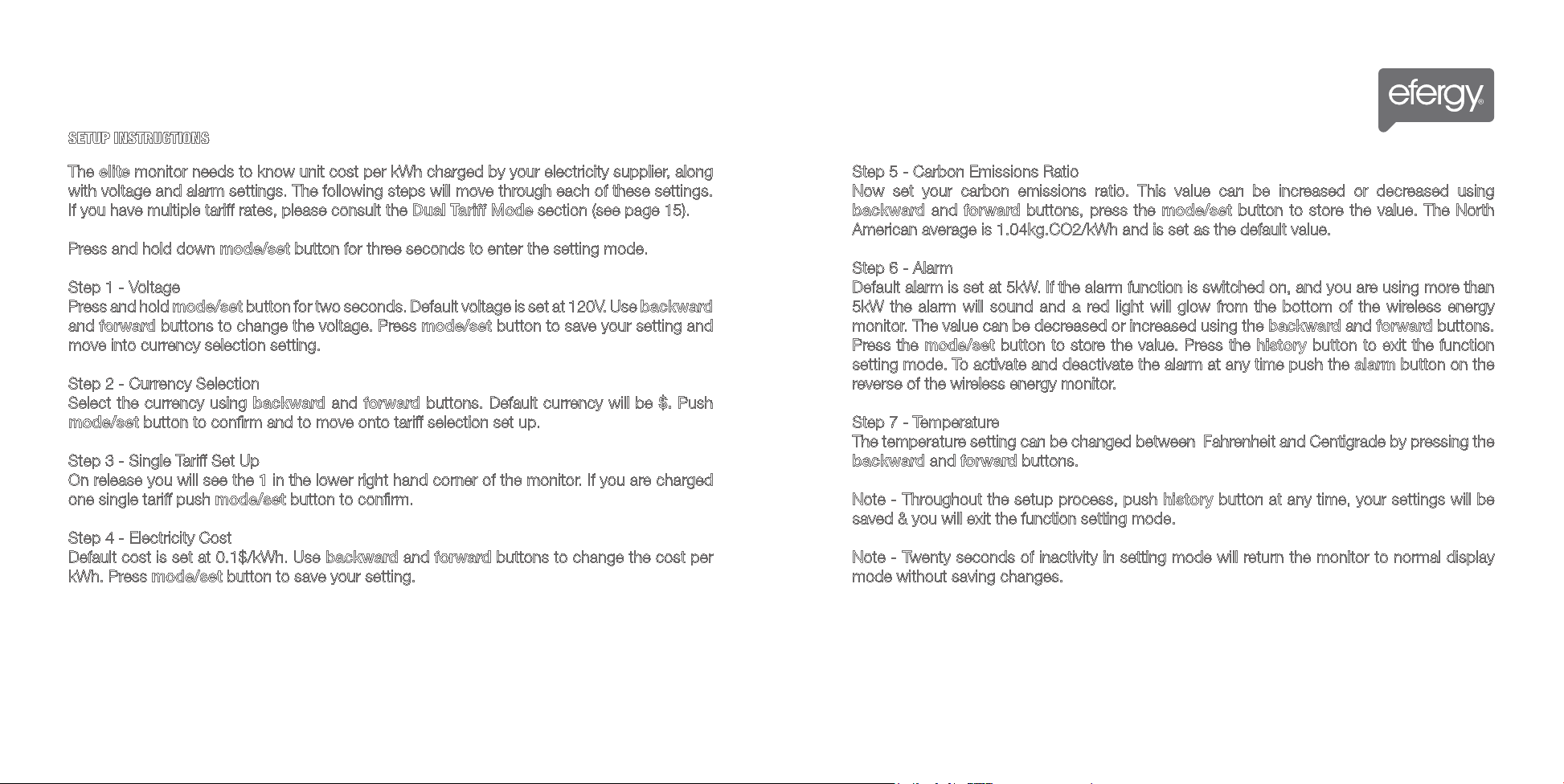

Setup Instructions	13

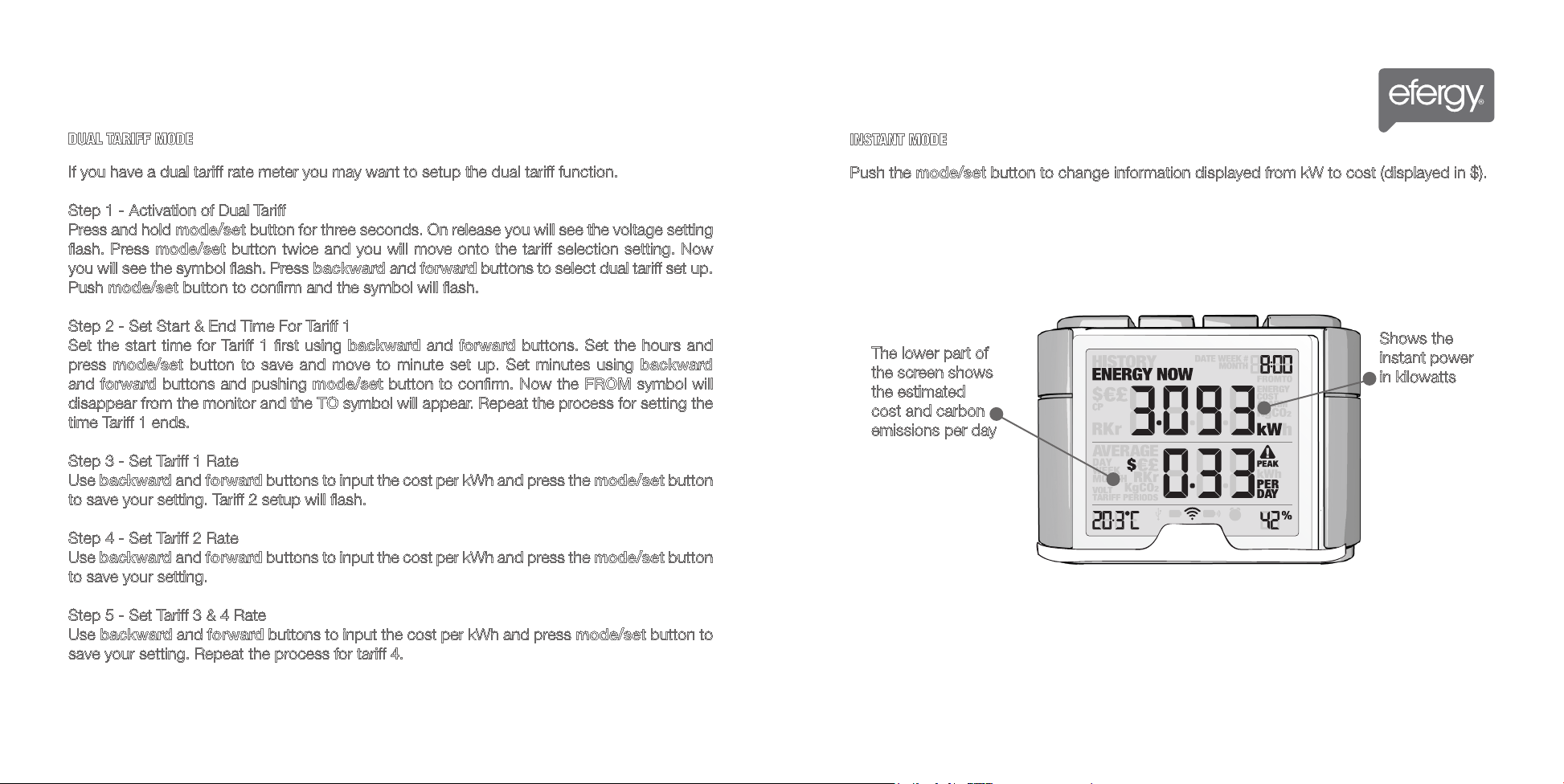

Dual Tariff Mode	15
Instant Mode	16

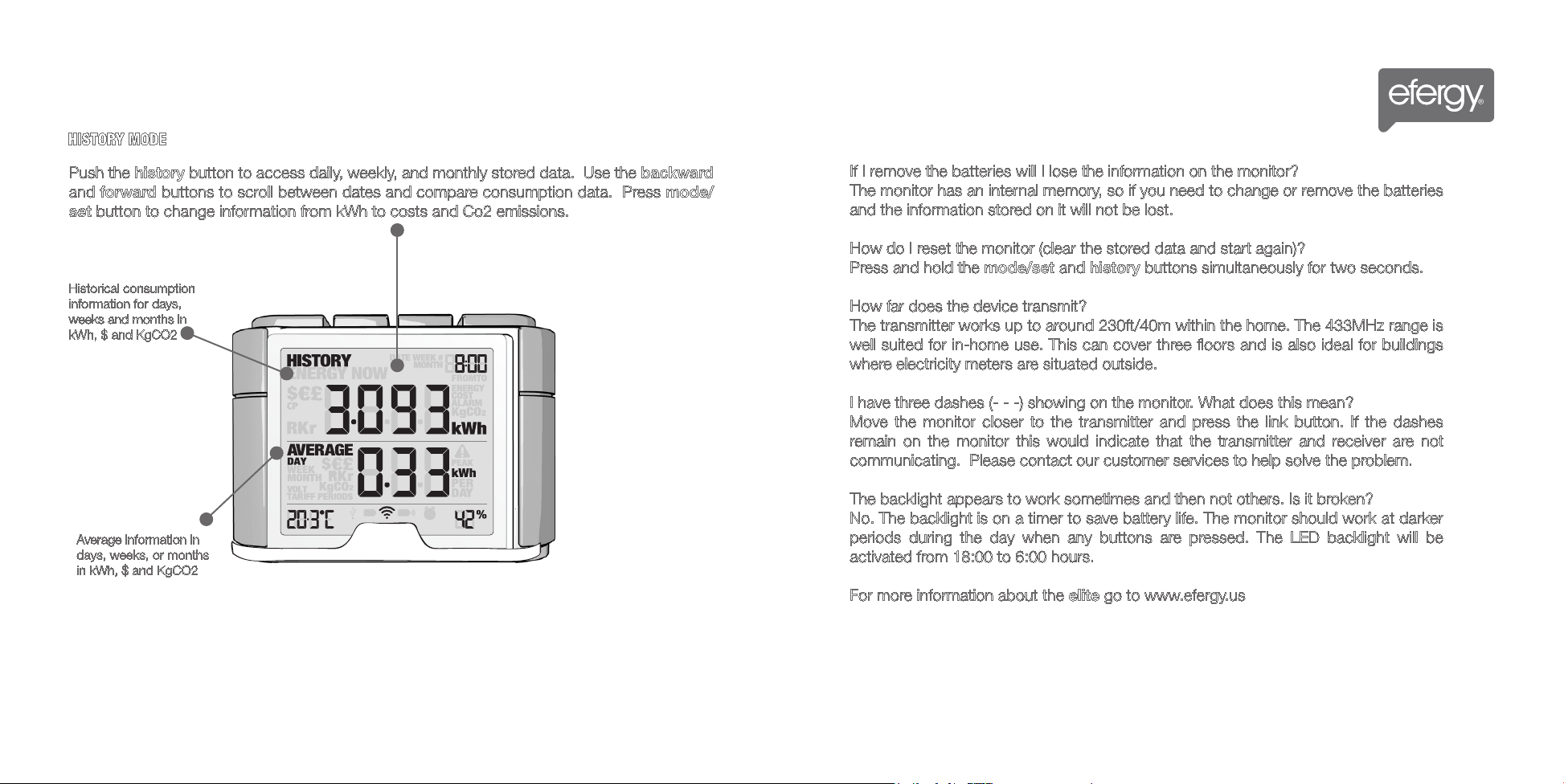

History Mode	17
FAQs	18

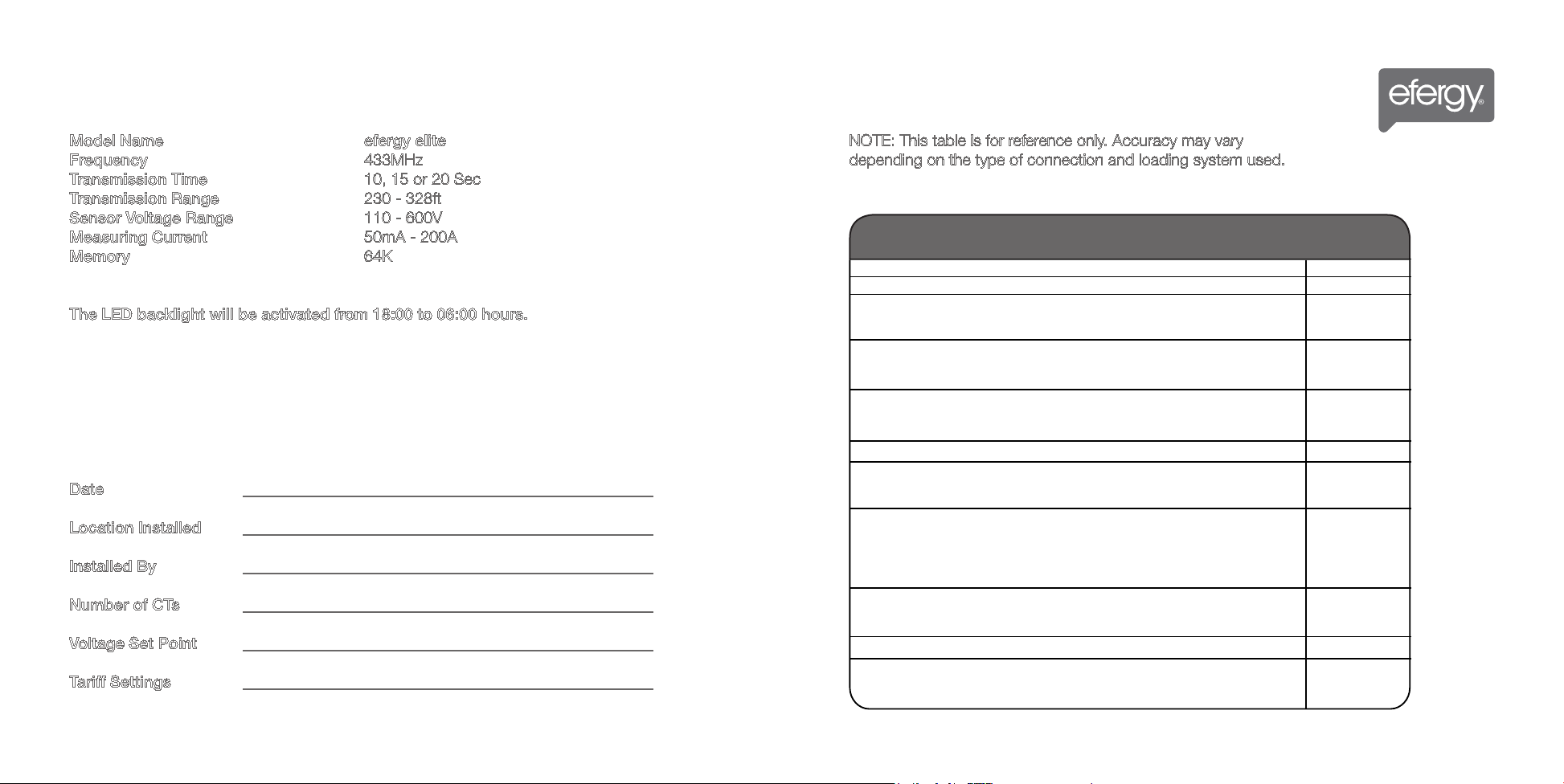

TECHNICAL INFORMATION	19
INSTALLATION NOTES	19
TECHNICAL NOTES FOR ELECTRICIAN	20

INTRODUCTION

Energy metering and monitoring are at the heart of energy management, understanding when and where your energy is consumed is key to saving money.

The elite wireless electricity monitor shows the amount of energy that a household is consuming at the time the monitor is read. The monitor can also give the user a reading showing usage in financial terms. You can walk around the home with your elite, switching appliances on and off, to see the difference that each one makes. With a few small changes in your consumption behaviour the e2 can help you reduce your energy costs.

Ask Johnny

If you have any questions about using your efergy monitor or if you’d like further advice on monitoring electricity at home, please feel free to contact us, or visit the website for up to date information, downloads and frequently asked questions.

Email your questions to; [e-mail] for US [e-mail] for Canada

Email your technical questions to; [e-mail] for US [e-mail] for Canada

We aim to answer all your emails within 48 hours

www.efergy.us for US

www.energymonitoring.ca for Canada

2

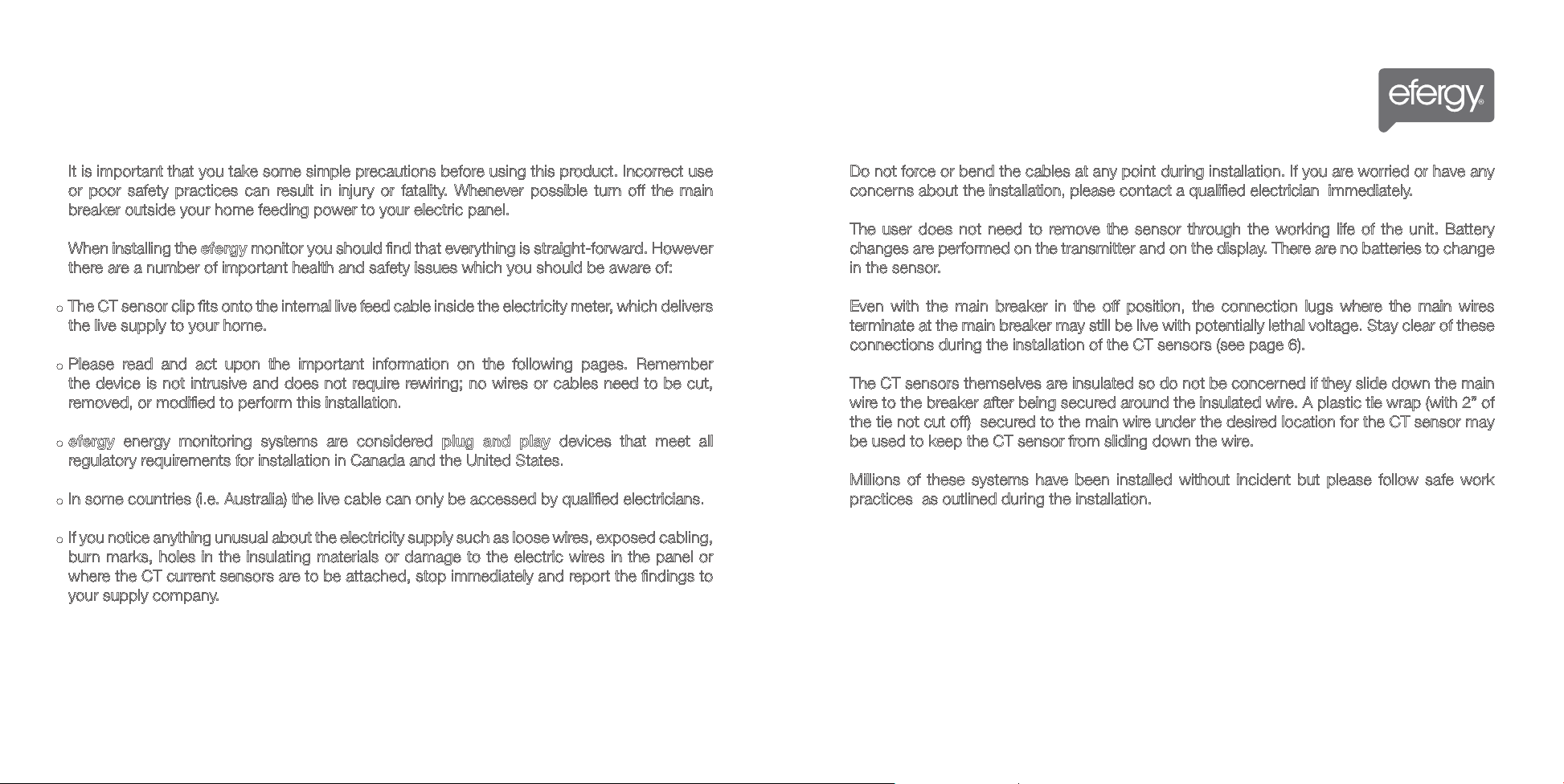

IMPORTANT SAFETY INFORMATION

It is important that you take some simple precautions before using this product. Incorrect use or poor safety practices can result in injury or fatality. Whenever possible turn off the main breaker outside your home feeding power to your electric panel.

When installing the efergy monitor you should find that everything is straight-forward. However there are a number of important health and safety issues which you should be aware of:

•The CT sensor clip fits onto the internal live feed cable inside the electricity meter, which delivers the live supply to your home.

•Please read and act upon the important information on the following pages. Remember the device is not intrusive and does not require rewiring; no wires or cables need to be cut, removed, or modified to perform this installation.

•efergy energy monitoring systems are considered plug and play devices that meet all regulatory requirements for installation in Canada and the United States.

•In some countries (i.e. Australia) the live cable can only be accessed by qualified electricians.

•If you notice anything unusual about the electricity supply such as loose wires, exposed cabling, burn marks, holes in the insulating materials or damage to the electric wires in the panel or where the CT current sensors are to be attached, stop immediately and report the findings to your supply company.

Do not force or bend the cables at any point during installation. If you are worried or have any concerns about the installation, please contact a qualified electrician immediately.

The user does not need to remove the sensor through the working life of the unit. Battery changes are performed on the transmitter and on the display. There are no batteries to change in the sensor.

Even with the main breaker in the off position, the connection lugs where the main wires terminate at the main breaker may still be live with potentially lethal voltage. Stay clear of these connections during the installation of the CT sensors (see page 6).

The CT sensors themselves are insulated so do not be concerned if they slide down the main wire to the breaker after being secured around the insulated wire. A plastic tie wrap (with 2” of the tie not cut off) secured to the main wire under the desired location for the CT sensor may be used to keep the CT sensor from sliding down the wire.

Millions of these systems have been installed without incident but please follow safe work practices as outlined during the installation.

3

4

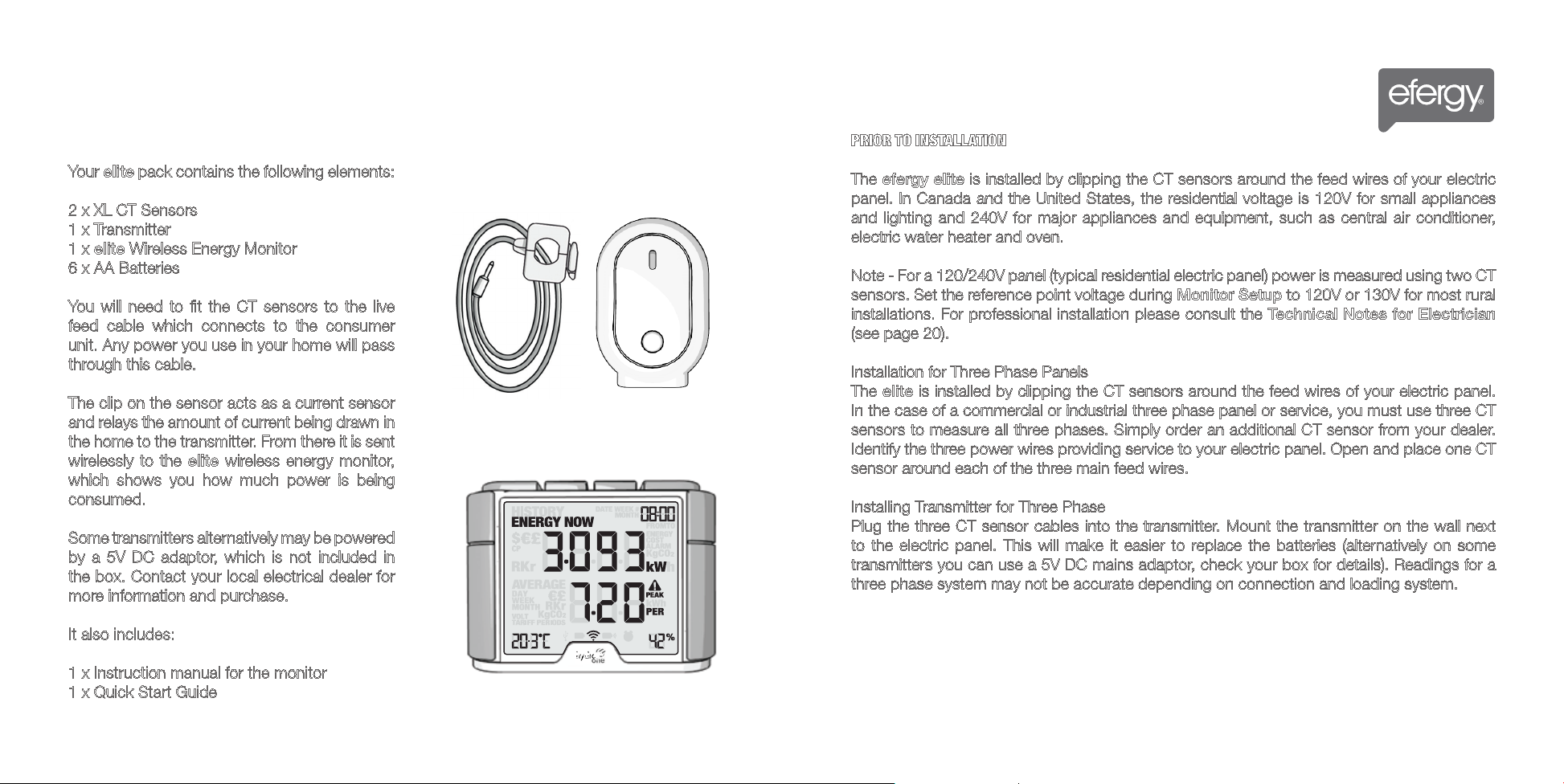

IN THE BOX

Your elite pack contains the following elements:

2 x XL CT Sensors

1 x Transmitter

1 x elite Wireless Energy Monitor

6 x AA Batteries

You will need to fit the CT sensors to the live feed cable which connects to the consumer unit. Any power you use in your home will pass through this cable.

The clip on the sensor acts as a current sensor and relays the amount of current being drawn in the home to the transmitter. From there it is sent wirelessly to the elite wireless energy monitor, which shows you how much power is being consumed.

Some transmitters alternatively may be powered by a 5V DC adaptor, which is not included in the box. Contact your local electrical dealer for more information and purchase.

It also includes:

1 x Instruction manual for the monitor

1 x Quick Start Guide

CT sensor

Transmitter

Wireless Energy Monitor

HARDWARE INSTALLATION

PRIOR TO INSTALLATION

The efergy elite is installed by clipping the CT sensors around the feed wires of your electric panel. In Canada and the United States, the residential voltage is 120V for small appliances and lighting and 240V for major appliances and equipment, such as central air conditioner, electric water heater and oven.

Note - For a 120/240V panel (typical residential electric panel) power is measured using two CT sensors. Set the reference point voltage during Monitor Setup to 120V or 130V for most rural installations. For professional installation please consult the Technical Notes for Electrician (see page 20).

Installation for Three Phase Panels

The elite is installed by clipping the CT sensors around the feed wires of your electric panel. In the case of a commercial or industrial three phase panel or service, you must use three CT sensors to measure all three phases. Simply order an additional CT sensor from your dealer. Identify the three power wires providing service to your electric panel. Open and place one CT sensor around each of the three main feed wires.

Installing Transmitter for Three Phase

Plug the three CT sensor cables into the transmitter. Mount the transmitter on the wall next to the electric panel. This will make it easier to replace the batteries (alternatively on some transmitters you can use a 5V DC mains adaptor, check your box for details). Readings for a three phase system may not be accurate depending on connection and loading system.

5
