EFB-ELEKTRONIK PATCH-TM31 7,5GR Datasheet

29.09.09

K8560XX.x_DE

RoHS konform

Patchkabel

Cat.6a Hirose TM31

K8560XX.x

2 x Hirose TM31, Cat.6a, halogenfrei• Belegung nach TIA/BA 568B•

Lieferbare Längen in Meter:

0.5 - 1.0 - 1.5 - 2.0 - 3.0 - 5.0 - 7.5 - 10.0 - 15.0 - 20.0 - 25.0 - 30.0

mit S/FTP PIMF DRAKA UC900 1000 MHz Kabel K8560GR.X

grau

K8560SW.X

schwarz

K8560GN.X

grün

K8560BL.X

blau

K8560OR.X

orange

K8560WS.X

weiss

K8560RT.X

rot

K8560GE.X

gelb

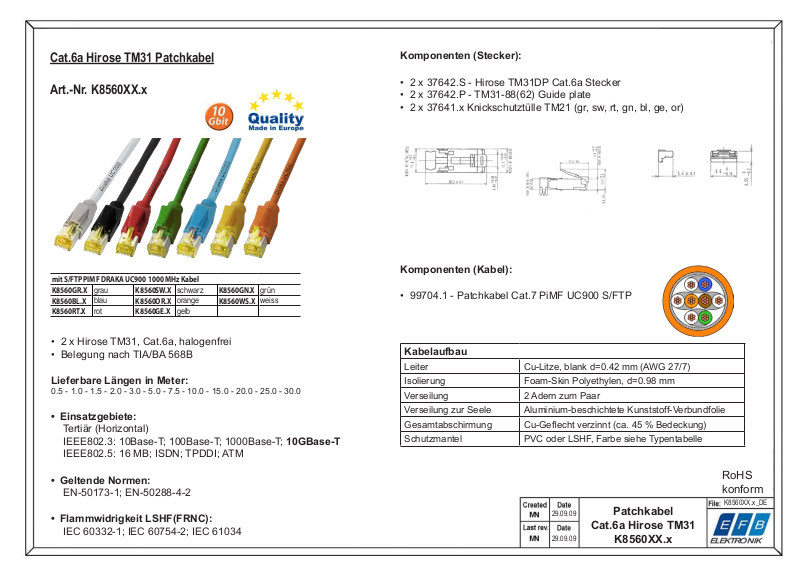

Cat.6a Hirose TM31 Patchkabel

Art.-Nr. K8560XX.x

Komponenten (Stecker):

2 x 37642.S - Hirose TM31DP Cat.6a Stecker• 2 x 37642.P - TM31-88(62) Guide plate• 2 x 37641.x Knickschutztülle TM21 (gr, sw, rt, gn, bl, ge, or)•

Komponenten (Kabel):

99704.1 - Patchkabel Cat.7 PiMF UC900 S/FTP•

Kabelaufbau

Leiter Cu-Litze, blank d=0.42 mm (AWG 27/7)

Isolierung Foam-Skin Polyethylen, d=0.98 mm

Verseilung 2 Adern zum Paar

Verseilung zur Seele Aluminium-beschichtete Kunststoff-Verbundfolie

Gesamtabschirmung Cu-Geecht verzinnt (ca. 45 % Bedeckung)

Schutzmantel PVC oder LSHF, Farbe siehe Typentabelle

Einsatzgebiete:• Tertiär (Horizontal) IEEE802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE802.5: 16 MB; ISDN; TPDDI; ATM

Geltende Normen:• EN-50173-1; EN-50288-4-2

Flammwidrigkeit LSHF(FRNC):• IEC 60332-1; IEC 60754-2; IEC 61034

S/FTP

uc09ss27s-ftp_de.doc

18.10.2006

Page 1 of 3

Einsatzgebiete

Tertiär (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM

Geltende Normen

EN 50173-1; EN 50288-4-2 ISO/IEC 11801; IEC 61156-5

Flammwidrigkeit

LSHF(FRNC): IEC 60332-1; IEC 60754-2; IEC 61034

Kabelaufbau

Leiter Cu-Litze, blank Ø 0,42 mm (AWG 27/7) Isolierung Foam-Skin Polyethylen, Ø 0,98 mm Verseilung 2 Adern zum Paar Paarabschirmung Aluminium-beschichtete Kunststoff-Verbundfolie Verseilung zur Seele 4 Paare (PiMF) zur Seele Gesamtabschirmung Cu-Geflecht verzinnt (ca. 45 % Bedeckung) Schutzmantel PVC oder LSHF, Farbe siehe Typentabelle

www.drakact.com I www.draka.com koeln.info@draka.com

Mechanische Eigenschaften

uc09ss27s-ftp_de.doc

18.10.2006

Page 2 of 3

Biegeradien ohne Zugbelastung

mit Zugbelastung

Betriebstemperaturenbereich ruhend -20°C bis +60°C

bewegt 0°C bis + 50°C

25 mm 50 mm

Elektrische Eigenschaften bei 20°C± 5°C

Schleifenwiderstand Widerstandsunsymmetrie Isolationswiderstand (500 V) Kapazität bei 800 Hz Kapazitätsunsymmetrie (Paar/Erde) Wellenwiderstand

Relative Ausbreitungsgeschwindigkeit Signallaufzeit Laufzeitunterschied Prüfspannung (DC, 1 min) Ader/Ader und Ader/Schirm 1000 V Kopplungswiderstand

(1-100 MHz) (100 - 250) MHz

(250 - 600) MHz

bei 1 MHz bei 10 MHz bei 30 MHz

340 /km 3% 2000 M*km

Nom. 43 nF/km 1500 pF/km (100 ± 15) 

(100 ± 18)  (100 ± 25) 

ca. 79 %

427 ns/100m  12 ns/100m

 25 m/m  15 m/m  30 m/m

Elektrische Daten (nominal) gem. Cat.7 (bei 20°C)

F

(MHZ)

10,0 1,0 90 87 89 80 77 25 16,0 1,3 90 87 89 76 73 25 20,0 1,4 90 87 89 74 71 25 31,2 1,8 90 87 88 70 67 25

62,5 2,6 90 87 87 64 61 23 100,0 3,2 87 84 84 60 57 21 125,0 3,6 85 82 81 58 55 20 155,5 4,0 84 81 80 56 53 19 175,0 4,3 83 80 79 55 52 19 200,0 4,6 82 79 77 54 51 18 250,0 5,1 81 78 76 52 49 18 300,0 5,6 80 77 74 50 47 17 450,0 6,9 77 74 70 47 44 17 600,0 7,9 75 72 67 44 41 17 750,0 8,7 73 70 64 42 39 900,0 9,7 72 69 62 41 38

1000,0 10,2 71 68 61 40 37

Attenuation

(dB/100m)

1,0 0,3 90 87 90 80 77 23 4,0 0,6 90 87 89 80 77 24

PS-NEXT

(dB)

ACR

(dB/100m)

ELFEXT

(dB/100m)

PS-ELFEXT

(dB/100m)

Return loss

(dB)

www.drakact.com I www.draka.com koeln.info@draka.com

Plug ：TM31P-TM-88P

1. Plug design satisfying CAT6a performance (No.1,2,7,8⇒short contacts /No.3,4,5,6⇒long contacts)

2. Simplified assembly method by guide plate

3. Steady cable assembly procedure

4. AWG24-27, stranded PIMP cable is applicable

5. IDC and clamping process can be implemented by same specific tool

No.1,2,7,8 (Short contact）

No.3,4,5,6 (Long contact）

Guide plate (Clear yellow）

Shield (Common to TM31P）

Plug housing (Clear yellow）

Plug ：TM31P-TM-88P

Plug design satisfying CAT6a requirements

1) Unique contact arrangement

CAT6 Plug (TM21DP-TM-88P)

Improved Transmission

18

Limited performance due to the contact arrangement in a single row

Characteristics

CAT6a Plug (TM31P-TM-88P)

18

The contact arrangement in two rows makes performance improved (No3, 4, 5, 6 contacts are isolated from

No1, 2, 7, 8 contacts)

Plug ：TM31P-TM-88P

Cable assembly method to have CAT6a performance

Plug design makes it possible for users to lengthen jacket end

and have steady CAT6a performance.

40mm

Step1 Step2

Jacket end

Step3

10 mm max

Guide plate end

Jacket end

Plug ：TM31P-TM-88P

Cable assembly method to have CAT6a performance

Plug design makes it possible for users to lengthen jacket end

and have steady CAT6a performance.

Step4 Step5 Step6

17mm

Copper tape

Plug ：TM31P-TM-88P

Outer Appearance of TM31P-TM-88P with cover

TM31P--

TM31P

Our CAT6A modular plug is consist of just 3 parts.

1.

2.

3.

TM--

TM

Plug Body (TM31P--

Plug Body (TM31P

Guide Plate (TM31P Guide Plate)

Cover (TM21 Cover)

88P can be assembled with TM21 covers.

TM--

TM

88P)

Plug ：TM31P-TM-88P

Applicable Cable

PIMF cable

Jacket

Shield pair

Shield

Conductor

O/D of Insulator

Insulator

O/D of Jacket

Cable Assembly Tool

AWG 24 stranded wire

AWG 27 stranded wire

φ

0.9 to φ1.0

φ

5.8 to φ6.0

Cable Assembly Tool of TM21DP-TM-88P can be also used for TM31P-TM-88P

Plug ：TM31P-TM-88P

CAT6a Performance Measurement : Plug single

Measurement Method :

Measurement Equipment : N

Frequency : 10

Direct Probe Tool

～

500MHz

～

500MHz

Direct Probe Method

etwork Analyzer

(Agilent E8357A)

TM31P Model sample
