Eemax EX280T2T, EX280T2T ML, EX280T2T FS, EX280T2T S, EX280T3 User Manual

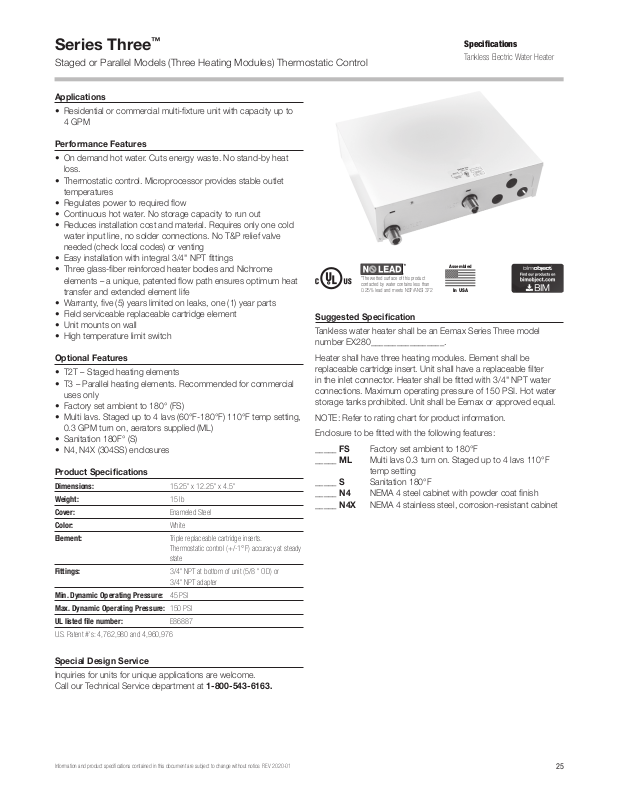

Series Three

In USA

Assembled

™

Staged or Parallel Models (Three Heating Modules) Thermostatic Control

Applications

•

Residential or commercial multi-xture unit with capacity up to
4 GPM

Performance Features

•

On demand hot water. Cuts energy waste. No stand-by heat
loss.

•

Thermostatic control. Microprocessor provides stable outlet
temperatures

•

Regulates power to required ow

•

Continuous hot water. No storage capacity to run out

•

Reduces installation cost and material. Requires only one cold
water input line, no solder connections. No T&P relief valve
needed (check local codes) or venting

•

Easy installation with integral 3/4" NPT ttings

•

Three glass-ber reinforced heater bodies and Nichrome
elements – a unique, patented ow path ensures optimum heat
transfer and extended element life

•

Warranty, ve (5) years limited on leaks, one (1) year parts

•

Field serviceable replaceable cartridge element

•

Unit mounts on wall

•

High temperature limit switch

Optional Features

•

T2T – Staged heating elements

•

T3 – Parallel heating elements. Recommended for commercial
uses only

•

Factory set ambient to 180° (FS)

•

Multi lavs. Staged up to 4 lavs (60°F-180°F) 110°F temp setting,

0.3 GPM turn on, aerators supplied (ML)

•

Sanitation 180F° (S)

•

N4, N4X (304SS) enclosures

Product Specications

Dimensions: 15.25" x 12.25" x 4.5"

Weight: 15 lb

Cover: Enameled Steel

Color: White

Element: Triple replaceable cartridge inserts.

Thermostatic control (+/-1°F) accuracy at steady

state

Fittings: 3/4" NPT at bottom of unit (5/8 " OD) or

3/4" NPT adapter

Min. Dynamic Operating Pressure: 45 PSI

Max. Dynamic Operating Pressure: 150 PSI

UL listed le number: E86887

U.S. Patent #'s: 4,762,980 and 4,960,976

Suggested Specication

Tankless water heater shall be an Eemax Series Three model
number EX280_________________.

Heater shall have three heating modules. Element shall be
replaceable cartridge insert. Unit shall have a replaceable lter
in the inlet connector. Heater shall be tted with 3/4" NPT water
connections. Maximum operating pressure of 150 PSI. Hot water
storage tanks prohibited. Unit shall be Eemax or approved equal.

NOTE: Refer to rating chart for product information.

Enclosure to be tted with the following features:

_____ FS Factory set ambient to 180°F
_____ ML Multi lavs 0.3 turn on. Staged up to 4 lavs 110°F

_____ S Sanitation 180°F
_____ N4 NEMA 4 steel cabinet with powder coat nish
_____ N4X NEMA 4 stainless steel, corrosion-resistant cabinet

*The wetted surface of this product
contacted by water contains less than

0.25% lead and meets NSF/ANSI 372

temp setting

Specications

Tankless Electric Water Heater

Special Design Service

Inquiries for units for unique applications are welcome.
Call our Technical Service department at 1-800-543-6163.

Information and product specications contained in this document are subject to change without notice. REV 2020-01

25

Series Three

12.14

“EX” NEMA 4/4X

2.21 7.02

Staged or Parallel Models (Three Heating Modules) Thermostatic Control

Specications

Tankless Electric Water Heater

Sux Denitions

T2T Staged heating elements
T3 Parallel heating elements
FS Factory set ambient to 180°F
ML Multi lavs 0.3 turn on. Staged

up to 6 lavs 105°F-110°F temp

setting

S Sanitation 180°F

RECOMMENDED

MODEL NUMBER kW AMPS

VOLTS 240*

C

EX280T2T

C

EX280T2T (derated 208V performance)

C

EX280T2T ML

C

EX280T2T FS

C

EX280T2T S

C

EX280T3

C

EX280T3 (derated 208V performance)

C

EX280T3 S

C

EX280T3 FS

CNL Models

C

EX280T2T CNL

C

EX280T2T ML CNL

C

EX280T2T FS CNL

C

EX280T2T S CNL

C

EX280T3 CNL

* 240V units can be used on 208V single phase with 25% reduced temperature output. Please note per UL standards the rating plate and installation instructions will all be according

to a 240V applied voltage. Check with local ofcials prior to derating the electrical infrastructure.

"C" indicates evaluation and compliance to either Underwriters Laboratories (UL) or Intertek (ETL) under CAN/CSA-C22.2 No. 64/No. 88. CNL SKUs are Canada specic.

28.5 119(3X40) 8 AWG 0.7 4.0 78° 65° 49° –

20.9 100(3X33) 8 AWG 0.7 4.0 57° 48° 36° –

28.5 119(3X40) 8 AWG 0.3 4.0 78° 65° 49° –

28.5 119(3X40) 8 AWG 0.7 4.0 78° 65° 49° –

28.5 119(3X40) 8 AWG 0.7 4.0 78° 65° 49° –

28.5 119(3X40) 8 AWG 2.0 5.0 78° 65° 49° 39°

20.9 100(3x33) 8 AWG 2.0 5.0 57° 48° 36° 29°

28.5 119(3X40) 8 AWG 2.0 5.0 78° 65° 49° 39°

28.5 119(3X40) 8 AWG 2.0 5.0 78° 65° 49° 39°

28.5 119 1 AWG 0.7 4.0 78° 65° 49° –

28.5 119 1 AWG 0.3 4.0 78° 65° 49° –

28.5 119 1 AWG 0.7 4.0 78° 65° 49° –

28.5 119 1 AWG 0.7 4.0 78° 65° 49° –

28.5 119 1 AWG 2.0 5.0 78° 65° 49° 39°

15.19

WIRE SIZE

(75° C/CU)

TURN-ON

(GPM)

MAX FLOW

(GPM)

2.5

GPM

TEMPERATURE RISE °F

3.0

GPM

20.00

18.50

4XØ .500
MOUNTING HOLES

4.0

GPM

5.0

GPM

4.32

1.87

20.00

18.50

INLET

OUTLET

.90

1.30

7.02

ELECTRICAL
CONNECTION (3)

8.78

2.89

INLETOUTLET

1.93

26
