Edwards EXT75DX, EXT75iiDX, EXT75DXi Instruction Manual

Download

Page 1

Instruction Manual

Original Instructions

EXT Compound Turbomolecular Pumps

EXT75DX, EXT75DXi and EXT75iiDX

B722-40-880

Issue H

Description Item Number

EXT75DX ISO63 B722-41-000 EXT75DX CF63 B722-42-000 EXT75DX NW40 B722-43-000 EXT75DX ISO100 B722-45-000 EXT75DX ISO100 (NW25 Backing) B722-46-000 EXT75DX ISO63 Reversed B722-48-000 EXT75DXi NW40 B722-35-000 EXT75DXi ISO63 (NW16 Interstage) B722-37-000 EXT75DXi ISO63 (NW25 Interstage) B722-38-000 EXT75iiDX ISO63 (NW16 Interstage) B722-31-000 EXT75iiDX Cartridge Pump B722-32-000

Page 2

This product has been manufactured under a quality management system certified to ISO 9001:2015.

P200-01-020-J

2006/42/EC

Machinery directive

2014/35/EU

Low voltage directive (LVD)

2014/30/EU

Electromagnetic compatibility (EMC) directive

2011/65/EU

Restriction of certain hazardous substances (RoHS) directive

EN 1012-2:1996 +A1:2009

Compressors and vacuum pumps. Safety requirements. Vacuum pumps

EN 61010-1:2010

Safety requirements for electrical equipment for measurement, control and laboratory use. General requirements

EN 61326-1:2013

Electrical equipment for measurement, control and laboratory use. EMC requirements.

Class B Emissions, Industrial Immunity

CSA-C22.2 No.61010-1-12

Safety requirements for electrical equipment for measurement, control and laboratory use – Part 1: General requirements

UL61010-1 3rd Edition

Safety requirements for electrical equipment for measurement, control and laboratory use – Part 1: General requirements

Mr Ian Keech

Date and Place

Declaration of Conformity

Edwards Ltd, Innovation Drive, Burgess Hill, West Sussex, RH15 9TW, UK

The following product

EXT75DX/DXi/iiDX B722-yy-zzz

Where ‘yy’ and ‘zzz’ are numeric characters

Is in conformity with the relevant requirements of European CE legislation:

Based on the relevant requirements of harmonised standards:

General requirements

The product also complies with the following:

This covers all product serial numbers from the date of this declaration onwards.

29.08.2018, Burgess Hill

Vice President Engineering, High Va c uum Division

This declaration is based on the requirements of EN ISO 17050-1 and the relevant directives.

Page 3

P200-10-019 Issue D

Material Declaration

In accordance with the requirements of the Chinese regulatory requirement on the Ma nagement Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products Order No. 32 (also known as ‘China RoHS2’) and SJ/T 11364 Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products:

Product Labels

Product Product Label Meaning

This product contains hazardous substances in at least one of the

All pumps in the

list below

Pump Type Pump Size

RV Pumps RV3,5,8,12, E Lab, nRVi EM Small Pumps E2M0.7, 1.5, E1M18, E2M18, 28, 30, nE2M40i nEXT Pumps nEXT 85, 240, 300, 400, Splitflow nXDS pumps nXDS 6, 10, 15, 20 EXT pumps EXT75DX XDS pumps XDS35, 46, 100 Diaphragm XDD 1, D lab Turbo Pump Carts T station, nEXPT, nEXT station

部件名称

Part name

铸铝

Cast Aluminium

铜管管件

Brass pipe Fittings

铜接头

Brass Connectors

2020

铅

Lead

(Pb)

Mercury

X O O O O O

homogeneous materials used which are above the limit requirement in GB/T 26572 as detailed in the declaration table below. These parts can safely be used for the environmental protection use period as indicated.

材料成分声明

Materials Content Declaration

质

汞

(Hg)

镉

Cadmium

(Cd)

危险物

六价铬

Hexavalent

Chromium

(Cr VI)

多溴联苯

Polybrominated biphenyls (PBB)

Polybrominated diphenyl ethers

多溴二苯醚

(PBDE)

O：表示该有害物质在该部件的所有均质材料中的含量低于 GB/T 26572 标准规定的限量要求。 O: Indicates that the hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in GB/T 26572. X：表示该有害物质在该部件的至少一种均质材料中的含量超出 GB/T26572 标准规定的限量要求。 X: Indicates that the hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T26572.

NOTES: These products are EU RoHS compliant, the following Exemptions apply: 6(b) Lead as an alloying element in aluminium containing up to 0.4% by weight. 6(c) Copper alloy containing up to 4% lead by weight

Packaging Information

Pallet Over-shipper Protection Pieces Support Braces

NWNW

Recyclable Natural Wood Recyclable Cardboard Recyclable Polypropylene Recyclable Mild Steel

Page 4

This page has been intentionally left blank.

Page 5

B722-40-880 Issue H

Section Page

1 Introduction .......................................................................................1

1.1 Scope and definitions ................................................................................................... 1

1.2 General description ..................................................................................................... 1

1.3 Drive electronics ......................................................................................................... 2

1.4 Operational features .................................................................................................... 3

1.4.1 Power limit setting ...................................................................................................... 3

1.4.2 Standby speed ............................................................................................................ 3

1.4.3 Timer ...................................................................................................................... 3

1.4.4 Analogue output ......................................................................................................... 4

1.4.5 Automatic vent options ................................................................................................. 4

1.4.6 Normal speed setting .................................................................................................... 4

1.4.7 Electronic braking ....................................................................................................... 5

1.5 Logic interface ........................................................................................................... 5

1.5.1 Parallel control and monitoring ....................................................................................... 5

1.5.2 Full serial control ........................................................................................................6

1.5.3 Serial control with parallel monitoring ............................................................................... 6

1.5.4 Parallel control with occasional serial monitoring or serial setup ............................................... 6

1.5.5 Podule configuration (serial setup) ................................................................................... 6

Contents

2 Technical data ....................................................................................7

2.1 General .................................................................................................................... 7

2.2 Pumping media ........................................................................................................... 7

2.3 Vent gas specification and vent control data ......................................................................13

2.4 Purge gas specification ................................................................................................14

2.5 Cooling water ............................................................................................................14

2.6 Materials exposed to gases pumped .................................................................................14

2.7 Electrical data ...........................................................................................................15

2.8 Logic interface connector .............................................................................................15

2.9 Podule connector socket ..............................................................................................16

2.10 Indicator LEDs ...........................................................................................................18

2.11 Operating and storage environment .................................................................................18

3 Installation ............................................... ................................... ..... 19

3.1 Unpack and inspect .....................................................................................................19

3.2 Typical installation .....................................................................................................19

3.3 Connection to the vacuum system ...................................................................................19

3.3.1 Inlet screen (supplied fitted) .........................................................................................21

3.3.2 Mechanical fixing .......................................................................................................22

3.3.3 Inlet connection and orientation .....................................................................................22

3.3.4 Base mounting ...........................................................................................................22

3.3.5 Backing connection .....................................................................................................23

3.3.6 Interstage connection (iDX variants only) ...........................................................................23

3.4 Purge gas connection ...................................................................................................24

3.4.1 Connect the purge gas .................................................................................................24

3.4.2 Recommended purge gas flow ........................................................................................24

3.5 Electrical installation ..................................................................................................24

3.5.1 Introduction .............................................................................................................24

3.5.2 Earth (ground) connections ...........................................................................................24

3.5.3 Connect the logic interface to the TIC ..............................................................................24

3.5.4 Connect the logic interface to the customer control equipment ...............................................24

3.5.5 Connect the electrical supply .........................................................................................25

3.6 Parallel interface mode ................................................................................................26

gp/0275/11/15

Page 6

B722-40-880 Issue H

Contents

3.7 Serial interface mode ..................................................................................................27

3.7.1 Connect the serial interface to the customer control equipment ..............................................27

3.7.2 Serial enable .............................................................................................................28

3.7.3 Serial protocol ...........................................................................................................28

3.7.4 Message structure .......................................................................................................29

3.7.5 Command set ............................................................................................................30

3.7.6 Simultaneous parallel and serial operation .........................................................................30

3.7.7 Multi-drop mode ........................................................................................................33

3.8 Vent options, vent valve connection and control ..................................................................34

3.8.1 Manual vent valve ......................................................................................................34

3.8.2 TAV5 or TAV6 solenoid vent valve ....................................................................................34

3.8.3 Controlled venting ......................................................................................................34

3.8.4 Alternative valve connected to the vacuum system ..............................................................35

3.9 Cooling ...................................................................................................................36

3.9.1 Introduction .............................................................................................................36

3.9.2 Forced air cooling .......................................................................................................36

3.9.3 Water cooling ............................................................................................................36

4 Operation ........................................................................................ 39

4.1 Configuring the DX pump using serial commands ..................................................................39

4.1.1 Power limit setting .....................................................................................................39

4.1.2 Powering a fan from the podule ......................................................................................40

4.1.3 Controlled venting options ............................................................................................40

4.1.4 Standby speed setting ..................................................................................................41

4.1.5 Normal speed setting ...................................................................................................41

4.1.6 Timer setting and options .............................................................................................42

4.1.7 Analogue signal options ................................................................................................43

4.1.8 Electronic braking options .............................................................................................43

4.1.9 Factory settings .........................................................................................................44

4.1.10 Assigning a multi-drop address .......................................................................................44

4.2 Configuring the DX pump using a TIC ................................................................................45

4.3 Start-up ..................................................................................................................45

4.3.1 Close the vent valve ....................................................................................................45

4.3.2 Pre-start checks .........................................................................................................46

4.4 Operation with parallel control and monitoring ...................................................................46

4.4.1 Start the pump ..........................................................................................................46

4.4.2 Running at standby speed .............................................................................................46

4.4.3 Stop the pump ...........................................................................................................46

4.4.4 Parallel monitoring .....................................................................................................47

4.5 Operation with serial control and monitoring ......................................................................47

4.5.1 Delayed start ............................................................................................................47

4.5.2 Start the pump ..........................................................................................................47

4.5.3 Standby speed ...........................................................................................................47

4.5.4 Stop the pump ...........................................................................................................48

4.5.5 Temperature readings .................................................................................................48

4.5.6 Link parameter readings ...............................................................................................48

4.5.7 Measured motor speed .................................................................................................48

4.6 Simultaneous parallel and serial operation .........................................................................49

4.7 Operation with a TIC ...................................................................................................49

4.8 Decelerating and venting ..............................................................................................49

4.9 Operation at extreme conditions .....................................................................................49

4.9.1 Operation with high inlet pressure ...................................................................................49

4.9.2 Operation at high temperatures ......................................................................................50

4.9.3 Operation at over-speed ............................................................................................... 50

4.9.4 Electrical supply failure ...............................................................................................50

4.10 Bakeout ................................................................................................................... 51

5 Maintenance ..................................................................................... 53

5.1 Introduction .............................................................................................................53

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 7

B722-40-880 Issue H

5.2 Bearing maintenance ...................................................................................................53

5.3 Rotor life .................................................................................................................53

5.4 Clean the external surfaces of the pump ...........................................................................53

5.5 Fault finding .............................................................................................................54

5.5.1 Flashing error codes ....................................................................................................56

5.5.2 Decoding system status words ........................................................................................56

5.5.3 Useful service information ............................................................................................59

6 Storage and disposal ....................................................... ..... ..... ..... ..... 61

6.1 Storage ...................................................................................................................61

6.2 Disposal ...................................................................................................................61

7 Service, spares and accessories .............................................................. 63

7.1 Introduction .............................................................................................................63

7.2 Service .................................................................................................................... 63

7.2.1 Returning a pump for service .........................................................................................63

7.3 Spares .....................................................................................................................63

7.3.1 ISX inlet screen ..........................................................................................................63

7.3.2 Inlet strainer .............................................................................................................64

7.3.3 Inlet flange seals ........................................................................................................64

7.4 Accessories ............................................................................................................... 6 4

7.4.1 Installation ...............................................................................................................64

7.4.2 ACX air cooler ...........................................................................................................64

7.4.3 WCX water cooler .......................................................................................................64

7.4.4 BX bakeout band ........................................................................................................65

7.4.5 TAV vent valve and vent port adaptor ...............................................................................65

7.4.6 VRX vent restrictor .....................................................................................................65

7.4.7 Vent port adaptor .......................................................................................................65

7.4.8 PRX purge restrictor ....................................................................................................66

7.4.9 Vibration isolators ......................................................................................................66

7.4.10 FL20K foreline trap .....................................................................................................66

7.4.11 Podule connector plug .................................................................................................66

7.4.12 TIC turbo and instrument controllers ................................................................................66

7.4.13 TIC PC Program ..........................................................................................................67

Contents

For return of equipment, complete the HS Forms at the end of this manual.

Illustrations

Figure Page

1 EXT75DX dimensions (mm) ............................................................................................11

2 EXT255DX dimensions (mm) ...........................................................................................12

3 Maximum allowed rate of pressure rise during venting: pressure against time (with pump initially at full

rotational speed) .......................................................................................................13

4 Podule connector plug .................................................................................................17

5 Typical pumping system with a DX pump ...........................................................................20

6 Correct installation of the inlet screen (EXT75DX) ................................................................21

7 Correct installation of the inlet screen (EXT255DX) ...............................................................21

8 Logic interface connections - parallel mode .......................................................................26

9 Logic interface connections - serial mode ..........................................................................27

10 Conceptual diagram for multi-drop connection ....................................................................29

11 Schematic diagram of the logic interface connections ...........................................................33

12 Installation of optional accessories and spares ....................................................................67

Page 8

B722-40-880 Issue H

Contents

Tables

Table Page

1 Power limits .............................................................................................................. 3

2 General data .............................................................................................................. 7

3 DX pumps technical data ............................................................................................... 8

4 DX pumps technical data ............................................................................................... 9

5 DX pumps technical data ..............................................................................................10

6 Vent gas specification and vent control .............................................................................13

7 Purge gas specification ................................................................................................14

8 Cooling water specification ...........................................................................................14

9 Logic interface technical data ........................................................................................15

10 Logic interface connector pins .......................................................................................17

11 Podule technical data ..................................................................................................17

12 Indicator LEDs ...........................................................................................................18

13 Operating and storage environment .................................................................................18

14 Checklist of components ...............................................................................................19

15 Summary of commands that can be sent to the DX pump ........................................................30

16 Command abbreviations ...............................................................................................32

17 Error codes ...............................................................................................................32

18 Vent options .............................................................................................................35

19 Vent restrictor orifice diameter (with atmospheric pressure at the inlet of the vent valve) ..............35

20 Power limit setting .....................................................................................................39

21 Analogue signal options ................................................................................................43

22 Behaviour of a pump when the power is re-instated after an electrical supply failure .....................52

23 Fault finding .............................................................................................................54

24 Flashing error codes ....................................................................................................56

25 Hexadecimal conversion table ........................................................................................57

26 Status flags ..............................................................................................................57

27 Example decoding of system status words ..........................................................................58

28 Inlet flange seals ........................................................................................................64

29 Vent restrictors .........................................................................................................65

Trademark credits

Windows™ is trademark of Microsoft Corporation.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 9

B722-40-880 Issue H

CAUTION

WARNING

1Introduction

1.1 Scope and definitions

This manual provides installation, operation, maintenance and storage instructions for the Edwards DX Compound Turbomolecular Pumps. The pumps must be used as specified in this manua l. Read this manua l before installing and operating the pumps.

Important safety information is highlighted as WARNING and CAUTION instructions; these instructions must be obeyed. The use of WARNINGS and CAUTIONS is defined below.

Warnings are given where failure to observe the instruction could result in injury or death to people. The actual symbol shown varies according to the hazard.

Cautions are given where failure to observe the instruction could result in damage to the equipment, associated equipment and/or process.

Introduction

The units used throughout this manual conform to the SI international sys tem of units of measurement. When flow rates are specified, the abbreviation ‘sccm’ is used to mean standa rd cubic centimetr es per minute. This is a flow of 1 cm3 min-1 at an ambient temperature of 0 ºC and a pressure of 1013 mbar (1.013 x 105 Pa).

The following warning labels may be present on the pump and used throughout the product documentation:

Warning An appropriate safety instruction should be followed.

Warning - Dangerous Voltage Indicates hazards arising from dangerous voltages.

Warning - hot surfaces Indicates that the marked item may be hot and should not be touched without taking precautions.

Protective conductor terminal.

Warning - use protective equipment Indicates that appropriate protective equipment must be used.

The units used throughout this manual conform to the SI international system of units of measurement; where appropriate US equivalent units of measurement are also given.

Page 10

B722-40-880 Issue H

CAUTION

WARNING

Introduction

1.2 Gener al description

Improper use of the equi pment could cause damage to it or injury to people. The user is responsible for the safe operation, installation and monitoring of the system.

The Podule contains electrolytic capacitors and, under certain fault conditions, may emit dangerous fumes. Ensure that the Podule is operated in a well-ventilated area.

Do not attempt to separate the Podule from the pump since this will cause damage to the electrical connections.

The DX pumps consist of the compound turbomolecular pump with a permanently attached Podule containing drive electronics.

The Podule controls the electrical supply to the pump. It has no manual controls and can only be operated through the logic interface. To operate the DX pump, connect it to the customer control equipment and power supply or use the Edwards TIC Turbo Instrument Controller or TIC Turbo Controller.

The Podule drives the brush-less d.c. motor in the pump. The pump has three Hall effect devices that operate as rotor position sensors and ensure that the drive current is correctly commutated around the motor phase windings.

The vacuum pump contains turbomolecular blades and a Holweck drag mechanism on a single shaft; the Holweck mechanism allows operation at higher backing pressures than pure turbomolecular pumps.

DX pumps are supplied with an inlet screen fitted into the bore of the inlet flange. The EXT75DXi has an NW25 interstage port and is supplied with an inlet strainer that fits into the interstage port. For details on the EXT75iiDX pumps, contact Edwards. The inlet screen and inlet strainer protect the pump against damage that would be caused by debris entering the pump. The inlet screen also protects the user against injury from the sharp blades in the pump.

Note: The EXT75DXi with an NW16 interstage port is not supplied with an inlet strainer.

The DX pumps have a vent port for venting the pump and vacuum system to atmospheric pressure. The pump is supplied with a manual vent valve fitted. This can be re placed with a TAV5 or TAV6 solenoid-operated vent valve (available as accessories – see Section 7).

The DX pumps have a purge port. An inert purge gas can be introduced through the port to protect the bearing and motor from corrosion, or the bearing lubricant from oxidisation. An optional vent port adapter and purge restrictor can be fitted to the purge port to control the flow rate of the purge gas and to filter the gas supply. (Refer to

Section 7).

Air coolers and a water-cooling block are available as optional accessories to cool the DX pumps. (Refer to Section 7).

1.3 Drive electronics

The Podule contains the drive electronics that control the pump operation and accessories such as a TAV vent valve or air cooler. There is a connector socket on the top of the Podule where the TAV vent valve or air cooler can be plugged in. (Refer to Section 2.9)

The Podule has two indicator LEDs that signal the status and operation of the pump, th at can also be used for fault finding if a problem should occur. (Refer to Section 2.10)

The drive electronics system has a number of built-in safety features to protect the DX pumps from damage in the event of sustained high pressure or temperature:

Page 2 © Edwards Limited 2018. All rights reser ved.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 11

B722-40-880 Issue H

 The electronics constantly monitor the temperature inside the Podule and the temperature of the motor

within the pump. If either part beco mes too hot, the electronics reduce the power supplied to the pump motor and the pump speed will drop . If the pump rotational spee d falls below 50% full speed, the electronics may trip into Fail condition, depending on the system configuration. (Refer to Section 1.4.3).

 If the pump inlet pressure increases, the power supplied to the pump motor increases to counteract the gas

frictional load. However, when the built-in maximum power limit is reached, the speed of the pump will start to drop. If the pump rotational speed falls below 50% full speed, the electronics may trip into Fail condition, depending on the system configuration. (Refer to Section 1.4.3).

 In the event of an electrical supply failure, the drive electronics use the motor within the pump as a

generator. This means the DX pumps have their own regenerative supply and do not require a separate battery for emergency power backup. The regenerated energy is used to maintain the electrical supply to the connector socket on the P odule until the p ump speed falls to below 50% of full rotational speed: this will ensure that the vent valve remains shut until below 50% of full rotational speed and will prevent the pump from venting at full speed, provided that there is not too much loading on the 24 V supply to the pump.

1.4 Operational features

In addition to the basic start and stop commands, the DX pumps have several other features for improved functionality. These allow pump operation to be tailored to the particular application. Refer to Table 14 for factory default settings of the parameters discussed in the following Sections.

Introduction

1.4.1 Power limit setting

Select the maximum power that will be drawn by the pump (refer to Section 4.1.1). The more power supplied, the quicker the pump will accelerate to reach full speed. If the application requires fast cycling, set the power limit to the maximum value. If ramp time is not important in the application, use a lower power limit, down to a minimum value, refer to Table 1.

Table 1 - Power limits

Pump Maximum value setting Minimum value setting

EXT75DX 120 W 50 W

Ensure that the power supply is capa ble of delivering sufficient power to the DX pump. By choosing a lower power limit setting, a smaller power supply can be used. For more information, refer to Section 2.7.

1.4.2 Standby speed

In Standby mode the pump rotational speed is lower than the full rotational speed. If the application does not require the pump to be running at maximum speed at all times, use the Standby speed

feature rather than switching the pump off. This can save time since the pump does not have to be stopped or vented and the wait time for the pump to accelerate back to full speed will be reduced.

The Standby speed is a user-selectable value (refer to Section 4.1.4).

1.4.3 Timer

When the pump is started, an internal timer is automatically started within the drive electronics. If the pump fails to reach 50% of full rotational speed within the time-out period, the Podule will signal a Fail and will decelerate the pump to rest. This is a safety feature and prevents the Podule driving the pump at maximum power for a long time, which could cause damage. The pump may fail to reach 50% speed if the gas load is too high (for example if there is a leak in the system), if the backing pump fails, or if the pump is too hot.

The time-out period is a user-selectable feature (refer to Section 4.1.6). If the application requires the pump to ramp up slowly, extend the time-out period. The Timer is permanently enabled for ramp-up.

Page 12

B722-40-880 Issue H

Introduction

The Timer has an additional function. If the pump rotational speed drops below 50% full speed for any reason, the timer can be set to a llo w t he pu mp ti me to recover rather than trigger a Fail condition. The Timer starts as soon as the speed drops to below 50% full speed. If, during th e time-out period, the pu mp recovers to above 50% full speed then the Timer will be reset. If the pum p r otational speed fails to recover by the end of the time-out period, the Podule will trigger a Fail condition and will decelerate the pump to rest. When the pump is shipped, the Timer function is be enabled, however the Timer can be disabled. With the Timer disabled, the p ump will Fail and decelerate to rest as soon as pump rotational speed falls below 50%.

1.4.4 Analogue output

The Podule produces an analogue output that allows for monitoring four different system parameters:

 Measured pump rotational speed  Measured motor power  Measured motor temperature  Measured controller temperature

The analogue output signal ranges from 0 to 10 V and is directly proportional to the system parameter (refer to

Section 2.8).

Connect the analogue output to a suitable meter or indicator to display the appropriate system parameter or connect to the customer control equipment (for example, to operate other components in the pumping system at pre-set values).

Only one system parameter can be monitored at a time using the analogue output. However, it is easy to configure the Podule to monitor a different system parameter (refer to Section 4.1.7).

1.4.5 Automatic vent options

An Edwards TAV vent valve can be connected directly to the DX pump’s Podule. The Podule is capable of controlling a number of different venting options.

The drive electronics can control the rate of venting. Using this feature, the pump can be vented from full rotational speed in a controlled manner that will not damage the pump bearings. Once the pump rotational speed has dropped to below 50% of maximum speed, it is safe to hard vent (open the vent valve fully.)

There are many venting options available, including:

 Hard vent when rotational speed drops below 50%  Controlled vent when above 50% speed and hard vent below 50% speed  Hard vent immediately through a suitable restrictor

A full list of the venting options is given in Section 3.8. In addition, there is a feature that allows a delayed start of the DX pump. With this feature, the vent valve can be

closed before starting the DX pump. This allows the backing pump to reduce the pressure in the vacuum system before starting the DX pump.

If the Podule is not used to control a TAV vent valve, it can be used to run a fan instead. Configure the Podule so that the fan is permanently enabled.

1.4.6 Normal speed setting

The Normal Speed is a user-selectable parameter that can be set anywhere from 50% to 100% of full rotational speed. When the pump reaches Normal Speed, a signal is available on the Normal pin of the logic interface connector. Use this signal to control the application since it shows that pump speed, and therefore vacuum performance, has reached a minimum specific level. The default setting is 80% of full rotational speed. Refer to Section 4.1.5 for instructions on altering the Normal Speed setting.

Page 4 © Edwards Limited 2018. All rights reser ved.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 13

B722-40-880 Issue H

1.4.7 Electronic braking

The pump has a user selectable Electronic Braking option that is disabled by de fau lt. Wi th this opti on d isa bled , th e pump will draw power from the supply when accelerating and running and will coast down when decelerating.

The Electronic Braking function may be enabled to reduce the pump deceleration time and to recover some energy from the pump. This is achieved by returning power from the pump to the electrical supply. The rate at which electrical energy is returned to the supply is regulated so as to limit the supply voltage to 24 V +10%. In order to achieve the fastest electronic braking times there must be somewhere for the returned power to go such as :

 a supply capable of receiving the returned power  other devices sharing the 24 V bus with the pump  a load resistor of approximately 10 Ω switched across the 24 V supply when decelerating the pump

1.5 Logic interface

The Podule can only be operated through the logic interface. The si gnals on the logic interface are of three types:

 Control inputs: these are switch-type signals that are used to control the pump  Status outputs: these outputs identify the status of the system

Introduction

 Analogue output: this provides a 0 – 10 V output for a number of pump parameters.

The logic interface has been designed to include both serial and parallel modes of control and monitoring, operating through one connector. The pump can be operated u sing either serial or parallel m ethod or some combinat ion of the two.

The logic interface can be plugged directly into the Edwards TIC Turbo Controller or TIC Turbo Instrument Controller and then use the functionality that they provide. Alternatively, the logic interface can be connected to a customers own control system. The most useful arrangements are described in the sections below.

For more information about the logic interface, refer to Section 2.8.

1.5.1 Parallel control and monitoring

The simple parallel interface is a quick and easy way to control the pump. This is the same interface used on existing 24V Edwards Turbo Pumps. The controls that are available to use are Start and Standby. The system status can be monitored using the Normal, Fail and Analogue output signals.

Note: The Serial Enable switch MUST be open (no connection).

Refer to Section 3.6 for more detailed instructions of how to use the parallel interface. A system operating in pure parallel mode has no facility to adjust the configuration settings stored in the Podule (for

example, power limit setting or controlled venting options). This would place a restriction in that all these features would be at their factory default settings. However, the Podule could be configured separately before fitting the DX pump to the system. This is covered in more detail in Section 1.5.5.

Page 14

B722-40-880 Issue H

Introduction

1.5.2 Full serial control

The serial communications link provides complete control and monitoring using just three signal lines. The Serial data RX and TX use the same connector pins as the parallel signals Standb y and Fail respectively.

The Serial Enable signal MUST be linked to 0 V for the system to accept commands in Serial control mode. This is a safety feature and acts as an interlock. In addition, the parallel Start signal must be left unconnected for Serial commands to be accepted in full Serial control mode.

The Podule will still provide the Normal and Analogue signals on the logic interface connector even when operating in full Serial control mode. The status of the Normal signal can also be obtained by interrogating the system status via the Serial interface.

For more information about the Serial interface, refer to Section 3.7.

1.5.3 Serial control with parallel monitoring

Since Normal and Analogue signals remain available even using Serial control mode, it is possible to control the pump via the Serial interface whilst monitoring these signals using a parallel link.

Again, the Serial data RX and TX use the same connector pins as the parallel signals Standby and Fail respective ly so these parallel control and monitoring signals are not available. The Serial Enable signal MUST be linked to 0 V and the Start switch must remain open (no connection).

1.5.4 Parallel control with occasional serial monitoring or serial setup

This method of control is best for users who normally wish to operate the pump in parallel mode but occasionally want to adjust the configuration settings stored in the Podule or to monitor operational status of the pump.

Whilst operating in Parallel mode, the same controls and monitoring signals are available as described in

Section 1.5.1. It must be remembered that the Serial data RX shares the same connector pin as the Standby signal so

the pump cannot be commanded into Standby speed using this line. The Serial Enable signal must be linked to 0 V for serial communications to take place. Edwards suggests making a

special cable for serial communications that includes a link between Serial Enable and 0 V. This way, Serial Enable is automatically activated when the cable is connected and then deactivated when the cable is removed.

1.5.5 Podule configuration (serial setup)

All the configuration settings stored within the Podule are retained even when power to the DX pump is removed. This means that it is possible to use a separate system to configure the Podule before fitting the DX pump to the application. This gives the benefit of tailoring the pump functionality to a customer application and allows the pump to be operated using a simple parallel interface system.

To configure the DX pump, either use a customer simple serial syst em or use the Edwards TIC Turbo Controller or Turbo Instrument Controller. The TICs have a feature which allows storage of a DX pump’s configuration. The configuration can then be downloaded to another DX pump. This is useful when configuring a number of DX pumps with the same settings before they are fitted to a system.

The TIC is supplied with a Windows The program has a simple user interface which means that it is not necessary to use the ASCII message protocol described in Section 3.7. The TIC PC Program has a facility to save multiple DX pump configurations which can then be downloaded into other DX pumps.

based PC program which allows the DX pump to be configured from a single PC.

Page 6 © Edwards Limited 2018. All rights reser ved.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 15

2Technical data

WARNING

2.1 General

Table 2 - General data

General items Reference data

Performance Refer to Table 3 Dimensions Refer to Figure 1 Maximum inlet flange temperature

ISO63 / ISO100 / NW40 70 °C with cooling water DN63CF (EXT75DX) 100 °C bakeout, with cooling water

Maximum permitted external magnetic field

EXT75DX 5 mT Pollution degree EN61010, Pollution Degree 2 Equipment type Fixed equipment, for indoor use only Enclosure protection (installed)

EXT75DX and 75DXi/NW25 IP50

EXT75DXi/NW16 IP50

EXT75iiDX Contact Edwards for details

B722-40-880 Issue H

Technical data

2.2 Pumping media

Vent dangerous gases and gas mixtures safely. Do not expose people to these gases. If pumping hazardous gases or vapours, observe the safety recommendations of the supplier of the gas/ vapour.

Do not use the DX pump to pump pyrophoric or explosive gas mixtures, as it is not suitable for this purpose. The pump and its connections are not designed to contain an explosion.

In the interstage versions of the DX pumps, g as pu mped th rough the in tersta ge p ort w ill m ix wit h gas pumped through the pump inlet. Ensure that the gases will not react or combine to form dangerous gases and substances.

Do not expose any part of the human body to vacuum.

Page 16

B722-40-880 Issue H

CAUTION

Technical data

Do not use the DX pump to pump gases containing more than 20% oxygen unless the pump is gas purged. If gases containing more than 20% oxygen are pumped, the lubricant will polymerise and the pum p may fail prematurely.

Note: Concentrations of gases may be modified by the compression of the pump.

The pumps are designed to pump the following residual gases normally used in high-vacuum systems:

 Air  Carbon dioxide  Methane  Neon  Propane  Krypton  Butane  Helium  Carbon monoxide  Ethane  Nitrogen  Argon  Hydrogen

The pump can be used to pump oxygen and water vapour, subject to the following conditions:

 Oxygen – when the pump is purged by an inert gas, oxygen can be pumped at concentrations above 20% by

volume. Refer to Section 2.4 for Purge gas specification. However, if the pump is not purged, the oxygen concentration must be less than 20% by volume.

 Water vapour - ensure that water vapour does not condense inside the pump; refer to Section 3.9.3.

If pumping a gas not in the list above, contact the supplier for advice. If the supplier is not contacted, the pump warranty may be invalidated. The pump is not suitable for pumping aggressive or corrosive gases.

Table 3 - DX pumps technical data

Parameter

EXT75DX

ISO63

EXT75DX

63CF

EXT75DX

NW40

EXT75DX

ISO100

Mass 3.0 kg 4.9 kg 2.9 kg 3.2 kg Inlet flange DN63ISO-K DN63CF DN40NW DN100ISO-K Outlet flange DN16NW DN16NW DN16NW DN16NW Vent port 1/8 inch BSP 1/8 inch BSP 1/8 inch BSP 1/8 inch BSP Purge port 1/8 inch BSP 1/8 inch BSP 1/8 inch BSP 1/8 inch BSP Interstage port (optional) DN25NW and

---

DN16NW

Inlet pumping speed

61 l s He 57 l s H

53 l s

-1

61 l s 57 l s 53 l s

-1

42 l s 49 l s 48 l s

-1

66 l s 59 l s 54 l s

-1

Inlet compression ratio

>1 x 10 He 1 x 10 H

5 x 10

11 6 4

>1 x 10

1 x 10 5 x 10

11 6 4

>1 x 10

1 x 10 5 x 10

11 6 4

>1 x 10

1 x 10 5 x 10

11 6 4

Interstage pumping speed, for interstage DX pumps with N

70 sccm flow through interstage port 10 l s 5 sccm flow through interstage port 3 l s

(DN16NW port)

-1

---

Interstage pumping speed, for

Page 8 © Edwards Limited 2018. All rights reser ved.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 17

Table 3 - DX pumps technical data (continued)

B722-40-880 Issue H

Technical data

Parameter

EXT75DX

ISO63

----

EXT75DX

63CF

EXT75DX

NW40

EXT75DX

ISO100

He ----

Ultimate pressure:

with rotary vane backing pump: with diaphragm backing pump:

Ultimate pressure 48 hours after bakeout with 2-stage rotary vane backing pump.

†

Ultimate pressure 48 hours after bakeout with Pb < 5 mbar (500 Pa).

†

<5 x 10-9 mbar <5 x 10

<5 x 10-8mbar <5 x 10-9 mbar <5 x 10-8 mbar <5 x 10-8 mbar

-10

mbar <5 x 10-9 mbar <5 x 10-9 mbar

Note: Contact Edwards for details on the EXT75D Xi and EXT75iiDX variants.

Table 4 - DX pumps technical data

Parameter EXT75DX Critical backing pressure

8 mbar He 6.5 mbar H

Minimum backing pump displacement 0.6 m3 h

Maximum Continuous Backing Pressure

†

2.5 mbar

-1

(at Ultimate Inlet Pressure)

Nitrogen:

Water Cooling (40 °C ambient)

‡

4 mbar Forced Air Cooling (35 °C ambient) 5 mbar Natural Convection Cooling (30 °C ambient) 2 mbar

Maximum continuous inlet pressure

†

(at Ultimate Backing Pressure)

Nitrogen:

Water cooling (40 ºC ambient) Forced Air cooling at (35 ºC ambient) 3 x 10

‡

2 x 10-2 mbar

-2

mbar

Natural Convection Cooling (30 °C ambient) 8 x 10-3 mbar

Argon:

Water cooling (40 ºC ambient)

‡

4 x 10-3 mbar Forced Air cooling at (35 ºC ambient) 4 x 10-3 mbar Natural Convection Cooling (30 °C ambient) 1 x 10-3 mbar Recommended backing pump

RV3 Operating attitude Vertical and upright through to horizontal ± 2 ° Nominal rotational speed 90,000 revolutions per minute Starting time to 90% speed

††

110 seconds

Sound power level (1 metre away) < 50 dB(A)

Pumping speed is reduced to 90% of its original value.

†

Above this pressure, rotational speed drops below nominal. Values for maximum continuous inlet pressure obtained using a RV12 backing pump. Refer to Section 3.9 for cooling conditions.

‡

Cooling water temperature at 15 °C. Cooling water flow rate at 30 l hr-1.

Page 18

B722-40-880 Issue H

WARNING

1. Podule

2. Podule connector socket (for fan/TAV valve)

3. Interstage port (EXT75iDX only)

4. Manual vent valve in ve nt port

5. Logic interface connector

6. Purge port (blanked off)

7. Earth connection

8. Cooling block mounting face

9. Podule indicator LEDs

10.Backing port

Technical data

A suitable diaphragm pump with ultimate <5 mbar may also be used.

††

Power limit setting 80 W (EXT75DX).

Note: Contact Edwards for details on the EXT75DXi and EXT75iiDX variants.

Do not exceed the maximum continuous operating pressure. Doing so can result in dangerous rotor temperatures and will shorten the life of the pump.

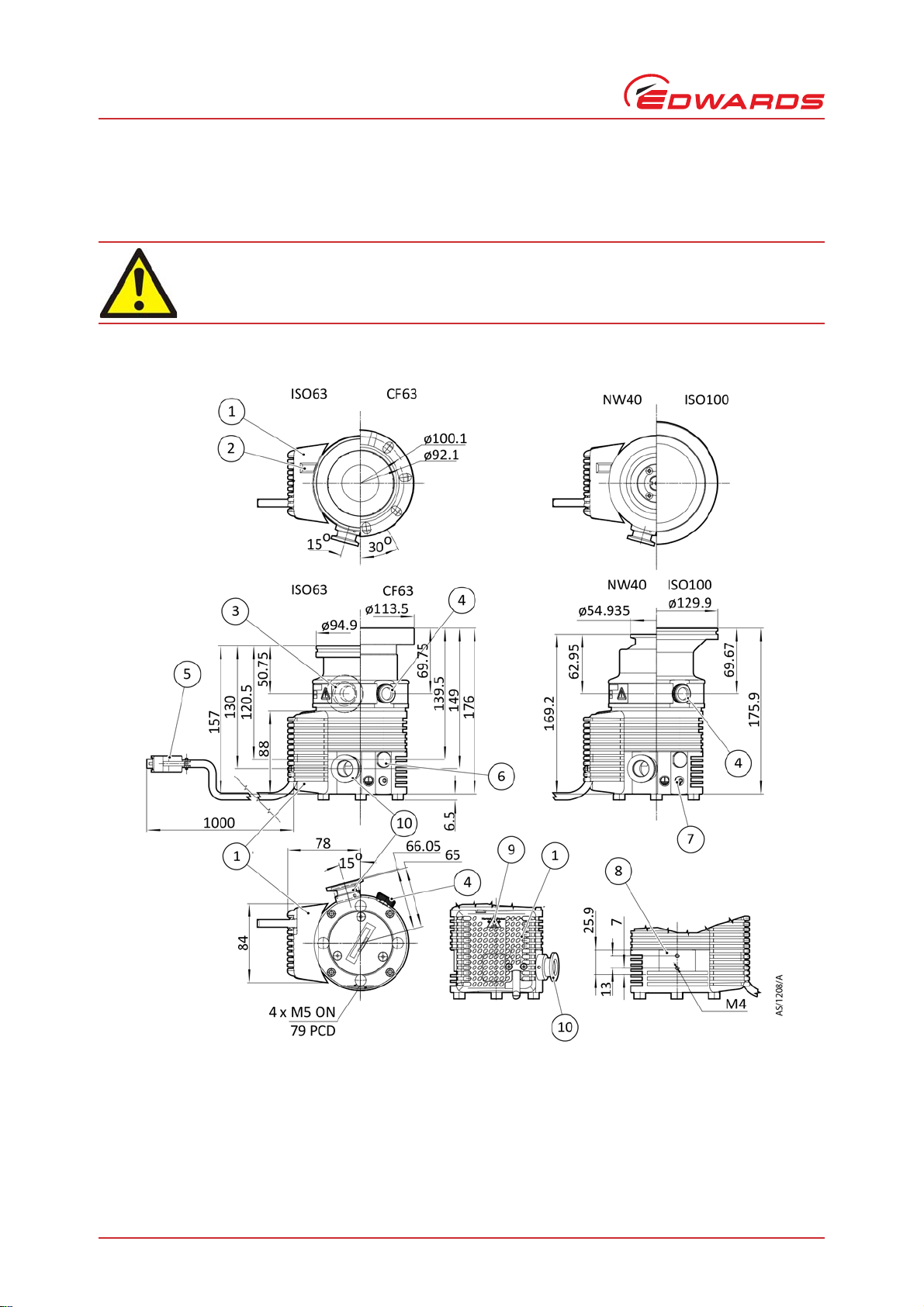

Figure 1 - EXT75DX dimensions (mm)

Note: Contact Edwards for details on the EXT75iiDX variants.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 19

B722-40-880 Issue H

2.3 Vent gas specification and vent control data

Although the pump may be vented to atmosphere, high relative humidity of the air may greatly increase the subsequent pump-down time. To reduce pump-down times vent with dry, clean gases. Refer to Section 3.8 for a description of the vent options and the vent valve connection and refer to Section 4.1.3 for configuring the venting options.

Table 5 - Vent gas specification and vent control

Vent gas specification and control Reference data

Vent gas Dry air, nitrogen, argon or other inert gases Maximum dew point at atmospheric pressure -22 °C Maximum size of particulates 1 Maximum concentration of oil 0.1 parts per million Recommended time for rotational speed to reach 50% > 15 seconds Maximum allowed rate of pressure rise Refer to Figure 2

Figure 2 - Maximum allowed rate of pressure rise during venting: pressure against time (with pump initially at

full rotational speed)

µm

Technical data

Page 20

B722-40-880 Issue H

Technical data

2.4 Purge gas specification

Table 6 - Purge gas specification

Purge gas specification Reference data

Purge gas Dry air, nitrogen, argon or other inert gases Maximum dew point at atmospheric pressure -22 °C Maximum size of particulates 1 Maximum concentration of oil 0.1 parts per million Allowable purge gas flow (when required) 20 to 50 sccm (0.33 to 0.84 mbar l s Recommended purge gas flow 25 sccm (0.42 mbar l s-1, 42 Pa l s-1) Maximum allowable purge gas supply pressure 2 bar (gauge); 29 psi, 3 x 105 Pa

Table 7 - Cooling water specification

Cooling water specification Reference data

Quality Mechanically clean and optically clear with no deposits

pH value 6.0 to 8.0 Maximum calcium carbonate concentration 75 parts per million Maximum chloride concentration 100 parts per million Minimum oxygen concentration 4 parts per million Minimum cooling water flow rate (at 15 °C) 15 l hr Water temperature Refer to Table 4 Maximum water pressure 5 bar (gauge), 73.5 psig, 6 x 10 Materials exposed to cooling water Nickel plated brass

µm

or turbidity

-1

or 33 to 84 Pa l s-1)

-1

2.5 Cooling water

The above cooling water specification corresponds to a typical high-quality drinking water specification. Check with the water supply authority if there is any doubt about the quality of the supply.

2.6 Materials exposed to gases pumped

The following materials and component types are exposed to the gases pumped:

Aluminium alloys, stainless steels, fluoroelastomer and nitrile O-rings, hydrocarbon lubricant, felt, rare earth magnets, silicon nitride, phenolic resin, carbon-fibre-reinforced epoxy resin, fire retardant polypropylene, polyamide and PVC.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 21

B722-40-880 Issue H

2.7 Electrical data

DX pumps can be driven either by the customer system or b y the Edwards TIC Turbo Instrument Controller or TIC Turbo Controller.

If using the customer system, the size of the power supply required depends on the app l ication. The power limit setting determines how quickly the pump ramps up and dictates the size of power supply required. If serial communications or access to an Edwards TIC is available, p ower limit setting of the DX pump can be selected. Refer to Table 8 for the maximum and minimum power limit settings for DX pumps and for the associated maximum input current requirements. If the application requires rapid cycling of the pump, faster ramp times can be achieved if the power supply delivers higher current, up to a maximum in accordance with Table 8.

If the facility to adjust the power limit setting is not available, use a power supply capable of delivering enough current to meet the Edwards factory default power limit setting, shown in Table 8. For the EXT75DX this would be around 4 amps.

If the DX pump is driven using an Edwards TIC, be aware that there are several variants. Contact Edwards to determine which is most suitable for the application.

2.8 Logic interface connector

DX pumps have a 15-way logic interface connector on the end of the logic interface cable (see Figure 1). The logic interface connector can be plugged directly into the Edwards TIC Turbo Instrument Controller or TIC Turbo Controller. Use a suitable connector mating half (not supplied) to connect the DX pump to the customer equipment. Refer to Table 8 for the connector mating half type and to Table 9 for Logic Interface connector pins for the electrical connections.

Technical data

Table 8 - Logic interface technical data

Logic interface item EXT75DX

Connector DX pumps electrical supply:

Hardware control input signal:

Allowable voltage range (including any ripple)

Maximum voltage ripple 0.5 V r.m.s. Maximum input current w ith maxi mum power lim it

setting Maximum input current wi th minimum power limit

setting Fuse (or equivalent current limiting device) rating 6 A type 'T' IEC approved or

Factory default setting 80 W Maximum power limit 120 W Minimum power limit 50 W

Enabled control voltage: low (close) 0 to 0.8 V d.c. (I Disabled control voltage: high (open) 4 to 26.4 V d.c. (Internal pull up to 6.35 V nominal)

15-way D-type male

24 V d.c. +5%, -10% (21.6 to 25.2 V d.c.)

<6 A at 24 V during ramp

<3 A at 24 V

6 A time delay fuse UL/CSA approved

= 0.55 mA nominal)

out

Page 22

B722-40-880 Issue H

Technical data

Logic interface item EXT75DX

Analogue output:

Output voltage 0 to 10 V d.c. (directly proportional to m easured

Output current ≤ 5 mA

NORMAL status output:

Type Open collector transistor < Normal speed (default 80%) Off (2.2 kΩ pull up to 12 V d.c.)

Normal speed On (<0.8 V d.c. sinking 20 mA)

≥

Rating 20 mA to 0 V

FAIL status output:

Type Open collector transistor Fail Off (3.3 kΩ pull up to 12 V d.c.) OK On (<0.1 V d.c. sinking 1.7 mA,

Rating 20 mA to 0 V

Mating half of connector not supplied.

Table 8 - Logic interface technical data (continued)

parameter) Motor speed: 0 - 1500 Hz (0-100%) Motor power: 0 - 120 W Motor temperature: 0 - 100 °C Controller temperature: 0 - 100 °C

<0.8 V d.c. sinking 20 mA)

2.9 Podule connector socket

The DX pump has a 2-way Podule Connector Socket in the top of the Podule. When the pump is shipped, this connector is concealed by a black protective cover. If the connector will be used, this cover should be removed by levering with a small screwdriver. The mating plug for this connector is supplied with the pump.

The connector is intended to drive a vent valve or fan connected to the two pins. The connector mating plug is shown in Figure 3, with the polarity of the pins marked when the vent valve/fan is energised.

The podule connector plug is available as an accessory, see Section 7.4.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 23

Figure 3 - Podule connector plug

1. Negative terminal

2. Positive terminal

B722-40-880 Issue H

Technical data

Table 9 - Logic interface connector pins

Pin Number Signal Polarity Use

2 0 V Control reference - 0 V reference for all control and status signals 3 START/STOP control input - Connect to Pin 2 to start pump 4STANDBY control input /

Serial RX 5 Serial enable - Connect to Pin 2 to enable serial interface mode 7 FAIL / Serial TX - Logic high when fail condition exists in parallel mode 9 Analogue output Positive 0 - 10 V output proportional to measured output

10 Chassis / Screen - Screen 12 Chassis / Screen - 15 NORMAL status output - Logic low when pump rotational speed is at normal speed or

8, 13, 14 Electrical supply: 0 V -

1, 6, 11 Electrical supply: 24 V Positive

Description Data

Connector plug Phoenix part number FKMC1881325 Voltage output 24 V d.c. +10%, -20% (19.2 to 26.4 V d.c.) Current output 120 mA

- Connect to Pin 2 to enable standby speed

above

Table 10 - Podule technical data

Page 24

B722-40-880 Issue H

Technical data

2.10 Indicator LEDs

The DX pump has two indicator LEDs, shown in Figure 1, item 9.

Table 11 - Indicator LEDs

LED Description

Status LED This yellow LED flashes with a 50% duty cycle at the

rotational frequency of the pum p motor. At high speeds it appears continuously on. The LED switches off when the rotational speed is very low or stopped. In a fail condition this LED flashes in a sequence to indicate error codes and can be used for fault finding. Refer to Section 5.5.

Normal LED This green LED remains on all the time that the pump

rotational speed is above the Normal speed setting, irrespective of whether the pump is accelerating or decelerating.

Note: If excessive electrical load is applied to the Normal output line, the Normal LED may illuminate.

2.11 Operating and storage environment

Table 12 - Operating and storage environment

Range Data

Ambient operating temperature range 5 °C to 40 °C Ambient operating humidity range 10 to 90% RH (non-condensing) Maximum operating altitude 2000 m Ambient storage temperature range -30 °C to 70 °C

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 25

B722-40-880 Issue H

WARNING

3 Installation

3.1 Unpack and inspect

Take care when unpacking the pump to avoid excessive shocks that could damage the bearings and reduce the life of the pump. The pump is supplied with the inlet and outlet sealed to p re vent entry of dust and vapour. Do not remove these seals until the pump is installed on the vacuum system.

Remove all packing materials and check the pump. If the pump is damaged, notify the supplier and the carrier in writing within three days; state the Item Number of the pump together with the order number and the supplier's invoice number. Retain all packing materials for inspection. Do not use the pump if it is damaged.

Check that the package contains the items listed in Table 13. If any of these items is missing, notify the supplier in writing within three days.

If the pump is not to be used immediately, store the pump in suitable conditions, following the procedure described in Section 6.1.

Do not discard the packing materials; retain them to re-package the pump if it is re turned for service.

Table 13 - Checklist of components

Installation

Quantity Description Check ()

1 DX pump with inlet screen fitted  1 Inlet seal (either trapped O-ring, Co-seal or copper compression

gasket suitable for the inlet flange type) 1 Connector (24 V) - for driving accessories from Podule socket  1 Inlet strainer (iDX fitted in the NW25 interstage port only) 

Note: An inlet strainer is not available for the NW16 interstage port of the EXT75iDX. Note: Contact Edwards for details of the EXT75iiDX variants.



3.2 Typical installation

A typical pumping system with a DX pump is shown in Figure 4. The accessories available for the DX pumps are detailed in Section 7.4; the accessories are shown in Figure 8.

3.3 Connection to the vacuum system

Ensure that all wires and piping are routed appropriately to avoid the risk of tripping.

Install the pump in the vacuum system before the logic interface cable is connected to the control equipment and before the electrical supply is connected. This will ensure that the pump cannot operate accidentally causing injury to people.

Edwards recommends leak testing the system after installation has been completed.

Page 26

B722-40-880 Issue H

1. Vacuum system

2. High-vacuum gauge

3. Vibration isolator

4. Inlet screen

5. DX pump

6. Backing valve

7. Vacuum gauge

8. Flexible bellows

9. Foreline trap

10.Rotary backing pump

11.Mist filter

12.Vent valve

13.Alter native position for vent valve

14.Air cooler

15.PRX purge restrictor

16.Regulated purge gas supply

17.WCX water cooler and connections

Installation

Figure 4 - Typical pumping system with a DX pump

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 27

B722-40-880 Issue H

WARNING

1. EXT inlet flange 2. Inlet screen

3.3.1 Inlet screen (supplied fitted)

Removal of the inlet screen will expose the risk of injury from sharp edges.

Remove the inlet screen only if there is no possibi lity that debris can fall into the pump. If the inlet screen is removed, the pumping speed will increase by up to 10%. Since the inlet screen protects the pump from contamination, do not remove the inlet screen until the pump is mounted on the system.

It is not possible to remove the inlet screen from a pump with an NW40 inlet flange (EXT75DX only). To remove the inlet screen from a pump with an ISO or CF inlet flange, use a bent wire hook or small screwdriver to

carefully lever the inlet screen out from the inlet flange. To replace an inlet screen, locate it as centrally as possible over the ISO or CF inlet flange and then, with fingers

applying equal pressure around the edge of the screen, push it firmly downwards. If they are not already in place, the tangs must be snapped into the locating groove in the inlet flange using a suitable tool to press them into position.

Figure 5 - Correct installation of the inlet screen (EXT75DX)

Installation

3.3.2 Mechanical fixing

Do not operate the pump until it is securely fixed. If the pump seizes, the stored energy of the rotor can cause rapid movement of the pump, which may cause further damage and injury to people.

There are two ways in which the DX pumps can be securely fixed. The ideal fixing for a DX pump is via its inlet flange to a rigid, firmly fixed vacuum system - refer to Section 3.3.3. If this is not possible because of the nature of the vacuum system, then the base of the pump must be fixed to a firm support. Refer to Section 3.3.4 for instructions on base mounting the pump.

3.3.3 Inlet connection and orientation

The pump can be securely fixed to the vacuum system via the inlet flange. The pump can be mounted in any attitude from the vertical and upright through to horizontal (±2°). If the pump is mounted horizontally, and a rotary vane pump is used to back the DX pump, then the backing port must point vertically downwards (±20°) to reduce the risk of contamination from the backing pump oil.

Make sure that the pump inlet and all components fitted to the pump inlet are clean and dust-free. If the pump inlet is not kept clean, the pump-down time may be increas ed.

Page 28

B722-40-880 Issue H

CAUTION

WARNING

Installation

The inlet connections for the EXT75DX are CF flange, ISO flanges and the NW flange:

 If the pump has a CF flange, use the copper compression gasket supplied with the pump and use a full

complement of bolts to connect the inlet flange of the pump to the vacuum system.

 If the pump has an ISO flange, use the Edwards trapped O-ring supplied with the pu mp and use a minimum of

four claw clamps (each torqued to 10 Nm) to connect the inlet flange of the pump to the vacuum system. Alternatively, use a rotatable collar and the trapped O-ring supplied with the pump to connect the inlet flange of the pump to the vacuum system; use a full complement of bolts with the rotatable collar.

 If the pump has an NW flange, use the centring ring supplied with the pump and a metal NW clamp to

connect the inlet flange of the pump to the vacuum system. In this case, fix the base of the pump to a firm support as described in Section 3.3.4.

All inlet flange bolts must be re-tightened once the system is under vacuum. Ensure that no torques or other forces are transmitted to the pump from the vacuum system or the associated pipelines. If necessary, fit an inlet vibration isolator between the pump inlet and the vacuum system (refer to Section 7.4). In this case, fix the base of the pump to a firm support as described in Section 3.3.4.

3.3.4 Base mounting

The base of the DX pump can be fixed to a firm support using the tapped fixing holes. Refer to Figure 1 for fixing hole details.

Note: For EXT75DX only, the four screw-in rubber feet must be removed from the four tapped fixing holes before

the pump can be base mounted.

Edwards recommends that the following requirements be met to ensure the pump remains secure in the event of a total pump seizure:

Support must withstand a destructive torque of: 333 Nm (EXT75DX) Fixing screws: To ISO898-1 strength class 12.9

(nom. tensile strength 1200 MPa) Screw engagement length: 6 mm minimum Fastening torque: 6 Nm (0.61 kgf.m) (EXT75DX)

Use this method of fixing the pump if it supports the weight of the vacuum system. The weight of the vacuum system must be no more than 10 kg for EXT75DX.

3.3.5 Backing connection

Ensure safe ducting of the backing line if oil mist or hazardous substances are present.

To avoid over-pressurising the pump, the exhaust line should be restricted when venting from a positive pressure gas supply.

Do not use the DX pumps with a backing pressure below 5 x 10-4 mbar (5 x 10-2 Pa). Lower backing pressures will increase the evaporation rate of the lubricating oil and so may reduce the life of the bearings.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 29

B722-40-880 Issue H

WARNING

Use suitable vacuum tubing and connectors to connect the NW flange of the backing port to the backing pump. If necessary, use flexible pipe or bellows to reduce the transmission of vibration from the backing pump to the DX pump.

Edwards recommends using an Edwards EM, RV or nXDS Scroll backing pump. The recommended size of backing pump required is indicated in Table 4. A larger or smaller backing pump may also be suitable, depending upon the intended application.

The DX pumps are suitable for use with diaphragm backing pumps although the effect of higher backing pressure on the pump's performance and cooling requirements should be noted. Refer to Table 4 and Section 2.1.

3.3.6 Interstage connection (DXi variants only)

Use suitable vacuum tube and connectors to connect the interstage port to the vacuum system or to the outlet flange of another turbo or compound turbomolecular pump (if using an DXi pump to back another pump). Leave the inlet strainer in the interstage port, unless it is certain that debris cannot be drawn into the interstage port.

Note: The EXT75DXi with NW16 interstage port is not supplied with an inlet strainer fitted. Contact Edwards for

details on the EXT75iiDX variants.

3.4 Purge gas connection

Installation

3.4.1 Connect the purge gas

To supply a purge gas to the pump, remove the plug fitted in the purge port, fit a vent port adaptor (refer to

Section 7.4) and connect the purge gas supply to the vent port adaptor. The purge gas must comply with the

specification given in Section 2.4.

3.4.2 Recommended purge gas flow

The recommended purge gas flow for typical applications is 25 sccm (0.42 mbar l s-1, 42 Pa l s-1). This flow will protect the pump when pumping oxygen in concentrations above 20% by volume.

The flow rate of the purge gas must be limited to the allowed range specified in Section 2.4. To limit the flow rate, use a flow controller or a pressure regulator and calibrated flow restrictor. The PRX10 purge restrictor accessory (refer to Section 7.4) is suitable for this purpose. Adjust the PRX10 as described in the instruction manual supplied with the accessory.

3.5 Electrical installation

3.5.1 Introduction

Ensure that the pump is electrically bonded to earth. If it is not, the system could become hazardous live in the event of a live conductor touching a metallic surface.

The electrical installation must be carried out by a qualified person. Al ways m ak e the electrical connections to the DX pump after the pump has been installed on the vacuum system.

Earth the pump using the connection provided and refer to Section 3.5.2. The DX pump can be operated using the Edwards TIC Turbo Instrument Controller or TIC Turbo Controller (refer to

Section 3.5.3). The DX pump can also be controlled using the customer system. Refer to Section 3.5.4 for information

about control and to Section 3.5.5 for instructions on how to connect the electrical supply.

Page 30

B722-40-880 Issue H

WARNING

Installation

3.5.2 Earth (ground) connections

Edwards recommends fitting a separate earth (ground) conductor to earth the DX pump. Use an uninsulated braid or a separate insulated green/yellow conductor, and the M5 x 10 screw and shake proof washer supplied (fitted to the earth hole on the pump), to secure the earth conductor to the pump. The impedance between the pump body and the earth connection point must be < 0.1 Ω.

3.5.3 Connect the logic interface to the TIC

If an Edwards TIC Turbo Instrument Controller or TIC Turbo Controller is used to power and control the pump, the DX pump logic interface cable connects directly into the back of the TIC. Refer to the TIC Instruction Manual for further information.

3.5.4 Connect the logic interface to the customer control equipment

If operating the DX pump using the customer control system, use a suitable connector mating half (not supplied), to connect the control equipment to the connector on the logic interface cable (refer to Table 8). When making the electrical connections to the DX pump described in the following sections, refer to Table 9 for full details of the logic interface connector pins.

The DX pump can be controlled using a hardware parallel control interface and via commands sent over a serial interface.

If the DX pump is controlled using the hardware Parallel Interface, refer to Section 3.6 for more information. If the Serial Interface is used, see the instructions given in Section 3.7. The logic interface provides the facility to work in either Parallel or Serial control modes, however, commands cannot be sent in both modes simultaneously (refer to

Section 3.7.6).

3.5.5 Connect the electrical supply

This product requires a separate power supply (not included). The power supply should be adequately protected against a hazardous live condition (for example, in case of a short circuit).

Incorporate a suitable isolation device in the electrical supply. Locate the switch in an easily accessible position and mark it as the disconnecting device for the DX pump. If an iso lation device is not provided, it will not be possible to switch off the DX pump in an emergency.

Incorporate a suitable fuse or current limiting device, as specified in Section 2.8, in the 24 V supply line to the DX pump. If a fuse is not provided and a fault develops, the DX pump may develop a hazardous surface temperature or present a fire hazard.

Do not exceed the maximum supply voltage. Excessive supply voltage will cause permanent damage to the control electronics and may result in a mechanical hazard in some failure conditions.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 31

B722-40-880 Issue H

CAUTION

1. 24 V d.c. electrical supply

2. Fuse

3. Optional LED indicator - system OK

4. Optional LED indicator - normal speed

5. Current limit resistor for LED

6. DX pump logic interface

7. Start switch

8. Optional standby switch

9. Optional voltmeter to monitor analogue output

When connecting the DX pump to the power supply, ensure that all 3 pins for the 24 V connection and all 3 pins for the 0 V connections on the customer connector mating half are connected to the power supply.

Refer to Figure 6 for a schematic diagram of the logic interface connections. The electrical supply for the DX pump must meet the requirements of BS EN 61010-1 / C22.2 1010-1. Ensure that

hazardous voltages as defined in EN61010 cannot be present on the electrical interface to the DX p ump. The DX pump 0 V is not referenced to earth (ground). Ensure that the electrical supply offers a path (≤ 22 kΩ)

between 0 V and earth. Refer to Table 9 - Logic Interface Connector Pins when connecting the electrical supply to the customer connector

mating half.

Figure 6 - Logic interface connections - parallel mode

Installation

3.6 Parallel interface mode

If using the Normal and Fail lines to drive the coils of d.c. relays, include a back EMF suppression diode in parallel with each relay coil to protect the DX pump.

1. Connect the customer control equipment to the control input pins o f the customer logic interface ma ting half. Refer to Table 9, which identifies the Logic Interface connector pins. The control inputs are as follows:

 Start  Standby Speed

To activate either of these control inputs, connect the control input pin to the 0 V control reference.

Page 32

B722-40-880 Issue H

CAUTION

Installation

For example, to start the pump, connect pin 3 (Start / Stop) to pin 2 (0 V Reference). To stop the pump, break the connection between pin 3 and pin 2.

Note: Serial Enable is also a control input but is not required in a system operating purely in Parallel Mode. Ma ke

sure that there is no connection to Serial Enable (pin 5).

2. To monitor Analogue Output, connect the customer control equipment to the pump Analogue Output (pin 9) and to pin 2 of the logic interface mating half.

When the pump is shipped, the Analogue Output is configured to monitor pump rotational speed. To monitor other parameters, re-configure the DX pump using commands over the Serial Interface. Refer to Section 3.7 for further details.

3. To monitor the Normal status output, connect the customer control equipment to the Normal status output (pin

15) and to pin 2 of the logic interface mating half. The output can be used to control other devices in the pumping system. The output can drive a low power relay of up to 24 V coil rating.

4. To monitor the Fail status output, connect the customer control equipment to the Fail output (pin 7) and to pin 2 of the logic interface mating half. The output can be used to control other devices in the pumping system. The output can drive a low power relay of up to 24 V coil rating.

3.7 Serial interface mode

The Serial Interface can be used to control the DX pump and to interroga te its op erational sta tus using a nu mber of commands. There is a multi-drop mode that allows for communication with more than one DX pump whilst using just one control system.

3.7.1 Connect the serial interface to the customer control equipment

When connecting the DX pump to a PC, remember that the 0 V pin on the RS232 connector may well be connected to earth through the PC. If this is the case, ensure that the 0 V rail of the 24 V supply is not also connected to earth at some other point such as at the power supply. If the 0 V rail of the 24 V supply will not be connected to earth at the PC, an opto-isolated interface to the PC should be used.

The DX pump can connect directly to the RS232 serial input on a PC as shown in Figure 7. In this configuration, the PC is the serial link master and the DX pump is the slave. The distance over which the serial link will work is dependent on any difference in voltage between the 0 V at the sendi ng and receiving end. If the 0 V reference at the receiving end is within 0.3 V of the 0 V Control Reference pin on the DX pump control connector then the serial li nk should be capable of operating at distances up to 6 m. An interface circuit external to the DX pump may be required for longer distances.

The software in the DX pump is capable of operating with several pumps connected to a single serial link master. This is referred to as multi-drop mode. However, the serial interface driver in the DX pump is based on the RS232 standard, which is only intended for point to point serial links. Some addition al hardware will be required to link several DX pump units to a single serial link master. A concept drawing of one possible arrangement is shown in

Figure 8.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 33

Figure 7 - Logic interface connections - serial mode

1. RS232 interface on control equipments

2. 24 V d.c. electrical supply

3. Fuse

4. DX pump logic interface

B722-40-880 Issue H

Installation

3.7.2 Serial enable

To send a Serial message, first activate Seri al Enable. This is achieved by linking the Serial Enable input signal (pin 5) to pin 2 of the customer logic interface mating half. Edwards recommends incorporating this link into the customer Serial communications cable so that Serial Enable is only activated when the serial cable is connected. When the cable is removed, Serial Enable will become inactive.

Serial Enable acts as an interlock for commands sent over the Serial Interface. If the pump is running (having been sent a Serial Start command) and the Serial Enable subsequently becomes inactive, the pump will trigger a fail condition and will decelerate to rest. To clear this fail condition, re-activate the Serial Enable and send a Serial Stop command.

3.7.3 Serial protocol

The Serial Interface link is set to 9600 Baud, 8 bits, 1 stop, no parity with no handshaking. The commands are made up from printing ASCII characters. The maximum message size that can be sent is 80 characters, including start and end characters.

Note: All alphabetical characters must be sent in upper case format.

Every complete command message sent will receive a response - either a status code or a data return. The DX pump can only deal with one message at a time. It will only accept a new message once the response to the previous message has been returned.

If the DX pump receives characters that are not framed inside start and stop characte rs, it will ignore them. Messages with the stop character missing will be discarded with no response when a new start character is received. If the DX pump receives an unrecognisable message between the start and stop characters, it will return an appropriate error message.

Refer to Section 3.7.7 for more information about operating the DX pumps in multi-drop mode.

Page 34

B722-40-880 Issue H

1. RS232 interface on control equipment

2. Buffer

3. DX pump

4. OR gate

Installation

Figure 8 - Conceptual diagram for multi-drop connection

3.7.4 Message structure

To communicate a message to the DX pump, the characters must be sent in a specific order. If the message does not conform to the correct structure, it will be ignored and no reply will be sent.

The correct structure to use is as follows:

 a valid start character, either a '!' character for a store operation or a '?' character for a query operation,

followed by

 a command, which will be an upper case alphabetical character, followed by  an object number, comprising three decimal digits, followed by  for some commands only, a data field, comprising a sequence of characters separated from the object

number by a space, followed by

 a terminating carriage return

The message protocol in multi-drop mode is marginally different, refer to Section 3.7.7.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 35

B722-40-880 Issue H

3.7.5 Command set

Table 14 shows a summary of the full set of commands available for controlling and monitoring the DX pump. Table 15 shows the abbreviations that are used to define commands in the following sections and Table 16 shows the

error codes that might be returned.

3.7.6 Simultaneous parallel and serial operation

The pump can be controlled using Parallel Interface control inputs and at the same time monitor various pump parameters using the Serial Interface. Alternatively, the pump can be controlled using commands sent over the Serial Interface while at the same time monitoring the Normal signal and Analogue Output over the P arallel Interface.

Figure 9 shows a schematic diagram of a system that demonstrates how to do this.

The pump cannot be controlled using both the Parallel and Serial Interfaces simultaneously. For example, if the pump is started by sending a Start command over the Serial Interface, the pump cannot then be stopped by using the Start /Stop switch on the Parallel Interface. The pump will ignore the state of the Start / Stop switch on the Parallel Interface. To stop the pump, send a Serial Stop command. Only when the Serial Stop command has been received by the pump can any commands sent via the Parallel Interface be acted on.

Similarly, if the pump is started using the Start switch on the Parallel Interface, the pump cannot then be stopped by sending a Stop command over the Serial Interface. Th e pump will ignore any Start or Stop commands received over the Serial Interface. To stop the pump, use the Parallel Stop switch. Only when the pump has been stopped using the Parallel Interface switch will any Start or Stop commands be accepted via the Serial Interface.

Installation

Table 14 - Summary of commands that can be sent to the DX pump

Object name Command

Node !S850

?S850

Pump type ?S851 7;

Pump control !C852 0

?V852 0.1800;

Vent options !S853

?S853

Parameter

range

0.99 - decimal address Multi-drop address

10;

32-bits

Factory

setting

-string

- decimal - Stop the pump

- decimal

0 1

2 3

4 5

6 7 8

0 decimal Hard vent only when <50% speed

Data type

string string

hex

Units Comments

0 = disable multi-drop address 99 = wild card

chars chars chars

RPS

flags

Pump type DSP software version number (D39647631x for EXT75DX) Full speed RPS (1500 for EXT75DX)

Start the pump Measured motor speed

System status word

Controlled vent if >50% speed or hard vent if <50% speed Hard vent if stop or hard vent if fail and <50% speed Hard vent if stop or controlled vent if fail and >50% speed or hard vent if fail and <50% speed Hard vent if fail or hard vent if stop

<50% speed

and

Hard vent if fail or controlled vent if stop and >50% speed or hard vent if stop and <50% speed Hard vent if stop or fail Same as option 6 Vent = Permanently Enabled (Fan)

Page 36

B722-40-880 Issue H

Installation

Table 14 - Summary of commands that can be sent to the DX pump (continued)

Object name Command

Tim er se tt ing !S854

?S854 Power limit setting !S855 50.120 80 decimal watts Link power maximum EXT75DX Normal speed

setting Standby speed

setting Temperature

readings Link parameter

readings

Factory settings !S867 1 - - - Reset all configuration options and

PIC software version

Speed control !C869 0

Tim er opti ons !S 870

Analogue signal options

Electronic braking option

!S856

?S856

!S857

?S857

?V859 0.100;

?V860 0.500;

?S868 10 - string chars PIC software version number

?S870

!S871

?S871

!S872

?S872

Parameter

range

1.30 8 decimal minutes T ime-out period for both initial ramp

50.100 80 decimal % Normal speed as a percentage of full

55.100 70 decimal % Standby speed as a percentage of

0.100

0.300;

0.15000

1 0

0 1 2 3

0 1

Factory

setting

- decimal

- decimal - Set target speed to full speed

1 decimal - Timer = disabled

0 decimal - Analogue output = Measured speed

0 decimal - Electronic braking = disabled

Data type

decimal

decimal decimal

Units Comments

up and if speed drops below 50%

speed

full speed

°C°CMeasured motor temperature

Measured controller temperature

0.1volts

0.1amps

0.1watts

Measured link voltage Measured link current Measured link power

parameters to the factory settings

(D39647620x)

Set target speed to standby speed

Timer = enabled Note that the timer is permanently enabled on ramp-up.

Analogue output = Measured power Analogue output = Measured motor temp. Analogue output = measured control temp.

Electronic braking = enabled

Close vent valve !C875 1 - decimal - Closes the vent valve for delayed

start and overrides the current vent option. There is no open vent valve command but the stop command (!C852 0) will clear the override.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 37

Table 15 - Command abbreviations

Abbreviation Meaning

cr carriage return character

chars characters

d decimal ASCII character

Note: Fields showing multiple d characters are to indicate typical length. All

data fields have a maximum of 5 decimal characters (prefixed by a minus number for negative numbers).

h hexadecimal ASCII character

r Returned error code - refer to Table 16

sp space character

string may have several ASCII characters

X Multi-drop decimal ASCII character

Note: Fields showing multiple X characters are to indicate maximum length and

not fixed length.

Table 16 - Error codes

B722-40-880 Issue H

Installation

Returned error code Meaning

0 No error 1 Invalid command for object ID 2 Invalid Query/Command 3Missing parameter 4 Parameter out of range 5 Invalid command in current state - e.g. serial command to start/stop when in

parallel control mode

Page 38

B722-40-880 Issue H

1. RS232 interface on control equipment

2. 24 V d.c. electrical supply

3. Fuse

4. Optional LED indicator - system OK

5. Optional LED indicator - normal speed

6. Current limit resistor for LED

7. Optional serial mode selector

8. DX pump

9. Optional voltmeter

10.Optional s erial enable switch

11.Optional standby switch

12.Start switch

Installation

Figure 9 - Schematic diagram of the logic interface connections

3.7.7 Multi-drop mode

Using multi-drop mode, a single computer system can communicate with more than one DX pump. Each DX pump must be assigned its own individual address before it can be fitted into a multi-drop system. The command to ass ign the multi-drop address is sent in standard DX message format (as detailed in Section 4.1.10.

The message protocol in multi-drop mode is marginally different to that desc ribed for serial messages in single pump systems. The main differences in multi-drop message protocol are detailed below:

 All multi-drop commands, queries or replies have the first character #.  All commands, queries and replies contain a header containing the address of the node that the message is

to, followed by the address of the node that the message is from.

 There is a delimiter character: (colon) which separates the two multi-drop addresses in the header.  The remainder of the message (command, query or reply) follows the same protocol as already described for

single pump systems.

 The wild card address 99 is very useful and means ‘any’ node.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 39

B722-40-880 Issue H

CAUTION

After a DX pump has been assigned a multi-drop address, it will ignore any messages in the format for single pumps. An individual DX pump will remain silent and ignore all command messages unless the multi-drop address matches its own address.

3.8 Vent options, vent valve connection and control

If the pump is vented when it is at full rotational speed and the rate of pressure rise is too high, the pump could be damaged and its life may be reduced. Edwards therefore recommends that either the rate of pressure rise is limited (refer to Figure 2) or that the vent valve is only opened after the DX pump speed has fallen to 50% of full rotational speed.

To maintain the cleanliness of the vacuum system, Edwards recommends that, whenever the pump is switched off, the pump (or vacuum system) is vented when the speed of the DX pump is betw een fu ll rotati onal sp eed and 5 0% of full rotational speed. Over this speed range, the rotor spins fast enough to suppress any back streaming of hydrocarbon oil from the backing pump.

Do not connect the vent valve to the backing pipeline, this may le ad to contamination. Connect the inlet of the vent valve to the vent gas supply (refer to Section 2.3 for the vent gas specification).

Venting may be accomplished by using one of the following methods described in Section 3.8.1 to 3.8.4.

Installation

3.8.1 Manual vent valve

A manual vent valve is supplied with the DX pump. It is not possible to accurately control the rate of pressure rise using the manual vent valve so take care not to open it too quickly. Edwards recommends opening the manual vent valve only after the pump speed has fallen to 50% of full rotational speed.

3.8.2 TAV5 or TAV6 solenoid vent valve

The TAV5 and TAV6 solenoid valves can be purchased as accessories – see Section 7.4. The solenoid valves can be used in the following ways:

 Use a TAV5 or TAV6 solenoid valve in place of the manual vent valve on the pump  Use a TAV5 or TAV6 solenoid valve connected to a convenient flange on the vacuum system

If a vent valve is connected to the vacuum system, select a point upstream of the DX pump to prevent back streaming of oil from the backing pump.

If using the TAV5 vent valve, the pump may only be hard vented when it is at full speed if the vacuum system has a volume of 5 litres or more. If using the TAV6 vent valve, the pump may only be hard vented when it is at full speed if the vacuum system has a volume of 10 litres or more.

If the volume of the vacuum system is less than 5 litres (when using a TAV5 vent valve), or if the volume of the vacuum system is less than 10 litres (when using a TAV6 vent valve), incorporate a suitable vent restrictor and vent the pump when it is at full speed. Table 18 gives an indication of the appropriate orifice size to be fitted to the vent valve for given vacuum system volumes in order that the rate of pressure rise remains within the limits shown in Figure 2.

Note: If a vent restrictor is used, the time required to vent the vacuum system is unacceptably long. The time

may be reduced by using a vent valve with out a vent restrictor an d waiting until the p ump speed has fal len to 50% of full rotational speed before opening the vent valve.

3.8.3 Controlled venting

The TAV5 or TAV6 solenoid valve can be controlled by the Podule electronics. To use this function, fit the ele ctrical connector supplied with the pump to the lead of the TAV5 or TAV6 solenoid valve. To ensure cable cores and screen

Page 40

B722-40-880 Issue H

Installation

are wired correctly, follow the electrical connection instructions given in the Accessories Manual (supplied with the TAV valve) and refer to Figure 3 and Section 2.9. Plug the connector into the socket at the top of the Podule (refer to Figure 1).

The Podule is capable of controlling a number of different venting options, these are defined in Table 17.

Table 17 - Vent options

Option number Description of vent function

0 Vent valve opens fully below 50% full rotational speed for either Stop command or

Fail.

Note: This is the factory default setting.

1 Controlled venting from 100% to 50% full rotational speed; vent valve opens fully

below 50% for either Stop command or Fail.

2 Vent valve fully opens immediately Stop command is received; vent valve opens

fully below 50% full rotational speed if Fail.

3 Vent valve fully opens immediately Stop command is received; controlled venting

from 100% to 50% full rotational speed if Fail then vent valve opens fully below 50%.

4 Vent valve fully opens immediately if Fail; vent valve opens fully below 50% full

rotational speed if Stop.

5 V ent valve fully opens immediately if Fail; controlled venting from 100% to 50% full

rotational speed if Stop command received then vent valve opens fully below 50%.

6.7 Vent valve fully opens immediately for either Stop command or Fail.

When the pump is shipped, the Podule is configured with the factory default ve nt option 0, as detailed in Table 17. The Podule can be configured to another venting option, provided commands can be sent via the Serial I nterface or an Edwards TIC Turbo and Instrument Controller or Turbo Controller.

The Podule only energises (‘shuts’) the TAV solenoid valve when it receives a Start command. Prior to that, the valve will be in the ‘open’ vent state. If the vacuum system is a large system, allow the backing pump to reduce the pressure in the system to an acceptable level before starting the DX pump. In this case, send a command via the Serial Interface to close the vent valve before sending a Start command. This is known as a delayed start.

If the DX pump is controlled with an Edwards TIC Turbo and Instrument Controller or TIC Turbo Controller, the TAV solenoid valve can be driven from the TIC. Refer to the TIC Instruction Manuals for more information.

3.8.4 Alternative valve connected to the vacuum system

If using another vent valve, ensure that a suitable vent restrictor is fitted to the vacuum system to limit the rate of pressure rise. Refer to Table 18 for information about vent restrictor sizes. If a suitable vent restrictor is not fitted, open the vent valve only after the speed of the pump has fallen to 50% of full rotational speed.

Table 18 - Vent restrictor orifice diameter (with atmospheric pressure at the inlet of the vent valve)

V acuum system volume (litres) Orifice diameter (mm)

<20 ≤1.0 <10 ≤0.7

<5 ≤0.5 <2 ≤0.35

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 41

B722-40-880 Issue H

CAUTION

3.9 Cooling

3.9.1 Introduction

Ensure that the pump is adequately cooled to prevent damage to the rotor and bearing.

If the pump will be located inside an enclosure, ensure that there is adequate ventilation so that the ambient temperature around the pump does not exceed 40 °C.

 Natural Convection Cooling: For some light pumping duties, with an ambient air temperature less than 30 °C,

natural convection cooling may be adequate to cool the DX pump.

 Forced Air Cooling: The ambient air temperature when using forced air cooling must be 5 °C to 35 °C. Ensure

that there is an adequate supply of cooling air to the pump.

 Water Cooling: Use water cooling when the ambient air temperature is greater than 35 °C or when using a

bakeout band (CF variants only). When using water cooling, amb ient air temperature must be le ss than 40 °C and the water temperature must be between 10 °C and 20 °C.

Installation

 Edwards recommends that, wherever possible, the pump is cooled by forced air cooling or water cooling. See

Table 4 for further performance information.

3.9.2 Forced air cooling

Air-cooling accessories are available for DX pumps (refer to Section 7.4). Fit the air cooler as described in the instruction manual supplied with it. If an alternative fan is used for air cooling, ensure that the flow rate is above 70

3h-1

(40 cfm).

m The air cooler can be powered by a customer external power supply, the Edwards TIC Turbo and Instrument

Controller, the TIC Turbo Controller or by the Podule. It cannot be powered by the Podule if a TAV solenoid valve is already connected to the Podule. Follow the electrical connection instru ctions in the air-cooler manual to wire the lead of the air cooler into the Podule connector supplied with the pump (refer to Figure 1). Plug the connector into the socket at the top of the Podule (refer to Figure 1).

The Podule can be configured to drive an air cooler only if commands can be sent via the Serial Interface or an Edwards TIC Turbo and Instrument Controller or Turbo Controller.

3.9.3 Water cooling

To prevent condensation inside the pump and Podule, turn off the cooling water when the pump is switched off.

A WCX water cooler accessory is available for the DX pumps (refer to Section 7.4). Apply a thin layer of thermal grease to the mounting face of the water cooler then fit it as described in the instruction manual supplied with it. The cooling water supply must comply with the specification given in Section 2.5. Pipes in the water cooling circuit may become blocked if the cooling water contains too much calcium carbonate or if it contains particles that are too large. Corrosion of the water cooling circuit may occur if there is too little calcium carbonate and oxygen in the water. Good quality drinking water is usually suitable. If in doubt, check th e quality of the cooling water supply and, if necessary, provide treatment and filtration.

Connect the cooling water supply to the water cooler on the pump as described below. Either of the two riffled connectors on the water cooler can be used for the water supply or return connections.

Page 42

B722-40-880 Issue H

Installation

Push reinforced hose (approximately 6 mm internal diameter) over the ends of the riffled hose connectors on the water cooler on the pump. Attach the hose with strong hose clips and make sure that they are tightened securely. Alternatively, unscrew the riffled hose connectors and remove them from the water cooler and make direct connections to the 1/8 inch BSP female threaded fittings on the water cooler.

To avoid breaking the cooling water circuit when removing the pump for maintenance, unscrew the two M4 fixing screws and remove the water cooler from the pump. Make sure there is a layer of thermal contact grease on the water cooler before refitting it to the pump.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 43

B722-40-880 Issue H

WARNING

4 Operation

Do not operate the DX pump unless it is connected to the vacuum system. The pump rotor rotates at very high speeds and the rotating blades might not be visible. If the pump is run unconnected, the pump rotor can cause injury.

Before operating the pump, it is worthwhile configuring the various Podule settings so that they are suitable for the application.

If the system is designed to operate in pure Parallel Interface Mode, there is no facility to change any of the Podule settings once the DX pump is installed on the system. The pump is supplied with all settings at factory default values , as shown in Table 14. If any of the Podule settings are to be changed, change them before installing the DX pump on the system.

The DX pump can be configured using the customer serial system. Section 4.1 details the commands that will be needed to configure the Podule. Alternatively, use the Edwards TIC Turbo and I n strument Controller or TIC Turbo Controller. Further information regarding this is detailed in Section 4.2.

If the DX pump is operated in pure Parallel Interface Mode and the Podule settings will not be reconfigured, go straight to Section 4.3.

Operation

4.1 Configuring the DX pump using serial commands

Refer to Table 14 for a summary of the full set of serial commands.Table 12 details the parameter range and factory default for each setting. The following sections describe the settings in more detail.

4.1.1 Power limit setting

Table 19 shows the power limit setting options for the DX pumps . The pump is supplied with a def ault power limit as

shown. If this limit is not suitable for the application, change it to any value between the maximum and minimum shown.

Table 19 - Power limit setting

Pump Maximum value setting Minimum value setting Default power setting

EXT75DX 120 W 50 W 80 W

EXT255DX 200 W 80 W 160 W

Send the command as follows (where the 'd' characters represent the value in Watts that is be ing se t. For ex ample, to set the limit to 90 W, type 90).

Command ! S

The reply will be in the following format:

8 5 5spd d dcr

∗

S 8 5 5sprcr

The Power Limit Setting is now stored in memory within the DX pump. To check what power limit is set, send a query as follows:

Command ? S 8 5 5cr

Page 44

B722-40-880 Issue H

Operation

The reply will be in the following format:

Reply = S

8 5 5spd d dcr

4.1.2 Powering a fan from the podule

A fan can be powered from the DX Podule, provided that the Podule is not being used to control a vent valve. To enable the fan, send the following command:

Command ! S 8 5 3sp8cr

The reply will be in the following format:

Reply * S

The permanently enabled fan setting is now stored in memory within the DX pump. When the pump is shipped, it is set up to run a vent valve. Send a query to find out what the setting is as follows:

Command ? S

The reply will be in the following format:

Reply = S

If the character 'd' is 8, then the fan is enabled. If it is anything else, configure the Podule to run the fan.

8 5 3sprcr

8 5 3cr

8 5 3spdcr

4.1.3 Controlled venting options

If the Podule is used to automatically control a vent valve, there are a number of varied venting options available, refer to Table 17.

To set a vent option, send the following command, (where the character 'd' refers to the option number shown in

Table 17):

Command ! S 8 5 3spdcr

The reply will be in the following format:

Reply * S

The Venting Option is now stored in memory within the DX pump. To check what Venting Option is set, send a query as follows:

Command ? S

The reply will be in the following format:

Reply = S 8 5 3spdcr

8 5 3sprcr

8 5 3cr

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 45

B722-40-880 Issue H

4.1.4 Standby speed setting

The pump can be run at Standby Speed rather than full rotational speed. The Standby Speed is a user configurable option and can be set to any value between 55% and 100% full rotational speed. When the pump is shipped, it is configured with a standby speed of 70% full rotational speed.

To change the Standby Speed setting, send the following command (where the ch aracters 'd' re pres ent the value as a percentage of full rotational speed):

Operation

Command ! S

The reply will be in the following format:

Reply * S

The Standby Speed is now stored in memory within the DX pump. To check what Standby Speed is set, send a query as follows:

Command ? S

The reply will be as follows:

Reply = S

8 5 7spd d dcr

8 5 7sprcr

8 5 7cr

8 5 7spd d dcr

4.1.5 Normal speed setting

The Normal Speed is a user-configurable setting and can be set to any value between 50% and 100% full rotational speed. When the pump is shipped, it is configured with a Normal speed of 80% full rotational speed.

To change the Normal Speed setting, send the following command (where the characters 'd' represent th e value as a percentage of full rotational speed):

Command ! S

8 5 6spd d dcr

The reply will be as follows:

Command * S

The Normal Speed is now stored in memory within the DX pump. To check what Normal Speed is set, send a query as follows:

Command ? S

The reply will be as follows:

Reply = S

8 5 6sprcr

8 5 6spd d dcr

8 5 6cr

Page 46

B722-40-880 Issue H

Operation

4.1.6 Timer setting and options

Refer to Section 1.4.3 for a full description of Timer functionality. The time-out period is a user-configurable option and can be set to any value from 1 to 30 minutes. When the pump

is shipped, it is configured with a default time-out period of 8 minutes. To change the Timer setting, send the following command (where the characters 'd' represent the time-ou t period in

minutes):

Command ! S

The reply will be as follows:

Reply * S 8 5 4sprcr

The Timer setting is now stored in memory within the DX pump. To check what time-out period is set, send a query as follows:

Command ? S 8 5 4cr

The reply will be as follows:

Reply = S 8 5 4spd dcr

The Timer is permanently enabled during ramp-up, however it is optional whether to have it enabled at other times. When the pump is shipped, the Timer is enabled by default.

To disable the Timer, send the following serial command:

Command ! S 8 7 0sp0cr

The reply will be as follows:

Reply * S

8 5 4spd dcr

8 7 0sprcr

The state of the Timer option is stored in memory within the DX pump. To enable the Timer again, send the following serial command:

Command ! S

The reply will be as follows:

Reply * S

To check whether the Timer is enabled or disabled, send the following query:

Command ? S

The reply will be as follows (where d=0 means disabled and d=1 means enabled):

Reply = S

8 7 0sp1cr

8 7 0sprcr

8 7 0cr

8 7 0spdcr

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 47

B722-40-880 Issue H

4.1.7 Analogue signal options

The Analogue Output can be used to monitor one of four different parameters, as detailed in Table 20.

Table 20 - Analogue signal options

Option number Description of analogue output number

0 Measured pump rotational speed

Note: This is the factory default setting.

1 Measured system power 2 Measured motor temperature 3 Measured controller temperature

To configure the Analogue Output, send the following command (where the ch aracter ‘d’ denotes the option numbe r detailed in Table 20):

Operation

Command ! S

The reply will be as follows:

Reply * S

The Analogue Output Signal setting is now stored in memory within the DX pump. To check which Analogue Output Signal setting is enabled, send a query as follows:

Command ? S

The reply will be as follows:

Reply = S

8 7 1spdcr

8 7 1cr

8 7 1spdcr

4.1.8 Electronic braking options

Refer to Section 1.4.7 for a full description of the Electronic Braking feature. The pump is supplied with Electronic Braking disabled by default. To enable Electronic Braking, send the following serial command:

Command ! S

The reply will be as follows:

Reply * S

8 7 2sp1cr

8 7 2sprcr

The state of the Electronic Braking option is stored in memory within the DX pump. To disable the Electronic Braking again, send the following serial command:

Command ! S

The reply will be as follows:

Reply ! S

To check whether Electronic Braking is enabled or disabled, send the following query:

Command ? S

8 7 2sp0cr

8 7 2sprcr

8 7 2cr

Page 48

B722-40-880 Issue H

Operation

The reply will be as follows (where d=0 means disabled and d=1 means enabled):

Reply = S

8 7 2spdcr

4.1.9 Factory settings

The DX pump can be configured its original factory settings with on e serial command. To reset the Podule to factory settings, send the following command:

Command * S 8 6 7sp1cr

The reply will be as follows:

Reply * S

The factory settings are restored in the memory within the DX pump.

8 6 7sprcr

4.1.10 Assigning a multi-drop address

When the DX pump is shipped, multi-drop mode is disabled by default. Each individual pump must be programmed with its own multi-drop address via a point-to-point connection before introduction into a multi-drop network.

Send the following command to assign a multi-drop address (where the 'd' characters represent the address):

Command ! S

Note: The address can be any decimal number from 1 to 98. The address number 0 is used to disable multi-drop

mode. The address number 99 is reserved as a wild card and is used in the query set up detailed later.

8 5 0spd dcr

The reply will be as follows:

Reply * S 8 5 0sprcr

The multi-drop address is stored within the DX pump. To check if the pump has a multi-drop address, send a query as follows:

Query ? S

If the reply is as follows, the pump has multi-drop mode disabled:

Reply = S

If the pump already has a multi-drop address, there will be no reply. Communicate with the pump in multi-drop message protocol. Refer to Section 3.7.7 for more information about multi-drop mode and multi-drop message protocol.

Use the following query (using wild card address 99 which means ‘any’ node) to find out the multi-drop address of the DX pump:

Command #

The reply will be as follows, where dd denotes the multi-drop address of the pump:

Reply #

9 9:9 9= S8 5 0spd dcr

9 9:9 9? S8 5 0cr

8 5 0cr

8 5 0sp0cr

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 49

B722-40-880 Issue H

Multi-drop mode can be disabled by assigning the pump an address 0. To do this, send the following command (where dd denotes the multi-drop address of the pump and XX denotes the address of the node that is sending the command):

Operation

Command #

The reply will be as follows:

Reply #

Once multi-drop mode is disabled, the pump will no longer respond to multi-drop commands.

d d:x x! S8 5 0sp0cr

x x:d d* S8 5 0sp0cr

4.2 Configuring the DX pump using a TIC

The DX pump can be configured using the Edwards TIC Turbo and Instrument Controller or TIC Turbo Controller. It is possible to set the following parameters of the DX pump using the TIC:

 Power limit setting  Controlled venting options, including running a fan from the Podule  Standby speed setting  Normal speed setting  Timer settings - both enabling/disabling the timer AND setting the time-out period  Electronic braking options  factory default settings

For information on how to perform these settings, refer to the TIC Turbo and Instrument Controller or TIC Turbo Controller Instruction Manuals.

Note: It is not possible to configure the Analogue Output Options using the TIC. There is also no facility within

the TIC to assign a multi-drop address to the DX pump.

There is a further option of connecting the TIC to a PC and using the TIC PC Program to configure the DX pump. The TIC PC Program allows for the configuration all the settings shown in the list above as well as allowing configuration of the Analogue Output Options and assignment of a multi-drop address. Refer to the TIC PC Program Instruction Manual for more information.

4.3 Start-up

Irrespective of the system used to control the DX pump, work through the following steps before starting the pump.

4.3.1 Close the vent valve

 If using a manual vent valve, turn it clockwise to close it.  If using the customer control system to drive a vent valve, make sure that the vent valve is closed.  If driving a TAV solenoid valve from the Podule, the TAV valve will automatically shut when the pump is

started.

 If using the TIC to operate the vent valve, refer to Section 4.6.

Page 50

B722-40-880 Issue H

Operation

Note: The backing pump and DX pump can be started at the same time. The DX pump will not be damaged and can

operate as an effective baffle, however, if the vacuum system is large (100 litres or larger), it will be more efficient to allow the backing pump to reduce system pressure to 10 mbar before starting the DX pump. In this case, it will be necessary to close the vent valve in advance of starting the backing pump.

When using the Podule to control a TAV solenoid valve and operating in pure Parallel Interface Mode, the valve cannot be shut in advance of starting the DX pump because the facility to send the appropriate serial command is not available. If the facility to send serial commands is available, a delayed start can be performed, refer to

Section 4.5.1.

Note: If using a diaphragm pump for backin g the DX pump, allow a delay of 2 minutes before starting the DX pump.

4.3.2 Pre-start checks

1. Turn on the appropriate cooling device (fan or cooling water supply).

Note: If the Podule is configured to drive a fan, the fan will automatically start when power is supplied to the DX

pump.

2. Start the backing pump.

3. Switch on the power supply to the pump. Check that the two LEDs on the Podule light up for approximately 0.5 seconds and then extinguish.

If the LEDs do not light up as expected, or if the yellow LED begins to flash, refer to Section 5.5.

4.4 Operation with parallel control and monitoring

4.4.1 Start the pump

Start the DX pump by linking the Start/Stop control input to the 0 V control reference on the logic interface connector. The pump will then accelerate to full operating speed.

The green indicator on the Podule will illuminate when the pump reaches N ormal speed. This is 80% of full rotational speed by default but a different value may have been selected to suit the application.

4.4.2 Running at standby speed

To run the DX pump at Standby Speed, link both the Standby control in pu t to t he 0 V co nt rol re fe re nce o n t he l o gi c interface connector. If the pump is currently below Standby Speed then it will accelerate until it reaches Standby speed. If it is running faster than Standby Speed, it will decelerate until Standby Speed is reached.

To return the pump to full speed, disconnect the Standby control input from the 0 V control reference on the logic interface connector.

4.4.3 Stop the pump

Stop the DX pump by disconnecting the Start/Stop control input from the 0 V control reference on the logic interface connector. The pump rotor will decelerate to rest.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 51

B722-40-880 Issue H

4.4.4 Parallel monitoring

It is possible to monitor the followin g parameters:

 Analogue output  Normal signal  Fail signal

Refer to Section 3.6 for instructions on how to monitor these signals.

4.5 Operation with serial control and monitoring

4.5.1 Delayed start

If using a TAV solenoid valve controlled by the Podule, it may be desirable to close it before starting the DX pump. This will allow the backing pump to reduce the pressure in the vacuum system.

To close the vent valve, send the following command:

Operation

Command !

The reply will be in the following format:

Reply * c 8 7 5sp rcr

Note: This command overrides the current vent option and closes the vent valve. There is no open vent valve

command but, when a stop command is sent to the pump, the override is cleared.

c 8 7 5sp1cr

4.5.2 Start the pump

To start the pump, send the following command over the serial communications link:

Command !

The reply will be in the following format:

Reply *

The pump will then accelerate to full operating speed. The green indicator LED will illuminate when the pump reaches Normal speed. This is 80% of full rotational speed by default but a different value may have been selected to suit the application.

c 8 5 2sp1cr

4.5.3 Standby speed

To run the DX pump at Standby Speed, send the following command over the serial communications link:

Command !

The reply will be as follows:

Reply *

If the pump is currently below Standby Speed, it will accelerate until it reaches Standby Speed. If it is running faster than Standby Speed, it will decelerate until Standby Speed is reached.

c 8 6 9sp1cr

c 8 6 9sprcr

Page 52

B722-40-880 Issue H

Operation

To return the pump to full speed, send the following command:

Command !

The reply will be as follows:

Reply * c 8 6 9sprcr

c 8 6 9sp0cr

4.5.4 Stop the pump

To stop the DX pump, send the following command over the serial communications link:

Command !

The reply will be in the following format:

Reply *

On successful receipt of the stop command, the pump rotor will decelerate to rest.

c 8 5 2sp0cr

c 8 5 2sprcr

4.5.5 Temperature readings

The temperatures of both the pump motor and the internal electronics of the DX p ump can be monitored by sending the following query:

Command ? v 8 5 9cr

The reply will be as follows, where the first number is the motor temperature and the second number is the internal Podule temperature, both measured in °C:

Reply =

v 8 5 9sp d d d;d d dcr

4.5.6 Link parameter readings

The internal voltage, current and motor power of the DX pump can be monitored by sending the following query:

Command ?

The reply will be as follows, where the first number refers to voltage (measured in 0.1 Volts – i.e. divide the number by 10 to get an answer in Volts), the second number refers to current (measured in 0.1 Amps) and the t hird num ber refers to motor power (measured in 0.1 Watts):

Reply =

v 8 6 0spd d d;d d d;d d d d dcr

v 8 6 0cr

4.5.7 Measured motor speed

The measured rotational speed of the motor inside the DX pump can be monitored by sending the following query:

Command ?

The reply will be as follows, where the first returned number refers to motor rotational speed in revolutions per second (Hz):

v 8 5 2cr

Reply =

v 8 5 2spd d d d; h h h h h h h hcr

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 53

B722-40-880 Issue H

CAUTION

Note: The second return number is a 32-bit System Status Word (set of 8 hexadecimal characters) which is useful

for fault finding. Refer to Section 5.5.2 for advice on decoding the System Status Word.

4.6 Simultaneous parallel and serial operation

Note: It is not possible to use serial interface monitoring at the same time as running the pump at Standby Speed

in Parallel Interface Mode because the two functions share the same logic interface pins.

The Analogue Output signals are always available irrespective of whether commands are sent in parallel or serial control mode. The Analogue Output voltages are described in Table 8.

4.7 Operation with a TIC

For operation with an Edwards Turbo Instrument Controller or TIC Turbo Controller, the DX pump can be connected directly to this type of unit, which will provide the powe r necessa ry to drive the DX pu mp. Inst ructions on th e setup and operation with the TIC or TIC Turbo Controller can be found on CD ROM part number D397-00-879 which is supplied with the TIC or TIC Turbo Controller.

4.8 Decelerating and venting

Operation

Immediately after applying the stop command, whether by the parallel or serial interface or by the TIC, switch off the backing pump, then vent the pump in accordance with the advice given in Section 3.8.

Do not open a manual vent valve until the pump rotational speed has fallen below 50%, otherwise the rate of pressure rise may be too high, which could damage the pump. In an emergency only, open the vent valve quickly to decelerate the pump rotor in the shortest possible time.

Note: If the Podule is used to control a TAV solenoid valve, there is a 2-second delay between either a Stop

command being received or a fault condition being detected and the vent valve opening. This delay allows time for gauges, valves and other equipment to be switched off before venting occurs.

The green indicator LED on the Podule will extinguish as rotational speed drops below Normal speed. At very low speeds, the yellow indicator LED will flash and will extinguish when the pump has stopped.

The deceleration time can be improved by using the Electronic Braking feature, refer to Section 4.5.4.

4.9 Operation at extreme conditions

4.9.1 Operation with high inlet pressure

If the DX pump inlet pressure rises, the power supplied to the pump motor will increase to counteract the gas frictional load. The pump rotational speed will remain constant until the peak power level is reached; beyond this level, the speed of the pump will start to reduce.

If the pump speed falls to below 50% of full rotational speed, the Timer will start if it is enabled. If the speed does not recover to above 50% speed before the time-out period expires, the pump will shut down and display a Fail signal. If the Timer is disabled, the pump will immediately shut down and display a Fail signal if the speed drops below 50% of full rotational speed. Refer to Section 2.7 for the maximum power delivered to the pump and to Table 4, for maximum allowable inlet pressure.

Page 54

B722-40-880 Issue H

CAUTION

WARNING

Operation

4.9.2 Operation at high temperatures

Temperature sensors within the pump mechanism and el ectronics are monitored by an internal system. If the system detects that any internal temperatures are too high, the power supplied to the pump motor is reduced; the pump may not therefore be able to maintain full rotational speed if it is too hot.

If the pump speed falls to below 50% of full rotational speed, the Timer will start if it is enabled. If the speed does not recover to above 50% speed before the time-out period expires, the pump will shut down and display a Fail signal. If the Timer is disabled, the pump will immediately shut down and display a Fail signal if the speed drops below 50% of full rotational speed. Refer to Section 2.11 for pump operating ranges and Section 3.9 for advice on pump cooling.

4.9.3 Operation at over-speed

Control software within the Podule regulates the pump rotational speed and prevents the pump operating above its normal full rotational speed. In the unlikely event of a failure of this control software, the Podule has a built-in safety circuit that checks whether the pump is running at over-speed. If an over-speed condition is detected, the Podule automatically shuts down power to the pump motor and slows it down to rest. The Podule will signal a Fail condition if over-speed has been detected.

If the pump appears to be running at over-speed, switch it off and consult Edwards or the supplier.

4.9.4 Electrical supply failure

If the power supply fails when the pump is running, the impeller could continue to spin for approximately 10 minutes. The control circuit may not give any indication that the impeller is still running.

If the parallel start control signal on the logic interface connector is set to start, the pump may automatically restart when the electrical supply is restored after an electrical supply failure. Ensure that people cannot be injured by the rotating blades of the pump.

If using a vent valve powered by the pump, ensure that no more than 2 A is drawn from the regenerated power supply. If higher currents are drawn, the voltage of the regenerated power supply may collapse, causing the vent valve to open before the speed falls through 50% of full operating speed.

If the electrical supply to the DX pump fails when the pump is rotating, the motor of the pump is used as a generator. The regenerated power is used to maintain the output signals on the logic interface (such as the Normal signal and serial communications), to power the two indicator LEDs on the Podule and to maintain power at the Podule output (to control the vent valve, if fitted). The regenerated power is also available at the power supply pins of the logic interface connector and could be used to power other instruments through short power interruptions. The minimum voltage of this supply will be 24 V –20% (19.2 V) provided that the external load is not excessive.

As the pump rotational speed decreases, the motor's ability to generate power also decreases until it is no longer able to maintain power to the logic interface or LEDs. This will occur at speeds below 50% full rotational speed. In this case, there will be no indication about pump rotational speed, yet the impeller may still be turning.

When the power is reinstated after a power failure, the behaviour of the pump will depend on the control mode at the time of failure (parallel or serial) and the length of time the pump was without power. Table 21 shows a number of scenarios.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 55

B722-40-880 Issue H

CAUTION

WARNING

4.10 Bakeout

Do not touch the bakeout band or surrounding surfaces during the bakeout process as they will be hot.

Pumps with ISO and NW style inlet flanges are not suitable for bakeout; only pumps with CF flanges must be used. When baking the pump to above 70 °C at the inlet flange, the pump must be water cooled to prevent damage to the bearing lubricant.

If the pump (and the vacuum system) are heated, the degassing process will speed up and the pump will reach ultimate vacuum in the shortest possible time. Heating the pump will also prevent condensation of vapours inside the pump.

The Edwards BX bakeout band may be used to heat the pump (refer to Section 7.4). Fit the appropriate band around the pump, just below the CF inlet flange. When baking the pump or the system, make sure that the temperature of the inlet flange does not exceed 100 °C.

Operation

When baking the vacuum system, if the temperature of the system exceeds 200 °C, put a radiation shield between the system and the pump. This radiation shield will reduce the heat radiated onto the pump rotor.

Typically, a bakeout of four hours is long enough to remove water condensation from the pump, however, the bakeout time will depend on the amount of condensation in the pump and the vacuum system, and the ultimate pressure desired.

Page 56

B722-40-880 Issue H

Operation

Table 21 - Behaviour of a pump when the power is re-instated after an electrical supply failure

Length of power failure Control mode Behaviour of pump

Power is reinstated before pump rotational speed falls below 50%

Power is reinstated after pump rotational speed falls below 50% but before regenerative power ceases

Power is reinstated after pump rotational speed falls below 50% and the regenerative power ceases

Either Parallel or Serial Control Regenerative power maintains all

output signals during the power failure. The pump will ramp to its designated speed as quickly as possible after the power has been restored.

Either Parallel or Serial Control, Timer disabled

Either Parallel or Serial Control, Timer enabled

Either Parallel or Serial Control Regenerative power ceases and fails

Regenerative power maintains all output signals during the power failure. As the Timer is disabled, the Podule will go into fail condition as soon as speed falls below 50% and will display flashing error code 0. When the power is reinstated, the pump will not ramp up until the error is cleared. To clear the error, send a Stop command (either parallel or serial, depending on the control mode). Then send a Start command to ramp the pump up to designated speed.

Regenerative power maintains all output signals during the power failure. If power is reinstated before the Timer period expires, the pump will ramp up to its designated speed as quickly as possible. If the Timer period expires, the Podule will go into Fail condition and will display flashing error code 3. As above, when the power is reinstated, the pump will not ramp up until the error is cleared. To clear the error, send a Stop command (either parallel or serial, depending on the control mode). Then send a Start command to ramp the pump up to designated speed.

to maintain output signals. When power is reinstated, the pump with parallel control will automatically restart if the Start control on the logic interface is set to Start. The pump with serial control will require a Start command to ramp the pump up to the designated speed. Any Fail signals that were triggered during the regenerative power period are lost when the power is reinstated.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 57

B722-40-880 Issue H

CAUTION

WARNING

5Maintenance

The DX pump is not to be serviced by the customer. Pumps requiring servicing should be returned to Edwards or serviced by a qualified Edwards engineer.

Allow the pump rotor to stop, then disconnect the logic interface cable from the power supply before removing the pump from the vacuum system for maintenance or fault finding procedures.

5.1 Introduction

Instructions for bearing maintenance and surface cleaning for the DX turbomolecular vacuum pump are described in the following sections. The inlet screens, inlet strainer and inlet flange seals are available as spares (refer to

Section 7.3). Fit the inlet screen as described in Section 3.3.2.

Maintenance

5.2 Bearing maintenance

When supplied, the pump contains sufficient lubricant to supply the bearings for life. No routine maintenance is therefore required between bearing replacements. The bearings are not user-serviceable. The bearings will need to be replaced when they reach the end of their service life. This is typically more than 20,000 hours, but may be less; this depends on the type of pumping duty for which the pump is to be used.

When the bearings need replacement, Edwards recommends exchanging the pump for a factory-reconditioned replacement. Alternatively, send the pump to an Edwards Service Centre to have the bearings replaced.

5.3 Rotor life

The fatigue life of EXT Turbomolecular pump rotors is typically 40,000 to 50,000 cycles. As a precautionary measure, Edwards recommends that pumps are returned for a major service (rotor replacement) after 20,000 cycles of acceleration to full speed and back to a stop, or after ten years of use, whichever occurs first.

5.4 Clean the external surfaces of the pump

Clean the external surfaces of the pump in a well-ventilated location. When using cleaning solutions and solvents to clean the pump, observe all precautions specified by the manufacturer. Avoid inhalation of any particulates that may be present in the pump.

Do not attempt to clean any parts of the pump other than external surfaces. Do not disassemble the pump or remove the electronics Podule. Use of solvents may damage internal pump components.

If the DX pump is contaminated inside, it may not be possible to achieve the specified ultimate vacuum or pumpdown time may increase. The pump should be returned to an Edwards Service Centre where the pump will be dismantled and cleaned.

Page 58

B722-40-880 Issue H

Maintenance

Any organic solvents can be used to clean the external surfaces of the pump. Edwards recommends using non-CFC solvents, such as isopropanol or ethanol. Use a cleaning solution that is suitable for the contaminants on the pump surfaces.

For environmental reasons, keep wastage of cleaning solutions and solvents to a minimum.

5.5 Fault finding

Refer to Table 22 for the possible causes of faults and the recommended actions to rectify faults.

Table 22 - Fault finding

Symptom Check Action

The Podule LEDs do not flash for 0.5 seconds when system switched on

The pump does not rotate after a parallel Start command is supplied

The pump does not rotate after a serial Start command is sent

The pump does not respond in multidrop mode

The orange status LED flashes an error code

The green Normal LED does not go on or the pump is not rotating at full speed or the pump fails whilst running

Has the electrical supply failed? Ensure that the electrical supply is

switched on and the fuses (and current limiting devices) have not been tripped.

Check that the electricity supply is on and whether the Fail output is active

Check whether the pump returns a reply to the Start command

Check that the multi-drop is enabled Make sure the pump has a multi-drop

Note the position of the long flashes within the series of 6 flashes to work out the error code.

Is the inlet pressure too high? If so reduce the pumping load or

Is the pump running too hot? Increase the cooling to the pump.

Does the rotor rotate freely? If not, the pump bearings may be

If there is a Fail signal, check whether the orange status LED is flashing. If it is, refer to

Section 5.5.1. If power is supplied,

there is no Fail signal and the rotor still does not rotate then there is a fault with the pump.

If there is no reply, check that the serial communications link is plugged in and that Serial Enable is active and that the electrical supply is on. Check whether the orange status LED is flashing. If it is, refer to 5.4.1.

address and that commands are sent using the multi-drop protocol.

Look up the flashing error code in

Section 5.5.1 and follow the advice

given.

check for a gross leak into the system.

Change from air cooling to water cooling (refer to Section 2 for maximum inlet pressure and cooling requirements). Increase coolingwater flow or decrease the water temperature or do both. Check that external heat sources (such as system bakeout heaters) are not excessive.

damaged. Contact the supplier or Edwards.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 59

B722-40-880 Issue H

Table 22 - Fault finding (continued)

Symptom Check Action

Ultimate pressure cannot be reached Is the pressure limited by water

vapour? Are any of the vacuum gauges

contaminated? Is the pumping speed insufficient

(due to poor conductance between the pump and the gauge or too large a chamber)?

Is the interstage inlet pressure >0.5 mbar (50 Pa)

Is the backing pressure >10 mbar (1x10

Is the high vacuum area of the system contaminated?

Check the rest of the system for leaks and contamination.

Remove the pump from the system and test the ultimate pressure of t he pump alone (refer to Section 2)

The pump is very noisy or there is excessive vibration or both

Any other problems - Contact the supplier or Edwards.

Is the pump rotational speed the same as the resonant frequency of the attached system?

Is the vibration being transmitted from the rotary backing pump?

Is the noise irregular and getting progressively worse?

Is the pump making a constant high pitched noise?

Pa)

Bake the system and pump.

If so clean or replace them.

Increase the conductance or reduce the volume.

If the interstage inlet pressure is too high, inlet pressure at the turbomolecular inlet is increased; ensure that the interstage inlet pressure is <0.5 mbar (50 Pa).

If so, the backing pressure may be too high. Check for backing pipeline leaks. If the throughput is high, a larger backing pump may be required.

If so, clean the high vacuum system.

If found, repair the leaks and clean the contamination.

If inlet pressure is poor, check the pump for contamination and refer to

Section 5. Leak test the pump. If the

leak rate >1x10 (1x10-5 Pa l s-1) contact the supplier or Edwards.

If so, change the natural frequency of the system or isolate the pump using flexible bellows.

If so, fit flexible bellows or a vibration isolator in the backing line.

If so, a bearing is defective. Contact the supplier or Edwards.

If so, the rotor is out of balance. Contact the supplier or Edwards.

-7

mbar l s-1

Maintenance

Page 60

B722-40-880 Issue H

Maintenance

5.5.1 Flashing error codes

Whenever a Fail condition becomes active, the standard once-per-revolution flash on the Status LED is replaced with the Error Flash Codes that reflect all active error conditions. The Fail status flash code positions, within the Status LED error flash sequence, are specified in Table 23.

There is a sufficient off period between each subsequent cycle repetition to clearly mark the start of a new flash sequence. The duration of a long flash (L) is equal to 3 times the duration of a short flash (s).

Table 23 - Flashing error codes

Error flash

position

0 ssssss The speed fell below 50% of full

1 Lsssss Podule internal software mismatch. Cycle the power to th e pump and see

2 sLssss Podule failed internal configuration

3 ssLsss Failure to reach or maintain half full

4 sssLss Over-speed or Over-current trip

5 ssssLs Pump internal measuremen t system

Error flash

code

sssssL

Comments Actions

Check whether the pump is too hot or rotational speed with the Timer disabled.

and calibration operation.

speed within the timer setting value.

activated.

disconnected or damaged.

Serial enable becomes inactive following a Serial Start command.

whether the inlet pressure is too high.

whether the error code appears again.

If it does, contact the supplier or

Edwards.

Cycle the power to the pump and see

whether the error code appears again.

If it does, contact the supplier or

Edwards.

Check whether the pump is too hot or

whether the inlet pressure is too high.

Cycle the power to the pump and see

whether the error code appears again.

If it does, contact the supplier or

Edwards.

Cycle the power to the pump and see

whether the error code appears again.

If it does, contact the supplier or

Edwards.

Re-activate Serial Enable and se nd a

Serial Stop command to clear the error

code.

Note: The status LED error flash sequence is capable of signalling multiple fail conditions. For example, error

flash code sLssLs signifies both error 2 (Podule failed interna l configuration and calibration operation) and error 5 (pump internal measurement system disconnected or damaged).

5.5.2 Decoding system status words

When using the serial communications link, additional information that may be useful for fault finding is available to be accessed. When sending a query to monitor measured motor speed, the pump also returns a System Status Word.

The send command is as follows:

Command ?

The reply will be as follows, where the first returned number refers to motor rotational speed in revolutions per second (Hz):

Reply =

v 8 5 2spd d d d; h h h h h h h hcr

v 8 5 2cr

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 61

B722-40-880 Issue H

The System Status Word returned is made up of 8 hexadecimal digits. To decode this word, convert each digit into a 4-digit binary number. (Table 24 is provided as an aid.) Follow the example below:

22830022



00100010100000110000000000100010

Table 24 - Hexadecimal conversion table

Hexadecimal Binary Decimal

000000 100011 200102 300113 401004 501015 601106 701117 810008

910019 A101010 B101111 C110012 D110113

E111014

F111115

Maintenance

Each binary digit (bit) represents a flag that is either active (state 1) or not active (state 0). To help decode the System Status Word, each bit is numbered (starting with 0 for the least significant to 31 for the most significant) as shown below.

Table 25 contains a list of the lower 16 status flags that will be useful for fault finding. The upper 16 status flags are

reserved by Edwards. Binary digits

00100010100000110000000000100010



3130292827262524232221201918171615141312111

Bit numbers

Table 25 - Status flags

Bit number Status flag Active flags means

0 Fail Fail status condition active 1 Stopped speed Below stopped speed 2 Normal speed Above normal speed

9876543210

Page 62

B722-40-880 Issue H

Maintenance

Bit number Status flag Active flags means

3 Vent valve closed Vent valve energised 4 Start Start command active 5 Serial enable Serial enable active 6 Standby Standby active 7 Half full speed Above 50% full rotational speed 8 Parallel control mode Exclusive control mode selection

9 Serial control mode Exclusive control mode selection 10 Invalid Podule software Podule internal software mismatch 11 Podule upload incomplete Podule failed internal configuration and calibration

12 Timer expired Failure to reach or maintain half full speed within the

13 Hardware trip Over-speed or Over-current trip activated 14 Thermistor error Pump internal temperature measurement system

15 Serial control mode interlock Serial enable has become inactive following a serial

Table 25 - Status flags (continued)

operation

timer setting value

disconnected or damaged

Start command.

The System Status word used in the example above was obtained with the pump at rest. Decoding the word provides additional information about the state of the pump. Refer to Table 26.

Table 26 - Example decoding of system status words

Bit number

00The pump has not failed 1 1 The pump is at rest 2 0 Speed is below normal speed 3 0 The vent valve is open 4 0 There is no active Start command 5 1 Serial enable is active 60Standby is not active 7 0 Speed is below 50% of full rotational speed 8 0 The pump is not in parallel control mode

9 0 The pump is not serial control mode 10 0 There is no Podule internal software mismatch 11 0 Podule passed internal configuration and calibration operation 12 0 The timer has not timed out 13 0 Over-speed and Over-current trip not activated 14 0 Pump internal temperature measurement system is fine 15 0 Serial enable has not become inactive during serial control

Status of bit (in example)

Indication

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 63

B722-40-880 Issue H

5.5.3 Useful service information

If using the serial communications link, additional information about the pump, such as pump type and internal Podule software versions, can be accessed. This information is particularly useful for service personnel to determine the model of the pump.

Send the following query to find out pump type:

Maintenance

Command ?

The reply is as follows, where String1 is the pump type, String2 is the DSP softwa re version number and String3 is the designated full speed of the pump (in revolutions per second):

Reply =

Send the following query to find out the PIC software version:

The reply is as follows, where String1 is the PIC software ve rsion number:

s 8 5 1spString 1 ; String 2 ; String 3 cr

Command ?

Reply = s 8 6 8spString 1 cr

s 8 5 1cr

s 8 6 8cr

Page 64

B722-40-880 Issue H

This page has been intentionally left blank.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 65

B722-40-880 Issue H

WARNING

6 Storage and disposal

6.1 Storage

Use the following procedure to store the pump.

1. Place protective covers over the inlet, outlet, interstage (for the DXi only), purge and vent ports.

2. Place the pump in its packing materials. For fastest pump-down when the pump is put back into service, seal the pump inside a plastic bag together with a suitable desiccant.

3. Store the pump in cool, dry conditions until required for use. Refer to Table 12 for recommended storage environment. When required, prepare and install the pump as described in Section 3.

4. Keep the pump upright at all times to prevent the drainage of oil from the bearing reservoir.

5. Avoid long-term storage if possible. W hen long-term storage is necess ary, the pump should be set up and run for at least eight hours every six months.

6.2 Disposal

Storage and disposal

In the unlikely event of a failure of the pump rotor, dust can be generated from the carbon fibre reinforced components. In this event, use appropriate personal protective equipment when handling and disposing of the pump and ensure that all pump inlets and outlets are capped off before disposal.

Dispose of the DX pump and any components and accessories safely in accordance with all local and national safety and environmental requirements.

Particular care must be taken with any components that have been contaminated with dangerous process substances. Take appropriate action to avoid inhalation of any particles that may be present in the pump. Do not incinerate the pump. The pump contains phenolic and fluorosilicone materials that can decompose to very

dangerous substances when heated to high temperatures.

Page 66

B722-40-880 Issue H

This page has been intentionally left blank.

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 67

B722-40-880 Issue H

7 Service, spares and accessories

7.1 Introduction

Edwards products, spares and accessories are available from Edwards companies in Belgium, Brazil, China, France, Germany, Israel, Italy, Japan, Korea, Singapore, United Kingdom, USA, and a world-wide network of distributors.

Order spare parts and accessories from the nearest Edwards company or distributor. When ordering, ple ase state for each part required:

 Model and Item Number of the equipment  Serial number (if any)  Item Number and description of the part

7.2 Service

Edwards products are supported by a worldwide network of Edwards Service Centres. Each Service Centre offers a wide range of options including: equipment decontamination; service exchange; repair; rebuild and testing to factory specifications. Equipment that has been serviced, repaired or rebuilt is returned with a full warranty.

Service, spares and accessories

Edwards local Service Centres can also provide Edwards engineers to support on-site maintenance, service or repair of the equipment.

For more information about service options, contact the nearest Service Centre or other Edwards company.

7.2.1 Returning a pump for service

If returning a pump t o a Service Centre, use the returns procedure includ ed at the end of this manual. The instruction in the returns procedure to drain all fluids does not apply to the lubricant in the pump oil reservoirs. Do not return the pump with the accessories fitted. Remove all accessories and retain them for future use.

Ensure that a completed HS2 form is returned with the pump. If the pump is configured to suit the application, make a record of the conf iguration before returning the pump. All

replacement pumps will be supplied with default factory settings. The TIC/DX PC Monitor program (available as an accessory) allows for automatically downloading and saving the configuration.

7.3 Spares

7.3.1 ISX inlet screen

An inlet screen is fitted to the pump as supplied to prevent damage from the entry of de bris into the pum p. The Item Numbers of replacement inlet screens are given below. Select the inlet screen according to the pump inlet flange size. The inlet screen cannot be replaced with an NW inlet flange.

Flange Size Inlet Screen Item Number

DN63ISO-K/ DN63CF

DN100ISO-K/ DN100CF

ISX 75D/63 B722-40-860

ISX100 B580-51-001

Page 68

B722-40-880 Issue H

Service, spares and accessories

7.3.2 Inlet strainer

The EXT75DXi pump is supplied with an inlet strainer for the interstage port. The Item Number for a replacement inlet strainer is given below.

Flange Size Inlet Strainer

DN25ISO-K A223-05-067

7.3.3 Inlet flange seals

DX pumps are supplied with an inlet seal. The Item Numbers of replacement seals are given in Table 27.

Table 27 - Inlet flange seals

Flange size Inlet flange seal Item number

DN63ISO-K ISO63 trapped O-ring (fluoroelastomer) B271-58-170

DN40NW DN40NW Co-seal (fluoroelastomer) B271-58-453

DN100ISO-K ISO100 trapped O -ring (fluoroelastomer) B271-58-171

DN63CF 63CF copper compression gasket (pack of 5) C081-00-003

DN100CF 100CF copper compression gasket (pack of 5) C082-00-003

7.4 Accessories

7.4.1 Installation

The accessories available for use with the DX pumps are described in the following section. Figure 10 shows how the accessories are fitted to the pump.

7.4.2 ACX air cooler

An ACX air cooler can be fitted to the DX pump. Refer to Section 3.9 to check the suitability of air cooling in a particular application.

Air Cooler Item Number For use with

ACX75 B580-53-075 EXT75DX

7.4.3 WCX water cooler

A water cooler can be fitted to the DX pump. Refer to Section 2.5 to check the suitability of the cooling water supply.

Water Cooler Item Number

WCX500 water cooling kit B736-00-121

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 69

B722-40-880 Issue H

7.4.4 BX bakeout band

A BX bakeout band accelerates the degassing of the pump to enable it to achieve lower pressures. It may also be used to protect the pump from condensation of contaminants. The bakeout bands are availa ble in 110 – 120 V or 220 – 240 V versions.

Note: The bakeout band is only for use with CF variants

Bakeout Band Item Number For use with

BX70 (110 V, 30 W) B580-52-040 EXT75DX BX70 (240 V, 30 W) B580-52-060 EXT75DX

7.4.5 TAV vent valve and vent port adaptor

Two solenoid-operated vent valves are available for system venting. The valves are 24 V d.c., normally open and can be driven by the Podule. The solenoid valve is fitted in place of the manual valve or, alternatively, can be fitted with an adaptor (supplied with the valve) and can be used with any suitable NW10 flanged port on the vacuum system.

TAV5 is suitable for smaller vacuum systems. TAV6 has a hi gher conductance and is suitable for larger vacuum systems (typically with volume greater than 10 litres).

Product Orifice Diameter Item Number

TAV5 vent valve 0.5 mm B580-66-010 TAV6 vent valve 1.0 mm B580-66-020

Service, spares and accessories

7.4.6 VRX vent restrictor

Use a VRX fixed orifice vent restrictor to restrict flow of vent gas into the pump. A VRX vent restrictor can be fitted to the inlet of a TAV5 or TAV6 vent valve or to a PRX10 purge restrictor. Refer to Table 18 for information on the selection of the correct VRX vent restrictor and to Table 28 for the item numbers of the vent restrictors available.

Table 28 - Vent restrictors

Vent restrictor Orifice diameter (mm) Item number

VRX10 0.1 B580-66-021 VRX20 0.2 B580-66-022 VRX30 0.3 B580-66-023

VRX50 0.5 B580-66-024 VRX70 0.7 B580-66-025

7.4.7 Vent port adaptor

The vent port adaptor has a 1/8 inch BSP male thread that can be screwed into both the vent port and purge port, making them suitable for NW10 fittings.

Vent port adaptor Item Number

Vent Port adaptor NW10 -1/8 inch BSP male B580-66-011

Page 70

B722-40-880 Issue H

Service, spares and accessories

7.4.8 PRX purge restrictor

The PRX10 is a modified DN10NW centring ring that filters the purge gas and restricts its flow rate to the recommended flow of 25 sccm. A vent port adaptor must be fitted to the purge port in order to connect a purge restrictor to the pump.

Purge restrictor Flange size Item Number

PRX10 NW10 B580-65-001

7.4.9 Vibration isolators

In applications where the small amount of vibration generated by the compound turbomolecular pump is a problem, a vibration isolator can be fitted. The isolator consists of two special flanges separated by a flexible bellows and a rubber, anti-vibration, outer collar. The vibration isolator required depends on the pump inlet flange size.

Note: The vibration isolator is designed for use with verti c ally mounted pumps only.

Flange Size Item Number

DN63ISO-K B581-15-000 DN63CF B581-01-000 DN100ISO-K B581-20-000 DN100CF B581-05-000

7.4.10 FL20K foreline trap

The foreline trap minimises oil vapour back-streaming from the b acking pump and is recommended where the highest system cleanliness is required.

Foreline trap Item Number

FL20K A133-05-000

7.4.11 Podule connector plug

A Podule connector plug can be fitted to the DX pump to drive a TAV vent valve or an ACX air cooler.

Product Item Number

Podule connector plug B722-40-808

7.4.12 TIC turbo and instrument controllers

There are three different types of controller available. The first is an Instrument Controller (IC), used to control gauges only and is not suitable to power an EXT turbo pump or backing pump. The second is a Turbo Controller (TC), used to control just a 24 V EXT turbo pump and a backing pump. The last is a Turbo Instrument Controller (TIC), used to control a 24V EXT turbo pump, backing pump and up to 3 gauges.

Controller Type Item Number

TIC Turbo Controller (100 W) D397-11-000 TIC Turbo Controller (200 W) D397-12-000 TIC Turbo and Instrument Controller (100 W) D397-21-000 TIC Turbo and Instrument Controller (200 W) D397-22-000

Edwards and the Edwards logo are trademarks of Edwards Limited.

Page 71

B722-40-880 Issue H

1. Vibration isolator

2. Inlet flange seal (supplied)

3. DX pump

4. TAV vent valve

5. Vent port adaptor

6. VRX vent restrictor

7. Manual vent valve (supplied)

8. Purge port blank (supplied)

9. Purge port adaptor

10.PRX purge restrictor

11.Inlet strainer (supplied)

12.Interstage port

13.Podule

14.Podule connector socket (for fan/TAV valve) (supplied)

15.WCX water cooler

16.ACX air cooler

17.BX bakeout band

18.Inlet screen (supplied fitted)

EXT75DXi only

7.4.13 TIC PC Program

The TIC PC Program is a piece of PC-based software that is supplied with the TIC and can be used for retrieving and setting the user-configurable parameters in the pump.

Figure 10 - Installation of optional accessories and spares

Service, spares and accessories

Page 72

B722-40-880 Issue H

This page has been intentionally left blank.

Edwards and the Edwards logo are trademarks of Edwards Limited.
