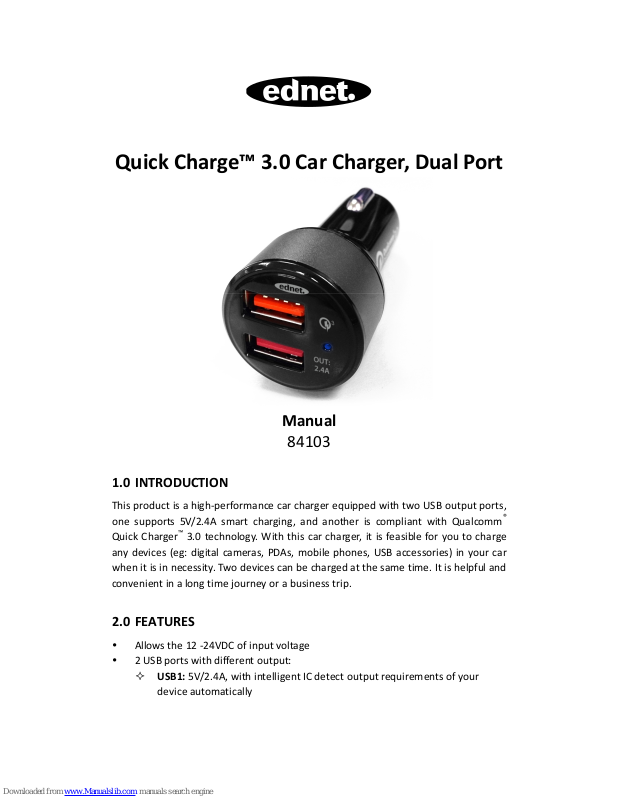

Page 1

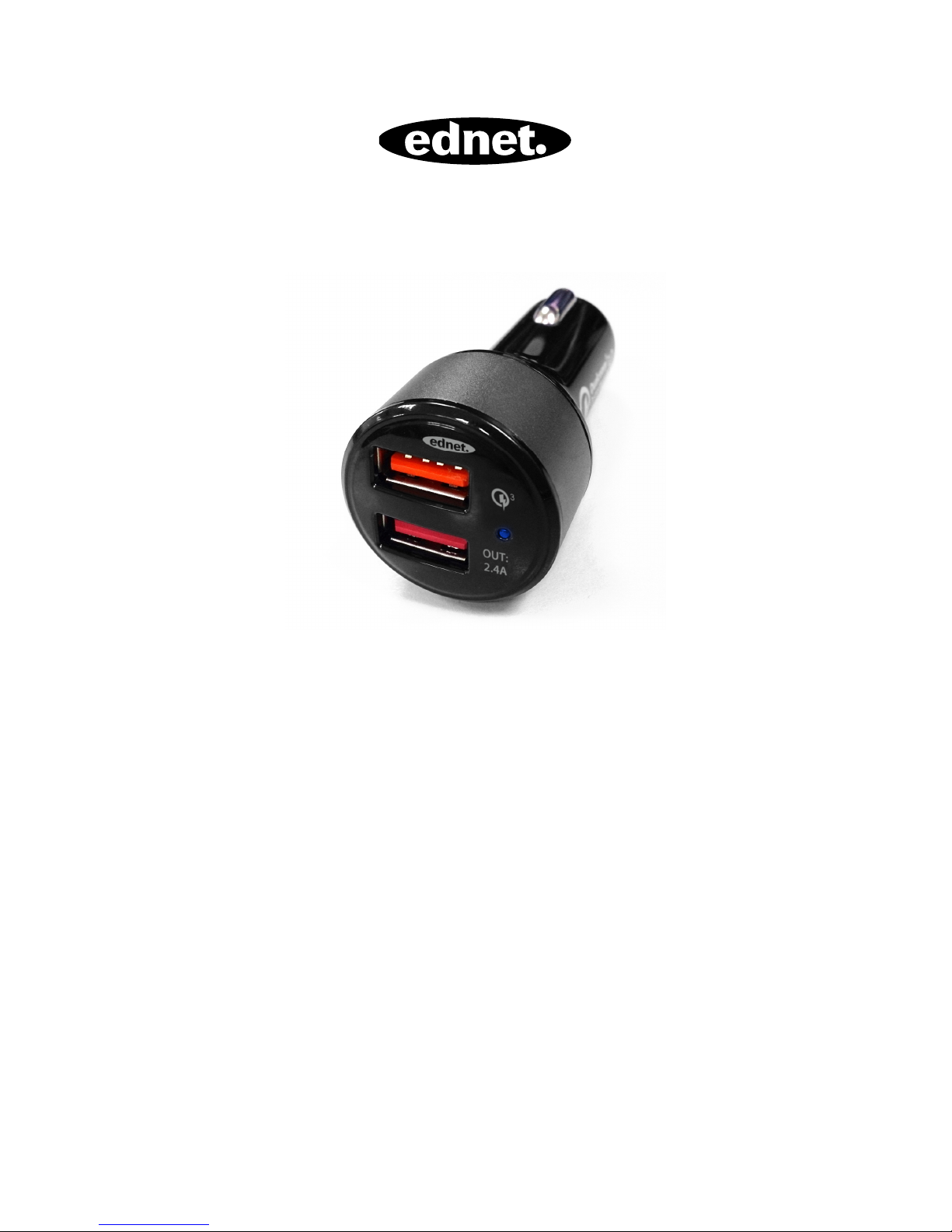

Quick Charge™ 3.0 Car Charger, Dual Port
Manual
84103
1.0 INTRODUCTION
This product is a high-performance car charger equipped with two USB output ports,
one supports 5V/2.4A smart charging, and another is compliant with Qualcomm
™
Quick Charger
any devices (eg: digital cameras, PDAs, mobile phones, USB accessories) in your car
when it is in necessity. Two devices can be charged at the same time. It is helpful and
convenient in a long time journey or a business trip.
2.0 FEATURES
Allows the 12 -24VDC of input voltage
2 USB ports with different output:
USB1: 5V/2.4A, with intelligent IC detect output requirements of your
3.0 technology. With this car charger, it is feasible for you to charge
device automatically
®
Page 2
USB2: Intelligent integrated circuit equipped measures output and
automatically adjusts power outputs of 3~6.5V/3A, 6.5~9V/2A, and
9~12V/1.5A for charging fast and safety.

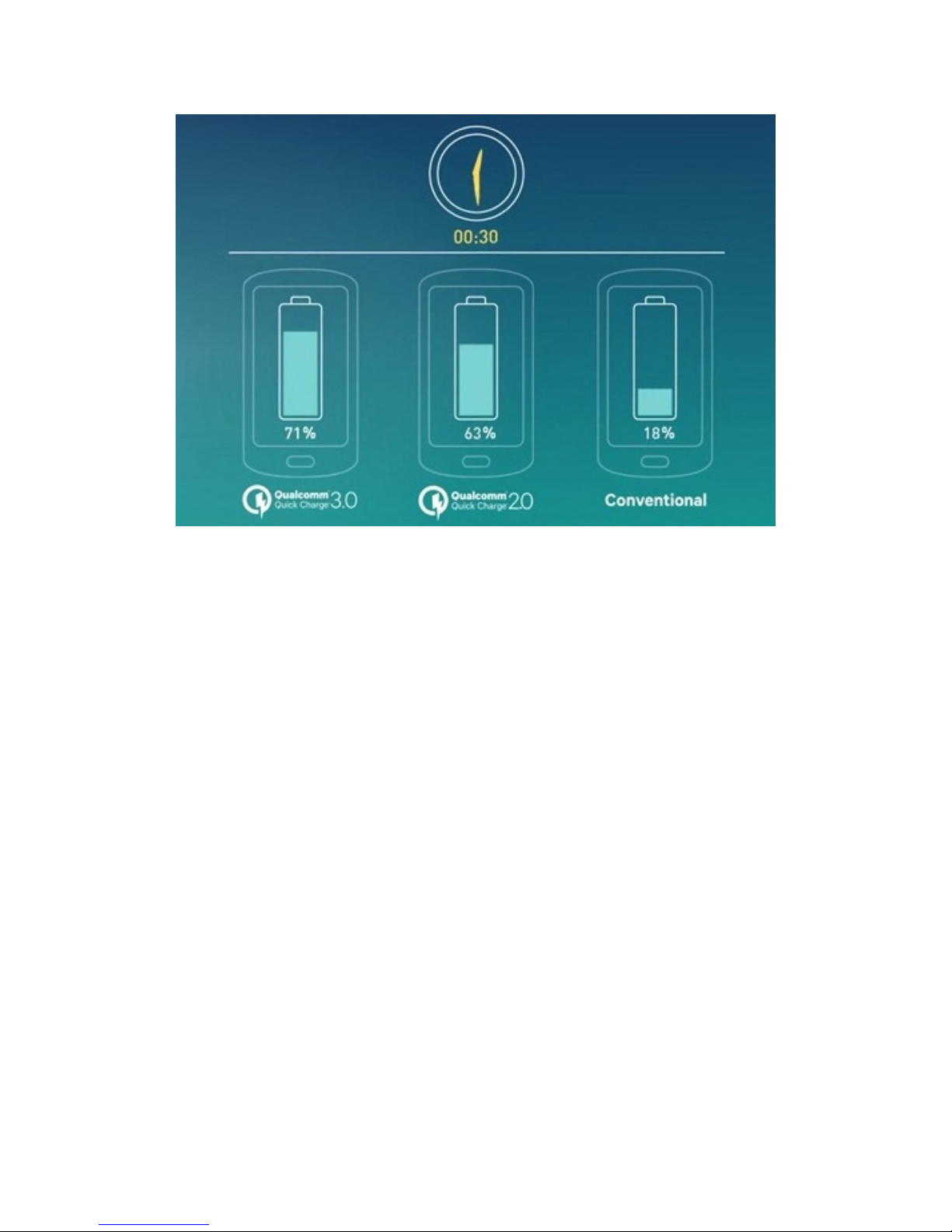

Compliant with Qualcomm Quick Charge 3.0, charging speed is four times faster
than normal charger.
Accurate limited current output and over current protection.
Over load protection and short circuit protection.
Over temperature protection with auto-recovery.
Select precision electrical components, fire lane version, and imported
file-resistant plastic materials.
Light, smart and convenient to use.
3.0 SPECIFICATIONS
Input/Output
Input 12~24V
Input Plug Cigarette Lighter
Output USB1 (Smart): 5V DC 2.4A
USB2 (QC 3.0): 3~6.5V/3A, 6.5~9V/2A,
9~12V/1.5A
Output Port 2 USB A/F
Performance
Ripple And Noise ≤200mV
Efficiency ≥80%
Protection
Over Current Protection Yes
Overload Protection Yes
Short Circuit Protection Yes
Over Temperature Protection Yes
Mechanical
Color White/Black
Size 30.1x68.3mm
Weight 29.38g
Environment
Operating Temperature Range 0~30°C
Storage Temperature Range -20~60°C
Operating Relative Humidity 30~90% RH.
Storage Relative Humidity 10~90% RH.
Certification CE, FCC
Other
MTBF 50000 Hours
NOTE:
1) More than 98% electronic products on the market can be charged via USB1
2) Charging speed is four times faster than the normal when charged via USB2
DC
Page 3
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
Main unit × 1
User Manual × 1

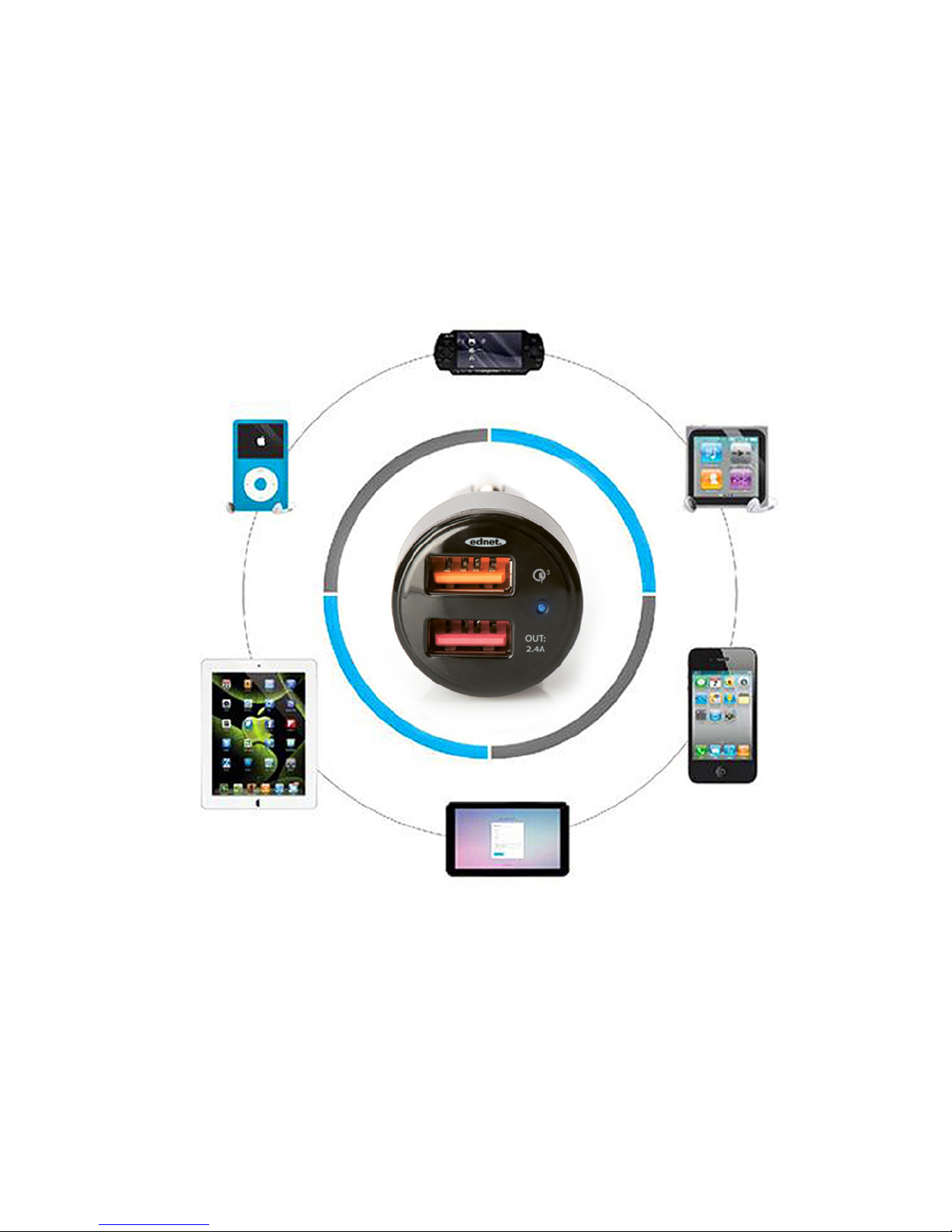

5.0 CONNETION DIAGRAM
Page 4
6.0 OPERATION
Operation Procedure
1. Plug the USB car charger into the car cigarette lighter, and LED light turns blue.
2. Plug the USB connector of the USB cable into the car charger's output interface,
then plug the other end of the USB cable into the electronic devises (such as
mobile phone, MP3, camera series).
3. Please pull the car charger out after the electronic devises are fully charged.
Page 5
Operation Notes
1. Please plug the car charger after starting the car.
2. Please pull the car charger out after use or car flameout.
Note: Our products have protection functions, and the two tips above are suggestions just for
safety.
3. Do not use the car charger with electronic products which own over-charging
specifications, so as to avoid any problems caused by specification mismatching.
4. Car charger will be a little overheated in the use process, and it's a normal
phenomenon under the normal room temperature of less than 65 degree
Celsius.
5. When the car charger stops working under over-current, over-temperature or
short-circuit protection, please unplug the device after it automatically returns
to work. Please check whether the device is compatible with this charger.
6. Do not place or storage the car charger close to fire, such as stove, candles etc.
7. Do not place or storage the car charger soak into liquid, such as swimming pool,
bathtub, etc.
8. Do not wash the car charger with corrosive cleaner.
9. If the car charger cannot work properly, please contact the store or distributor in
your area.
Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the
requirements of Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance.
The complete declaration of conformity can be requested by post under the below mentioned
manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living
environment. In this case, the user can be requested to undertake appropriate measures to
prevent interference.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
