I. Product Information .............................................................................. 1

I-1. Package Contents .................................................................................................................. 1

I-2. LED Status .............................................................................................................................. 1

I-3. System Requirements ............................................................................................................ 2

I-4. Safety ..................................................................................................................................... 2

II. Installation ............................................................................................ 3

III. Windows ............................................................................................... 5

III-1. Driver Installation .................................................................................................................. 5

III-2. Driver Uninstallation .............................................................................................................. 8

III-2-1. Windows XP/Vista/7 .............................................................................................................. 8

III-2-2. Windows 8/8.1 ....................................................................................................................... 8

IV. Mac OS ................................................................................................. 9

IV-1. Driver Installation .................................................................................................................. 9

IV-2. Driver Uninstallation ............................................................................................................ 15

V. Linux .................................................................................................... 16

V-1. Driver Installation ................................................................................................................ 16

V-1. Driver Uninstallation ............................................................................................................ 20

VI. Disabling Network Adapters ................................................................. 21

V-1. Windows XP ......................................................................................................................... 21

VI-2. Windows Vista ..................................................................................................................... 21

VI-3. Windows 7 ........................................................................................................................... 22

VI-4. Windows 8/8.1 ..................................................................................................................... 23

VI-5. Mac ...................................................................................................................................... 24

VI-6. Linux ..................................................................................................................................... 25

VII. Using The Adapter ................................................................................ 26

VII-1. Windows .............................................................................................................................. 26

VII-2. Mac: Connect to a Wi-Fi network ........................................................................................ 27

VII-3. Mac: Wireless Utility ............................................................................................................ 29

VII-3-1. Link Status ............................................................................................................................ 29

VII-3-2. Profiles ................................................................................................................................. 30

VII-3-3. Available Network ................................................................................................................ 32

VII-3-4. WPS ...................................................................................................................................... 33

VII-3-5. Information .......................................................................................................................... 36

VII-4. WPS Setup ............................................................................................................................ 36

MMuullttii--LLaanngguuaaggee QQuuiicckk IInnssttaallllaattiioonn GGuuiiddee ((QQIIGG)) oonn tthhee CCDD

Č

e

e

š

š

a: Českého průvodce rychlou instalací naleznete na

ttiinna

přiloženém CD s ovladači

DDeeuuttsscchh:

: Finden Sie bitte das deutsche S.A.L. beiliegend in der

Treiber CD

EEssppaaññool
FFrraannççaaiiss:
IIttaalliiaannoo:
MMaaggyyaarr::

l: Incluido en el CD el G.R.I. en Español.

: Veuillez trouver l’français G.I.R ci-joint dans le CD

: Incluso nel CD il Q.I.G. in Italiano.

A magyar telepítési útmutató megtalálható a mellékelt

CD-n

NNeeddeerrllaanndds

s: De nederlandse Q.I.G. treft u aan op de

bijgesloten CD

PPoollsskki

i: Skrócona instrukcja instalacji w języku polskim

znajduje się na załączonej płycie CD

PPoorrttuugguuêês

РРууссссккиий

s: Incluído no CD o G.I.R. em Portugues

й

Найдите Q.I.G. на pусскoм языке на приложеном

::

CD

TTüürrkkççee:

: Ü rün ile beraber gelen CD içinde Türkçe Hızlı Kurulum

Kılavuzu'nu bulabilirsiniz

а

УУккррааїїннссьькка

: Для швидкого налаштування Вашого пристрою,

:

будь ласка, ознайомтесь з інструкцією на CD

1

I. Product Information

LED

LED Status

Description

WLAN

On

Wireless activity: transmitting or receiving data.

Off

No wireless activity.

I-1. Package Contents

EW-7811DAC or EW-7811UAC QIG

CD-ROM USB Cradle (1.2m Cable)

I-2. LED Status

2

I-3. System Requirements

- Windows XP/Vista/7/8/8.1, Mac OS X 10.4 - 10.9, Linux

- USB 2.0 Port

- Hard Disk: 100MB

- CD-ROM Drive

I-4. Safety

In order to ensure the safe operation of the device and its users, please read
and act in accordance with the following safety instructions.

1. The wireless adapter is designed for indoor use only; do not place the

wireless adapter outdoors.

2. Do not place the wireless apater in or near hot/humid places, such as a

kitchen or bathroom.

3. The wireless adapter contains small parts that are a danger to small

children under 3 years old. Please keep the wireless adapter out of reach of
children.

4. Do not place the wireless adapter on paper, cloth, or other flammable

materials. The wireless adapter will become hot during use.

5. There are no user-serviceable parts inside the wireless adapter. If you

experience problems with the wireless adapter, please contact your dealer
of purchase and ask for help.

6. The wireless adapter is an electrical device and as such, if it becomes wet

for any reason, stop using it immediately. Contact an experienced electrical
technician for further help.

3

II. Installation

1. Switch on your computer and insert the USB adapter into an available USB

port of your computer, using the included USB cradle for flexible
positioning and better wireless reception if you wish.

Never use force to insert the USB adapter.

The EW-7811DAC should be positioned facing the direction of
your wireless router/access point.

4

2. If a Hardware Wizard/Driver Installation window opens as shown below,

please click “Cancel” or “Close”.

3. Insert the included CD-ROM into the CD drive of your computer.

4. For Windows users the setup wizard will open. For Mac users the CD’s

“Mac” folder will open. Linux drivers are also included in the “Linux”
folder.

If the CD doesn’t auto-run or if you downloaded the setup wizard,
please browse to the “Autorun”, “Mac” or “Linux” folder of the
CD for Windows, Mac or Linux users respectively.

5. Please follow the instructions in the appropriate chapter for your

operating system.

5

III. Windows

III-1. Driver Installation

If the CD didn’t auto-run, please open the
“AutoRun” folder and execute “Autorun.exe” file

to start the setup wizard.

1. Click the EW-7811UAC or EW-7811DAC wireless USB adapter to continue.

2. Click “Install Driver” to install the drivers for your EW-7811UAC/DAC.

6

3. Please wait until the installation wizard is ready and then click “Next” to

continue.

4. Please wait while the driver is installing.

7

5. Before you can use the wireless adapter, you need to restart your

computer. When the installation is complete you will be asked to choose
whether you wish to restart your computer now or later. Click “Finish” to
continue.

6. After you restart your computer, your EW-7811UAC/DAC will be installed

and fully functional. Please disable any other wireless adapters as
described in VI. Disabling Network Adapters. Then, Windows users can
connect to an available Wi-Fi network as usual. For guidance on doing so,
please refer to VII. Using The Adapter.

8

III-2. Driver Uninstallation

III-2-1. Windows XP/Vista/7

1. Go to Start > Programs > Edimax Wireless LAN > Uninstall

2. Follow the on screen instructions. An uninstall wizard will guide you

through the process.

III-2-2. Windows 8/8.1

1. Right click anywhere on the “Start” screen and then click the “All apps”

icon in the bottom right corner.

2. Locate the Edimax Wireless LAN category, select “Uninstall” and follow

the on-screen instructions.

9

IV. Mac OS

IV-1. Driver Installation

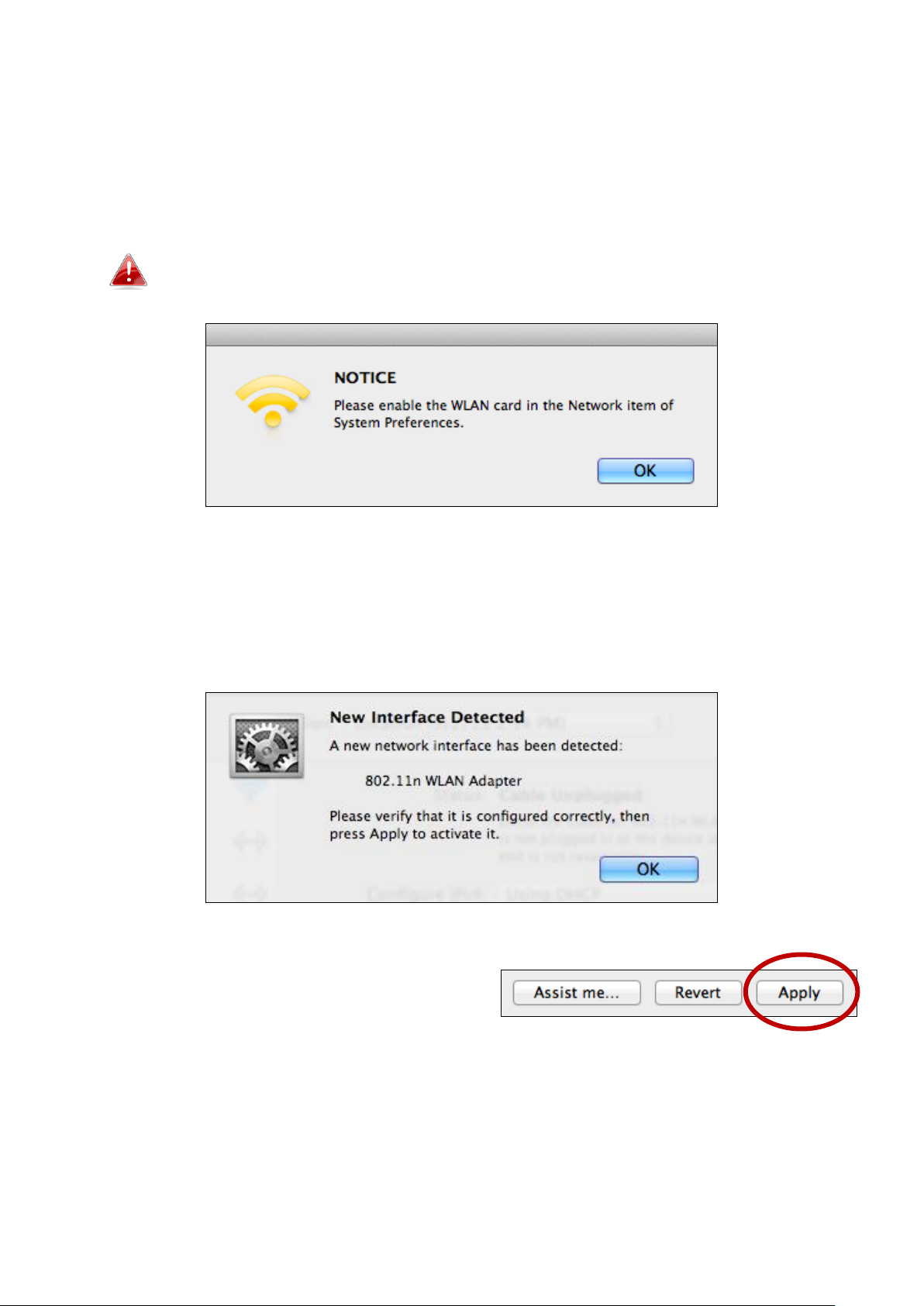

Ensure you select the correct folder for your version of Mac OS. To
check your version of Mac OS, click the Apple logo in the top left
corner of your desktop and go to “About This Mac”.

1. Open the “Wlan_11ac_USB_MacOS10…” folder for your version of Mac

OS X (10.4 - 10.9) and double click the “Installer.pkg” file to open the driver
installation wizard.

2. Click “Continue” to proceed to the next step.

3. The next screen displays important information, please read it carefully

(after the driver is installed, you need to enable the wireless adapter in
“System Preferences  Network”. You can click “Print” or “Save” to
print/save this information if you need or the instructions are repeated in
Step. 13) Click “Continue” when you are ready to continue.

10

If you have already have an older version of the software
installed on your computer, please uninstall it before you
continue.

4. Select a language (the default language is English) and click “Continue” to

install the driver.

11

5. To read the software license click “Read License” and then click “Agree” to

confirm you agree to the terms. You must agree to the terms to continue
installing the software.

6. If prompted, select which user to install the software for and click

“Continue”.
