Edimax EW-7303HPn V2 User Manual

Table of Contents
1.Terminology ....................................................................................................... 4
2.Introduction ....................................................................................................... 6
2.1 package content ........................................................................................ 6
2.2 product features ........................................................................................ 6
2.3 front panel description ............................................................................. 7
2.4 rear panel description ............................................................................... 8
3. Installation ........................................................................................................ 8
3.1 Hardware Installation ............................................................................... 9
3.1.1 Appearance and Interface Introduction ......................................... 9
3.1.2 Hardware installation steps ......................................................... 11
3.2 Software Installation .............................................................................. 11
4. Software configuration .................................................................................. 12
4.1 Prepare your PC to configure the WLAN Broadband Router ............... 14
4.2 Connect to the WLAN Broadband Router ............................................. 15
4.3 Management and configuration on the Outdoor Router ........................ 17

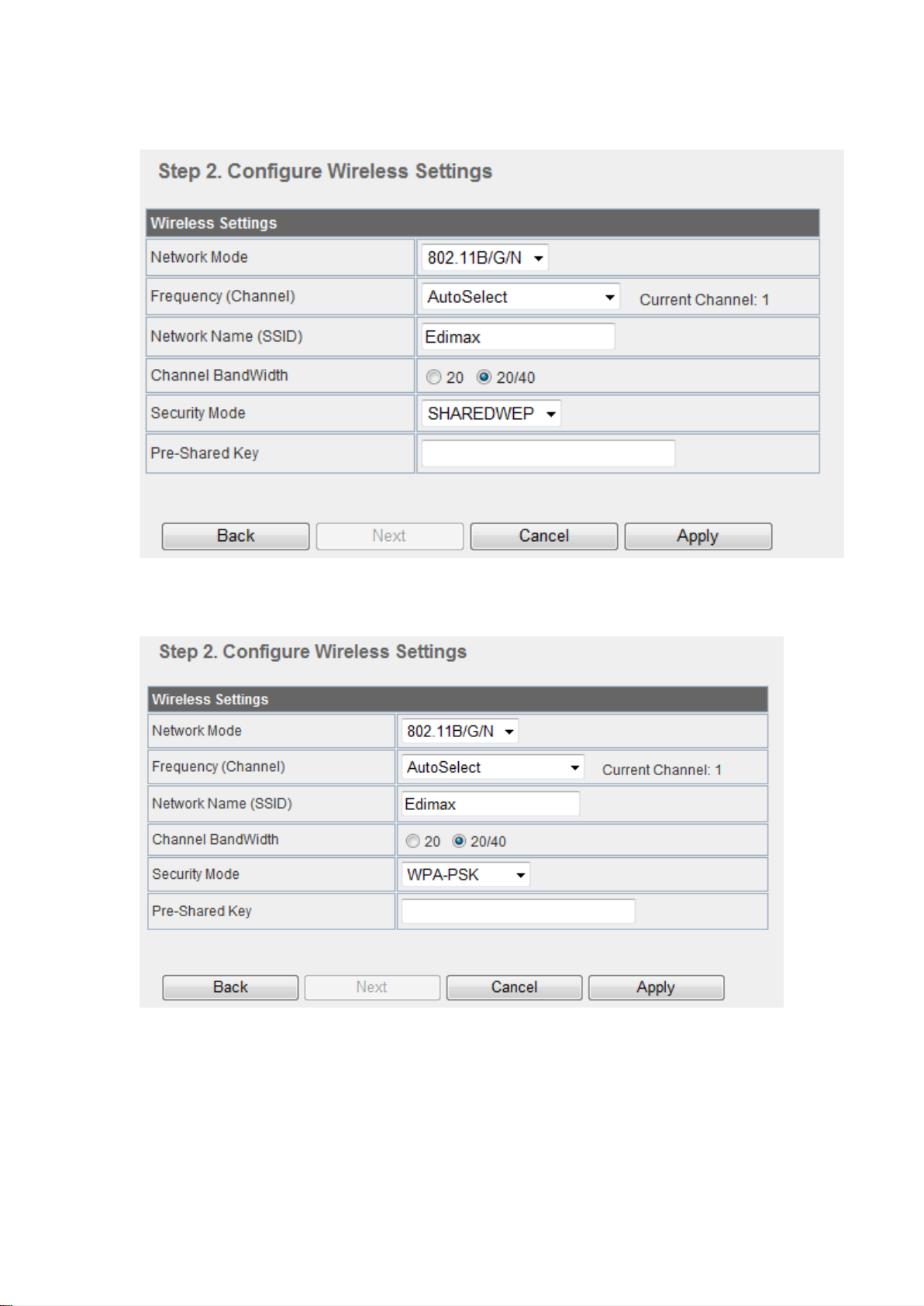

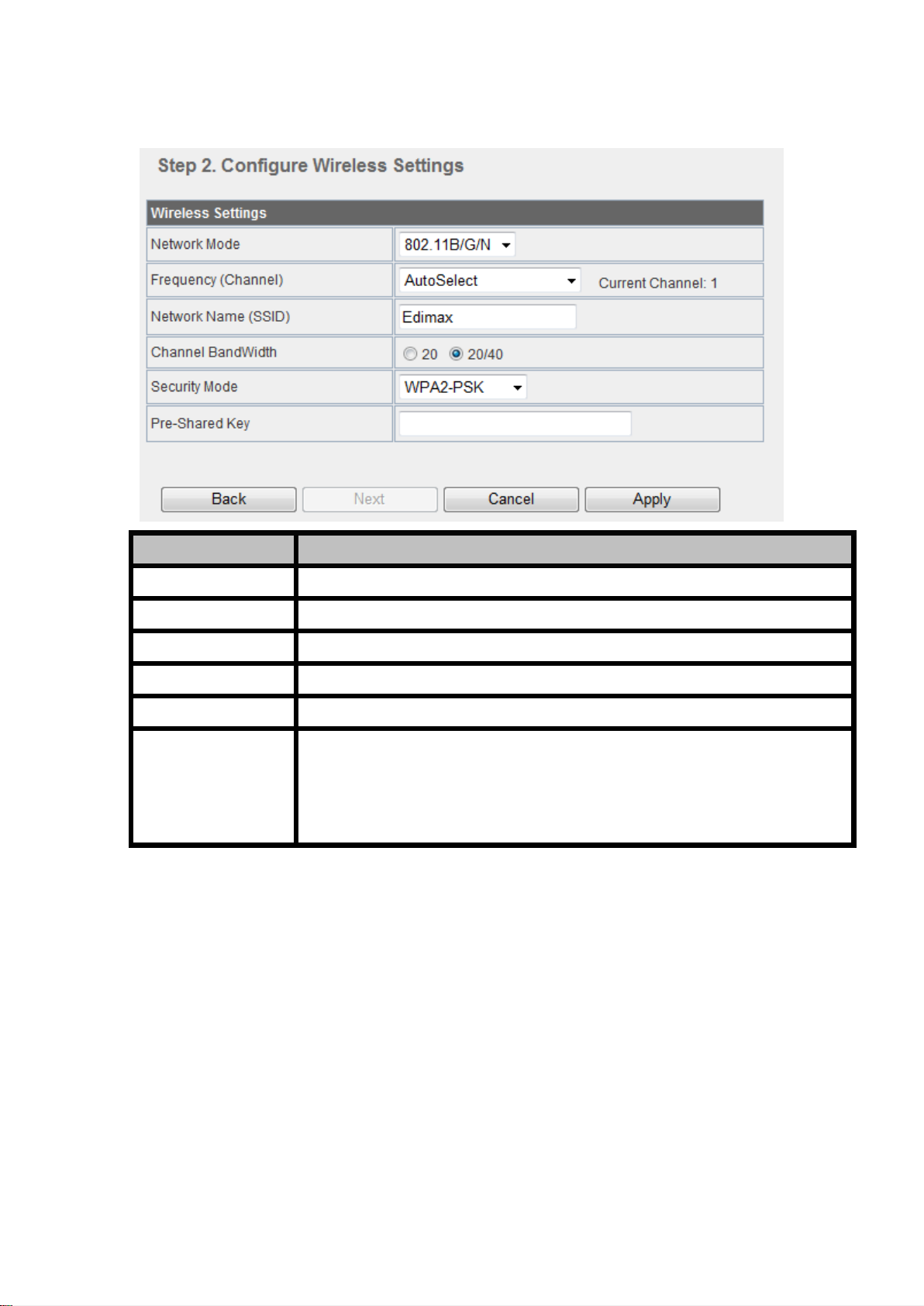

4.3.1 Wizard ......................................................................................... 17
4.3.2 Operation Mode .......................................................................... 24
4.3.3 Internet Settings .......................................................................... 26
4.3.3.1 LAN ................................................................................. 28
4.3.3.2 VPN Passthrough ............................................................. 30
4.3.4 Wireless Settings ......................................................................... 30

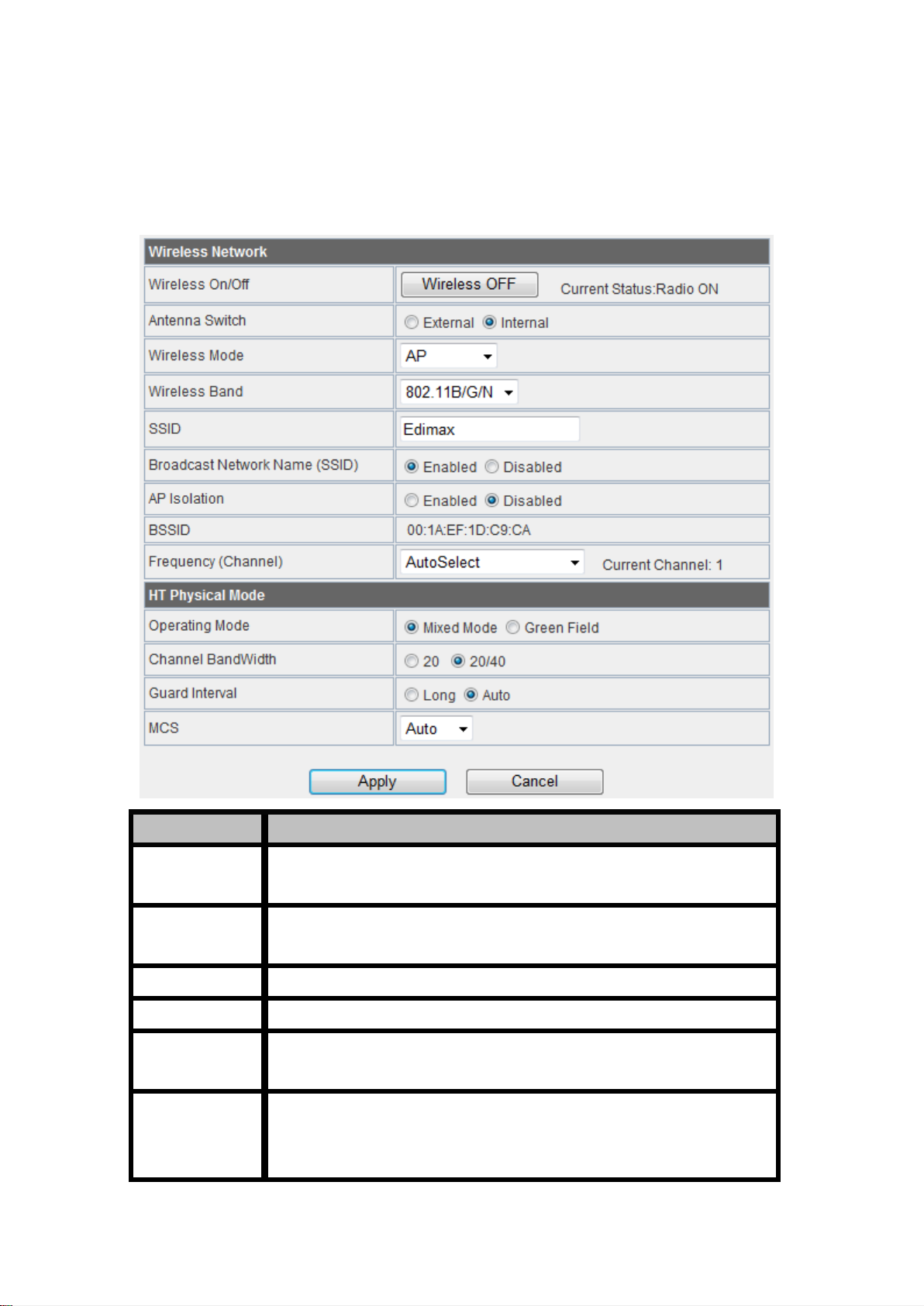

4.3.4.1 Basic ................................................................................. 31
4.3.4.2 Advanced.......................................................................... 33
4.3.4.3 Security ............................................................................ 33
4.3.4.4 WPS ................................................................................. 41
4.3.5Administration ............................................................................. 42
4.3.5.1 Management ..................................................................... 42
4.3.5.2 Upload Firmware ............................................................. 44
4.3.5.3 Settings Management ....................................................... 45
4.3.5.4 Status ................................................................................ 47
4.3.5.5 System Log ...................................................................... 47
4.4 Configuration Examples ........................................................................ 49
4.4.1 Example one – PPPoE on the WAN ........................................... 49
4.4.2 Example two – fixed IP on the WAN .......................................... 51
4.4.3 Example three –set WLAN to be WAN as WiFi Client .............. 54
5. FREQUENTLY ASKED QUESTIONS (FAQ)............................................ 58
5.1 What and how to find my PC’s IP and MAC address? .......................... 63
5.2 What is Wireless LAN? ......................................................................... 63
5.3 What are ISM bands? ............................................................................. 63
5.4 How does wireless networking work? ................................................... 64
5.5 What is BSSID? ..................................................................................... 64
5.6 What is ESSID? ..................................................................................... 65
5.7 What are potential factors that may causes interference? ...................... 65
5.8 What are the Open System and Shared Key authentications? ............... 65
5.9 What is WEP? ........................................................................................ 66
5.10 What is Fragment Threshold? .............................................................. 66
5.11 What is RTS (Request to Send) Threshold? ......................................... 67
5.12 What is Beacon Interval? ..................................................................... 67
5.13 What is Preamble Type?....................................................................... 67
5.14 What is SSID Broadcast? ..................................................................... 68
5.15 What is Wi-Fi Protected Access (WPA)? ............................................. 68
5.16 What is WPA2? .................................................................................... 68
5.17 What is 802.1x Authentication? ........................................................... 68
5.18 What is Temporal Key Integrity Protocol (TKIP)? .............................. 69
5.19 What is Advanced Encryption Standard (AES)? ................................. 69
5.20 What is Inter-Access Point Protocol (IAPP)? ...................................... 69
5.21 What is Wireless Distribution System (WDS)? ................................... 69
5.22 What is Universal Plug and Play (uPNP)? ........................................... 69
5.23 What is Maximum Transmission Unit (MTU) Size? ........................... 70
5.24 What is Clone MAC Address? ............................................................. 70
5.25 What is DDNS? .................................................................................... 70
5.26 What is NTP Client? ............................................................................ 70
5.27 What is VPN? ....................................................................................... 70
5.28 What is IPSEC? .................................................................................... 70
5.29 What is WLAN Block Relay between Clients? ................................... 71
5.30 What is WMM? .................................................................................... 71
5.31 What is WLAN ACK TIMEOUT? ...................................................... 71
5.32 What is Modulation Coding Scheme (MCS)? ..................................... 71
5.33 What is Frame Aggregation? ............................................................... 71
5.34 What is Guard Intervals (GI)? .............................................................. 71
1.Terminology
Triple Data Encryption Standard
Advanced Encryption Standard
American National Standards Institute
Access Point
Complementary Code Keying
Carrier Sense Multiple Access/Collision Avoidance
Carrier Sense Multiple Access/Collision Detection
Dynamic Domain Name Server
Diffie-Hellman Algorithm
Dynamic Host Configuration Protocol
Direct Sequence Spread Spectrum
Extensible Authentication Protocol
Encapsulating Security Payload
Federal Communications Commission
File Transfer Protocol
Institute of Electrical and Electronic Engineers
Internet Key Exchange
Internet Protocol
Industrial, Scientific and Medical
Local Area Network
Media Access Control
Message Digest 5
Network Address Translation
Network Termination
Network Time Protocol
Point to Point Tunneling Protocol
Power Spectral Density
Radio Frequency
Secure Hash Algorithm
Signal to Noise Ratio
Service Set Identification
Transmission Control Protocol
Trivial File Transfer Protocol
Temporal Key Integrity Protocol UPNP
Universal Plug and Play
Virtual Private Network
Wireless Distribution System
Wired Equivalent Privacy
Wireless Local Area Network
Wi-Fi Protected Access
2.Introduction
The Outdoor Router is an affordable IEEE 802.11b/g /n specifications of Outdoor Router solution; setting SOHO and enterprise standard for high performance, secure, manageable and reliable WLAN+. This document describes the steps required for the initial IP address assign and other configuration of the outdoor router. The description includes the implementation of the above steps.
2.1 package content
The package of the WLAN Broadband Router includes the following items,
Outdoor Router DC 12V Power Adapter Documentation CD POE Injector Tie
2.2 product features
Compatible with IEEE 802.11n Specifications provides wireless speed up to
150Mbps data rate.
Compatible with IEEE 802.11g standard to provide wireless speeds of 54Mbps data
rate.
Compatible with IEEE 802.11b standard to provide wireless speeds of 11Mbps data
rate.
Maximizes the performance and ideal for media-centric applications like streaming
video, gaming and Voice over IP technology.
Support various operation (Bridge/Gateway/Ethernet Converter) modes between
wireless and wired Ethernet interfaces.
Supports WPS, 64-bit and 128-bit WEP, WPA, WPA2 encryption to protect the
wireless data transmission.
Support TKIP/AES/TKIPAES of WPA algorithms. Support IEEE 802.3x full duplex flow control on 10/100M Ethernet interface. Support DHCP server to provide clients auto IP addresses assignment. Support DHCP client, static IP, PPPoE, L2TP and PPTP of WAN Interface. Supports firewall security with port filtering, IP filtering, MAC filtering, port
forwarding, DMZ hosting and URL filtering functions.
Support WEB based management and configuration. Support System Log. Support Dynamic DNS Support NTP
*Maximum performance, actual data rates and coverage may vary depending on network conditions and environmental factors. Stated ranges are based on independent test results and are not guaranteed. Long range coverage requires an additional high power access point to receive the wireless signal from the EW-7303HPn V2 – coverage range from an EW-7303HPn directly to a computer/wireless device is significantly less.
LED Indicator
State
Description
1. PWR LED ON
The WLAN Broadband Router is powered ON.
Off
The WLAN Broadband Router is powered Off.
2. WLAN LED ON
Wireless Radio ON.
Off
Wireless Radio Off.
Flashing
Data is transmitting or receiving on the wireless.
3. WAN LED ACT ON
Port linked.
Off
No link.
Flashing
Data is transmitting or receiving on the WAN interface.
4. LAN LED ACT ON
Port linked.
Off
No link.
Flashing
Data is transmitting or receiving on the LAN interface.
2.3 front panel description
2.4 rear panel description
Interfaces
Description
SMA connector
For external antenna. You can use the SMA connector to connect with
2.4GHz external antenna.
Secondary(Middle)
The RJ-45 sockets allow LAN connection through Category 5 cables. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively.
Main(Right)
The RJ-45 socket allows WAN connection through a Category 5 cable. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively.
3. Installation
3.1 Hardware Installation
3.1.1 Appearance and Interface Introduction
Notes: The product shot is for reference only please refer to physical product.
1.LED Panel
2. Waterproof Sliding Door
3. Pass trough Ethernet cable from this cable
4. Push this button to remove upper housing
5. Wall Mount
6. Pole Mount
7. Secondary port with POE
8. Main port
9. SMA connector for external antenna
3.1.2 Hardware installation steps
Step2: Pass through Ethernet cable from the hole, insert the cable to Secondary port.
Note: RJ-45 8P8C Ethernet cable is required.
Step3: Install the upper housing and make sure the housing is well installed.
3.2 Software Installation
Step4: Install POE Injector DC: Insert adapter POE: This hole is linked to Secondary port of the Outdoor Router with RJ-45. LAN: This hole is linked to LAN side PC/Hub or Router/ADSL modem device with RJ-45
Step5: Complete the hardware installation as diagram at below
Notes: Use Reset button on POE injector. Push continually the reset button of POE injector about 5 ~
10 seconds to reset the configuration parameters to factory defaults.
There is no software driver or utility installation needed, but only the configuration setting. Please refer to chapter 4 for software configuration.
Notice: It will take about 50 seconds to complete the boot up sequence after powered on the Outdoor
Router; Power LED will be active, and after that the WLAN Activity LED will be flashing to show the WLAN interface is enabled and working now.
4. Software configuration
There are web based management and configuration functions allowing you to have the jobs done easily. The Outdoor Router is delivered with the following factory default parameters on the Ethernet LAN interfaces. Default IP Address: 192.168.2.1 Default IP subnet mask: 255.255.255.0 WEB login User Name: admin WEB login Password: 1234 Telnet login User Name: admin Telnet login Password: 1234
4.1 Prepare your PC to configure the WLAN Broadband Router
For OS of Microsoft Windows 2000/ XP:
1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2. Move mouse and double-click the right button on Network and Dial-up Connections icon. Move mouse and double-click the Local Area Connection icon. The Local Area Connection window will appear. Click Properties button in the Local Area Connection window.
3. Check the installed list of Network Components. If TCP/IP is not installed, click the Add button to install it; otherwise go to step 6.
4. Select Protocol in the Network Component Type dialog box and click Add button.
5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box after the TCP/IP installation.
6. Select TCP/IP and click the properties button on the Network dialog box.
7. Select Specify an IP address and type in values as following example.
IP Address: 192.168.2.1, any IP address within 192.168.2.2 to 192.168.2.254 is good to connect
the Wireless LAN Access Point. Don’t use 192.168.2.1
IP Subnet Mask: 255.255.255.0
8. Click OK to complete the IP parameters setting.
For OS of Microsoft Windows Vista / 7:
1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2. Move mouse and double-click the right button on Network Connections item. The Network Connections window will appear. Double click Local Area Connection icon, then User Account Control window shown. Right click Continue button to set properties.
3. In Local Area Connection Properties window, Choose Networking tab, move mouse and click Internet Protocol Version 4 (TCP/IPv4), then click Properties button.
4. Move mouse and click General tab, Select Specify an IP address and type in values as following example.
IP Address: 192.168.2.1,, any IP address within 192.168.2.1 to 192.168.2.254is good to connect
the Wireless LAN Access Point. Don’t use 192.168.2.1
IP Subnet Mask: 255.255.255.0
5. Click OK to complete the IP parameters setting.
For OS of Microsoft Windows NT:
1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2. Move mouse and double-click the right button on Network icon. The Network window will appear. Click Protocol tab from the Network window.
3. Check the installed list of Network Protocol window. If TCP/IP is not installed, click the Add button to install it; otherwise go to step 6.
4. Select Protocol in the Network Component Type dialog box and click Add button.
5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box after the TCP/IP installation.
6. Select TCP/IP and click the properties button on the Network dialog box.
7. Select Specify an IP address and type in values as following example.
IP Address: 192.168.2.1, any IP address within 192.168.2.1 to 192.168.2.254 is good to connect
the Wireless LAN Access Point. Don’t use 192.168.2.1
IP Subnet Mask: 255.255.255.0
8. Click OK to complete the IP parameters setting.
4.2 Connect to the WLAN Broadband Router
Open a WEB browser, i.e. Microsoft Internet Explorer 6.1 SP1 or above, then enter 192.168.2.1 on the URL to connect the WLAN Broadband Router.
4.3 Management and configuration on the Outdoor Router
4.3.1 Wizard
This Wizard page guides you to configure Internet connection and Wireless Settings quickly.
Step 1: configure Internet connection
Click Next button to next step for Internet connection settings. There are five options (DHCP, Static Mode, PPPOE, L2TP, PPTP) for Internet connection on WAN port.
a. DHCP (Auto Configure)
If you select
Item
Description
IP Address
Fill in the IP address for WAN interface.
Subnet Mask
Fill in the subnet mask for WAN interface.
Default Gateway
Fill in the default gateway for WAN interface out going data packets.
Primary DNS Server
Fill in the IP address of Domain Name Server 1.
Secondary DNS Server
Fill in the IP address of Domain Name Server 2.
DHCP
option, please click Next button to jump at Step2.
b. Static Mode (fixed IP)
If you select
Static Mode (fixed IP)
, please fill in these fields on next page.
When you finish these settings, then click Next button to jump at Step2.
c. PPPOE Connection
Item
Description
User Name
If you select the PPPoE support on WAN interface, fill in the user name and password to login the PPPoE server.
Password
If you select the PPPoE support on WAN interface, fill in the user name and password to login the PPPoE server.
Verify Password
Fill in the password again for verification.
Operation Mode
Keep Alive: Keep the PPPoE connection all the time. Please also configure the Redial Period field. On Demand: Please configure the Idle Time field. When time is up, the PPPoE connection will disconnect. The connection will re-connect when any outgoing packet arise. Manual: Let user connect the PPPoE connection manually.
If you select PPPOE, please fill in these fields on next page.
When you finish these settings, then click Next button to jump at Step2.
d. L2TP
Item
Description
L2TP Server IP Address
Allow user to make a tunnel with remote site directly to secure the data transmission among the connection. User can use embedded L2TP client supported by this router to make a VPN connection. If you select the L2TP support on WAN interface, fill in the IP address for it.
User Name
Fill in the user name and password to login the L2TP server.
Password
Fill in the user name and password to login the L2TP server.
Address Mode
Static: To configure the IP address information by manually, please fill in the related setting at below. Dynamic: The option allows the machine to get IP address information automatically from DHCP server on WAN side.
IP Address
Fill in the IP address for WAN interface.
Subnet Mask
Fill in the subnet mask for WAN interface.
If you select L2TP, please fill in these fields on next page.
Default Gateway
Fill in the default gateway for WAN interface out going data packets.
Operation Mode
Keep Alive: Keep the L2TP connection all the time. Please also configure the Redial Period field. Manual: Let user connect the L2TP connection manually.
When you finish these settings, then click Next button to jump at Step2.
e. PPTP
Item
Description
PPTP Server IP Address
Allow user to make a tunnel with remote site directly to secure the data transmission among the connection. User can use embedded PPTP client supported by this router to make a VPN connection. If you select the PPTP support on WAN interface, fill in the IP address for it.
User Name
Fill in the user name and password to login the PPTP server.
Password
Fill in the user name and password to login the PPTP server.
Address Mode
Static: To configure the IP address information by manually, please fill in the related setting at below. Dynamic: The option allows the machine to get IP address information automatically from DHCP server on WAN side.
IP Address
Fill in the IP address for WAN interface.
Subnet Mask
Fill in the subnet mask for WAN interface.
Default Gateway
Fill in the default gateway for WAN interface out going data packets.
Operation Mode
Keep Alive: Keep the PPTP connection all the time. Please also configure the Redial Period field. Manual: Let user connect the PPTP connection manually.
If you select PPTP, please fill in these fields on next page.
Item Description
Loading...
+ 51 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
