Edimax BR-6473AX quick start Guide
BR-6473AX
Quick Installation Guide
12-2019 / v1.0
Contents
I. Product Information ..................................... 1
II. Package Contents ........................................... 2
II-1. System Requirements ...................................................................... 2
II-2. Hardware Overview ......................................................................... 3
II-3. LED Status ........................................................................................ 5
III. Hardware Installation ................................... 6
IV. Quick Setup ................................................... 8
V. Password .....................................................15
VI. AP & Router Mode .......................................17
VII. WPS ............................................................18

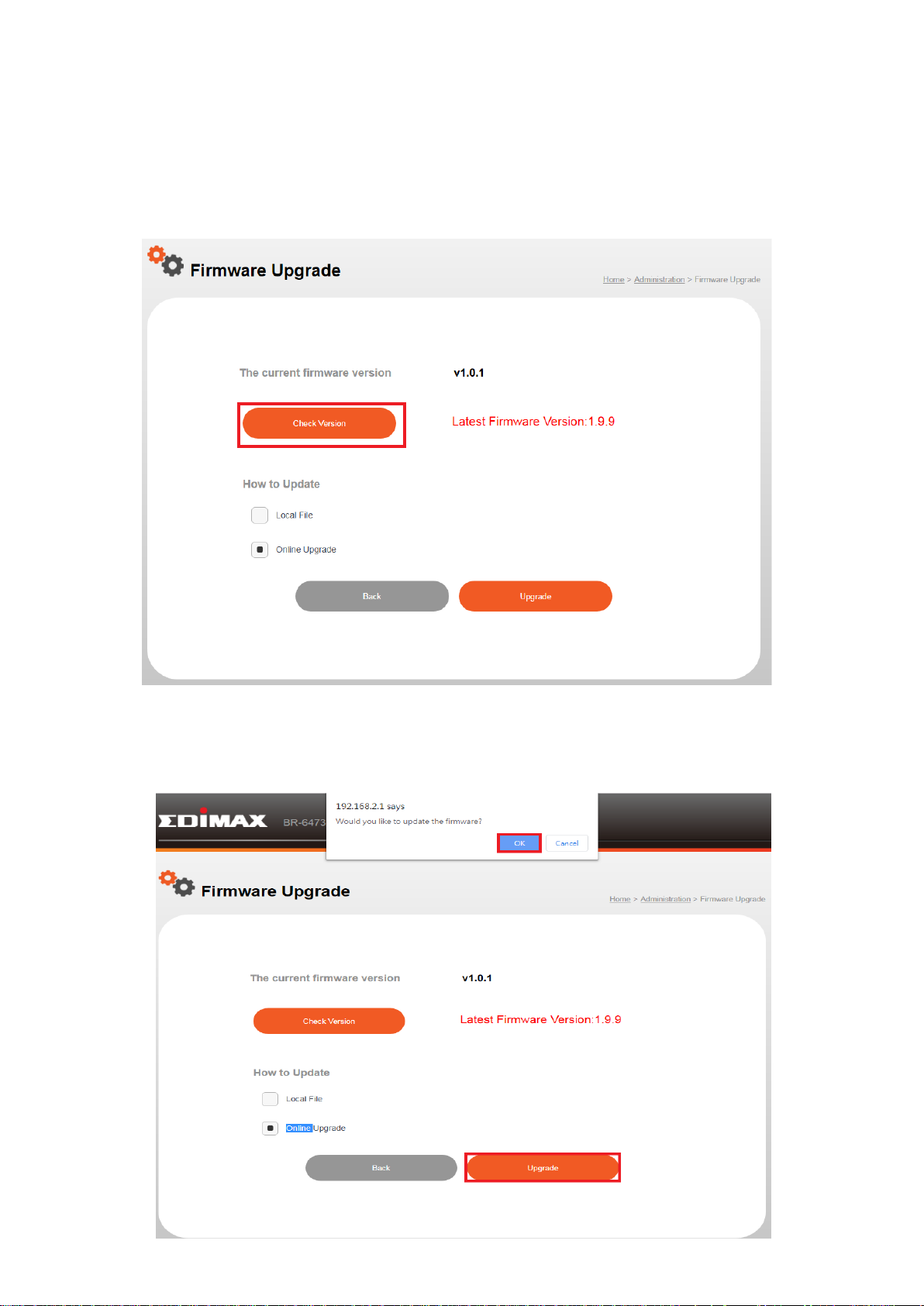

VIII. Firmware Upgrade ....................................19
IX. Reset ............................................................21
I. Product Information
The Edimax BR-6473AX smart Wi-Fi router with Intel GRX350 (800MHz
dual-core) and fast dual band speeds up to 574Mbps (2.4 GHz) and 2402Mbps
(5 GHz) is well suited for your home.
The BR-6473AX with beamforming + 4X internal antennas delivers fast and
reliable long range Wi-Fi coverage to every corner of your home.
With the simple and intuitive web UI interface, you can easily set up the
router and remotely control through the browser or phone.
You can find all supporting documents from the link below or via QR Code:
https://www.edimax.com/download
(Once you’ve visited the Edimax official website, please enter the model no.
“BR-6473AX” into the search box to search for your product.)
1
II. Package Contents
BR-6473AX
Power Adapter (12V)
Ethernet Cable
Quick Installation Guide
Before start using this product, please check if there is anything missing in the
package, and contact your dealer to claim the missing item(s):
II-1. System Requirements
- Existing cable/DSL modem & router
- Computer with web browser for AP configuration
2
II-2. Hardware Overview
1
1
2
3
4 6 5 7 9 8 10
3
No.
Description
1
LED (2.4G, 5G, WPS, LAN4, LAN3, LAN2, LAN1, WAN, POWER)
2
Selector Switch (Router and AP mode)
3
WPS Button
4
RESET Button
5
LAN4 Port
6
LAN3 Port
7
LAN2 Port
8
LAN1 Port
9
WAN Port
10
DC Power Jack
4
II-3. LED Status
Function
Color
Status
Description
2.4GHz
& 5GHz
Blue
On
Internet connection is ready.
Off
Wi-Fi not active.
Flashing
Activity. Sending or receiving data.
WPS
Blue
Blinking
WPS connection established.
(WPS LED blinks for 2 seconds to indicate a
successful connection)
LAN
Blue
On
LAN port is connected.
Off
LAN port is not connected.
WAN
Blue
On
WAN port is connected.
Off
WAN port is not connected, or no Internet.
Power
Red
Blinking
Upgrading firmware or reset.
Green
on
Router mode. (Power on)
Blue
on
AP mode. (Power on)
5
III. Hardware Installation
This section will guide you through the steps to set up the BR-6473AX.
1. Plug the included AC adapter into the router’s power jack and the other
end into an electrical socket.
Note: Ensure the “POWER” LED lights on GREEN (Router Mode). If not,
the device is not properly connected.
6
2. Connect an Ethernet cable to the "LAN" port on your XDSL/Cable modem.
And connect your modem to the router of the “WAN” port with an Ethernet
cable.
NOTE: Ensure the “WAN” LED lights on BLUE.
7

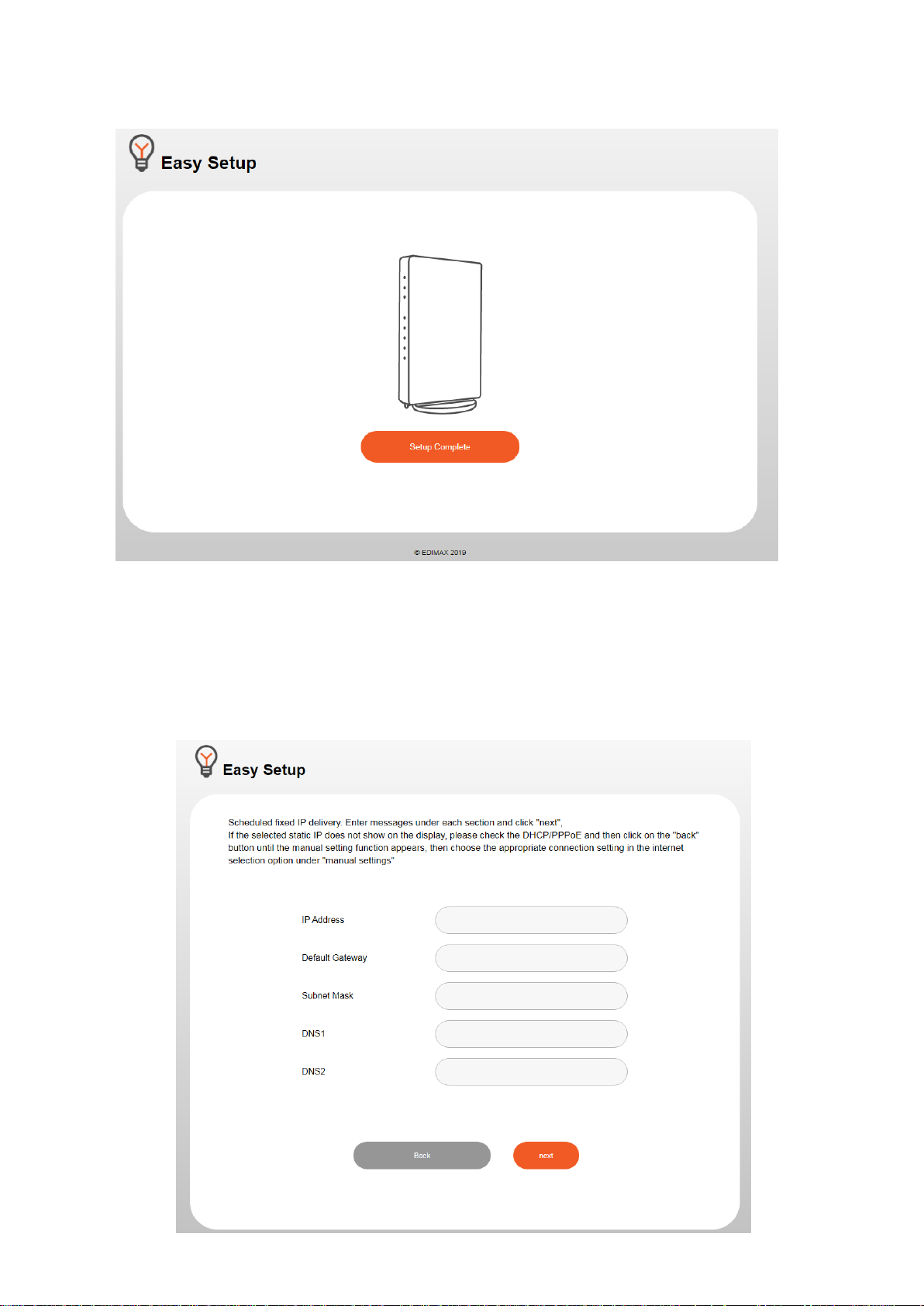

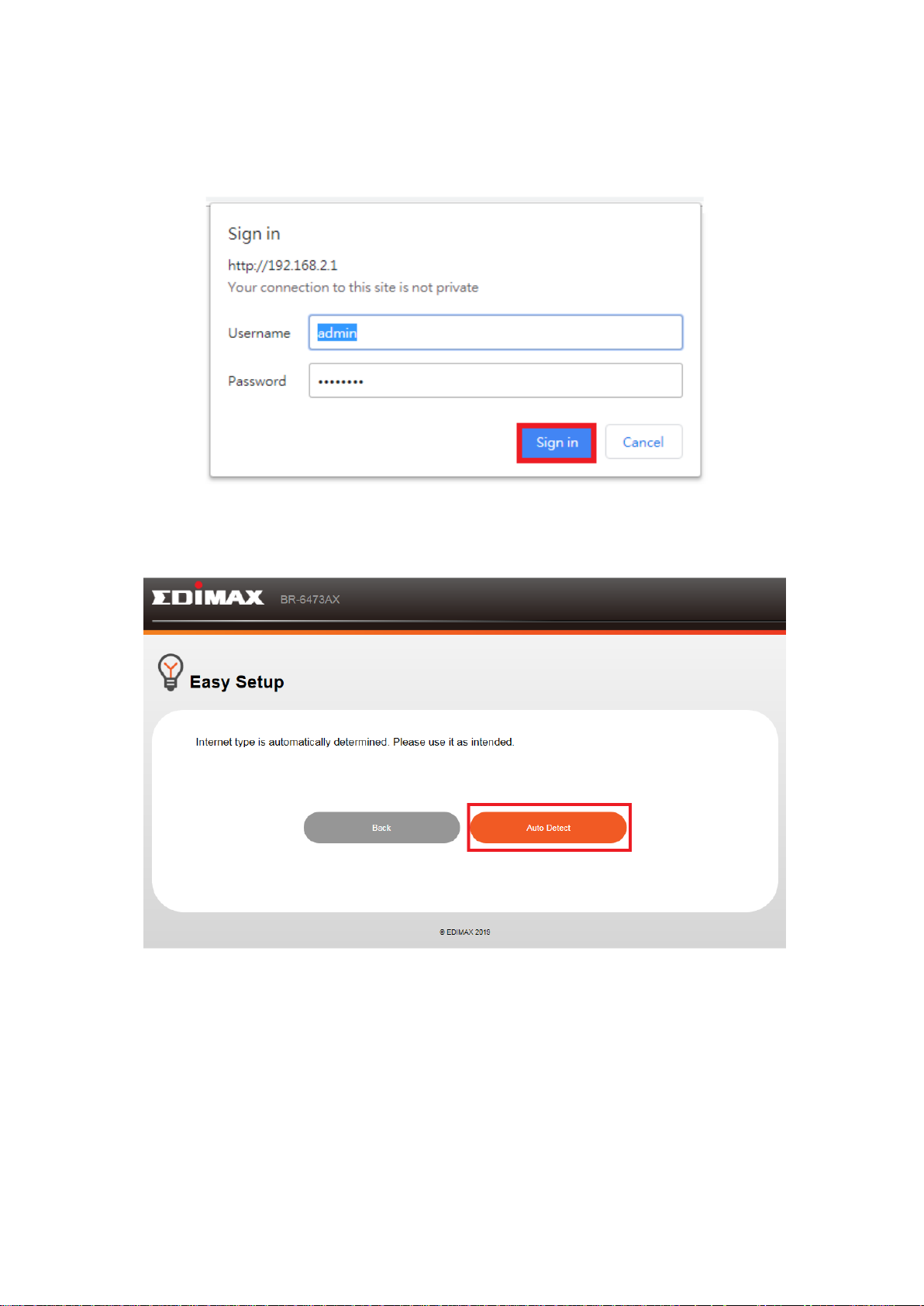

IV. Quick Setup
This quick installation section will help you setup your router in its default
router mode and configure its basic settings.
Please follow the steps below:
1. Please find the default User Name “admin” and unique 8 digits default
Password “XXXXXXXX” of your router on the sticker.
NOTE: If you are using iOS 11 or later version, you can easily connect your
smart phone to the router using the QR code on the sticker.
8
