Edimax BR-6473AX User Manual
BR-6473AX
User Manual
03-2021 / v1.2
Contents
I. Product Information .......................................... 1
II. Package Contents ............................................. 2
II-1. System Requirements ...................................................................... 2
II-2. Hardware Overview ......................................................................... 3
II-3. LED Status ........................................................................................ 4
III. Hardware Installation ...................................... 5
III-1. AP Mode .......................................................................................... 6
III-2. Router Mode .................................................................................... 7
IV. Quick Setup ..................................................... 9
V. Wi-Fi Settings ..................................................12
V-1. Main Wi-Fi ..................................................................................... 12
V-2. Guest Wi-Fi .................................................................................... 14
V-3. WPS ............................................................................................... 15
VI. Internet ..........................................................17
VI-1. WAN .............................................................................................. 18
VI-2. LAN ................................................................................................ 21
VI-3. DDNS ............................................................................................. 22
VI-4. Fix DHCP ........................................................................................ 23
VII. Parental Control ............................................24
VIII. Administration .............................................26
VIII-1. System Information ....................................................................... 27
VIII-2. Password ....................................................................................... 27
VIII-3. Firmware Upgrade ......................................................................... 28
VIII-4. Backup and Restore ....................................................................... 30
VIII-5. System Log..................................................................................... 34
VIII-6. Statistic .......................................................................................... 36
VIII-7. Time Zone ...................................................................................... 37
VIII-8. Restart Schedule ............................................................................ 37
IX. Security ..........................................................39
IX-1. Access Control ............................................................................... 39
IX-2. Port Forwarding ............................................................................. 41
IX-3. DMZ ............................................................................................... 42
IX-4. Remote Management .................................................................... 43
X. Easy Setup .......................................................44
X-1. DHCP ............................................................................................. 45
X-2. Static IP .......................................................................................... 46
X-3. PPPoE ............................................................................................ 48
I. Product Information
The Edimax BR-6473AX smart Wi-Fi AP/Router with Intel GRX350 (800MHz
dual-core) and fast dual band speeds up to 574Mbps (2.4 GHz) and 2402Mbps
(5 GHz) is well suited for your home.
The BR-6473AX with beamforming + 4X internal antennas delivers fast and
reliable long range Wi-Fi coverage to every corner of your home.
With the simple and intuitive web UI interface, you can easily set up the AP/
router and remotely control through the browser or phone.
You can find all supporting documents from the link below or via QR Code:
https://www.edimax.com/download
(Once you’ve visited the Edimax official website, please enter the model no.
“BR-6473AX” into the search box to search for your product.)
1
II. Package Contents
BR-6473AX
Power Adapter (12V)
Ethernet Cable
Quick Installation Guide
Before start using this product, please check if there is anything missing in the
package, and contact your dealer to claim the missing item(s):
II-1. System Requirements
- Existing cable/DSL modem & router
- Computer with web browser for AP configuration
2

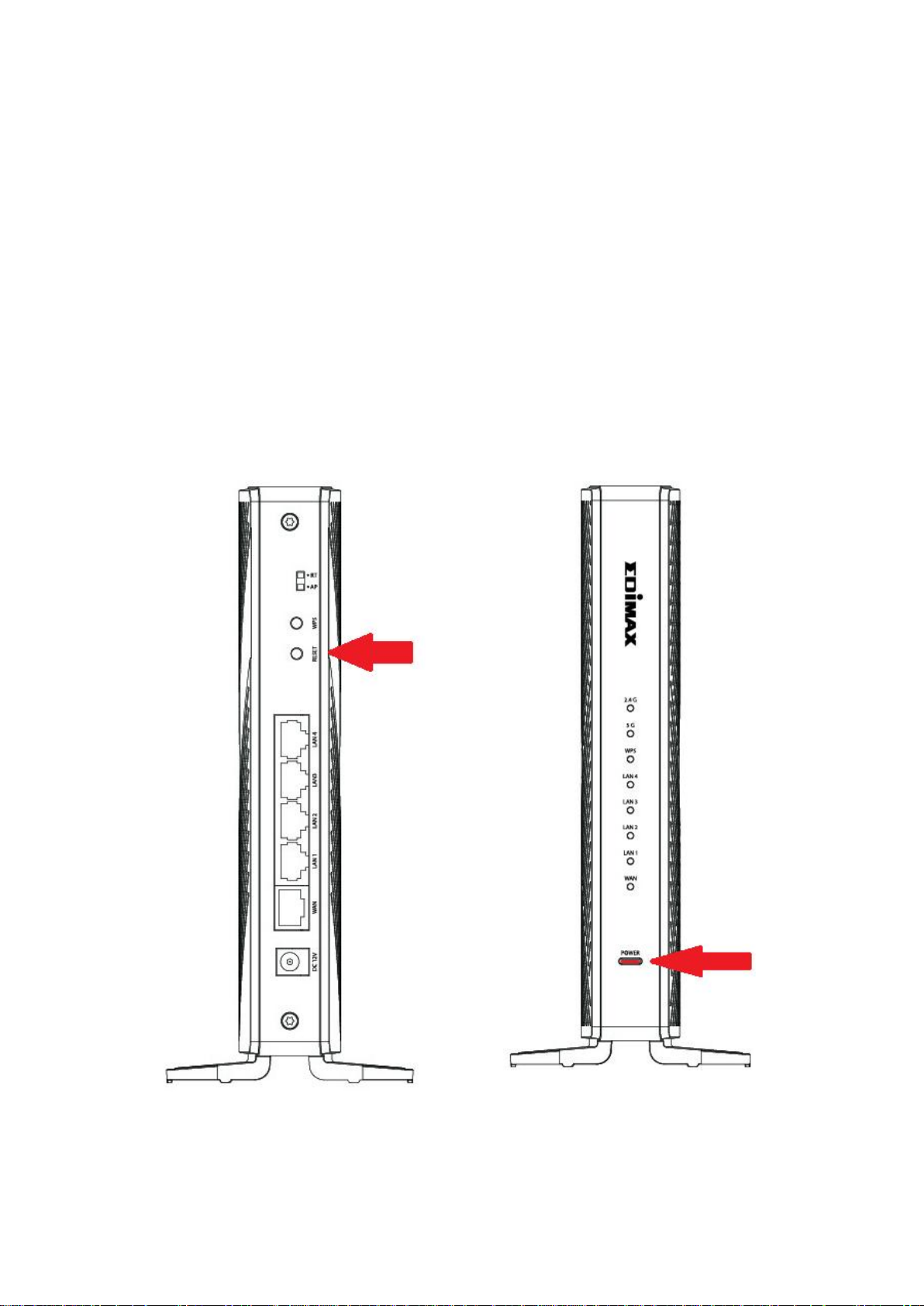

II-2. Hardware Overview
No.
Description
1
LED (2.4G, 5G, WPS, LAN1, LAN2, LAN3, LAN4, WAN,
POWER)
2
Toggle Switch (Router and AP mode)
3
WPS Button
4
RESET Button
5
LAN4 Port
6
LAN3 Port
7
LAN2 Port
8
LAN1 Port
9
WAN Port
10
DC Power Jack
1 2 3 4 6 5 7
9 8 10
3
II-3. LED Status
Function
Color
Status
Description
2.4GH & 5GHz
Blue
On
Internet connection is ready.
Off
Wi-Fi not active.
Flashing
Activity. Sending or receiving data.
WPS
Blue
Blinking
WPS connection established.
(WPS LED blinks for 2 seconds to
indicate a successful connection)
LAN
Blue
On
LAN port is connected.
Off
LAN port is not connected.
WAN
Blue
On
WAN port is connected.
Off
WAN port is not connected, or no
Internet.
Power
Red
Blinking
Upgrading firmware or reset.
Green
On
Router mode. (Power on)
Blue
On
AP mode. (Power on)
4
III. Hardware Installation
This section will guide you through the steps to set up the BR-6473AX in AP
and router mode.
You can change the operation mode via the toggle switch behind the
BR-6473AX.
Move the toggle switch to change the operation mode (AP, router mode).
NOTE:
- Please unplug the AC adapter when changing the operation mode.
- Please backup your settings before changing the operation mode.
5
III-1. AP Mode
1. Check if the toggle switch is in AP mode.
2. Plug the included AC adapter into the AP/router’s power jack and the other
end into an electrical socket.
Note: Ensure the “POWER” LED lights on Blue (AP Mode). If not, the
device is not properly connected.
3. Connect your router with an Ethernet cable to the BR-6473AX of the “LAN”
port.
NOTE: Ensure the “LAN” LED lights on BLUE.
6
III-2. Router Mode
1. Move the toggle switch on the BR-6473AX to router mode.
2. Plug the included AC adapter into the AP/router’s power jack and the other
end into an electrical socket.
Note: Ensure the “POWER” LED lights on Green (Router Mode). If not, the
device is not properly connected.
7
3. Connect your modem with an Ethernet cable to the BR-6473AX of the
“WAN” port.
NOTE: Ensure the “WAN” LED lights on BLUE.
8
IV. Quick Setup
This quick installation section will help you setup your AP/Router in its default
AP mode and configure its basic settings.
Please follow the steps below:
1. Please find the default User Name “admin” and unique 8 digits default
Password “XXXXXXXX” of your AP/ router on the sticker.
NOTE: If you are using iOS 11 or later version, you can easily connect your
smart phone to the AP/ router using the QR code on the sticker.
9
2. Open a web browser, and enter the default IP 192.168.2.1.
3. You will be prompted for a username and password. Enter the Username
and the password. Click the “Sign in” button.
4. For first time users, please reset your 2.4G SSID/ 5G SSID name and
password.
10
5. Wait for 60 seconds.
11
V. Wi-Fi Settings
In this page allows you to configure the Wi-Fi, guest Wi-Fi and WPS settings
that suit your needs.
V-1. Main Wi-Fi
You can change the basic settings for 2.4GHz and 5GHz.
12
Wireless 2.4GHZ (5GHz) / SSID
2.4GHz/ 5GHz
Enable/ Disable
SSID
Displays the SSID name(s) for the specified frequency.
Authenticatio
n Methods
Displays the authentication method for the specified SSID.
Encryption
Key
Displays the encryption type for the specified SSID.
Channel
Set the channel width:
2.4 GHz:
- 20MHz (lower performance but less interference).
- 40MHz (higher performance but potentially higher
interference)
- Auto (automatically select based on interference level).
5GHz:
- 20MHz (lower performance but less interference).
- 40MHz
- 80MHz
- 160MHz (higher performance but potentially higher
interference)
- Auto (automatically select based on interference level).
Channel
2.4 GHz:
Select a wireless channel from 1 – 11 or auto.
5GHz:
Select a wireless channel from 36 – 140 or auto.
Tx Power
Set the power output of the wireless radio. You may not
require 100% output power. Setting a lower power output
can enhance security since potentially malicious/unknown
users in distant areas will not be able to access your signal.
13
V-2. Guest Wi-Fi
Guest Wi-Fi
Guest Wi-Fi
Enable/ Disable
SSID
Displays the SSID name(s) for the guest Wi-Fi.
Authenticatio
n Methods
WPA2 or open. Displays the authentication method for the
specified SSID.
Encryption
Key
Displays the encryption type for the guest Wi-Fi.
You can setup an additional “Guest” Wi-Fi network so guest users can enjoy
Wi-Fi connectivity without accessing your primary networks.
14
V-3. WPS
WPS
WPS
Check/uncheck this box to enable/disable WPS functionality.
Self Pin Code
Displays the WPS PIN code of the device, used for PIN code
WPS. You will be required to enter this PIN code into another
WPS device for PIN code WPS. Click “Generate PIN” to
generate a new WPS PIN code.
WPS is a simple way to establish connections between WPS compatible
devices. WPS can be activated on compatible devices by pushing a WPS
button on the compatible device or from within the compatible device’s
firmware / configuration interface (known as PBC or “Push Button
Configuration”).
When WPS is activated in the correct manner and at the correct time for two
compatible devices, they will automatically connect.
“PIN code WPS” is a variation of PBC which includes the additional use of a
PIN code between the two devices for verification.
15
Configure via
Push Button
Click “Start PBC” to activate WPS.
Configure via
Client Pin
Code
Enter the PIN code of another WPS device and click “Apply”
to attempt to establish a WPS connection.
You can also activate WPS via hardware,
1. Press and hold the WPS button for 2 seconds to activate WPS.
2. WPS feature is enabled on your router when the WPS LED blinking BLUE
light.
16
