EDIFIER Tick Tock Dock User Manual
Manual Edition 1.0, Aug. 2011
IB-200-M02300-03
Tick Tock Dock
Edifier International Ltd.,
Suite 1610
16th Floor, Tower II,
Lippo Centre,
89 Queensway
Hong Kong
Tel: +852 2522 6989
Fax: +852 2522 1989
www.edifier-international.com
2011 Edifier International Limited. All rights reserved.
Printed in China
NOTICE:
For the need of technical improvement and system upgrade, information contained herein may be subject to change
from time to time without prior notice.
Products of Edifier will be customized for different applications. Pictures and illustrations shown on this manual
may be slightly different from actual product. If any difference is found, the actual product prevails.
Docking Alarm Clock Speaker System with FM Radio
User manual | Manuel d’utilisateur | Manual de usuario | Bedienungsanleitung | Manuale dell’utente
Important safety instruction Unpack the Box
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Thank you for purchasing this Edifier product. For generations, Edifier tries to provide powered speaker products to satisfy the need of our end
customers, even the most demanding ones. This product can add to your home entertainment, personal computer, and mini home theater great
sound performance. Please read this manual carefully to obtain the best of this system.
Box contents:
The lightning flash with arrowhead inside
thetriangle, is intended to alert the user
to the presence of un-insulated dangerous
voltage within the product's enclosure
that may be of a sufficient magnitude to
constitute a risk of electric shock to persons.
1. Read these instructions. 2. Keep these instructions.
3. Heed all warnings. 4. Follow all instructions.
5. Do not use this apparatus near water. 6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
14. The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip-over.
Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental safe recycling.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not
require a safety connection to electrical earth.
1
English English
To prevent the risk of electric shock, do not
remove cover (or back). No user-serviceable
Parts inside. Refer servicing to qualified
Service personnel only.
The exclamation point inside the triangle
is intended to alert the user to the presence
of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
Tick Tock Dock (iF230)
Tick Tock Dock
Docking Alarm Clock Speaker System with FM Radio
User manual | Manuel d’utilisateur | Manual de usuario | Bedienungsanleitung | Manuale dell’utente
User manual
Power adapter (9V/12W)
3.5mm to 3.5mm audio connecting cable
2
Connectivity
Illustrations
iPod/iPhone is not included
Top view
To AC Power
Button Audio source Press to
Mute; works with “FUNC” to search channels and select FM region
Play/Pause
Mute
Search channels automatically; previous / next preserved channels Switch between searching and preset access
Skip to previous / next track
Volume up / down
Access FM functions: start auto search and select radio region
N/A
N/A
Select audio input: FM iPod AUX FM
FUNC
INPUT
FM
iPod
AUX
FM
iPod
AUX
FM / iPod / AUX
FM
iPod
AUX
FM / iPod / AUX
Note: 1. When system is in STBY (standby) mode, press and hold any button of to wake the system up to work mode.
2. Press and hold any button except INPUT to disable the alarm when the alarm is triggered.
Press and hold to
Switch between standby and play mode
Fast rewind / forward in current track
N/AN/A
Volume up / down
Turn off the alarm when the alarm clock is triggered
Synchronize iPod
N/A
N/A
3. Press any button to set the alarm into snooze when the alarm is triggered, and the alarm will start again after 10 minutes.
3
English English
4

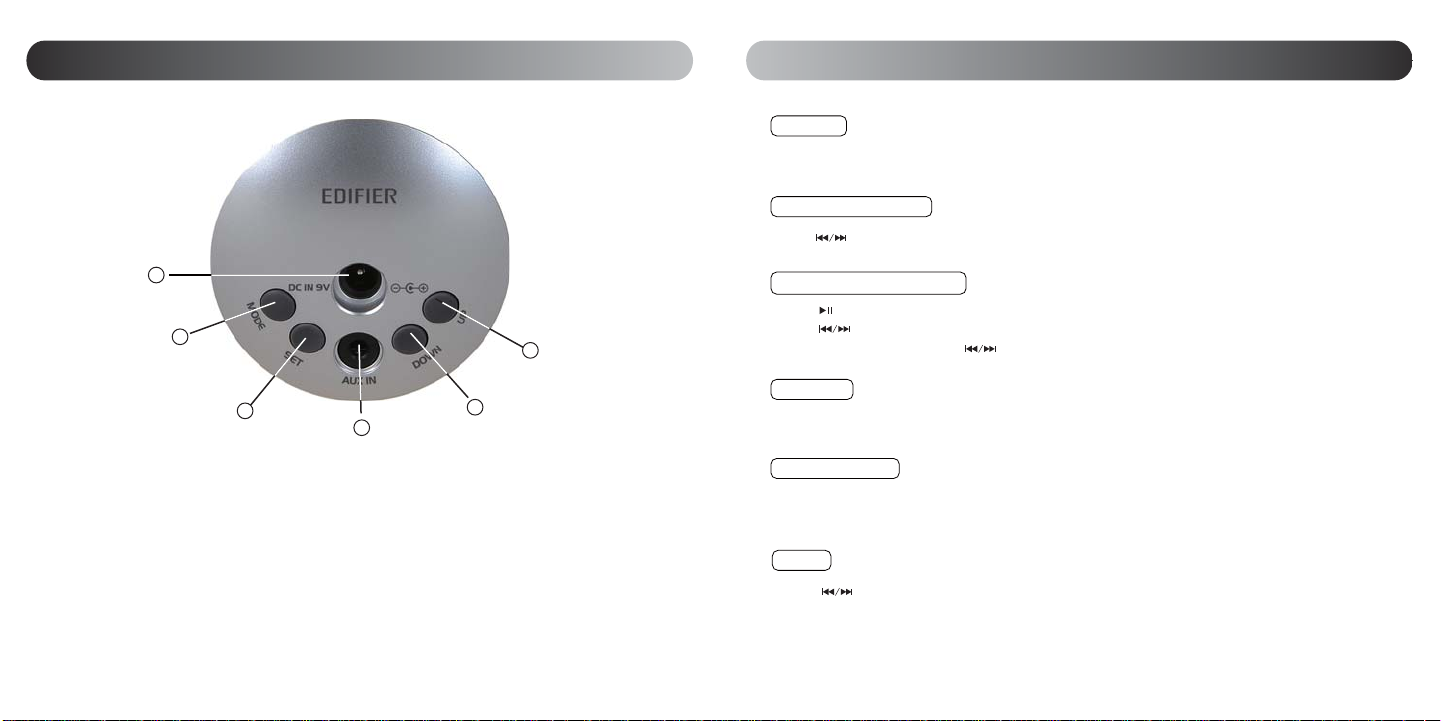

Illustrations (Buttons on rear panel)
Set up guide
Power on
Connect the attached adapter (9V/12W) to DC IN 9V on the rear panel of the speaker. Plug the power
adapter into mains outlet, the system is powered on.
Operational guide for FM
In FM mode:
Selecting FM region
①. Long press FUNC: LCD screen displays “LOC.”;
②. Press : select FM region from: FULL, EU (China/Europe), ASIA, JP (Japan), US (United States), AUS (Australia).
1
In active mode:
Searching and presetting channels
Press FUNC: LCD screen displays “SECH”;
①. Press : start auto search in the range of 87.5-108MHz (JP: 76.0MHz~90.0MHz);
2
3
4
1. DC IN 9V: Connect to the power adapter
2. MODE: Select time setting, alarm clock and sleep time
3. SET: Works with MODE to set time, alarm clock and sleep time
4. AUX IN: AUX input (PC sound card, MP3, MP4, iPod/iPhone, etc.)
5. DOWN: Works with SET to decrease settings
6. UP: Works with SET to increase settings
6
5
②. Press : select one of the preset channels (24 preset channels maximum).
LCD screen displays “TUNE”, press to search channels at a 0.1MHz step frequency.
①. Connect the AUX IN on rear panel to PC sound card, MP3, MP4 or other audio source with the 3.5mm
AUX input
to 3.5mm audio connecting cable.
②. Press INPUT to select AUX input to play the music.
①. Connect iPod /iPhone (MP3 or WMA format audio source) into the dock
iPod/iPhone input
②. Press INPUT to select iPod input to play music.
Note: the Tick Tock Dock will automatically synchronize the time set on your iPod/iPhone. FM Radio can also be controlled
using the iPod FM Radio application.
In mute mode:
Reset
①. Press and hold FUNC, the LCD screen displays system version number;
②. Press to reset system. The 24 preset channels would be cleared, the time displays Jan. 1st, 2011, the alarm is
off and the alarm time is “00:00”, the sleep time displays “00”, and the audio input is FM, volume level is 15. After
finishing reset, system will return to STBY (standby) mode.
5
English English
6

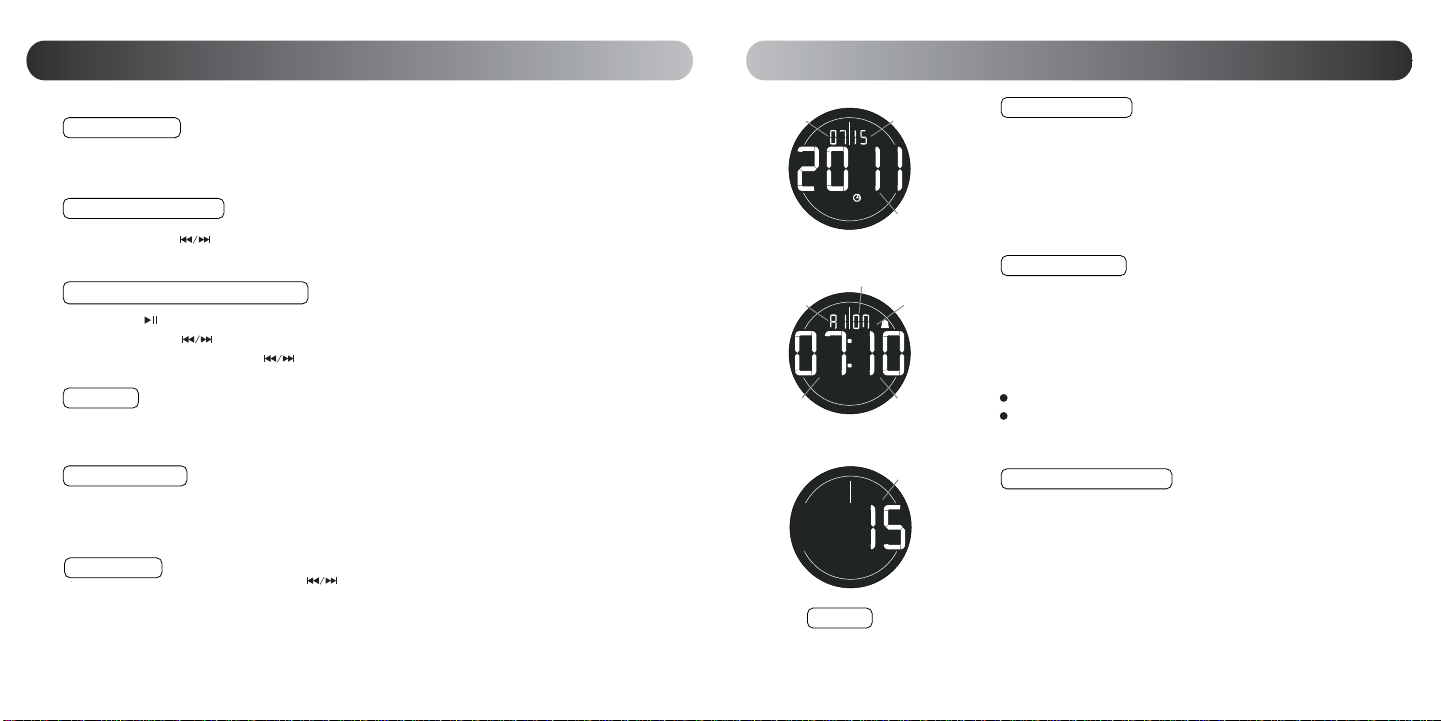

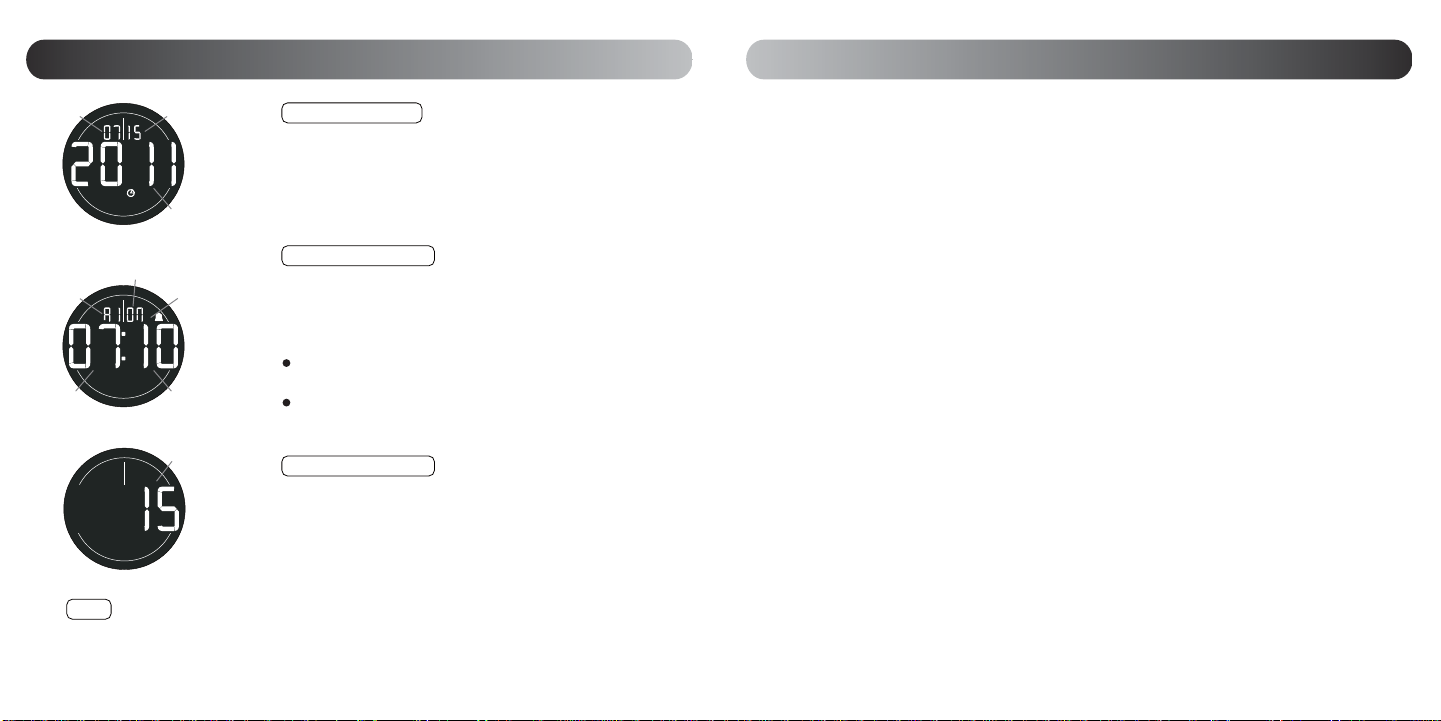

Time and Alarm clock setting guidance
Specications
Month
Date
Time setting
①. Press “MODE” to access the time setting;
Power output: RMS 4.5W×2 (THD+N=10%, f0=1KHz)
Signal to noise ratio: ≥80 dBA
Distortion: ≤ 0.5% (@½ output)
Frequency response: 70Hz-20KHz
Year
②. Press “SET” to access sequently the hour, minute, year, month, day and
12-hour / 24-hour clock settings
③. The setting selected blinks
④. Press UP / DOWN to adjust the setting.
Input type: AUX/FM/iPod
Alarm 1
Alarm On/Off
AM
Morning/Afternoon
MinuteHour
Alarm setting
①. Press “MODE” to access the alarm setting
②. Press “SET” to access sequentially the alarm index, alarm on/off, hour,
minute, alarm source, alarm volume
③. Press UP / DOWN to adjust the setting. There are 5 available alarms.
The alarm will last 5 minutes once it is triggered, sleep time is 10 minutes.
The alarm will trigger for three times and work in this order if there’s no
Input sensitivity: 750 mV ± 50mV
Adjustment: Buttons on top and rear panel of speaker
Speaker unit: 1½ inch (40mm), magnetically shielded, 8ohm
Dimension: 130(W) × 126(H) × 89(D) mm
Net Weight: Approx. 0.5 kg
Gross Weight: Approx. 0.6kg
operation when the alarm rings: Alarm-Snooze-Alarm-Snooze-Alarm-STBY
Sleep time
Sleep setting
①. Press “MODE” to enter the sleep setting,
②. Press “SET” to enable the sleep timer, the figures of sleep timer will blink
SLEEP
③. Press UP / DOWN to set Sleep time (Seven settings: 15min, 30min, 45min,
60min, 75min, 90min and sleep timer off).
Note
1. The system will show the time display if there is no operation within 30 seconds.
2. Sleep setting is the time specified for music to play before the Tick Tock Dock automatically turns to standby mode.
7
English English
8
