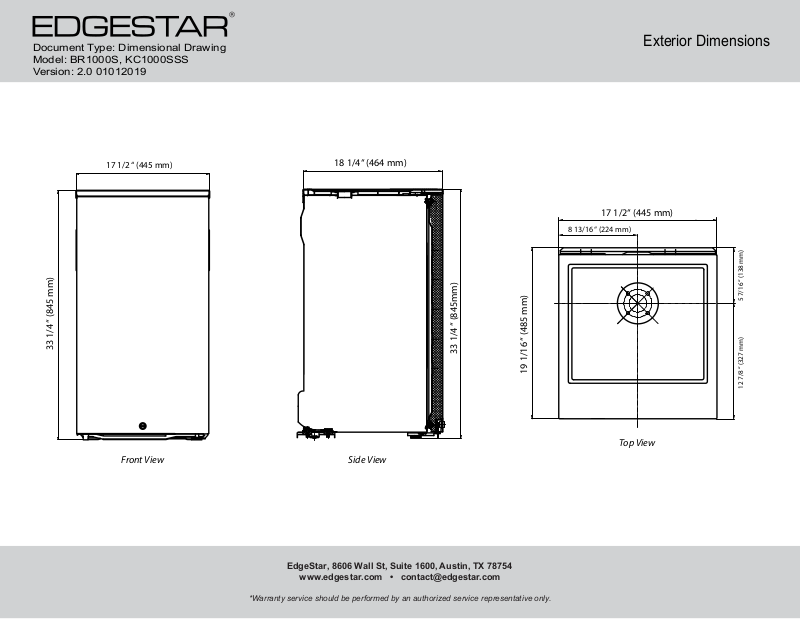

Document Type: Dimensional Drawing
Model: BR1000S, KC1000SSS
Version: 2.0 01012019
Exterior Dimensions
33 1/4 “ (845 mm)
17 1/2 “ (445 mm)
Front View
18 1/4“ (464 mm)
17 1/2“ (445 mm)
8 13/16 “ (224 mm)
33 1/4 “ (845mm)
19 1/16 “ (485 mm)
12 7/8 “ (327 mm) 5 7/16 “ (138 mm)
Top View
Side View
EdgeStar, 8606 Wall St, Suite 1600, Austin, TX 78754
www.edgestar.com • contact@edgestar.com
*Warranty service should be performed by an authorized service representative only.
Document Type: Dimensional Drawing
Model: BR1000SS,KC1000SS
Version: 2.0 01012019
Exterior Dimensions withTower*
33 1/4 “ (845mm)
17 1/2 “ (445mm)
11 7/8 “ (302 mm)
18 1/4“ (464mm)
5 7/16 “ (138 mm)
33 1/4 “ (845mm)
6 7/16 “ (163 mm)
19 1/16 “ (485 mm)
17 1/2“ (445 mm)
5 7/16 “ (138 mm)
12 7/8 “ (327 mm)
12 5/16 “ (313 mm)
Top View
Front View Side View
*Tower dimensions are approximate and may vary depending on your customized setup. In order for your unit to cool and operate correctly, the tower must be installed per the instructions in the
user’s manual. It is highly recommended that you have the unit onsite before making any modications to countertops or cabinetry in order to accommodate the tower. Improper installation may
void the warranty. EdgeStar and its aliate companies are not responsible for damage incurred through the installation process.
EdgeStar, 8606 Wall St, Suite 1600, Austin, TX 78754
www.edgestar.com • contact@edgestar.com
*Warranty service should be performed by an authorized service representative only.
