Document Type: Dimensional Drawing
Model:
Version:
GRL420IBBNG, GRL420IBBLP
V1.1 03122019
25 5/8 “ (651 mm)

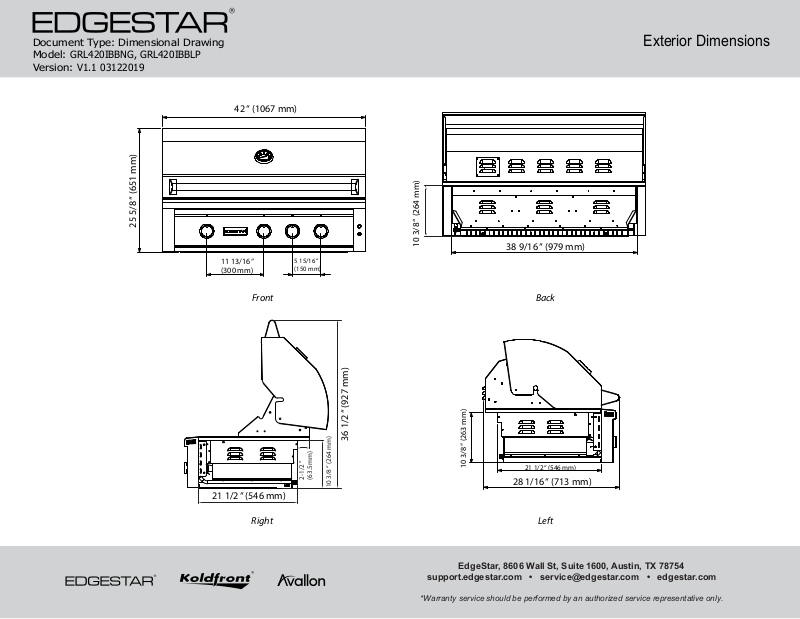

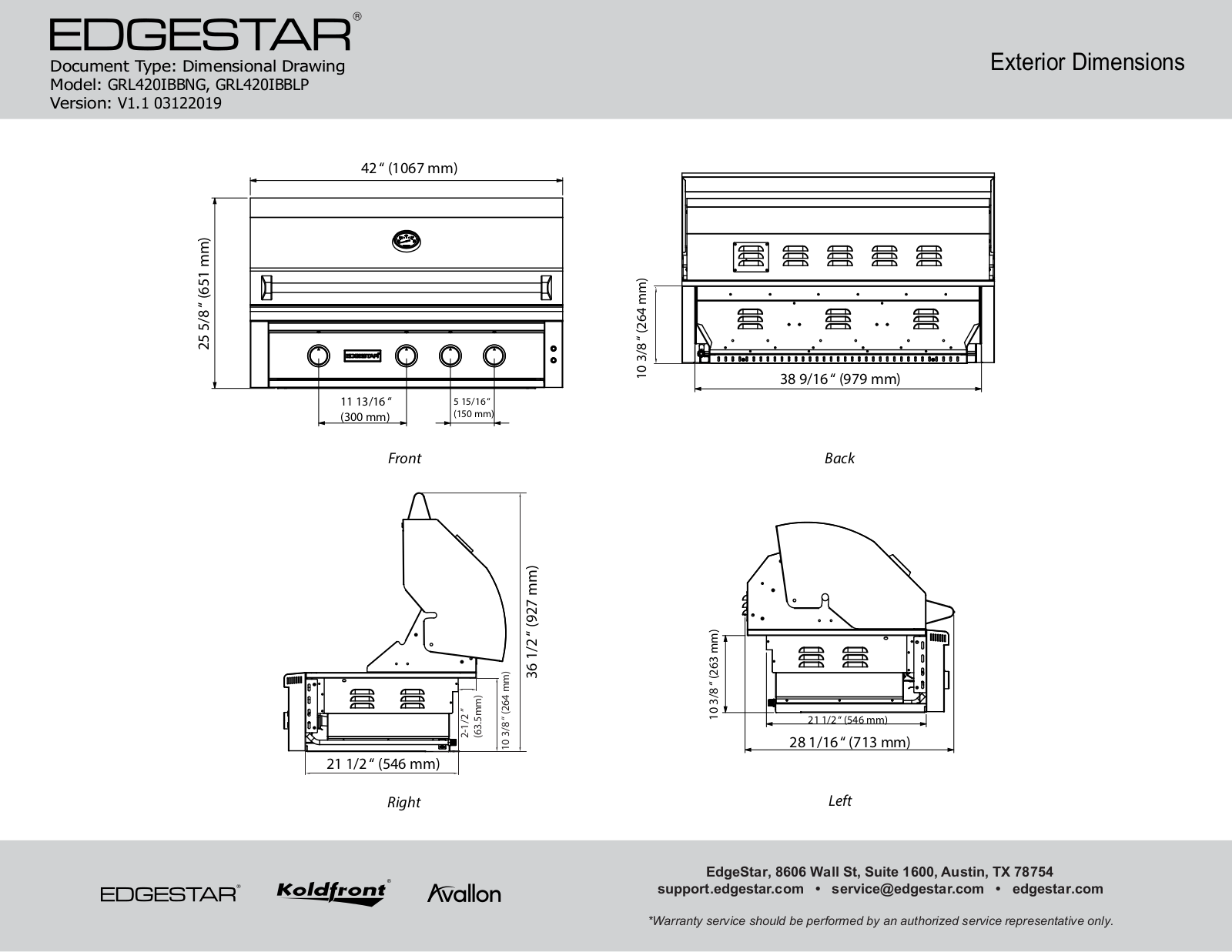

Exterior Dimensions
42 “ (1067 mm)
11 13/16 “
(300 mm)
Front Back
21 1/2 “ (546 mm)
Right
5 15/16 “
(150 mm)
2-1/2 ”
(63.5mm)
36 1/2 “ (927 mm)
10 3/8 “ (264 mm)
10 3/8 “ (264 mm)
10 3/8 “ (263 mm)
38 9/16 “ (979 mm)
21 1/2 “ (546 mm)
28 1/16 “ (713 mm)
Left
EdgeStar, 8606 Wall St, Suite 1600, Austin, TX 78754
support.edgestar.com • service@edgestar.com • edgestar.com
*Warranty service should be performed by an authorized service representative only.
Document Type: Dimensional Drawing
Model:
Version:
GRL420IBBNG, GRL420IBBLP
V1.1 03122019

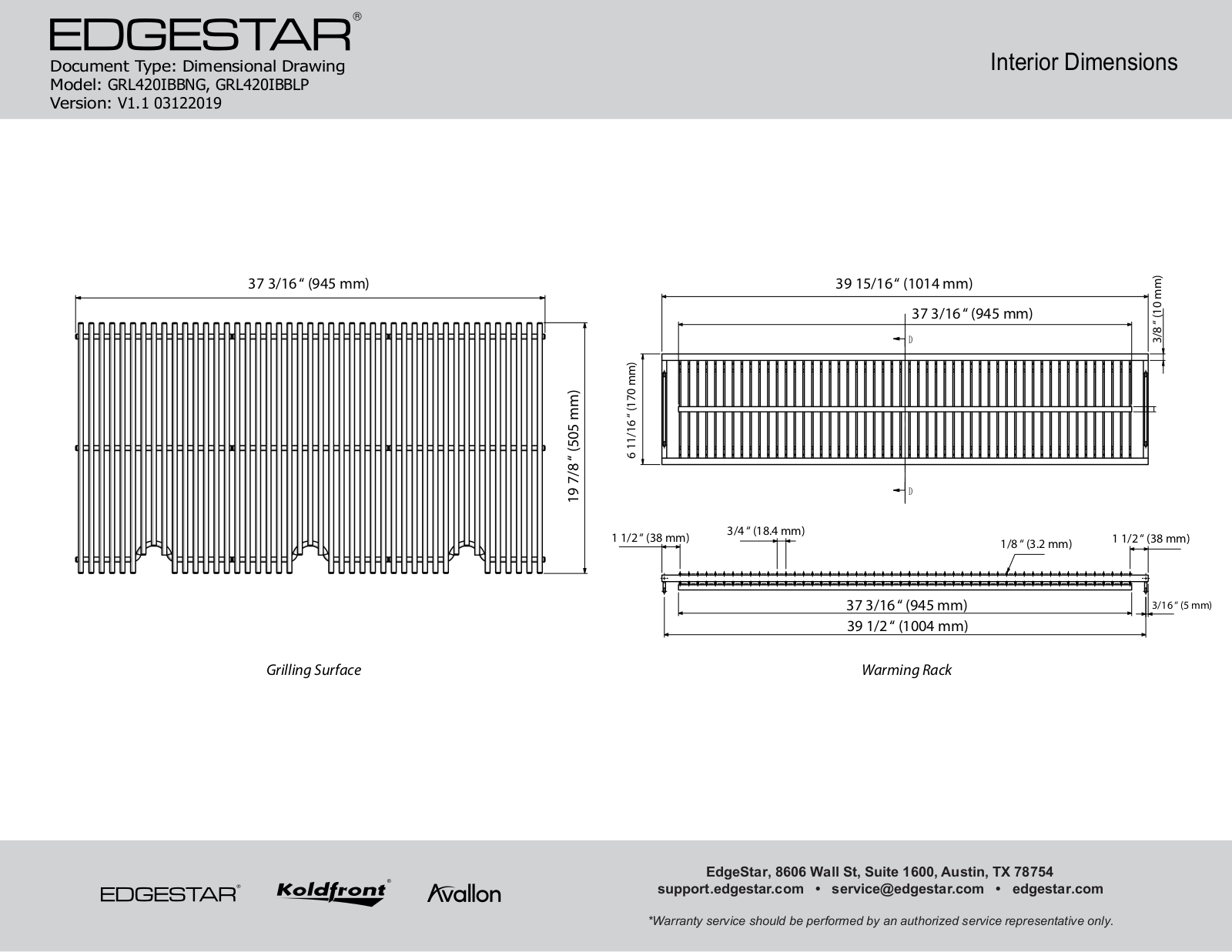

Interior Dimensions
37 3/16 “ (945 mm)
6 11/16 “ (170 mm)
39 15/16 “ (1014 mm)
19 7/8 “ (505 mm)
1 1/2 “ (38 mm)
3/4 “ (18.4 mm)
37 3/16 “ (945 mm)
39 1/2 “ (1004 mm)
Grilling Surface Warming Rack
37 3/16 “ (945 mm)
D
D
1/8 “ (3.2 mm)
3/8 “ (10 mm)
1 1/2 “ (38 mm)
3/16 “ (5 mm)
EdgeStar, 8606 Wall St, Suite 1600, Austin, TX 78754
support.edgestar.com • service@edgestar.com • edgestar.com
*Warranty service should be performed by an authorized service representative only.
