Document Type: Dimensional Drawing
Model:
Version:
GRL360IBBNG, GRL360IBBLP
V1.1 03122019
25 5/8 “ (650.7 mm)

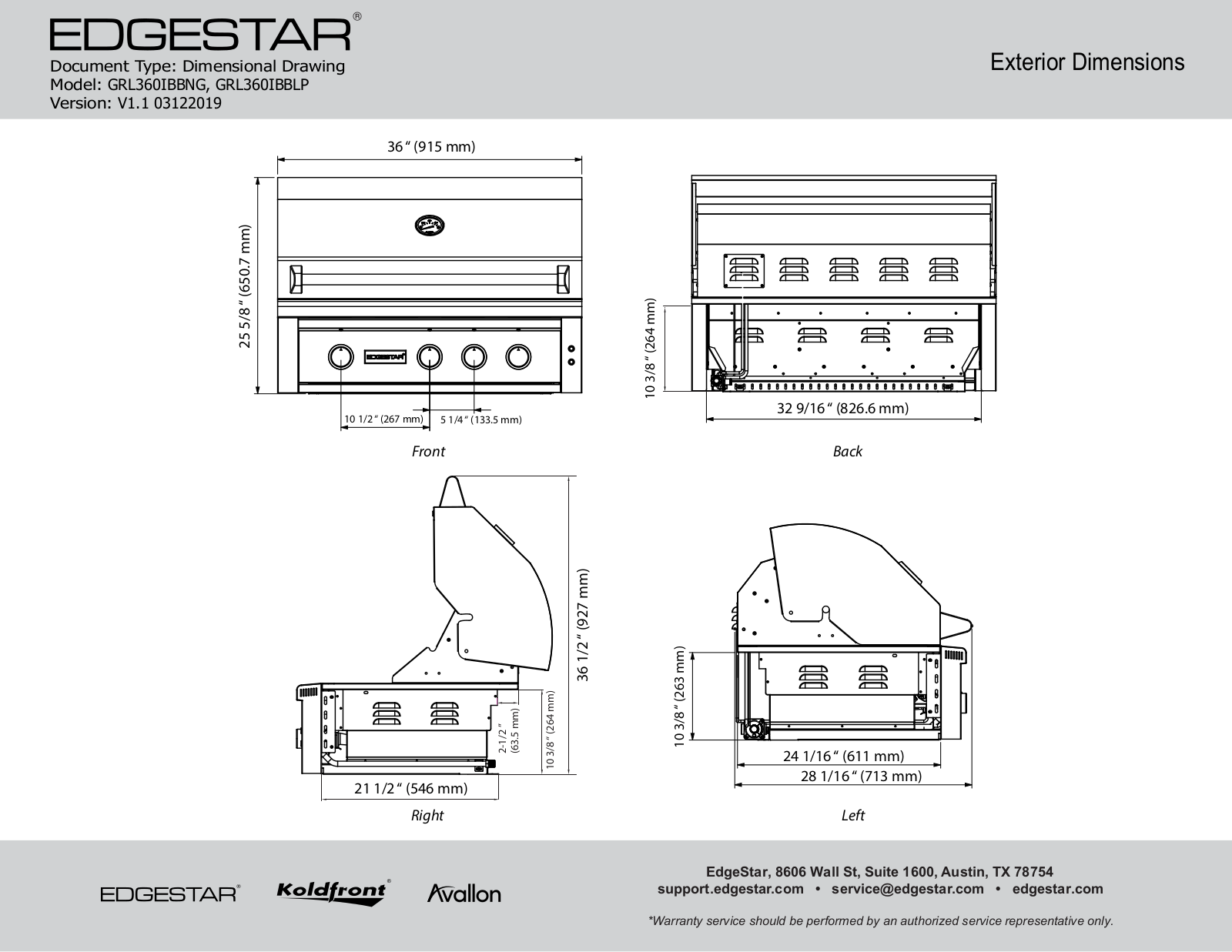

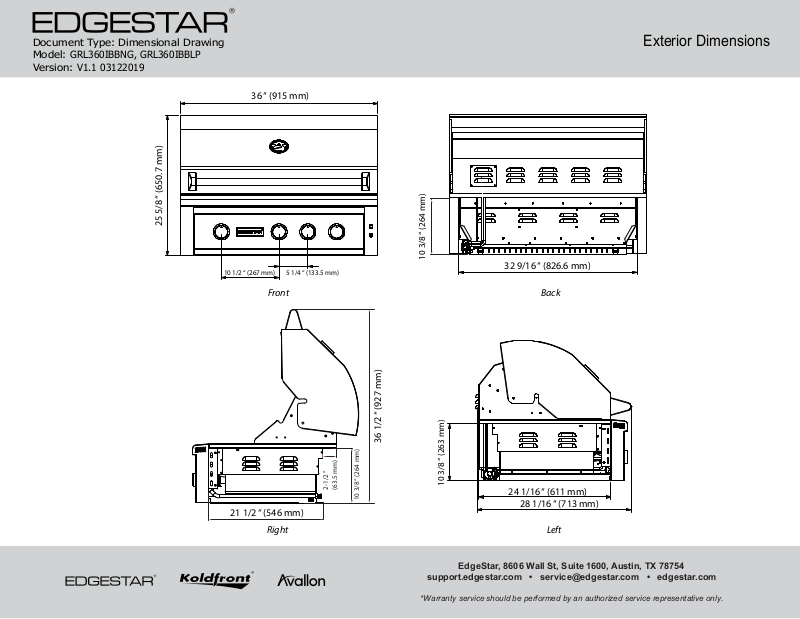

Exterior Dimensions
36 “ (915 mm)
10 1/2 “ (267 mm)
Front Back
21 1/2 “ (546 mm)
Right
5 1/4 “ (133.5 mm)
2-1/2 ”
(63.5 mm)
36 1/2 “ (927 mm)
10 3/8 “ (264 mm)
10 3/8 “ (264 mm)
32 9/16 “ (826.6 mm)
10 3/8 “ (263 mm)
24 1/16 “ (611 mm)
28 1/16 “ (713 mm)
Left
EdgeStar, 8606 Wall St, Suite 1600, Austin, TX 78754
support.edgestar.com • service@edgestar.com • edgestar.com
*Warranty service should be performed by an authorized service representative only.
Document Type: Dimensional Drawing
Model:
Version:
GRL360IBBNG, GRL360IBBLP
V1.1 03122019

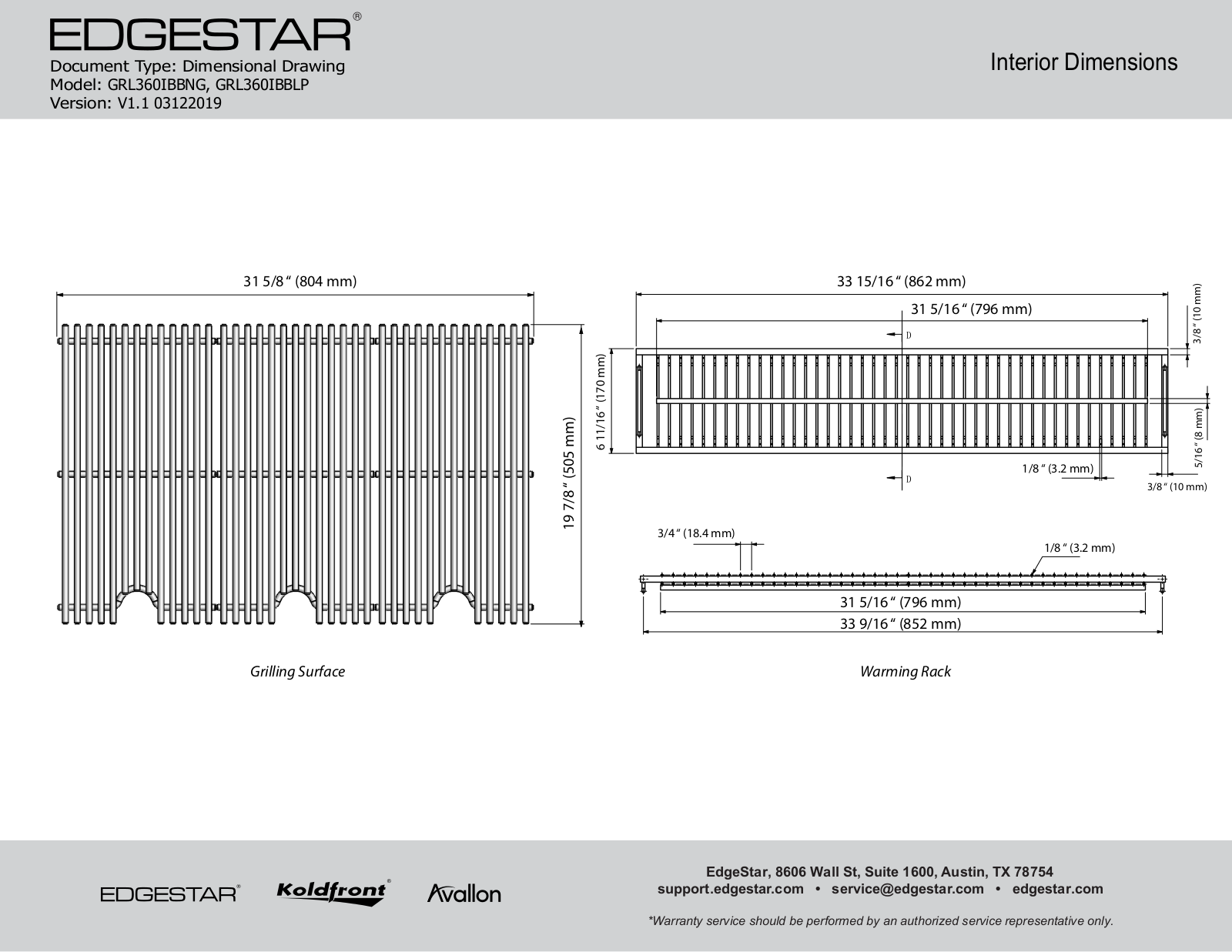

Interior Dimensions
31 5/8 “ (804 mm)
33 15/16 “ (862 mm)
31 5/16 “ (796 mm)
D
6 11/16 “ (170 mm)
D
19 7/8 “ (505 mm)
3/4 “ (18.4 mm)
31 5/16 “ (796 mm)
33 9/16 “ (852 mm)
Grilling Surface Warming Rack
1/8 “ (3.2 mm)
1/8 “ (3.2 mm)
3/8 “ (10 mm)
5/16 “ (8 mm)
3/8 “ (10 mm)
EdgeStar, 8606 Wall St, Suite 1600, Austin, TX 78754
support.edgestar.com • service@edgestar.com • edgestar.com
*Warranty service should be performed by an authorized service representative only.
