Document Type: Dimensional Drawing
Model:
Version:
GRL300IBLP, GRL300IBNG
V1.1 03122019
25 5/8 “ (651 mm)
30 “ (762 mm)
10 3/8 “ (264 mm)
10 1/2”
(267 mm)
4 5/16” (110 mm)
26 1/2 “ (673 mm)
Front Back

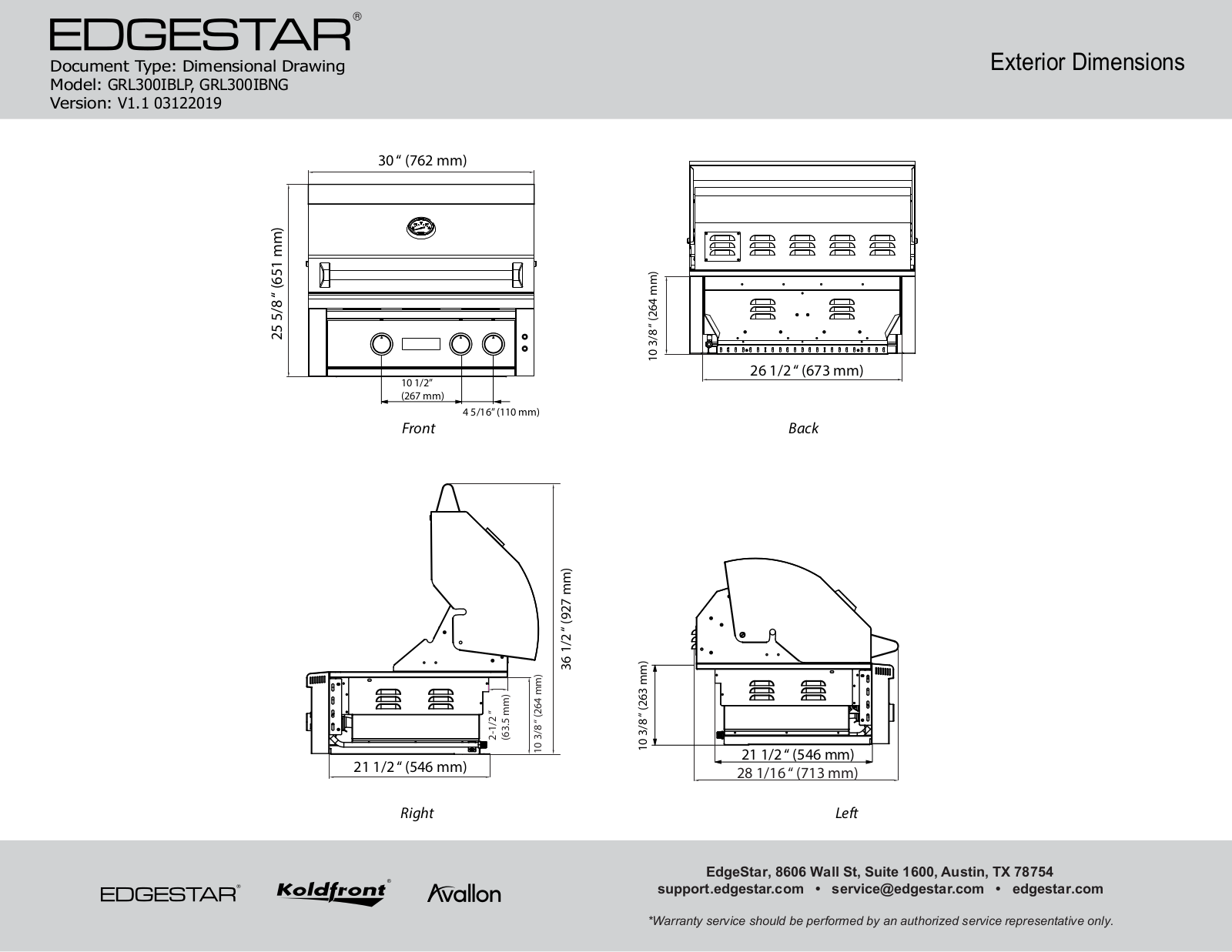

Exterior Dimensions
21 1/2 “ (546 mm)
Right Left
2-1/2 ”
(63.5 mm)
36 1/2 “ (927 mm)
10 3/8 “ (264 mm)
10 3/8 “ (263 mm)
21 1/2 “ (546 mm)
28 1/16 “ (713 mm)
EdgeStar, 8606 Wall St, Suite 1600, Austin, TX 78754
support.edgestar.com • service@edgestar.com • edgestar.com
*Warranty service should be performed by an authorized service representative only.
Document Type: Dimensional Drawing
Model:
Version:
GRL300IBLP, GRL300IBNG
V1.1 03122019

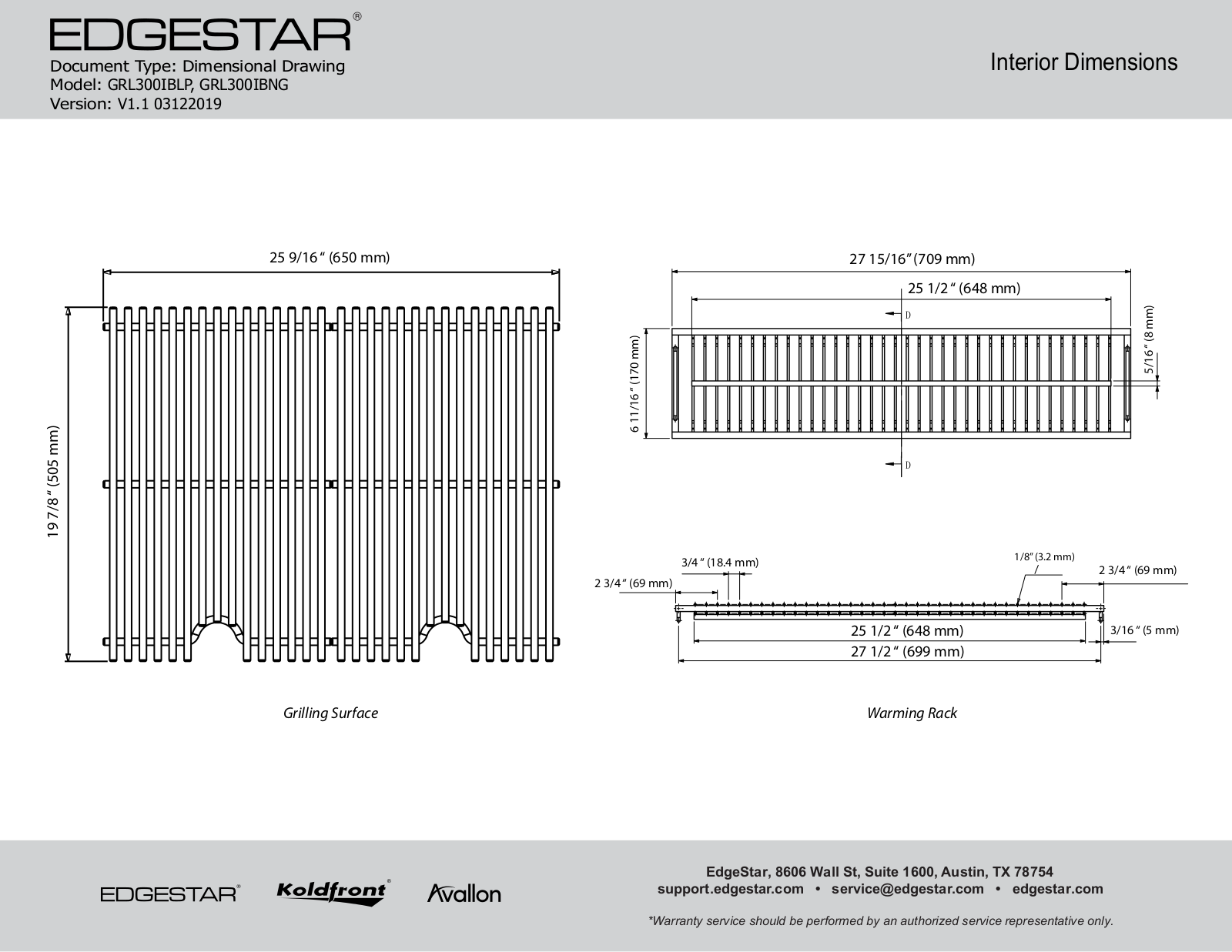

Interior Dimensions
19 7/8 “ (505 mm)
25 9/16 “ (650 mm)
6 11/16 “ (170 mm)
2 3/4 “ (69 mm)
3/4 “ (18.4 mm)
27 15/16” (709 mm)
25 1/2 “ (648 mm)
D
D
25 1/2 “ (648 mm)
27 1/2 “ (699 mm)
5/16 “ (8 mm)
1/8” (3.2 mm)
2 3/4 “ (69 mm)
3/16 “ (5 mm)
Grilling Surface Warming Rack
EdgeStar, 8606 Wall St, Suite 1600, Austin, TX 78754
support.edgestar.com • service@edgestar.com • edgestar.com
*Warranty service should be performed by an authorized service representative only.
