CWR265SZ

26 Bottle Built-in Wine Cooler

Owner’s Manual

This owner’s manual provides instructions on safe installation use, and troubleshooting assistance. Please read it carefully and save it for reference

http://www.edgestar.com

Important Safeguards

When using an electrical appliance, basic precautions should always be followed, including the following:

Before use, please read and follow all instructions

Do not use if the power supply cord is damaged. If damaged, it must be replaced by the manufacturer or a similarly qualified person.

This wine cooler is not intended for use by young children or infirm persons without supervision. Young children must be supervised to ensure they do not play with the appliance.

Ensure the cooler is unplugged before cleaning or if not in use.

To clean the cooler use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.

It is not recommended to use this wine cooler with an extension cord or power strip. Please ensure that the appliance is plugged directly into the electrical outlet.

This cooler is designed to store wine bottles. If food is placed inside, ensure that there is sufficient airflow between items. Also note that the temperature range for this cooler is optimized for wine and beverage storage. Perishable food items may require a different storage environment.

Do not place hot food or drinks into the wine cooler before they cool down to room temperature.

Close the cooler door immediately after putting in any items so the inside temperature will not rise dramatically.

Avoid subjecting the cooler to external heat sources or direct sunlight.

For a stable installation, make sure the cooler is placed on a flat, level, and solid surface.

Make sure that the surface on which the wine cooler is placed is strong enough to hold the wine cooler once it is fully loaded with wine bottles.

Do not place any other appliances on top of the wine cooler.

The wine cooler is an electrical appliance. To avoid injury or death from electrical shock, do not operate the wine cooler with wet hands, while standing on a wet surface, or while standing in water.

Do not use outdoors or in wet or moist conditions.

Do not turn the cooler upside down, on its side, or 45° or more off level.

Never pull the power cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

Never lift or carry the wine cooler by the power cord.

Keep the power cord away from heated surfaces.

This wine cooler is designed for household, non-commercial use only.

Do not plug this cooler into the power socket before set up is completed.

An empty cooler can be dangerous for children. If disposing of the cooler remove gaskets, latches, lids and the entire door from your unused appliance, or take other action to ensure that children cannot become trapped inside.

If your model of wine cooler is equipped with a lock, take care to keep the keys away from children.

Do not cut or remove the third prong (the grounding prong) from the power cord.

The cord should be secured behind the unit and should not be left exposed or dangling.

Do not move this cooler without emptying it of its contents and securing the door in a closed position.

1

Table of Contents



Important Safeguards......................................................................

1

Specifications ..................................................................................

3

Parts Identification...........................................................................

4

Installation .......................................................................................

5

Operation.........................................................................................

5

Temperature Control .......................................................................

6

Rack Removing and Insertion .........................................................

7

How to remove a rack:.................................................................

7

How to insert a rack: ....................................................................

7

Troubleshooting...............................................................................

8

EdgeStar Limited Warranty ...........................................................

10

First Time Operating Instructions

Before use, make sure all packaging labels and materials are all removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. It is advised that you keep the original box and packing materials in case you are ever to move or ship the unit in the future.

Let the unit stand for at least 24 hours before use; this allows the cooling components to settle from transit. The instruction manual should be thoroughly read before use.

2

Specifications

Model Number

CWR265SZ







Capacity

26

Bottles





Input Power

120W





Rated Frequency

60Hz





Power Consumption

1.8kw.h/24h





Cooling System

R134a







Ambient Temp

60

- 90°F







Temperature Range

50

- 56°F





Rated Voltage

115V







Weight

95

Lbs





Dimensions (HxWxD)

34.4"×15.0"×22.6"







3

Parts Identification

Important Note: Even if your refrigerator looks slightly different; the operation will essentially be the same. Picture is provided for reference.

1Dual-pane window

2Front grill

3Adjustable legs

4Main shelving

5Cabinet

6Main control panel

7Temperature indicator

8Light switch

9Temperature adjustment buttons

4

Installation

Clear unit of any loose packaging materials.

Confirm you have all required loose parts and pieces.

Place the unit on a flat, dry surface that is able to support the unit while fully loaded.

This unit is designed to be either recessed or free standing.

Avoid placing heavy objects on top of the unit.

The unit is not designed for use in a basement or garage.

The unit is not designed to be in direct sunlight or near sources of heat.

Avoid placement near other heat-emitting appliances.

Do not share outlets with other powerful appliances.

Let stand for at least 24 hours before powering up to let cooling materials settle.

Gently clean the unit’s interior surface with warm water, using a soft cloth before first use.

Operation

1.Insert racks into unit.

2.Adjust temperature.

3.Place bottles to be cooled inside unit.

4.Plug the power cord into a standard grounded electrical outlet.

5.Keep door closed to keep optimal temperature and conserve energy.

6.Toggle the internal light by pressing the button on the front control panel.

Important Note: Allow at least 24 hours for the internal temperature to become adjusted properly before first use.

5

Temperature Control

Front panel controls

Please note that the front panel controls will allow you to change the temperature to a range that is higher and lower than 50-56°F; however, the unit is designed to only achieve temperatures between 5056°F.













































































































































Light Button





LCD Display

Up and Down Buttons

Using the controls:

Use the left side controls to adjust the temperature. The temperature displayed will be in Fahrenheit. This wine cooler has an actual temperature range from 50°F to 56°F. Whether your wine cooler can reach the actual set temperature depends on the ambient environmental conditions.

Press the button on the left side of the control panel to lower the temperature by 1 degree increments. The set temperature will flash for a few seconds, and then revert to the ambient inner temperature of the wine cooler.

Allow at least 24 hours for the temperature to acclimate, and before storing your wines.

Press the button on the left side of the control panel to increase the temperature by 1 degree increments.

Press the button to turn on and off the inner light.

When the temperature of the unit becomes too low, the LED will display “LL”, likewise, when the temperature is too high, it will display “HH”. The unit will display “ER” in the event of an error or power disruption.

Tip: To conserve energy, always set the display above 48; otherwise, the inner fans will run continuously.

Note: The right side controls will have little or no bearing on the inner temperature. It is recommended you set the right LCD at 55.

Important Note: This unit will operate best in a room with a temperature less than 90°F (32°C).

6

Rack Removing and Insertion

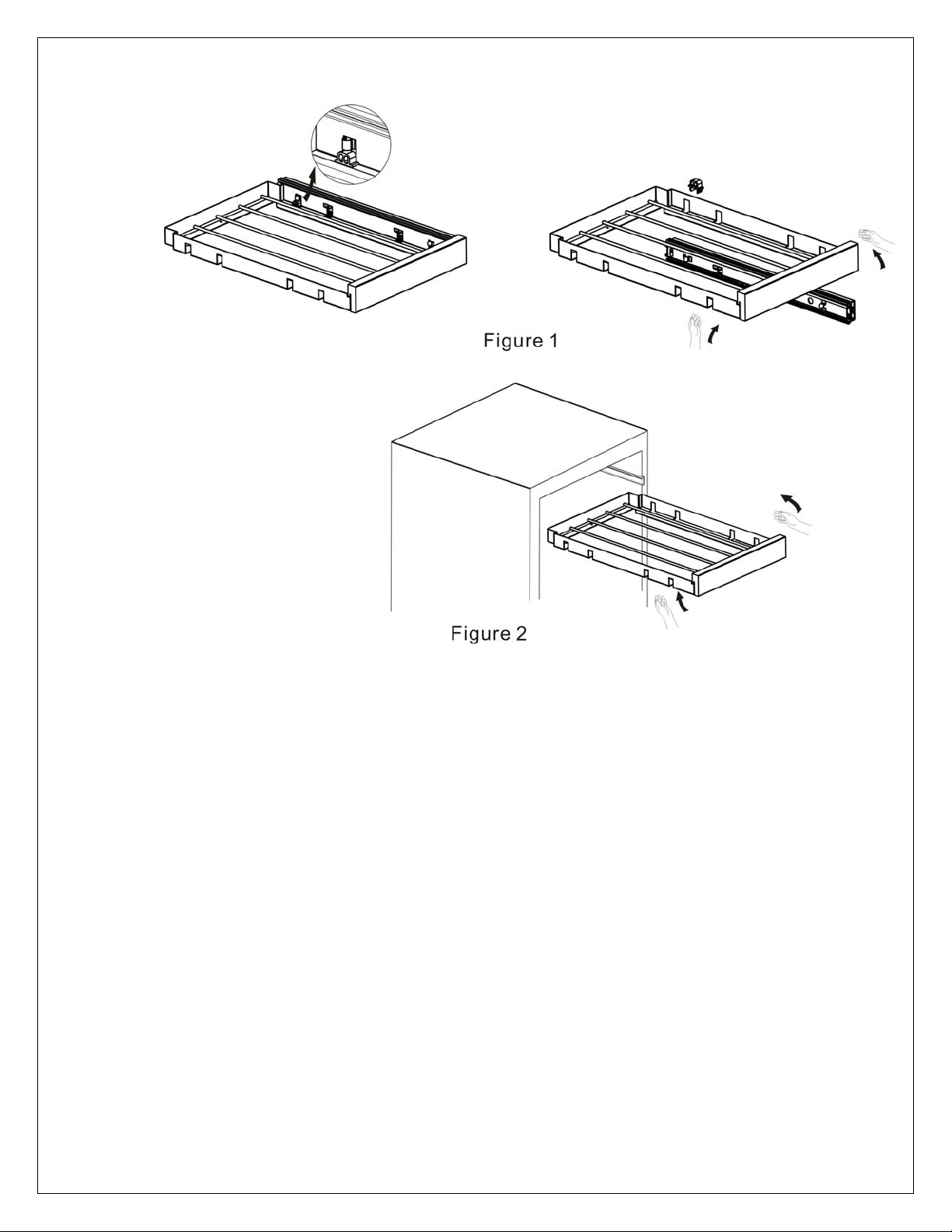

Be sure to have the door all the way opened when pulling shelves out of the rail compartment to avoid damage.

How to remove a rack:

1.Remove any bottles from the trays.

2.Remove the stopper from each side of the rack, and gently pull up. You can then remove the rack. (Fig. 1)

How to insert a rack:

1.Gently push the rack into the sliders. (Fig. 2)

2.Insert stopper to hold the rack into position.

7

Troubleshooting

Issue

Possible cause

Solution



There is a power

Ensure the cooler is plugged



in and the power outlet has



failure.



power.











The wine cooler

The cooler is not

Plug the unit in to a power

does not turn on.

plugged in.

outlet that has sufficient





amperage.



A house fuse has

Replace the broken fuse in



blown or the circuit

your fuse box or reset the



breaker is tripped.

breaker.









The cooler is

Keep the cooler away from



placed too close to

sunshine or other heat



a heat source.

sources.

The wine cooler will





The cooler does

Make sure the wine cooler

not reach the

has several inches of

desired

not have sufficient

ventilation on the sides and

temperature

ventilation.

back.













The door is opened

Close the door tightly and do



too frequently or for

not open the door too



a long period of

frequently or for a long



time.

period of time.

I set the unit to





64°F, but it does

This is normal

The unit will operate from

not go to that

operation.

50°F to 56°F.

temperature.





I set the unit to

This is normal

Set the temperature higher

48°F, and the unit

than 48°F. The unit will

operation.

runs all the time.

operate from 50°F to 56°F.











The environment is

Though the unit uses an



humid.



“auto-defrost” system, under









certain conditions, manual





defrosting may be required.



The ambient

Frost is forming in

temperature is too

If frost builds up, you can try

low.

running the cooler on a

the wine cooler



warmer temperature setting,









minimizing the number of







The door is being

times you open the door, or



unplugging the unit to allow



opened too



the frost to melt.



frequently.











8

Troubleshooting continued

Symptoms

The cooler turns on and off frequently.

The cooler makes too much noise.

The door will not shut properly.

Possible causes

The room temperature is higher than the recommended ambient temperature (77°F).

The door is being opened often.

The door is not completely closed.

The door gasket is not sealing properly.

The cooler does not have the suggested ventilation.

If the noise is from the fan, it may be normal operating noise.

The unit is not level.

Popping or crackling noises are coming from the unit.

Your cooler is not level.

The door gasket is dirty.

The door gasket is malformed.

The shelves are incorrectly installed.

Solutions

Run the cooler in the appropriate ambient temperature.

Minimize the number of times the door is opened.

Make sure the door is completely closed.

Make sure the door gasket is properly sealing.

Make sure the cooler has at least 2” on the sides and 4” in the back for clearance.

The fan makes normal fan noises when operatingthis is normal.

Make sure the cooler is on a level surface.

Some popping or crackling noises are normal. They are caused by expansion and contraction of the inside walls due to temperature changes.

Make sure the cooler is on a level surface.

Clean the door gasket.

Make sure the door gasket is properly sealing.

Correctly install the shelves.

9

EdgeStar Limited Warranty

One (1) Year Parts & Ninety (90) Days Labor

This product is warranted by EdgeStar to be free from defective workmanship and materials, subject to any conditions set forth as follows:

WHAT IS COVERED:

LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility. At its option, EdgeStar will repair the product with new or remanufactured parts, or exchange the defective product with a new, refurbished, or remanufactured product. If a product is replaced, it will carry the remaining warranty of the original product. After the ninety (90) day period, EdgeStar will no longer be responsible for labor charges incurred. All defective products and parts covered by this warranty will be repaired or replaced on a mail-in basis to an EdgeStar authorized repair facility.

PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. All replacement parts or products will be new, remanufactured, or refurbished. All products and parts replaced by EdgeStar under warranty service become the property of EdgeStar.

This warranty applies to the original purchaser only, and only covers defects in workmanship experienced during operation of the product under normal service, maintenance, and usage conditions. This warranty applies to the purchase and use of this product in residential settings within the United States of America.

WHAT IS NOT COVERED:

The following limitations apply to the coverage of this warranty. This warranty does not cover:

Labor charges for installation, setup or training to use the product.

Shipping damage, and any damage caused by improper packaging for shipment to an authorized service center, and any damaged caused by improper voltage or any other misuse, including abnormal service, handling, or usage.

Cosmetic damage such as scratches and dents.

Normal wear and tear on parts or replacement of parts designed to be replaced, e.g. filters, cartridges, batteries.

Service trips to deliver, pick-up, or repair, install the product, or to instruct in proper usage of the product.

Damages or operating problems resulting from misuse, abuse, operation outside environmental specifications, uses contrary to instructions provided in the owner’s manual, accidents, acts of God, vermin, fire, flood, improper installation, unauthorized service, maintenance negligence, unauthorized installation or modification, or commercial use.

Labor charges incurred 91 days or more after the date of original purchase.

The use of EdgeStar products in commercial settings.

Optional accessories, attachments, and appearance items.

Products that have been modified to perform outside of specifications without the prior written permission of EdgeStar.

Products lost in shipment, or theft.

Products sold AS IS or from an unauthorized reseller.

Products that have had their serial numbers removed or defaced. Products with serial numbers that have been invalidated.

OBTAINING WARRANTY SERVICE:

If you believe your product is defective, contact EdgeStar Customer Support for troubleshooting assistance and warranty service at 1-866-319-5473. Please have your serial number and proof of purchase available. Once an EdgeStar authorized representative has confirmed that your product is defective and eligible for warranty service, the product must be returned to an EdgeStar repair facility. The purchaser is solely responsible for prepaying all shipping related costs to and from the repair facility. EdgeStar is not responsible for damage resulting from shipper mishandling or improper packaging. Do not return a defective product to the place of purchase. Products received without a return authorization number will be refused.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE.

NEITHER THE MANUFACTURER NOR ITS DISTRIBUTORS SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY

FROM STATE TO STATE.

10

EdgeStar Products

Box 81336

Austin, TX 78708-1336

Toll Free: 1-866-319-5473

Web: http://www.edgestar.com

E-mail: service@edgestar.com

Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com

Product contents and specifications may change without notice.
