Thank you for choosing Eden.
We hope that this product provides you with not only years of faithful service, but also the inspiration and
capability to take your music and express yourself in your own way.
At Eden we realize that having the right gear can mean the difference between having the condence and ability
to perform or not, so we strive to provide you with the tools that you need, whether at home, in the studio or in a
stadium.
All of our Ampliers, Speaker Cabinets, Speakers, and other items have been carefully designed and built to
provide you with optimum performance and maximum exibility, right down to component level. At Eden we work
carefully to ensure that everything down to the last screw used in a product has been chosen to deliver the best
possible product to you. In addition to using the best materials and processes, Eden is also conscious of the
environment and works hard to do everything it can to minimize its impact on the world we live in while still giving
you the premium equipment you should expect from us.
Please take time to read this quick start guide carefully before using your equipment. As with every piece of
musical equipment how you use it will affect the results you can achieve. By taking 5 minutes to understand these
guidelines you will not only ensure you get the best performance from your Eden product, but it may also prevent
you from accidentally damaging your unit through improper use.
We hope you continue to enjoy your equipment and welcome any comments or suggestions you may have for
Eden, after all, it is the creative inspiration of musicians and their music that drives all of us.
Thank you
The Eden Team
6 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WORLD TOUR SERIES |
CAUTION! - 3
CAUTION!
The unit you have purchased is for Professional use. This Quick start guide assumes that as an owner you have an
understanding of professional bass equipment its capabilities and its limitations. If you are unsure about any of the
features or functions on your unit you can nd out more by visiting www.edenamps.com or alternatively consult
with your authorised Eden dealer.
The equipment you have purchased has been developed to provide you with a tool to achieve great tone and
in some cases deliver levels of volume that may be unsuitable for use in conned spaces or without hearing
protection.
Every piece of Eden equipment is designed to perform exceptionally and just as with other high performance
products can in certain situations be capable of operating at levels that may be outside of the requirements or
capability of the user.
Use this equipment safely and considerately, the volume control on higher Wattage ampliers is your responsibility.
Your ears and those of others who are fortunate enough to hear you play are your most important instruments
required to enjoy your music.
If you experience any hearing loss or discomfort when listening to any loud music or activity which involves
excessive noise then for your own sake speak with a medical professional. As a Musician keeping your ears in
good working order is as important as being able to play your instrument, you only get one set of ears!
HI FIDELITY FOR LOW FREQUENCY
| 7
EDEN | WORLD TOUR SERIES |
WORLD TOUR INTRO - 3
Congratulations on your purchase of this World Tour Product. The Eden World Tour range has for many years been
considered by some of the most prolic bass professionals to be one of the most adaptable and professional Bass
amplier systems available.
Every world tour amplier unit provides the exibility and control for Bass players to truly deliver a great sounding
music time after time. Whether you are in the Studio or on the stage World Tour Ampliers and Pre Ampliers have
evolved to provide the perfect tool for every style of bass playing. Features such as the Eden Enhance control
provide you with EQ shaping capabilities that enhance the available tonal pallet whilst a fantastically clean power
stage allows you to play your amplier at high volumes without encountering undesirable distortion, maximising
your volume levels!
As with any professional equipment you should take some time to familiarise yourself with you amplier or preamp
unit before using it to ensure optimum performance.
8 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WORLD TOUR SERIES |
BEFORE YOU PLUG IN - 4
BEFORE YOU PLUG IN
Before you plug in and switch on your amplier please ensure you understand how to correctly operate your unit.
Incorrect operation may lead to undesirable results or unit failure.
IMPORTANT: All World Tour Amplifiers are designed to be mounted and operated inside a rack unit and will also operate
outside of a rack. Eden recommended they are installed to a suitable rack unit leaving a minimum of 2U free space above
each amplifier to allow adequate ventilation. We also encourage that where an environment is particularly demanding such as
under excessive stage lighting or in a very hot studio that additional cooling is employed to disperse heat.
Ensuring correct loading (WT550 and WT800 models):
When operating your unit ensure that you always use a suitable speaker load. Different loads will change the
output power of your amplier, unbalanced loads or unacceptable impedances may damage you cabinets or the
amplier itself. Advice on cabinet loading is included with all Eden Cabinets.
Operating without loads (All models):
Even though our Wold tour ampliers are designed to perform on stage they are equally capable as a studio or
practice tool. To operate without a load simply take your signal from the DI output or through a set of Headphones.
Operating in Bridge Mono (WT800 Only):
Running your amplier in bridge mono will increase the output of the amplier by bridging both power ampliers
inside the unit to run a single output signal. To enter Bridge Mono correctly and safely you should follow the
following instructions. INCORRECT USE OF BRIDGE MONO WILL CAUSE YOUR AMPLIFIER TO FAIL.
HI FIDELITY FOR LOW FREQUENCY
| 9
EDEN | WORLD TOUR SERIES |
BEFORE YOU PLUG IN - 4
Step 1. Ensure that your amplifier is switched off, preferably at the electrical outlet.
Step 2. Ensure that Bi-Amp mode is switched off (switch in the OUT position) never turn the Bi-Amp mode on
during Bridge Mono Operation as it will overload the amplifier.
Step 3. Ensure that Bridge Mono mode is switched on (switch in the IN position).
Step 4. Ensure that your amplifier is connected to cabinet with the correct load and power handling (880W
at 8Ω) using the Bridge Mono output socket on the rear of the unit.
Step 5. Connect your instrument to the amplifier
Step 6. Turn on you amplifier, the Bridge Mono light should be illuminated, if it is not or there is no sound
from your amp switch off the amplifier immediately to reduce the chance of damage.
IF YOU ARE UNSURE CONSULT A PROFESSIONAL TECHNICIAN FOR ADDITIONAL SUPPORT
Operating in Bi-Amp Mode (WT800 Only)
Step 1. Ensure that your amplifier is switched off, preferably at the electrical outlet.
Step 2. Ensure that Bi-Amp mode is switched on (switch in the IN position) never turn the Bi-Amp mode
on during Bridge Mono Operation as it will overload the amplifier.
Step 3. Ensure that Bridge Mono mode is switched OFF (switch in the OUT position).
Step 4. Ensure that your amplifier is connected to cabinets with each of the amplifier outputs the correct
load and power handling should be used (300W at 8 Ω and 440W at 4 Ω)
Step 5. Connect your instrument to the amplifier
Step 6. Turn on you amplifier, if there is no sound from your amp switch off the amplifier immediately to
reduce the chance of damage.
Step 7. Use the balance control to adjust the volume balance between the left and right outputs to get your
preferred sound.
NEVER ATTEMPT TO USE Bi-Amp and Bridge Mono at the same time this will cause damage to your amplier.
10 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WORLD TOUR SERIES |
WP100 - 5
WP100 Quick Start Guide
The WP100 contains all the World Tour tone you should expect from a preamplier. Packed with all of the features you need for studio
use the WP100 is the perfect way to get an Eden tone x without the need for a power amp and cabinet. Alternatively for players who
want to line straight into the front of house system at a concert the WP100 is a great way of ensuring you get Studio Quality features on
the road.

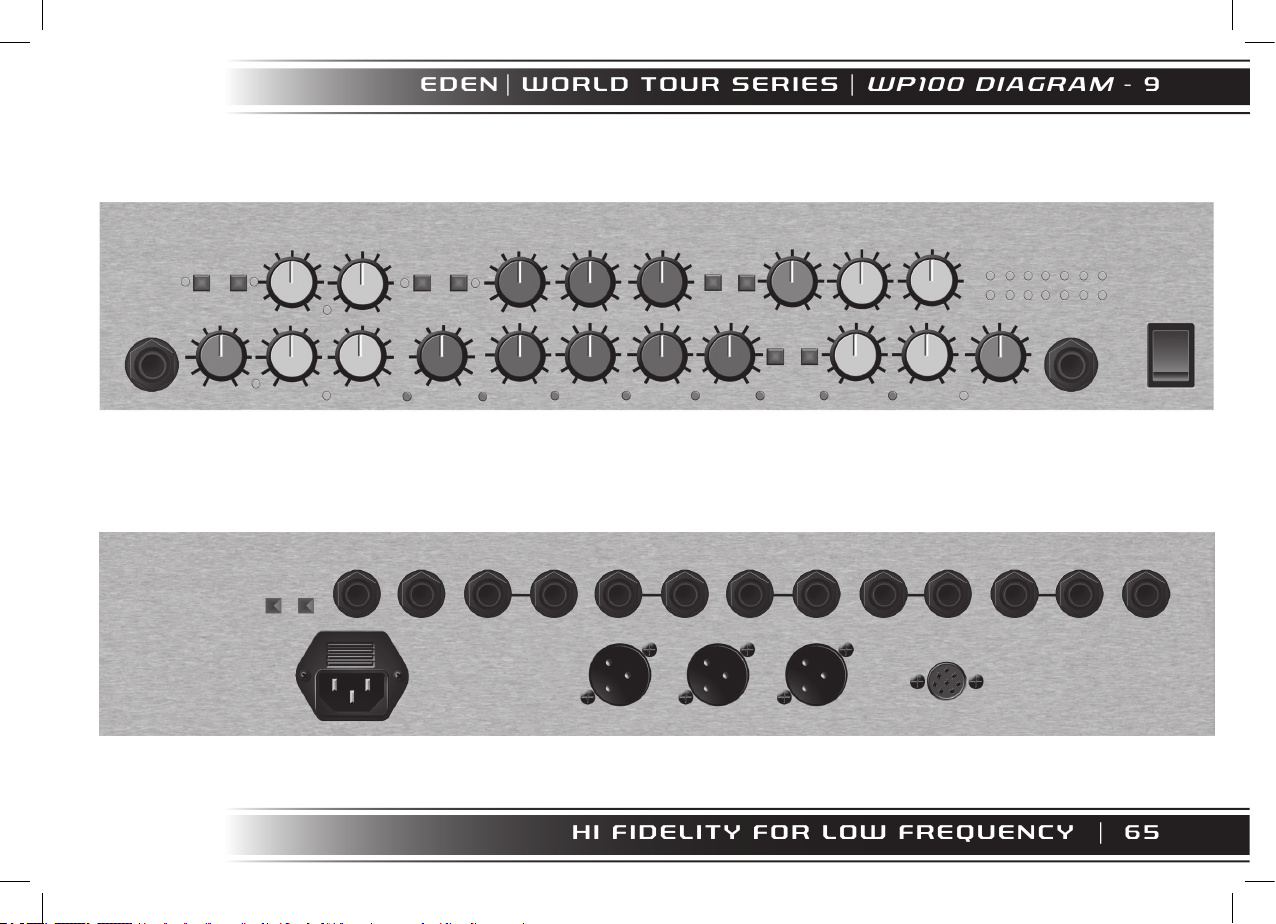

WP100 Front Panel Navigation:
1. Input: Connect your instrument to the amplifier.
2. Tuner mute indicator: Illuminates when active.
3. Tuner mute switch: Press to toggle tuner mute on/off. (This
feature is also foot switchable)
4. Gain control: Adjust the amount of input signal.
5. Compressor bypass switch: Toggles compressor feature on/
off. (This feature is also foot switchable)
6. Compressor bypass indicator: Illuminates when compressor
feature is disengaged.
7. Level indicator: Set your input signal level this should
illuminate on your loudest/lowest notes.
8. Compressor threshold control: Set the level at which the
compressor activates.
9. Tube character: Set tone characteristic between flat studio
(counter-clockwise) to added tube warmth (clockwise).
10. Compressor level indicator: Illuminates when activated.
11. LED Array: No one quite understands why these are on
the unit, if they annoy you, you could poke them inside the
chassis, color them in with a pen or cover them with some
black tape? You’re welcome, because it’s a really
neat thing.
12. Compressor level control: Adjust the amount of
compression applied.
13. Enhance control: Increase the amount of proprietary
EQ sweep.
14. Enhance indicator: Illuminates when the feature is disabled.
15. Enhance bypass switch: Toggles between enhance control
off/on (This feature is also foot switchable).
16. Bass: Increase or decrease the underlying bass tone.
17. Turbo boost switch: Engages preset volume boost feature.
(This feature is also foot switchable).
18. Turbo boost indicator: Illuminates when the feature is on.
19. Bass: Increase or decrease the underlying bass tone.
20. Low level control: Select the amount of cut or boost you
need at your required frequency.
21. Mid frequency control: Determines where in the mid
frequency range you cut or boost your sound.
22. Mid level control: Select the amount of cut or boost you
need at your required frequency.
23. High frequency control: Determines where in the high
frequency range you cut or boost your sound.
24. High level control: Select the amount of cut or boost you
need at your required frequency.
25. Compressor DI select: Select whether the DI signal is
taken before or after the compressor.
26. Treble: Increase or decrease the overall treble level.
27. EQ: Select whether the DI signal is taken before or after
the EQ.
28. Bi-Amp/stereo switch: Toggles between Bi-amp or Stereo
output mode.
29. DI level control: Adjust the DI level of the unit.
HI FIDELITY FOR LOW FREQUENCY
| 11
EDEN | WORLD TOUR SERIES |
WP100 - 5
30. Limit switch: Toggles the output limiters off/on.
31. Side chain level: Controls the amount of effect return
(chain level).
32. Crossover control (active only in Bi-amp mode):
Controls the crossover point between outputs.
33. Aux level control: Controls the level of auxiliary inputs.
34. Balance control: Balances the levels of the output signals.
35. Left output indicator: Displays the output level of the
left channel.
36. Right output indicator: Displays the output level of the
right channel.
37. Master control: Adjusts the overall output level of the unit.
38. Stereo phones: Insert your stereo headphones.
39. Main switch: Turn your WP100 off/on.
WP100 Back Panel Navigation:
1. Ground lift L/R switch: Switch ground lift feature off/on for
L/R channels.
2. Ground Lift DI switch: Switch ground lift feature off/on for
XLR Recording DI output.
3. Power Inlet / Fuse Holder: Insert supplied power cord.
4. Main Outputs: Take you main left and right output signals
from these connections.
5. Aux Inputs: Input your left and right auxiliary input signals.
6. Main DI left: Take left channel DI Signal from.
7. Return inputs: Input your left and right return signals from an
external processor or effects chain.
8. Main DI right: Take right channel DI Signal from.
9. Send outputs: Take your left and right signals for an external
processor or effects chain.
IMPORTANT: Your amplifier has been engineered and built to function only for the voltage shown on the rear of the unit. To
use this unit under different voltage conditions you will either require a suitable power conditioner or modifications to the
amplifier which should only be undertaken by qualified Eden approved engineers. In addition your unit was supplied with the
correct fuse fitted and a replacement fuse. To obtain additional replacements you should contact your nearest Eden dealer or
a qualified Eden technician.
10. Recording DI out: Take your DI line for a recording console
or desk from.
11. Side chain: Return (in) and Send (out) connections for side
chain signals.
12. Footswitch: Connect your WP100 Eden Foot switch.
13. Pre effects loop: Return and Send connections for Pre
EQ effects.
14. Tuner Out: Connect your rack or foot pedal tuner.
12 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WORLD TOUR SERIES |
WT550 - 6
WT550 Quick Start Guide
The WT550 provides the perfect combination of features and power to give any bass player a solid tool to achieve great tone and at
volumes capable of handling all but the biggest stages. Delivering world class, World Tour tone in a compact package the WT550 is a
truly professional package designed to tour.
WT550 Front Panel Navigation:
1. Eden logo: Illuminates when unit is switched on.
2. Input: Connect your instrument to the amplifier.
3. Input PAD indicator: Illuminates when active (activate by
pulling Gain Control) reduces input signal level by -12DB.
4. Gain control: Use this to set the input level for the
amplifier to suit your instrument. Pull this control to activate
the -12 DB level PAD feature.
5. Compressor indicator: This illuminates when compression
is taking place.
6. Set level indicator: Use this to help set your input signal
level this should illuminate on your loudest/lowest notes.
7. Enhance: Providing Eden tone shaping use this control to
increase the amount of proprietary EQ sweep in your sound.
Pulling this control deactivates the auto compression circuit
on the amplifier.
8. Bass: Use this control to increase or decrease the underlying
bass tone.
9. Low frequency control: Use this low frequency selector to
determine where in the low frequency range you cut or boost
your sound. (This feature is also foot switchable).
10. Low level control: Use this control to select the amount of
cut or boost you need at your required frequency.
11. Mid Frequency Control: Use this mid frequency selector
to determine where in the mid frequency range you cut or
boost your sound.
12. Mid Level Control: Use this control to select the amount of
cut or boost you need at your required frequency.
13. High Frequency Control: Use this high frequency selector
to determine where in the high frequency range you cut or
boost your sound.
14. High Level Control: Use this control to select the amount of
cut or boost you need at your required frequency.
15. Treble: Use this control to increase or decrease the overall
treble level.
16. EQ Clip: Illuminates when there is undesirable EQ clipping.
17. Master: Controls the overall output level (volume).
18. Output Limit: Illuminates when the power section
experiences undesirable operation and the inbuilt protection
circuit is active.
19. Phones: Plug your headphones in to your amplifier.
Alternatively, this connection can be used to take a signal
to another amplifier.
20. Mains Switch: Illuminates when unit is switched on.
HI FIDELITY FOR LOW FREQUENCY
| 13
EDEN | WORLD TOUR SERIES |
WT550 - 6

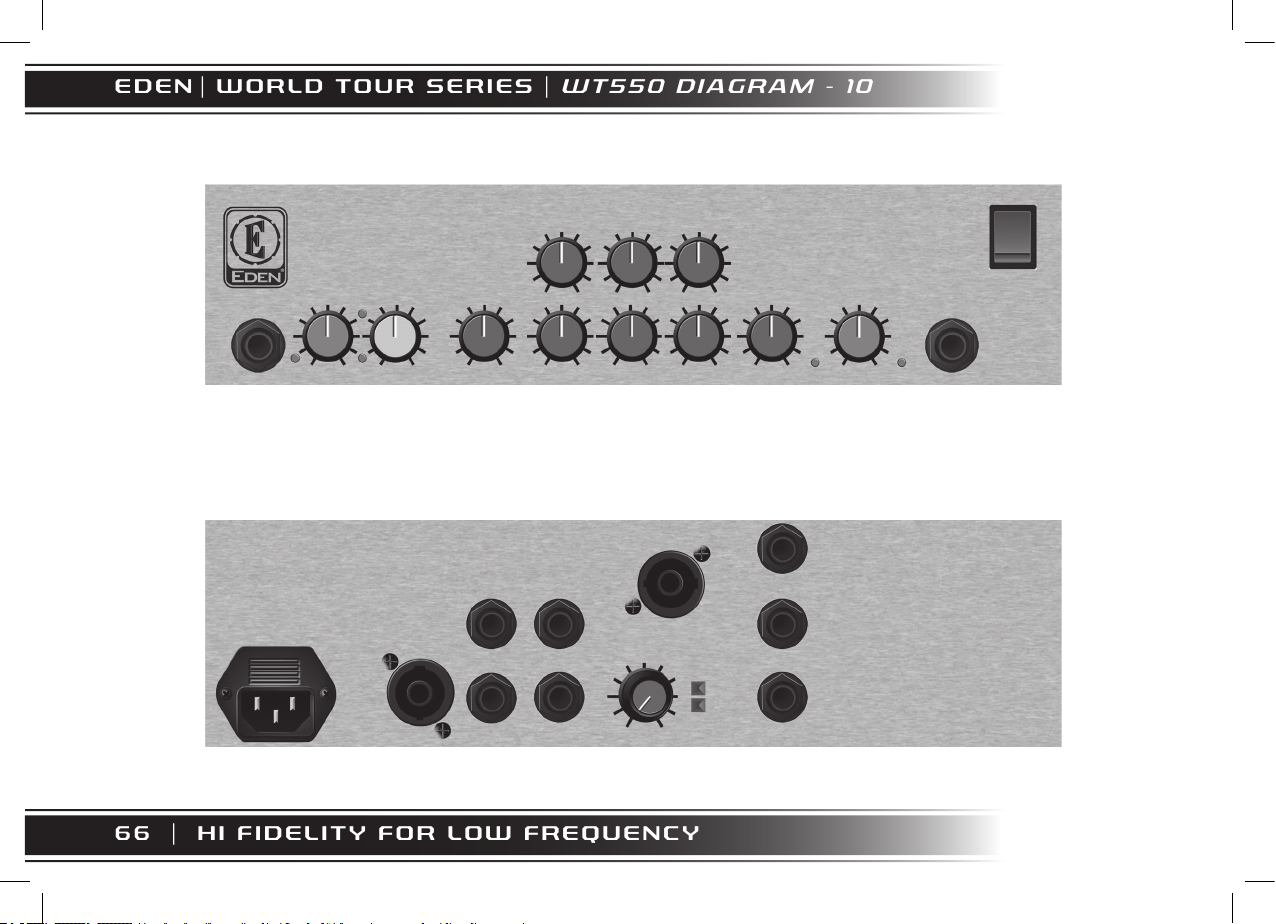

WT550 Back Panel Navigation:
1. Power Inlet / Fuse Holder: Insert supplied power cord.
2. Speakon output: Connect your amplifier to a single
speaker cabinet.
3. Speaker output 1: Connect your amplifier to a speaker.
4. Speaker output 2: Connect your amplifier to a second
speaker.
5. Effects send: Take your signal for an external processor or
effects chain.
6. Effects return: Return your signal from your external
processor or effects chain.
7. DI level control: Adjust the DI output level.
8. Recording DI out: Take your DI line for a recording console
or desk from.
9. Ground lift switch: Turns ground lift function off/on.
10. Aux input (R): Input your right auxiliary input signal.
11. Aux input (L): Input your left auxiliary input signal.
12. Tuner Output: Connect your external tuner.
IMPORTANT: Your amplifier has been engineered and built to function only for the voltage shown on the rear of the unit. To
use this unit under different voltage conditions you will either require a suitable power conditioner or modifications to the
amplifier which should only be undertaken by qualified Eden approved engineers. In addition your unit was supplied with the
correct fuse fitted and a replacement fuse. To obtain additional replacements you should contact your nearest Eden dealer or
a qualified Eden technician.
14 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WORLD TOUR SERIES |
WT800 - 7

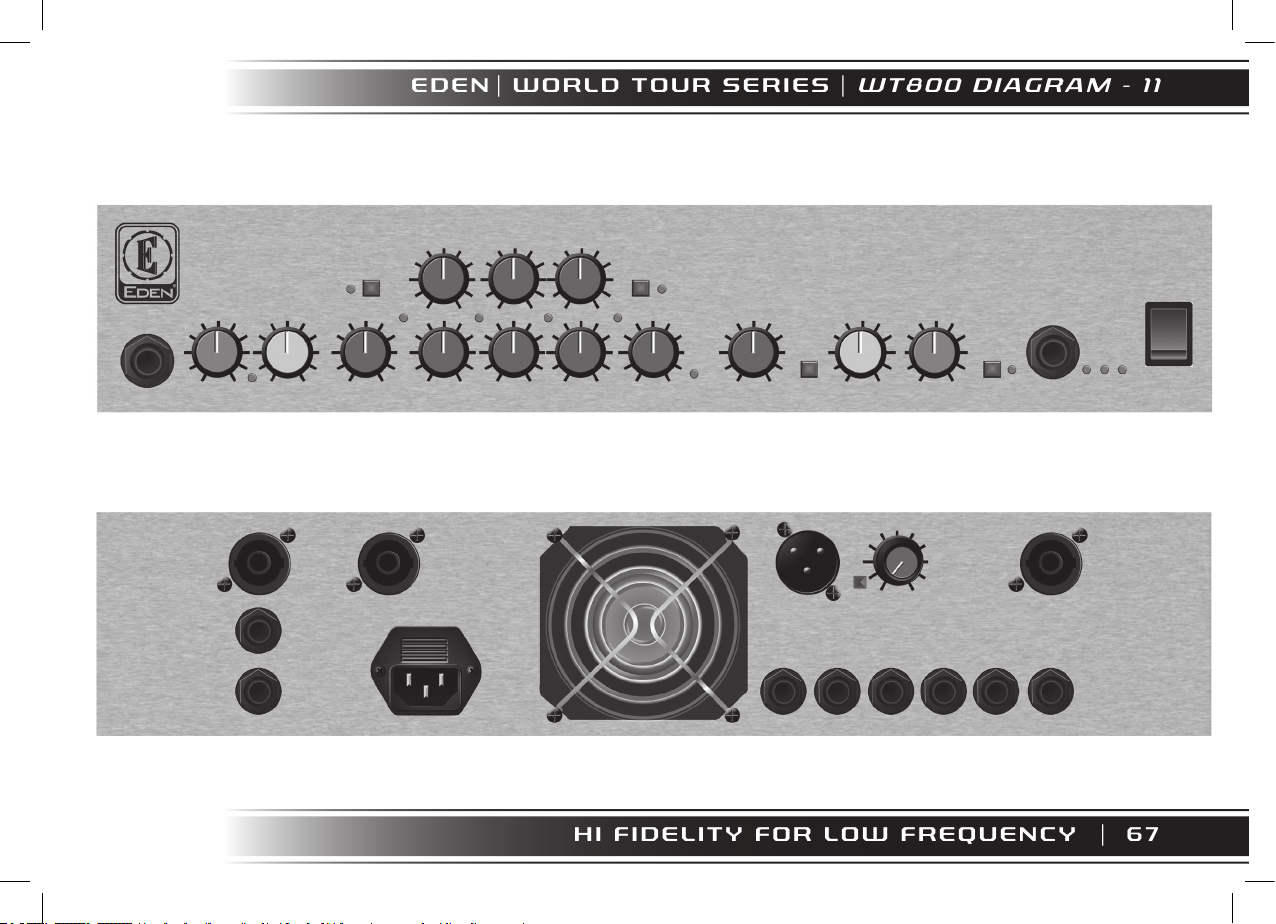

WT800 Quick Start Guide
WT800 Front Panel Navigation:
1. Eden logo: Illuminates when unit is switched on.
2. Input: Connect your instrument to the amplifier here.
3. Gain control: Use this to set the input level for the amplifier
to suit your instrument. Pull this control to activate the
mute feature.
4. Set level indicator: Use this to help set your input signal
level this should illuminate on your loudest/lowest notes.
5. Enhance: Providing Eden tone shaping use this control to
increase the amount of proprietary EQ sweep in your sound.
6. Input PAD indicator: Illuminates when input pad is active.
7. Input PAD switch: This control activates the input pad
feature reduces input signal level by -10DB.
8. Bass: Use this control to increase or decrease the underlying
bass tone of the amplifier.
9. Low frequency control: Use this low frequency selector to
determine where in the low frequency range you cut or boost
your sound.
10. Low level control: Use this control to select the amount of
cut or boost you require at your required frequency.
11. Mid frequency control: Use this Mid frequency selector to
determine where in the mid frequency range you cut or boost
your sound.
12. Mid level control: Use this control to select the amount of
cut or boost you require at your required frequency.
13. High frequency control: Use this High frequency selector
to determine where in the High frequency range you cut or
boost your sound.
14. High level control: Use this control to select the amount of
cut or boost you require at your required frequency.
15. Compressor switch: Toggles compression off / on.
16. Treble: Use this control to increase or decrease the overall
treble level of the amplifier.
17. Compressor indicator: This illuminates when compressor
is on.
18. EQ Clip indicator: Illuminates when EQ is being clipped.
19. Master: Controls the overall output level (volume) of
the amplifier.
20. Bi-Amp Mode Switch: Turns Bi-Amp mode off/on.
BEFORE USING THIS FEATURE PLEASE READ AND
UNDERSTAND THE “BEFORE YOU PLUG IN” SECTION
OF THIS GUIDE!
21. Balance control: Controls the output power for each side of
the amplifier.
22. Crossover control: Controls the crossover point between
each amplifier (Bi-Amp Mode Only).
23. Bridged mono: Turns Bridged Mono feature on / off.
BEFORE USING THIS FEATURE PLEASE READ AND
UNDERSTAND THE “BEFORE YOU PLUG IN” SECTION
OF THIS GUIDE!
HI FIDELITY FOR LOW FREQUENCY
| 15
EDEN | WORLD TOUR SERIES |
WT800 - 7
24. Bridged mono indicator: Illuminates when bridged mono
mode is activated.
25. Phones: Plug your headphones in to your amplifier here,
alternatively this connection can be used to take a signal to
another amplifier.
26. Limit indicators: These illuminate when either the left or
right (or both) amplifiers have reached their output limits.
27. DC indicator: This illuminates to indicate low voltage supply
is working.
28. Mains switch: Illuminates when unit is switched on.
WT800 Back Panel Navigation:
1. Speakon output (Left Amplifier): Connect your amplifier to a
single speaker cabinet.
2. Speaker output 1 (Left Amplifier): Connect your amplifier to
a speaker.
3. Speaker output 2 (Left Amplifier): Connect your amplifier to
a second speaker.
4. Speakon output (Bridged mono mode only): Connect your
amplifier to a single speaker cabinet.
5. Power inlet/fuse holder: Insert supplied power cord.
6. Recording DI out: Take your DI line for a recording console
or desk from.
7. Effects return left and right: Return your Stereo signal from
your external processor or effects chain.
8. Ground Lift Switch: Turns ground lift function off/on.
9. DI level control: Adjust the DI output level.
10. Aux input: Input your left and right auxiliary inputs.
IMPORTANT: Your amplifier has been engineered and built to function only for the voltage shown on the rear of the unit. To
use this unit under different voltage conditions you will either require a suitable power conditioner or modifications to the
amplifier which should only be undertaken by qualified Eden approved engineers. In addition your unit was supplied with the
correct fuse fitted and a replacement fuse. To obtain additional replacements you should contact your nearest Eden dealer or
a qualified Eden technician.
11. Effects send: Take your signal for an external processor
or effects chain.
12. Tuner output: Connect your external tuner.
13. Pre FX: Send and Return input your signal from your
external processor or effects chain (before the EQ stage).
14. Speakon output (Right Amplifier): Connect your
amplifier to a single speaker cabinet.
15. Speaker output 1 (Right Amplifier): Connect your amplifier
to a speaker.
16. Speaker output 2 (Right Amplifier): Connect your amplifier
to a second speaker.
16 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WORLD TOUR SERIES |
PRODUCT SUPPORT - 8
Product Support
Your Eden equipment has been designed to provide you with years of faithful service however should you ever
need help with one of our products we have dedicated support teams all over the world. Visit your local Eden
dealer or contact your regional distributor for more details. Alternately visit our website to see if you can nd a
solution www.edenamps.com
Simple rules to remember when using your Unit
DO: Keep your unit clean and free from dust and obstructions to ensure adequate cooling and maximum
performance.
DO: Ensure you use the best quality cables and connections when using your unit for peak performance.
DON’T: Store liquids on or near the unit during use or otherwise or store in an overly humid environment.
DON’T: Modify of attempt to modify your unit, there are no user serviceable components inside. Any modication
or repair by an unauthorised technician will void any warrantee offered in your region and can pose a serious risk
of electrocution or death.
DON’T: Use your unit for any purpose other than for which it was intended.
REMEMBER: Follow all the warnings and instructions which are provided in this handbook, always keep this
handbook for future reference.
Eden has tested or had the unit tested and approved for sale in your region. Any markings of approval and or
warning labels on an Eden product are provided to ensure you as a user are aware of the efforts Eden go to ensure
your product is suitable for use in your country. If you have any concerns about anything relating to your product
then please contact Eden immediately.
Please check your individual unit for the relevant markings and symbols which may apply.
HI FIDELITY FOR LOW FREQUENCY
| 17
EDEN | WORLD TOUR SERIES |
INTRODUCCIÓN - 1
Gracias por elegir Eden.
Espero que este producto no sólo te proporcione años de buen servicio, sino que te ofrezca la inspiración y la
capacidad de hacer la música que quieres y expresarte de la forma que sabes.
En Eden entendemos que tener el equipo correcto puede signicar la diferencia entre tener la conanza de poder
tocar bien o no, por lo que nos esforzamos para proporcionarte las herramientas que necesitas, ya sea en casa,
en el estudio o en el escenario.
Todos nuestros Amplicadores, Baes, Altavoces y otros productos han sido cuidadosamente diseñados y
fabricados para ofrecerte una óptima actuación y máxima exibilidad desde los componentes más básicos en su
construcción. En Eden nos esforzamos para asegurarte que hasta el más pequeño de los tornillos de alguno de
nuestros productos ha sido elegido con estrictos criterios de calidad. Además de usar los mejores materiales y
procesos, Eden es totalmente consciente del entorno en el que vivimos y trabaja duro para minimizar su impacto
en el medio ambiente a la vez que quiere proporcionarte el equipo de gran calidad que esperas.
Por favor, tómate tu tiempo para leer esta guía rápida antes de usar el equipo por primera vez. Cómo utilices el
equipo afectará notablemente al resultado nal. Con sólo 5 minutos que le dediques para entender los consejos
y utilidades que te damos en esta guía, no sólo conseguirás mejores resultados en tu equipo, sino que evitarás
posibles accidentes que puedan provocar daños en el aparato.
Esperamos que sigas disfrutando de tu equipo y te invitamos a que nos comuniques tus impresiones o
sugerencias, después de todo, es la inspiración creativa de los músicos y su música la que nos conduce a todos
nosotros.
Gracias El Equipo Eden.
30 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WORLD TOUR SERIES |
¡ATENCIÓN! - 2
¡ATENCIÓN!
El equipo que has comprado es de uso profesional. En esta Guía suponemos que como dueño de un equipo
profesional que eres conoces y comprendes ciertos aspectos de los equipos de bajo profesionales. Si no estás
seguro sobre algunas de las funciones o características de tu equipo puedes encontrar más información en
nuestra página web www.edenamps.com o consultar con un distribuidor autorizado de Eden.
El equipo que has comprado ha sido desarrollado para proporcionarte una herramienta que consigue un gran tono
y en algunos casos grandes cantidades de volumen que pueden ser poco recomendables para su uso en espacios
reducidos o sin protección auricular.
Cada pieza de los equipos de Eden se ha diseñado para funcionar de forma excepcional y como puede pasar con
otros productos de este tipo, en determinadas situaciones pueden ser capaces de operar a niveles que pueden
estar fuera de los requisitos de capacidad del usuario.
Utiliza este equipo de forma segura y considerada, el control de volumen en los amplicadores de gran potencia
es tu responsabilidad. Tus oídos y el de los demás que tengan la fortuna de poder escucharte tocar son los
instrumentos más preciados que se necesitan para poder disfrutar de tu música.
Si notaras algún tipo de pérdida de audición o molestias en el oído al escuchar cualquier tipo de música a alto
volumen o hicieras alguna actividad que implique excesivo ruido, por tu propio bien acude a un médico. Como
músico que eres, debes saber que cuidar tus oídos es tan importante como saber tocar tu instrumento; ¡solo
tenemos un par de oídos y no hay recambio!
HI FIDELITY FOR LOW FREQUENCY
| 19
EDEN | WORLD TOUR SERIES |
INTRODUCCIÓN A LA SERIE WORLD TOUR
- 3
Enhorabuena por tu compra de un producto de la Serie World Tour. La Serie de Eden World Tour ha sido
considerada durante muchos años por los bajistas profesionales más prolícos ser uno de los sistemas de
amplicación de bajo más versátiles y profesionales del mercado.
Cada amplicador de la Serie World Tour proporciona la exibilidad y control a los bajistas para que puedan
entregar un gran sonido una y otra vez. Tanto si estás en el Estudio como en los escenarios los amplicadores
y previos World Tour han evolucionado para convertirse en la mejor herramienta para cada estilo diferente.
Funciones como el control ‘Enhance’ te permiten una gran capacidad de moldeado de la ecualización que mejora
la paleta de sonidos a la vez que una fantástica y limpia etapa de potencia te permite tocar el amplicador a
volumen alto sin que aparezca esa temible distorsión.
Como pasa con todos los equipos profesionales, deberías tomarte tu tiempo para familiarizarte con el
amplicador o previo antes de usarlo para asegurarte mejores resultados.
32 | HI FIDELITY FOR LOW FREQUENCY
AVANT DE CONECTARTE
EDEN | WORLD TOUR SERIES |
ANTES DE CONECTARTE - 4
Antes de conectarte y encender el amplicador asegúrate que entiendes como operar adecuadamente la unidad.
Un manejo incorrecto puede ocasionar malos resultados o fallos en el aparato.
IMPORTANTE: Todos los amplificadores de la serie World Tour se han diseñado para poder ser metidos dentro de un rack,
aunque no es condición necesaria para su funcionamiento. Eden recomienda que se instalen en el rack y que se dejen un
mínimo de 2 unidades de rack libre encima del aparato para una adecuada ventilación. Esto es importante en condiciones de
calor extremo en un escenario muy iluminado o en estudios con mucho calor.
Asegurando una carga correcta (modelos WT550 y WT800):
Asegúrate de usar siempre la carga correcta. Cargas diferentes te cambiarán la potencia de tu amplicador y
pueden dañar tu bae o el propio amplicador. Advertencias sobre las cargas de los baes se incluyen en todos
los baes de Eden.
Funcionando sin cargas (Todos los modelos):
Aunque nuestros amplicadores World tour se han diseÒado para su uso en directo, tambièn son igualmente
ecaces en el estudio o para pr·ctica. Para funcionar sin carga de bae simplemente saca la seÒal de la salida DI
o a travès de unos auriculares.
Funcionando sin cargas (Todos los modelos):
Tu amplicador en Mono Puente incrementa su salida haciendo puente en ambas etapas de potencia dentro
de la unidad y sacando sólo una señal. Para ajustar esta función Mono Puente correctamente y de forma
segura deberás seguir las siguientes instrucciones. UN USO INCORRECTO DE LA FUNCIÓN MONO PUENTE
PROVOCARÍA FALLOS EN EL AMPLIFICADOR.
Paso 1. Asegúrate que tu amplicador esté desconectado, preferiblemente de la toma de luz.
HI FIDELITY FOR LOW FREQUENCY
| 21
EDEN | WORLD TOUR SERIES |
ANTES DE CONECTARTE - 4
Paso 2. Asegúrate que el modo Bi-Amp está apagado (interruptor en la posición OUT). Nunca enciendas el modo
Bi Amp durante el funcionamiento Mono Puente, ya que provocarás sobrecarga en el amplicador.
Paso 3. Asegúrate que el modo Mono Puente (“Bridge Mono”) está encendido (interruptor en la posición IN) y que
queda a ras con el panel del amplicador.
Paso 4. Asegúrate que el amplicador está conectado al bae con la carga y potencia correcta (880W a 8 Ω)
utilizando la salida “Bridge Mono” del panel trasero.
Paso 5. Conecta tu instrumento al amplicador.
Paso 6. Enciende el amplicador, la luz “Bridge Mono” debería encenderse, si no es así o no sale sonido del
amplicador apaga inmediatamente el amplicador para reducir la posibilidad de un posible daño.
SI NO ESTAS SEGURO CONSULTA A UN TÉCNICO PROFESIONAL PARA SOPORTE TÉCNICO.
Funcionando en Modo Bi-Amp (Sólo WT800):
Paso 1. Asegúrate que tu amplicador esté desconectado, preferiblemente de la toma de luz.
Paso 2. Asegúrate que el modo Bi-Amp está encendido (interruptor en la posición IN). Nunca enciendas el modo
Bi Amp durante el funcionamiento Mono Puente, ya que provocarás sobrecarga en el amplicador.
Paso 3. Asegúrate que el modo Mono Puente (“Bridge Mono”) está apagado (interruptor en la posición OUT).
Nunca enciendas el modo “Bridge Mono” durante el funcionamiento Bi Amp, ya que provocarás
sobrecarga en el amplicador.
Paso 4. Asegúrate que el amplicador está conectado al bae con la carga y potencia correcta (880W a 8 Ω)
utilizando la salida “Bridge Mono” del panel trasero.
Paso 5. Conecta tu instrumento al amplicador.
Paso 6. Enciende el amplicador, si no hay sonido apaga el amplicador inmediatamente para reducir la
posibilidad de daño.
Paso 7. Utiliza el control de Balance para ajustar el volumen entre las salidas izquierda y derecha a tu gusto.
NUNCA INTENTES UTILIZAR “Bi-Amp” y “Bridge Mono” al mismo tiempo. Provocará daños en tu amplicador.
Loading...
