Eden WTX Series
Quick Start Guide
WTX264 & WTX500
HI FIDELITY FOR LOW FREQUENCY

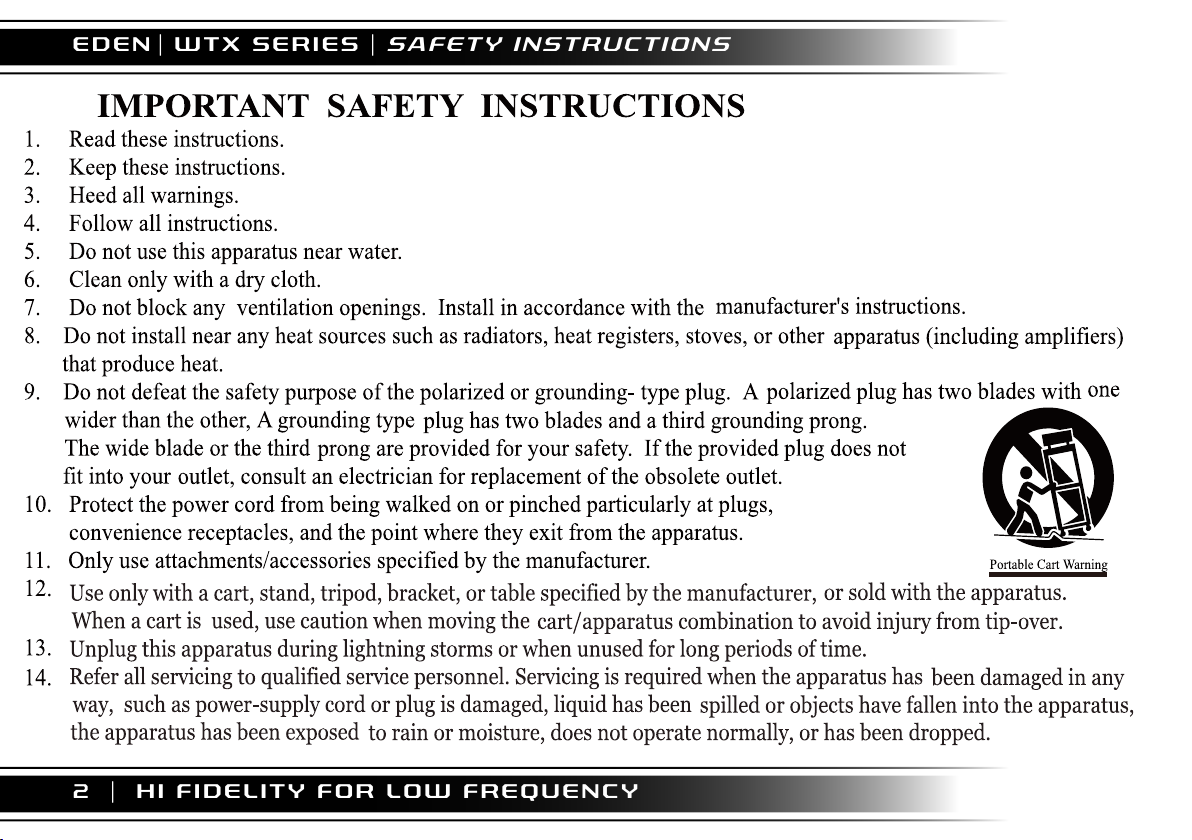

EDEN | WTX SERIES | SAFETY INSTRUCTIONS
2 | HI FIDELITY FOR LOW FREQUENCY

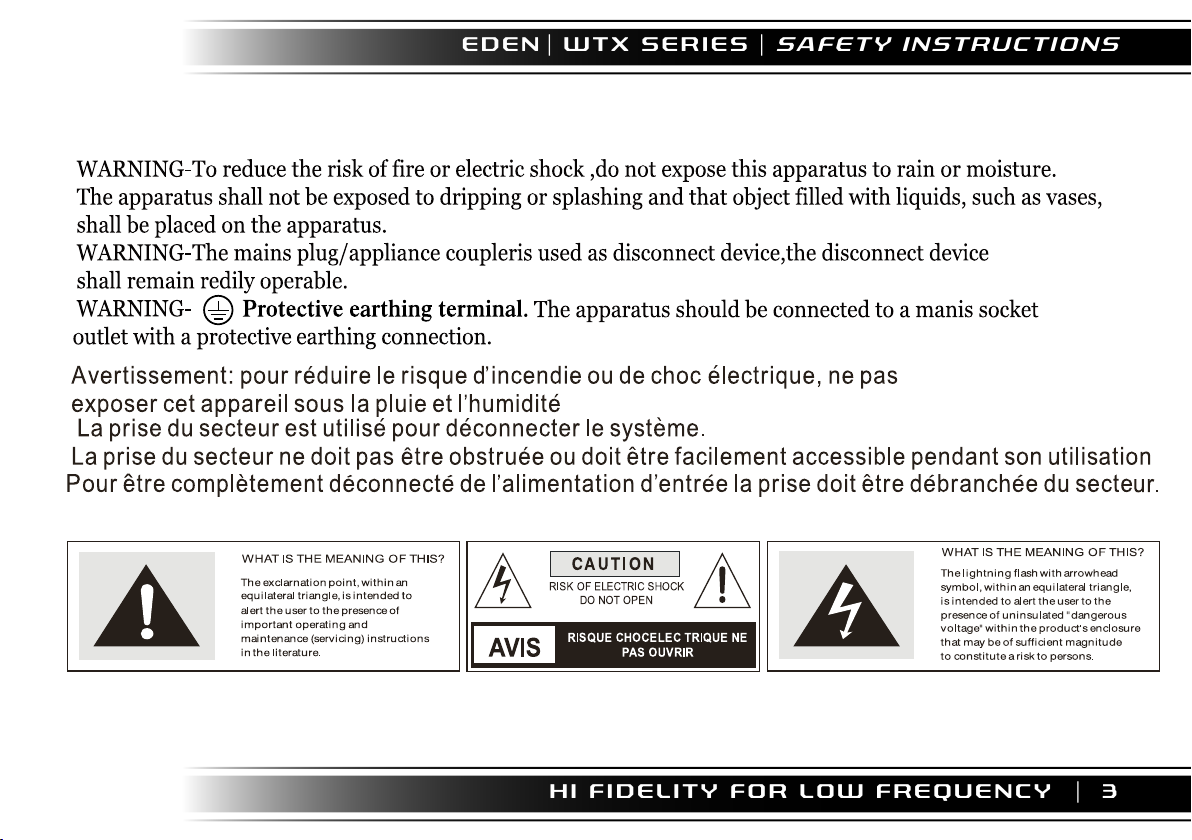

EDEN | WTX SERIES | SAFETY INSTRUCTIONS
HI FIDELITY FOR LOW FREQUENCY | 3
EDEN | WTX SERIES | INTRODUCTION - 2
Thank you for choosing Eden.
We hope that this product provides you with not only years of faithful service, but also the inspiration and capability to take your music and express yourself in your own way.
At Eden we realize that having the right gear can mean the difference between having the confidence and ability to perform or not, so we strive to provide you with the tools that you need, whether at home, in the studio or in a stadium.
All of our Amplifiers, Speaker Cabinets, Speakers, and other items have been carefully designed and built to provide you with optimum performance and maximum flexibility, right down to component level. At Eden we work carefully to ensure that everything down to the last screw used in a product has been chosen to deliver the best possible product to you. In addition to using the best materials and processes, Eden is also conscious of the environment and works hard to do everything it can to minimize its impact on the world we live in while still giving you the premium equipment you should expect from us.
Please take time to read this quick start guide carefully before using your equipment. As with every piece of musical equipment how you use it will affect the results you can achieve. By taking 5 minutes to understand these guidelines you will not only ensure you get the best performance from your Eden product, but it may also prevent you from accidentally damaging your unit through improper use.
We hope you continue to enjoy your equipment and welcome any comments or suggestions you may have for Eden, after all, it is the creative inspiration of musicians and their music that drives all of us.
Thank you
The Eden Team
4 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WTX SERIES | CAUTION - 3
CAUTION!
Every piece of Eden equipment is designed to perform exceptionally and just as with other high performance products can in certain situations be capable of operating at levels that may be outside of the requirements or capability of the user.
Use this equipment safely and considerately, the volume control on higher wattage amplifiers is your responsibility.
Your ears and those of others who are fortunate enough to hear you play are your most important instruments required to enjoy your music.
If you experience any hearing loss or discomfort when listening to any loud music or activity which involves excessive noise then for your own sake speak with a medical professional. As a Musician keeping your ears in good working order is as important as being able to play your instrument, you only get one set of ears!
HI FIDELITY FOR LOW FREQUENCY | 5
EDEN | WTX SERIES | ABOUT WTX/CONTENT - 4
Congratulations on your purchase of this WTX Product. The WTX range of amplifiers provide an evolution of Bass Amplification with traditional Eden tone in an ultra light weight portable package.
Taking advantage of years of experience in Bass Amplification the WTX delivers great features such as Edens own Enhance EQ shaping control, in addition despite their small size and weight WTX amplifiers retain Eden flexibility using a combination of dual function dials or switches. Having an Eden amplifier has never been such a portable experience!
As with any electronic equipment you should take some time to familiarize yourself with your amplifier to ensure optimum performance.
Manual Content:
1. |
Safety Information............. |
2-3 |
2. |
Eden Introduction............... |
4 |
3. |
Caution............................. |
5 |
4. |
About WTX/Content............ |
6 |
5. |
Before You Plug In............. |
7 |
6. |
WTX264............................ |
8 |
7. |
WTX500............................ |
9 |
8. |
Product Support................ |
10 |
9. |

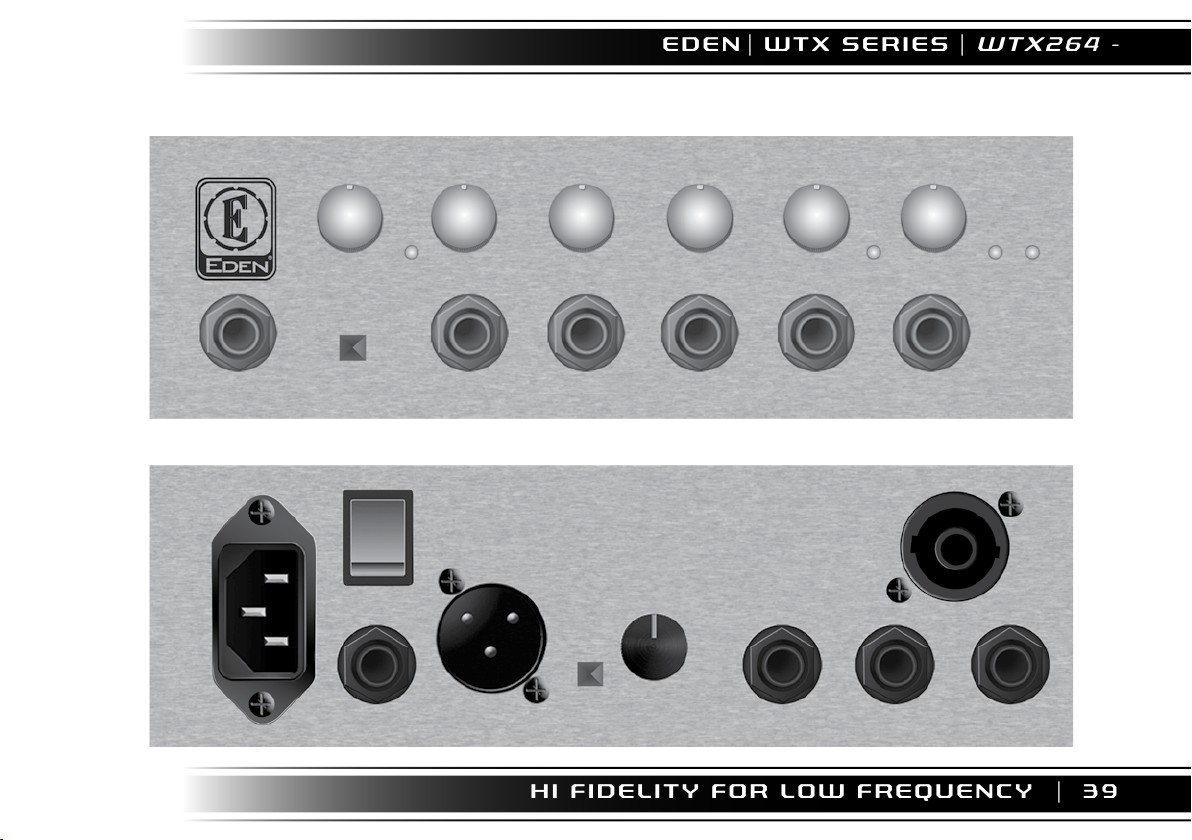

WTX264 Diagram ............... |
39 |

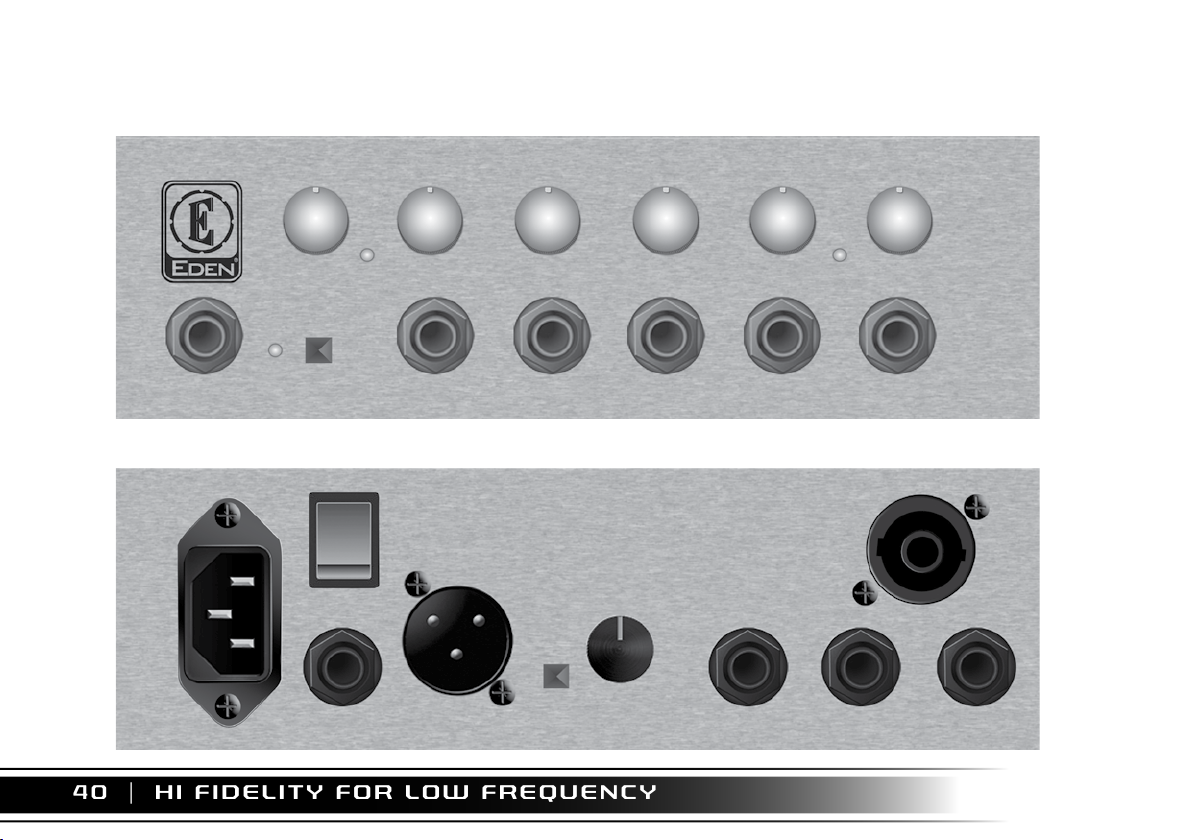

10. WTX500 Diagram ............... |
40 |
|
6 | HI FIDELITY FOR LOW FREQUENCY
EDEN | METROMIX SERIES | BEFORE YOU PLUG IN - 5
BEFORE YOU PLUG IN
Before you plug in and switch on your amplifier please ensure you understand how to correctly operate your unit.
Incorrect operation may lead to undesirable results or unit failure.
IMPORTANT: WTX amplifiers are fitted with a protection circuit to prevent damage during normal usage. In order to ensure that your amplifier performs at its optimum capacity ensure that ventilation holes are kept clear and never disconnect the internal fan for any reason.
Ensuring correct loading: When operating your unit ensure that you always use a suitable speaker load. Different loads will change the output power of your amplifier, unbalanced loads or unacceptable impedances may damage you cabinets or the amplifier itself. Advice on cabinet loading is included with all Eden Cabinets.
Operating without loads (All models) Even though our Wold tour amplifiers are designed to perform on stage they are equally capable as a studio or practice tool. To operate without a load simply take your signal from the DI output or through a set of Headphones.
HI FIDELITY FOR LOW FREQUENCY | 7
EDEN | WTX SERIES | WTX264 - 6
WTX264 Quick Start Guide
The WTX264 provides the ability to easily take Eden tone and power with you in a compact portable package. Not only can you get great tone and power out of this punchy little amplifier, but you also have access to an effects loop, auxiliary inputs and a flexible DI on the rear of the amplifier.
WTX264 Front Panel Navigation:
1.Illuminated Eden logo; Illuminates when unit is switched on.
2.Input; Connect your instrument to the amplifier.
3.Tuner Mute Indicator; Illuminates when tuner mute is active.
4.Gain Control; Adjust the amount of input signal to the amplifier.
5.Tuner Mute Switch; Press to toggle tuner mute on / off.
6.Level Indicator; Use this to help set your input signal level this should illuminate on your loudest/lowest notes.
7.Enhance Control; Providing Eden tone shaping use this control to increase the amount of proprietary EQ sweep in your sound.
8.Effects Loop Send; Signal out.
9.Bass Level Control; Use this control to select the amount of cut or boost you require in the low frequency range / pull control to engage Bass Boost function to achieved added low end.
10.Effects Loop Return; Signal in.
11.Mid Level Control; Use this control to select the amount of cut or boost you require in the mid frequency range / pull control to move where in the mid frequency range mid cut or boost is applied.
12.Auxiliary Input Left.
13.Treble Level Control; Use this control to select the amount of cut or boost you require in the Higher frequency.
14.Auxiliary Input Right.
15.Limit Indicator; Displays when amplifier power output is being reached.
16.Master Control; Adjust the overall output level of the unit.
17.Tuner Out, Connect your rack or foot pedal tuner here.
18.Standby Indicator; Illuminate to show protection circuit is functional.
19.Protect Circuit Indicator; Illuminates when amplifier limit is reached and protection circuit becomes active.
WTX264 Back Panel Navigation:
1. Power Inlet; Insert supplied power cord.
The WTX264 is designed to work across a range of voltages from 90v up to 240v. The amplifier requires no modification to
do this simply plug your power cord and play.
2.Power Switch; Turn your amplifier off and on.
3.Footswitch; Connect optional footswitch here to toggle tuner mute and enhance functions.
4.Recording DI Out; Take your DI line for a recording console or desk from.
5.Ground Lift Switch; Switch ground lift feature for the XLR Recording DI output.
6.DI Level Control; Adjust the output level of the DI.
7.Headphone Out; Connect your headphones to the amplifier.
8.¼ Jack Output 1; Connect your amplifier to a speaker cabinet.
9.Speakon Output 1; Connect your amplifier to a speaker cabinet
Always ensure that that the total load for your amplifier does not fall below the recommended 4 ohm impedance for this amplifier as it can cause the protection circuit to engage and in some cases may damage the amplifier.
8 | HI FIDELITY FOR LOW FREQUENCY
EDEN | METROMIX SERIES | WTX500 - 7
WTX500 Quick Start Guide
The WTX500 provides the ability to easily take Eden tone and power with you in a compact portable package. Not only can you get great tone and power out of this punchy little amplifier, but you also have access to an effects loop, auxiliary inputs and a flexible DI on the rear of the amplifier. With its 500W power output the WTX500 can deliver a surprising amount of volume.
WTX500 Front Panel Navigation:
1.Illuminated Eden logo; Illuminates when unit is switched on.
2.Input; connect your instrument to the amplifier.
3.Tuner Mute Indicator; illuminates when tuner mute is active.
4.Gain Control/Input Pad; Adjust the amount of input signal to the amplifier here/Pull this control to engage a -12bB pad for higher output instruments.
5.Tuner Mute Switch; Press to toggle tuner mute on/off.
6.Level Indicator; Use this to help set your input signal level this should illuminate on your loudest/lowest notes.
7.Enhance Control; Providing Eden tone shaping use this control to increase the amount of proprietary EQ sweep in your sound / pull this control to bypass the amplifiers internal compressor.
8.Effects Loop Send; Signal Out.
9.Bass Level Control; Use this control to select the amount of cut or boost you require in the low frequency range / Pull control to engage Bass Boost function to achieved added low end.
10.Effects Loop Send; Signal In.
11.Mid Level Control; Use this control to select the amount of cut or boost you require in the mid frequency range / pull control to move where in the mid frequency range mid cut or boost is applied.
12.Auxiliary Input Left.
13.Treble Level Control; use this control to select the amount of cut or boost you require in the Higher frequency / Pull this control to move the DI signal to post position in the amplifier.
14.Auxiliary Input Right.
15.Limit Indicator; Displays when amplifier power output is being reached.
16.Master Control; Adjust the overall output level of the unit.
17.Tuner Out; Connect your rack or foot pedal tuner.
WTX500 Rear Panel Navigation:
1.Power Inlet; Insert supplied power cord.
2.Power Switch; Turn your amplifier off and on.
3.Footswitch; Connect optional footswitch here to toggle tuner mute and enhance functions.
4.Recording DI Out; Take your DI line for a recording console or desk from.
5.Ground Lift Switch; Switch ground lift feature for the XLR Recording DI output.
6.DI Level Control; Adjust the output level of the DI.
7.Headphone Out; Connect your headphones to the amplifier.
8.¼ Jack Output 1; Connect your amplifier to a speaker cabinet.
9.Speakon Output 1; Connect your amplifier to a speaker cabinet.
Always ensure that that the total load for your amplifier does not fall below the recommended 4 ohm impedance for this amplifier as it can cause the protection circuit to engage and in some cases may damage the amplifier.
NEVER COMPROMISETM | 9
EDEN | WTX SERIES | PRODUCT SUPPORT - 8
Product Support
Your Eden equipment has been designed to provide you with years of faithful service however should you ever need help with one of our products we have dedicated support teams all over the world. Visit your local Eden dealer or contact your regional distributor for more details. Alternately visit our website to see if you can find a solution www.edenamps.com
Simple rules to remember when using your unit:
DO: Keep your unit clean and free from dust and obstructions to ensure adequate cooling and maximum performance. DO: Ensure you use the best quality cables and connections when using your unit for peak performance.
DON'T: Store liquids on or near the unit during use, or store in an overly humid environment.
DON'T: Modify or attempt to modify your unit, there are no user serviceable components inside. Any modification or repair by an unauthorized technician will void any warranty offered in your region and can pose a serious risk of electrocution or death.
DON'T: Use your unit for any purpose other than for which it was intended.
REMEMBER: Follow all the warnings and instructions which are provided in this handbook, always keep this handbook for future reference.
Eden has tested or had the unit tested and approved for sale in your region. Any markings of approval and or warning labels on an Eden product are provided to ensure you as a user are aware of the efforts Eden goes through so your product is suitable for use in your country. If you have any concerns about anything relating to your product then please contact Eden immediately.
Please check your individual unit for the relevant markings and symbols which may apply.
10 | HI FIDELITY FOR LOW FREQUENCY
EDEN | WTX SERIES | INTRODUCCIÓN - 1
Gracias por elegir Eden.
Espero que este producto no sólo te proporcione años de buen servicio, sino que te ofrezca la inspiración y la capacidad de hacer la música que quieres y expresarte de la forma que sabes.
En Eden entendemos que tener el equipo correcto puede significar la Diferencia entre tener la confianza de poder tocar bien o no, por lo que nos esforzamos para proporcionarte las herramientas que necesitas, ya sea en casa, en el estuDio o en el escenario.
Todos nuestros Amplificadores, Bafles, Altavoces y otros productos han sido cuidadosamente Diseñados y fabricados para ofrecerte una óptima actuación y máxima flexibilidad desde los componentes más básicos en su construcción. En Eden nos esforzamos para asegurarte que hasta el más pequeño de los tornillos de alguno de nuestros productos ha sido elegido con estrictos criterios de calidad. Además de usar los mejores materiales y procesos, Eden es totalmente consciente del entorno en el que vivimos y trabaja duro para minimizar su impacto en el meDio ambiente a la vez que quiere proporcionarte el equipo de gran calidad que esperas.
Por favor, tómate tu tiempo para leer esta guía rápida antes de usar el equipo por primera vez. Cómo utilices el equipo afectará notablemente al resultado final. Con sólo 5 minutos que le deDiques para entender los consejos y utilidades que te damos en esta guía, no sólo conseguirás mejores resultados en tu equipo, sino que evitarás posibles accidentes que puedan provocar daños en el aparato.
Esperamos que sigas Disfrutando de tu equipo y te invitamos a que nos comuniques tus impresiones o sugerencias, después de todo, es la inspiración creativa de los músicos y su música la que nos conduce a todos nosotros.
Gracias,
El Equipo Eden
HI FIDELITY FOR LOW FREQUENCY | 11
EDEN | SERIE WTX | ¡ADVERTENCIA! - 2
¡ADVERTENCIA!
El equipo que has comprado ha sido desarrollado para proporcionarte una herramienta que consigue un gran tono y en algunos casos grandes cantidades de volumen que pueden ser poco recomendables para su uso en espacios reducidos o sin protección auricular. Cada pieza de los equipos de Eden se ha Diseñado para funcionar de forma excepcional y como puede pasar con otros productos de este tipo, en determinadas situaciones pueden ser capaces de operar a niveles que pueden estar fuera de los requisitos de capacidad del usuario.
Utiliza este equipo de forma segura y considerada, el control de volumen en los amplificadores de gran potencia es tu responsabilidad. Tus oídos y el de los demás que tengan la fortuna de poder escucharte tocar son los
instrumentos más preciados que se necesitan para poder Disfrutar de tu música. Si notaras algún tipo de pérDida de auDición o molestias en el oído al escuchar cualquier tipo de música a alto volumen o hicieras alguna actividad que implique excesivo ruido, por tu propio bien acude a un méDico.
Como músico que eres, debes saber que cuidar tus oídos es tan importante como saber tocar tu instrumento; ¡solo tenemos un par de oídos y no hay recambio!
12 | HI FIDELITY FOR LOW FREQUENCY
EDEN | SERIE WTX | INTRODUCCIÓN A LA SERIE WTX / ‹NDICE - 3
Enhorabuena por la compra de este producto WTX. La serie WTX de amplificadores conlleva una evolución de la amplificación de bajo proporcionando el tono tradicional de Eden en un formato ultra ligero.
Aprovechándose de muchos años de experiencia en la amplificación de bajo la serie WTX incorpora grandes funciones como el control de moldeado de EQ propio de Eden. Además de tener un peso y unas dimensiones reducidas la flexibilidad de esta serie es más que evidente, solo tienes que echar un vistazo a las funciones, los controles o los interruptores.
Como pasa con todos los equipos profesionales, deberías tomarte tu tiempo para familiarizarte con el amplificador o previo antes de usarlo para asegurarte mejores resultados.
ÍNDiCE: |
|
|
1. |
Gracias....................................... |
11 |
2. |
Advertencia!............................... |
12 |
3. |
Introducción a la |
|
|
Serie WTX / ‹ndice......................... |
13 |
4. |
Antes De Conectarte.................... |
14 |
5. |
WTX264...................................... |
15 |
6. |
WTX500...................................... |
16 |
7. |
Soporte Técnico........................... |
17 |
8. |
WTX264 Diagrama........................ |
39 |
9. |
WTX500 Diagrama........................ |
40 |
HI FIDELITY FOR LOW FREQUENCY | 13
EDEN | SERIE WTX | ANTES DE CONECTARTE - 4
ANTES DE CONECTARTE
Antes de conectarte y encender el amplificador asegúrate que entiendes como operar adecuadamente la unidad.
Un manejo incorrecto puede ocasionar malos resultados o fallos en el aparato.
IMPORTANTE: Los amplificadores WTX incorporan un circuito de protección para prevenir daños durante su uso normal. Para asegurar que tu equipo funciona de la manera más óptima asegúrate que los agujeros de ventilación no estén obstruidos y nunca desconectes el ventilador interno.
Asegura una carga correcta: Cuando tu amplificador esté funcionando asegúrate de haber conectado la carga de bafle correcta. Cargas distintas cambiarán la potencia del amplificador, cargas discordantes o literalmente inaceptables pueden dañar el bafle o el propio amplificador. La información sobre la carga de bafles se suministra con todos los bafles de Eden.
Funcionar sin cargas (Todos los modelos). Aunque nuestros amplificadores se han diseñado para su funcionamiento en los escenarios, también son ideales para práctica en casa o en el estudio. Para funcionar sin carga de bafles simplemente coge la señal de la salida DI o a través de unos auriculares.
14 | HI FIDELITY FOR LOW FREQUENCY
