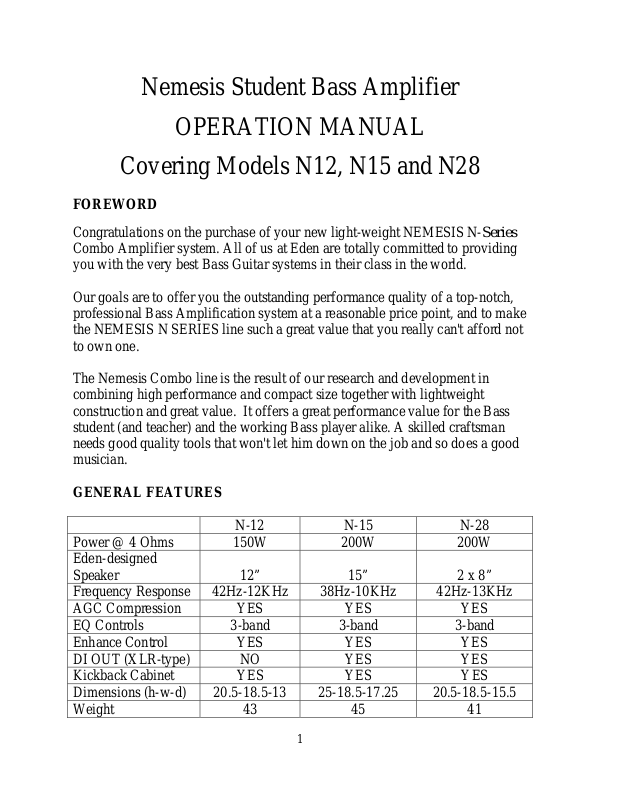

Eden N28 User Manual

Nemesis Student Bass Amplifier

OPERATION MANUAL

Covering Models N12, N15 and N28

FOREWORD

Congratulations on the purchase of your new light-weight NEMESIS N-Series
Combo Amplifier system. All of us at Eden are totally committed to providing
you with the very best Bass Guitar systems in their class in the world.

Our goals are to offer you the outstanding performance quality of a top-notch,
professional Bass Amplification system at a reasonable price point, and to make
the NEMESIS N SERIES line such a great value that you really can't afford not
to own one.

The Nemesis Combo line is the result of our research and development in
combining high performance and compact size together with lightweight
construction and great value. It offers a great performance value for the Bass
student (and teacher) and the working Bass player alike. A skilled craftsman
needs good quality tools that won't let him down on the job and so does a good
musician.

GENERAL FEATURES

N-12 N-15 N-28
Power @ 4 Ohms 150W 200W 200W
Eden-designed
Speaker
Frequency Response 42Hz-12KHz 38Hz-10KHz 42Hz-13KHz
AGC Compression YES YES YES
EQ Controls 3-band 3-band 3-band
Enhance Control YES YES YES
DI OUT (XLR-type) NO YES YES
Kickback Cabinet YES YES YES
Dimensions (h-w-d) 20.5-18.5-13 25-18.5-17.25 20.5-18.5-15.5
Weight 43 45 41

12”

15”

2 x 8”

1

CAUTION!

Your ears are your most important piece of
equipment. Unfortunately, they cannot be
replaced as easily as your other gear. Please take
the following warning seriously.

This product, when used in combination with
amplification and/or additional loudspeakers
may be capable of producing sound levels that
could cause permanent hearing loss. DO NOT
operate at high volume levels or at a level that is
uncomfortable. If you experience any discomfort
or ringing in the ears or suspect hearing loss, you
should consult an audiologist.

Thank you for your purchase of an Eden Bass
Guitar product. This unit has been designed and
constructed to give you years of trouble-free
service.

Please take the time to review this manual and to
send in your warranty registration card.

2
