Eddie Bauer Enspira 4358-3432E, Enspira User Manual
58
Replacement Parts List
NOTE: If requested color is not available,similar color will be
substituted.
Part Cost Quantity Total Cost
Crotch Strap/Buckle $4.99 X ______= $ ______________
Harness Strap . . . . .$2.00 X______= $ ______________
Full Wrap Pad . . . .$39.99 X______= $ ______________
Cup Holder . . . . . . .$2.99 X______= $ ______________
Harness Retainer . . .$1.50 X______= $ ______________
Locking Clip . . . . . . .$2.50 X______= $ ______________
Tether Kit . . . . . . . .$9.99 X______= $ ______________
Latch Kit . . . . . . . .$24.99 X______= $ ______________
Instructions . . . . . . .$0.00 X______= $ ______________
Merchandise Total: $ ____________
Shipping and handling: $______________
Sales Tax $ ____________
(Indiana,California, Arkansas, and Massachusetts residents add applicable
sales tax.)
Grand Total $ ______________
No shipping and handling on instructions for quantities under 6. Add $.50 for
each instruction over 6,then add applicable shipping and handling.
Fill Out For Credit Card
Visa Mastercard
Card Exp.Date:______________________________
Cardholder’s Name:__________________________
Card Number: ______________________________
Signature____________________________________
Up to $25.00 . . . . . . . . . .$5.95
$25.01 to $50.00 . . . . . . .$6.95
$50.01 to $75.00 . . . . . . .$8.95
$75.01 to $100.00 . . . . . .$9.95
$100.01 to $150.00 . . . . .$10.95
$150.01 to $200.00 . . . . .$11.95
$200.01 and up . . . . . . . .$13.95
Outside Continental USA $10.00
CUT ON DOTTED LINE
www.djgusa.com
Read all instructions
BEFORE USING this child restraint.
KEEP INSTRUCTIONS FOR FUTURE USE.
Para recibir las instrucciones en español,llame al
1-800-544-1108 o solicitarse por escrito al dirección por arriba.
EEnnssppiirraa
DDeelluuxxee CCoonnvveerrttiibbllee
CCaarr SSeeaatt
IInnssttrruuccttiioonn MMaannuuaall
Weight:
5-80 pounds
(2.3-36.3 kg)
Height:
19-52 inches
(48-132.1 cm)
This child
restraint is
designed for
use by children
whose:
IMPOR TANT!
Failure to follow the warnings on the labels
and in the instruction manual can result in
the death or serious injury of your child.
Eng.4358-3432E
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 1
Thank you for choosing this car seat,referred to
throughout this manual as a child restraint.The DJG
family is committed to creating a child restraint with the
most comfort and convenience available today.
Remember, parents are a child’s first teachers and
examples.If you always buckle your seat belt,your child
will think it is the natural thing to do.Make it a firm rule
that the vehicle does not go until everyone is buckled
up. Make no exceptions.
No one can predict if use of a child restraint will
prevent injury or death in a particular crash.However,
combined with careful driving,proper use of a child
restraint can lower a child’s risk of injur y or death in
most crashes.
Your child’s safety is worth the time it will take to read
and follow these instructions. After reading, if you still
have questions or have any problems with this child
restraint,please contact our Consumer Relations
Department at:
Dorel Juvenile Group,Inc.
Website: www.djgusa.com
Fax: 1-800-207-8182
Mailing Address: Dorel Juvenile Group,Inc.
P.O.Box 2609
Columbus,IN 47202-2609
Telephone: 1-800-544-1108
7 A.M. to 6 P.M. EST M-TH
7 A.M. to 4:30 P.M. EST FRI
Before You Begin...
Table of Contents
Warnings..........................................................................................2-4
General and Warm W eather Use..................................................4
Registration and Recall Information ............................................5
Aircraft Installation ..........................................................................5
Understanding Y our V ehicle ........................................................6-7
Child Restraint Parts....................................................................8-9
Choosing Restraint and Position ................................................10
Preparing Child Restraint to Fit Your Child ......................11-13
Harness Height..................................................................13-17
Securing Your Child in Child Restraint................................18-19
Removing Child from Child Restraint ......................................20
Reclining the Child Restraint ......................................................21
Choosing LATCH or Vehicle Belts..............................................22
Knowing Y our V ehicle Belts ....................................................23-24
Locking Clip ..............................................................................25-26
Rear-Facing Use ..............................................................................27
Rear-Facing Installation..................................................................28
Vehicle Belt ........................................................................
29-30
LATCH................................................................................31-34
Forward-Facing Use ......................................................................35
Forward-Facing Installation ..........................................................36
Vehicle Belt ........................................................................37-38
LATCH................................................................................39-41
Adjusting the Tether Strap............................................................42
Belt-Positioning Booster Use ....................................................43
Removal of Harness ................................................................44-45
Belt-Positioning Booster Installation....................................46-47
Reinstall Harness ......................................................................48-49
Removing Seat Pad for Cleaning ..........................................50-52
Troubleshooting ..............................................................................53
Warranty ..........................................................................................54
Replacement Parts Order Form ..........................................57-58
1
On the back of the shell there is an expiration date for
use of this child restraint. Do not use this seat after
the expiration date.
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 3
WARNING
!
According to accident statistics,children
are safer when properly restrained in the
rear seating positions than in the front
seating positions.
Never place a child rear-facing in a
seating position with an active frontal
airbag.
This child restraint must always face the
rear of the vehicle and be in the fully
reclined position when the child weighs
between 5-35 lbs.(2.3-16 kg) and is less than
one year old.
Never place a child less than one year old
forward facing.
Check vehicle instructions for more
information about air bag/child restraint use.
Make sure the harness height is correct
for your child’s size.
The harness must be snug.
Do not lubricate buckles and fasteners.
Dorel Juvenile Group does not recommend
the use of any child restraint accessories
except those provided by DJG.
Failure to follow these warnings can result in
the serious injury or death of your child. To
help you recognize those instructions which
are most critical for your child’s safety, we
use this symbol :
2
WARNING
!
The vehicle or LATCH belt must stay
tight at the belt path.When you switch from
one mode to the next,review the sections of
this instruction manual that apply to that
mode. If you don’t,your child could be
seriously injured or killed.
Never take your child out of the child
restraint or try to tend to your child’s needs
while the vehicle is moving. Never leave
child unattended.
Do not use a child restraint with damaged
or missing parts.
Do not use cut,frayed or damaged
harnesses.
Do not substitute parts or try to modify
the child restraint in any way.
Do not use a child restraint that has been
in a crash.You must get a new child
restraint.
Use the child restraint only on vehicle
seats that face forward.Do not use on seats
that face the sides or rear of the vehicle.
Check the vehicle or LATCH belt before
each use. Use only if the belt can be
tightened properly and securely.
This child restraint should be securely
belted in the vehicle even when not in use. In
a crash or sudden stop,an unsecured child
restraint could injure other occupants.
3
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 5
WARNING
!
Do not use this child restraint if the
midpoint of your child’s head is above the
top of the child restraint’s headrest.
Never allow any child to play with this
child restraint;it is not a toy.
Secure the top anchorage strap (tether)
provided with this child restraint as specified
in both the vehicle and child restraint
manufacturer's instructions.
Do not remove any of the warning labels
or other labels on the child restraint.
Placing your child in a hot child restraint
may result in burns.
Do not use this child restraint without the
seat pad.
Read instructions for other warnings.
Child restraints could be recalled for safety reasons.You
must register this restraint to be reached in a recall.
Send your name,address and the restraint’s model
number and manufacturing date to:
Dorel Juvenile Group,Inc.
PO Box 2609,Columbus, IN 47202-2609
Attn:Consumer Relations or visit www.djgusa.com
or call 1-800-544-1108
For recall information,call the U.S.Government's
Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800424-9153),or go to http://www.NHTSA.gov.
Registration and Recall Information
This child restraint is certified for aircraft use only when
used with the internal harness.Do not use as a beltpositioning seat because aircraft seats do not have
shoulder belts. Use on forward-facing aircraft seats only
and in a position where the lap belt can be tightened
securely.This child restraint is installed in an aircraft seat
the same way it is installed in a vehicle.
Use the child restraint only with F.A.A.certified
equipment.Contact the airline prior to taking a child
restraint on board in order to comply with their specific
regulations.
Aircraft Installation
5
General and Warm Weather Use
To help protect your vehicle seat’s upholstery from
damage, use a towel underneath and behind child
restraint.
To avoid your child being seriously burned,take
the following precautions:
1.Park in the shade or where sun does not
directly hit the child restraint.
2.Cover the child restraint with a sheet or blanket
when not in use.
3.Check for hot seat and buckles before placing child in
child restraint.
4
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 7
6
Your vehicle’s features may be considerably different than
those pictured here.Consult your vehicle owner’s manual
to help identify your vehicle’s specific features.
Understanding Your Vehicle
A
B
C
E
7
D
A.Anchor Bracket
For T op Anchorage Strap
(Forward-facing only)
B. LA TCH Anchors
(In seat bight)
C.Seat Buckles
D.Air Bag
(Consult your vehicle
owner’s manual for all air
bag locations)
E.Seat Bight
(Where seat cushions
meet)
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 9
8
Child Restraint Parts
9
A. Shoulder Belt
Guide
B. Adjustable
Headrest
C. Harness Guides
(on select models)
D. Harness Covers
(on select models)
E. Harness Retainer
F. Body Pillow
(on select models)
G. Harness Strap
H. Buckle Plate
I. Buckle
J. Harness Release
Lever
Front
F
G
A
B
C
D
E
H
I
J
K
L
Back
M
N
O
P
Q
K. Harness
Adjustment Strap
L. Cup Holder
(on select models)
M. T op Anchora ge
(Tether) Strap &
Hook
N. Locking Clip
(behind harness)
O. Splitter Plate
P. Instructions
Q. LATCH Belt
(may be between
pad and shell)
A
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 11
Install Cup Holder (on
select models):Pull pad
off corner and place cup
holder on shell. Make
certain cup holder snaps
into place. Replace
pad. Cup holder
can be on either
side.
10
Choosing Restraint and Position
Your child’s height,weight and age determine how your
child restraint should be placed in the vehicle and which
restraint should be used.
5-35 lbs (2.3-16 kg)
19-36 in.(48-91 cm)
Rear-Facing using
5-point harness
Child and child restraint
face the back of the vehicle
and are placed in the back
seat.
22-40 lbs (10.1-18 kg)
34-43 in.(85.1-110 cm)
and Over 1 Year Old
Forward-Facing using
5-point harness
Child and child restraint
face the front of the vehicle
and are placed in the back
seat.
40-80 lbs (18.1-36.3 kg)
43-52 in.(110.1-1
32.1
cm)
and Over 1 Year Old
Belt-Positioning Booster
using vehicle
lap/shoulder belt
combination
Child and child restraint
face the front of the vehicle
and are placed in the back
seat. 5-point harness is
removed.
11
3
Lo
do
rel
ou
Preparing Child Restraint to Fit
Your Child
You MUST make these adjustments with your
child before you install the child restraint in the
vehicle.
Make sure LATCH belt
packaging is pulled free of
child restraint shell.
1
2
continued on next page.
Loosen harness by pushing
down on the harness
release lever while pulling
out on the harness.
Depending on your model,
the harness
release lever
may be under a
flap on the pad
in the front of
restraint.
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 13

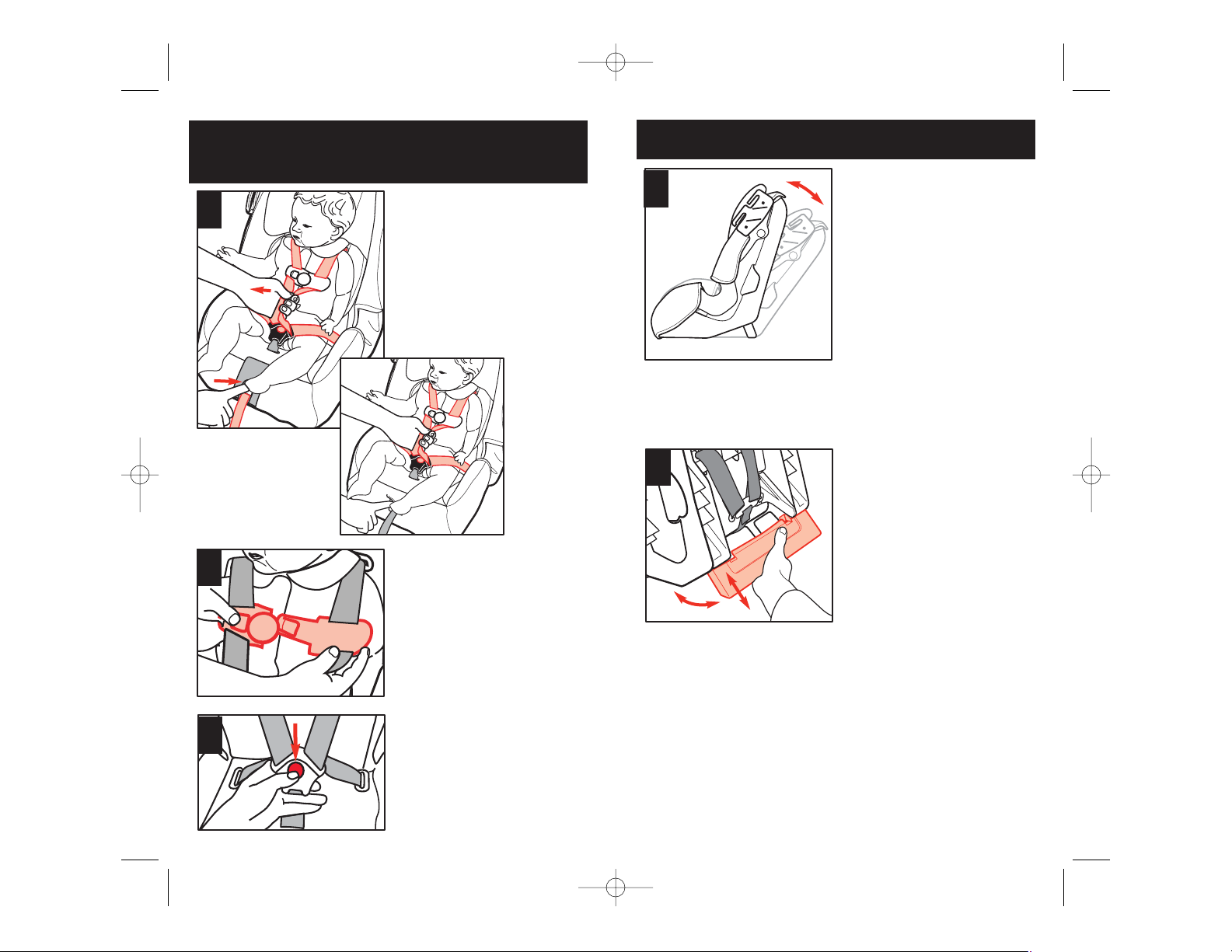

Place the child’s bottom
and back flat against the
child restraint.This will
increase comfort and allow
the harness to properly
tighten.
13
7
Lift headrest to the highest
position by pulling headrest
out while sliding up. This
will expose all harness
slots.
6
12
4
Press on harness retainer
release button and pull
apart.
Press red button on
buckle to release the
buckle plates.Place
harness over sides of child
restraint.
10
Determine which set of
harness guide slots works
best for your child. Adjust if
needed.
Check Harness Height
Rear-Facing Position:
Harness guide must be
even with or just below
the shoulders.
Forward-F acing
Position: Harness guide
must be even with or
just above the shoulders.
If the harness guide is below the child’s shoulders in
the highest
harness location and the child weighs at least 40 lbs.
(18.1 kg) and is over 1 year old,convert the seat to a
belt-positioning booster.
Harness
Guide
9
continued on next page.

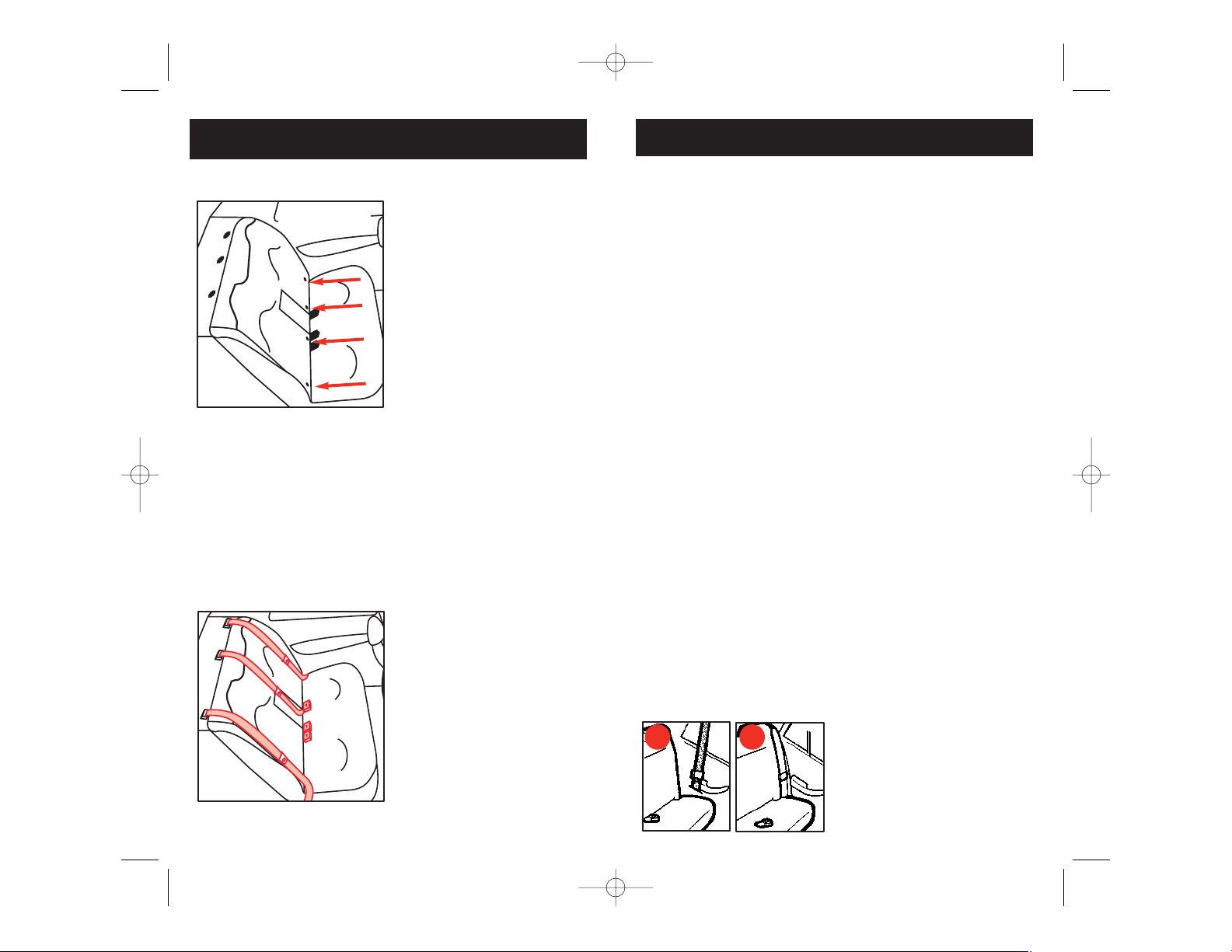

For Models With A Body Pillow
8
Determine which of the
three available buckle slots
is both comfortable and
snug. Refer to “Removal
of Harness” to adjust
buckle.
NO TE: You must use the
1st and 2nd crotch strap
slots rear-facing. The 3rd
slot is for forward-facing
only.
5
1
2
3
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 15
14
Pull harness through the
harness guides from the
front.
12
From back of child
restraint,remove harness
guides by pushing down on
one edge with one hand
and pulling out from the
front side with the other.
13
14
Snap in the optional
harness guides with body
pillow into the new
harness slots.
continued on next page.
15
Rethread harness into
new harness guide
location.Make sure
harness does not twist.
15
Position headrest behind
the child’s head.
NO TE: Headrest must be
positioned above the
harness straps.
17
WARNING
!
Failure to reattach the harness correctly,
can result in serious injury or death.
16
Refasten harness to
splitter plate. Make sure
harness does not twist.
10A
Lift the bottom of headrest
to determine which set of
harness guide slots works
best for your child. Adjust
if needed.
For Models Without A Body Pillow
To change harness
location:
From the back of the seat,
remove harness from
splitter plate.
11
4358-3432E Enspira 5pt 8/6/07 4:46 PM Page 17
Loading...
