ECS PV-28SV50, GP-1, CP, PV-28SV55, BP-1 User Manual

INSTALLATION INSTRUCTIONS

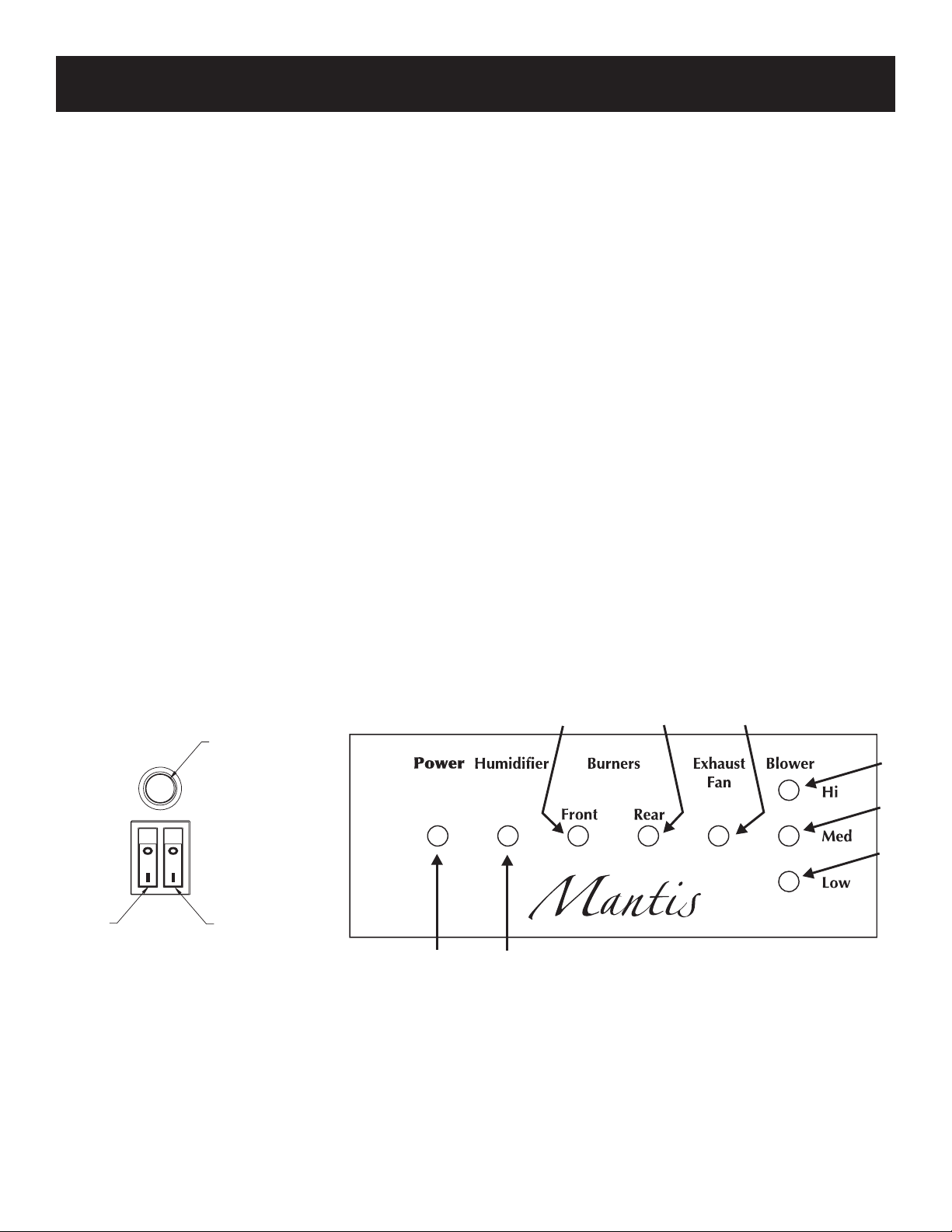

M

a

n

tis

P

o

w

e

r

H

u

m

i

d

i

f

i

e

r

B

u

r

n

e

r

s

E

x

h

a

u

s

t

F

a

n

B

l

o

w

e

r

H

i

M

e

d

L

o

w

F

r

o

n

t

R

e

a

r

™

AND

OWNER’S MANUAL

POWER-VENT

HIGH-EFFICIENCY

FIREPLACE WITH

BAY WINDOW

MODELS

PV-28SV50-(BN,BP)-1

PV-28SV55-(CN,CP,GN,GP)-1

Installer: Leave this manual with the

appliance.

Consumer: Retain this manual for future

reference.

WARNING: If the information in these in­structions are not followed exactly, a fire or ex­plosion may result causing property damage,
personal injury or loss of life.

— Do not store or use gasoline or other flamma-

ble vapors and liquids in the vicinity of this or
any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not
use any phone in your building.

• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli­er’s instructions.

• If you cannot reach your gas supplier, call
the fire department.

— Installation and service must be performed

by a qualified installer, service agency or the
gas supplier.

EFFECTIVE DATE

NOVEMBER 2006

This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
state or local codes.

This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.

WARNING: If not installed, operated and main­tained in accordance with the manufacturer’s in­structions, this product could expose you to sub­stances in fuel or from fuel combustion which can
cause death or serious illness.

22618-4-1106 Page 1

TABLE OF CONTENTS

SECTION PAGE

Important Safety Information ................................................................................................. 3

Safety Information for Users of LP-Gas ................................................................................. 4

Requirements for Massachusetts ............................................................................................. 5

Gas Supply .............................................................................................................................. 6

Introduction ............................................................................................................................. 7

Specifications .......................................................................................................................... 8

Clearances for Direct Vent ......................................................................................................

Heater Installation for Direct Vent ..........................................................................................

Clearances for Single Flue .................................................................................................... 10

Heater Installation for Single Flue ........................................................................................ 10

Specifications .................................................................................................................. 11-14

Clearance to Combustibles ................................................................................................... 15

Log Set Installation Instructions ..................................................................................... 16-17

Installation Instructions - General Safety Information ......................................................... 18

Vent Examples for Single Flue ....................................................................................... 19-22

Direct Vent Installation Instructions ...............................................................................

Gas Connection Installation Instructions .............................................................................. 26

Operating Instructions Checklist ........................................................................................... 27

Lighting Instructions ....................................................................................................... 28-29

Fan Operation ........................................................................................................................ 30

Gas Conversion Instructions ........................................................................................... 31-32

Automatic Humidifier Operation .......................................................................................... 33

Optional Remote Control Thermostat ...................................................................................

Wiring ...

General Information .............................................................................................................. 36

Maintenance .................................................................................................................... 36-37

Unit Operating Faults ............................................................................................................ 38

Resetting the Heater .............................................................................................................. 38

Log Placement ...................................................................................................................... 39

Main Convection Fan ............................................................................................................ 39

Heat Exchanger ..................................................................................................................... 39

Surround Installation Instructions ......................................................................................... 40

Pedestal Installation Instructions .......................................................................................... 41

How to Order Repair Parts .................................................................................................... 42

Parts List ......................................................................................................................... 42-43

Parts View ....................................................................................................................... 44-45

Warranty Terms ..................................................................................................................... 46

Service Notes ........................................................................................................................ 47

9
9

23-25

34
35

22618-4-1106Page 2

IMPORTANT SAFETY INFORMATION

THIS IS A HEATING APPLIANCE

DO NOT OPERATE THIS APPLIANCE WITHOUT FRONT PANEL INSTALLED.

• Due to high temperatures the appliance should be lo­cated out of traffic and away from furniture and draper­ies.

• Children and adults should be alerted to the hazards
of high surface temperatures and should stay away to
avoid burns or clothing ignition.

• Young children should be carefully supervised when
they are in the same room as the appliance.

• Clothing or other flammable material should not be
placed on or near the appliance.

• Any safety screen or guard removed for servicing an ap
pliance must be replaced prior to operating the appli
ance.

• Keep burner and control compartment clean.

• Vent cap hot while furnace is in operation.

• For manufactured home (USA only) or mobile home or
residential installation convertible for use with natu
ral gas and liquefied petroleum gases when provision
is made for the simple conversion from one gas to the
other.

• Installation and repair should be done by a QUALI
FIED SERVICE PERSON. The appliance should be in­spected before use and at least annually by a qualified
service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding materials,
etc. It is imperative that control compartments, burners
and circulating air passageways of the appliance be kept
clean.

• DO NOT put anything around the furnace that will ob
struct the flow of combustion and ventilation air.

• DO keep the appliance area clear and free from combus

-

-

-

tible material, gasoline and other flammable vapors and
liquids.

• Do examine venting system periodically and replace
damaged parts.

• Do make a periodic visual check of burner. Clean and
replace damaged parts.

• DO NOT use this heater if any part has been under wa
ter. Immediately call a qualified service technician to in­spect the heater and to replace any part of the control
system and any gas control which has been under wa­ter.

-

-

-

-

22618-4-1106 Page 3

SAFETY INFORMATION FOR USERS OF LP-GAS

Propane (LP-Gas) is a flammable gas which can cause fires and
explosions. In its natural state, propane is odorless and colorless.
You may not know all the following safety precautions which can
protect both you and your family from an accident. Read them
carefully now, then review them point by point with the mem-

LP-GAS WARNING ODOR

If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.

That’s your signal to go into immediate action!

• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.

• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.

• Close all gas tank or cylinder supply valves.

• LP-Gas is heavier than air and may settle in low areas such
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
firefighters declare them to be safe.

NO ODOR DETECTED - ODOR FADE

Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must find out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.

The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movement of the gas through soil can filter the odorant. Odorants

bers of your household. Someday, there may not be a minute to
lose, everyone’s safety will depend on knowing exactly what to
do. If, after reading the following information, you feel you still
need more information, please contact your gas supplier.

• Use your neighbor’s phone and call a trained LP-Gas ser
vice person and the fire department. Even though you may
not continue to smell gas, do not turn on the gas again. Do
not re-enter the building, vehicle, trailer, or area.

• Finally, let the service man and firefighters check for es­caped gas. Have them air out the area before you return.
Properly trained LP-Gas service people should repair the
leak, then check and relight the gas appliance for you.

in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.

The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That
will take some of the odorant out of the gas, reducing its odor
intensity.

LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest
gas odor. If you detect any odor, treat it as a serious leak. Imme
diately go into action as instructed earlier.

-

-

SOME POINTS TO REMEMBER

• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it
to find out what the propane odor smells like. If you suspect
that your LP-Gas has a weak or abnormal odor, call your
LP-Gas Dealer.

• If you are not qualified, do not light pilot lights, perform ser
vice, or make adjustments to appliances on the LP-Gas sys­tem. If you are qualified, consciously think about the odor of
LP-Gas prior to and while lighting pilot lights or performing
service or making adjustments.

• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.

• Odor fade, due to oxidation by rust or adsorption on walls
of new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks or
cylinders are placed in service. Odor fade can occur in new
tanks, or reinstalled old tanks, if they are filled and allowed

to set too long before refilling. Cylinders and tanks which
have been out of service for a time may develop internal
rust which will cause odor fade. If such conditions are sus­pected to exist, a periodic sniff test of the gas is advisable. If
you have any question about the gas odor, call your LP-gas

-

dealer. A periodic sniff test of the LP-gas is a good safety
measure under any condition.

• If, at any time, you do not smell the LP-Gas odorant and
you think you should, assume you have a leak. Then take
the same immediate action recommended above for the oc­casion when you do detect the odorized LP-Gas.

• If you experience a complete “gas out,” (the container is un­der no vapor pressure), turn the tank valve off immediately.
If the container valve is left on, the container may draw in
some air through openings such as pilot light orifices. If this
occurs, some new internal rusting could occur. If the valve is
left open, then treat the container as a new tank. Always be
sure your container is under vapor pressure by turning it off
at the container before it goes completely empty or having it
refilled before it is completely empty.

22618-4-1106Page 4

REQUIREMENTS FOR MASSACHUSETTS

For all side wall horizontally vented gas fueled equipment installed
in every dwelling, building or structure used in whole or in part
for residential purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent termination
is less than seven (7) feet above finished grade in the area of
the venting, including but not limited to decks and porches, the
following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS.
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas fitter shall
observe that a hard wired carbon monoxide detector with an
alarm and battery back-up is installed on the floor level where
the gas equipment is to be installed. In addition, the installing
plumber or gas fitter shall observe that a battery operated
or hard wired carbon monoxide detector with an alarm is
installed on each additional level of the dwelling, building or
structure served by the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the property owner
to secure the services of qualified licensed professionals for
the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas

fueled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
floor level.

b. In the event that the requirements of this subdivision can

not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that
during said thirty (30) day period, a battery operated
carbon monoxide detector with an alarm shall be
installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each
carbon monoxide detector as required in accordance with the
above provisions shall comply with NFPA 720 and be ANSI/
UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be
permanently mounted to the exterior of the building at a
minimum height of eight (8) feet above grade directly in line
with the exhaust vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) inch in size, “GAS

VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS”.

4. INSPECTION. The state or local gas inspector of the side
wall horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the inspector
observes carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a) 1
through 4.

(b) EXEMPTIONS: The following equipment is exempt

from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled

“Equipment Not Required To Be Vented” in the
most current edition of NFPA 54 as adopted by the
Board; and

2. Product Approved side wall horizontally vented gas

fueled equipment installed in a room or structure
separate from the dwelling, building or structure
used in whole or in part for residential purposes.

(d) MANUFACTURER REQUIREMENTS - GAS

EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does not
provide the parts for venting the flue gases, but identifies
“special venting systems”, the following requirements
shall be satisfied by the manufacturer:

1. The referenced “special venting system” instructions

shall be included with the appliance or equipment
installation instructions; and

2. The “special venting systems” shall be Product

Approved by the Board, and the instructions for
that system shall include a parts list and detailed
installation instruction.

(e) A copy of all installation instructions for all Product

Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists for
venting instructions, and/or all venting design instructions
shall remain with the appliance or equipment at the
completion of the installation.

22618-4-1106 Page 5

GAS SUPPLY

FLEX TUBING

3/8 NPT
NIPPLE

FLARE FITTING

GAS VALVE

SOLENOID

FLARE SHUT OFF VALVE

Consult the current National Fuel Gas Code, ANSI Z223.1 CAN/
CGA-B149 (.1 or .2) installation code.

Recommended Gas Pipe Diameter

Pipe Length Schedule 40 Pipe

Inside Diameter

Tubing, Type L

Outside Diameter

Nat. L.P. Nat. L.P.

0-10 feet

0-3 meters

10-40 feet

4-12 meters

40-100 feet

13-30 meters

100-150 feet

31-46 meters

1/2”

12.7mm

1/2”

12.7mm

1/2”

12.7mm

3/4”

19mm

3/8”

9.5mm

1/2”

12.7mm

1/2”

12.7mm

1/2”

12.7mm

1/2”

12.7mm

5/8”

15.9mm

3/4”

19mm

7/8”

22.2mm

3/8”

9.5mm

1/2”

12.7mm

1/2”

12.7mm

3/4”

19mm

Note: Never use plastic pipe. Check to confirm whether your local
codes allow copper tubing or galvanized.

Note: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.

The use of the following gas connectors is recommended:
— ANS Z21.24 Appliance Connectors of Corrugated Metal Tubing

and Fittings

— ANS Z21.45 Assembled Flexible Appliance Connectors of

Other Than All-Metal Construction

The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a flexible
appliance connector cannot exceed three feet in length.

Figure 1

Installing a New Main Gas Cock

Each appliance should have its own manual gas cock.

A manual main gas cock should be located in the vicinity of the
unit. Where none exists, or where its size or location is not ad
equate, contact your local authorized installer for installation or
relocation.

Compounds used on threaded joints of gas piping shall be resistant
to the action of liquefied petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.

Never use an exposed flame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!

A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip line be installed near
the gas inlet. This should consist of a vertical length of pipe tee
connected into the gas line that is capped on the bottom in which
condensation and foreign particles may collect.

Pressure Testing of the Gas Supply System

1. To check the inlet pressure to the gas valve, a 1/8" (3mm) N.P.T.

plugged tapping, accessible for test gauge connection, must be
placed immediately upstream of the gas supply connection to
the appliance.

2. The appliance and its individual shutoff valve must be

disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2
psig (3.5 kPa).

3. The appliance must be isolated from the gas supply piping

system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).

Attention! If one of the procedures results in pressures in excess
of 1/2 psig (14" w.c.) (3.5 kPa) on the fireplace gas valve, it will
result in a hazardous condition.

Checking Manifold Pressure

Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.872kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 5.0" w.c.
(1.245kPa) for the purpose of input adjustment to a maximum of

10.5" w.c. (2.614kPa) Propane gas models will have a manifold

pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 11.0" w.c.
(2.739kPa) for the purpose of input adjustment to a maximum of

13.0" w.c. (3.237kPa).

A 1/8" (3mm) N.P.T. plugged tapping, accessible for test gauge
connection, is located on the outlet side of the gas control.

-

22618-4-1106Page 6

INTRODUCTION

Introduction

Always consult your local Building Department regarding regu
lations, codes or ordinances which apply to the installation of a
direct vent wall furnace.

Instructions to Installer

1. Installer must leave instruction manual with owner after in­stallation.

2. Installer must have owner fill out and mail warranty card sup­plied with furnace.

3. Installer should show owner how to start and operate furnace
and thermostat.

4. Installer must locate unit near a grounded wall receptacle for
115VAC power and must provide gas supply and vent the
unit properly for safe operation.

Warning:
Any change to this furnace or its control can be dangerous.
This is a heating appliance and any panel, door or guard
removed for servicing an appliance must be replaced prior
to operating the appliance.

General Information

This series is designed certified in accordance with American
National Standard/CSA Standard Z21.88 and CSA 2.33 by the
Canadian Standards Association as a Gas Fireplace Heater to be
installed according to these instructions.

Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown
on the rating plate is the responsibility of the person and com
pany making the change.

Important

All Correspondence should refer to complete Model Number, Se­rial Number and type of gas.

Notice: During initial firing of this unit, oil from the heat exchang­er may bake out and smoke may occur. To prevent triggering of
smoke alarms, ventilate the room in which the unit is installed.

Installation in Residential Garages

Gas utilization equipment in residential garages shall be installed
so that all burners and burner ignition devices are located not less
than 18” (457mm) above the floor.

Such equipment shall be located, or protected, so it is not subject
to physical damage by a moving vehicle.

Qualified Installing Agency

Installation and replacement of gas piping, gas utilization equip-

­ment or accessories and repair and servicing of equipment shall be
performed only by a qualified agency. The term “qualified agen­cy” mean any individual, firm, corporation or company which
either in person or through a representative is engaged in and is
responsible for (a) the installation or replacement of gas piping or
(b) the connection, installation, repair or servicing of equipment,
who is experienced in such work, familiar with all precautions re­quired and has complied with all the requirements of the authority
having jurisdiction.
The installation must conform with local codes, or in the absence
of local codes, the National Fuel Gas Code, ANSI Z223.1/NFPA
54 or Natural Gas and Propane Installation Code, CSA B149.1.
* Available from the American National Standards Institute, Inc.,
11 West 42nd St., New York, NY 10036.

A manufactured home (USA only) or mobile home OEM instal
lation must conform with the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home
Installations, ANSIZ225.1, or Standard for Gas Equipped Recre­ational Vehicles and Mobile Housing, CSA Z240.0.

Sate of Massachusetts: The installation must be made by a
licensed plumber or gas fitter in the Commonwealth of Mas­sachusetts.

High Altitudes

For altitudes/elevations above 2,000 feet (610m), input ratings

-

should be reduced at the rate of 4 percent for each 1,000 feet
(305m) above sea level, this may be accomplished by reducing
manifold pressure. The maximum allowable reduction in manifold
pressure for Natural gas shall be from 3.5” w.c. (.872kPa) to 2.8”
w.c. (.697kPa). The maximum allowable reduction in manifold
pressure for Propane (LP) gas shall be from 10.0” w.c. (2.49kPa)
to 8.0” w.c. (1.99kPa). For Canadian high altitude applications,
this appliance is suitable for installation at elevations between 0
feet (0m) and 4,500 feet (1,372m) without change.

-

22618-4-1106 Page 7

SPECIFICATIONS

Model PV28SV50

Input BTU/HR (KW/H) 19,000 Rear - 9,000 Front

Height 25 1/8”

Width

Depth 17 5/8”

Gas Inlet (Pipe) 3/8” Flair

Electrical - Unit has a 5’ (1.5m) 3 pronged cordset for con-

nection to an approved 115 VAC 60HZ maximum
AMPs - 5A wall receptacle.

28 3/16”

Accessories

Part Number Description

PV-2H Top Cover - Slim Assembly

PV-4H Top Cover - Short Assembly

PVPK Pedestal Kit

PVE-1 6” Surround Assembly

PVSH Rear Shroud

TRW Wall Thermostat - Wireless Remote

FRBTC Battery Operated Remote w/Thermostat

FRBTP Battery Operated Remote w/Programmable

Thermostat

TMV2 Two-Stage Thermostats

CIPFP-1 Floor Pad Kit

CIFPB-1C Corner Floor Pad Kit

PVVK24H Direct Vent 24” Vent Kit

PVVK48H Direct Vent 48” Vent Kit

PVVK-SH Single Flue Horizontal Vent Kit

PVVK-SV Single Flue Vertical Vent Kit

PVVK-CFA Flex Vent Kit

22618-4-1106Page 8

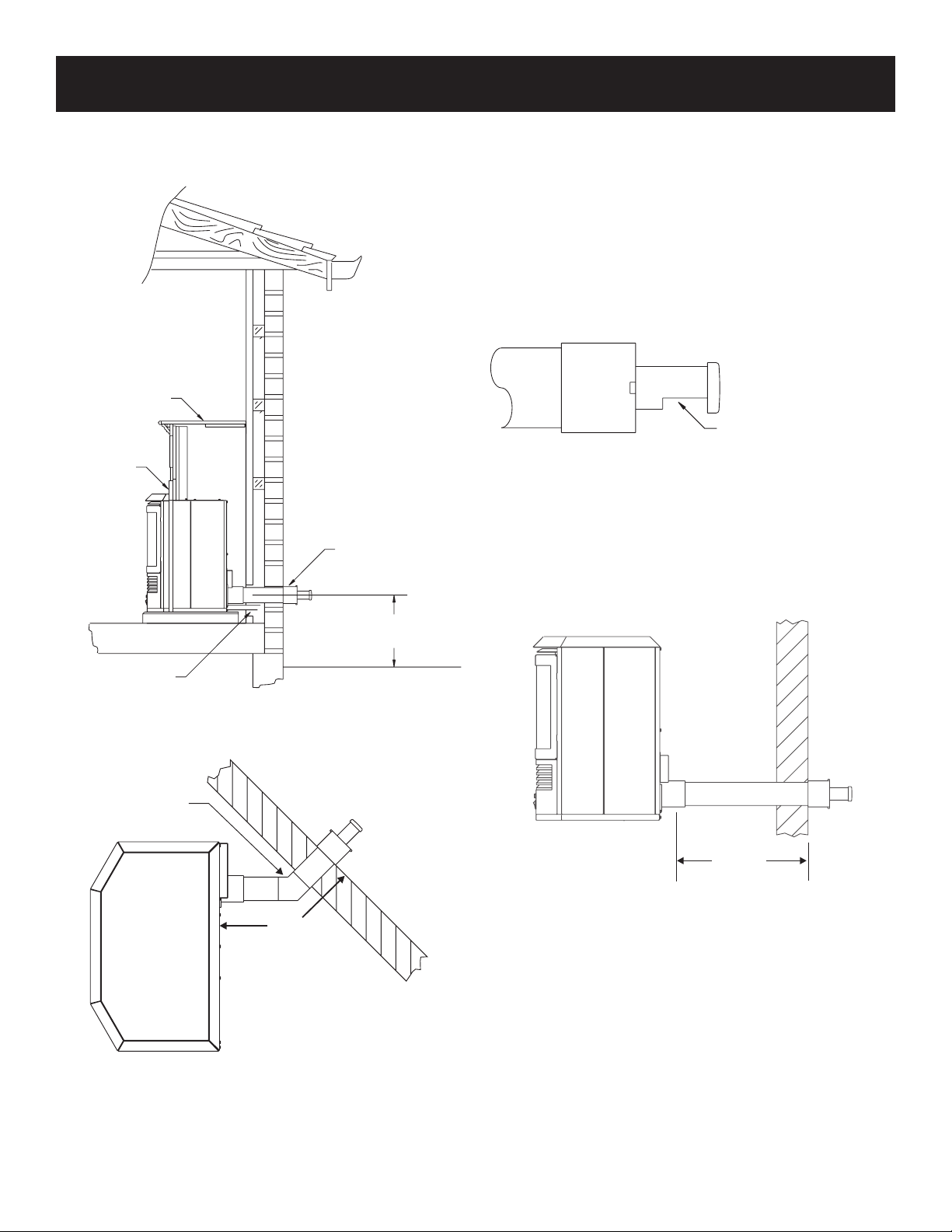

CLEARANCES FOR DIRECT VENT

1 9/16”

4 3/32”

1. Pick a location on a wall with a clear space in the room. In
selecting a location for installation, it is necessary to provide
adequate accessibility clearances for servicing and proper
installation. Be sure to locate the unit close enough to a 110
VAC wall receptacle to properly power appliance.

2. When facing the front of the furnace the minimum clearances
from casing to combustible construction are 0” (0mm) on top,
0” (0mm) on each side, recommend 4” (102mm) on sides for
servicing and 0”(0mm) from the floor and 0” (0mm) to rear
wall.

3. The minimum distance from the center of the vent cap to the
nearest outside corner or obstruction is 12” (305mm).

4. The minimum wall depth is 4” (102mm) and the maximum is
48” (121.92cm).

The vent terminal of a direct vent appliance, with an input of
50,000 BTU (14.6KW) per hour or less shall be located at least 9”
(229mm) from any opening through which flue gases could enter
a building.

The bottom of the exhaust vent terminal and the air intake shall
be located at least 12” (305mm) above grade and must be vented
outside.

WARNING: The nearest point of the vent cap should be
a minimum horizontal distant of six (6) feet (1.83m) from
any pressure regulator. In case of regulator malfunction,
the six (6) feet (1.83m) distance will reduce the chance of
gas entering the vent cap.

Installation on Rugs and Tile

If this appliance is to be installed directly on carpeting, tile, or other
combustible material, other than wood flooring, the appliance shall
be installed on a metal or wood panel extending the full width and
depth of the appliance.

The base referred to above does not mean the fire-proof base as
used on wood stoves. The protection is primarily for rugs that may
be extremely thick and light-color tile that can discolor.

HEATER INSTALLATION FOR DIRECT VENT

Locating Wall Opening

The recommended location for this furnace is on an outside wall.
Locate wall studs so that wall vent opening will be located between
wall studs. The wall opening required for venting is a 3 1/2” (89mm)
minimum diameter opening.

Refer to Figures 3 and 6 for positioning the heater on wall and for
locating gas line connection and vent opening. Furnace can sit on
the floor.

Figure 2

22618-4-1106 Page 9

CLEARANCES FOR SINGLE FLUE

1. Pick a location on a wall with a clear space in the room. In
selecting a location for installation, it is necessary to provide
adequate accessibility clearances for servicing and proper
installation. Be sure to locate the unit close enough to a 115
VAC wall receptacle to properly power appliance.

2. When facing the front of the furnace, the minimum clearances
from casing to combustible construction are 0” (0mm) on top,
0” (0mm) on each side, recommend 4” (102mm) on right side
for serving and 0” (0mm) from the floor and 2” (51mm) to rear
wall.

3. The minimum distance from the center of the vent cap to the
nearest outside corner or obstruction is 12” (305mm).

The bottom of the exhaust vent terminal and the air intake shall
be located at least 12” (305mm) above grade and must be vented
outside.

WARNING: The nearest point of the vent cap should be a
minimum horizontal distance of six (6) feet (1.83m) from
any pressure regulator. In case of regulator malfunction,
the six (6) feet (1.83m) distance will reduce the chance of
gas entering the vent cap.

Installation on Rugs and Tile

If this appliance is to be installed directly on carpeting, tile, or other
combustible material, other than wood flooring, the appliance shall
be installed on a metal or wood panel extending the full width and
depth of the appliance.

The base referred to above does not mean the fire-proof base as
used on wood stoves. The protection is primarily for rugs that may
be extremely thick and light-color tile that can discolor.

HEATER INSTALLATION FOR SINGLE FLUE

Locating Wall Opening

The recommended location for this heater is on an outside wall (the
unit can be located on an inside wall but must not exceed 20’ (6.096m)
in exhaust vent length). Locate wall studs so that wall vent opening
will be located between wall studs. The wall opening required for
venting is a 1 7/8” (48mm) minimum diameter opening.

Refer to Figures 3 to 6 for positioning the heater on wall and for
locating gas line connection and vent opening. Heater can sit on
the floor.

22618-4-1106Page 10

SPECIFICATIONS

28 3/16”

(71.6cm)

33 3/4

”

(85.7cm)

8 5/8”

(21.9cm)

17 5/8

”

(44.8cm)

5 - SINGLE FLUE

ADAPTOR

12 1/4

”

(31.1cm)

1 - FLUE
OUTLET

13/16

”

(2.1cm)

2 -

AIR INLET

7 9/16”

(19.2cm)

2 13/16”

(7.1cm)

1 7/16”

(3.7cm)

1”

(2.5cm)

3 - ELECTRIC

CORD

4 - 3/8” BSP
CONNECTION
INSIDE

1 ½

”

(3.8cm)

6 1/8”

(15.6cm)

3 9/16”

(9.0cm)

Heater with Pedestal and Single Flue Adaptor

1 Flue Outlet 1 1/2” PVC Pipe

2 Air Inlet

3 Electric Cord

4 3/8” BSP Connection (Inside)

5 Single Flue Adaptor

Figure 3

22618-4-1106 Page 11

SPECIFICATIONS - (continued)

28 3/16”

(71.6cm)

25 1/8”

(63.8cm)

27 3/4

”

(70.5cm)

17 5/8

”

(44.8cm)

3 9/16” (9.0cm)

16 15/16

”

(43.0cm)

1 - FLUE
OUTLET

2 -

AIR INLET

3 - ELECTRIC

CORD

4 - 3/8”

BSP
CONNECTION
INSIDE

1” (2.5cm)

7 9/16”

(19.2cm)

2 13/16”

(7.1cm)

1 7/16”

(3.7cm)

6 1/8”

(15.6cm)

1 ½

”

(3.8cm)

3 9/16”

(9.0cm)

13/16

”

(2.1cm)

1 - FLUE OUTLET

Heater without Pedestal

1 Flue Outlet

2 Air Inlet

3 Electric Cord

4 3/8” BSP Connection (Inside)

Figure 4

22618-4-1106Page 12

SPECIFICATIONS - (continued)

29 3/4”

(75.6cm)

35 7/16

”

(90.0cm)

5 15/16” (15.1cm)

23 13/16

”

(60.5cm)

5”

(12.7cm)

11 5/16”

(28.7cm)

1 - FLUE OUTLET

3 9/16”

(9.0cm)

4 - SURROUND

ASSEMBL

Y

1 - FLUE
OUTLET

AIR INLET

13/16” (2.1cm)

1” (2.5cm)

2 - ELECTRIC

CORD

7 9/16”

(19.2cm)

2 13/16”
(7.1cm)

1 7/16”

(3.7cm)

3 - 3/8” BSP

CONNECTION
(INSIDE)

6 1/8”

(15.6cm)

1 ½

”

(3.8cm)

3 9/16”

(9.0cm)

Fireplace Insert with Mantel surround with slim top panel

1 Flue Outlet

2 Electric Cord

3 3/8” BSP Connection (Inside)

4 Surround

Figure 5

22618-4-1106 Page 13

SPECIFICATIONS - (continued)

35 7/16”
(90.0cm)

29 3/4

”

(75.6cm)

5 15/16” (15.1cm)

23 13/16

”

(60.5cm)

10 1/8

”

(25.7cm)

6 3/16”

(15.7cm)

1 - FLUE OUTLET

3 9/16” (9.0cm)

16 15/16

”

(43.0cm)

4 - SURROUND

ASSEMBL

Y

1 - FLUE
OUTLET

13/16” (2.1cm)

5 - AIR INLET

7 9/16”

(19.2cm)

2 13/16”

(7.1cm

)

1 7/16”

(3.7cm)

3 - ½”BSP

CONNECTION
INSIDE

6 1/8”

(15.6cm)

1 ½

”

(3.8cm)

3 9/16”
(9.0cm)

1”

(2.5cm)

2 - ELECTRIC

CORD

Fireplace Insert with Mantel Surround with short top panel

1 Flue Outlet

2 Electric Cord

3 3/8” BSP Connection (Inside)

4 Surround

5 Air Inlet

Figure 6

22618-4-1106Page 14

CLEARANCE TO COMBUSTIBLES

C

C

A

B B

D

D

A

33 1/4”

(84.5cm)

29 3/4

”

(75.6cm)

12”

(30.5cm)

26 ½”

(67.3cm)

35 7/16”
(90.0cm)

WALL OPENING

E

40”

(1.0m)

CEILING

Freestanding Models

Figure 7 Figure 8

Freestanding Units

A Rear Wall to Heater 2” Single Flue and 1 1/4” Direct Vent

B Side Wall to Heater 0”/4” recommended for serviceability

C Corner Installation 0”

D Sidewall to Heater 0” when short top is being used

E Mantel Clearance 12” from top of Heater

Fireplace Insert

Figure 10

Single Flue

Requires surround for combustion air.

Note: The Mantis Power-Vent High-Efficiency Fireplace has been tested and approved for zero clearance to combustible materials.

22618-4-1106 Page 15

Empire Comfort Systems, Inc. recommends that clearances as listed above should be maintained to allow for removal of the
product for servicing.

Figure 9

Direct Vent Installation, Single Flue

Requires surround for combustion air.

Figure 11

LOG SET INSTALLATION INSTRUCTIONS

FRONT RIGHT LOG

FRONT LEFT LOG

CENTER LOG

TO

P LEFT LOG

REAR LOG

TO

P RIGHT LOG

Log Installation

The gas log set (front left log, front right log, center log and rear
log) is pre-set and installed in the factory. Only the top left log and
top right log are packaged separately inside the firebox for instal­lation by the installer.

1. To access the log set parcel, lift off top panel.

2. Pivot left and right panels open.

3. Unlatch main door latches located on right and left hand side
of the heater, remove door.

4. Carefully remove top left log and top right log from firebox
and remove cardboard protection from center log and middle
log and all packaging materials.

Note: Positions of front left log, front right log, center log,
and rear log have been preset at the factory and their loca
tions should not be changed. Check that logs have not been
damaged in transit.

5. Carefully remove wrapping from top left log and top right
log.

Note: Before you begin: Do not handle these logs with your bare

hands! Always wear gloves to prevent skin irritation. After
handling logs, wash your hands gently with soap and wa­ter.

All Logs

The positioning of the logs is critical to the safe and clean opera­tion of this heater. Sooting and other problems may result if the
logs are not properly and firmly positioned in the appliance.

6. Prior to positioning of top left log and top right log, inspect
front burner and rear burner for particles or dust accumula
tion on top of burners. If any particles or dust is visible on top
of front or rear burners, remove particles before placing top
left log and top right log into position.

7. Position top left log into locating pin on rear log and rest on
center log. See Figure 12.

8. Position top right log into locating slot on rear log. See Fig
ure 12.

9. After top left log and top right log have been placed in posi

­tion and safety check has been carried out, install door and

latch securely with latches located on right and left side of
heater.

-

-

-

Figure 12

22618-4-1106Page 16

LOG SET INSTALLATION INSTRUCTIONS

1 - REAR LOG

3 - TOP RIGHT LOG

6 - FRONT RIGHT LOG

2 - CENTER LOG

5 -

FRONT LEFT LOG

4 - TO

P LEFT LOG

LOG SET DIAGRAM - A

The Gas Log Kit contains the following: 1) Rear Log

2) Center Log

3) Top Right Log

4) Top Left Log

5) Front Left Log

6) Front Right Log

Figure 13

22618-4-1106 Page 17

INSTALLATION INSTRUCTIONS - GENERAL SAFETY INFORMATION

1. This installation must conform with local codes or, in the ab­sence of local codes with NFPA54.

2. Provide adequate clearances around the product for servic
ing and ensure there are no obstructions to the combustion
air intake situated at the back of the heater. Refer to Page 15,
Figures 7 and 11.

3. The appliance must be installed on a flat, solid
surface (i.e. wood, metal, concrete). Please Note: Rough or
uneven surfaces can cause vibration or humming in the heat­er.

4. The Mantis Power-Vent High-Effeciency Fireplace can be in
stalled in a wide variety of ways and will fit nearly any room
layout. It may be installed in a recessed position, framed out
into the room, or across a corner. For installation options re­fer to page 15.

5. This appliance (Insert and Freestanding Models) needs to be
installed in such a way that the heater can be
times to service the heater exchanger and flue fan located in
the rear section of the heater.

Note: Under no circumstances should the appliance be in

stalled under conditions which would not allow for
easy removal of the appliance to carry out routine
inspection and service to the appliance, to do so will
void the warranty.

Note: On Single Wall flue pipe installations (imitation zero

clearance fireplace) a minimum of 2” (50.8cm) clear­ance must be provided at the rear of the heater to enable
the heater to get sufficient combustion air to the air inlet
located at the rear of heater. Refer to installation instruc­tions on page 15, Figures 7 and 9.

Note: Where a mantel surround is being used on insert installa-

tions and zero clearance fireplace installations, the com­bustion air intake slot located in the top mantel surround
must have no obstructions to allow combustion air to en­ter through the slot to the combustion air inlet located at
the back of the heater.

continuous

removed at all

-

-

-

22618-4-1106Page 18

VENT EXAMPLES FOR SINGLE FLUE

6”

(15.2cm)

3’ (91.4cm) MIN.
1 - 9

0° ELBOW

VENT TERMINAL

FIRST 90° ELBOW

DOES NOT GET COUNTED
WHEN WITHIN 6” (15.2cm)
OFF BACK OF HEATER

90 ELBOW°

90 ELBOW

°

2’

(61.0cm)

7’

(2.1m)

5’

(1.5m)

VENT TERMINAL
90

° ELBOW

Max Vent Run - 20ft. Equivalent With Three (3) 90° Elbows

Three foot (3’ (91.4cm)) minimum vent run vertical with one (1) 90° elbow

The vent terminal 90° elbow and first 90° elbow off back of heater when within 6” (15.2cm) off back of heater do not get count
ed.

Special Note: For each 45° elbow installed in the horizontal run, the length of the horizontal run MUST be reduced by 18”
(45cm). This does not apply if the 45° elbows are installed on the vertical part of the vent system. Reduce the length of the hori
zontal run 36” (91.4cm) for every 90° elbow.

Note: On horizontal runs, a P.V.C. support clamp needs to be installed every 3 feet. No “sags” in horizontal vent runs; water will settle

in the pipe.

When installing a single flue horizontal, minimum vent length protruding from the outside wall including 90° elbow is 6” (15.2cm)
from the outside wall. See Figure 14.

Note: Horizontal discharge 90° elbow must be pointed downward. See Figure 16.

Note: All PVC vent run piping can be purchased at a local hardware store. Schedule 40 PVC pipe should be used and cemented.

-

-

Figure 14

Single Flue - Horizontal Short Vent Run

Minimum vertical vent runs is 3’ (91.4cm)

H = 5’ + 2’ = 7’
V = 7’
(2) - 90° = 6’
Total = 20’

Figure 15

Single Flue - Unacceptable Venting

22618-4-1106 Page 19

Single Flue - Horizontal Tall Vent Run

Figure 16

90 ELBOW°

16’

(4.9m)

1’

(30.5cm)

FLEXIBLE
PVC PIPE

MANTEL

PVC PIPE
(SUPPLIED BY INSTALLER)

2 - 45 DEG. PVC
BENDS (SUPPLIED
BY INSTALLER)

GAS SUPPLY

FLASHING

VENT CAP (SUPPLIED
WITH VENT KIT)

H

SURROUND

H = 16’
V = 1’
(1) - 90° = 3
Total = 20’

VENT EXAMPLES FOR SINGLE FLUE (cont.)

Single Flue - Vertical Vent Run

Figure 17

Figure 18

Single Flue - Vertical Vent Run

with 45 degree elbows

Figure 19

Single Flue - Venting with Shroud Installed

22618-4-1106Page 20

VENT EXAMPLES FOR SINGLE FLUE (cont.)

90° ELBOW

EXTERIOR GRADE

FLUE CENTER

6”

(15.2cm)

MIN.

12” (30.5cm) MIN.

1/4” DOWNWARD SLOPE
PER FOOT TO OUTSIDE

42”

(1.2m)

SURROUND

Figure 20

Minimum Exterior Grade Dimension - Single Flue, Horizontal Venting Below Floor

Figure 21

Flex Vent Tubing

Must have minimum 3ft vertical upward

22618-4-1106 Page 21

VENT EXAMPLES FOR SINGLE FLUE (cont.)

FLEXIBLE
FLUE KIT

FLEXIBLE GAS
LINE

PVC PIPE SWV
(SUPPLIED BY INSTALLER)

(2) - 45 DEG. PVC BENDS
(SUPPLIED BY INSTALLER
IF NECCESSARY)

GALV. SHEET FLASHING
TO SEAL CHIMNEY
(SUPPLIED BY INSTALLER)

VENT CAP (SUPPLIED
WITH VENT KIT)

H

12

X

ROOF PITCH
IS

12

X

17’

5.2m

Determining Minimum Vent Height Above the Roof

WARNING: Major U.S. building codes specify minimum chim

ney and/or vent height above the rooftop. These minimum heights
are necessary in the interest of safety. These specifications are
summarized in Figure 22.

90° = 3’
V = 17’
Total = 20’

-

ROOF PITCH H (Min.)

Flat to 6/12 12” (305mm)

6/12 to 7/12 15” (381mm)

Over 7/12 to 8/12 18” (457mm)

Over 8/12 to 16/12 24” (610mm)

Over 16/12 to 21/12 36” (914mm)

Figure 22

Venting for Existing Fireplace Installation

22618-4-1106Page 22

DIRECT VENT INSTALLATION INSTRUCTIONS

FLUE CENTER

EXTERIOR GRADE

MANTEL

DIRECT VENT
FLUE KIT

GAS SUPPLY

12” (30.5cm)

MIN.

SURROUND

45° ELBOW

47.5”

(1.2m)

47.5”

(1.2m)

EXHAUST OPENING MUST
BE POINTED DOWNWARD.

Note: Do not glue intake or exhaust pipes to Direct Vent Adaptor for serviceability.

Direct Vent System Building Exterior View

Figure 25

Figure 23

Horizontal Venting

Figure 24

Horizontal Venting Maximum 47.5” (1.2m) with 45° elbow

45° elbow can be purchased from a local hardware store

Figure 26

Maximum Horizontal Venting - 47 1/2” (1.2m)

Minimum Horizontal Venting - 4 1/2” (11.4cm)

22618-4-1106 Page 23

DIRECT VENT INSTALLATION INSTRUCTIONS (cont.)

EXTERIOR GRADE

FLUE CENTER

1 1/4”

(3.2cm)

MIN.

12”

(30.5cm)

MIN.

FLOOR PROTECTION

FLOOR PROTECTION
NO HEARTH REQUIRED

EXTERIOR GRADE

FLUE CENTER

1 1/4”

(3.2cm)

MIN.

12”

(30.5cm)

MIN.

Installation on Rugs and Tile

If this appliance is to be installed directly on
carpeting, tile, or other combustible mate
rial, other than wood flooring, the appliance
shall be installed on a metal or wood panel
extending the full width and depth of the
appliance.

The base referred to above does not mean
the fire-proof base as used on wood stoves.
The protection is primarily for rugs that may
be extremely thick and light-color tile that
can discolor.

Minimum Exterior Grade Dimension - Unit Without Pedestal

-

Figure 27

Minimum Exterior Grade Dimension - Unit With Pedestal

Figure 28

22618-4-1106Page 24

DIRECT VENT INSTALLATION INSTRUCTIONS (cont.)

EXTERIOR GRADE

FLUE CENTER

12”

(30.5cm)

MIN.

Figure 29

Minimum Exterior Grade Dimension - Existing Fireplace Installation

22618-4-1106 Page 25

GAS CONNECTION INSTALLATION INSTRUCTIONS

FLEXIBLE GAS
LINE

GAS CONNECTION (Line Supply)

A 3/8” Flair gas line connection is supplied in the heater

GAS SUPPLY LINE TO HEATER

a. Remove top panel from heater by lifting top panel.
b. Remove front and rear panel.
c. Remove rubber grommet from back panel of heater and insert gas supply line through back panel of heater.
d. Connect gas supply line to flexible gas hose. Ensure that flexible gas hose is not kinked after fitting gas supply line.
e. After gas supply line has been brought through from rear of heater, place rubber grommet supplied over gas line and install

panels.

Figure 30

Note: The gas supply line to the heater must be installed under conditions which will allow for easy removal of the heater from its

location for servicing of the heater. For fireplace insert installations, incorporate either a copper loop into the supply line or flexible hose
being used for the gas supply to the heater to allow for easy removal of the appliance.

Note: Under no circumstances should the gas supply line to the appliance be installed under conditions, which would not allow for
easy removal of the appliance to carry out routine inspection and service to the appliance.

22618-4-1106Page 26

OPERATING INSTRUCTIONS CHECKLIST

BEFORE OPERATING THIS APPLIANCE, CAREFULLY PROCEED THROUGH THE FOLLOWING
CHECKLIST

1. Read and understand these instructions before installing or
operating this appliance.

2. This appliance is should be installed and repaired by a fully
qualified service person who must be familiar with the instal
lation of the Mantis Power-Vent High-Efficiency Fireplace.

3. Installers who are not familiar with the installation of this ap
pliance should contact Empire Comfort Systems, Inc. prior to
installing the appliance to avoid creating hazardous operating
conditions.

4. Check and inspect the appliance for gas leaks. In the event
of gas leaks, cut off the gas supply to the heater immediately
and call your gas supplier or installer.

5. Check and verify that all flue venting combustion air intakes
and flue outlets are unobstructed.

6. Refer to pages 19 to 22 for Single Flue pipe and pages 23
to 25 for Co-axial Flue installations. Check that correct flue
pipe and cap has been fitted in line with the manufacturer’s
specifications as illustrated in this manual pages 11 to 25.

7. Do not use alternative Flue or cap on installation other than
that specified in this manual - otherwise heater will malfunc
tion and cause hazardous operating conditions and will void
the manufacturer’s warranty.

8. Check and verify that flue pipe connection to the appliance
when using single 1 1/2” flue pipe installation is correctly
installed and secured in line with instruction in this manual,

-

-

-

Pages 19 to 22.

9. Prior to operating the appliance, check for dust or debris on
the burners. Refer to Page 37, Figure 47.

10. Check and verify that logs are place correctly as per instruc
tions on Pages 16 to 17 of this manual. If logs are incorrectly
positioned, it can create a hazardous situation, and in most
instances, the heater will not operate correctly.

11. Do not light heater without logs installed, as heater will not
operate properly.

12. Check and verify prior to starting the appliance, that all panels
are secured in place and that the main door has been locked in
position.

13. After verifying and checking all the above points, proceed to
lighting instructions. Refer to pages 28 to 29.

-

22618-4-1106 Page 27

LIGHTING INSTRUCTIONS

FRONT
BURNER
SWITCH

REAR
BURNER
SWITCH

THERMOSTAT
DISPLAY MODE
BUTTON

A

B

C D

E

F

G

H

1. Main Electrical power supply must always be switched on to
the unit with the two burner switches in the off position (up)
before lighting the heater.

2. Turn on main gas supply.

3. Verify that main electrical supply is switched on by checking
the 115V AC power status display (Figures 32 and 33) indica
tor is on.

4. Burner selection: select low burn (front burner), medium
burn (rear burner), or high burn (both burners). Low burn
switch (Figure 32) controls the front burner only. Medium
burn switch (Figure 33) controls the rear burner only. When
both switches are down, they will activate both the low and
medium burners, which is the high setting.

5. Heater operating LED sequence (Front Display Panel). Be
fore starting ensure that the power L.E.D (Figure 34A) is on
and burner switches are off. Switch on the heater by engag­ing the low and medium burner switch, this will activate the
pressure switch and the exhaust fan L.E.D (Figure 34E) will
be on. Also the two burner L.E.D’s (Figure 34C and 34D)
will start flashing for 35 seconds prior to ignition. Once both
burners have ignited, the burner L.E.D’s will remain on. If
you can’t see flame on the rear burner, but the burner L.E.D
is on, then there will be flame there which will become more
visible as the heater warms up. Once the heater warms up
the low speed L.E.D (Figure 34F) will light and the convec
tion fan will blow warm air from the heater. As the heater

becomes warmer, the medium L.E.D (Figure 34G) will come
on. When the heater has reached its highest operating tem
perature, all three L.E.D’s will light up and the convection
fan will now be running at its high speed. Refer to page 30

- Fan Operation. When the heater has been running for some
time, the water pump L.E.D (Figure 34B) may come on to

-

signal that the pump has been activated. Refer to page 33

- Automatic Humidifier Operation.

Note: Three heat settings are available for operating your Mantis

heater - low, medium and high.

a. Low setting (front burner only) - engage low burn switch

only (Figure 32)

b. Medium setting (rear burner only) - engage medium

burner switch only (Figure 33)

c. High setting (front and rear burners).

-

-

-

Figure 31

Figure 32

Caution: When switching from the front burner to the rear burner, be sure to activate the rear burner first, then turn off the front burner.

When switching from rear burner to the front burner, be sure to activate the front burner first. Simple rule - always activate the
desired burner first, then switch the other burner off. If it is switched the wrong way, the burner(s) will go out and the heater
may need to be reset. Refer to page 38 - Resetting the Heater.

Figure 33

Figure 34

22618-4-1106Page 28

LIGHTING INSTRUCTIONS

OFF

ON

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EX­PLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS
OF LIFE.

A. BEFORE LIGHTING smell all around the appliance area

for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.

• If you can not reach your gas supplier, call the fire de
partment.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above on this label.

2. Set the thermostat, if used, to the lowest setting.

3. Turn off all electric power to the appliance. Turn off elec-

trical control switches to “O.”

4. This appliance is equipped with an ignition device that au-

tomatically lights the burner. Do not try to light the burner
by hand.

5. Remove the front access panel below the glass door by

pulling both sides forward simultaneously.

6. Turn gas line valve to “ON.”

7. Wait five (5) minutes to clear out any gas. Then smell for

gas, including near the floor. If you smell gas, STOP! Fol-

B. Use on the wall switch or remote control switch to turn the

gas control on/off. Any attempted repairs or adjustments
should be performed by a qualified service technician. Ap­plying force or attempted repair may result in a fire or ex­plosion.

C. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.

-

low “A” in the safety information above. If you do not
smell gas, go to the next step.

8. Replace the front access panel, press both sides of the panel
until both lock position.

9. Turn on electric power to the appliance. Turn on electric
control switches to “I.”

10. Set thermostat to desired setting (if available).

11. If the appliance will not operate, follow the instructions
“TO TURN OFF GAS TO APPLIANCE,” and call your
service technician or gas supplier.

TO TURN OFF GAS TO APPLIANCE

1. STOP! Read the safety information above.

2. Set the thermostat, if used, to the lowest setting.

3. Turn off electric power to the appliance.

4. Remove front access panel.

5. Turn gas line valve to “OFF.”

6. Replace front access panel.

22618-4-1106 Page 29

FAN OPERATION

The 3-speed main convection fan will automatically start approximately 3 to 5 minutes after the heater has warmed up.

Note: The 3-speed main convection fan is automatically controlled and will operate on three preset speeds. Depending on your burner
setting and the surrounding ambient temperature, the L.E.D lights (Page 28, Figure 34) for the fan will light up. The bottom L.E.D light
(Figure 34F) is low speed setting, and middle L.E.D lights (Figure 34G) is the medium speed setting, the bottom, middle and top L.E.D
lights (Figure 34H) is the high-speed setting (both burners on).

Note: The fan will operate totally independent of burner setting - it is controlled by temperature only.

a. Front burner only - low fan speed
b. Rear burner only - medium fan speed
c. Both front and rear burners - high fan speed

On changing the burner setting from high to medium, or from high to low, there will be a delay on the operating speed of the fan until
the firebox has cooled down sufficiently for the fan to change speed.

Note: It can take up to approximately 20-30 minutes before the fan speed will change and settle on the next setting. The firebox tempera­ture and the outside ambient temperature will regulate how quickly the fan responds to speed changes.

HEATER SHUT DOWN INSTRUCTIONS

These are approximates only

}

Turn medium burner switch (Figure 33) and low burner switch (Figure 32) to the “OFF” position.

Note: Do not cut main electrical supply to the heater after the heater has been switched off to stop main fan operating. Main fan will

stop operating automatically after the heater has cooled down sufficiently.

22618-4-1106Page 30

GAS CONVERSION INSTRUCTIONS

REGULATOR STEM

ADD BUSHING FOR
NATURAL GAS

Warning: Conversion must be done by a qualified service technician. Main burner orifices, front burner
bushing, and gas conversion label are provided in conversion kit attached to manifold pipe.

CONVERSION INSTRUCTIONS FROM (LP) PROPANE GAS TO NATURAL GAS

1. Turn OFF gas supply and electrical power to fireplace.

2. Remove lower front panel.

3. Unscrew regulator stem from gas valve and reverse regulator stem to the natural gas position and screw stem back into gas valve.
See Figure 35

4. Open four (4) door latches in order to pivot open the front door.

5. Remove logs from fireplace.

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous

operation. Verify proper operation after servicing.

6. Disconnect caps and plugs on flame sensor and hot surface ignitor.

7. Remove log plate from interior of fireplace by removing twelve (12) screws. See Figure 47.

8. Remove front burner (one (1) screw).

9. Use 3/8” socket or wrench to remove propane gas front burner orifice marked 1.10 from orifice fitting. Replace with natural gas
front burner orifice marked 1.50 into orifice fitting.

10. Insert natural gas front burner bushing into throat (Venturi) of front burner. See Figure 36.

11. Replace front burner with one (1) screw from Step 8.

12. Remove rear burner (one (1) screw).

13. Use 3/8” socket or wrench to remove propane gas rear burner orifice marked 1.45 from orifice fitting. Replace with natural gas
rear burner orifice marked 2.35 into orifice fitting.

14. Replace rear burner with one (1) screw from Step 12.

15. Connect caps and plugs on flame sensor and hot surface ignitor.

16. Install log plate into fireplace with twelve (12) screws from Step 7.

17. Replace logs into fireplace. Refer to page 12, Log Placement for correct placement of logs.

18. Close front door by securing four (4) door latches.

19. Replace lower panel.

20. Place Propane gas burner orifice(s) into conversion kit. Attach conversion kit to manifold pipe. Attach gas conversion label adjacent
to fireplace nameplate indicating that the fireplace was converted to Natural gas.

21. Turn ON gas supply to fireplace and check all gas connections for leaks with soap solution, watching for bubbles on all gas con
nections.

22. Turn ON electrical power to fireplace and turn on fireplace to verify proper operation. It may take several tries for ignition to
completely purge all the air from the gas line.

-

22618-4-1106 Page 31

Figure 35

Figure 36

GAS CONVERSION INSTRUCTIONS

REGULATOR STEM

REMOVE BUSHING
FOR

LP GAS

Warning: Conversion must be done by a qualified service technician. Main burner orifice(s) and new
gas conversion label are provided in conversion kit attached to manifold pipe.

CONVERSION INSTRUCTIONS FROM NATURAL GAS TO (LP) PROPANE GAS

1. Turn OFF gas supply and electrical power to fireplace.

2. Remove lower front panel.

3. Unscrew regulator stem from gas valve and reverse regulator stem to the propane gas position and screw stem back into gas valve.
The propane gas arrow will be pointing at the gas valve in the propane gas position. See Figure 37.

4. Open four (4) door latches in order to pivot open the front door.

5. Remove logs from fireplace.

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.

6. Disconnect caps and plugs on flame sensor and hot surface ignitor.

7. Remove log plate from interior of fireplace by removing twelve (12) screws. See Figure 47.

8. Remove front burner (one (1) screw).

9. Use 3/8” socket or wrench to remove natural gas front burner orifice marked 1.50 from orifice fitting. Replace with propane gas
front burner orifice marked 1.10 into orifice fitting.

10. Remove natural gas front burner bushing from throat (Venturi) of front burner. See Figure 38.

11. Replace front burner with one (1) screw from Step 8.

12. Remove rear burner (one (1) screw).

13. Use 3/8” socket or wrench to remove natural gas rear burner orifice marked 2.35 from orifice fitting. Replace with propane gas
rear burner orifice marked 1.45 into orifice fitting.

14. Replace rear burner with one (1) screw from Step 12.

15. Connect caps and plugs on flame sensor and hot surface ignitor.

16. Install log plate into fireplace with twelve (12) screws from Step 7.

17. Replace logs into fireplace. Refer to page 12, Log Placement, for correct placement of logs.

18. Close front door by securing four (4) door latches.

19. Replace front panel.

20. Place Natural gas main burner orifices and front burner bushing into conversion kit. Attach conversion kit to manifold pipe. At
tach gas conversion label adjacent to fireplace nameplate indicating that the fireplace was converted to Propane gas.

21. Turn ON gas supply to Fireplace and check all gas connections for leaks with soap solution, watching for bubbles on all gas
connections.

22. Turn ON electrical power to fireplace and turn on fireplace to verify proper operation. It may take several tries for ignition to
completely purge all the air from the gas line.

-

Figure 37

Figure 38

22618-4-1106Page 32

AUTOMATIC HUMIDIFIER OPERATION

Most gas heaters dry out the air in the room. The Mantis has in­geniously solved this problem with an Automatic Humidifier.
Gas contains moisture which is normally expelled out the flue or
chimney after combustion. But the Mantis is so efficient by taking
92% of the heat out of the burnt gases that the moisture drops out
and condenses in the back of the heater. This water is collected
in a tank which is then pumped up to a stainless steel condensate
tray, where it evaporates in the stream of hot air which is blowing
into your home. Air humidity is automatically restored!

Figure 39

1. The amount of condensate build up in the water sump is dependent on outside temperature, length and height of the flue pipe. The
automatic humidifier can operate from approximately 10 minute to 6 hour intervals, depending on ambient temperature, style and
type of flue. Long single vertical flues can cause the humidifier to come on more often depending on heater settings.

2. When the automatic humidifier is engaged and is transferring the condensate into the holding tank, a hissing sound may be notice
able. This occurs when the condensate enters the holding tank and is quite normal. The duration of the sound may vary from 3 to 30
seconds until the holding tank has been filled with the condensate.

3. When the automatic humidifier pump comes on to pump condensate into the stainless steal tray (located on the top of the heater),
the L.E.D. light (Page 28, Figure 34B) on the front panel will light up and flash while the condensate pump is operating, and then
extinguish after the pump has stopped operating. This means water has been pumped into the tank, and the automatic humidifier
operation will begin.

-

22618-4-1106 Page 33

FRONT
BURNER
SWITCH

REAR
BURNER
SWITCH

THERMOSTAT
DISPLAY MODE
BUTTON

OPTIONAL REMOTE CONTROL THERMOSTAT

OPTIONAL

REMOTE

CONTROL /

THERMOSTAT

WHITE

BLACK

BLACK

WHITE

RED

BLUE

JUNCTION
BLOCK

TO

TRANSFORMER

BLUE

TO “T2”

TO “T2”

TO “T1”

TO “T1 ”

WHITE

An optional programmable Remote Control Thermostat can be fit­ted to the heater at the factory when ordered or even after the heat­er has been installed. See your Mantis dealer for correct type.

Installation: The Remote Control can be installed by the owner
of the heater if required. The Remote Control is a battery operated
device, which requires a small amount of low voltage wiring. A
wiring loom package is supplied by Empire Comfort Systems,
Inc. which simply attaches onto the junction box. See Figure 35.

Remove blue jumper wire from junction block and save for fur
ture use. From the remote control receiver, cut and strip one black
wire 1/4” terminal from wire. Attach the stripped black wire to
the blue wire connector from the transformer on the junction box.
From the remote control receiver, attach the Y wiring lead to the
1/4” terminal on the black wire. Attach the one white wire to the
red wire connection from “T1” on the junction block. Attach the
other white wire from the remote control receiver to the black
wire connection from “T2” on the junction block.

Figure 40

In basic terms the red button acts as a Remote Control override
switch for the front burner only. Also the Remote can switch the
heater on and off in the high setting, medium setting or low set­ting.

Note: When the heater or the Remote Control is not being used
for long periods the burner switches should be in the off posi­tion, also in summer the heater should be turned off at the power
point.

-

Figure 43

Figure 42Figure 41

Economy Display Mode (Red Button Operation): The red but
ton above the two burner switches is called the economy display
mode and will only function when a Remote Control Thermostat
has been installed in the heater. The most common way this button
is used to have the Remote Control set on Thermo mode with a
desired temperature set for the heater to turn on and off, which is
dependant on the ambient temperature, location and the area the
appliance is positioned in. When using a Remote Control Ther­mostat both burner switches need to be in the on position. When
the red button is pressed with both burner switches on, the front
burner only will ignite or if already alight, it will now remain on
regardless of what function or temperature is set on the Remote
Control.

In this situation only the back burner will turn on and off accord
ing to the setting on the Remote Control. By running the heater
this way you will use less gas and still have the aesthetic effect of
the front burner. However, if the appliance is in a small area, this
setting may get to warm for you. To change the setting, press the
red button so that it is not illuminated and the heater will revert
back to its normal operation.

-

-

22618-4-1106Page 34

WIRING

(1) (2) BLACK

BLACK (3) (4) RED

YELLOW (5) (6) RED

BLUE (7) (8) BROWN

GREY (9) (10) RED

RED (11) (12) BLACK

BLACK (13) (14) RED

RED (15) (16) FRONT H.S.I.

FRONT H.S.I. (17) (18) REAR H.S.I.

REAR H.S.I. (19) (20) BROWN

WHITE (3-5-7) (1) BLUE

BLACK (8) (2) BLACK

(15) ORANGE

(13) RED

(11) BLACK

(9) BROWN

(7)

PURPLE

(5) BLUE

(3) WHITE

(1) YELLOW

GREEN/YELL

OW (16)

BLACK (14)

BLACK (12)

GREEN (10)

RED (8)

RED (6)

BLACK (4)

RED (2)

(5) YELL

OW

(3) BLACK

(1) GREY

ORANGE (6)

WHITE (4)

RED (2)

WATER LEVEL
SWITCH

TRANSFORMER

14 WAY RIBBON TO

FRONT PANEL DISPLAY

FRONT BURNER

SWITCH

REAR BURNER

SWITCH

THERMISTOR

P1 TO
DISPLAY

P1 TO
DISPLAY

AIR PRESSURE

SWITCH

PIN 5

(NC)

(NO)

(COM)

TRANSFORMER

120V BLACK
PINS 4 OR 6

CONV. FAN

PIN 13

GAS VALVE

80

C

VAL

VE /

INDP

FLUE FAN

PIN 3

PIN 6

PIN 4

120V WHITE

HSI

PIN 18

PIN 16

PIN 20

PIN 5

CONDENSATE
PUMP

WIRING DIAGRAM

WHITE
BLACK

ORANGE

ORANGE

BLACK BLACK

ORANGE

YELL

OW

TRANSFORMER

TO JUNCTION BLOCK

YELLOW

BLUE

BLUE

BROWN

BROWN

F

R

GREY

4 µF

3 µ

F

14 WAY RIBBON TO
CONTROL MODULE

P1

T1

T2

P2

OPTIONAL
CONTROL
WIRING

RECEIVER

BLACK

WHITE

PURPLE

YELLOW

BLUE

WHITE

WHITE

BLACK

RED

R. BRN. THERM (4)
L. BRN. THERM (3)

BLACK

BLUE

WHITE

RED

BLUE

JUNCTION
BLOCK

TO

TRANSFORMER

BLUE

INDICATO

R

SWITCH

BLACK

WHITE

WHITE

+ -

The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70 or Canadian Electri­cal Code, CSA C22.1, if an external electrical source is utilized.

This appliance is equipped with a three-prong [grounding]
plug for your protection against shock hazard and should be
plugged directly into a properly grounded three-prong recep­tacle. Do not cut or remove the grounding prong from this
plug. For an ungrounded receptacle, an adapter, which has two

prongs and a wire for grounding, can be purchased, plugged into
the ungrounded receptacle and its wire connected to the recep­tacle mounting screw. With this wire completing the ground, the
appliance cord plug can be plugged into the adapter and be electri­cally grounded.

CAUTION: Label all wires prior to disconnection when ser­vicing controls. Wiring errors can cause improper and dan­gerous operation. Verify proper operation after servicing.

Note: For testing flame sensor circuit use a micro-amp meter in
series with sensor. Minimum current should be 1 micro-amp dur­ing operation. Be careful as flame sensor is in the 115VAC circuit.
If current is below 1 micro-amp, remove sensor, clean with light
sandpaper and retest.

Note: This heater is equipped with a remote bulb electronic
thermistor control located low on the back of the furnace.
Sometimes due to field locations different air currents may ef­fect the control sensing of the thermistor. This sensing bulb can
be re-located if necessary to provide for better air sensing and
control.

22618-4-1106 Page 35

Figure 44

Figure 45

GENERAL INFORMATION

Over Temperature Cut Out

The Mantis Power-Vent High-Efficiency Fireplace is protected
against overheating with a high temperature 80°C (176°F) cut off
switch to protect the heat exchanger, plastic sump and flue fan.

The high temperature cut off switch will automatically switch off
the gas supply to the heater, if the temperature in the room where
the heater is located reaches approximately 28°C (82.4°F). The
heater will go into lock out mode. An allowance of 15 minutes
minimum must be made to allow for the main fan to cool down
the heater prior to restarting the appliance.

Note: In most instances, overheating of the heater is a direct result
of too much lint and dust having accumulated in the main convec­tion fan. This makes the fan unable to supply sufficient air to cool
down the heat exchanger. It is recommended that you inspect your
main convection fan prior to the start of the heating season and if
necessary have it serviced by a qualified service technician (refer
to Page 37 - Maintenance).

Paint Curing - First Firing

The first fire in your heater is part of the paint curing process.
Your Mantis Power-Vent High-Efficiency Fireplace has been
painted with the highest quality heat resistant silicon paint avail­able in the world.

To ensure that the paint is properly cured, light the unit and leave
it burning on high burn for approximately 1 hour.

1. During initial firing of this unit, its paint will bake out, and
smoke will occur. To prevent triggering of smoke alarms,
ventilate the room in which the unit is installed. During initial
firing of logs, you will detect an odor as the logs are cured.
Also, during the curing process the logs will burn with a yel
low flame.

2. Don’t touch the surface of the heater. It will be soft during
this paint-curing phase. Once cured it will not be soft again.

3. The paint finish of the heater should not be cleaned with any
caustic or abrasive cleaning solutions.

4. Any damage to painted surface should be repaired with spe
cial touch paint available from your Mantis Dealer.

-

-

MAINTENANCE

Note: Your appliance should be inspected, serviced and checked

annually by a qualified service person to ensure that your
appliance is operating safe and efficiently. Should you
detect any abnormality in the operation of your appli­ance call a qualified service person who has been trained
and approved to inspect and service the appliance. This
may be your installer or dealer (routine service is not
covered under warranty).

22618-4-1106Page 36

MAINTENANCE

LOG SUPPORT PLATE

BURNER PLA

TE

REAR BURNER

FRONT BURNER

IGNITOR ASSEMBL

Y

FLAME SENSOR

Figure 46

Front door removal drawing

Glass Cleaning

It will be necessary to clean the glass periodically. During start­up, condensation, which is normal, forms on the inside of the
glass and causes lint, dust and other airborne particles to cling to
the glass surface. Also, initial paint curing may deposit a slight
film on the glass. It is therefore recommended that the glass be
cleaned two or three times with a non-abrasive household cleaner
and warm water (we recommend gas fireplace glass cleaner) after
the initial burn. We do not recommend using packaged spray type
household glass cleaner. After that, the glass should be cleaned
two or three times during each heating season depending on the
circumstances present.

General Glass Information

Only glass approved for use in Empire Comfort Systems, Inc. fire­place may be used for replacement. The glass replacement must
be done by a licensed or qualified service person.

WARNING

1. The use of substitute glass will void all product warranties.

2. Care must be taken to avoid breakage of the glass.

3. Under no circumstances should this appliance be operated

4. Do not abuse the glass by striking or hitting the glass.

WARNING: Do not use abrasive cleaners on glass. Do not
attempt to clean glass when glass is hot.

Glass Assembly Replacement

1. Remove cabinet top.

2. Pivot left and right front panels open.

3. Release two door latches on left and right of firebox.

4. Grasp glass frame and carefully pull toward you.

5. Place glass frame assembly on non-abrasive surface. The ex

:

without the glass front or with a broken glass front. Replace­ment of the glass (with gasket) as supplied by the manufac­turer must be done by a qualified service person.

terior of the glass frame assembly should be facing the non­abbrasive surface.

6. Insert a putty knife between glass and bottom corners on
frame. Carefully separate glass from frame.

7. Use putty knife to remove silicone and gasket material from
frame. Surface of frame must be clean and dry.

8. At each corner of frame apply two (2) three inch beads of
high temperate (orange) silicone.

9. With thin gasket on glass facing silicone on frame, insert
glass into frame. Carefully press the glass onto frame in order
to have contact between glass and silicone.

10. Allow silicone to set-up for an adequate time.

11. Gently place glass frame back into firebox.

12. Close the 2 door latches on left and right of firebox.

13. Pivot left and right front panels closed.

14. Replace cabinet top.

Figure 47

Main Burner Drawing

Cleaning Main Burner

Remove main burner and apply air pressure inside the throat and
ports of the main burner.

Removing HSI Flame Sensor, Blower and Orifice

1. Remove front door assembly. See Figure 46.

2. Remove logs from firebox.

3. Remove installation bracket and gasket from underside of
firebox (1 screw).

4. Disconnect flame sensor and HSI connector from wiring har
ness.

5. Remove log support from inside firebox (13 screws).

6. Remove HSI from log support (13 screws).

-

7. Remove flame sensor from log support (1 screw).

8. Remove burners from firebox (1 screw).

9. Once burners are removed, orifices are exposed.

-

22618-4-1106 Page 37

UNIT OPERATING FAULTS

SERVICE AND INSTALLATION OF THE APPLIANCE
SHOULD BE CARRIED OUT BY AUTHORIZED PER­SONNEL ONLY.

THE MAJOR CAUSE OF OPERATING PROBLEMS WITH
GAS FIREPLACE HEATERS IS IMPROPER GAS PRES
SURE, INCORRECT LOG PLACEMENT, IMPROPER IN­STALLATION, INCORRECT FLUE INSTALLATION, IN­CORRECT SWITCHING OF BURNERS, DIPS/SPIKES IN
THE INCOMING POWER OR REVERSE POLARITIES.

The above situations can cause such problems as changes in
flame color or configuration, intermittent operations, changes in

RESETTING THE HEATER

There are a number of reasons why sometimes the heater will
switch itself off and is the correct thing for the heater to do in
certain situations (i.e. overheating, power failure or dips, windy
conditions, pump failure, partial or full blockage of flue pipe or no
gas. All of these operations are monitored by the electronic con­trol box inside the heater, which is heat sensitive, pressure switch
sensitive, flame sensitive and water sensitive. If one of these items
is not correct, the heater will shut itself down.

To reset, turn both burner switches to the OFF position, ensure the
red button above the two burner switches is not illuminated (if a
Remote Control is fitted, have it in the off mode). Then turn the
power off at the power point for approximately 10 seconds. Then
turn the power point back on and the power L.E.D. should be illu

heat output, carbon build up or sooting, bad odors, rattles or other
sounds, start up failures and burner(s) switching themselves off.
These are nearly always the result of improper installation or in
correct operation and it may take sometime for these problems
to show themselves. Before calling out a technician you must be

-

able to repeat the fault, try resetting the heater. Read below.

Note: Incorrect installation of the unit, logs, flue pipe, gas pres­sure or operation, which cause the above mentioned faults, are not
covered under warranty and a service call fee will be charged to
correct such problems.

minated. If you have a Remote burner switch and the rear burner
L.E.D. should start flashing, with the flue fan L.E.D. remaining
steady. Wait approximately 60 seconds for the rear burner to ig
nite. You can tell when it has lit, even if you can’t see any flames,
by looking at the rear burner L.E.D. which should remain steady.
Repeat the same process with the front burner. Turn on the front
burner switch and wait approximately 60 seconds and the front
burner L.E.D. will remain steady.

In approximately 5 minutes the convection fan should start and
the heater has been successfully reset.

Note: if the heater is still warm when reset the convection fan
may already be running when the unit is powered up.

-

-

-

22618-4-1106Page 38

LOG PLACEMENT

If for any reason a log should need replacement, you must use the
proper replacement log. Consult your Mantis dealer for correct
replacement logs.

Replacement logs must be installed and positioned as outlined on
pages 16 through 17 under Log Installation.

MAIN CONVECTION FAN

The main convection fan in the heater should be checked, ser­viced and cleaned annually by a qualified service person to ensure
that your appliance is operating efficiently.

Note: Improper positioning of logs can create carbon build up

and will alter the unit’s performance and operation.

Note: If the main convection fan becomes clogged with lint and

dust an over-temperature situation will occur through the
heater exchange system and the over-temperature safety
switch will stop the heater from operating.

HEAT EXCHANGER

The heat exchanger of the unit is located at the rear of the heater.
The heat exchanger should be inspected annually by a qualified
service person for lint and dust build up. Excessive dust and lint
build-up in the heat exchanger can alter the unit’s performance
and operation.

Note: This appliance (Insert and Freestanding Models) needs

to be installed in such a way that the heater (especially
with models built into a fireplace) can be removed at all
times to service the heat exchanger and flue fan, which

22618-4-1106 Page 39

are located at the rear section of the heater.

Under no circumstances should the appliance be installed
under conditions that would not allow for easy removal
of the appliance to carry out routine inspection and ser
vice work on the appliance.

DISCONNECT MAIN POWER PRIOR TO STARTING
ANY WORK ON THE APPLIANCE.

-

SURROUND INSTALLATION INSTRUCTIONS

COMBUSTION AIR
INTAKE SLOT

COMBUSTION AIR
DEFLECTOR

SURROUND TOP

SURROUND SIDE

4 SCREWS

1. Remove Fireplace Insert Surround assembly from carton, handle insert surround with care to avoid paint damage.

2. Assembly Fireplace Insert Surround as per diagram with four (4) 10 x 1/2” screws supplied.

3. Install surround assembly around fireplace.

4. Install either slim or short top. Note: Top will hold surround in place.

Figure 48

Figure 49

PARTS LIST

Part Number Description Quantity Supplied

22754 Top, Surround Assembly 1

21859 Side, Surround 6” 2

Replacement 10 x 1/2” screws can be purchased from a local hardware store.

22618-4-1106Page 40

PEDESTAL INSTALLATION INSTRUCTIONS

SCREW
HOLE

SCREW
HOLE

LOCATO

R

SLOT

LOCATOR
SLOT

Optional Pedestal Assembly Installation

1. Remove pedestal assembly from carton. Handle pedestal
with care to avoid paint damage.

2. Place pedestal assembly into position where heater is to be
located.

3. Lift and place main body of heater on top of pedestal assem­bly and align main body of heater with locating tabs provided
on pedestal assembly (refer to diagram).

NOTE: To avoid accidents and damage to main heater body and

paint-work, it is recommended that main body of heater
should be located on top of pedestal assembly by 2 peo­ple.

4. Secure pedestal assembly to main body of heater with three
(3) 1/2”- 10 x 24 screws supplied (refer to diagram).

Figure 50

Note: Use the three (3) 1/2”- 10 x 24 screws and washers provided to secure

pedestal assembly to base of heater.

22618-4-1106 Page 41

PARTS LIST

PLEASE NOTE: When ordering parts, it is very important that part number and description of part coincide.

Index Part
Number Number Description

1 22868 REAR PANEL ASSEMBLY
2 21654 BRACKET, PIPE ASSEMBLY
3 22670 REAR HEAT SHIELD ASSEMBLY
4 21664 TOP COVER ASSEMBLY (INCLUDES #5)
5 R8854 BALL STUD
6 22693 TOP HEAT SHIELD ASSEMBLY
7 22859 FIREBOX ASSEMBLY (INCLUDES #9 & #26)
8 22860 HEAT EXCHANGER TUBE ASSEMBLY (INCLUDES 3 OF #9)
9 R8855 GASKET, END PLATE
10 22861 PLATE, RESTRICTOR ASSEMBLY (INCLUDES 2 OF #9)
11 22862 INDUCER ASSEMBLY (INCLUDES #12 & #14)
12 22863 BLOWER ASSEMBLY (INCLUDES #14)
13 R8802 SWITCH, BIMETALIC
14 R8795 GASKET, SUMP
15 22864 HEAT EXCHANGER ASSEMBLY (INCLUDES 2 OF #9, MUST ORDER #14)
16 R8811 GASKET, INLET HEADER
17 21650 TUBING (SUMP TO PUMP)
18 21652 TUBING (SUMP TO PRESSURE SWITCH)
19 21627 SHIELD, REAR INNER
20 22779 LEFT REAR PANEL ASSEMBLY (INCLUDES INSULATION)
21 21667 LEFT SIDE DOOR ASSEMBLY
22 22642 TUBE, CONDENSATE
23 21647 CONNECTOR TUBING ASSEMBLY (PUMP TO CONDENSATE TUBE)
24 21605 COVER, INLET AIR DUCT
25 22780 INLET AIR DUCT ASSEMBLY
26 R8810 GASKET, INLET AIR DUCT
27 21641 BRACKET ASSEMBLY THERMISTER (SPRING CLIP INCLUDED)
28 R4053 CLAMP, DOOR (4 USED ON UNIT)
29 22694 BRACKET, MAGNET HOLDER ASSEMBLY (2 USED ON UNIT)
30 21640 BRACKET ASSEMBLY (SPRING CLIP INCLUDED)
31 21615 ANGLE, HEAT EXCHANGER BRACKET
32 21609 ANGLE, REAR HEAT SHIELD BRACKET
33 22668 RIGHT REAR PANEL ASSEMBLY (INCLUDES INSULATION)
34 21665 RIGHT SIDE DOOR ASSEMBLY
35 21651 TUBING (FIREBOX TO PRESSURE SWITCH)
36 R8835 FITTING, BARBED HOSE
37 22865 IGNITOR, HOT SURFACE ASSEMBLY
38 21611 BRACKET, IGNITOR
39 R8807 FLAME SENSOR
40 22656 LOG PLATE ASSEMBLY
41 22657 SMALL BURNER ASSEMBLY NAT (INCLUDES #43 AND #44)
41 22753 SMALL BURNER ASSEMBLY LPG (INCLUDES #44)
42 22658 LARGE BURNER ASSEMBLY (INCLUDES #44))
43 R8791 BUSHING, AIR SHUTTER (NAT ONLY)
44 R8790 BUSHING, BURNER
45 P208 REAR ORIFICE, LPG
45 P294 REAR ORIFICE, NAT
46 P293 FRONT ORIFICE, NAT
46 P295 FRONT ORIFICE, LPG
47 R8793 HOLDER, ORIFICE
48 R7572 JAMB NUT
49 22627 GAS LINE - REAR

22618-4-1106Page 42

PARTS LIST

PLEASE NOTE: When ordering parts, it is very important that part number and description of part coincide.

Index Part
Number Number Description

50 22628 GAS LINE - FRONT
51 M174 GASKET
52 11269 GAS LINE BRACKET
53 R8886 COMPRESSION FITTING
54 R8812 VALVE, NAT
54 R8869 VALVE, LPG
55 R8898 PIPE NIPPLE
56 R8825 SOLENOID
57 R3312 CONNECTOR, MALE 3/8 X 3/8
58 R8827 FLEX LIINE (2 USED)
59 R8846 SHUT-OFF VALVE
60 22866 FIREBOX BASE ASSEMBLY
61 21645 CONTROL BOX ASSEMBLY
62 R8889 TRANSFORMER 12-24V
63 R8804 TRANSFORMER 24V
64 21572 MOUNTING BRACKET, TERMINAL
65 R8817 TERMINAL STRIP
66 R8894 JUMPER WIRE
67 22778 AIR CIRCULATOR ASSEMBLY
68 21663 DOOR ASSEMBLY, BLACK
68 22758 DOOR ASSEMBLY, CHROME
68 22759 DOOR ASSEMBLY, GOLD
69 22867 FRONT PANEL ASSEMBLY (INCLUDES #70 AND #71)
70 R8840 WIRE HARNESS (WITH RED BUTTON SWITCH)
71 R8809 SWITCH, DOUBLE ROCKER
72 R8803 CIRCUIT BOARD ASSEMBLY
73 R8838 NUT, NYLON 4-40 (3 REQUIRED)
74 R8905 RIBBON CABLE
75 R8872 CIRCUIT BOARD WIRE HARNESS
76 R8829 WIRE HARNESS, 120V
77 R8830 WIRE HARNESS 12V
78 R8831 WIRE HARNESS 12V
79 21646 PUMP ASSEMBLY
80 R8805 AIR PRESSURE SWITCH
81 R8881 CAPACITOR 3uF
82 R8880 CAPACITOR 4uF
83 R8911 TRANSFORMER WIRE ASSEMBLY
84 22727 BOTTOM PAN ASSEMBLY
85 R8822 LOG, TOP LEFT
86 R8824 LOG, TOP RIGHT
87 R8823 LOG, REAR
88 R8820 LOG, CENTER
89 R8821 LOG, FRONT LEFT
90 R8819 LOG, FRONT RIGHT
91 22773 THERMISTOR ASSEMBLY (TEMPERATURE CONTROL)

22618-4-1106 Page 43

PARTS VIEW

1

4

5

6

9

7

30

28

33

5

21

15

27

24

28

19

11

12

9

10

9

34

29

31

16

20

14

29

26

25

22

17

8

3

2

13

36

18

35

23

32

22618-4-1106Page 44

PARTS VIEW

69

67

72

84

61

50

47

48

53

54

53

51

60

56

55

48

47

80

52

65

39

40

41

42

38

45

46

89

85

86

87

88

81

78

77

73

66

83

76

90

44

43

49

37

82

70

71

64

79

63

62

57

59

58

74

58

75

68

91

22618-4-1106 Page 45

WARRANTY TERMS

Purchase Date:

Dealer Name/Phone:

Installer - Place Serial Number

Sticker Here and Leave this Manual

with the Consumer.

Limited Ten-Year Heat Exchanger Warranty

Empire promises to the owner that if the heat exchanger (see parts list) fails because of defective workmanship or material
within ten years from the date of purchase, Empire will repair, or at Empire’s option, replace the defective heat exchanger.

Limited Five-Year Parts Warranty

Should any part fail because of defective workmanship or material within five years from the date of purchase, Empire will
repair or replace it, at Empire’s option.

Limited Two-Year Labor Warranty

Should any part fail because of defective workmanship or material within two years from the date of purchase, Empire will
repair or replace it, at Empire’s option. All labor must be performed by a qualified gas appliance technician.

Duties Of The Owner

The heating appliance must be installed by a qualified installer and operated in accordance with the written instructions
furnished with the appliance.
Ready access to the appliance for service is the responsibility of the owner.
Travel, diagnostic cost, service labor, labor to repair the defective appliance, and freight charges on warranty parts to and
from the factory will be the responsibility of the owner.
A bill of sale, cancelled check, or payment record should be kept to verify purchase date and establish warranty period.

What is Not Covered

This warranty does not imply or assume any responsibility for damages resulting from the use, misuse, or improper instal
lation of this heating appliance.
This warranty covers only claims involving defective workmanship or materials.

How To Get Service

Service under this warranty must be obtained by contacting your Empire dealer. Provide your dealer with the model number,
serial number, type of gas and purchase verification information.
If contacting your Empire dealer does not provide satisfactory service, contact: Consumer Relations Department, Empire
Comfort Systems Inc., P.O. Box 529, Belleville, Illinois 62222, or call 618-233-7420.

Your Rights Under State Law

This warranty gives you specific legal rights. You may have other rights, which vary from state to state.

-

22618-4-1106Page 46

HOW TO ORDER REPAIR PARTS

Parts can be ordered only through your service person or dealer. For best results, the service person or dealer should order parts
through the distributor. Parts can be shipped directly to the service person/dealer.

All parts listed in the Parts List have a Part Number. When ordering parts, first obtain the Model Number from the name plate on your
equipment. Then determine the Part Number (
illustration and list. Be sure to give all this information . . .

Fireplace Number Part Description

Fireplace Serial Number Part Number

Type of Gas (Propane or Natural)

Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.

Shipments contingent upon strikes, fires and all causes beyond our control.

not the Index Number) and the Description of each part from the following appropriate

SERVICE NOTES

22618-4-1106 Page 47

Mantis is a trademark of:
Empire Comfort Systems, Inc.
918 Freeburg Ave. Belleville, IL 62220
PH: 618-233-7420 or 800-851-3153
FAX: [phone] or 800-443-8648
[e-mail]

www.empirecomfort.com

22618-4-1106Page 48
