Eclipse CD2000 Installation Manual

Be sure to read this installation manual thoroughly prior to installation and making connections. If installation methods or non-standard parts not specified in this installation manual are used, accidents or injury may result. Professional installation is recommended, contact the place of purchase to schedule an appointment. After reading the owner's manual and the installation manual thoroughly, keep them in a safe place for later reference. To dealers:

Give this installation manual to the customer after installation and all connections have been completed.

Contents

Components

Before

installation

Installation

Connections

For your safety in using the CD2000 3

Names and functions of terminals 5

Installing the main unit 10

INSTALLATION MANUAL

System connection example 8

CD Multi-Source Receiver

MODEL

Español Français Italiano

Nederlands

SvenskaEnglish

-2-

Components

Check that all of the following components are present

When installing the main unit, some vehicle models may require the use of items that need to be obtained separately such as a power supply adaptor wire, radio antenna adaptor wire or mounting bracket.

Tip

Main unit x 1

Interconnecting wires

(Power and speaker connector)

(16P) x 1

Mounting sleeve

x 1

Side bracket

x 2

Bezel

x 1

Hex-head bolt

(Red:M5x8) x 4

Flat head screw

(Red:M5x8) x 4

Stud bolt

x 1

Bushing

x 1

English Español Français Italiano

Nederlands

SvenskaEnglish

-3-

Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD2000. They show safe and correct ways to handle the main unit to prevent personal injury to you and others and avoid damage to property. Before reading through the manual, take time to read through and learn the important information listed in this section.

This "Warning" sign indicates a situation in which incorrect handling may result in death or serious personal injury.

This "Caution" sign indicates a situation in which incorrect handling may result in personal injury or may result solely in damage to property.

FFor y

or y

our saf

ety in using the CD2000

This section contains information that can help to prevent problems and damage to the main unit, and also contain other useful information.

Tip

Español Français Italiano

Nederlands

SvenskaEnglish

••

Never supply power to another electrical appliance by splicing or tapping into this main unit's power wire. Otherwise, the current capacity of the wire will be exceeded, resulting in a fire or electric shock.

••

Never attempt to disassemble or modify the main unit. Otherwise, an accident, fire, or electric shock may result.

••

When installing the main unit into a vehicle with a passenger side air bag, do not secure it to the air bag's cover or in places where it may impede air bag deployment. Otherwise, proper air bag operation may not be ensured in the event of an accident, causing injury or death.

••

When making holes (example: drilling) be sure to wear protective eyewear. Otherwise, an injury such as loss of eyesight may result.

••

Exposed wires must be insulated with electrical tape. Otherwise, a short circuit, fire, or electric shock may result.

••

Do not modify this system for use other than that specified herein. Also, do not deviate from the installation procedures described herein; Eclipse will not be held liable for damages including, but not limited to serious injury, death, or property damage resulting from installations that enable unintended operation.

••

This main unit is intended for operation in DC 12volt, negative-grounded vehicles only. Never use it in 24volt vehicles such as heavy trucks or diesel vehicle with cold-region specifications.

••

Do not install this main unit in locations where it may obstruct the driver's view, or where it may endanger passengers in the vehicle. Otherwise, an accident or injury may result.

••

Do not install this main unit in locations where it may interfere with the operation of the steering wheel, shift lever, brake pedal, etc. Otherwise, an accident or injury may result.

••

To prevent damage to the vehicle, confirm the locations of hoses, electrical wiring, and the fuel tank prior to drilling holes to install this main unit. Also, take precautions so that the main unit does not interfere, nor come in contact with them. Otherwise, a fire may result.

••

When installing this main unit, never use the existing nuts or bolts that secure parts of the fuel tank, or the steering, or braking systems. Otherwise, improper steering, or braking or a fire may result.

••

To prevent a short circuit from occurring, disconnect the battery's negative terminal before installing this main unit. Otherwise, an electric shock or injury may result.

••

When using an existing nut and/or bolt from the vehicle to ground this main unit, do not use any that secure parts of the steering or braking systems. Otherwise, an accident may result.

••

Bundle wires and harnesses with electrical tape or wire ties to prevent them from interfering with moving parts. If they should entangle with the steering wheel, shift lever, or brake pedal, an accident may result.

-4-

English Español Français Italiano

Nederlands

SvenskaEnglish

••

This main unit must be operated only as on-board main unit, or it may cause electrical shock or injury.

••

Do not play distorted sounds for long periods of time; the speakers may overheat and cause a fire.

••

Use supplied wire harness with this main unit. Other manufacturers may use a similar wire harness connector but pin configurations are incorrect for use with Eclipse main units and can damage the main unit. Prior to powering up the main unit, please make sure the main unit is properly grounded with the vehicle chassis. If no ground is available to the chassis, add a ground strap from the main unit to the vehicle chassis to improve the ground.

••

Do not use with speakers having 1 to 3 ohms impedance. This main unit is designed to be used with high-powered speakers rated above 50w with impedance rating between 4 and 8 ohms.

••

For best results, this main unit should be installed by a professional installer. Contact the dealer whom you purchased the main unit for an appointment.

••

When installing this main unit, be sure to use the supplied mounting hardware. If parts other than those supplied are used, the main unit may be damaged internally, or may not be held in place securely and become dislodged.

••

Avoid installing this main unit in places where it may get wet, such as near windows, or in places that are moist or dusty. Presence of liquid, moisture, or dust inside this main unit can cause short circuiting resulting in smoke or fire.

••

If this main unit is not connected properly, a short circuit, fire, or accident may occur.

••

When routing wires, use precautions to prevent contact of sharp metal parts such as brackets or screw tips. Otherwise, a short circuit, electric shock, fire, or accident may result.

••

Play the audio at a moderate volume level that permits you to hear sounds from outside the vehicle. Driving without being able to hear outside sounds may result in an accident.

••

Do not operate the main unit in a malfunctioning condition, for instance, when the audio does not play. Doing so may result in an accident, fire, or electrical shock.

••

If an abnormal situation occurs, such as foreign matter entering or liquid splashing on the main unit, or smoke or a strange odor emitting from the main unit, shut off the main unit immediately and consult the dealer from whom you purchased it. Continued operation may cause an accident, fire, or electrical shock.

••

Do not place the vinyl storage bag over a person's head. It may cause a serious accident or death by suffocation.

••

Do not disassemble or rebuild this main unit. Doing so may cause an accident, fire, or electrical shock.

••

When it is necessary to replace the fuse, always use a fuse of the correct rating (number of amperes). Use of fuses with higher amperage ratings may cause a fire.

-5-

••

Never cut the insulation on the power wire or use it to power any other equipment. If the rated current

capacity of the power wire is exceeded, fire and electric shocks may result.

••

The wires should be secured with tape or a similar securing method to prevent any obstructions while

driving. If they get wound or entangled around components such as the steering wheel, shifting lever, or brake pedal, accidents may result.

••

If removing the end of the wire to connect to another wire, be sure to wrap PVC tape or a similar wire

insulating method around the connection to insulate it. If the connection is not insulated, fire or accidents may result.

••

Refer to page 6 for details on the wire colors and connection points for interconnecting wires .

••

Refer to page 7 for details on connection points 〜 for the main unit wires and

terminals.

Tip

A D

Name and functions of ter

minals

••

Use supplied wire harness with this main unit. Other manufacturers may use a similar wire harness

connector but pin configurations are incorrect for use with Eclipse main units and can damage the main unit. Prior to powering up the main unit, please make sure the main unit is properly grounded with the vehicle chassis. If no ground is available to the chassis, add a ground strap from the main unit to the vehicle chassis to improve the ground.

••

Do not use with speakers having 1 to 3 ohms impedance. This main unit is designed to be used with

high-powered speakers rated above 50w with impedance rating between 4 and 8 ohms.

16P

ANTENNA PLUG

MAIN UNIT

INTERCONNECTING WIRES (Power and speaker connector)

Español Français Italiano

Nederlands

SvenskaEnglish

-6-

Wire colors and connection points for connection wires

Never connect the power supply to the speaker wires (No.7 and No.8), otherwise it will cause damage to the main unit.

ACC (Red)

Connect where the power comes on when the ignition is in the ACC position.

B+ (Yellow)

Connect where power is constantly available, regardless of the ignition key's position.

Ground (Black)

Connect where good body grounding is available.

Antenna power supply (Blue)

Connect to the automatic-antenna control terminal of the vehicle.

Illumination power supply (Orange/White)

Connect to where power comes on when the vehicle light switch is turned on.

Control power supply (Blue/White)

Connect the control terminal for the external amplifier, etc.

Front speaker output wires

Connect to the front speakers. White: Left + White/black: Left -

Gray: Right + Gray/Black: Right -

Rear speaker output wires

Connect to the rear speakers. Green: Left + Green/black: Left -

Purple: Right + Purple/Black: Right -

English Español Français Italiano

Nederlands

SvenskaEnglish

Caution

-7-

Main unit connections

Front line-out terminals

Connect to the RCA connector of an external amplifier.

Rear line-out terminals

Connect to the RCA connector of an external amplifier.

Line-out terminals (Non fader)

This is used for non fader output. It can be used as a sub-woofer terminal if a separate amplifier with

a low bass filter is connected.

E-LAN terminal (13P)

Connect to the E-LAN terminal of the CD changer, etc.

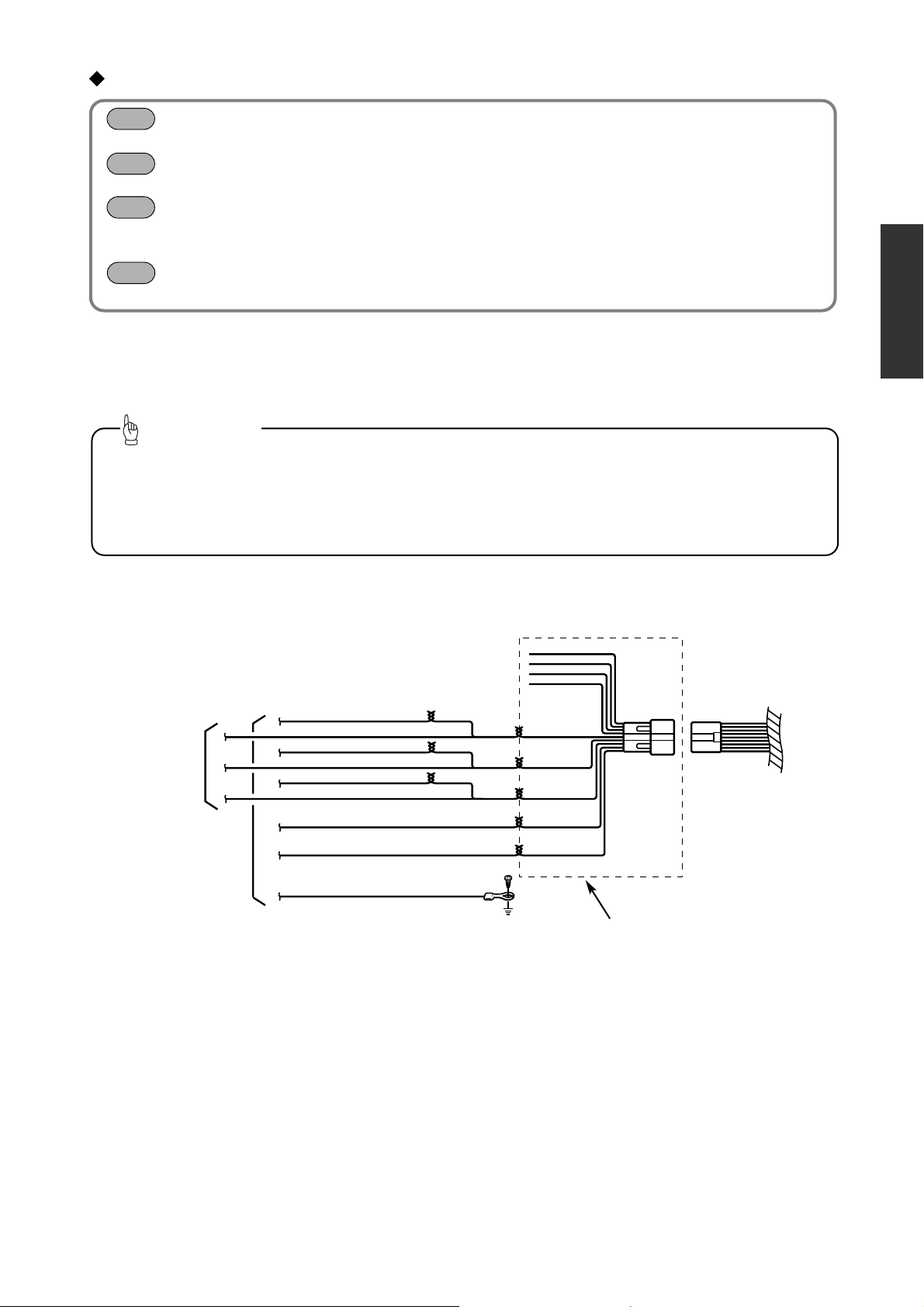

Vehicle component adapter wires

Vehicle harness

From main unit

Example of using vehicle adapter wires

Vehicle connections

••

You will need to purchase the necessary vehicle component adapter wire for the vehicle so that the

power supplies can be utilized. (Contact the dealer for further details.)

••

Be sure to wrap the connection wires with electrical tape or another insulation method to insulate them.

Tip

Power supplies for combined equipment

Español Français Italiano

Nederlands

SvenskaEnglish



1) CD2000 Main unit, used alone

-8-

System connection e

xample

••

Never cut the insulation on the power wire or use it to power any other equipment. If the rated current

capacity of the power wire is exceeded, fire and electric shocks may result.

••

The wires should be secured with tape or a similar securing method to prevent any obstructions while

driving. If they get wound or entangled around components such as the steering wheel, shifting lever, or brake pedal, accidents may result.

••

If removing the end of the wire to connect to another wire, be sure to wrap PVC tape or a similar wire

insulating method around the connection to insulate it. If the connection is not insulated, fire or accidents may result.

••

Install and connect all of the peripheral equipment before connecting them to the main unit.

••

Do not remove any of the protective caps (RCA, etc.) unless in use.

••

Be sure to wrap the connection wires with tape (PVC tape) to insulate them.

••

Adjust the external amplifier’s input level.

Tip

English Español Français Italiano

Nederlands

SvenskaEnglish

REAR

SPEAKERS

FRONT SPEAKERS

TO GROUND

TO ACC (Power Supply)

Red

TO HEAD LIGHT SWITCH (Illumination (+) )

Orange/White

TO POWER ANTENNA RELAY (Supply)

Blue

TO TURN-ON WIRE OF EXTERNAL EQUIPMENT (Supply)

Blue/White

TO BATTERY+12V (Permanent Supply)

Yellow

Black

16P

ANTENNA PLUG

MAIN UNIT

INTERCONNECTING WIRES

(Power and speaker connector)

NO CONNECTION (Do not remove cap)

White

White/Black

Gray

Gray/Black

Green

Green/Black

Purple

Purple/Black

NO CONNECTION (Do not remove cap)

NO CONNECTION

-9-

Español Français Italiano

Nederlands

SvenskaEnglish

2) CD2000 + HDR105 + CH3083 + Power Amplifer

13P

HDR105 (sold separately)

13P

ANTENNA EXTENSION WIRE

TO ACC (Power Supply)

Red

TO HEAD LIGHT SWITCH (Illumination (+) )

Orange/White

TO POWER ANTENNA RELAY (Supply)

Blue

Blue/White

Yellow

Black

16P

ANTENNA PLUG

MAIN UNIT

INTERCONNECTING WIRES (Power and speaker connector)

White

White/Black

Gray

Gray/Black

Green

Green/Black

Purple

Purple/Black

NO CONNECTION (Do not remove cap)

CH3083 (sold separately)

INTERCONNECTING WIRES (supplied with CH3083)

13P

TO BATTERY+12V (Permanent Supply)

13P

TO TURN-ON WIRE OF EXTERNAL EQUIPMENT (Supply)

INSULATE EACH WIRE WITH NONE CONDUCTING TAPE SUCH AS PLASTIC TAPE OR ANOTHER INSULATING METHOD

TO GROUND

NO CONNECTION (Do not remove cap)

TO SIGNAL INPUT OF EXTERNAL POWER AMPLIFIER

-10-

English Español Français Italiano

Nederlands

SvenskaEnglish

Installing the main unit

30˚ or less

Level (reference)

Front

Installation angle

To maintain proper function, the main unit must be mounted less than 30 degrees. If the angle is in excess of 30 degrees, CD skipping or ejection may occur.

Tip

Insert the mounting sleeve into the opening in the vehicle dashboard or console box.

Use a screwdriver or a similar tool to bend the tabs in the mounting sleeve to secure the mounting sleeve.

Mounting the main unit (If installing the main unit using the mounting sleeve)

••

Carefully bind any excess length of wire that is connected to the main unit and secure it to an area of empty space in the vehicle so that it does not dislodge or interfere with the main unit or vehicle-side equipment. If the wires are not handled correctly, operating problems or short-circuits may occur, and this may result in the danger of fire or other accidents.

••

Connect all wires before installing the main unit.

Tip

Bend the mounting tabs.

Dashboard or console box

Mounting sleeve

Attach the side brackets to the main unit using the supplied flathead screws.

Be sure to use the supplied accessory mounting screws (Red:M5 x 8) as the mounting screws. If any other screws are used, they may damage the inside of the main unit.

Tip

Side brackets

Flat head screws

(Red:M5 x 8)

x 2

Main unit

-11-

Español Français Italiano

Nederlands

SvenskaEnglish

Remove the pocket and any other accessories

from the center cluster to make room for the main

unit.

Remove the mounting brackets for the pocket.

Mounting bolts

Pocket, etc

Center cluster panel

Attach the brackets to the main unit.

Install the main unit in the vehicle.

Install the bezel on the main unit.

Fasten the rear of the main unit.

Insert the main unit into the mounting sleeve until it locks in place.

Mounting the main unit (If installing the main unit using the side brackets of the vehicle)

Bezel

Mounting sleeve

Bushing

Metal of vehicle

Stud bolt

Dashboard or console box

Mount the stud bolt to the main unit.

Main unit

Pocket

Hex-head bolt

(Red:M5 x 8) x 4

Screw

x 4

Select the screws in accordance with the shapes of the screw holes in the mounting bracket.

Mounting bracket

Hex-head bolt (Red:M5 x 8) x 4

Flat head screw (

Red:

M5x8) x 4

••

Connect all wires before installing the main unit.

Tip

Be sure to use the supplied accessory mounting screws (Red:M5 x 8) as the mounting screws. If any other screws are used, they may damage the inside of the main unit.

Tip

••

Be careful not to forcefully push on the main unit's display or buttons during installation. This may result in damage to the main unit.

••

This installation method is only one example. When installing the main unit to the vehicle, be sure to ask the place of purchase for information on the installation method used.

Tip

••

Be careful not to forcefully push on the main unit's display or buttons during installation. This may result in damage to the main unit.

••

This installation method is only one example. When installing the main unit to the vehicle, be sure to ask the place of purchase for information on the installation method used.

Tip
