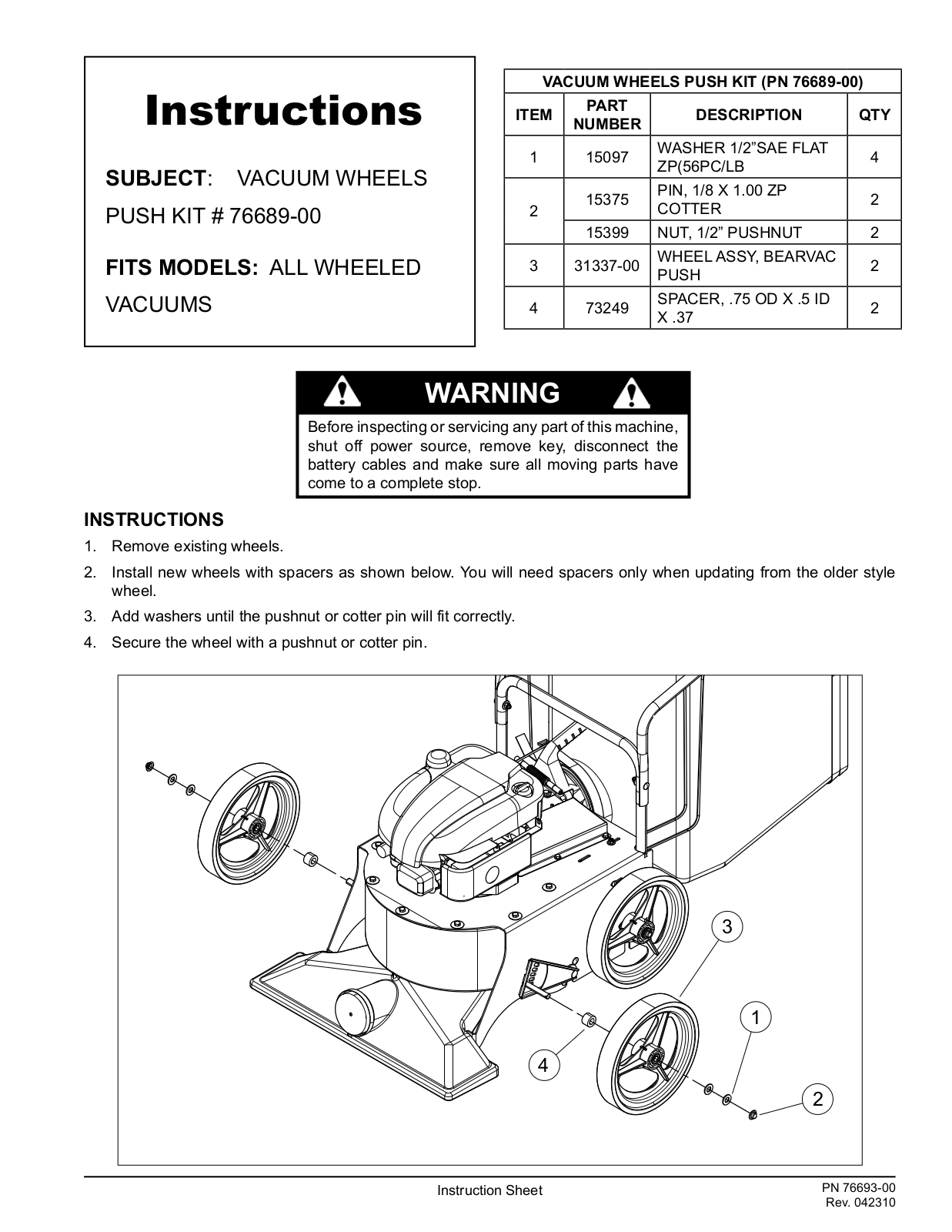

SUBJECT: VACUUM WHEELS
PUSH KIT # 76689-00
FITS MODELS: ALL WHEELED
VACUUMS
INSTRUCTIONS
Remove existing wheels.1.
Install new wheels with spacers as shown below. You will need spacers only when updating from the older style 2. wheel.
Add washers until the pushnut or cotter pin will fit correctly.3.
Secure the wheel with a pushnut or cotter pin.4.
VACUUM WHEELS PUSH KIT (PN 76689-00)
ITEM
1 15097
2
3 31337-00
4 73249
WARNING
PART
NUMBER
15375
15399 NUT, 1/2” PUSHNUT 2
DESCRIPTION QTY
WASHER 1/2”SAE FLAT ZP(56PC/LB
PIN, 1/8 X 1.00 ZP COTTER
WHEEL ASSY, BEARVAC PUSH
SPACER, .75 OD X .5 ID X .37
4
2
2
2
Instruction Sheet
PN 76693-00
