Echo SRM-2300 User Manual
Specifications and Main Features
- Model: ECHO Trimmer/Brushcutter SRM-1500 and SRM-2300
- Length: 1,770 mm
- Width: 330 mm
- Height: 300 mm
- Weight:
- SRM-1500: 4.9 kg.
- SRM-2300: 5.0 kg.
- Engine Type: Median bore Air-cooled Single cylinder gasoline engine type
- Bore: 32.2mm (1.268 in.)
- Stroke: 26.0mm (1.024 in.)
- Displacement of the engine: 21.2 cc (1.29 cu.in.)
- Type of balancer: Spark arrester muffler
- Type of carburetors: ZAMA diaphragm C1U types
- Type of ignition: Flywheel magneto capacitor discharge ignition
- Type of spark plugs: NGK BPM7A and CHAMPION CJ-7Y
- Type of fuel: mixture of 87 octane and turbo
- Fuel/Oil ratios:
- 32:1 ECHO two stroke oil
- 50:1 ECHO two stroke oil
- Volume of fuel tank: 0.4 liters (13.5 oz)
- System type: Automatic rewind system
- System type: Centrifugard
- Drive shaft: 1/4” flexible shaft
- Rotation: Counterclockwise viewed for top side
- Cutter Head: Could either be a nylon line head, or 8-11 tooth rotatable blades including 80 rays cutting rotatable vin
- Handle: Left D-loop handle Right grip.
- Geared Case: 1:1.36 reduction.
- Anti Vibration System: rubber cushions (S.R.M.-2300 only)
Frequently Asked Questions
Q: What fuel must be applied for the ECHO Trimmer/Brushcutter?
A: Use a mixture of ECHO two stroke oil and regular grade gas either leaded or unleaded at a ratio of 32:1 or 50:1 depending on the model and application for best results.
Q: How much does an SRM-2300 weigh?
A: It is an 11 lbs kit.
Q: Can I use metal blades with the SRM-1500 model?
A: It is a model that can be used with blades but additional parts such as a Blade Conversion Kit need to be purchased from any ECHO authorized dealer.
Q: What is the appropriate way to start the engine?
A: To A cold engine, push the choke lever to COLD START, press the throttle trigger with caution, and pull the starter handle until the engine starts, then move the choke switch to RUN position and start the engine.
Q: How often should I clean or replace the air filter?
A: Priot to using the air filter, it is suggested to get it cleaned and replaced as deemed appropriate.

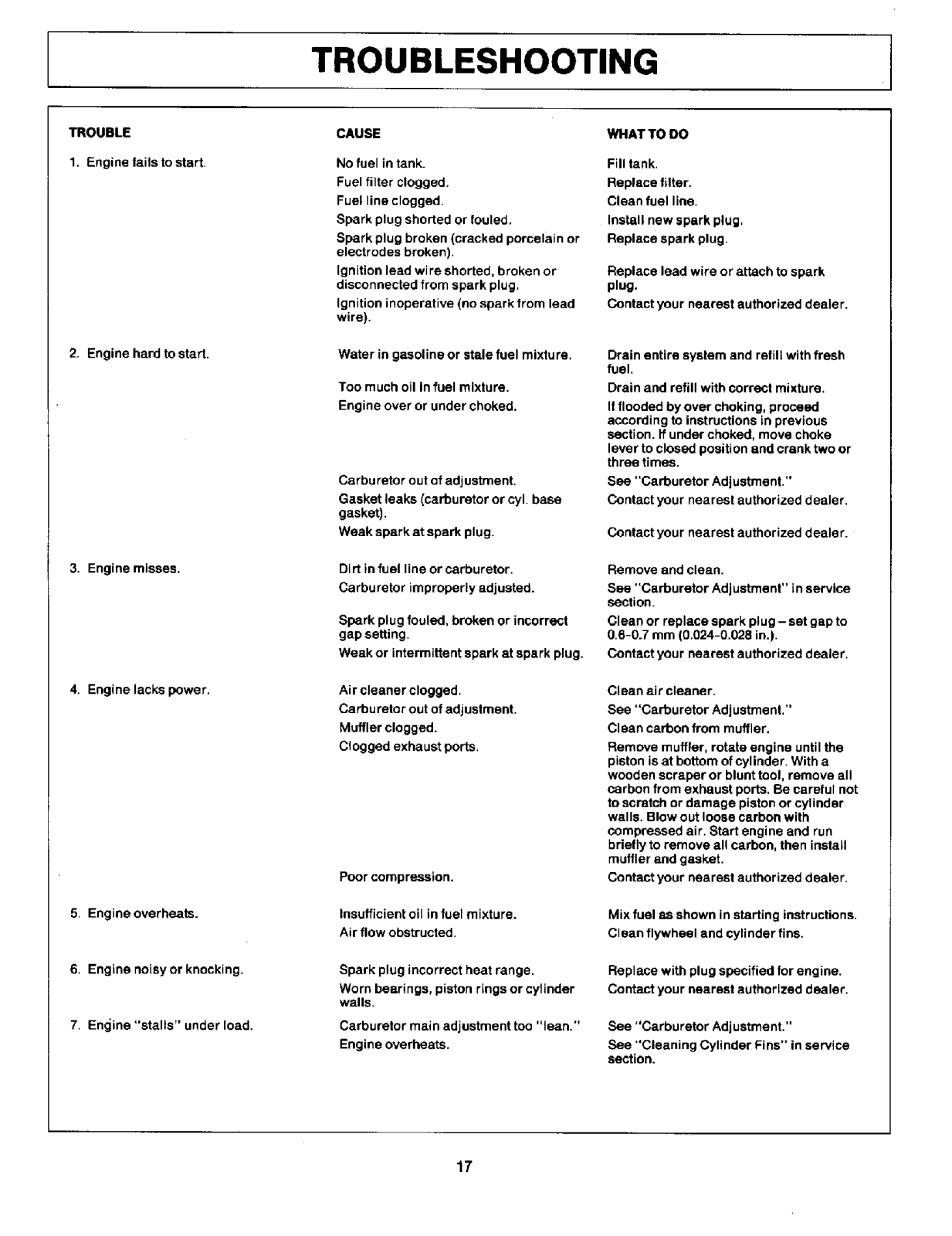

Q: For example, if the engine does not start, what should I do?
A: Look for (i) fuel in the tank; (ii) a functioning fuel filter and fuel line; (iii) a working spark plug; and (iv) a functioning ignition system.
Q: Are these models fitted with anti-vibration systems?
A: The anti-vibration system that uses rubber cushions is integrated into SRM-2300 whereas the SRM-1500 does not come integrated with this system.
