Power Blower
Operator's Manual
MODEL PB-260L
Serial Number 03001001- 03999999
PB-261L
Serial Number 02001001 - 02999999
X7501138903
WARNING DANGER
Read rules for safe operation and all instructions carefully. ECHO provides this Operator's
Manual which must be read and understood for proper and safe operation.
X750002441
09/02
2
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-jobdependability. Read and understand this manual. You will find it easy to use and full of helpful operating tips and
SAFETY messages.
THE OPERATOR'S MANUAL
Read and understand this manual before operation. Keep it in a safe
place for future reference. It contains specifications and information for
operation, starting, stopping, maintenance, storage and assembly
specific to this product.
TABLE OF CONTENTS
Introduction ...............................................................2
- The Operator's Manual .......................................2
Manual Safety Symbols and Important Information .. 3
Safety .........................................................................3
- Decals ................................................................. 3
- International Symbols......................................... 4
Safety Instructions .................................................... 4
- Personal Condition and Safety Equipment......4
- Extended Operation/Extreme Conditions......... 5
- Equipment .......................................................5
- Safe Operation.................................................6
Emission Control........................................................ 6
Description ................................................................7
- Contents..........................................................7
Specifications.............................................................9
Assembly ................................................................. 10
- Install Blower Pipes ..........................................1 0
Pre-Operation ........................................................... 11
- Fuel ................................................................... 11
Operation ................................................................. 12
- Starting Cold Engine ......................................... 12
- Starting Warm Engine....................................... 1 3
Copyright© 2001 By Echo, Incorporated
All Rights Reserved.
- Stopping Engine ............................................... 13
- Operating Blower .............................................. 13
Maintenance ............................................................ 14
- Skill Levels ........................................................ 14
- Maintenance Intervals ...................................... 15
- Air Filter ............................................................ 16
- Fuel Filter .......................................................... 16
- Spark Plug......................................................... 1 7
- Cooling System................................................. 1 7
- Exhaust System................................................. 1 8
- Carburetor Adjustment ..................................... 19
Troubleshooting ...................................................... 20
Storage..................................................................... 21
Servicing Information............................................... 24
- Parts.................................................................. 24
- Service ..............................................................24
- ECHO Consumer Product Support.................... 24
- Warranty Card .................................................. 2 4
- Additional or Replacement Manuals ................2 4
Specifications, descriptions and illustrative material in this
literature are as accurate as known at the time of publication, but are subject to change without notice. Illustrations
may include optional equipment and accessories, and may
not include all standard equipment.
POWER BLOWER
OPERATOR'S MANUAL
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key
words and what they mean to you.
This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead
to serious personal injury to operator and bystanders.
IMPORTANT
IMPORTANT The enclosed message
provides information necessary for the
protection of the unit.
3
NOTE
The circle with the slash symbol means whatever is shown
within the circle is prohibited.
SAFETY
DECALS
Locate these safety decals on your unit. The complete unit illustration,
found in the "DESCRIPTION" section, will help you locate them. Make
sure the decals are legible and that you understand and follow the
instructions on them. If a decal cannot be read, a new one can be
ordered from your ECHO dealer. See PARTS ORDERING instructions
for specific information.
GENERAL WARNING DECAL (located on top of blower housing)
NOTE This enclosed message provides tips for
use, care and maintenance of the unit.
HOT DECAL
P/N 89016006361
P/N 89016009461
65 Category I
Measured at 50 ft. (15m) per ANSI B175.2
dB(A)
4
INTERNA TIONAL SYMBOLS
Symbol form/shape
Symbol
description/application
Read and understand
Operator's Manual.
Wear eyes, ears and
head protection
Hot
Surface
Safety/Alert
DO NOT allow
flames or sparks
near fuel.
Symbol form/shape
SAFETY INSTRUCTIONS
PERSONAL
CONDITION AND SAFETY EQUIPMENT
Symbol
description/application
Fuel and oil mixture
Finger Severing
Wear hand
protection. Use
two handed.
Wear slip
resistant foot
wear.
DO NOT smoke
near fuel.
Symbol form/shape
Symbol
description/application
Engine choke
control.
Emergency stop
Carburetor adjustment
- Low speed mixture
Carburetor adjustment
- Idle speed
Symbol form/shape
Symbol
description/application
Ignition
ON/OFF
Primer bulb
Carburetor adjustment
- High speed mixture
W ARNING DANGER
Power Blower users risk injury to themselves and others if the Power Blower is used improperly and/or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating a Power Blower.
Physical Condition
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
• if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
Wear eye protection that meets ANSI Z87.1 or CE
requirements whenever you operate the blower.
Hand Protection
Wear no-slip, heavy duty work gloves to improve your
grip on the blower handle. Gloves also reduce the
transmission of machine vibration to your hands.
Breathing Protection
Wear a face mask to protect against dust.
Hearing Protection
ECHO recommends wearing hearing protection whenever
unit is used.
Proper Clothing
Wear snug fitting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DO NOT WEAR SHORTS,
• DO NOT WEAR TIES, SCARVES, JEWELRY.
Wear sturdy work shoes with nonskid soles;
• DO NOT WEAR OPEN TOED SHOES,
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and blower intake. Retain
hair with cap or net.
Hot Humid Weather
Heavy protective clothing can increase operator fatigue
which may lead to heat stroke. Schedule heavy work for
early morning or late afternoon hours when temperatures
are cooler.
EXTENDED OPERATION/EXTREME CONDITIONS
POWER BLOWER
OPERATOR'S MANUAL
5
Vibration and Cold --
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals, may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations, followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommended, because the minimum exposure which might trigger the
ailment is unknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands,
and wrists.
• Maintain good blood circulation by performing vigorous arm
exercises during frequent work breaks, and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the blower or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries --
It is believed that overusing the muscles and tendons of the fingers,
hands, arms, and shoulders may cause soreness, swelling, numbness,
weakness, and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure
to vibration may contribute to CTS. CTS can cause severe pain for
months or even years.
To reduce the risk of RSI/CTS, do the
following:
• Avoid using your wrist in a bent,
extended, or twisted position. Instead, try
to maintain a straight wrist position.
Also, when grasping, use your whole
hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which
you do the repetitive movement.
• Do exercises to strengthen the hand and
arm muscles.
• Immediately stop using all power
equipment and consult a doctor if you
feel tingling, numbness, or pain in the
fingers, hands, wrists or arms. The
sooner RSI/CTS is diagnosed, the more
likely permanent nerve and muscle
damage can be prevented.
EQUIPMENT
• Check unit for loose/missing nuts, bolts, and screws. Tighten
and/or replace as needed.
• Inspect fuel lines, tank, and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.
• Do not use blower if any part is missing or damaged.
• Have repairs done only by an authorized ECHO Service dealer.
• Do not use any attachment, accessory, or replacement part unless it is
recommended in this Operator's Manual.
• Avoid contact during and immediately after operation. Always keep
exhaust area clear of flammable debris. Allow the engine and muffler
to completely cool before performing any maintenance activity.
6
SAFE OPERATION
W ARNING DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.
• Review area to be cleared. Look for potential hazards such as stones
or metal objects.
• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15 m (50 ft.) while the
blower is in use.
• Take wind conditions into account: avoid open doors and windows.
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Do not point blower at people or animals.
Keep A Firm Grip
• Hold handles with fingers together, encircling handles.
Noise Control
• Follow local noise regulations on sound
levels and hours of operations. Use only
during appropriate hours.
• Never use a higher speed setting then
necessary to perform a task. The higher
the engine speed, the louder the blower
noise.
• Be a good neighbor.
Avoid Hot Surfaces
• During operation, the muffler or catalytic
muffler and surrounding cover may
become extremely hot. Avoid contact
during and immediately after operation.
Always keep exhaust area clear of
flammable debris. Allow the engine and
muffler to completely cool before
performing any maintenance activity.
Keep A Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders.
• Do not perform Maintenance or Assembly procedures with engine
running.
POWER BLOWER
OPERATOR'S MANUAL
EMISSION CONTROL
California Tier 2 Model PB-261L EPA Phase 2 Model PB-260L
The emission control system for these engines are EM (Engine Modification).
An Emission Control Label is located on the engine. (This is an EXAMPLE ONLY, information on label varies by engine
FAMILY).
IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: YEHXS.0254CB
DISPLACEMENT: 25.4 CC
THIS ENGINE MEETS U.S. EPA PH2 AND 2000 AND
LATER CALIFORNIA EMISSION REGULATIONS FOR
S.O.R.E. REFER TO OWNER'S MANUAL FOR
MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
The Air Index Tag indicates, for purposes of
consumer awareness, how this product's
emissions compare to the standards enacted
by the California Air Resources Board.
IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: 2EHXS.0254RB
DISPLACEMENT: 25.4 CC
THIS ENGINE MEETS U.S. EPA PH2 EMISSION
REGULATIONS FOR SMALL NON ROAD ENGINES.
REFER TO OWNER'S MANUAL FOR MAINTENANCE
SPECIFICATIONS AND ADJUSTMENTS.
AIR INDEX TAG
7
PRODUCT EMISSION DURABILITY
The 300 hour emission durability compliance period is the time span selected by the manufacturer certifying the
engine emissions output meets applicable California and/or U.S. EPA emissions regulations, provided that approved
maintenance procedures are followed as listed in the Maintenance Section of this manual.
DESCRIPTION
CALIFORNIA
ONLY
CONTENTS
1 - Power Head
1 - Blower Pipe Assembly
1 - Plastic Bag
1 - Operator's Manual
1 - Warranty Registration Card
1 - ECHO Emissions and Warranty Statement
2 - Clamps w/screws
1 - Stick Handle Assembly
1 - Bottle ECHO 2-Stroke Oil Mix
8
15
13
14
11
10
1
2
9
3
8
7
6
4
5
12
1. SAFETY DECAL - Lists important safety precautions.
2. SPARK PLUG - Provides spark to ignite fuel mixture.
3. SPARK ARRESTOR - CATALYTIC MUFFLER / MUFFLER -The muffler or catalytic muffler controls exhaust noise
and emission. The spark arrestor screen prevents hot, glowing particles of carbon from leaving the muffler. Keep
exhaust area clear of flammable debris.
4. RECOIL STARTER HANDLE - Pull recoil handle slowly until starter engages, then quickly and firmly. When
engine starts, return handle slowly. DO NOT let handle snap back or damage to unit will occur.
5. FUEL TANK CAP - Covers and seals fuel tank.
6. FUEL TANK - Contains fuel and fuel filter.
7. AIR CLEANER - Contains replaceable air filter element.
8. SERIAL NUMBER LABEL - Located on underside of unit below starter housing. Lists model number and serial
number of unit.
9. HANDLE - Rotates downward for throttle control access. Spring loaded for flexible operation.
10. THROTTLE POSITION LEVER/STOP SWITCH - Combination stop switch and variable speed throttle lever.
When the lever is moved all the way forward the blower is at Wide Open Throttle (W.O.T.). When the lever is
moved rearward to detent, the blower is at idle. When the lever is moved rearward past the idle detent the blower will
stop.
11. CHOKE - Move lever DOWN to close choke (starting position) and for emergency stopping. Move UP to open
choke (run position).
12. PRIMER BULB - Pumping primer bulb before starting engine draws fresh fuel from the fuel tank priming the
carburetor for starting. Pump primer bulb until fuel is visible and flows freely in the clear fuel tank return line. Pump
bulb an additional 4 or 5 times.
13. SHOULDER HARNESS - Used to support unit on operator's back. The straps are adjustable.
14. BLOWER PIPES - Twist lock design.
15. FLEXIBLE PIPE - Allows for full range of movement.
SPECIFICATIONS
LEDOML062-BPL162-BP
POWER BLOWER
OPERATOR'S MANUAL
9
htgneL
htdiW ).ni1681(mm014
thgieH
sepiphtiwthgieW ).bl5.41(
epyTenignE enigneenilosagrednilycelgnis,ekorts-owt,deloocriA
tnemecalpsiD
eroB ).n
ekortS
roterubraC blubremirp/wledom,mgarhpaiDorblaW
metsySnoitingI epytnoiting
gulPkrapS
metsyStsuahxErelffuMrotserrAkr
apStsylataC/wrelffuMrotserrAkrapS
gk6.6
).ni26.21(mm013
).ni1.81(mm064
).ni.uc55.1(cc4.52
i43.1(cc0.43
).ni01.1(mm0.82
iegrahcsidroticapac,otengaMleehwylF
).ni620.0(mm56.0paGY7-MPBKGN
leuF )liOekorts-owTdnaenilosaG(dexiM
oitaRliO/leuF lioenignedeloocriaeko
enilosaG
liO lioenignedeloocriaekorts-owt,ecnamrofrePhgiHOHCE1:05
yticapaCknaTleuF
metsySretratSlioceR epyTlagufirtneCretratSlioceRcitamotuA
deepSeldI 0023-0003)MPR(
ttorhTnepOediW0047mumixaM)MPR(
2.571BISNA
deepSel
deepSriAmumixaM
)dneepiptaderusaeM(
emuloVriAegarevA
)dn
eepiptaderusaeM(
Bd.tf05taleveLdnuoS
)A(
repelacs
rts-owt,ecnamrofrePhgiHOHCE1:05
erom,lohoclalyhtemgniniatnocleufesuTONOD.dedaelnuenatcO98
%51rolohoclalyhte%01naht
fSU57.71(.til6.0
.EBTM
).zo.l
)hpm0.551(.ces/m3.96
)MFC573(mmc6.01
d56
B
)A(
10
ASSEMBLY
W ARNING DANGER
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.
INSTALL BLOWER PIPES
1 . Remove elbow retaining screw from blower housing.
2. Align grooves in elbow with pegs on blower housing and slide
pipe onto housing.
3 . Turn elbow clockwise to lock into place and align location holes
(A) in elbow and blower housing.
A
A
4. Insert elbow retaining screw through holes (A) and tighten.
5 . Assemble clamps (B) onto both ends of flexible pipe (C).
6 . Assemble straight pipe with swivel (D) into flexible pipe (C) and
tighten clamp (B).
7 . Assemble flexible pipe (C) to elbow (E) on blower and tighten
clamp (B).
8 . Loosen wing nut (F) completely and expand stick handle (G).
9 . Align notch (H) in handle clamp with pipe pegs (J). Handle should
be angled away from operator.
10. Slide handle onto swivel pipe.
11. Position handle for comfortable operation and tighten wing nut.
12. Assemble straight pipe (K and L) to swivel pipe, turning straight
pipe clockwise to lock in place.
K
D
E
C
B
G
J
H
J
L
G
F
B
F
K
L
PRE-OPERATION
FUEL
Fuel Requirements
Gasoline - Use 89 Octane [ ] (mid grade or higher) gasoline known
to be good quality. Gasoline may contain up to 15% MTBE (methyl
tertiary-butyl ether). Gasohol containing methyl (wood) alcohol is NOT
approved.
Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD
13738) and J.A.S.O. FC Standards, must be used. Echo brand Premium
50:1 oil meets these standards. Engine problems due to inadequate
lubrication caused by failure to use an ISO-L-EGD and J.A.S.O.
certified oil, such as Echo Premium 50:1 Two-stroke Oil, will void the
two-stroke engine warranty. (Emission related parts only are covered
for two years, regardless of two-stroke oil used, per the statement listed
in the EPA Phase 2/California Emission Defect Warranty Explanation.)
IMPORTANT
Echo Premium 2-Stroke Oil may be mixed at 50:1 ratio for application in all Echo engines sold in the past regardless of ratio
specified in those manuals.
Mixing Instructions
1 . Fill an approved fuel container with half of the required amount of
gasoline.
2 . Add 2-stroke oil to gasoline.
3 . Close container and shake to mix oil with gasoline.
4 . Add remaining gasoline and remix.
5 . Install fuel container cap and wipe any spilled fuel from container
and surrounding area.
Handling Fuel
R + M
2
FC
POWER BLOWER
OPERATOR'S MANUAL
IMPORTANT
Spilled fuel is a leading cause of
hydrocarbon emissions. Some states
may require the use of automatic fuel
shut-off containers to reduce fuel
spillage. Contact your ECHO dealer
for ordering information.
After Refueling
• Wipe any spilled fuel from the unit.
• Move at least 3 m (10 ft.) from refueling
location before starting.
After use
• DO NOT store a unit with fuel in its tank.
Leaks can occur. Return unused fuel to
an approved fuel storage container.
Storage
Fuel storage laws vary by locality. Contact
your local government for the laws affecting
your area. As a precaution, store fuel in an
approved, air tight container. Store in a well
ventilated, unoccupied building, away from
sparks and flames. Do not store fuel longer
than 30 days.
IMPORTANT
Stored fuel ages. Do not mix more fuel
than you expect to use in thirty (30)
days, ninety (90) days when a fuel
stabilizer is added.
11
W ARNING DANGER
Fuel is VERY flammable. Use extreme care when mixing, storing or
handling or serious personal injury may result.
• Use an approved fuel container.
• DO NOT smoke near fuel.
• DO NOT allow flames or sparks near fuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel
caps slowly allowing pressure to equalize.
• NEVER refuel a unit when the engine is HOT!
• NEVER refuel a unit with the engine running.
• DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks
outdoors over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
Stored two-stroke fuel may separate.
ALWAYS shake fuel container thoroughly before each use.
12
OPERATION
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Check unit for loose nuts, bolts and screws daily.
• Recoil starter: Use short pulls - only 1/2-2/3 of rope length for
starting. Do not allow the rope to snap back in. Always hold the unit
firmly.
• Rotate spring loaded throttle handle downward to a comfortable
operating position.
STARTING COLD ENGINE
1 . Move throttle lever (A) to START/IDLE DETENT position.
A
2 . Close Choke - Cold Start.
Move choke (B) to "Cold Start" Position.
3. Primer Bulb -Prime.
Pump primer bulb (D) until fuel is visible and flows freely in the
clear fuel tank return line. Pump bulb an additional 4 or 5 times.
4 . Pull recoil starter handle (E) 4 (four) times or until engine fires.
5 . Open choke (B) and if necessary, restart engine.
NOTE
Allow engine to warm up before use.
B
C
D
E
POWER BLOWER
OPERATOR'S MANUAL
13
STARTING
1 . Move throttle lever (A) to start/idle detent position, pull recoil
starter handle (E) 4 (four) times and engine should start. Do not
use choke (B).
NOTE
If engine does not start after 4 pulls, use cold start procedures.
WARM ENGINE
STOPPING ENGINE
1. Move throttle lever (A) to idle detent position and allow engine to
retun to idle before shutting off engine.
2 . Move throttle lever (A) to "STOP" position.
A
B
E
A
W ARNING DANGER
If engine does not stop, move choke lever to closed position to stall
engine.
OPERATING BLOWER
W ARNING DANGER
Always wear safety glasses, hearing protection, face filter mask and
take all safety precautions or serious personal injury may result.
Do not point the blower pipe in the direction of people or pets.
Read the Safety Section carefully.
IMPORTANT
To avoid engine damage due to over revving, do not block
blower pipe opening.
1. Use only during appropriate hours.
A
2 . Set engine speed with throttle (A).
14
3 . Allow the engine to warm up at a fast idle for a few minutes.
4 . Use lower speed to blow dry leaves from a lawn or flower bed.
5. Additional speed may be necessary to clean grass and leaves from
walks, patios and drives.
6. Higher speed may be necessary to move gravel, dirt, snow, bottles
or cans from a driveway, street, parking lot or stadium.
NOTE
Never use a higher speed setting than necessary to perform a task.
Remember, the higher the engine speed, the louder the blower noise.
Minimize dust by using blower at lower speeds and by dampening
material with water/mist when necessary. Keep debris on your
property.
Be Smart - be a good neighbor.
MAINTENANCE
Your ECHO blower is designed to provide many hours of trouble free service. Regular scheduled maintenance will help
your blower achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take your
unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the
ECHO Dealer do it, each maintenance task has been graded. If task is not listed, see your ECHO Dealer for repairs.
SKILL LEVEL
Level 1 = Easy to do. Most required tools come with unit.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = Experience required. Specialized tools are required. Echo recommends
that the unit be returned to your ECHO dealer for service.
ECHO offers REPOWERTM Maintenance Kits and Parts to make your maintenance job easier. Just below each task
heading are listed the various part numbers required for that task. See your ECHO dealer for these parts.
POWER BLOWER
OPERATOR'S MANUAL
15
MAINTENANCE
retliFriAecalpeR/naelC/tcepsnI 1 C/I*R
ekohCnaelC/tcepsnI 2 C/I
retliFleuFecalpeR/tcepsnI 1 I*
INTERV ALS
/TNENOPMOC
METSYS
troPtsuahxErednilyCnobraceD/naelC/tcepsnI 3 C/I
skaeL,metsySleuFecalpeR/tcepsnI 1 I*R/I
metsySgnilooCnaelC/tcepsnI 2 C/I
ECNANETNIAM
ERUDECORP
D'QER
LLIKS
LEVEL
etniaMflesruoY-tI-oD
YLIAD
RO
EROFEB
ESU
YREVE
LEUFER
serudecorPecnan
3
SHTNOM
09RO
SRUOH
serudecorPecnanetniaMrelaeDohcEdednemmoceR
6
SHTNOM
072RO
SRUOH
YLRAEY
R
* .noitcepsnignirudraewroegamadfognidnifehtnodesaberaecalperotsnoitadnemmocerllA
rotserrAkrapSrelffuMecalpeR/tcepsnI 2 *
epoRretratSlioceRnaelC/tcepsnI 1 C/I*R/I
gulPkrapSnaelC/tcepsnI 2 C/I*R
stloB/stuN/swercSecalpeR/nethgiT/tcep
-ETONTNATROPMI deriuqerfoycneuqerfehtenimretedlliwecneirepxeruoydnaesulaut
.ecnanetniam
snI 1 *R/I
SEDOCRETTELERUDECORPECNANETNIAM NAELC=C,ECALPER=R,TCEPSNI=I:
cA.mumixameranwohsslavretniemiT
:SETONERUDECORPECNANETNIAM
R/I
16

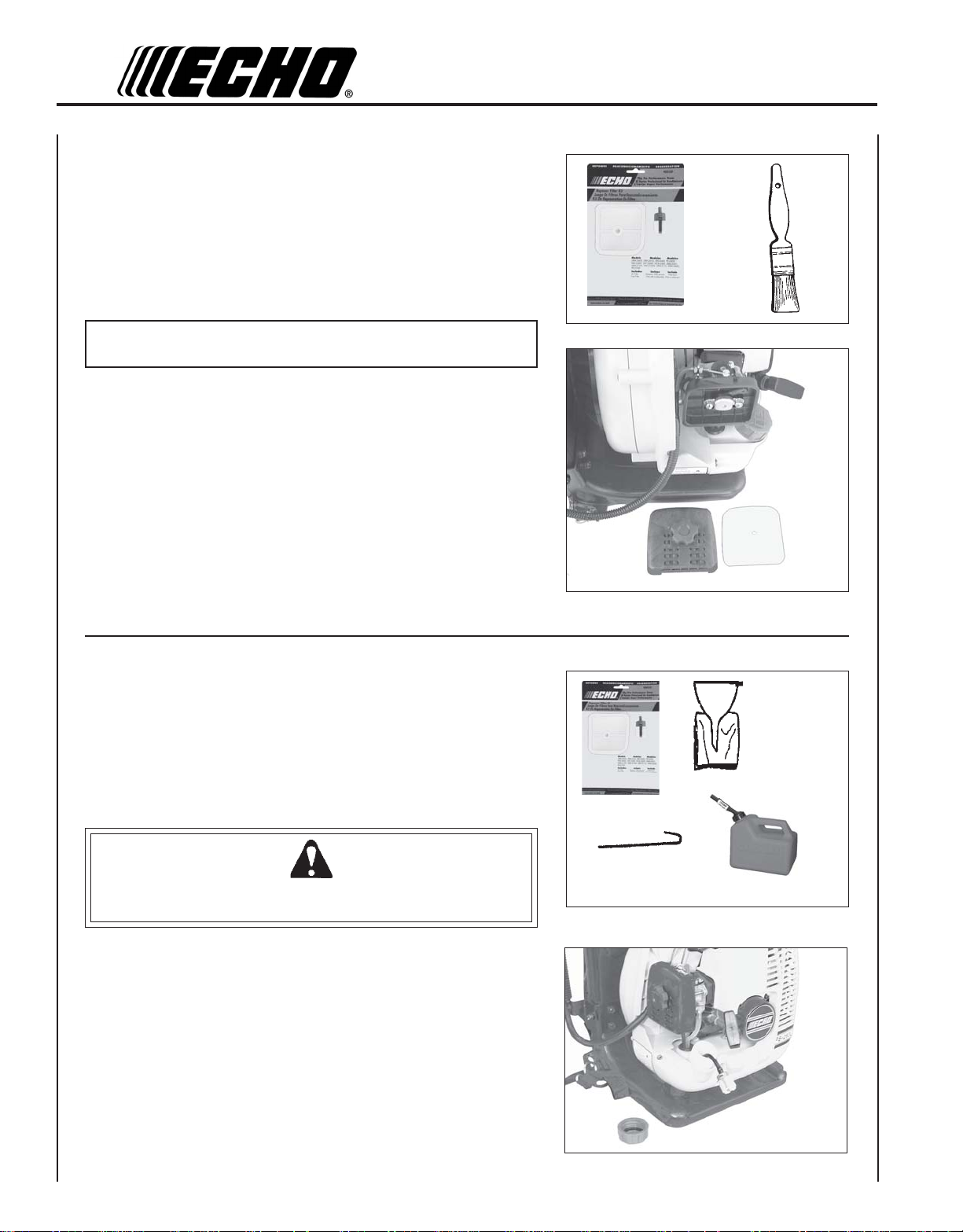

AIR FILTER
Level 1.
Tools required: 25-50 mm (1-2 in.) medium bristle paint brush.
Parts required: 90030 REPOWERTM Air and Filter Kit
NOTE
Clean daily.
1 . Close choke (Cold Start Position). This prevents dirt from
entering the carburetor throat when the air filter is removed.
Brush accumulated dirt from the air cleaner area.
2 . Remove the air cleaner cover. Clean and inspect the element for
damage. If element is fuel soaked and very dirty, replace.
3 . If element can be cleaned and reused, be certain it:
•still fits the cavity in the air cleaner cover.
•is installed with the original side out.
FUEL FILTER
Level 1.
Tools required: Fuel line hook. 200-250 mm (8-10 in.) length of wire
with one end bent into a hook. Clean rag, funnel, and
an approved fuel container.
Parts required: 90030 REPOWERTM Air and Filter Kit
W ARNING DANGER
Fuel is VERY flammable. Use extreme care when mixing, storing or
handling.
1 . Use a clean rag to remove loose dirt from around fuel cap and
empty fuel tank.
2 . Use the “fuel line hook” to pull the fuel line and filter from the
tank.
3 . Remove the filter from the line and install the new filter.
POWER BLOWER
OPERATOR'S MANUAL
17

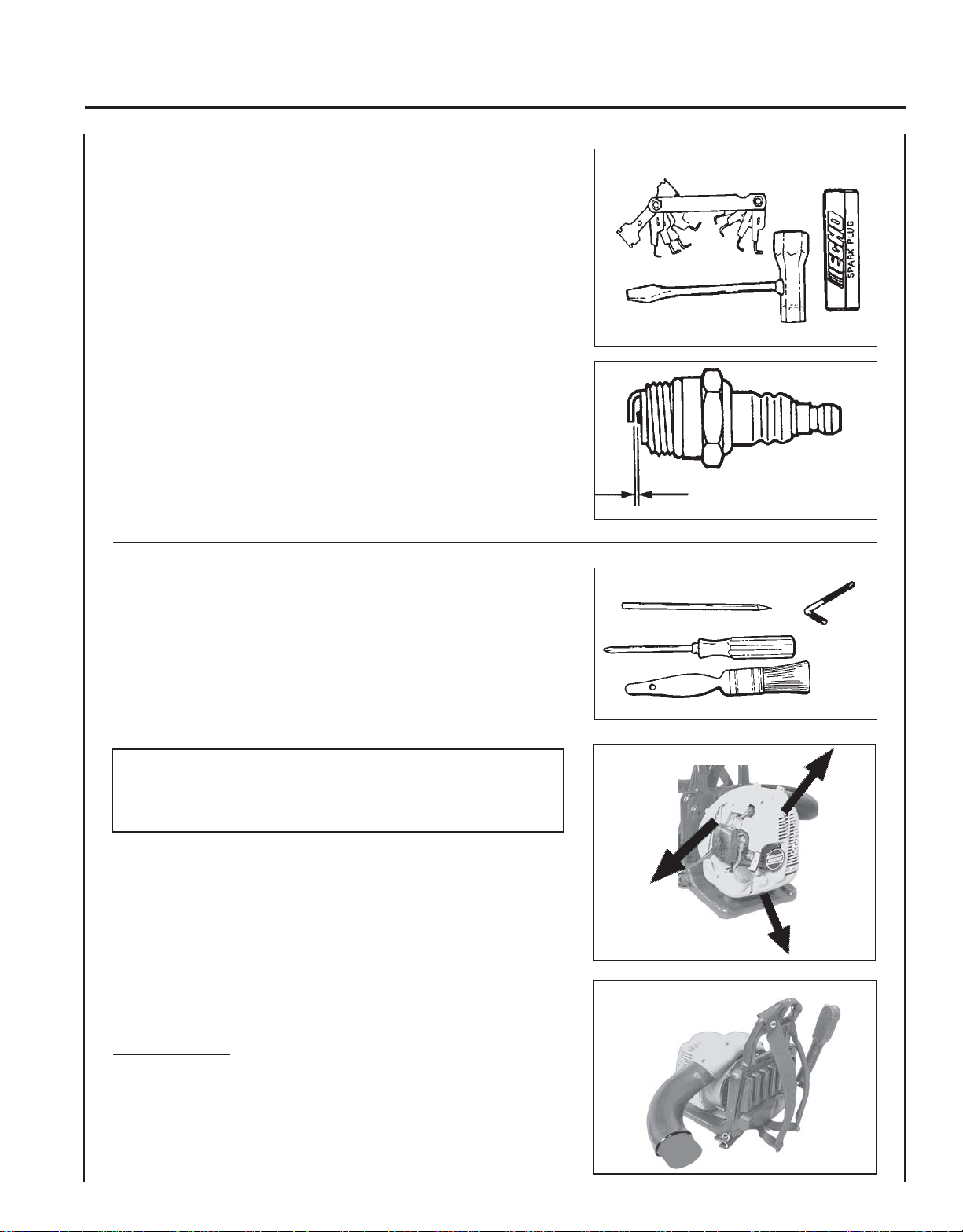

SPARK
Level 2.
Tools required: 3/4 in. Spark Plug deep socket, Feeler gauge
Parts Required: Spark Plug, NGK BPM-7Y, P/N 99944500071
1 . Remove spark plug and check for fouling, worn and rounded
2 . Clean the plug or replace with a new one. DO NOT sand blast to
3. Adjust spark plug gap by bending outer electrode.
4 . Tighten spark plug to 145-155 kg/cm (125-135 in. lb.).
PLUG
(preferably a wire gauge),
center electrode.
clean. Remaining sand will damage engine.
COOLING SYSTEMS CLEANING
0.65 mm
(0.026 in.)
Level 2.
Tools required: 25-50 mm (1-2 in.) medium bristle paint brush, 3 mm
Hex Wrench, Cross Head Screwdriver, Pointed Wood
Stick.
Parts Required: None, if you are careful.
IMPORTANT
To maintain proper engine operating temperatures, cooling air must
pass freely through the cylinder fin area. This flow of air carries
combustion heat away from the engine.
Overheating and engine seizure can occur when:
• Air intakes are blocked, preventing cooling air from reaching the
cylinder.
• Dust and grass build up on the outside of the cylinder. This build up
insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling fins is
considered “Normal Maintenance”. Any failure attributed to lack of
maintenance is not warranted.
Cleaning Grill
INTAKE
GRILL
1 . Remove accumulated debris from intake grill between backpack
frame and blower housing.
18
Cleaning Cylinder Fins
1 . Remove engine cover (six screws), pull cover away from engine.
Clean cylinder fins to allow cooling air to pass freely.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools required: Cross Head Screwdriver, 3 mm Hex Wrench,
Soft metal brush,
Parts Required: Spark arrestor screen P/N 14586240630,
(1ea) Gasket P/N V104000032, V104000350
IMPORTANT
Carbon deposits in muffler will cause a drop in engine output and
overheating. Spark arrestor screen must be checked periodically.
1 . Remove engine cover (six screws).
2 . Remove exhaust deflector (A), spark arrestor cover (B), gaskets
(C) and (D), and spark arrestor screen (E) from muffler. Replace
screen if plugged with carbon deposits.
3. Install spark arrestor screen, gaskets, and covers.
4 . Install engine cover.
E
D
C
B
A
Cylinder Exhaust Port
Level 3.
IMPORTANT
The cylinder exhaust port must be inspected and cleaned of excess
carbon every 3 months or 90 hours of operation in order to maintain
this engine within the emissions durability period. ECHO strongly
recommends that you return your unit to your ECHO dealer for this
important maintenance service.
CARBURETOR ADJUSTMENT
Level 2.
POWER BLOWER
OPERATOR'S MANUAL
19
Tools required: Screwdriver, tachometer (Echo P/N 99051130017)
Parts required: None.
NOTE
Every unit is run at the factory and the carburetor is set in compliance with emission regulations. This carburetor does not have
acceleration and high speed adjustment needles. Do not attempt to
use carburetor adjustment procedures provided in the Warranty
Emissions Booklet.
Before Adjustment
Check that:
• Air filter is clean and properly installed.
• Spark arrestor screen is free of carbon.
• Blower pipes are installed.
1 . Start engine, run at idle for one minute.
2 . Complete warm up by running at full throttle for 5 minutes,
operating choke twice to clear air from carburetor chambers.
A
3 . Check idle speed and reset if necessary. If a tachometer is
available, idle speed screw (A) should be set to the specifications
found on Page 9 "Specifications" of this manual. Turn idle screw
(A) clockwise to increase idle speed; counter clockwise to
decrease idle speed.
20
TROUBLESHOOTING
melborPkcehCsutatSesuaCydemeR
TRAHCGNITOOHSELBUORT
deggolcreniartsleuF
roterubractaleuFroterubractaleufoN
enignE
-sknarc
/drahstrats
t'nseod
trats
,snurenignE
roseidtub
tonseod
cca
etarele
ylreporp
rednilyctaleuF
dnetakrapS
eriwgulpfo
gulptakrapSkrapsoN
retlifriAytridretlifriAraewlamroNecalperronaelC
retlifleuFytridretlifleuF
tnevleuFdeggulptnevleuF
gulPkrapSnrow/ytridgulP
roterubraCtnemtsujdareporpmI
krapsoN
uF
rednilyctaleufoNroterubraCrelaed
leufhtiwtewrelffuM
dgulP
leuf
leuf
amroNecalperrotsujdadnanaelC
noitarbiVtsujdA
deggolcenille
roterubraC
hcirooterutxiMleuFekohcnepO
ffohctiwspotS
melborplacirtcelE
hctiwskcolretnI
tcerrocnipagkrapS
nobrachtiwderevoC
leufhtiwdeluoF
evitcefe
seudiser/stnanimatnoCni
niseudiser/stnanimatnoC
raewl
ecalpeR
ecalperronaelC
ecalperronaelC
relaedohcEruoyeeS
ohcEruoyeeS
retlifriaecalper/naelC
roterubractsujdA
cEruoyeeS
gulpecalpeR
relaedoh
NOothctiwsnruT
ohcEruoyeeS
relaed
relaedohcEruoyeeS
).ni620.0(mm56.ottsujdA
ecalperronaelC
ecalperronaelC
ecalperronaelC
metsySgnilooC
rotserrAkrapS
neercS
seodenignE
knarcton
,snurenignE
rewolb
krowt'nseod
siro
nevenu/kaew
A/NA/NmelborpenignelanretnIrelaedohcEruoyeeS
epiprewolB
/ytrid
metsysgnilooC
deggulp
rotserrakrapS
deggulpneercs
deggolcepiP
esoolepiP
degamadepiP
mroNecalpeR
raewla
noitarbiVnethgiT
esusiM/raeWeca
ninoitarepodednetxE
snoitacolytsud/ytrid
sirbedfopu-dliuBgolcnU
naelC
lpeR
W ARNING DANGER
Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark by grounding spark plug against cylinder, otherwise serious personal injury may result.
POWER BLOWER
OPERATOR'S MANUAL
STORAGE
W ARNING DANGER
During operation the muffler - catalytic muffler and surrounding cover become hot. Always keep exhaust area clear
of flammable debris during transportation or when storing, otherwise serious property damage or personal injury
may result.
Long Term Storage (Over 30 Days)
Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage maintenance which includes the following:
1 . Store unit in a dry, dust free place, out of the reach of children.
21
W ARNING DANGER
Do not store where fuel fumes may accumulate or reach an open flame or spark.
2. Place the stop switch in the "STOP" position.
3 . Remove accumulation of grease, oil, dirt and debris
from exterior of unit.
4 . Perform all periodic lubrication and services that are
required.
5. Tighten all screws and nuts.
6. Drain the fuel tank completely and pull the recoil
starter handle several times to remove fuel from the
carburetor.
7 . Remove the spark plug and pour 7cc (1/4 oz., 1/2
tablespoon) of fresh, clean ECHO 2-stroke engine oil
into the cylinder through the spark plug hole.
A. Place a clean cloth over the spark plug hole.
B . Pull the recoil starter handle 2-3 times to
distribute the oil inside the engine.
C. Observe the piston location through the spark
plug hole. Pull the recoil handle slowly until the
piston reaches the top of its travel and leave it
there.
8. Install the spark plug (do not connect ignition cable).
9 . Remove blower pipe assembly from unit.
22
NOTES
NOTES
POWER BLOWER
OPERATOR'S MANUAL
23
SERVICING INFORMA TION
P ARTS
Genuine ECHO Parts and ECHO REPOWER™ Parts and Assemblies for
your ECHO products are available only from an Authorized ECHO
Dealer. When you do need to buy parts always have the Model
Number and Serial Number of the unit with you. You can find these
numbers on the engine housing. For future reference, write them in the
space provided below.
Model No. _____________ SN. ____________
SERVICE
Service of this product during the warranty period must be performed
by an Authorized ECHO Service Dealer. For the name and address of
the Authorized ECHO Service Dealer nearest you, ask your retailer or
call: 1-800-432-ECHO (3246). Dealer information is also available on our
Web Site. When presenting your unit for Warranty service/repairs,
proof of purchase is required.
ECHO CONSUMER PRODUCT SUPPORT
If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the ECHO
Consumer Product Support Department at 1-800-673-1558 from 8:30 am
to 4:30 pm (Central Standard Time) Monday through Friday. Before
calling, please know the model and serial number of your unit to help
your Consumer Product Support Representative.
DEALER?
Call
1-800-432-ECHO
or
www.echo-usa.com
CONSUMER PRODUCT
SUPPORT
1-800-673-1558
8:30 - 4:30 Mon - Fri C.S.T.
WARRANTY REGISTRATION
You may register your Echo equipment using the warranty registration
card or register on-line at www.echo-usa.com. Registering provides a
direct link between you and ECHO if we find it necessary to contact
you.
ADDITIONAL OR REPLACEMENT MANUALS
Safety Manuals in English/Spanish or English/French are available, free of charge, from your ECHO dealer or at
www.echo-usa.com.
Operator's and Parts Manuals are available by:
• Downloading free from www.echo-usa.com
• Purchasing from your Echo Dealer.
• Sending a check or money order for $2.00 per Parts Catalog or $1.50 per Operator's Manual made payable to ECHO,
INCORPORATED. State on a sheet of paper the model number and serial number of the ECHO unit you have, part
number of the manual (if known), your name and address and mail to address below.
Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video.
Available Parts Catalog
PB-260L S/N 03001001 - 03999999 Part Number 99922203197
PB-261L S/N 02001001 - 02999999 Part Number 99922203219
ECHO, INCORPORATED
400 OAKWOOD ROAD
LAKE ZURICH, IL 60047
www.echo-usa.com
Loading...
