KEY PART NUMBER QT Y DESCRIPTION REMARKS
POWER BLOWER
PARTS CATALOG
PB-210E TYPE 1E
MODEL PB-210E
TYPE 1E
SERIAL NUMBER 001001 & UP
ECHO, INCORPORATED
400 OAKWOOD ROAD
LAKE ZURICH, IL 60047
999222028464
11/99
1
PB-210E TYPE 1E
ENGINE, EXTERNAL/INTERNAL/CRANKCASE/COVER
21
22
15
16
20
19
17
10
9
2
4
4
3
1
6
1
18
17
15
14
8
7
5
3
13
11
12
2
ENGINE, EXTERNAL/INTERNAL/CRANKCASE/COVER
KEY PART NUMBER QT Y DESCRIPTION REMARKS
1 90032303014 2 KEY, WOODRUFF
2 10000003360 1 PISTON KIT INCLUDES ITEMS 3 - 6
3 10001504630 2 CIRCLIP, PISTON PIN
4 10001105530 2 RING, PISTON
5 10001303360 1 PIN, PISTON
6 10001221230 1 BEARING, NEEDLE
7 10101003361 1 GASKET, CYLINDER BASE INCLUDED IN KIT 88900003361
8 90016205020 4 BOLT, H.S. 5X20
9 10101103362 1 CYLINDER
10 90024204010 4 SCREW 4X10
11 10151403360 1 COVER, CYLINDER
12 90024205010 1 SCREW 5X10
13 10021305530 1 OILSEAL
14 90024205030 4 SCREW 5X30
15 10020003360 1 CRANKCASE SET INCLUDES ITEMS 16
16 10021503930 2 PIN, DOWEL
17 90081036201 2 BEARING, BALL 6201
18 10010003360 1 CRANKSHAFT
19 90070200032 1 CIRCLIP 32
20 ------------------- 1 GASKET, CRANKCASE INCLUDED IN KIT 88900003361
PB-210E TYPE 1E
21 90024205020 4 SCREW 5X20
22 10021203930 1 OILSEAL
88900003361 1 GASKET KIT INCLUDES THE FOLLOWING
10101003361 1 GASKET, CYLINDER BASE
------------------- 1 GASKET, CRANKCASE
13001003361 1 GASKET, INTAKE
14551003361 1 GASKET, MUFFLER
REVISED 11/99
3
PB-210E TYPE 1E
37
INTAKE, AIR CLEANER, EXHAUST
34
4
28
25 27
32
31
33
30
29
36
35
39
38
26
1
2
14
1
7
4
2
8
23
25
22
24
5
12
11
9
4
10
19
18
6
13
14
17
15
16
21
20
3
4
INTAKE, AIR CLEANER, EXHAUST
KEY PART NUMBER QT Y DESCRIPTION REMARKS
1 90024205045 2 SCREW 5X45
2 17851600830 2 WASHER
3 12300003662 1 CARBURETOR WT-409B
4 90024204010 8 SCREW 4X10
5 10027003360 1 INSULATOR
6 14585803360 1 MUFFLER
7 14551003361 1 GASKET, MUFFLER INCLUDED IN KIT 88900003361
8 90016205016 2 BOLT, H.S. 5X16
9 14580903361 1 LID, MUFFLER
10 14590603361 1 COVER, MUFFLER
11 90024205020 3 SCREW 5X20
12 14586603361 1 GASKET, MUFFLER LID
13 14586209520 1 SCREEN, MUFFLER
14 90024205014 3 SCREW 5X14
15 17801703360 1 ARM, THROTTLE LEVER
16 17811403360 1 HOLDER, THROTTLE LEVER
17 17804603360 1 ROD, THROTTLE
18 13082603360 1 GROMMET, PLUG
19 12901003660 1 GROMMET, NEEDLE
20 89015803360 1 LABEL
21 17851003360 1 ROD, CHOKE
PB-210E TYPE 1E
22 17881003930 1 BUSHING, RUBBER
23 12902303360 1 GROMMET
24 13043103360 1 BRACKET
25 90024905025 4 SCREW 5X25
26 13051003360 1 ADAPTER, INTAKE
27 13001003361 1 GASKET INCLUDED IN KIT 88900003361
28 13042903360 1 BRACKET
29 13035503360 1 INSULATOR
30 12902311130 1 GROMMET
31 13030603362 1 CASE, CARBURETOR
32 17803203360 1 CONNECTOR, THROTTLE
33 17812403360 1 SHAFT, THROTTLE
34 13031003360 1 FILTER, AIR
35 90072000003 1 O-RING
36 13031303361 1 COVER, AIR CLEANER
37 13041522130 1 SCREW
38 13040522130 1 BRACKET, AIR CLEANER
39 17851522130 1 SHUTTER, CHOKE
REVISED 11/99
5
PB-210E TYPE 1E
IGNITION/FUEL SYSTEM/ST ARTER
2
37
35
38
39
40
34
33
32
36
41
42
43
44
31
30
27
29
28
1
3
13
17
18
19
23
24
27
26
10
11
25
12
22
9
8
7
6
20
21
4
5
14
15
16
6
IGNITION/FUEL SYSTEM/ST ARTER
KEY PART NUMBER QT Y DESCRIPTION REMARKS
1 15611403360 1 GROMMET
2 15661103360 1 TUBE
3 15901203360 1 CAP, SPARK PLUG
4 15901103432 1 COIL, PLUG CAP
5 15901010630 1 PLUG, SPARK BPM-7A
6 90010005020 2 BOLT 5X20
7 90060300005 2 WASHER 5
8 17721804920 2 CATCHER, PAWL
9 17723404920 2 SPRING, RETURN
10 90060000008 1 WASHER 8
11 90060500008 1 WASHER, SPRING 8
12 90050200008 1 NUT 8
13 17720003360 1 STARTER ASY INCLUDES ITEMS 14 - 22
14 90024204010 1 SCREW 4X10
15 17721404630 1 WASHER
16 17721504920 1 DRUM, STARTER
17 17722006530 1 SPRING, REWIND
18 17722116530 1 PLATE
19 17720903360 1 CASE, STARTER
20 ------------------- 1 ROPE, STARTER USE BULK ROPE 99944400040
DIA. 3.0 MM (.12 IN.) LENGTH 850 MM (33.5 IN.)
21 17722705020 1 GUIDE, ROPE
22 17722806530 1 GRIP, STARTER
23 89011849330 1 LABEL, ECHO
24 90024205025 4 SCREW 5X25
25 17730703360 1 HOLDER, PAWL
26 15680003361 1 FLYWHEEL
27 90024204020 4 SCREW 4X20
28 15662703361 1 COIL, EXCITER
29 15660103361 1 MODULE, C.D.I.
30 89011848830 1 LABEL, ECHO
PB-210E TYPE 1E
31 90024204025 3 SCREW 4X25
32 13191003360 1 BRACKET, FUEL TANK
33 13101003360 1 TANK, FUEL
34 13120507320 1 STRAINER, FUEL
35 13201003360 1 PIPE, FUEL
36 13200115030 1 VALVE
37 13100406610 1 CAP ASY, FUEL TANK INCLUDES ITEMS 38 - 40
38 13131406320 1 VALVE, CHECK
39 13101521330 1 HOLDER, CHECK VALVE
40 13101621060 1 GASKET, CAP
41 13200503360 1 CONNECTOR, FUEL PIPE INCLUDES ITEM 42
42 13211521330 1 GROMMET
43 13201326630 2 CLIP
44 13201203360 1 PIPE, FUEL
7
REVISED 11/99
PB-210E TYPE 1E
FAN/CASES/PIPES
28
27
26
25
24
23
21
29
22
20
18
19
30
17
16
31
13
15
2
12
3
1
7
8
14
4
5
6
9
7
10
11
35
35
34
34
33
32
33
36
37
38
36
39
8
FAN/CASES/PIPES
KEY PART NUMBER QT Y DESCRIPTION REMARKS
1 17801003360 1 CONTROL, THROTTLE
2 20014103360 1 HANDLE
3 17801103360 1 ROD, THROTTLE
4 90034050018 1 PIN, SPRING 5X18
5 90024604016 3 SCREW 4X16
6 35111103361 1 GRIP, HANDLE
7 16340003360 1 SWITCH, IGNITION
8 89015711130 1 LABEL
9 16201003360 1 LEAD
10 90024205018 5 SCREW 5X18
11 10493003360 1 BRACKET, ENGINE
12 20010703361 1 CASE, FAN
13 89016003360 1 LABEL, CAUTION
14 10013203360 1 WASHER
15 20001003360 1 FAN
16 90060000008 1 WASHER 8
17 90060500008 1 WASHER, SPRING 8
18 90050000008 1 NUT 8
19 30512103360 2 CUSHION
20 30511003360 1 STAND
PB-210E TYPE 1E
21 30511803360 2 WASHER
22 30511703360 2 CUSHION
23 20011003360 1 CASE, FAN
24 90060200006 2 WASHER 6
25 90060500006 2 WASHER, SPRING 6
26 90054200006 2 NUT, CAP 6
27 20012403360 1 GRID, FAN CASE
28 90024905020 4 SCREW 5X20
29 89011503360 1 LABEL, MODEL
30 90024905025 3 SCREW
31 89017603361 1 LABEL, NOISE
32 21000103360 1 PIPE, STRAIGHT W/LABEL INCLUDES ITEM 33
33 89011804261 2 LABEL, ECHO
34 21040003360 2 CLAMP INCLUDES ITEMS 35 & 36
35 90050000004 4 NUT 4
36 90022004025 4 SCREW 4X25
37 21001403360 1 PIPE, STRAIGHT
38 21002301060 1 PIPE, CURVED
39 21003101060 1 NOZZLE, FAN HEAD
REVISED 11/99
9
PB-210E TYPE 1E

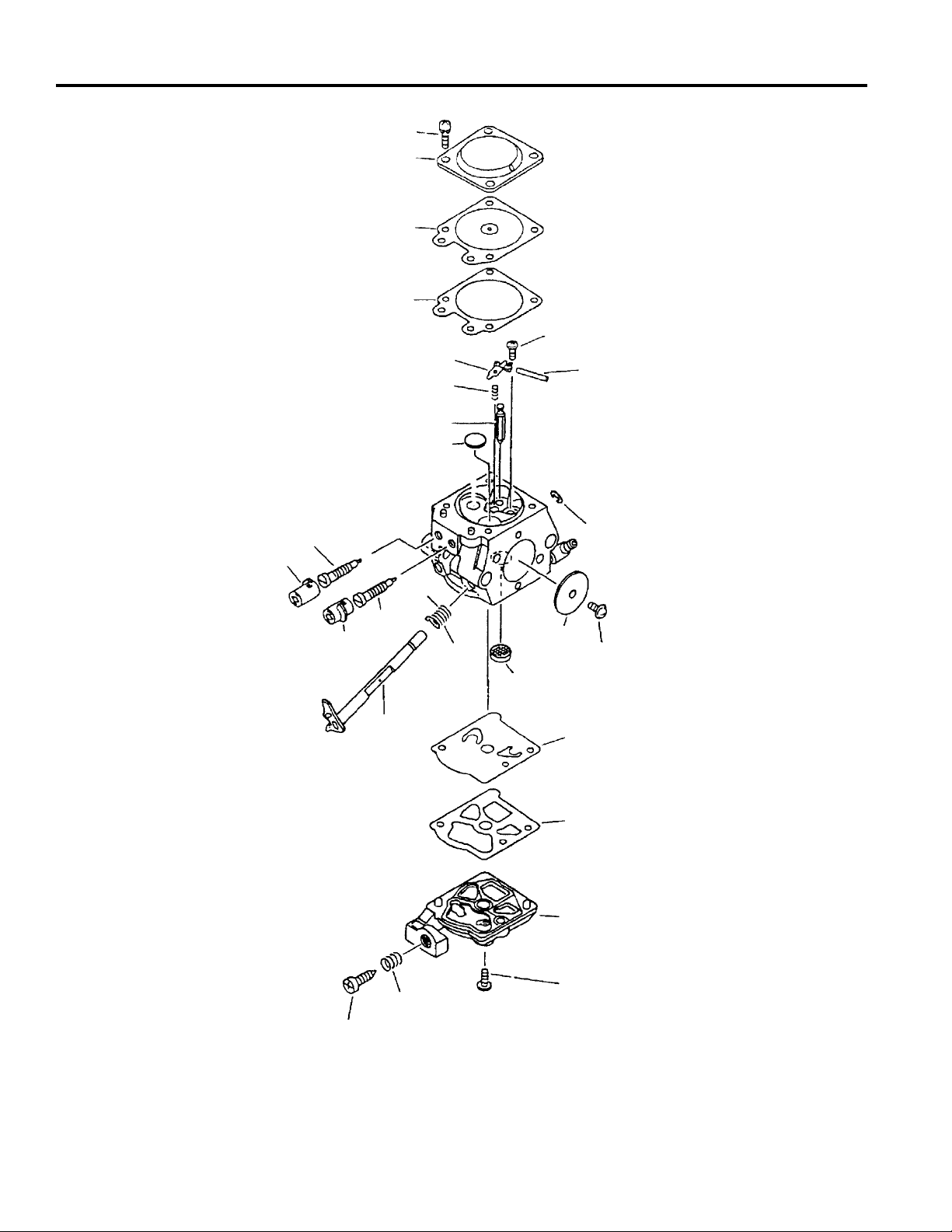

CARBURETOR
1
2
3
4
8
5
9
6
7
10
24
23
24
20
23
22
19
21
11
13
12
14
15
16
17
18
10
CARBURETOR
KEY PART NUMBER QT Y DESCRIPTION REMARKS
12300003662 1 CARBURETOR ASY WT-409B INCLUDES THE FOLLOWING
1 12313002960 4 SCREW
2 12314203930 1 COVER, METERING DIAPHRAGM
3 A B 1 DIAPHRAGM, METERING
4 A B 1 GASKET, METERING DIAPHRAGM
5 A 1 LEVER, METERING
6 A 1 SPRING, METERING LEVER
7 A 1 VALVE, INLET NEEDLE
8 12313903930 1 SCREW, METERING LEVER PIN
9 A 1 PIN, METERING LEVER
10 A 1 PLUG, WELCH
11 12312715030 1 CLIP, THROTTLE SHAFT
12 12311403930 1 SCREW
13 12311605230 1 VALVE, THROTTLE
14 A 1 SCREEN, INLET
1 5 A B 1 DIAPHRAGM, FUEL PUMP
1 6 A B 1 GASKET, FUEL PUMP
17 12312403660 1 COVER, FUEL PUMP
18 12311003930 1 SCREW
19 12313311130 1 SPRING, IDLE ADJUST
20 12313419730 1 SCREW, IDLE ADJUST
PB-210E TYPE 1E
21 12311303930 1 SPRING, THROTTLE RETURN
22 12311703660 1 SHAFT, THROTTLE
23 12312003661 2 NEEDLE, IDLE
24 P003000010 2 CAP, LIMITER
A 12310002260 1 REPAIR KIT
B 12310137330 1 DIAPHRAGM/GASKET KIT
11
REVISED 11/99
