A V AILABLE A TT ACHMENTS & A CCESSORIES
Attachments
99944100010 Rain Gutter Kit
99944100030 PB_ES Shoulder Strap
PARTS CATALOG
PB-2100 Power Blower
21.2cc
MODEL:SERIAL NUMBERS
PB-2100: Type 1E S/N 001001 & Up
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
99922202804
©2007 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved REVISED 10/08/07
Table of Contents Part Number Index
Table of Contents
Click Any Diagram Desciption Below To Veiw That Diagram.
PB-2100 Type 1E S/N 001001 & Up
Intake, Exhaust................................................................................................................................................................4
Carburetor........................................................................................................................................................................6
Ignition, Starter, Fuel System.........................................................................................................................................8
Engine, Short Block -- SB1026.....................................................................................................................................10
Fan Case, Blower Pipe..................................................................................................................................................12
Gasket Kit.......................................................................................................................................................................14
RePower Filter Kit..........................................................................................................................................................16
RePower Tune-Up Kit.....................................................................................................................................................18
RePower Tune-Up Kit - Canada Models.......................................................................................................................20
Tools...............................................................................................................................................................................22
Part Number Index.........................................................................................................................................................24
Part Description Index..................................................................................................................................................25
99922202804 - 2 - REVISED 10/08/07
This Page Intentionally Left Blank
- 3 -
Table of Contents Part Number Index
PB-2100 Power Blower Intake, Exhaust
99922202804 - 4 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Intake, Exhaust
REMARKSDESCRIPTIONQTYPART NUMBERITEM
BOLT, WING1210417527301
COVER, AIR CLEANER1130313065622
LABEL, CHOKE1890121063603
CANADA MODELSLABEL, CHOKE1890121053603
FILTER, AIR1130310541304
SCREW, 5X652900242050655
PLATE, PREVENT1129011527306
CASE, AIR CLEANER1130307065617
See Carburetor Diagram For Addional InformationCARBURETOR1------------------8
1130010205609
GASKET, INTAKE
SCREW, 5X2229002380502210
INSULATOR, INTAKE11300170506211
NUT 529005000000512
21300100956113
GASKET, INTAKE
COVER, CYLINDER11015142056014
21455104203115
GASKET, MUFFLER
COVER, MUFFLER11458710576016
MUFFLER11458064203017
WASHER 529006030000518
SCREW 5X5529001050505519
SCREEN, MUFFLER11458624063020
GUIDE, EXHAUST11458764203021
SCREW, 4X1039002420401022
11458664203123
GASKET, MUFFLER
1V10400000123
GASKET, EXHAUST
1
1
1
1
SERIAL NUMBERS: 001001-626617
SERIAL NUMBERS: 001001-626617GUIDE, EXHAUST11458742056024
1
SERIAL NUMBERS: 626618 & UP
SERIAL NUMBERS: 626618 & UPGUIDE, EXHAUST - OUTER1A31300002024
1: Also Included In GASKET KIT
Footnotes
99922202804 - 5 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Carburetor
99922202804 - 6 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Carburetor
REMARKSDESCRIPTIONQTYPART NUMBERITEM
INCLUDES THE FOLLOWING:CARBURETOR -- C1U-K42112520020560
SCREW2125344521301
COVER, DIAPHRAGM1125342073602
1------------------3
DIAPHRAGM, METERING
1------------------4
GASKET, METERING DIAPHRAGM
SCREW1125339420305
1------------------6
PIN, METERING LEVER
1------------------7
LEVER, METERING
1------------------8
SPRING, METERING LEVER
1------------------9
VALVE, INLET NEEDLE
CLIP11253271393010
SCREW11253481393011
LEVER, THROTTLE11253502056012
1------------------13
PLUG, WELCH
2
VALVE, THROTTLE11253162056014
SCREW11253145123015
SPRING, NEEDLES21253194203016
WASHER21253530776017
SCREW, IDLE NEEDLE11253182056018
LIMITER, MIXTURE11253290986019
NEEDLE, HIGH SPEED11253202056020
LIMITER, MIXTURE11253290856021
SHAFT, THROTTLE11253170686022
SPRING, THROTTLE RETURN11253130856023
PIECE, FRICTION11253781393024
SCREW, IDLE ADJUST11253340686025
SCREW21253101161026
RETAINER, PURGE PUMP11253631161027
PURGE, PUMP11253814673028
COVER, PUMP11253241161029
1------------------30
GASKET, PUMP
1------------------31
DIAPHRAGM, PUMP
1------------------32
SCREEN
1
2
NOZZLE, CHECK VALVE11253760736033
REPAIR KIT112530020560
GASKET/DIAPHRAGM KIT112530320560
1
1
2
2
2
2
1
NOT AVAILABLE SEPARATELYBODY, CARBURETOR1------------------34
Footnotes
1: Included In REPAIR KIT & GASKET/DIAPHRAGM KIT
2: Included In REPAIR KIT
99922202804 - 7 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Ignition, Starter, Fuel System
99922202804 - 8 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Ignition, Starter, Fuel System
REMARKSDESCRIPTIONQTYPART NUMBERITEM
PIPE, FUEL - 3X5X901437210111311
PIPE, RETURN - 3X6X901132010563302
VALVE, CHECK1131300564303
COVER, VENT1131328406304
PIPE, VENT - 3X5X701131312391305
GROMMET, FUEL1132115467306
CONNECTOR, FUEL PIPE1132011033607
PIPE, FUEL1132012123608
STRAINER, FUEL1131205073209
INCLUDES ITEM 11TANK, FUEL11310052056010
SPACER21310452823011
WASHER 529006030000512
SCREW, 5X1629002380501613
INCLUDES ITEMS 15-16FUEL TANK CAP ASY11310045553014
CONNECTOR, FUEL CAP11310515603015
CONNECTOR, FUEL CAP11310515603016
INCLUDES ITEMS 18-19STARTER PAWL ASY11772024433017
SPRING, RETURN11772344203018
PAWL, STARTER11772184433019
INCLUDES ITEMS 21-26STARTER ASY11772004203320
SCREW11772364433021
DRUM, STARTER11772154443022
11772261012023
ROPE, STARTER - 3X1000mm
GUIDE, ROPE11772274203024
GRIP, STARTER11772280653025
SPRING, REWIND11772204203026
BOLT, 4X1649001620401627
LABEL, ECHO18901184913028
BOLT, 4X2229001620402229
LEAD, IGNITION11620212056030
TUBE11566110506031
CAP, SPARK PLUG11590120162032
COIL, SPARK PLUG CAP11590110343233
HUB, FAN12000110566134
SPARK PLUG -- BPM-7Y19994450007139
11590101023039
SPARK PLUG -- BPMR-7A
1
SERIAL NUMBERS: 001001-668812LEAD, GROUND11620102056035
SERIAL NUMBERS: 668813-819355LEAD, GROUND1V48500004035
SERIAL NUMBERS: 819356-879898LEAD, GROUND11620102056035
SERIAL NUMBERS: 879899 & UPLEAD, GROUND1V48500004035
SERIAL NUMBERS: 001001-668812COIL, IGNITION11586260636136
SERIAL NUMBERS: 668813-819355COIL, IGNITION1A41100002036
SERIAL NUMBERS: 819356-879898COIL, IGNITION11586260636136
SERIAL NUMBERS: 879899 & UPCOIL, IGNITION1A41100002036
SERIAL NUMBERS: 001001-668812FLYWHEEL11588002056037
SERIAL NUMBERS: 668813-819355FLYWHEEL1A40900000037
SERIAL NUMBERS: 819356-879898FLYWHEEL11588002056037
SERIAL NUMBERS: 879899 & UPFLYWHEEL1A40900010037
SERIAL NUMBERS: 001001-668812COLLAR21015315433038
SERIAL NUMBERS: 819356-879898COLLAR21015315433038
2
Footnotes
1: REPOWER BULK OPTION: 99944444000
2: CANADA MODELS
99922202804 - 9 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Engine, Short Block -- SB1026
99922202804 - 10 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Engine, Short Block -- SB1026
REMARKSDESCRIPTIONQTYPART NUMBERITEM
1SB10261
SHORT BLOCK
SCREW 5X222900162050222
1101010443323
GASKET, CYLINDER
BEARING, NEEDLE1100012512305
OIL SEAL2100212420307
DOWEL PIN2V6220000208
BEARING, BALL 62012900810362019
11002424203010
GASKET, CRANKCASE
SCREW 5X2839001620502811
PIN, PISTON11000131152013
CIRCLIP, PISTON PIN21000150463014
SPACER, PISTON PIN21000141152015
1
2
2
INCLUDES ITEMS 2-17
INCLUDES ITEM 5CRANKSHAFT ASY1100100447334
INCLUDES ITEMS 17-11CRANKCASE KIT1100204521306
INCLUDES ITEMS 13-16PISTON KIT11000004873212
SERIAL NUMBERS: 001001-626617RING, PISTON21000110533016
SERIAL NUMBERS: 001001-626617CYLINDER11010110656217
SERIAL NUMBERS: 626618 & UPRING, PISTON2A10100000016
SERIAL NUMBERS: 626618 & UPCYLINDER1A13000002017
1: OPTIONAL ENGINE REPOWER
2: Also Included In GASKET KIT
Footnotes
99922202804 - 11 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Fan Case, Blower Pipe
99922202804 - 12 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Fan Case, Blower Pipe
REMARKSDESCRIPTIONQTYPART NUMBERITEM
LABEL, ECHO1890118205601
LABEL - MODEL1890115205602
SCREW, 5X206900253050203
CASE, FAN1200111205614
NUT 81900500000085
WASHER2100132056606
FAN1200010205607
LABEL, NOISE1890176205618
SCREW, 5X251900238050259
CONTROL, THROTTLE11780542056010
WASHER 519006030000511
INCLUDES ITEMS 13-15IGNITION SWITCH ASY11634012056012
DECAL, STOP18901571233013
KNOB, SWITCH11634104923114
SCREW19002200301015
CASE, FAN12001052056216
NUT, FLANGE 519005160000517
NUT 519005020000518
CONTROL, THROTTLE11780102056019
COVER, ENGINE11040122056020
SCREW, 5X2059002530502021
LABEL - CAUTION -- HOT18901600636122
ROD, THROTTLE11780112056023
CUSHION23513352056024
LABEL, CAUTION18901600336025
BOLT, 4X2249001620402226
PIPE, STRAIGHT12100150506027
PIPE, BLOWER12100142056028
99922202804 - 13 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Gasket Kit
99922202804 - 14 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Gasket Kit
REMARKSDESCRIPTIONQTYPART NUMBERITEM
GASKET KIT1889000205601
99922202804 - 15 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower RePower Filter Kit
99922202804 - 16 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower RePower Filter Kit
REMARKSDESCRIPTIONQTYPART NUMBERITEM
FILTER KIT1900081
99922202804 - 17 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower RePower Tune-Up Kit
99922202804 - 18 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower RePower Tune-Up Kit
REMARKSDESCRIPTIONQTYPART NUMBERITEM

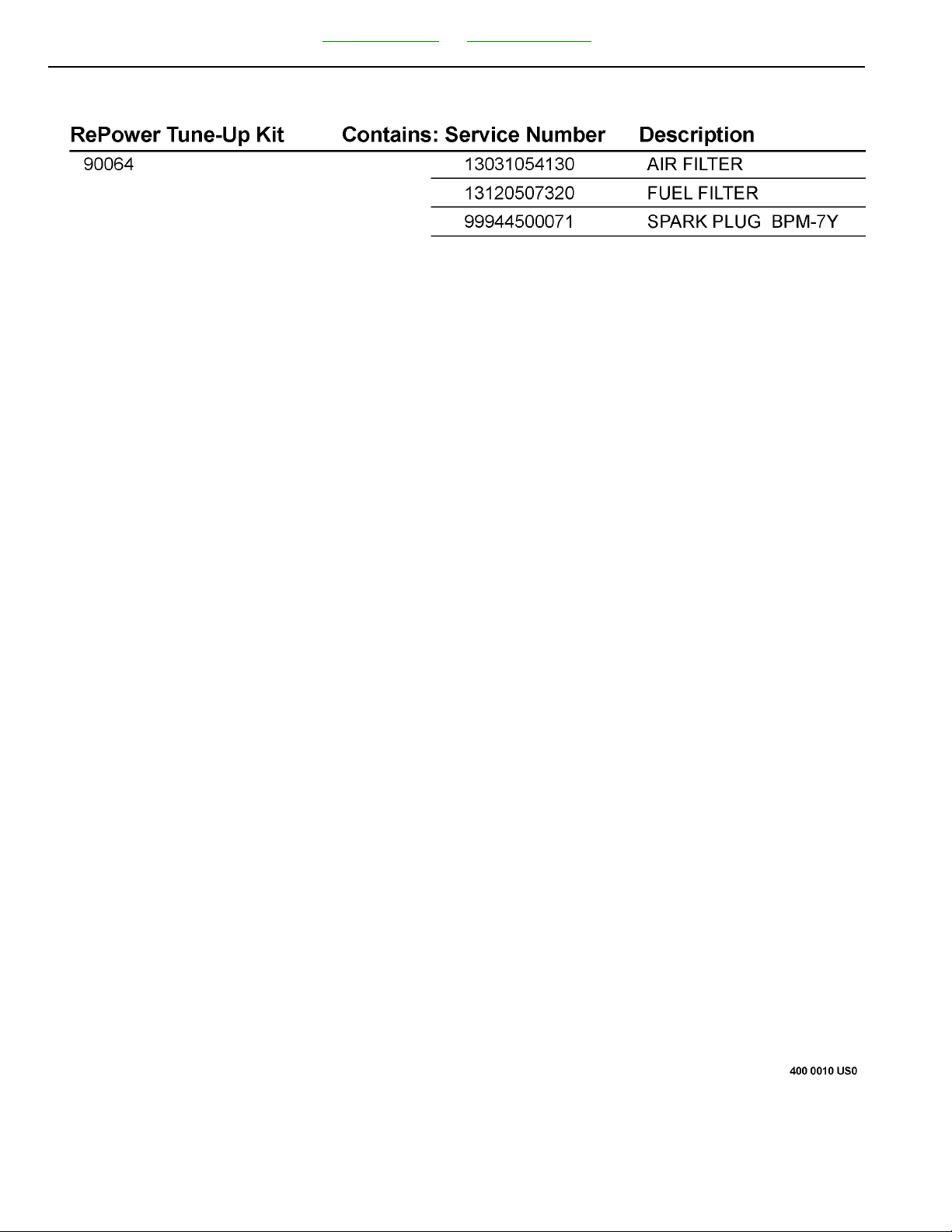

TUNE-UP KIT1900641
99922202804 - 19 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower RePower Tune-Up Kit - Canada Models
99922202804 - 20 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower RePower Tune-Up Kit - Canada Models
REMARKSDESCRIPTIONQTYPART NUMBERITEM
TUNE-UP KIT190064C1
99922202804 - 21 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Tools
99922202804 - 22 - REVISED 10/08/07
Table of Contents Part Number Index
PB-2100 Power Blower Tools
REMARKSDESCRIPTIONQTYPART NUMBERITEM
WRENCH/SCREWDRIVER -- 17X19mm1895410106301
WRENCH/SCREWDRIVER -- 17X19mm1X6020000202
WRENCH/SCREWDRIVER -- 10X19mm1895410391313
WRENCH/SCREWDRIVER -- 13X19mm1895410069604
BOX WRENCH -- 17X14.5mm1X6020000315
LOCKING BAR -- 5X120mm1897518011316
SPANNER -- 8X10mm1895112003307
SPANNER -- 17X19mm1895122209608
SPANNER -- 10mm1895015052609
HEX BAR -- 10mm18954122096010
L-WRENCH -- 3mm18956120343011
L-WRENCH -- 4mm18956100013012
L-WRENCH -- 5mm18956110033013
SCREWDRIVER -- 125mm18958110013014
SCREWDRIVER -- 50mm18958120393015
99922202804 - 23 - REVISED 10/08/07
Table of Contents Part Number Index
Part Number Index
Click The Page Number After Any Part Number To Veiw The Diagram Containing That Part.
PagePart Number
PagePart Number
PagePart Number
5, 7------------------ .............
1110000048732 ............
1110001105330 ............
1110001251230 ............
1110001311520 ............
1110001411520 ............
1110001504630 ............
1110010044733 ............
1310013205660 ............
1110020452130 ............
1110021242030 ............
1110024242030 ............
1110101044332 ............
1110101106562 ............
510151420560 ............
910153154330 ............
1310401220560 ............
712520020560 ............
712530020560 ............
712530320560 ............
712531011610 ............
712531308560 ............
712531451230 ............
712531620560 ............
712531706860 ............
712531820560 ............
712531942030 ............
712532020560 ............
712532411610 ............
712532713930 ............
712532908560 ............
712532909860 ............
712533406860 ............
712533942030 ............
712534207360 ............
712534452130 ............
712534813930 ............
712535020560 ............
712535307760 ............
712536311610 ............
712537607360 ............
712537813930 ............
712538146730 ............
512901152730 ............
513001009561 ............
513001020560 ............
513001705062 ............
513030706561 ............
513031054130 ............
513031306562 ............
913100455530 ............
913100520560 ............
913104528230 ............
913105156030 ............
913120507320 ............
913130056430 ............
913131239130 ............
913132840630 ............
913201056330 ............
913201103360 ............
913201212360 ............
913211546730 ............
514551042031 ............
514580642030 ............
514586240630 ............
514586642031 ............
514587105760 ............
514587420560 ............
514587642030 ............
915661105060 ............
915862606361 ............
915880020560 ............
915901010230 ............
915901103432 ............
915901201620 ............
916201020560 ............
916202120560 ............
1316340120560 ............
1316341049231 ............
917720042033 ............
917720244330 ............
917721544430 ............
917721844330 ............
917722042030 ............
917722610120 ............
917722742030 ............
917722806530 ............
917723442030 ............
917723644330 ............
1317801020560 ............
1317801120560 ............
1317805420560 ............
1320001020560 ............
920001105661 ............
1320010520562 ............
1320011120561 ............
1321001420560 ............
1321001505060 ............
521041752730 ............
1335133520560 ............
943721011131 ............
1588900020560 ............
1389011520560 ............
1389011820560 ............
989011849130 ............
589012105360 ............
589012106360 ............
1389015712330 ............
1389016003360 ............
1389016006361 ............
1389017620561 ............
2389501505260 ............
2389511200330 ............
2389512220960 ............
2389541006960 ............
2389541010630 ............
2389541039131 ............
2389541220960 ............
2389561000130 ............
2389561100330 ............
2389561203430 ............
2389581100130 ............
2389581203930 ............
2389751801131 ............
1790008 ........................
590010505055 ............
990016204016 ............
9, 1390016204022 ............
1190016205022 ............
1190016205028 ............
1390022003010 ............
990023805016 ............
590023805022 ............
1390023805025 ............
590024204010 ............
590024205065 ............
1390025305020 ............
590050000005 ............
1390050000008 ............
1390050200005 ............
1390051600005 ............
5, 9, 1390060300005 ............
1990064 ........................
2190064C ......................
1190081036201 ............
999944500071 ............
11A101000000 ..............
11A130000020 ..............
5A313000020 ..............
9A409000000 ..............
9A409000100 ..............
9A411000020 ..............
11SB1026 ......................
5V104000001 ..............
9V485000040 ..............
11V622000020 ..............
23X602000020 ..............
23X602000031 ..............
99922202804 - 24 - REVISED 10/08/07
Table of Contents Part Number Index
Part Description Index
Click The Page Number After Any Part Desciption To Veiw The Diagram Containing That Part.
B
BEARING, BALL 6201.....11
BEARING, NEEDLE.....11
BODY, CARBURETOR.....7
BOLT, 4X16.....9
BOLT, 4X22.....9, 13
BOLT, WING.....5
BOX WRENCH -- 17X14.5mm.....23
C
CAP, SPARK PLUG.....9
CARBURETOR.....5
CARBURETOR -- C1U-K42.....7
CASE, AIR CLEANER.....5
CASE, FAN.....13
CIRCLIP, PISTON PIN.....11
CLIP.....7
COIL, IGNITION.....9
COIL, SPARK PLUG CAP.....9
COLLAR.....9
CONNECTOR, FUEL CAP.....9
CONNECTOR, FUEL PIPE.....9
CONTROL, THROTTLE.....13
COVER, AIR CLEANER.....5
COVER, CYLINDER.....5
COVER, DIAPHRAGM.....7
COVER, ENGINE.....13
COVER, MUFFLER.....5
COVER, PUMP.....7
COVER, VENT.....9
CRANKCASE KIT.....11
CRANKSHAFT ASY.....11
CUSHION.....13
CYLINDER.....11
D
DECAL, STOP.....13
DIAPHRAGM, METERING.....7
DIAPHRAGM, PUMP.....7
DOWEL PIN.....11
DRUM, STARTER.....9
F
FAN.....13
FILTER KIT.....17
FILTER, AIR.....5
FLYWHEEL.....9
FUEL TANK CAP ASY.....9
G
GASKET KIT.....15
GASKET, CRANKCASE.....11
GASKET, CYLINDER.....11
GASKET, EXHAUST.....5
GASKET, INTAKE.....5
GASKET, METERING DIAPHRAGM.....7
GASKET, MUFFLER.....5
GASKET, PUMP.....7
GASKET/DIAPHRAGM KIT.....7
GRIP, STARTER.....9
GROMMET, FUEL.....9
GUIDE, EXHAUST.....5
GUIDE, EXHAUST - OUTER.....5
GUIDE, ROPE.....9
H
HEX BAR -- 10mm.....23
HUB, FAN.....9
I
IGNITION SWITCH ASY.....13
INSULATOR, INTAKE.....5
K
KNOB, SWITCH.....13
L
LABEL - CAUTION -- HOT.....13
LABEL - MODEL.....13
LABEL, CAUTION.....13
LABEL, CHOKE.....5
LABEL, ECHO.....9, 13
LABEL, NOISE.....13
LEAD, GROUND.....9
LEAD, IGNITION.....9
LEVER, METERING.....7
LEVER, THROTTLE.....7
LIMITER, MIXTURE.....7
LOCKING BAR -- 5X120mm.....23
L-WRENCH -- 3mm.....23
L-WRENCH -- 4mm.....23
L-WRENCH -- 5mm.....23
M
MUFFLER.....5
N
NEEDLE, HIGH SPEED.....7
NOZZLE, CHECK VALVE.....7
NUT 5.....5, 13
NUT 8.....13
NUT, FLANGE 5.....13
O
OIL SEAL.....11
P
PAWL, STARTER.....9
PIECE, FRICTION.....7
PIN, METERING LEVER.....7
PIN, PISTON.....11
PIPE, BLOWER.....13
PIPE, FUEL.....9
PIPE, FUEL - 3X5X90.....9
PIPE, RETURN - 3X6X90.....9
PIPE, STRAIGHT.....13
PIPE, VENT - 3X5X70.....9
PISTON KIT.....11
PLATE, PREVENT.....5
PLUG, WELCH.....7
PURGE, PUMP.....7
R
REPAIR KIT.....7
RETAINER, PURGE PUMP.....7
RING, PISTON.....11
ROD, THROTTLE.....13
ROPE, STARTER - 3X1000mm.....9
SCREEN.....7
SCREEN, MUFFLER.....5
SCREW.....7, 9, 13
SCREW 5X22.....11
SCREW 5X28.....11
SCREW 5X55.....5
SCREW, 4X10.....5
SCREW, 5X16.....9
SCREW, 5X20.....13
SCREW, 5X22.....5
SCREW, 5X25.....13
SCREW, 5X65.....5
SCREW, IDLE ADJUST.....7
SCREW, IDLE NEEDLE.....7
SCREWDRIVER -- 125mm.....23
SCREWDRIVER -- 50mm.....23
SHAFT, THROTTLE.....7
SHORT BLOCK.....11
SPACER.....9
SPACER, PISTON PIN.....11
SPANNER -- 10mm.....23
SPANNER -- 17X19mm.....23
SPANNER -- 8X10mm.....23
SPARK PLUG -- BPM-7Y.....9
SPARK PLUG -- BPMR-7A.....9
SPRING, METERING LEVER.....7
SPRING, NEEDLES.....7
SPRING, RETURN.....9
SPRING, REWIND.....9
SPRING, THROTTLE RETURN.....7
STARTER ASY.....9
STARTER PAWL ASY.....9
STRAINER, FUEL.....9
TANK, FUEL.....9
TUBE.....9
TUNE-UP KIT.....19, 21
VALVE, CHECK.....9
VALVE, INLET NEEDLE.....7
VALVE, THROTTLE.....7
WASHER.....7, 13
WASHER 5.....5, 9, 13
WRENCH/SCREWDRIVER -- 10X19mm.....23
WRENCH/SCREWDRIVER -- 13X19mm.....23
WRENCH/SCREWDRIVER -- 17X19mm.....23
S
T
V
W
99922202804 - 25 - REVISED 10/08/07
ECHO, INCORPORATED
400 Oakwood Road
Lake Zurich, IL 60047 USA
WWW.ECHO-USA.COM
Loading...
