A VAILABLE A TT ACHMENTS & ACCESSORIES
ATTACHMENTS
99944200470 EDGER ATT ACHMENT
99944200480 HEDGE CLIPPER A TTACHMENT
99944200510 CU L TIV A T OR A TT ACHMENT
99944200530 POWER PRUNER A TTACHMENT
99944200540 TRIMMER ATTACHMENT
99944200550 PROSWEEP A TTACHMENT
99944200560 PROTHA TCH ATT ACHMENT
99944200590 ARTICULATING HEDGE CLIPPER A TTCH
99944200600 80 T OOTH BLADE TRIMMER A TTCH
99944200610 PRO RAPID LOADER A TTACHMENT
99944200620 PROPADDLE A TTACHMENT
99944200630 P AS A TT ACHMENT HANGER KIT
PARTS CATALOG
PRO ATTACHMENT
SERIES
25.4cc
MODEL: SERIAL NUMBERS
PAS-260:
03001001-03999999
04001001-04999999
05001001-05999999
06001001-06999999
07001001-07999999
ACCESSORIES
99944200002 i-START ACCESSOR Y KIT
99944200200 SHOULDER STRAP KIT
99944200220 HEAVY DUTY MANUAL 4 LINE HEAD
99944200415 UNIVERSAL BLADE CONVERSION KIT
99944200411 20mm BLADE CONVERSION KIT
99944200455 BARRIER BAR
99944200561 OFFSET U-HANDLE/BLADE CONV KIT
99944200661 OFFSET U-HANDLE KIT
PAS-261:
02001001-02999999
06001001-06999999
©2005 ECHO, Incorporated. All Right s Reserved
ECHO, INCORPORA TED
400 Oakwood Road Lake Zurich, Illinois 60047
WWW.ECHO-USA.COM
99922203280
REVISED 11/17/05
PAS-260, 261
SERIAL NUMBERS: 02001001-04999999
ENGINE, SHORT BLOCK, IGNITION, CYLINDER COVER
20
21
22
26
27
33
32
25
24
CANADA --
28
29
23
19
30
31
1
2
3
4
6
34
18
17
GASKET KIT
35
36
-- PAS-260
-- PAS-261
16
15
5
7
8
9
10
11
14
13
12
2
PAS-260, 261
ENGINE, SHORT BLOCK, IGNITION, CYLINDER COVER
SERIAL NUMBERS: 02001001-04999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
OPTIONAL ENGINE REPOWER
1
SB1047 1 SHORT BLOCK INCLUDES ITEMS 2-18
2
A130000122 1 CYLINDER
3
90016205022 4 BOLT 5X22
4
V100000010 1 GASKET, CYLINDER
5
P021002360 1 PISTON KIT INCLUDES ITEMS 6-9
6
A101000010 2 RING, PISTON
7
V606000000 1 PIN, PISTON
8
10001504630 2 CIRCLIP, PISTON PIN
9
10001455930 2 SPACER, PISTON PIN
10
V553000020 1 BEARING, NEEDLE
11
A011000030 1 CRANKSHAFT ASY
12
P021000940 1 CRANKCASE KIT INCLUDES ITEMS 13-18
13
10021305530 1 OIL SEAL
14
90080036001 2 BEARING, BALL 6001
15
90070200028 1 CIRCLIP 28
16
10024255930 1 GASKET, CRANKCASE
17
90016205025 4 BOLT 5X25
18
10021228230 1 OIL SEAL
19
A160000040 1 COVER, CYLINDER
20
9111005016 1 BOLT 5X16
21
V353000020 1 COLLAR 5
22
A162000000 1 GUARD, TOP
23
90024205010 1 SCREW 5X10
24
16201452930 1 LEAD, GROUND
Also Included In GASKET KIT
25
A411000010 1 COIL, IGNITION
26
90016205016 2 BOLT 5X16
27
15611240630 1 GROMMET
28
15901203433 1 CAP, SPARK PLUG
29
15901103432 1 TERMINAL, SPARK PLUG CAP
30
99944500071 1 SPARK PLUG -- BPM-7Y
31
15901010230 1 SPARK PLUG -- BPMR-7A CANADA MODELS: 04001001-04999999
32
16201056430 1 LEAD, GROUND
33
A409000020 1 FLYWHEEL
34
90051500008 1 FLANGE NUT 8
MODELS PAS-260 SERIAL NUMBERS: 03001001-04999999
35
P021002351 1 GASKET KIT
MODELS PAS-261 SERIAL NUMBERS: 02001001-02999999
36
P021001521 1 GASKET KIT
3
PAS-260, 261
SERIAL NUMBERS: 05001001-07999999
ENGINE, SHORT BLOCK, IGNITION, CYLINDER COVER
21
22
23
36
27
28
35
34
26
25
29
CANADA --
30
31
24
20
32
33
1
2
3
4
6
18
17
GASKET KIT
19
16
15
5
7
8
9
10
11
14
13
12
4
PAS-260, 261
ENGINE, SHORT BLOCK, IGNITION, CYLINDER COVER
SERIAL NUMBERS: 05001001-07999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
OPTIONAL ENGINE REPOWER
1
SB1060 1 SHORT BLOCK INCLUDES ITEMS 2-18
2
A130000371 1 CYLINDER
3
90016205022 4 BOLT 5X22
4
V100000070 1 GASKET, CYLINDER
5
P021004740 1 PISTON KIT INCLUDES ITEMS 6-10
6
A101000010 2 RING, PISTON
7
V606000000 1 PIN, PISTON
8
10001504630 2 CIRCLIP, PISTON PIN
9
10001455930 2 SPACER, PISTON PIN
10
V553000020 1 BEARING, NEEDLE
11
A011000030 1 CRANKSHAFT ASY
12
P021000940 1 CRANKCASE KIT INCLUDES ITEMS 13-18
13
10021305530 1 OIL SEAL
14
90080036001 2 BEARING, BALL
15
90070200028 1 CIRCLIP 28
16
10024255930 1 GASKET, CRANKCASE
17
90016205025 4 BOLT 5X25
18
10021228230 1 OIL SEAL
Also Included In GASKET KIT
19
P021003970 1 GASKET KIT
20
A160000040 1 COVER, CYLINDER
21
9111005016 1 BOLT 5X16
22
V353000020 1 COLLAR 5
23
A162000000 1 GUARD, TOP
24
90024205010 1 SCREW 5X10
25
16201452930 1 LEAD, GROUND
26
A411000110 1 COIL, IGNITION
27
90016205016 2 BOLT 5X16
28
15611240630 1 GROMMET
29
V475002200 1 TUBE
30
15901203433 1 CAP, SPARK PLUG
31
15901103432 1 COIL, SPARK PLUG CAP
32
15901019830 1 SPARK PLUG -- BPM-8Y
33
15901019830 1 SPARK PLUG -- BPMR-8Y CANADA MODELS: 07001001-07999999
34
16201056430 1 LEAD, GROUND
35
A409000130 1 FLYWHEEL
36
90051500008 1 FLANGE NUT 8
5
PAS-260, 261
SERIAL NUMBERS: ALL
FANCASE, CLUTCH
PAS-260 --
1
3
PAS-261--
2
13
4
5
7
6
8
9
10
11
12
17
18
14
15
16
19
6
PAS-260, 261
SERIAL NUMBERS: ALL
ITEM PART NUMBER QTY DESCRIPTION REMARKS
90070200042 1 CIRCLIP 42
1
61092255931 1 FIXTURE, MAIN PIPE
2
90016205028 1 BOLT 5X28
3
X503000460 1 LABEL, MODEL -- PAS-260
4
X503001180 1 LABEL, MODEL -- PAS-261
5
P021001410 1 FAN COVER ASY INCLUDES ITEMS 6-11
6
90070100012 1 CIRCLIP 12
7
A172000030 1 COVER, FAN
8
10021503930 2 DOWEL PIN
9
90080706001 2 BEARING, BALL 6001
10
90070200028 1 CIRCLIP 28
11
A556000030 1 DRUM, CLUTCH
12
90016205018 2 BOLT 5X18
13
17811106230 1 CLIP
14
17504656030 2 SHAFT, CLUTCH
15
17504956030 2 WASHER
16
A553000010 2 SHOE, CLUTCH
17
V451000090 1 TENSION SPRING
18
17504805530 2 WASHER
19
FANCASE, CLUTCH
7
PAS-260, 261
SERIAL NUMBERS: ALL
STARTER, FUEL SYSTEM
2
5
1
3
4
6
9
14
15
13
12
7
8
11
10
16
17
30
31
32
18
20
19
21
18
22
27
28
23
25
26
24
29
8
PAS-260, 261
SERIAL NUMBERS: ALL
ITEM PART NUMBER QTY DESCRIPTION REMARKS
17720240630 1 STARTER PAWL ASY INCLUDES ITEMS 2-4
1
90070000004 1 E-RING 4
2
17723440630 1 SPRING, RETURN
3
17721840630 1 PAWL, STARTER
4
90050200008 1 NUT 8
5
17720055931 1 STARTER ASY INCLUDES ITEMS 7-13
6
17723644330 1 SCREW
7
17721540630 1 DRUM, STARTER
8
17722040630 1 SPRING, REWIND
9
90056500005 1 NUT
10
17722603930 1 ROPE, STARTER - 3.5X850mm BULK OPTION: 99944445000
11
17722742030 1 GUIDE, ROPE
12
17722827030 1 GRIP, STARTER
13
9112604012 4 BOLT 4X12
14
89011849130 1 LABEL, ECHO
15
13201038331 1 PIPE, FUEL
16
A356000030 1 VALVE, CHECK
17
13201326630 2 CLIP
18
V471000110 1 PIPE, VENT - 3X6X115mm BULK OPTION: 90015
19
13201256030 1 PIPE, RETURN - 3X6X80mm BULK OPTION: 90017
20
13211555930 1 GROMMET, FUEL
21
13120519830 1 FILTER, FUEL
22
A350000110 1 TANK, FUEL INCLUDES ITEM 24
23
13104528230 2 SPACER
24
90060300005 2 WASHER 5
25
90016205016 2 BOLT 5X16
26
90016205022 2 BOLT 5X22
27
30511057733 1 STAND
28
90024405020 1 SCREW
29
13100455530 1 FUEL TANK CAP ASY INCLUDES ITEM 31-32
30
13101655830 1 GASKET, FUEL CAP
31
13105156030 1 CONNECTOR, FUEL CAP
32
STARTER, FUEL SYSTEM
9
PAS-260, 261
SERIAL NUMBERS: 02001001-04999999
INTAKE, EXHAUST
1
GASKET KIT
25
- MODELS PAS-260
S/N: 03001001-04999999
34
- MODELS PAS-261
S/N: 02001001-02999999
5
2
7
3
4
-- CANADA
12
11
9
8
10
13
6
14
S/N: 03001001-04999999
20
18
19
21
26
22
27
17
15
24
16
23
29
33
28
32
31
30
10
S/N: 02001001-02999999
PAS-260, 261
SERIAL NUMBERS: 02001001-04999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
13040652130 1 KNOB, FASTENER
2
13031357731 1 LID, AIR CLEANER
3
89012152730 1 LABEL, CHOKE
4
89033252730 1 LABEL, CHOKE CANADA MODELS: 04001001-04999999
5
13031051830 1 FILTER, AIR
6
90024205060 2 SCREW 5X60
7
12901157730 1 PLATE PREVENT
8
P021001430 1 CASE, AIR CLEANER
9
13001013410 1 GASKET, INTAKE
10
90016205025 2 BOLT 5X25
11
13001756431 1 INSULATOR
12
13001055930 1 GASKET, INTAKE
13
------------------ 1 CARBURETOR**
**SEE CARBURETOR DIAGRAMS FOR MODEL APPLICATIONS AND SERIAL NUMBERS
V104000061 1 SHIELD, MUFFLER
14
A320000001 1 COVER, MUFFLER
15
90010605012 2 BOLT 5X12
16
89016006361 1 LABEL, CAUTION - HOT
17
INTAKE, EXHAUST
MODELS PAS-260 SERIAL NUMBERS: 03001001-04999999
18
14580642030 1 MUFFLER
19
90060000005 2 WASHER
20
90010505055 2 BOLT 5X55
21
14586240630 1 SCREEN, MUFFLER
22
V104000002 1 GASKET, EXHAUST
23
A313000160 1 GUIDE, EXHAUST
24
9136704010 3 SCREW 4X10
25
P021002351 1 GASKET KIT
MODELS PAS-261 SERIAL NUMBERS: 02001001-02999999
A300000140 1 MUFFLER
26
V150000371 1 PLATE, EYE
27
V347000000 4 CONICAL WASHER
28
90010505055 2 BOLT 5X55
29
14586240630 1 SCREEN, MUFFLER
30
V104000360 1 GASKET, EXHAUST
31
A313000130 1 GUIDE, EXHAUST
32
9136704010 5 SCREW 4X10
33
P021001521 1 GASKET KIT
35
Also Included In GASKET KIT
11
PAS-260, 261
SERIAL NUMBERS: 05001001-07999999
INTAKE, EXHAUST
GASKET KIT
18
8
7
5
2
1
3
-- CANADA
4
6
11
9
13
12
10
S/N: 05001001 - 05999999
07001001-07999999
20
19
14
21
22
26
23
27
17
15
25
16
24
29
33
28
32
31
30
12
S/N: 06001001-06999999
PAS-260, 261
SERIAL NUMBERS: 05001001-07999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
13040652130 1 KNOB, FASTENER
2
13031357731 1 LID, AIR CLEANER
3
89012152730 1 LABEL, CHOKE
4
89033252730 1 LABEL, CHOKE CANADA MODELS: 07001001-07999999
5
13031051830 1 FILTER, AIR
6
90024205060 2 SCREW 5X60
7
12901157730 1 PLATE PREVENT
8
P021001430 1 CASE, AIR CLEANER
9
13001013410 1 GASKET, INTAKE
10
90016205025 2 BOLT 5X25
11
13001756431 1 INSULATOR
12
13001055930 1 GASKET, INTAKE
13
------------------ 1 CARBURETOR**
**SEE CARBURETOR DIAGRAMS FOR MODEL APPLICATIONS AND SERIAL NUMBERS
V104000061 1 SHIELD, MUFFLER
14
A320000001 1 COVER, MUFFLER
15
90010605012 2 BOLT 5X12
16
89016006361 1 LABEL, CAUTION - HOT
17
INTAKE, EXHAUST
P021003970 1 GASKET KIT
18
MODELS PAS-260 SERIAL NUMBERS: 05001001-05999999 & 07001001-07999999
19
14580642030 1 MUFFLER
20
90060000005 2 WASHER
21
90010505055 2 BOLT 5X55
22
14586240630 1 SCREEN, MUFFLER
23
14586642031 1 GASKET, EXHAUST
24
A313000350 1 GUIDE, EXHAUST
25
90024204010 3 SCREW 4X10
MODELS PAS-260, 261 SERIAL NUMBERS: 06001001-06999999
A300000141 1 MUFFLER
26
V150000371 1 PLATE, EYE
27
V347000000 4 CONICAL WASHER
28
90010505055 2 BOLT 5X55
29
14586240630 1 SCREEN, MUFFLER
30
V104000360 1 GASKET, EXHAUST
31
A313000130 1 GUIDE, EXHAUST
32
9136704010 5 SCREW 4X10
33
Also Included In GASKET KIT
13

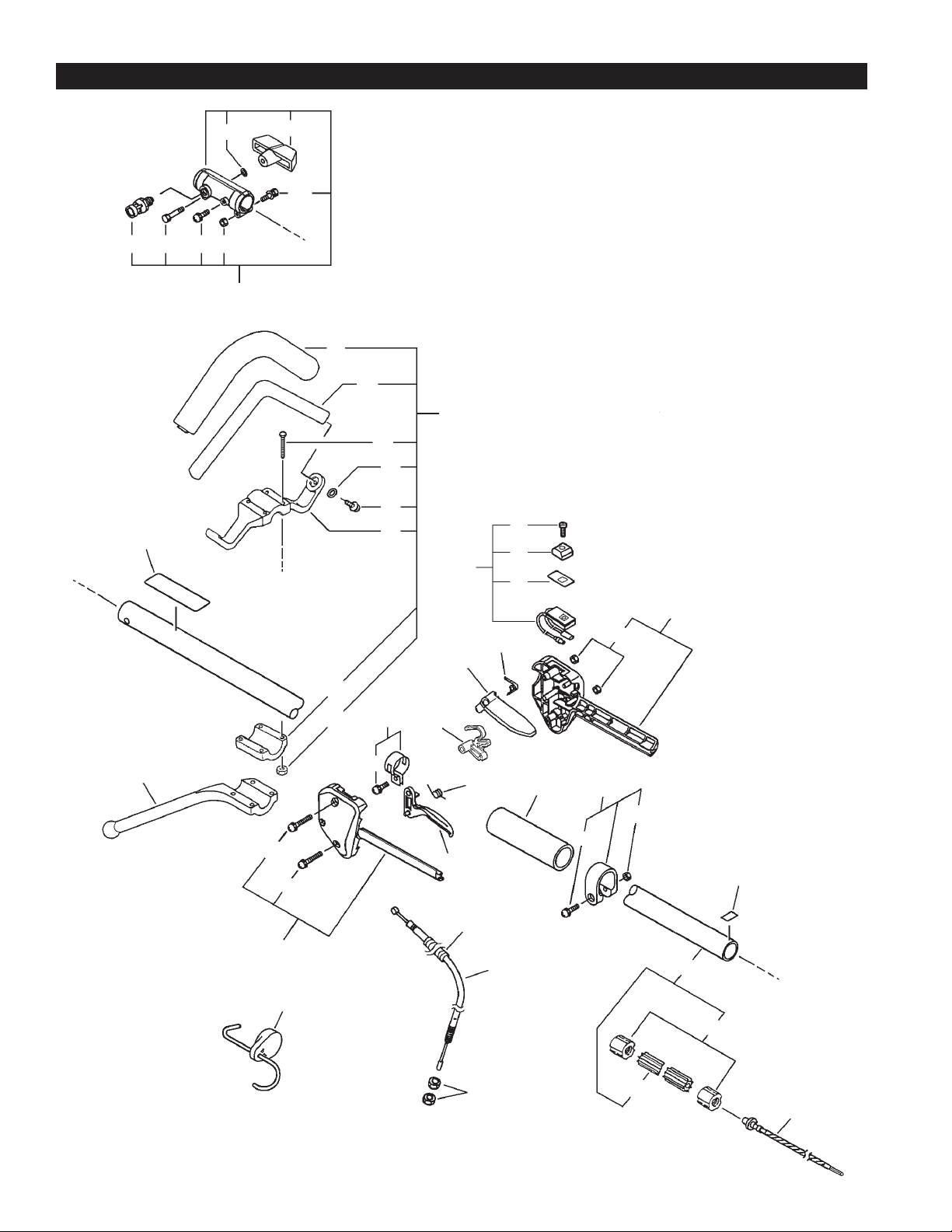

PAS-260, 261
HANDLE, STOP SWITCH, THROTTLE CABLE, DRIVESHAFT
SERIAL NUMBERS: 02001001-04999999
3
2
8
9
7
1
5
4
6
11
12
10
13
14
19
24
22
25
17
18
21
15
16
20
27
29
28
30
26
32
22
23
33
35
34
41
36
31
14
38
37
39
40
PAS-260, 261
HANDLE, STOP SWITCH, THROTTLE CABLE, DRIVESHAFT
SERIAL NUMBERS: 02001001-04999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
61060156732 1 COUPLER ASY INCLUDES ITEM 2-9
2
90060500005 1 SPRING WASHER 5
3
90060000005 1 WASHER 5
4
V299000100 1 KNOB
5
90010005040 1 BOLT 5X40
6
90014205030 1 BOLT 5X30
7
90050000005 1 NUT 5
8
90024205012 1 SCREW 5X12
9
17830256630 1 LATCH ASY
10
P021000020 1 FRONT HANDLE ASY INCLUDES ITEMS 11-18
11
35121666230 1 GRIP, HANDLE
12
35120566230 1 HANDLE, FRONT
13
88995021060 2 SCREW 5
14
90060000005 2 WASHER 5
15
90025305020 4 SCREW 5X20
16
35123266230 1 BRACKET, HANDLE - UPPER
17
35122507130 1 BRACKET, HANDLE - LOWER
18
90050000005 4 NUT 5
19
89022809560 1 LABEL, CAUTION - SPANISH
20
30120029430 1 BAND ASY INCLUDES ITEM 21
21
90024205014 1 SCREW 5X14
22
17800352130 1 THROTTLE BRACKET SET INCLUDES ITEMS 23-25
23
90050000005 2 NUT 5
24
90024205035 1 SCREW 5X35
25
90024205025 1 SCREW 5X25
26
16340049330 1 SWITCH, IGNITION
27
17801052130 1 CONTROL, THROTTLE
28
17804342230 1 SPRING, THROTTLE RETURN
29
16211056530 1 TUBE
30
V430000140 1 CABLE, THROTTLE
31
90050200006 2 NUT 6
32
35121352130 1 GRIP, REAR HANDLE
33
61027252130 1 BAND INCLUDES ITEMS 34-35
34
90024205028 1 SCREW 5X28
35
90050000005 1 NUT 5
36
61020656730 1 DRIVESHAFT HOUSING AS INCLUDES ITEMS 37-38
37
61024644730 2 STOPPER
38
61021756730 1 LINER, FLEXIBLE - UPPER
39
10025156630 1 CUSHION
40
61001355630 1 SHAFT, FLEXIBLE - UPPER
41
89015204930 1 LABEL, ALIGNMENT
15
PAS-260, 261
HANDLE, STOP SWITCH, THROTTLE CABLE, DRIVESHAFT
SERIAL NUMBERS: 05001001-07999999
2
8
7
19
5
6
1
3
4
10
11
9
12
13
14
15
26
27
28
29
18
24
22
25
47
16
17
21
20
35
30
36
31
34
37
32
38
22
23
39
41
40
46
42
43
16
33
44
45
PAS 0001 00 000
PAS-260, 261
HANDLE, STOP SWITCH, THROTTLE CABLE, DRIVESHAFT
SERIAL NUMBERS: 05001001-07999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
P021004350 1 COUPLER ASY INCLUDES ITEM 2-8
2
V304000040 1 WASHER
3
V299000160 1 KNOB
4
90010506025 1 BOLT 5X25
5
90051400006 1 NUT 6
6
90010506010 1 BOLT 6X10
7
9108506040 1 BOLT 6X40
8
17830256630 1 LATCH ASY
9
P021000020 1 FRONT HANDLE ASY INCLUDES ITEMS 10-17
10
35121666230 1 GRIP, HANDLE
11
35120566230 1 HANDLE, FRONT
12
88995021060 2 SCREW 5
13
90060000005 2 WASHER 5
14
90025305020 4 SCREW 5X20
15
35123266230 1 BRACKET, HANDLE - UPPER
16
35122507130 1 BRACKET, HANDLE - LOWER
17
90050000005 4 NUT 5
18
99944200455 1 BAR, BARRIER
19
89022809560 1 LABEL, CAUTION - SPANISH
20
30120029430 1 BAND ASY INCLUDES ITEM 21
21
90024205014 1 SCREW 5X14
22
17800352130 1 THROTTLE BRACKET SET INCLUDES ITEMS 23-25
23
90050000005 2 NUT 5
24
90024205035 1 SCREW 5X35
25
90024205025 1 SCREW 5X25
26
A440000280 1 IGNITION SWITCH ASY INCLUDES ITEMS 27-29
27
9154503010 1 SCREW
28
16341049231 1 KNOB, SWITCH
29
89015712330 1 COVER, SWITCH
30
17801052130 1 TRIGGER, THROTTLE
31
V475000850 1 TUBE
32
V430000140 1 CABLE, THROTTLE
33
90050200006 2 NUT 6
34
17804342230 1 SPRING, THROTTLE RETURN
35
17801252730 1 LATCH, THROTTLE TRIGGER LOCKOUT
36
17809052630 1 LEVER, THROTTLE TRIGGER LOCKOUT
37
17801352630 1 SPRING, THROTTLE TRIGGER LOCKOUT
38
35121352130 1 GRIP, REAR HANDLE
39
61027252130 1 BAND INCLUDES ITEMS 40-41
40
90024205028 1 SCREW 5X28
41
90050000005 1 NUT 5
42
61020656730 1 DRIVESHAFT HOUSING ASY - UPPER INCLUDES ITEMS 43-44
43
61024644730 2 STOPPER
44
61021756730 1 LINER, FLEXIBLE - UPPER
45
C506000041 1 SHAFT, FLEXIBLE - UPPER
46
89015204930 1 LABEL, ALIGNMENT
47
99944200630 1
PAS ATTACHMENT HANGER 4 PER PACKAGE
17
PAS-260, 261
SERIAL NUMBERS:
CARBURETOR -- WYJ-276
PAS-260: 03001001 - 03006253
PAS-260: 04001001 - 04999999
PAS-261: 02001001 - 02002396
31
32
1
2
5
3
6
4
7
8
9
23
10
33
24
22
34
25
11
35
36
15
16
17
13
14
12
26
27
28
29
30
18
19
18
20
21
PAS-260, 261
CARBURETOR -- WYJ-276
SERIAL NUMBERS:
PAS-260: 03001001 - 03006253
ITEM PART NUMBER QTY DESCRIPTION REMARKS
SERIAL NUMBERS:
PAS-261: 02001001 - 02002396
PAS-260: 04001001 - 04999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000240 1 CARBURETOR -- WYJ-276
12311440630 2 SCREW, CABLE BRACKET
1
P003000180 1 BRACKET, CABLE
2
------------------ 1 THROTTLE VALVE ASY NOT AVAILABLE SEPARATELY
3
12313440030 1 SCREW, IDLE ADJUST
4
12317245130 1 SWIVEL
5
12314954230 1 WASHER
6
12317307930 1 CLIP
7
------------------ 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
8
12318340630 1 O-RING
9
P003000470 1 JET
10
12317905560 1 PUMP BODY ASY INCLUDES ITEMS 12-17
11
------------------ 1 SCREEN, INLET
12
12312205560 1 SPRING, METERING LEVER
13
------------------ 1 VALVE, INLET NEEDLE
14
------------------ 1 LEVER, METERING
15
12313803930 1 PIN, METERING LEVER
16
12313905560 1 SCREW, METERING LEVER PIN
17
12318005560 1 BODY, AIR PURGE
18
12318140630 1 PUMP, PRIMER
19
12314205560 1 COVER, PRIMER PUMP
20
12311005560 4 SCREW, PUMP COVER
21
P003000190 1 REPAIR KIT INCLUDES ITEMS 23-30
22
------------------ 1 RING, PACKING
23
------------------ 1 GASKET, PUMP
24
------------------ 1 DIAPHRAGM, PUMP
25
------------------ 1 SCREEN, INLET
26
------------------ 1 VALVE, INLET NEEDLE
27
------------------ 1 LEVER, METERING
28
------------------ 1 GASKET, METERING DIAPHRAGM
29
------------------ 1 METERING, DIAPHRAGM
30
P003000200 1 GASKET/DIAPHRAGM KIT INCLUDES ITEMS 32-36
31
------------------ 1 RING, PACKING
32
------------------ 1 GASKET, PUMP
33
------------------ 1 DIAPHRAGM, PUMP
34
------------------ 1 GASKET, METERING DIAPHRAGM
35
------------------ 1 METERING, DIAPHRAGM
36

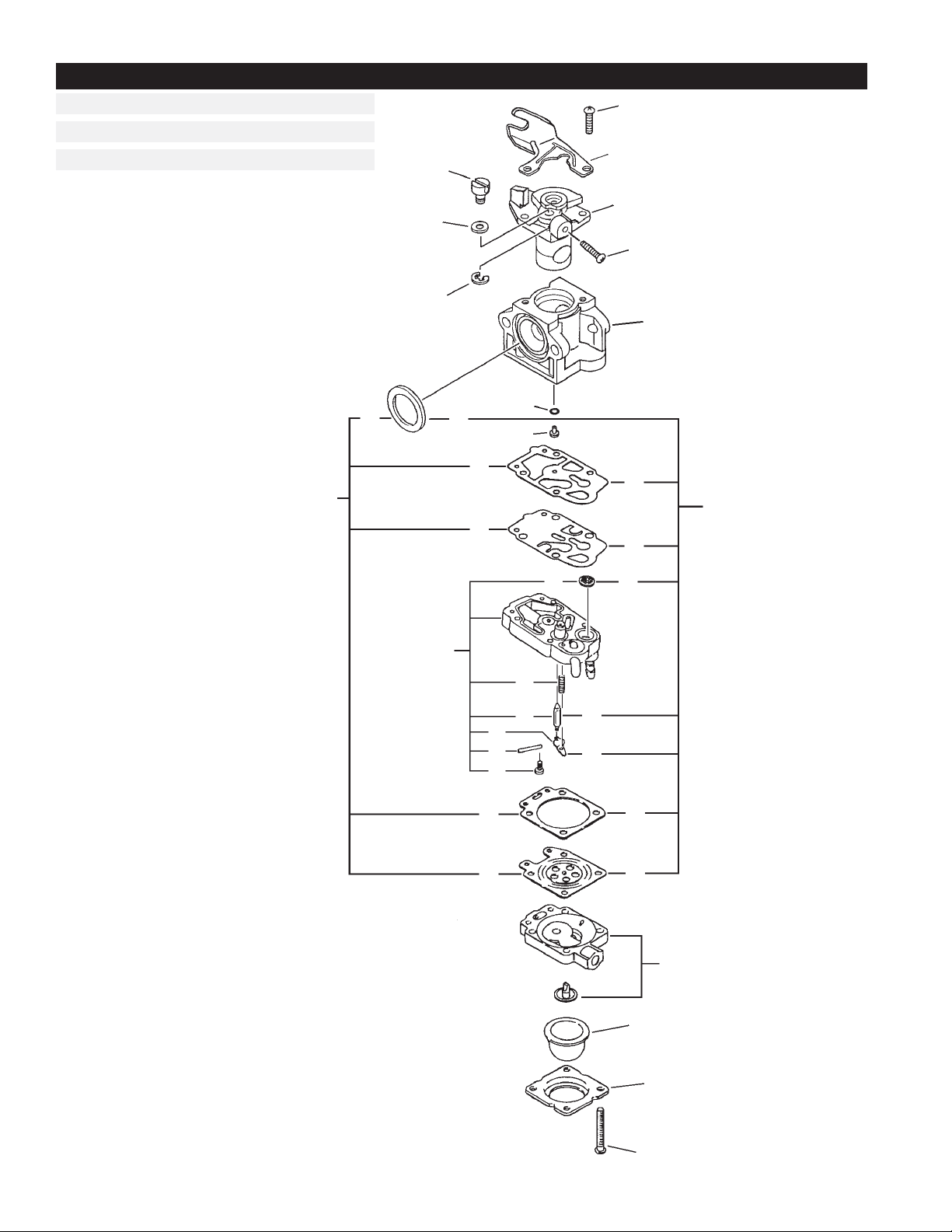

19
PAS-260, 261
SERIAL NUMBERS:
CARBURETOR -- WYJ-250B
PAS-260: 03006254 - 03999999
PAS-261: 02002397 - 02999999
31
32
1
2
5
3
6
4
7
8
9
23
10
33
24
22
34
25
11
35
36
15
16
17
13
14
12
26
27
28
29
30
18
19
20
20
21
PAS-260, 261
SERIAL NUMBERS:
PAS-260: 03006254 - 03999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
PAS-261: 02002397 - 02999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000051 1 CARBURETOR -- WYJ-250B
12311440630 2 SCREW, CABLE BRACKET
1
P003000180 1 BRACKET, CABLE
2
------------------ 1 THROTTLE VALVE ASY NOT AVAILABLE SEPARATELY
3
12313440030 1 SCREW, IDLE ADJUST
4
12317245130 1 SWIVEL
5
12314954230 1 WASHER
6
12317307930 1 CLIP
7
------------------ 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
8
12318340630 1 O-RING
9
P003000260 1 JET
10
12317905560 1 PUMP BODY ASY INCLUDES ITEMS 12-17
11
------------------ 1 SCREEN, INLET
12
12312205560 1 SPRING, METERING LEVER
13
------------------ 1 VALVE, INLET NEEDLE
14
------------------ 1 LEVER, METERING
15
12313803930 1 PIN, METERING LEVER
16
12313905560 1 SCREW, METERING LEVER PIN
17
12318005560 1 BODY, AIR PURGE
18
12318140630 1 PUMP, PRIMER
19
12314205560 1 COVER, PRIMER PUMP
20
12311005560 4 SCREW, PUMP COVER
21
CARBURETOR -- WYJ-250B
P003000190 1 REPAIR KIT INCLUDES ITEMS 23-30
22
------------------ 1 RING, PACKING
23
------------------ 1 GASKET, PUMP
24
------------------ 1 DIAPHRAGM, PUMP
25
------------------ 1 SCREEN, INLET
26
------------------ 1 VALVE, INLET NEEDLE
27
------------------ 1 LEVER, METERING
28
------------------ 1 GASKET, METERING DIAPHRAGM
29
------------------ 1 METERING, DIAPHRAGM
30
P003000200 1 GASKET/DIAPHRAGM KIT INCLUDES ITEMS 32-36
31
------------------ 1 RING, PACKING
32
------------------ 1 GASKET, PUMP
33
------------------ 1 DIAPHRAGM, PUMP
34
------------------ 1 GASKET, METERING DIAPHRAGM
35
------------------ 1 METERING, DIAPHRAGM
36
21
PAS-260, 261
SERIAL NUMBERS:
PAS-260: 05001001 - 05010380
PAS-260: 07001001 - 07001672
PAS-261: 06001001 - 06002011
CARBURETOR -- WYJ-315
1
2
5
3
6
4
7
8
31
32
11
23
33
34
35
15
16
17
10
13
14
9
24
22
25
12
26
27
28
29
22
36
30
18
19
20
21
PAS-260, 261
CARBURETOR -- WYJ-315
SERIAL NUMBERS:
PAS-260: 05001001 - 05010380
ITEM PART NUMBER QTY DESCRIPTION REMARKS
SERIAL NUMBERS:
PAS-261: 06001001 - 06002011
PAS-260: 07001001 - 07001672
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000460 1 CARBURETOR -- WYJ-315
12311440630 2 SCREW, CABLE BRACKET
1
P003000180 1 BRACKET, CABLE
2
------------------ 1 THROTTLE VALVE ASY NOT AVAILABLE SEPARATELY
3
12313440030 1 SCREW, IDLE ADJUST
4
12317245130 1 SWIVEL
5
12314954230 1 WASHER
6
12317307930 1 CLIP
7
------------------ 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
8
12318340630 1 O-RING
9
P003000260 1 JET
10
12317905560 1 PUMP BODY ASY INCLUDES ITEMS 12-17
11
------------------ 1 SCREEN, INLET
12
12312205560 1 SPRING, METERING LEVER
13
------------------ 1 VALVE, INLET NEEDLE
14
------------------ 1 LEVER, METERING
15
12313803930 1 PIN, METERING LEVER
16
12313905560 1 SCREW, METERING LEVER PIN
17
12318005560 1 BODY, AIR PURGE
18
12318140630 1 PUMP, PRIMER
19
12314205560 1 COVER, PRIMER PUMP
20
12311005560 4 SCREW, PUMP COVER
21
P003000190 1 REPAIR KIT INCLUDES ITEMS 23-30
22
------------------ 1 RING, PACKING
23
------------------ 1 GASKET, PUMP
24
------------------ 1 DIAPHRAGM, PUMP
25
------------------ 1 SCREEN, INLET
26
------------------ 1 VALVE, INLET NEEDLE
27
------------------ 1 LEVER, METERING
28
------------------ 1 GASKET, METERING DIAPHRAGM
29
------------------ 1 METERING, DIAPHRAGM
30
P003000200 1 GASKET/DIAPHRAGM KIT INCLUDES ITEMS 32-36
31
------------------ 1 RING, PACKING
32
------------------ 1 GASKET, PUMP
33
------------------ 1 DIAPHRAGM, PUMP
34
------------------ 1 GASKET, METERING DIAPHRAGM
35
------------------ 1 METERING, DIAPHRAGM
36
23
PAS-260, 261
SERIAL NUMBERS:
PAS-260: 05010381 - 05999999
PAS-260: 06001001 - 06999999
PAS-260: 07001673 - 07999999
PAS-261: 06002012 - 06999999
CARBURETOR -- WYK-186
1
2
5
3
6
4
31
32
7
11
23
33
34
15
16
17
13
14
12
8
10
9
24
22
25
26
27
28
24
35
36
29
30
18
19
20
21
PAS-260, 261
CARBURETOR -- WYK-186
SERIAL NUMBERS:
PAS-260: 05010381 - 05999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
PAS-260: 06001001 - 06999999
ITEM PART NUMBER QTY DESCRIPTION REMARKS
A021000700 1 CARBURETOR -- WYK-186
12311440630 2 SCREW, CABLE BRACKET
1
P003000180 1 BRACKET, CABLE
2
------------------ 1 THROTTLE VALVE ASY NOT AVAILABLE SEPARATELY
3
12313440030 1 SCREW, IDLE ADJUST
4
12317245130 1 SWIVEL
5
12314954230 1 WASHER
6
12317307930 1 CLIP
7
------------------ 1 BODY, CARBURETOR NOT AVAILABLE SEPARATELY
8
A259000000 1 CAP, LIMITER
9
P003001130 1 NEEDLE, HIGH SPEED
10
P003000890 1 PUMP BODY ASY INCLUDES ITEMS 12-17
11
------------------ 1 SCREEN, INLET
12
12312205560 1 SPRING, METERING LEVER
13
------------------ 1 VALVE, INLET NEEDLE
14
------------------ 1 LEVER, METERING
15
12313803930 1 PIN, METERING LEVER
16
12313905560 1 SCREW, METERING LEVER PIN
17
12318005560 1 BODY, AIR PURGE
18
12318140630 1 PUMP, PRIMER
19
12314205560 1 COVER, PRIMER PUMP
20
12311005560 4 SCREW, PUMP COVER
21
SERIAL NUMBERS:
PAS-260: 07001673 - 07999999
PAS-261: 06002012 - 06999999
P003001120 1 REPAIR KIT INCLUDES ITEMS 23-30
22
------------------ 1 RING, PACKING
23
------------------ 1 GASKET, PUMP
24
------------------ 1 DIAPHRAGM, PUMP
25
------------------ 1 SCREEN, INLET
26
------------------ 1 VALVE, INLET NEEDLE
27
------------------ 1 LEVER, METERING
28
------------------ 1 GASKET, METERING DIAPHRAGM
29
------------------ 1 METERING, DIAPHRAGM
30
P003001110 1 GASKET/DIAPHRAGM KIT INCLUDES ITEMS 32-36
31
------------------ 1 RING, PACKING
32
------------------ 1 GASKET, PUMP
33
------------------ 1 DIAPHRAGM, PUMP
34
------------------ 1 GASKET, METERING DIAPHRAGM
35
------------------ 1 METERING, DIAPHRAGM
36
25
Loading...
