Hedge Clipper
Operator's Manual
MODEL HC-201
Serial Number 02001001 - 02999999
X7532240101
WARNING DANGER
Read rules for safe operation and all instructions carefully. ECHO provides this
Operator's Manual and a Safety Manual. Both must be read and understood for
proper and safe operation.
X753000071
12/01
2
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-jobdependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You will
find both easy to use and full of helpful operations tips and SAFETY messages.
THE OPERATOR'S MANUAL
Read and understand this manual before operation. Keep it in a safe
place for future reference. It contains specifications and information for
operation, starting, stopping, maintenance, storage and assembly
specific to this product.
THE SAFETY MANUAL
Read and understand this manual before operation. Keep it in a safe
place for future reference. It xplains possible hazards involved with the
use of Hedge Clippers and what measures you should take to make
their use safer.
TABLE OF CONTENTS
Introduction...............................................................2
- The Operator's Manual ....................................... 2
- The Safety Manual .............................................2
Manual Safety Symbols and Important Information ..... 3
Safety ......................................................................... 3
- Decals ................................................................. 3
- International Symbols ........................................4
Safety Instructions .................................................... 4
- Personal Conditions and Safety Equipment .......4
- Extended Operation/Extreme Conditions ............5
- Equipment ...........................................................5
- Safe Operation .................................................... 6
Emissions Control......................................................6
Description ................................................................ 7
- Contents .............................................................7
Specifications ............................................................9
Assembly ................................................................... 9
Pre-Operation........................................................... 10
- Fuel ................................................................... 10
Operation ................................................................. 11
- Starting Cold Engine......................................... 11
- Starting Warm Engine ...................................... 12
Copyright© 2001 By Echo, Incorporated
All Rights Reserved.
- Stopping Engine ............................................... 13
- Hedge Trimming ...............................................13
Maintenance............................................................ 14
- Skill Levels........................................................ 14
- Maintenance Intervals ...................................... 14
- Air Filter ........................................................... 15
- Fuel Filter.......................................................... 15
- Spark Plug ........................................................ 16
- Cooling System ................................................ 16
- Exhaust System ................................................ 17
- Carburetor Adjustment..................................... 18
- Lubrication .......................................................20
- Sharpening Blades............................................ 21
Troubleshooting...................................................... 22
Storage..................................................................... 23
Servicing Information .............................................. 24
- Parts.................................................................. 24
- Service ..............................................................24
- ECHO Consumer Product Support ................... 24
- Warranty Card.................................................. 24
- Additional or Replacement Manuals................ 24
Specifications, descriptions and illustrative material in this
literature are as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories,
and may not include all standard equipment.
HEDGE CLIPPER
OPERATOR'S MANUAL
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key words
and what they mean to you.
This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead to
serious personal injury to operator and bystanders.
IMPORTANT
The enclosed message provides
The circle with the slash symbol means whatever is shown
within the circle is prohibited.
information necessary for the protection of the unit.
NOTE
This enclosed message provides tips
for use, care and maintenance of the
unit.
3
SAFETY
DECALS
Locate these safety decals on your unit. Make sure the decals are
legible and that you understand and follow the instructions on them. If
a decal cannot be read, a new one can be ordered from your ECHO
dealer. See PARTS ORDERING instructions for specific information.
P/N X505000270
P/N 89016006361
P/N X5052242200
4
INTERNA TIONAL SYMBOLS
Symbol form/shape
Symbol
description/application
Read and understand
owners manual.
Symbol form/shape
Symbol
description/application
Fuel and oil mixture
Symbol form/shape
Symbol
description/application
Carburetor adjustment
- Low speed mixture
Symbol form/shape
Symbol
description/application
Carburetor adjustment
- High speed mixture
Wear eyes, ears and
head protection
Emergency stop
Wear hand protec-
tion. Use two handed.
Engine choke
control.
Chain lubrication
Ignition
SAFETY INSTRUCTIONS
PERSONAL
CONDITION AND SAFETY EQUIPMENT
Finger Severing
Hot
Surface
DO NOT smoke
near fuel.
Ignition
ON/OFF
Do not operate
without guards
in place.
Safety/Alert
Avoid all power
lines. This unit is not
insulated against
electrical current.
Plan retreat path
from falling
objects.
DO NOT allow
flames or sparks
near fuel.
Carburetor adjustment
- Idle speed
Do not operate clos-
er than 15 M (50 ft.)
from electrical haz-
ards.
Primer bulb
Wear slip resistant
foot wear.
Keep bystanders at least
4.5 meters (15 feet) away.
W ARNING DANGER
Hedge Clipper users risk injury to themselves and others if the hedge clipper is used improperly and or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating a hedge clipper.
Eye Protection
Eye protection that meet ANSI Z87.1 or CE requirements
must be worn whenever you operate the Hedge Clipper.
Hand Protection
Wear no-slip, heavy duty work gloves to improve your
grip on the handles. Gloves also reduce the transmission
of machine vibration to your hands.
Hearing Protection
Wear hearing protection. ECHO recommends wearing
hearing protection whenever unit is used.
Proper Clothing
Wear snug fitting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DO NOT WEAR SHORTS,
• DO NOT WEAR TIES, SCARFS, JEWELRY.
Wear protective hair covering to contain long hair.
Wear sturdy work shoes with nonskid soles;
• DO NOT WEAR OPEN TOED SHOES,
• DO NOT OPERATE UNIT BAREFOOTED.
Wear no-slip, heavy duty work gloves.
EXTENDED OPERATION/EXTREME CONDITIONS
HEDGE CLIPPER
OPERATOR'S MANUAL
5
Vibration and Cold
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals, may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations, followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommended, because the minimum exposure which might trigger the
ailment is unknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands,
and wrists.
• Maintain good blood circulation by performing vigorous armexercises during frequent work breaks, and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the trimmer or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the fingers,
hands, arms, and shoulders may cause soreness, swelling, numbness,
weakness, and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure to vibration may contribute to CTS. CTS can cause severe pain for
months or even years.
To reduce the risk of RSI/CTS, do the
following:
• Avoid using your wrist in a bent, extended, or twisted position. Instead try to
maintain a straight wrist position. Also,
when grasping, use your whole hand, not
just the thumb and index finger.
• Take periodic breaks to minimize repetition
and rest your hands.
• Reduce the speed and force with which
you do the repetitive movement.
• Do exercises to strengthen the hand and
arm muscles.
• Immediately stop using all power equipment and consult a doctor if you feel
tingling, numbness, or pain in the fingers,
hands, wrists, or arms. The sooner RSI/
CTS is diagnosed, the more likely permanent nerve and muscle damage can be
prevented.
EQUIPMENT
W ARNING DANGER
Use only ECHO approved attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments, or accessories which have
not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety
manual.
• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or
replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.
• Never adjust blades when the engine is operating.
• Inspect hand guard for damage. Replace if damaged or missing.
• Check that the blade assembly is firmly attached and in safe operating
condition. Dull, loose or damaged blades should not be used.
• ECHO, INC. will not be responsible for the failure of cutting devices
or accessories which have not been tested and approved by ECHO
for use with this unit.
• Keep exhaust area clear of flammable debris. Avoid contact during
and immediately after operation.
6
SAFE OPERATION
W ARNING DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.
Provide all users of this equipment with the Operator's Manual and
instructions for Safe Operation.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not over reach.
Keep a Firm Grip
• Hold the front and rear handles with both hands, with thumbs and
fingers tightly encircling the handles.
EMISSION CONTROL
California Tier 2
The emission control system for this engine is EM/TWC
(Engine Modification and Catalyst).
IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: YEHXS.0214CA DISPLACEMENT: 21.2 CC
EMISSION COMPLIANCE PERIOD: 300 HOURS
THIS ENGINE MEETS U.S. EPA PH 2 AND 2000 AND LATER
CALIFORNIA EMISSION REGULATIONS FOR S.O.R.E. REFER
TO OWNER'S MANUAL FOR MAINTENANCE SPECIFICATIONS
AND ADJUSTMENTS.
Emission Control Label (located on Engine) (EXAMPLE
ONLY, information on label varies by FAMILY).

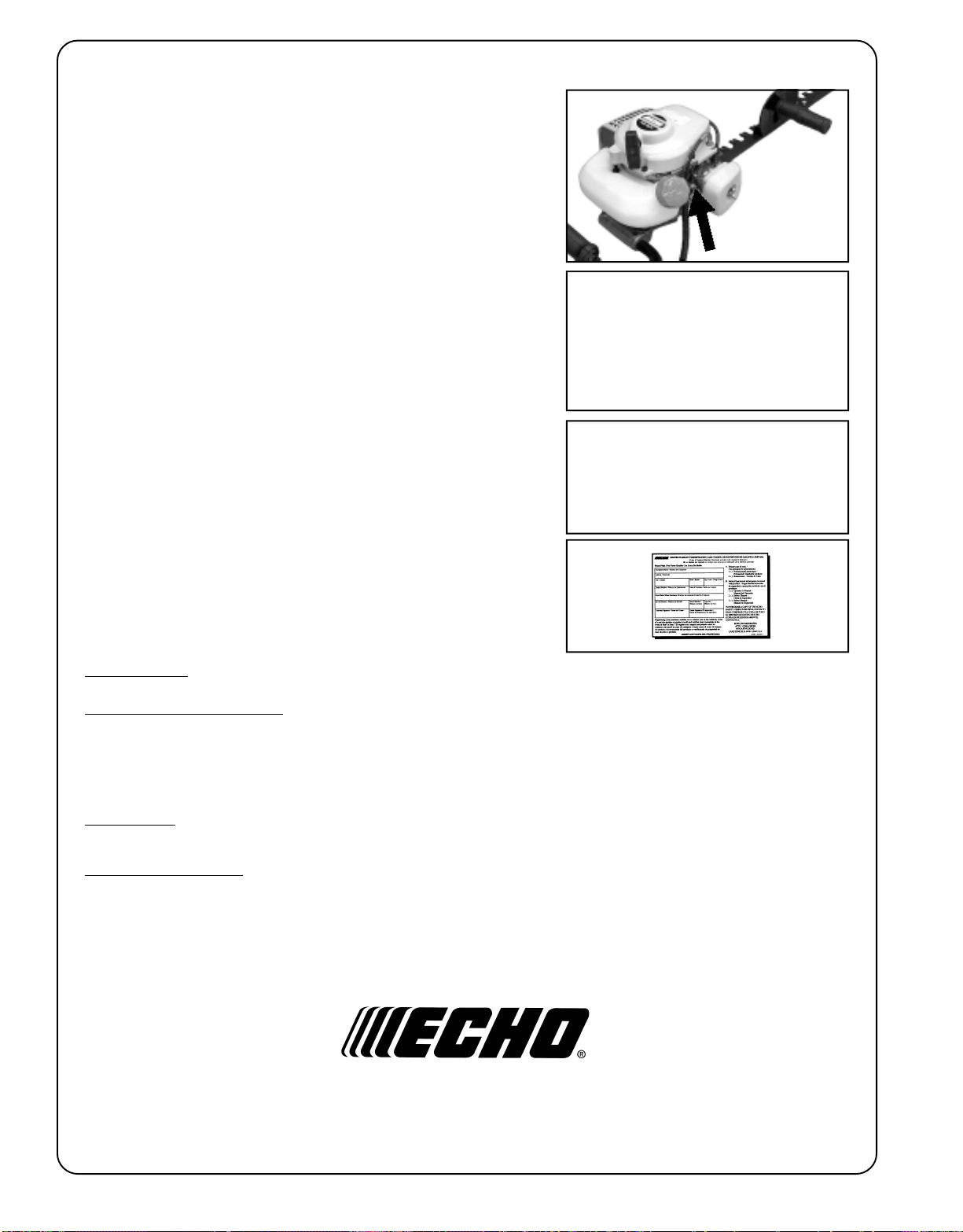

PRODUCT EMISSION DURABILITY
The 300 hour emission durability compliance period is the time span selected by the manufacturer certifying the
engine emissions output meets applicable California and/or U.S. EPA emissions regulations, provided that approved
maintenance procedures are followed as listed in the Maintenance Section of this manual.
The Air Index Tag indicates, for purposes of
consumer awareness, how this product's
emissions compare to other products under the
standards enacted by the California Air Resources Board.
AIR INDEX TAG
HEDGE CLIPPER
OPERATOR'S MANUAL
DESCRIPTION
The ECHO product you purchased has been factory pre-assembled for your convenience.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or
missing parts. Use the contents list to check for missing parts.
CONTENTS
__ 1 - Hedge Clipper Assembly
__ 1 - Operators Manual
__ 1 - Safety Manual
__ 1 - Warranty Statement
__ 1 - Warranty Registration Card
__ 1 - Plastic Bag
__ -- 1, T-Wrench 13 x 19
__ -- 1, 8 mm x 10 mm Open end Wrench
__ -- 1, Bottle 2.6 oz. 2-Cycle Oil
__ 1 - Blade Cover
1
7
10
11
16
14
13
12
6
7
9
8
15
2
5
4
3
8
1. BLADES - Double reciprocating blades mounted to a blade support bar. Double sided blades, are capable of cutting
on either side of the blade. All other models are single sided.
2. RIGHT FRONT HANDLE WITH GUARD - Rubber non-slip grip, guard protects hand from the blades. Warning
decals are located on guard.
3. SPARK PLUG - Provides spark to ignite fuel mixture.
4. PRIMER BULB - Pumping primer bulb before starting engine draws fresh fuel from the fuel tank priming the carbure-
tor for starting. Pump primer bulb until fuel is visible and flows freely in the clear fuel tank return line. Pump bulb an
additional 4 or 5 times.
5. CHOKE - The choke control lever is located on the front of the air cleaner case. Move choke lever to "COLD
START" to close the choke for Cold Starting. Move choke lever to "RUN" position to open choke.
6. AIR CLEANER - Contains replaceable filter element.
7. FUEL TANK CAP - Covers and seals fuel tank opening.
8. FUEL TANK - Contains fuel and fuel filter.
9. REAR HANDLE - Contains the Stop Switch, Throttle Lockout, Rotation Lockout and Throttle Trigger.
10. THROTTLE TRIGGER - Spring loaded to return to idle when released. Trigger Lockout must be depressed fully and
Rotation Lock must be engaged before Throttle Trigger will move. During acceleration, depress gradually for best
operating technique.
11. STOP SWITCH - "SLIDE SWITCH" mounted on top of the rear handle. Move switch FORWARD to RUN, BACK to
STOP.
12. THROTTLE TRIGGER LOCKOUT - This lever must be depressed before Throttle Trigger can be activated.
13. RECOIL STARTER HANDLE - Pull handle slowly until recoil starter engages, then quickly and firmly. DO NOT pull
rope all the way out or allow the handle to snap back, damage to the starter will occur.
14. SPARK ARRESTOR - CATALYTIC MUFFLER / MUFFLER -The muffler or catalytic muffler controls exhaust noise
and emission. The spark arrestor screen prevents hot, glowing particles of carbon from leaving the muffler. Keep
exhaust area clear of flammable debris.
15. BLADE COVER - Used to cover blades during transportation or storage. Remove blade cover before using unit.
16. SAFETY VIDEO - (Not included with unit) P/N 99922202800 English version only is available at a cost of $5.00 from
ECHO, INC. or any authorized ECHO dealer. The video overviews safety precautions and proper operating techniques and is supplemental to the Safety Manual. Read and understand the Safety Manual for complete information
on safe operation.
SPECIFICATIONS
LEDOM 102-CH
htgneL ).ni3.24(mm4701
htdiW ).ni54.9(mm042
thgieH ).ni78.7(mm002
yrd,thgieW ).bl8.11(gk4.5
enignEfoepyT enigneenilosag,rednilycelgnis,ekorts-owt,deloocriA
tnemecalpsiD ).ni.uc92.1(cc2.12
eroB ).ni72.1(mm2.23
ekortS ).ni20.1(mm0.62
metsyStsuahxE tsylatac/wrelffuMrotserrAkrapS
roterubraC U1CamaZ
HEDGE CLIPPER
OPERATOR'S MANUAL
9
metsySnoitingI noitingiegrahcsidroticapaC,otengaMleehwylF
gulPkrapS ).ni620.0(mm56.0paG(Y7-MPB
leuF liodnaenilosag-leuFdexiM
oitaRliO/leuF lioenignedeloocriaekorts-owt,ecnamrofreP-iHOHCEgnisuoitaR1:05
enilosaG %01nahterom,lohoclalyhtemgniniatnocleufesutonoD.dedaelnUenatcO98
liO lioenignedeloocriaekorts-owt,ecnamrofreP-iHOHCE
yticapaCknaTleuF )zo.lf9.61(.til5.0
metsySretratS retratSlioceRcitamotuA
hctulC epyTlagufirtneC
oitaResaCraeG 88.5:1
rettuC egdEelgniS
htgneL ).ni6.23(mm728
hctiP ).ni4.1(mm53
thgieH ).ni19.0(mm32
)MPR(deepSeldI 0003-0052
.EBTM%51rolohoclalyhte
)MPR(elttorhTnepOediW 000,21-000,11
ASSEMBLY
This model is factory assembled.
10
PRE-OPERATION
FUEL
Fuel Requirements
Gasoline - Use 89 Octane [ ] (mid grade or higher) gasoline known
to be good quality. Gasoline may contain up to 15% MTBE (methyl
tertiary-butyl ether). Gasohol containing methyl (wood) alcohol is NOT
approved.
Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD
13738) and J.A.S.O. FC Standards, must be used. Echo brand Premium
50:1 oil meets these standards. Engine problems due to inadequate
lubrication caused by failure to use an ISO-L-EGD and J.A.S.O. FC
certified oil, such as Echo Premium 50:1 Two-stroke Oil, will void the
two-stroke engine warranty. (Emission related parts only are covered
for two years, regardless of two-stroke oil used, per the statement
listed in the California Emission Defect Warranty Explanation.)
IMPORTANT
Echo Premium 2-Stroke Oil may be mixed at 50:1 ratio for application in all Echo engines sold in the past regardless of ratio
specified in those manuals.
Mixing Instructions
1 . Fill an approved fuel container with half of the required amount of
gasoline.
2 . Add 2-stroke oil to gasoline.
3 . Close container and shake to mix oil with gasoline.
4 . Add remaining gasoline and remix.
5 . Install fuel container cap and wipe any spilled fuel from container
and surrounding area.
R+M
2
Handling Fuel
IMPORTANT
Spilled fuel is a leading cause of
hydrocarbon emissions. Some states
may require the use of automatic fuel
shut-off containers to reduce fuel
spillage. Contact your ECHO dealer for
ordering information.
After Refueling
• Wipe any spilled fuel from the unit.
• Move at least 3 m (10 ft.) from refueling
location before starting the engine.
After use
• DO NOT store a unit with fuel in its tank.
Leaks can occur. Return unused fuel to an
approved fuel storage container.
Storage - Fuel storage laws vary by
locality. Contact your local government for
the laws affecting your area. As a precaution, store fuel in an approved, air tight
container. Store in a well ventilated, unoccupied building, away from sparks and flames.
Do not store fuel longer than 30 days.
IMPORTANT
Stored fuel ages. Do not mix more fuel
than you expect to use in thirty (30)
days, ninety (90) days when a fuel
stabilizer is added.
W ARNING DANGER
Fuel is VERY flammable. Use extreme care when mixing, storing or
handling or serious personal injury may result.
• Use an approved fuel container.
• DO NOT smoke near fuel.
• DO NOT allow flames or sparks near fuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVER refuel a unit when the engine is HOT!
• NEVER refuel a unit with the engine running.
• DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors
over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
IMPORTANT
Stored two-stroke fuel may separate.
ALWAYS shake fuel container
thoroughly before each use.
OPERATION
NOTE
The blade cover is used for transportation and storage. Remove
blade cover before using unit.
NOTE
Refer to the Hedge Clipper Safety Manual for additional proper and
safe Trimming Techniques.
HEDGE CLIPPER
OPERATOR'S MANUAL
11
STARTING COLD ENGINE

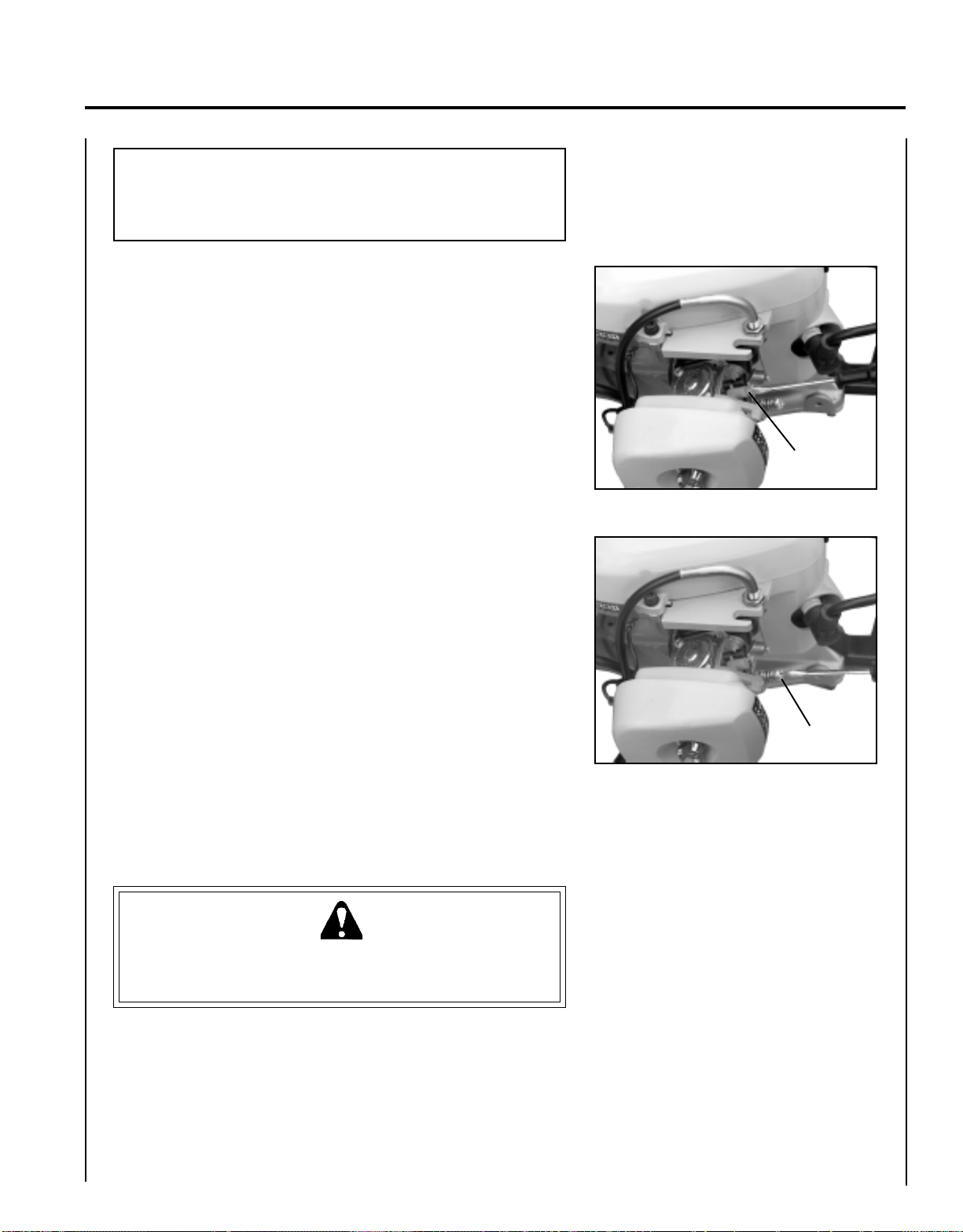

1. Stop Switch
Move stop switch (A) away from the STOP position.
2. Choke
Move choke (B) to the Cold Start (CLOSED) position.
3. Primer
Pump primer bulb (C) until fuel is visible and flows freely in the clear
fuel tank return line. Pump bulb an additional 4 or 5 times.
A
B
C
4. Recoil Starter
Lay the unit on a flat clear area and pull the recoil starter handle (D)
until engine fires.
D
12

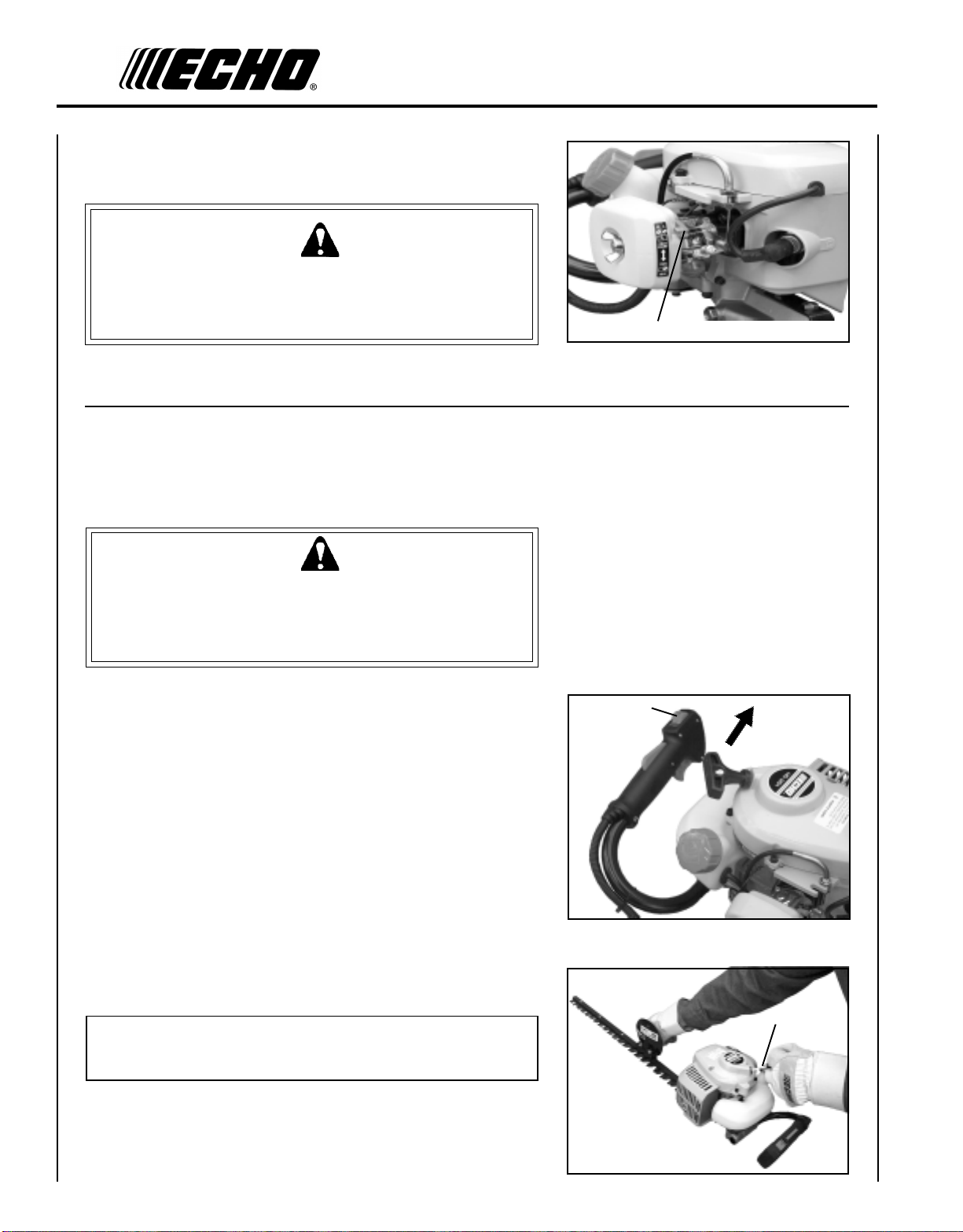

5. Choke
Move choke (B) to the RUN (OPEN) position. Restart engine if
necessary and allow unit to warm up at idle for several minutes.
W ARNING DANGER
The blades should not move at idle. If blades move, readjust
carburetor according to "Carburetor Adjustment" instructions in
this manual or see your ECHO Dealer, otherwise serious personal
injury may result.
6 . After engine warm up, gradually depress throttle trigger to increase
engine RPM to operating speed.
STARTING WARM ENGINE
The starting procedure is the same as Cold Start except DO NOT close
the choke.
B
W ARNING DANGER
The blades should not move at idle. If blades move, readjust
carburetor according to "Carburetor Adjustment" instructions in
this manual or see your ECHO Dealer, otherwise serious personal
injury may result.
1. Stop Switch
Move stop switch (A) away from the STOP position.
2. Recoil Starter
Lay the unit on a flat clear area and pull the recoil starter handle (D)
until the engine fires.
NOTE
If engine does not start after 5 pulls, use Cold Start Procedure.
A
D
STOPPING ENGINE
1. Throttle
Release throttle and allow engine to return to idle before shutting off
engine.
2. Stop Switch
Move stop switch (A) to STOP position.
W ARNING DANGER
If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your ECHO dealer repair stop switch before using hedge
clipper again.
HEDGE CLIPPER
OPERATOR'S MANUAL
A
13
HEDGE TRIMMING
NOTE
This unit is designed to cut shrubs and hedges with branches no
larger than 6 mm (1/4 in.) in diameter.
1 . Hold trimmer firmly and squeeze throttle trigger to accelerate engine.
2 . Tilt trimmer so cutting teeth are angled slightly toward the hedge or
shrub and proceed to cut.
W ARNING DANGER
Never remove hands from unit when blades are moving.
W ARNING DANGER
The engine continues running even when the blades have stopped
due to an obstruction. If this occurs, stop the engine, disconnect
ignition cable and remove the obstruction.
14
MAINTENANCE
Your ECHO Hedge Clipper is designed to provide many hours of trouble free service. Regular scheduled maintenance will
help your Hedge Clipper achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want
to take your unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed, see your ECHO
Service Dealer for repairs.
SKILL LEVEL
Level 1 = Easy to do. Most required tools come with unit.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = Experience required. Specialized tools are required. ECHO recommends the
unit be returned to your ECHO dealer for servicing.
ECHO offers REPOWERTM Maintenance Kits and Parts to make your maintenance job easier. Just below each task
heading are listed the various part numbers required for that task. See your ECHO dealer for these parts.
MAINTENANCE INTER VALS
/TNENOPMOC
METSYS
ECNANETNIAM
ERUDECORP
D'QER
LLIKS
LEVEL
ROYLIAD
EROFEB
ESU
YREVE
LEUFER
3
SHTNOM
09RO
SRUOH
6
SHTNOM
072RO
SRUOH
YLRAEY
006
SRUOH
serudecorPecnanetniaMrelaeDohcEdednemmoceR
roterubraCecalpeR/naelC/tcepsnI 3 )1(C/I)1(R
troPtsuahxErednilyCnobraceD/naelC/tcepsnI 3 C/I
sedalBneprahSnaelC/tcepsnI 3 )3(I
serudecorPecnanetniaMflesruoY-tI-oD
retliFriAecalpeR/naelC/tcepsnI 1 C/I*R
ekohCnaelC/tcepsnI 2 C/I
retliFleuFecalpeR/tcepsnI 1 I*R
eniLleuFecalpeR/tcepsnI 1 *II
metsySgnilooCnaelC/tcepsnI 2 C/I
rotserrAkrapSrelffuMecalpeR/tcepsnI 2 *I
gnisuoHraeGesaerG 2 )2(I
sedalBnaelC/tcepsnI 1 )3(C/I
epoRretratSlioceRnaelC/tcepsnI 1 *C/I
skaeLleuFtcepsnI 1 *I*I
* ..noitcepsnignirudraewroegamadfognidnifehtnodesaberaecalperotsnoitadnemmocerllA
)1( .deriuqersishtnom6yrevegninaelc,esuremusnoCroF.sruoh006retfaesulaicremmoCrofderiuqereblliwtnemecalpeR
)2( OHCEylppA
)3( .esugnirudyllacidoirepsedalbetacirbuL.dedeensaneprahsdnanaelcdnaedalbtcepsnI
gulPkrapSnaelC/tcepsnI 2 C/I*R
stloB/stuN/swercSecalpeR/nethgiT/tcepsnI 1 *R/I
.ecnanetniam
-ETONTNATROPMI deriuqerfoycneuqerfehtenimretedlliwecneirepxeruoydnaesulautcA.mumixameranwohsslavretniemiT
MT
EBUL
®
SEDOCRETTELERUDECORPECNANETNIAM NAELC=C,ECALPER=R,TCEPSNI=I:
:SETONERUDECORPECNANETNIAM
sruoh52-51yreve
AIR FILTER
Level 1.
Tools required: 25 or 50 mm (1 or 2 in.) medium bristle paint brush
Parts required: 90008 REPOWERTM AIR & FUEL FILTER KIT
1. Close choke (Cold Start Position). This prevents dirt from entering
the carburetor throat when the air filter is removed. Brush accumulated dirt from the air cleaner area.
2 . Remove the air cleaner cover. Clean and inspect the element for
damage. If element is fuel soaked and very dirty, replace.
3 . If element can be cleaned and reused, be certain it:
-still fits the cavity in the air cleaner cover.
-is installed with the original side out.
HEDGE CLIPPER
OPERATOR'S MANUAL
15
NOTE
Carburetor adjustment may be needed after air filter cleaning/
replacement.
FUEL FILTER
Level 1.
Tools required: 200-250 mm ( 8-10 in.) length of wire with one end
bent into a hook. Clean rag, funnel, and an approved
fuel container
Parts required: 90008 REPOWERTM AIR & FUEL FILTER KIT
W ARNING DANGER
Fuel is VERY flammable. Use extreme care when mixing, storing or
handling.
1 . Use a clean rag to remove loose dirt from around fuel cap and empty
fuel tank.
2 . Use the “fuel line hook” to pull the fuel line and filter from the tank.
3 . Remove the filter from the line and install the new filter.
16
SPARK PLUG
Level 2.
Tools required: T-wrench, Feeler gauge, Soft metal brush
Parts required: 90064 REPOWERTM Kit
1 . Remove spark plug and check for fouling, worn and rounded center
electrode.
2 . Clean the plug or replace with a new one. DO NOT sand blast to
clean. Remaining sand will damage engine.
3. Adjust spark plug gap by bending outer electrode.
4 . Tighten spark plug to 145-155 kg/cm (125-135 in. lb.).
COOLING SYSTEM CLEANING
Level 2.
Tools required: 3 mm Allen wrench, 25 or 50 mm (1 or 2 in.) medium
bristle paint brush
Parts required: None if you are careful.
IMPORTANT
To maintain proper engine operating temperatures, cooling air
must pass freely through the cylinder fin area. This flow of air
carries combustion heat away from the engine.
Overheating and engine seizure can occur when:
• Air intakes in the crankcase are blocked, preventing cooling air from
reaching the cylinder.
• Dust and grass build up on the outside of the cylinder. This build up
insulates the engine and prevents the heat from leaving.
0.65 mm
(0.026 in.)
Removal of crankcase cooling passage blockages or cleaning of cooling
fins is considered “Normal Maintenance”. Any failure attributed to lack
of maintenance is not warranted.
1 . Remove spark plug lead and spark plug (A).
2 . Remove (4) starter cover hex socket bolts and starter.
3 . Disconnect the throttle cable from swivel.
4 . Remove bottom left and bottom right hex socket bolts.
5 . Carefully pull cylinder cover forward disengaging muffler gasket
tabs (B) and stop switch lead (C) and lay aside. The throttle cable
remains assembled to cylinder cover.
6 . Loosely install spark plug to keep debris out of the cylinder. Use
brush to remove dirt from cylinder fins.
HEDGE CLIPPER
OPERATOR'S MANUAL
A
C
17
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
7 . Install cylinder cover, throttle cable, starter cover, spark plug and
spark plug lead.
NOTE
When installing the cylinder cover, be certain the muffler gasket
tabs are locked into the muffler grill slots and the stop switch lead
is seated in the rubber grommet.
Cylinder Exhaust Port
Level 3.
IMPORTANT
The cylinder exhaust port must be inspected and cleaned of excess
carbon every 3 months or 90 hours of operation in order to maintain
this engine within the emissions durability period. ECHO strongly
recommends that you return your unit to your ECHO dealer for this
important maintenance service.
B
18
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools required: 3 mm Allen wrench, Cross Head Screwdriver,
Soft metal brush
Parts Required: Screen P/N 14586240630, Gasket Lid P/N 14586642031
1 . Remove engine cover. See “Cleaning Cooling System” pages
16 & 17 for step by step instructions.
2 . Place piston at Top Dead Center (TDC) to prevent carbon/dirt
from entering cylinder.
3 . Remove spark arrestor screen cover (A), gasket (B), gasket (C) and
screen (D) from muffler body.
4 . Clean carbon deposits from screen and muffler components.
D
C
B
NOTE
When cleaning carbon deposits, be careful not to damage the
catalytic body.
5 . Replace screen if it is cracked, plugged or has holes burned through.
6. Assemble components in reverse order.
NOTE
When installing the cylinder cover, be certain the muffler gasket
tabs are locked into the muffler grill slots and the stop switch lead
is routed through the relief slot.
CARBURETOR ADJUSTMENT
Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the breakin period your engine performance will increase and exhaust emissions
will stabilize. Idle speed can be adjusted as required.
High Altitude Adjustment
High altitude adjustment is not required for proper operation of this
engine.
A
Level 2.
Tools required: Screwdriver, Tachometer (ECHO P/N 99051130017).
Parts required: None.
NOTE
Every unit is run at the factory and the carburetor is set in compliance and emission regulations. In addition, the carburetor is
equipped with a HI needle adjustment limiter that prevents settings
outside acceptable limits.
1 . Before adjusting the carburetor, clean or replace the air filter and
spark arrestor screen.
2 . Start engine and run for several minutes to reach operating tempera-
ture.
3 . Stop engine. Turn red HI speed needle (A) CCW (counter clockwise)
to stop.
HEDGE CLIPPER
OPERATOR'S MANUAL
A
19
4 . Idle Speed Adjustment.
• Start engine and turn “idle” speed adjustment screw (B) CW
until the blades begin to turn, then turn the screw CCW until
blades stop turning. Turn screw CCW an additional 1/4 turn.
5 . Accelerate to full throttle for 2-3 seconds to clear excess fuel from
engine then return to idle. Accelerate to full throttle to check for
smooth transition from idle to full throttle. If engine stops or stalls
after full warm up return the unit to your authorized ECHO dealer for
repair.
6 . Check HI speed RPM at W.O.T. (Wide Open Throttle). HI speed
RPM should be set to specifications found on page 9 "Specifications" of this manual.
7 . Check idle speed and reset if necessary. If a tachometer is available,
idle speed should be set to the specification found on page 9
"Specifications" of this manual.
W ARNING DANGER
When carburetor adjustment is completed, the cutting attachment
should not move at idle, otherwise serious personal injury may
result.
B
20
LUBRICA TION
Blades
Level 1.
Tools required: Clean rag, 25 or 50 mm (1 or 2 in.) medium bristle
paint brush
Parts Required: 20W Engine Oil (lubrication), 50-50 mixture of
kerosene and 20W oil (cleaning).
W ARNING DANGER
Hedge Clipper Blades are very sharp. Wear gloves to protect
hands.
1 . Disconnect spark plug wire from spark plug.
2. Brush loose debris from blade and coat both sides of blade with the
50-50 cleaning mixture.
3 . Allow cleaning mixture to soften the remaining gummy residue then
wipe it from the blade.
4 . Apply clean oil to the entire length of the blade. Be certain the
blade bolts are lubricated.
5 . Wipe excess oil from the blade before putting the unit back in
service.
Gear Box Assembly
Level 2.
Tools required: 13 mm Open End Wrench, Grease Gun, Clean Rag
Parts Required: Gear Box Gasket, P/N 61041405360,
ECHO® LUBETM (P/N 91015) or Lithium Based Grease.
1 . Clean dirt from filler plug area and remove plug.
2 . Carefully pump grease into hole.
3 . Add grease as required, DO NOT over fill. Leave room for the
grease to expand during operation.
4 . Wipe excess grease from gear box and replace filler plug.
SHARPENING BLADES
Level 2.
Tools required: Flat file, Screwdriver
HEDGE CLIPPER
OPERATOR'S MANUAL
21
Parts required: None
W ARNING DANGER
Hedge Clipper Blades are very sharp. Wear gloves to protect
hands.
1 . Disconnect spark plug wire from spark plug.
2 . File each edge carefully. Follow the original shape of the blade.
IMPORTANT
If a power grinder is used DO NOT allow blade to over heat.
3 . Assemble blade stiffener using new blade nuts if required. Tighten
blade bolts securing cutters to frame bar.
4 . Loosen blade bolt 1/2 turn then install locknut while holding blade
bolt in place.
5 . Lubricate blades. See "Blade Lubrication Instructions," on page 20.
IMPORTANT
Blades should only be removed and reinstalled by an Authorized
ECHO Servicing Dealer, otherwise premature wear or internal
damage may occur.
22
TROUBLESHOOTING
melborPkcehCsutatSesuaCydemeR
TRAHCGNITOOHSELBUORTMELBORPENIGNE
roterubractaleuFroterubractaleufoNdeggolcreniartsleuF
deggolcenilleuF
roterubraC
rednilyctaleuFrednilyctaleufoNroterubraCrelaedohcEruoyeeS
leufhtiwtewrelffuMhcirooterutxiMleuFekohcnepO
enignE
-sknarc
/drahstrats
t'nseod
trats
,snurenignE
roseidtub
tonseod
etarelecca
ylreporp
dnetakrapS
eriwgulpfo
gulptakrapSkrapsoNtcerrocnipagkrapS
retlifriAytridretlifriAraewlamroNecalperronaelC
retlifleuFytridretlifleuFseudiser/stnanimatnoCni
tnevleuFdeggulptnevleuFniseudiser/stnanimatnoC
gulPkrapSnrow/ytridgulPraewlamroNecalperrotsujdadnanaelC
roterubraCtnemtsujdareporpmInoitarbiVtsujdA
krapsoNffohctiwspotS
melborplacirtcelE
hctiwskcolretnI
nobrachtiwderevoC
leufhtiwdeluoF
evitcefedgulP
leuf
leuf
ecalpeR
ecalperronaelC
ecalperronaelC
relaedohcEruoyeeS
retlifriaecalper/naelC
roterubractsujdA
relaedohcEruoyeeS
NOothctiwsnruT
relaedohcEruoyeeS
relaedohcEruoyeeS
).ni620.0(mm56.ottsujdA
ecalperronaelC
ecalperronaelC
gulpecalpeR
ecalperronaelC
metsySgnilooCmetsysgnilooC
deggulp/ytrid
rotserrAkrapS
neercS
seodenignE
knarcton
A/NA/NmelborpenignelanretnIrelaedohcEruoyeeS
rotserrakrapS
deggulpneercs
raewlamroNecalpeR
ninoitarepodednetxE
snoitacolytsud/ytrid
naelC
W ARNING DANGER
Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark by grounding
spark plug against cylinder, otherwise serious personal injury may result.
HEDGE CLIPPER
OPERATOR'S MANUAL
STORAGE
W ARNING DANGER
During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear
of flammable debris during transportation or when storing, otherwise serious personal injury may result.
Long Term Storage (over 30 days)
Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage maintenance which includes the following:
1 . Store unit in a dry, dust free place, out of the reach of children.
W ARNING DANGER
Do not store in enclosure where fuel fumes may accumulate or reach an open flame or spark, otherwise serious
personal injury may result.
23
2. Place the stop switch in the "OFF" position.
3 . Remove accumulation of grease, oil, dirt and debris
from exterior of unit.
4 . Perform all periodic lubrication and services that are
required.
5. Tighten all the screws and nuts.
6. Drain the fuel tank completely and pull the recoil
starter handle several times to remove fuel from the
carburetor.
7 . Remove the spark plug and pour 1/4 oz. (1/2 table-
spoon) of fresh, clean, two-stroke engine oil into the
cylinder through the spark plug hole.
A. Place a clean cloth over the spark plug hole.
B . Pull the recoil starter handle 2-3 times to distribute
the oil inside the engine.
C. Observe the piston location through the spark plug
hole. Pull the recoil handle slowly until the piston
reaches the top of its travel and leave it there.
8. Install the spark plug (do not connect ignition cable).
9. Install blade cover on blades.
SERVICING INFORMA TION
P ARTS
Genuine ECHO Parts and ECHO REPOWERTM Parts and Assemblies for
your ECHO products are available only from an Authorized ECHO
Dealer. When you do need to buy parts always have the Model
Number and Serial Number of the unit with you. You can find these
numbers on the engine housing. For future reference, write them in the
space provided below.
Model No. _____________ SN._____________
SERVICE
Service of this product during the warranty period must be performed
by an Authorized ECHO Service Dealer. For the name and address of
the Authorized ECHO Service Dealer nearest you, ask your retailer or
call: 1-800-432-ECHO. When presenting your unit for Warranty service/
repairs, proof of purchase is required.
ECHO CONSUMER PRODUCT SUPPORT
If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the ECHO
Consumer Product Support Department at 1-800-673-1558 from 8:30 am
to 4:30 pm (Central Standard Time) Monday through Friday. Before
calling, please know the model and serial number of your unit to help
your Consumer Product Support Representative.
www.echo-usa.com
CONSUMER PRODUCT
DEALER?
Call
1-800-432-ECHO
or
SUPPORT
1-800-673-1558
8:30 - 4:30 Mon - Fri C.S.T.
W ARRANTY CARD
This card is our means of registering all original owners of ECHO
equipment. The card plus proof of purchase provides you the assurance that authorized warranty work will be done. It also provides a
direct link between you and ECHO if we find it necessary to contact
you.
ADDITIONAL OR REPLACEMENT MANUALS
Safety Manuals in English/Spanish or English/French are available, free of charge, from your ECHO dealer or at
www.echo-usa.com.
Operator's and Parts Manuals are available by:
• Downloading free from www.echo-usa.com
• Purchasing from your Echo Dealer.
• Sending a check or money order for $2.00 per Parts Catalog or $1.50 per Operator's Manual made payable to ECHO,
INCORPORATED. State on a sheet of paper the model number and serial number of the ECHO unit you have, part
number of the manual (if known), your name and address and mail to address below.
Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video.
Available Parts Catalog
HC-201 Serial Number 02001001 & UP P/N 99922203277
ECHO, INCORPORATED
400 OAKWOOD ROAD
LAKE ZURICH, IL 60047
www.echo-usa.com
Loading...
