Echo EDR-2100 User Manual

WARNING

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and other masonry
products, and

• Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals: work in a
well ventilated area, and work with approved safety equipment, such as
those dust masks that are specially designed to filter out microscopic
particles.

WARNING

The engine exhaust from this

product contains chemicals known

to the State of California to cause

cancer, birth defects or other

reproductive harm.

INTRODUCTION

ECHO Engine Drill EDR-2100 TYPE1-E is a
lightweight, high performance, two-stroke
engined unit designed for drilling.

This Manual provides the information
necessary for operation and maintenance.

SAFETY AND SPECIAL INFORMATION

WARNING DANGER

IMPROPER USE OR CARE OF THIS UNIT,
OR FAILURE TO WEAR PROPER
PROTECTION CAN RESULT IN SERIOUS
INJURY. READ AND UNDERSTAND THE
RULES FOR SAFE OPERATION AND ALL
INSTRUCTIONS IN THIS MANUAL.

THIS SYMBOL
ACCOMPANIED BY THE
WORDS WARNING AND
DANGER CALLES
ATTENTION TO AN ACT OR
CONDITION THAT CAN
LEAD TO SERIOUS
PERSONAL INJURY TO
OPERATOR AND
BYSTANDERS.

The circle with the slash
symbol means whatever is
shown within the circle is
prohibited.

IMPORTANT

The enclosed message provides
information necessary for the protection
of the unit.

NOTE

This enclosed message provides tips for
use, care and maintenance of the unit.

Throughout this manual and on the product
itself, you will find safety alters and helpful,
information messages preceded by symbols or
key words. The following is an explanation of
those symbols and key words and what they
mean to you.

CONTENTS

Introduction ...................................................................................................................................... 1

Safety and Special Information ........................................................................................................ 1

Safety ............................................................................................................................................... 2

Operating Techniques ...................................................................................................................... 5

Description ....................................................................................................................................... 6

Assembling....................................................................................................................................... 7

Operation ......................................................................................................................................... 7

Maintenance and Care ..................................................................................................................... 10

Trouble shooting............................................................................................................................... 11

Maintenance..................................................................................................................................... 1 2

Storage............................................................................................................................................. 15

Specifications ................................................................................................................................... 16

Specifications, descriptions and illustrative material in this literature are as accurate as known at the
time of publication. Illustrations may include optional equipment and accessories, and may not
include all standard equipment.

1

SAFETY

WARNING DANGER

ENGINE DRILL USERS RISK INJURY TO
THEMSELVES AND OTHERS IF THE
ENGINE DRILL IS USED IMPROPERLY,
AND/OR SAFETY PRECAUTIONS ARE
NOT FOLLOWED. PROPER CLOTHING
AND SAFETY GEAR MUST BE WORN
WHEN OPERATING ENGINE DRILL.

OPERATOR SAFETY

• Read this Engine drill Operator’s Manual
carefully. Be sure you understand how to
operate this unit properly before you use it.

• Be familiar with all the controls and the
proper use of the machine.

• Wear proper clothing to protect legs and
other exposed parts of your body.

• Wear non-skid sole shoes. Do not wear
open-toed shoes or operate unit while bare
footed.

• Wear eye and hearing protection devices.

WARNING DANGER

ALWAYS STOP THE ENGINE WHEN A
DRILL JAM OCCURS. DO NOT ATTEMPT
TO REMOVE AN OBJECT CAUSING A
DRILL JAM IF THE ENGINE IS RUNNING.
PHYSICAL INJURY CAN OCCUR IF A
DRILL JAM IS REMOVED AND THE
DRILLS START MOVING.

• Do all drilling at full throttle speed. Drilling
at less at than full speed can damage the
clutch by allowing it to slip.

WARNING DANGER

USE A FIRM GRIP WITH THUMBS AND
FINGERS ENCIRCLING THE HANDLES. A
FIRM GRIP WILL HELP YOU KEEP
CONTROL OF THE ENGINE DRILL.
NEVER OPERATE THE ENGINE DRILL
ONLY ONE HAND OR BODILY INJURY
CAN OCCUR.

• Always carry the engine drill with the
engine stopped and the HOT muffler away
from your body.

• Use caution when handling fuel. Put the
caps back tightly on both the fuel can and
the engine drill fuel tank.
Move at least 3 m (10 feet) from the re­fuelling point and be sure there is no
leakage of fuel from the fuel tank cap or the
fuel system before starting the engine.

• Operate this gasoline powered engine
equipment in a well-ventilated area only.

• Start the unit on the ground with the throttle
set at idle. Do not start if the drills are
obstructed by the ground or any other
object.

• Never allow children to use the machine.

• Do not allow anyone to hold the material

you are drilling.

• Keep a firm grip on the engine drill with
both
hands, the right hand on the front handle,
the left hand on the rear handle.

PROTECTIVE EQUIPMENT

• Always wear eye protection goggles that
meet ANSI Z87.1 standards.

• Wear hearing protection.
ECHO recommends that hearing
protection be worn at all times.

• Dress properly! Do not wear loose clothing
or jewellery, they can be caught in moving
parts. Use of sturdy gloves, non-skid
footwear, and safety glasses is
recommended.

• While operating the machine always be
sure of a secure position.

2

• Wear non-slip, heavy-duty work gloves to
improve your grip on the engine drill
handles. The gloves also help reduce the
transmission of machine vibrations to your
hands.

PROTECTING OTHERS

Spectators, children, fellow workers and
animals must be warned to come no nearer
than 4.6 m (15 feet) while the engine drill is in
use.
People working in the area near you should
wear the same protective equipment as the
operator.

PHYSICAL CONDITION

Your judgement and dexterity may be impaired
if you are ill or have taken alcohol or other
substances known to affect the way you would
normally function.

EXTENDED OPERATION/
EXTREME CONDITIONS

Vibration and Cold

It is believed that a condition called Raynaud’s
Phenomenon, which affects the fingers of
certain individuals may be brought about by
exposure to vibration and cold. Exposure to
vibration and cold may cause tingling and
burning sensations followed by loss of color
and numbness in the fingers. The following
precautions are strongly recommended
because the minimum exposure which might
trigger the ailment is unknown.

• Keep your body warm, especially the head,
neck, feet, ankles, hands and wrists.

• Maintain good blood circulation by
performing vigorous arm exercises during
frequent work breaks and also by not
smoking.

• Limit the hours of operation. Try to fill each
day with jobs where operating the engine
drill or other hand-held power equipment is
not required.

• If you experience discomfort, redness and
swelling of the fingers followed by
whitening and loss of feeling, consult your
physician before further exposing yourself
to cold and vibration.

3

Repetitive Stress Injuries

It is believed that overusing the muscles and
tendons of the fingers, hands, arms and
shoulders may cause soreness, swelling,
numbness, weakness and extreme pain in
those areas. Certain repetitive hand activites
may put you at a high risk for developing a
Repetitives Stress Injury (RSI). An extreme
RSI condition is Carpal Tunnel Syndrome
(CTS), which could occur when your wrist
swells and squeezes a vital nerve that runs
through the area. Some believe that prolonged
exposure to vibration may contribute to CTS.
CTS can cause severe pain for months or even
years. To reduce the risk of RSI/CTS, do the
following:

• Avoid using your wrist in a bent,extended or
twisted position. Instead try to maintain a
straight wrist position. Also, when grasping,
use your whole hand, not just the thumb
and index finger.

• Take periodic breaks to minimize repetition
and rest your hands.

• Reduce the speed and force with which you
do the repetitive movement.

• Do exercise to strengthen the hand and
arm muscles.

• See a doctor if you feel tingling, numbness
or pain in the fingers,hands, wrists or arms.
The sooner RSI/CTS is diagnosed, the
more likely permanent nerve and muscle
damage can be prevented.

4

OPERA TING TECHNIQUES

• When starting to drill, run the engine at full
throttle.

• When transporting or storing the machine
always remove the drill.

WARNING DANGER

BEFORE DRILLING, BE SURE TO READ
AND UNDERSTAND THE ENTIRE
OPERATOR’S MANUAL TO AVOID THE
CHANCE OF SERIOUS INJURY.

• Do not force the drills and only move as
quickly as the drills will allow.

• Stop the engine and disconnect from
ignition cable before: - cleaning or when
clearing a blockage; checking,
maintenance or working on the machine.

• Handle fuel with care; it is highly
flammable. Never add fuel to a machine
with a running or hot engine.

• Do not attempt to repair the machine
unless you are qualified to do so.

• Do not operate the machine with a
damaged or excessively worn cutting
device.

• To reduce fire hazard keep engine and
silencer free of debris, leaves or excessive
grease.

• Handle drill with care, contacting with drills
may cause injury.

• Always ensure all handles and guards are
fitted when using the machine. Never
attempt to use an incomplete machine or
one fitted with an unauthorised
modification.

5

DESCRIPTION

2

1

3

1 Operator’s manual - Included with unit.

Read before operation and keep for future
reference to learn proper, safe operating
techniques.

2. Throttle trigger - Device activated by the
operator’s finger, for controlling the engine
speed.

3. Rear handle - Handle located furthest from
the cutting device.

4. Silencer cover

4

5

15

7

6

8

11. Air cleaner cover - Covers air filter.

12. Starter handle - Pull handle to start the
engine.

13. Throttle trigger lock out - Device that
prevents the accidental operation of the
throttle trigger until manually released.

14. Ignition switch - Device for allowing the
engine to be started and stopped.

15. Spark plug

14

13

12

11

10

9

5. Drill - Not included with unit.

6. Chuck -

7. Shift lever -

8. Front handle - Handle located on the front
gear case.

9. Fuel tank - Contains fuel and fuel filter.

10. Fuel tank cap - For closing the fuel tank.

6

Front
handle

(Tighten three points evenly)

Chuck

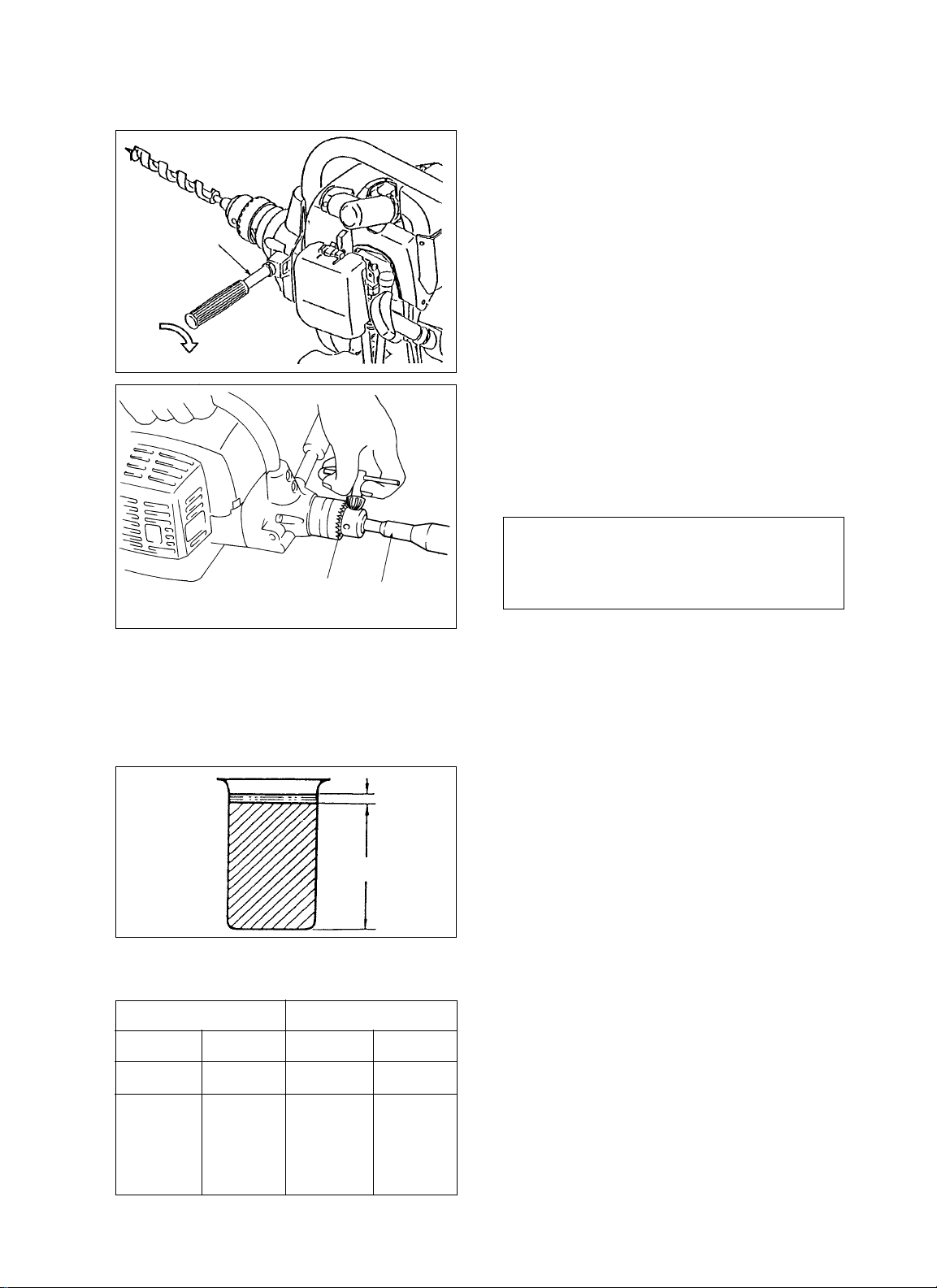

ASSEMBLING

FRONT HANDLE

• Incert the front handle to the machine, and

DRILL BIT

• Insert the drill bit (not provided with unit)

Drill bit

turn clockwise.
(TIGHTEN THE SCREW FIRMLY)

until it reaches the bottom of the chuck,
then back it out slightly; tighten the chuck
laws evenly and completely.

IMPORTANT

Use drill bits suited for the material being
drilled and for the depth of hole required.

OPERATION

Oil

Gasoline

Fuel mix chart (50 : 1)

US METRIC

GAS OIL GAS OIL

GAL. FL.OZ. L mL

1 2.6 4 80
2 5.1 8 160

1

50

CHECK UP OF NUTS AND
OTHER HARDWARES

• Check up loose nuts, bolts and screws
before using the unit every day.

FUEL STATEMENT

GASOLINE - Use 89 Octane [(R+M)/2]
gasoline or gasohol known to be good quality­Gasohol may contain maximum 10% ethyl
(grain) alcohol or 15% MTBE (methy tertiary­butyl ether). Gasohol containing methyl (wood)
alcohol is not approved.

OIL - ECHO brand premium two-strokes 50:1
oil is preferred. Mix oil and gasoline/gasohol
according to Instructions on the oil container
label.

MIXING - Follow directions on the container.

5 12.8 20 400

7

Throttle trigger

On

Stop

IMPORTANT

Stored fuel ages. Do not mix more fuel
than you expect to use in thirty (30)
days, ninety (90) days when a fuel
stabilizer is added.
Stored two-stroke fuel may separate.
ALWAYS shake fuel container
thoroughly before each use.

STARTING COLD ENGINE

• Stand the engine upright on a level
surface.

• Place ignition switch in ON (START/RUN)
position.

• Push purge bulb 3 to 4 times (or until fuel is
visible in fuel return line).

• Shift choke shutter to close position.
(START)

Air cleaner

Purge bulb

Fuel return line

RUN

(Open)

START

(Close)

Push

• Open throttle trigger to a fast idle.

• Pull recoil starter until the engine fires.

• Shift choke shutter to full open position,and

if necessary, start the engine again and
allow to warm up before using.

- The clutch engages at approximatery
3,500 r/min. therfore the cutter may rotate
at fast idle engine speed.

ST ARTING W ARM ENGINE

• Place ignition switch in ON (START/RUN)
position.

Choke lever

• Pull starter handle until the engine fires.

- Do not use the choke.

STOPPING ENGINE

• Set throttle trigger in idle position.

• Place ignition switch in STOP position.

NOTE

When engine does not stop, shift choke
shutter to close position.
Check and repair stop switch before
starting the engine again.

8

Clockwise
(CW)

Shift lever

Counter
clockwise
(CCW)

REVERSE ROTATION

• This model is equipped with reverse
rotation mechanism.

• When drilling, set shift lever down to
clockwise (CW) rotation position.

• If bit is locked due to deep penetration
during drilling operation, set shift lever up
to counterclockwise (CCW) rotation
position and operate reversed for easy
pulling-out.

• When changing direction of drill rotation,
operate as follows:

- Return engine to idle.

- Engine shift lever to CW or CCW

position with a slight acceleration of
the throttle trigger.
To properly lock the gears in the gears
in the gear case.

- Do not operate shift lever forcibly when

changing rotation direction.

NOTE

Do not shift from forward to reverse (or
vice-versa) while the chuck is turning.
Failure to do so may cause unit damage.
Always release throttle and allow the unit to
return to idle before shifting.

Do not stand close to drill or chuck with
your body or clothes while operation.

When drilling, ensure that no power cable
or other obstacle exist.

WARNING DANGER

• WHEN THE DRILL CAN NOT PULL OUT
FROM THE WOOD, DO NOT TRY TO
PULL OUT THE DRILL BY FORCE.

• WHEN CHANGING THE BIT, ENSURE
TO STOP THE ENGINE.

• AFTER A JOB, BIT AND GEAR CASING
MAY BE HEATED, DO NOT TOUCH
THEM WITH BARE HANDS.

9

MAINTENANCE AND CARE

AREA MAINTENANCE PAGE BEFORE MONTHLY YEARLY DATE

USE MAINTENANCE

PERFORMED
Air Filter Clean/Replace 12 •
Fuel Filter Inspect/Replace 12 •
Spark Plug Inspect/Clean/ 12 •

Adjust/Replace
Carburettor Adjust 14 •
Cooling System Inspect/Clean 14 •
Silencer Inspect/Clean 14 •
Starter Rope Inspect/Replace - •
Drills Inspect/Clean/ 13 •

Lubricate
Fuel Leaks Inspect/Repair - •
Screw, Bolts & Inspect,

Nuts Tighten/Replace - •
Fuel Line Inspect - •

IMPORTANT

Time intervals are maximum. Actual use
and your experience will determine the
frequency of required maintenance.
Record dates of monthly and yearly
inspections.

10

TROUBLE SHOOTING

Trouble

Engine - starts hard Cause Remedy

- does not start

Engine Fuel at No fuel • Fuel strainer clogged • Clean
Cranks carburettor at carburettor • Fuel line clogged • Clean

• Carburettor • Ask your ECHO dealer

Fuel at No fuel at • Carburettor • Ask your ECHO dealer
cylinder cylinder

Silencer wet • Fuel mixture is too rich • Open choke
with fuel • Clean/replace air filter

• Adjust carburettor

• Ask your ECHO dealer

Spark at No spark at • Ignition switch off • Turn switch on
end of end of plug • Electrical problem • Ask your ECHO dealer
plug wire wire

Spark at No spark at • Spark gap incorrect • Adjust 0.6 to 0.7 mm
plug plug (0.024 to 0.028 in)

• Covered with carbon • Clean or replace

• Fouled with fuel • Clean or replace

• Spark plug defective • Replace plug

Engine • Internal engine problem • Ask your ECHO dealer
does not
crank

Engine Dies or • Air filter dirty • Clean or replace
runs accelerates poorly • Fuel filter dirty • Replace

• Fuel vent blocked • Clean

• Spark plug • Clean and adjust/replace

• Carburettor • Adjust

• Cylinder fins blocked • Clean

• Exhaust port/spark • Clean

arrester screen blocked

WARNING DANGER

ALL ENGINE DRILL SERVICING, OTHER
THAN THE ITEMS LISTED IN THE
OPERATOR’S MANUAL SHOULD BE
PERFORMED BY AN AUTHORIZED ECHO
DEALER.

11

Air filter

Fuel filter

Cap

MAINTENANCE

AIR FILTER

• Clean before Use.

- Remove air cleaner cover and pull out
air fillter.

- Lightly brush off dust or wash it in water
and detergent.

- Dry completely before putting it back in
place.

Air cleaner cover

FUEL FILTER

• Check periodically.

- Do not allow dust to enter into fuel tank.

- Clogged filter will cause difficulty in
starting engine or poor engine
parformances.

- Pick up fuel strainer through fuel inlet
port with a piece of steel wire or the like.

- When filter is dirty, replace it.

0.6 - 0.7 mm (0.024 - 0.028 in)

SPARK PLUG

• Check periodically.

- The standard spark gap is 0.6 to 0.7 mm
(0.024 to 0.028 in).

- Correct spark gap if it is wider or narrower
than the standard gap.

- If the electrodes are coated with carbon
deposites replace with a new spark plug.
Do not sandblast to clean.
Remainnig sand will damage engine.

• Fastening torque = 14.2 to 15.2 N • m
(125 to 135 in • lb).

IMPORTANT

Do not over tighten plug.

12

REPLACEMENT OF CHUCK

Replacement of chuck should be done in the
following manner:

1. Remove bolt with hexagonal hole fixed in
the driving axle.

2. Insert accessory hexagonal bar into chuck
and fix.

3. Fit 19 mm spanner onto driving axle and
keep it fitted.

4. Fit 10 mm box spanner onto the hexagonal
bar and turn it into direction as indicated by
an arrow to remove chuck.

5. Fit a new chuck in the reversed order of
removing.

13

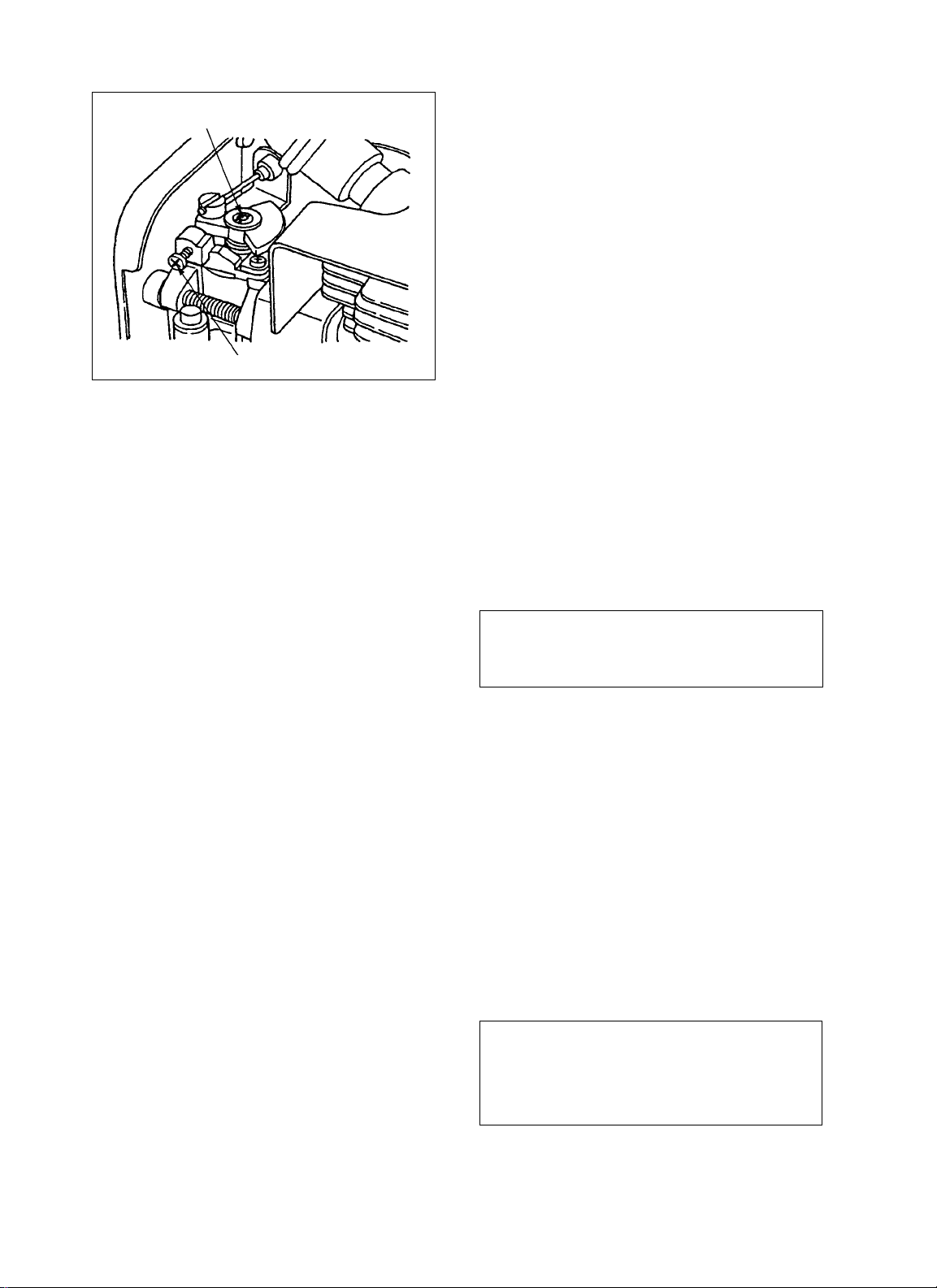

Low Speed Needle (L)

ADJUSTING CARBURETTOR

(As Required)

GENERAL INFORMATION

The idle speed adjuster screw controls the
throttle opening at the idle position.

IDLE ADJUSTMENT

1. Start engine and allow it to run at high idle
until warm.

Idle Speed Adjustment Screw

2. Turn the idle speed screw clockwise until
drill begins to move.

3. Turn idle screw counter-clockwise 1 and 1/
2 to 2 turn or until the drill stops (2,700 to
3,300 r/min).

CLEANING CYLINDER FINS

(Check Per iodically)

NOTE

Clogged fins will cause poor engine cooling.

1. Carefully remove housing and clean dirt
and dust from fins.

2. Reinstall housing.

CLEANING SILENCER AND
EXHAUST PORT

(Check Periodically)

1. Carefully remove housing halves.

2. Remove and disassemble silencer.

NOTE

Be careful not to scratch the cylinder or
piston when cleaning the cylinder exhaust
port.

3. Clean deposits from cylinder exhaust port
and silencer.

14

STORAGE

LONG TERM STORAGE

(Over 30 Days)

Do not store your unit for a prolonged period of
time (30 days or longer) without performing
protective storage maintenance which includes
the following:

1. Store unit in a dry, dust free place, out of
the reach of children.

2. Place ignition switch in STOP position.

3. Remove accumulation of grease, oil, dirt
and debris from exterior of unit.

4. Perform all periodic lubrication and
services that are required.

5. Tighten all the screws and nuts.

WARNING DANGER

DO NOT STORE IN ENCLOSURE WHERE
FUEL FUMES MAY ACCUMULATE OR
REACH AN OPEN FLAME OR SPARK.

6. Drain the fuel tank completely and pull the
starter handle several times to remove fuel
from the carburettor.

7. Remove the spark plug and pour 1/2
tablespoon (1/4 oz) of fresh, clean, 2­stroke engine oil into the cylinder through
the spark plug hole.

A.Place a clean cloth over the spark plug

hole.

B.Pull the starter handle 2 or 3 times to

distribute the oil inside the engine.

C.Observe the piston location through the

spark plug hole. Pull the starter slowly
until the piston reaches the top of its
travel and leave it there.

8. Install the spark plug (do not connect
ignition cable.)

9. Lubricats the blades with a heavy coat of
oil to prevent rust.

NOTE

For future reference, you should keep this
operator’s manual.

15

SPECIFICATIONS

EDR-2100 TYPE1-E

Masses kg 4.6 (10.1 lb)
Volume
fuel tank L 0.5 (16.9 US fl oz)
Drill
size (Max) mm 30
chuck capacity mm 13 (0.5 inch)

speed r/min 430
Mission
reduction ratio 17.1 (regular side)

18.6 (reverse side)

lubrication grease
External Dimensions

length x width x height mm 420 x 328 x 255

(16.5 x 12.8 x 10.0 inch)

Engine
type Air cooled Two stroke single

cylinder
engine displacement mL(cm³) 21.2 (1.29 cu inch)
carburettor diaphragm type
ignition flywheel magneto - CDI system
spark plug NGK BPM7Y
starter recoil starter
clutch automatic Centrifugal

Fuel
mixing ratio Mixture of gasoline (unleaded, 89

octane minimum) and specially

blended 50:1 ECHO two cycle

engine oil.
fuel consumption at engine maximum power L/h 0.5 (16.9 US fl oz)

16

17
