Echo DM-6110 Parts List [ru]

PARTS CATALOG

DUSTER / MIST BLOWER

DM-6110(20)ET

20001151

-

P014-001850-12Eb

1. CYLINDER, CRANKCASE, PISTON

NOTE2

GASKET, MUFFLER

BOLT, H.S. 5*22

CYLINDER

SCREW 5*10

COVER,CYLINDER

GASKET,INTAKE

GASKET, CYL. BASE

PISTON KIT

RING, PISTON

PIN, PISTON

RING,END

BEARING, NEEDLE

CRANKCASE SET

PIN, DOWEL

BOLT, H.S. 5*40

GASKET, CRANKCASE

OILSEAL

BEARING, BALL 6202

COVER, DUST

SCREW 5*18

BUSHING

SCREW 5*25

CRANKSHAFT ASSY

KEY WOODRUFF

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

3 101514-06210 1
4 145512-06211 1

5 900162-05022 4
6 A130-000111 1
7 900242-05010 1
8 A160-000680 1

9 V103-001540 1
10 101010-06211 1
11 P021-038580 1
12 + 100011-08360 2
13 + 100013-06210 1
14 + V580-000010 2
15 + 100012-12330 1
18 P021-014700 1
19 + 100215-03930 2
20 + 900162-05040 4
22 + 100242-10721 1
23 + 100213-00310 2
24 + 900810-36202 2
25 159129-08261 1
26 900238-05018 1
27 150112-00310 1
28 900292-05025 6
30 100100-06210 1
33 900323-03014 1

COVER, CYLINDER

5*22 W,SW

10

5*40 W,SW

ISCD 15 25 7
6202/C3

5*18

5*25 SUS

3*14

- 1 -

1. CYLINDER, CRANKCASE, PISTON

NOTE2

SCREW 5*20

LABEL,CAUTION

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

34 104016-06410 1
35 900292-05020 3

36 X505-002310 1

COVER, ENGINE

5*20 SUS
HOT CAUTION

- 2 -

2. AIR CLEANER, FUEL TANK

NOTE2

CUP SET, VENT

GASKET, FUEL CAP

TANK,FUEL

SCREW +-SR 6*14

WASHER, SPRING 6

WASHER 6.5*18*1.6

SCREW

WASHER

GASKET,INTAKE

INSULATOR,INTAKE

GASKET,INTAKE

BOLT, H.S. 5*30

LABEL, CHOKE

CARBURETOR,DIAPHRAGM

PIPE

CLEANER CASE ASY

PLATE,PREVENT

GRID, AIR CLEANER

FILTER, AIR

FILTER, AIR

GRID, AIR CLEANER

COVER, AIR CLEANER

LABEL, CLEANER

GROMMET, FUEL

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

4 131600-42230 1

5 + 131003-21230 1

6 + 131016-21060 1

8 A350-000342 1

9 900220-06014 2
10 900605-00006 2
11 145642-00760 2
13 91331-05060 2
15 145712-14730 2
17 V103-001520 1
18 A200-000191 1
19 V103-001530 1
20 900105-05030 2
21 890121-65830 1
23 A021-003800 1
27 V471-000550 1
28 P021-008620 1
29 A244-000020 1
30 130319-03710 1
31 130317-03710 1
32 130310-02910 1
33 130311-03710 1
34 130313-03712 1
35 890187-03710 1
37 132115-56230 1

CAP ASSY, FUEL TANK

6*14
6

6.5*18*1.6
SR 5*60ZM

5*30

3*6*145

- 3 -

2. AIR CLEANER, FUEL TANK

NOTE2

CLIP

STRAINER, FUEL

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

38 V471-000770 1
39 V490-001230 1

40 131205-19831 1

PIPE

- 4 -

3. MAGNETO, STARTER

NOTE2

WASHER, SPRING 10

WASHER 10(10.5*21*2)

FAN

BOLT 5*35

ROTOR, MAGNETO

SCREW 5*18

C.D. IGNITION MODULE

TUBE

CAP, SPARK PLUG

COIL, SPARK PLUG

PLUG, SPARK (BPM-7Y)

PAWL ASSY, STARTER

E-RING

SPRING, RETURN

PAWL, STARTER

STARTER ASSY

SCREW

WASHER

DRUM, STARTER

ROPE, STARTER

GUIDE, ROPE

GRIP, STARTER

REWIND SPRING

CLIP, STARTER ROPE

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

3 900501-00010 1

4 900605-00010 1

5 900602-00010 1

6 200005-06210 1

7 900148-05035 4

8 156800-06161 1

9 900238-05018 2
10 156601-06211 1
12 156611-04260 1
13 159012-03433 1
14 159011-03432 1
15 159010-19630 1
20 177202-06210 1
21 + P022-002100 1
23 + 177234-40630 1
24 + 177218-40630 1
26 177200-06210 1
27 + 177236-40630 1
28 + P022-022280 1
29 + P022-022290 1
30 + 177226-11120 1
31 + 177227-42030 1
32 + 177228-11120 1
33 + 177220-11120 1
34 + 177246-11120 1

NUT 10*1.25

10*P1.25
10

10.5*21*2

5*35

5*18

6*8*340

BPM-7Y

4

WHITE

3.8*1400

- 5 -

3. MAGNETO, STARTER

NOTE2

LABEL,ECHO

PLATE, ANGLE

CUSHION

GASKET, MUFFLER

MUFFLER ASY

BOLT, H.S. 6*20

SCREW 5*14

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

35 900292-04018 4
36 X502-000780 1

37 300029-06210 1
38 305117-03360 1
41 145510-06211 1
42 P021-008630 1
43 900105-06020 2
44 900242-05014 1

SCREW 4*18

4*18 SUS

6*20

- 6 -

4. FAN CASE

NOTE2

CASE,FAN

BOLT

WASHER, SPRING 5 SUS

WASHER 5 SUS

TANK, LOWER

PACKING

PLATE

GUIDE, AIR

PIPE, DUST OUTLET

LOCKNUT 5

CASE, FAN

PIN, STRAIGHT 10

E-RING 8 SUS

LABEL

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

4 900286-05025 11

5 E103-001020 1

6 210425-04110 2

7 900609-00005 2

8 900604-00005 2

9 270010-06211 1
10 270018-06210 1
11 370321-06210 1
12 370316-06210 1
13 370301-06211 1
14 900562-50005 2
15 200105-07712 1
16 701033-06211 1
17 + 900703-00008 1
18 X524-004340 1

SCREW 5*25 SUS

5*25 SUS

5 SUS
5 SUS

5

CE-8 SUS
E20

- 7 -

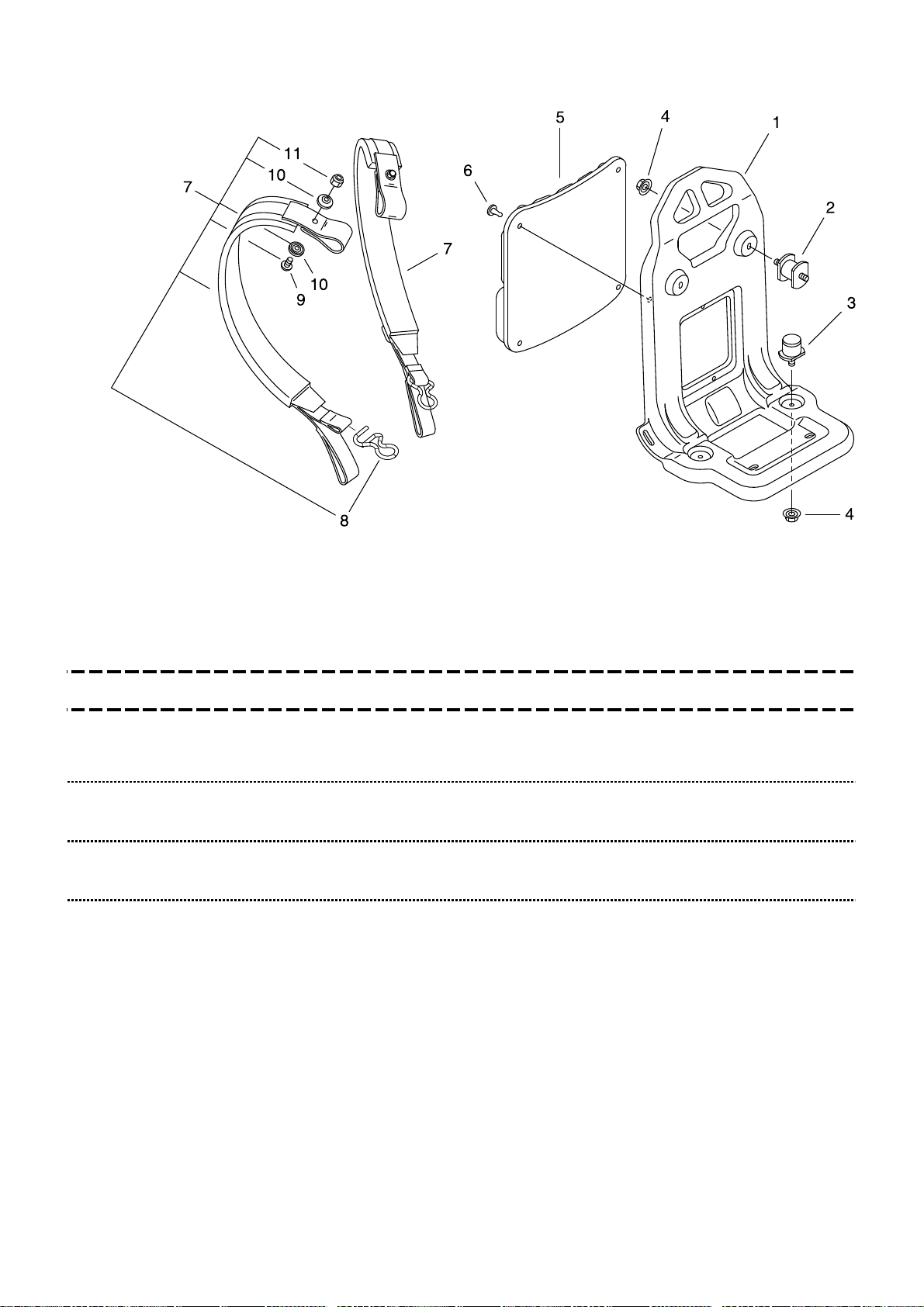

5. HARNESS

NOTE2

CUSHION

CUSHION

NUT

CUSHION, KNAPSACK

CLIP

HARNESS,ASM BACKPACK

RING, HARNESS

SCREW, 5*16

WASHER, HARNESS

NUT, LOCK 5

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

1 300010-07312 1

2 200910-06210 2

3 200916-03210 2

4 250916-06210 4

5 300111-14010 1

6 300333-06160 4

7 P021-041100 2

8 + C646-000120 2

9 + 900216-05016 2
10 + 300328-03210 4
11 + 900560-00005 2

FRAME, BACKPACK

5*16

5

- 8 -

6. THROTTLE LEVER

NOTE2

LABEL, SWITCH

SCREW 5*25

DIAL

NUT 5B

BRACKET, DIAL

KNOB,LEVER

LEVER,THROTTLE

SCREW 5*25 SUS

SCREW 5*14

KNOB, LEVER

NUT 6 (3N)

LEVER, CONTROL

CONNECTOR

NUT 5

ROD, CONTROL LEVER

PIN, SNAP

CABLE,BOWDEN

WASHER 8

HOLDER, STOPPER

NUT (3N 6*0.75)

WASHER 6

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

5 890348-05060 1

6 890157-39130 1

7 900292-05025 2

8 701111-06213 1

9 900504-00005 2
10 701112-06414 1
11 E151-000010 1
12 C453-000131 1
13 900286-05025 4
14 900292-05014 2
15 701007-06610 1
16 900502-00006 1
17 701010-06610 1
18 701020-05510 1
19 900500-00005 1
20 701014-06510 1
21 605612-06510 1
22 V430-001330 1
23 900600-00008 1
24 701028-06210 1
25 900503-00006 2
26 900600-00006 2

LABEL, SPEED

5*25 SUS

5B

5*25 SUS
5*14 SUS

3N6

5

8

3N 6*0.75
6

- 9 -

7. CHEMICAL TANK

NOTE2

PIPE,BLOWER

BAND

PACKING, FLX. PIPE

PIPE, FLEXIBLE

GASKET, FLX. PIPE

BAND

ELBOW, BLOWING

SCREW 5*14

NUT 5

CAP, CHEMICAL TANK

CAP, INSIDE

PACKING

TANK, CHEMICAL

LABEL,ECHO

LABEL, CAUTION

LABEL,MODEL

HOLDER ASSY, C.TANK

BOLT HS FL TAPP

HOLDER, C. TANK

PIN, TANK HOLDER

BRACKET ASSY, C.TANK

BOLT, TANK HOLDER

CONNECTOR, BRACKET

BRACKET, TANK

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

5 210023-01060 1

6 E165-000600 1

7 V495-001171 1

8 210032-04110 1

9 210013-04111 1
10 210036-04110 1
11 V495-001201 1
12 210011-05510 1
13 900242-05014 1
14 900500-00005 1
15 250001-05610 1
16 + 250013-00310 1
17 250011-02011 1
18 250017-08013 1
19 X502-000440 1
20 890160-09461 1
21 X503-008360 1
22 270000-06311 1
23 + 91148-05035 4
24 + 250910-06310 2
25 + 250914-06210 2
26 + 250902-06310 1
27 ++ 250915-06310 2
28 ++ 250930-06210 2
29 ++ 250932-06210 2

PIPE, CURVED (BL)

5

23 L

DM-6110

M5*35

- 10 -

7. CHEMICAL TANK

NOTE2

HANDLE,FRONT

BOLT 6*45

WASHER 6

NUT, WING 6

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

30 ++ 900333-70380 2
31 C040-000020 1

32 + 900100-06045 1
33 + 900600-00006 1
34 + 900525-00006 1

PIN, STRAIGHT

6*45
6
BN6

- 11 -

8. MIST BLOWER

NOTE2

NUT, CONNECTOR

WASHER

PLUG

CONNECTOR, PIPE

PIPE, AIR (OUTER)

PLUG

PIPE,AIR

PIPE (INNER)

FILTER

PIPE (9*13)

BAND

PLATE, TANK BOTTOM

GASKET, SHUTTER

NIPPLE, OUTLET

O-RING

NUT, HOLLOW

CLIP

CLIP, PIPE

PIPE (L-650)

COCK,LIQUID

PIPE (L-720)

NOZZLE ASM., MIST

COLLAR, NOZZLE

NUT, MISTING NOZZLE

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

1 132013-14010 1

2 363019-00310 1

3 363018-00310 1

4 363022-00510 1

5 363017-00310 1

6 363011-00210 1

7 363021-01110 1

8 E105-000000 1

9 363014-03210 1
10 254210-03210 1
11 382011-01110 1
12 V495-000310 5
13 253010-08010 1
14 270119-06210 1
15 357010-01110 1
16 357014-01110 1
17 357015-01110 1
18 363023-01110 1
19 357911-00111 1
20 357011-02410 1
21 358100-01111 1
22 357032-01110 1
23 212500-01112 1
24 + 212515-01110 1
25 + 212514-01110 1

BAND

10.5MM

7*11*500BL

9*13*350

3*13

9*13*650L

9*13*720

- 12 -

8. MIST BLOWER

NOTE2

NOZZLE

HEAD, NOZZLE BL

SCREW 5*12

LABEL, MIST

TOOL,WRENCH

SCREW 5*16 SUS

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

26 + 212513-01110 1
27 + 222000-01110 1

28 + 212501-01111 1
29 ++ 900246-05012 1
31 + 890031-01110 1
30 X602-000020 1
32 900286-05016 1

RING, MISTING NOZZLE

BL
5*12

17*19 L200
5*16 SUS

- 13 -

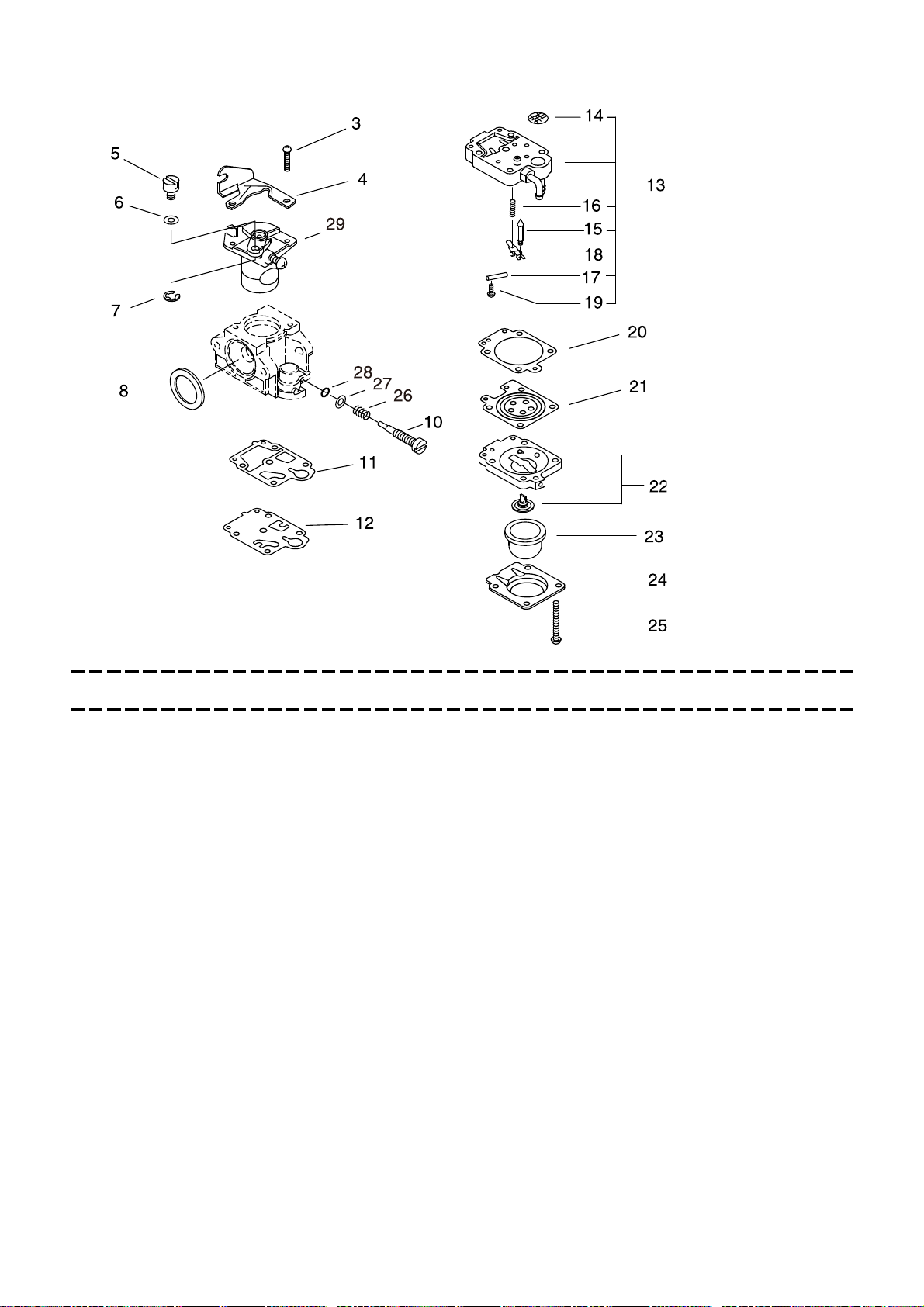

9. CARBURETOR

NOTE2

SCREW

BRACKET CABLE

SWIVEL

WASHER

CLIP

RING, PACKING

NEEDLE

GASKET, PUMP

DIAPHRAGM, PUMP

BODY ASSY, PUMP

SCREEN, INLET

VALVE, INLET NEEDLE

SPRING, METER. LEVER

PIN, METERING LEVER

LEVER, METERING

SCREW, M. LEVER PIN

GASKET, M. DIAPHRAGM

DIAPHRAGM, METERING

BODY, AIR PURGE

PUMP, PRIMER

COVER, PRIMER PUMP

SCREW, PUMP COVER

SPRING, NEEDLE

WASHER, CHECK VALVE

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

A021-003800 1

3 + 123114-40630 2

4 + P003-000180 1

5 + 123172-45130 1

6 + 123149-54230 1

7 + 123173-07930 1

8 + 123143-12110 1
10 + P003-004990 1
11 + P003-000100 1
12 + 123112-40630 1
13 + 123179-05560 1
14 ++ 123126-10631 1
15 ++ 123137-19830 1
16 ++ 123122-05560 1
17 ++ 123138-03930 1
18 ++ 123123-03930 1
19 ++ 123139-05560 1
20 + 123140-05560 1
21 + P003-001850 1
22 + 123180-05560 1
23 + 123181-40630 1
24 + 123142-05560 1
25 + 123110-05560 4
26 + 123121-22130 1
27 + 123174-54230 1

CARBURETOR,DIAPHRAGM

- 14 -

9. CARBURETOR

NOTE2

VALVE ASY-THROTTLE

DM-6110(20)ET

LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

KEY

28 + 123183-54230 1
29 + P003-004980 1

O-RING

- 15 -

Index

Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.

100011-08360 1 - 12 156800-06161 3 - 8 300029-06210 3 - 37

100012-12330 1 - 15 159010-19630 3 - 15 300111-14010 5 - 5

100013-06210 1 - 13 159011-03432 3 - 14 300328-03210 5 - 10

100100-06210 1 - 30 159012-03433 3 - 13 300333-06160 5 - 6

100213-00310 1 - 23 159129-08261 1 - 25 305117-03360 3 - 38

100215-03930 1 - 19 177200-06210 3 - 26 357010-01110 8 - 15

100242-10721 1 - 22 177202-06210 3 - 20 357011-02410 8 - 20

101010-06211 1 - 10 177218-40630 3 - 24 357014-01110 8 - 16

101514-06210 1 - 3 177220-11120 3 - 33 357015-01110 8 - 17

104016-06410 1 - 34 177226-11120 3 - 30 357032-01110 8 - 22

123110-05560 9 - 25 177227-42030 3 - 31 357911-00111 8 - 19

123112-40630 9 - 12 177228-11120 3 - 32 358100-01111 8 - 21

123114-40630 9 - 3 177234-40630 3 - 23 363011-00210 8 - 6

123121-22130 9 - 26 177236-40630 3 - 27 363014-03210 8 - 9

123122-05560 9 - 16 177246-11120 3 - 34 363017-00310 8 - 5

123123-03930 9 - 18 200005-06210 3 - 6 363018-00310 8 - 3

123126-10631 9 - 14 200105-07712 4 - 15 363019-00310 8 - 2

123137-19830 9 - 15 200910-06210 5 - 2 363021-01110 8 - 7

123138-03930 9 - 17 200916-03210 5 - 3 363022-00510 8 - 4

123139-05560 9 - 19 210011-05510 7 - 12 363023-01110 8 - 18

123140-05560 9 - 20 210013-04111 7 - 9 370301-06211 4 - 13

123142-05560 9 - 24 210023-01060 7 - 5 370316-06210 4 - 12

123143-12110 9 - 8 210032-04110 7 - 8 370321-06210 4 - 11

123149-54230 9 - 6 210036-04110 7 - 10 382011-01110 8 - 11

123172-45130 9 - 5 210425-04110 4 - 6 605612-06510 6 - 21

123173-07930 9 - 7 212500-01112 8 - 23 701007-06610 6 - 15

123174-54230 9 - 27 212501-01111 8 - 28 701010-06610 6 - 17

123179-05560 9 - 13 212513-01110 8 - 26 701014-06510 6 - 20

123180-05560 9 - 22 212514-01110 8 - 25 701020-05510 6 - 18

123181-40630 9 - 23 212515-01110 8 - 24 701028-06210 6 - 24

123183-54230 9 - 28 222000-01110 8 - 27 701033-06211 4 - 16

130310-02910 2 - 32 250001-05610 7 - 15 701111-06213 6 - 8

130311-03710 2 - 33 250011-02011 7 - 17 701112-06414 6 - 10

130313-03712 2 - 34 250013-00310 7 - 16 890031-01110 8 - 31

130317-03710 2 - 31 250017-08013 7 - 18 890121-65830 2 - 21

130319-03710 2 - 30 250902-06310 7 - 26 890157-39130 6 - 6

131003-21230 2 - 5 250910-06310 7 - 24 890160-09461 7 - 20

131016-21060 2 - 6 250914-06210 7 - 25 890187-03710 2 - 35

131205-19831 2 - 40 250915-06310 7 - 27 890348-05060 6 - 5

131600-42230 2 - 4 250916-06210 5 - 4 900100-06045 7 - 32

132013-14010 8 - 1 250930-06210 7 - 28 900105-05030 2 - 20

132115-56230 2 - 37 250932-06210 7 - 29 900105-06020 3 - 43

145510-06211 3 - 41 253010-08010 8 - 13 900148-05035 3 - 7

145512-06211 1 - 4 254210-03210 8 - 10 900162-05022 1 - 5

145642-00760 2 - 11 270000-06311 7 - 22 900162-05040 1 - 20

145712-14730 2 - 15 270010-06211 4 - 9 900216-05016 5 - 9

150112-00310 1 - 27 270018-06210 4 - 10 900220-06014 2 - 9

156601-06211 3 - 10 270119-06210 8 - 14 900238-05018 1 - 26

156611-04260 3 - 12 300010-07312 5 - 1 900238-05018 3 - 9

- 16 -

Index

Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.

900242-05010 1 - 7 P003-000100 9 - 11

900242-05014 3 - 44 P003-000180 9 - 4

900242-05014 7 - 13 P003-001850 9 - 21

900246-05012 8 - 29 P003-004980 9 - 29

900286-05016 8 - 32 P003-004990 9 - 10

900286-05025 4 - 4 P021-008620 2 - 28

900286-05025 6 - 13 P021-008630 3 - 42

900292-04018 3 - 35 P021-014700 1 - 18

900292-05014 6 - 14 P021-038580 1 - 11

900292-05020 1 - 35 P021-041100 5 - 7

900292-05025 1 - 28 P022-002100 3 - 21

900292-05025 6 - 7 P022-022280 3 - 28

900323-03014 1 - 33 P022-022290 3 - 29

900333-70380 7 - 30 V103-001520 2 - 17

900500-00005 6 - 19 V103-001530 2 - 19

900500-00005 7 - 14 V103-001540 1 - 9

900501-00010 3 - 3 V430-001330 6 - 22

900502-00006 6 - 16 V471-000550 2 - 27

900503-00006 6 - 25 V471-000770 2 - 38

900504-00005 6 - 9 V490-001230 2 - 39

900525-00006 7 - 34 V495-000310 8 - 12

900560-00005 5 - 11 V495-001171 7 - 7

900562-50005 4 - 14 V495-001201 7 - 11

900600-00006 6 - 26 V580-000010 1 - 14

900600-00006 7 - 33 X502-000440 7 - 19

900600-00008 6 - 23 X502-000780 3 - 36

900602-00010 3 - 5 X503-008360 7 - 21

900604-00005 4 - 8 X505-002310 1 - 36

900605-00006 2 - 10 X524-004340 4 - 18

900605-00010 3 - 4 X602-000020 8 - 30

900609-00005 4 - 7

900703-00008 4 - 17

900810-36202 1 - 24

91148-05035 7 - 23
91331-05060 2 - 13
A021-003800 2 - 23
A021-003800 9 ­A130-000111 1 - 6
A160-000680 1 - 8
A200-000191 2 - 18
A244-000020 2 - 29

A350-000342 2 - 8
C040-000020 7 - 31
C453-000131 6 - 12
C646-000120 5 - 8
E103-001020 4 - 5
E105-000000 8 - 8
E151-000010 6 - 11
E165-000600 7 - 6

- 17 -

©2014

12Eb

No. 04-266
