Echo 99944100026 Instruction Sheet

INSTRUCTION SHEET

RAIN GUTTER KIT 99944100026

X7671130203

ECHO Model Applications

ES-250 PB-255LN PB-580
ES-255 PB-2520 PB-610
PB-250 PB-2620 PB-620
PB-250LN PB-265L PB -6 51
PB -251 PB-265LN PB -751
PB-255 PB-500 PB-755

PB-755S

Rain Gutter Kit 99944100026

2. Assemble elbow pipes (A) and straight pipes (B)
as shown.

3. Loosely secure clamp (D). Completely secure
clamp (C).

NO. PART NUMBER QT Y. DESCRIPTION

– 99944100026 1 RAIN GUTTER KIT
1 E165000990 1 +ADAPTER, LARGE - 90 mm

(use with PB-2520

and PB-2620 only)
2 E165000230 1 +ADAPTER, SMALL - 86 mm
3 21001504260 2 +PIPE, STRAIGHT
4 21041304260 2 +CLAMP
5 21002304260 2 +ELBOW, PIPE

Installation Procedure

1. Place clamps on straight pipes.

4. Connect the adapter to the blower.

Back Pack Blowers - Connect small (86 mm)
adapter (E) to second pipe (F) of blower unit.

F

E

- 1 -

©2019 ECHO Incorporated. All Rights Reserved

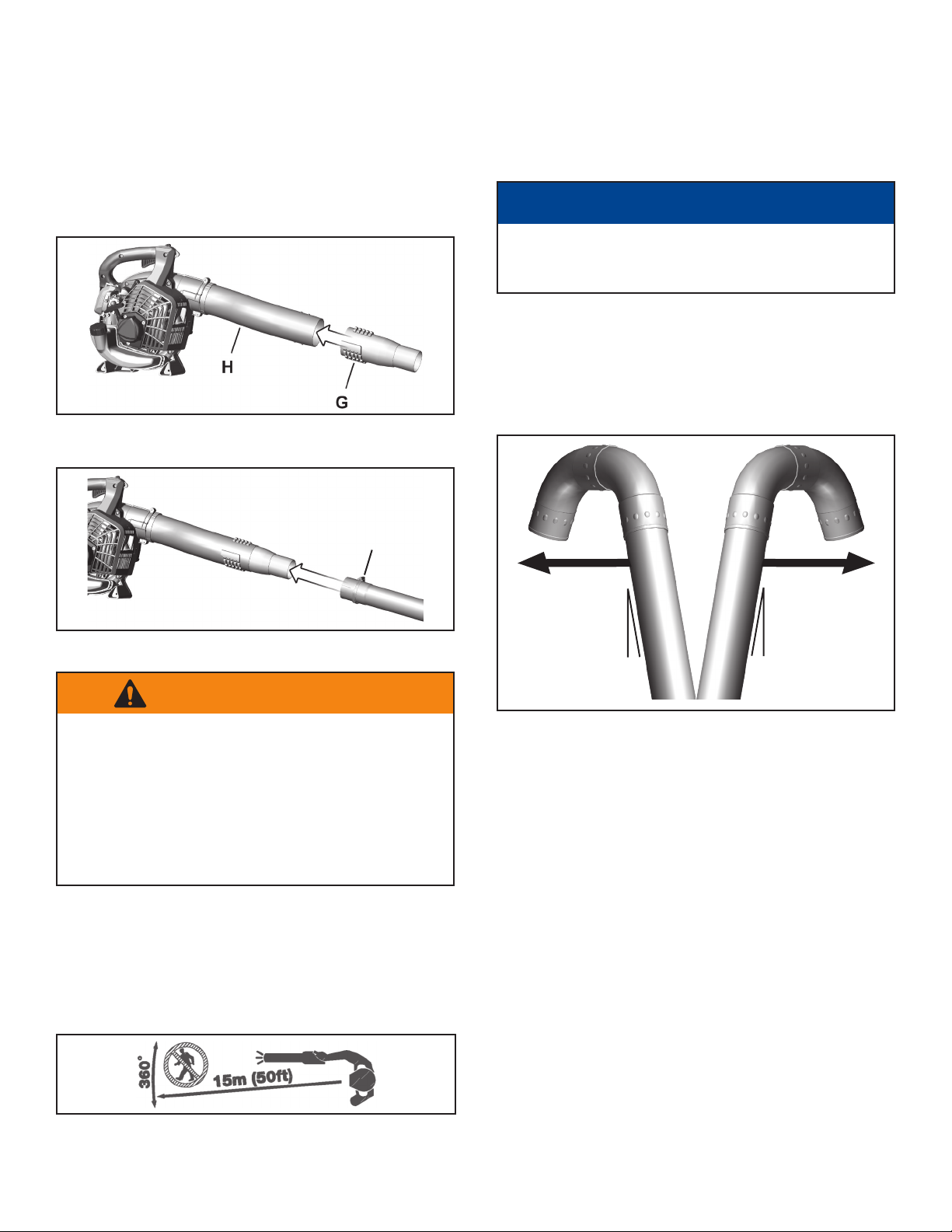

Hand Held Blowers

• Use the large (90 mm) adapter on PB-2520

and PB-2620 models.

• Use the small (86 mm) adapter on all other hand
held models listed in this instruction sheet

Connect adapter (G) to rst pipe (H) of blower

unit.

.

NOTICE

Do not block the outlet of the pipe assembly.
Blocking the outlet may result in engine dam-

age due to over-revving.

6. Start the unit.

7. Place the pipe assembly in the rain gutter. Tilt
the pipe assembly 10° from away from the rain
gutter. Angle the pipe elbow 30 to 45° in the di­rection you will be cleaning.

5. Connect the pipe assembly to the adapter, se­cure with clamp (D).

D

Operating Procedure

WARNING

Follow the safety instructions in your Power
Blower Operator’s Manual. Wear safety gog­gles which meet ANSI Standard Z-87.1. Wear
hearing protection and a face lter mask. Fail­ure to read the operator’s manual and wear
safety equipment can result in serious person­al injury.

30 - 45°

10°

8. Slide the pipe assembly along the lip of the rain
gutter. Lift the pipe assembly up and over the
rain gutter support brackets.

30 - 45°

10°

Maintain footing and balance at all times. Do not
stand on slippery, uneven or unstable surfaces. Do
not work in odd positions or on ladders. Do not over
reach.

Keep bystanders and helpers away 15 m (50 ft.).

Direct the air ow away from bystanders. Always

be aware of the direction the debris will be thrown.
When the blower is started, air exiting the nozzle will
cause the pipe assembly to sway. Hold the unit rm­ly for effective cleaning.

X7671130203 ©2019 ECHO Incorporated. All Rights Reserved

- 2 -

HOJA DE INSTRUCCIONES

KIT PARA ALCANTARILLAS 99944100026

Aplicaciones de modelos de ECHO

ES-250 PB-255LN PB-580
ES-255 PB-2520 PB-610
PB-250 PB-2620 PB-620
PB-250LN PB-265L PB -651
PB -251 PB-265LN PB -751
PB-255 PB-500 PB-755

PB-755S

Kit para alcantarillas 99944100026

2. Ensamble los tubos de codo (A) y los tubos
rectos (B) como se muestra.

3. Sujete la abrazadera (D) sin ajustar. Sujete

rmemente la abrazadera (C).

N.° NÚMERO DE

PIEZA

– 99944100026 1 KIT PARA ALCANTARILLAS
1 E165000990 1

2 E165000230 1
3 21001504260 2 +TUBO, RECTO
4 21041304260 2 +ABRAZADERA
5 21002304260 2 +TUBO DE CODO

CANT. DESCRIPCIÓN

+

ADAPTADOR, GRANDE - 90 mm

(use solo con PB-2520 y PB-2620)
+ADAPTADOR, PEQUEÑO - 86 mm

Procedimiento de instalación

1. Coloque las abrazaderas sobre tubos rectos

4. Conecte el adaptador a la sopladora.

Sopladoras con mochila - Conecte el adaptador
(E) pequeño (86 mm) al segundo tubo (F) de la
unidad de la sopladora.

F

E

X7671130203

- 1 -

©2019 ECHO, Incorporated Todos los derechos reservados
