The OpenLNS Server network operating system allows LONWORKS network tools to

interoperate with one another and interact with the managed LONWORKS network.

OpenLNS brings the power of client-server architecture and object-oriented

component-based software into control networks. This enables OpenLNS tools to

work together to install, maintain, monitor, and control LONWORKS networks. In

addition, it provides the fastest, most efficient way to bring control on-line with all

your other information systems.

iv Preface

Purpose

This guide explains how to obtain and activate a license for the OpenLNS Server product.

Audience

This guide is intended for system designers and integrators using OpenLNS Server.

System Requirements

System requirements for running the OpenLNS Server are as follows:
 Microsoft Windows® 8 (64-bit and 32-bit), Windows 7 (64-bit and 32-bit), Windows Server 2008

SR2 64-bit, Windows Vista® with Service Pack (SP) 1, or Windows XP with SP3 (32-bit).

 500 MHz processor or faster. 2 GHz processor recommended.
 2 GB or more of free disk space.
 512 MB RAM. 2 GB RAM recommended.
 1,024 MB page file minimum. 2,048 page file recommended.
 1,024 x 768 or higher-resolution display with at least 256 colors.
 Mouse or compatible pointing device
 DVD-ROM drive.
 OpenLDV 4.0-compatible local, remote, or IP-852 network interface.

o Compatible local network interfaces include the U10/U20 USB network interface; PCC-10,

PCLTA-20, or PCLTA-21 network interface cards; and the SLTA-10 Serial LonTalk Adapter.
The PCC/PCLTA and SLTA-10 network interfaces are compatible with 32-bit versions of
Windows only.

o Compatible remote network interfaces include the SmartServer, i.LON 100 Internet Server,

i.LON 600 IP-852 Router, and i.LON 10 Ethernet Adapter.

o Compatible IP-852 network interfaces include the SmartServer (with IP-852 routing option),

i.LON 100 Internet Server (with IP-852 routing option), and i.LON 600 IP-852 Router.

For More Information and Technical Support

If you have technical questions that are not answered by this document, you can contact Echelon
technical support. There is no charge for software installation-related questions during the first 30
days after you download the OpenLNS Server or purchase an OpenLNS Server activation key. To
receive technical support from Echelon, you must purchase support services from Echelon or an
Echelon support partner. See www.echelon.com/support for more information on Echelon support.
Your OpenLNS distributor may also provide customer support.

You can obtain technical support via phone, fax, or e-mail from your closest Echelon support center.
The contact information is as follows:

OpenLNS Server License Guide v

Region

Languages Supported

Contact Information

The Americas

English
Japanese

Echelon Corporation
Attn. Customer Support
550 Meridian Avenue
San Jose, CA 95126
Phone (toll-free):

1.800-258-4LON (258-4566)
Phone: [phone]
Fax: [phone]

[e-mail]

Europe

English
German
French
Italian

Echelon Europe Ltd.
Suite 12
Building 6
Croxley Green Business Park
Hatters Lane
Watford
Hertfordshire WD18 8YH
United Kingdom
Phone: [phone]
Fax: [phone]

[e-mail]

Japan

Japanese

Echelon Japan
Holland Hills Mori Tower, 18F
5-11.2 Toranomon, Minato-ku
Tokyo 105-0001
Japan
Phone: [phone]
Fax: [phone]

[e-mail]

China

Chinese
English

Echelon Greater China
Rm. 1007-1008, IBM Tower
Pacific Century Place
2A Gong Ti Bei Lu
Chaoyang District
Beijing 100027, China
Phone: [phone]
Fax: [phone]

[e-mail]

Other Regions

English
Japanese

Phone: [phone]
Fax: [phone]

[e-mail]

vi Preface

1

Installing an OpenLNS Server

This chapter provides the information to install your OpenLNS Server.

OpenLNS Server License Guide 7

WARNING: Do not use the same Activation Key to create a license on more than one PC. If
you use the same key to activate the OpenLNS Server on multiple computers, the licenses will be
deactivated on the old PC when the Echelon License Server detects the duplicate activations.

Downloading the OpenLNS Server

Echelon’s OpenLNS Server is available from the downloads tab of the OpenLNS Web page at

http://www.echelon.com/products/tools/integration/openlns-server. The OpenLNS Server is included

with other products, including the OpenLNS Commissioning Tool.
Once you download your OpenLNS Server product from the Echelon Web site you can install and

activate them as described in the next section.

Acquiring the OpenLNS Server Activation Key

The OpenLNS Server requires an activation key to install the software. An Activation Key comes with
one or more product licenses. Each license may be used on only one PC at a time. You can acquire
this key with any of the following methods.

1. Request a free OpenLNS Server Trial Activation Key. This provides a trial license for one

computer.

2. Request a free OpenLNS Commissioning Tool Trial Activation Key, which includes a trial license

for both the OpenLNS Commissioning Tool and the OpenLNS Server. You will receive a trial
license for one computer.

3. Purchase an OpenLNS Sever Standard Activation Key. One computer can use this license.

4. Purchase the OpenLNS Commissioning Tool Professional or Standard Edition, or purchase the

OpenLNS Commissioning Tool Professional or Standard Activation Key. These products all
include an OpenLNS CT Activation Key that provides up to two OpenLNS Server licenses.

5. Purchase another product that includes an OpenLNS Server Activation Key. This provides a

license for one computer.

Installing the OpenLNS Server

When you install the OpenLNS Server, it attempts to communicate with the Echelon license server to
automatically activate your software. If your computer does not communicate with the Echelon
license server, you will need to manually activate the OpenLNS Server. For the OpenLNS
Commissioning Tool (CT), you will need to manually activate both the OpenLNS Server license and
the OpenLNS CT license. The following section describes manual activation.

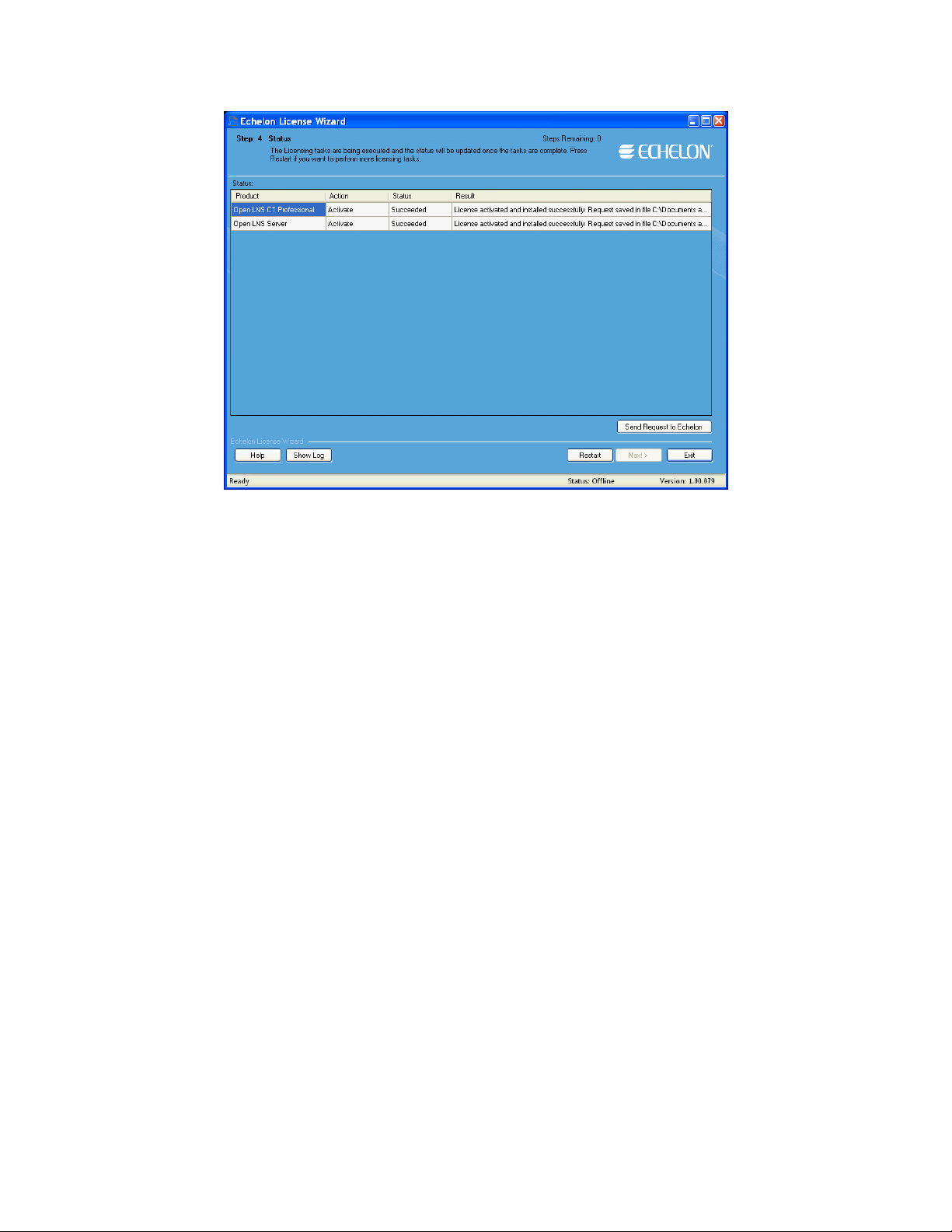

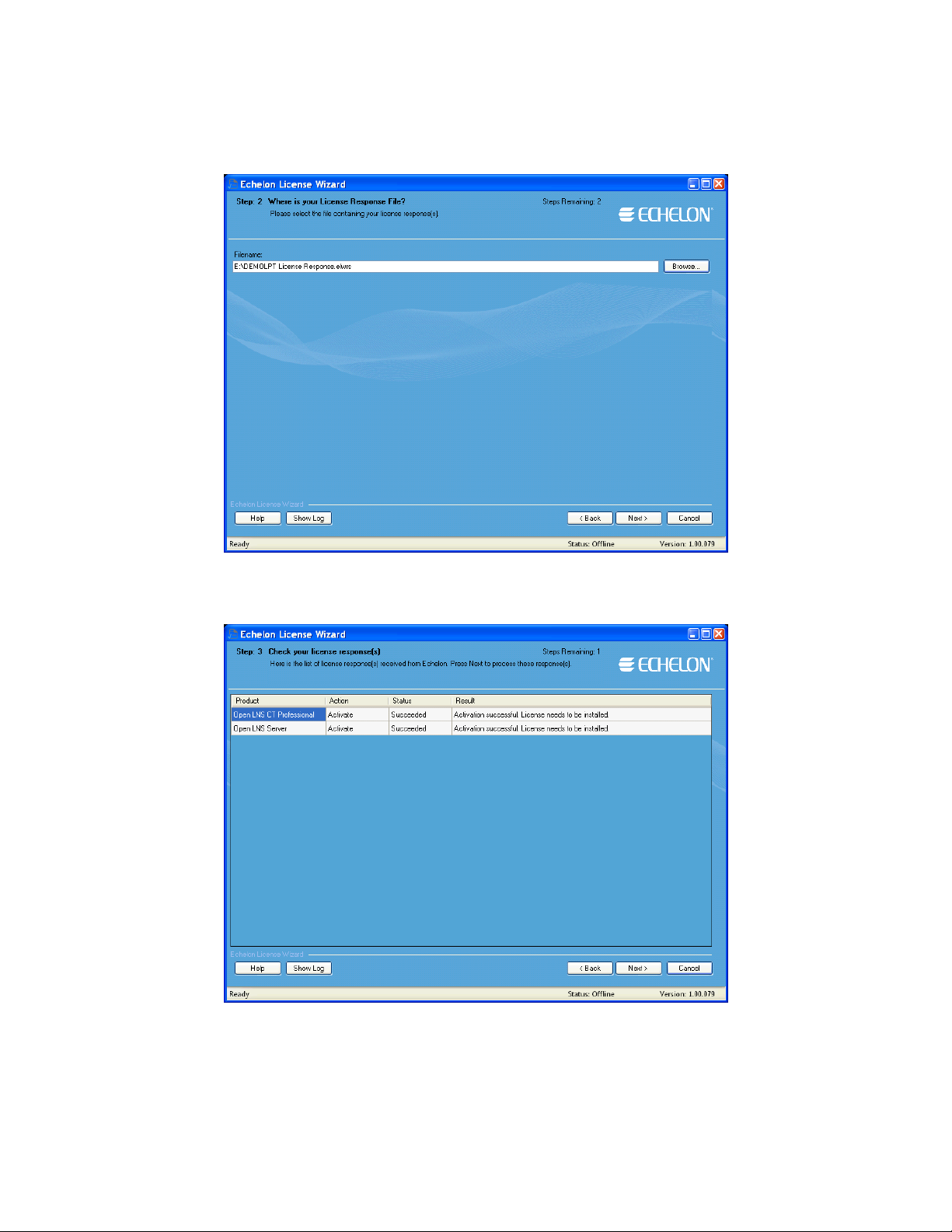

Manually Activating OpenLNS Server

If your computer was not attached to the Internet (or if the automatic installation failed) when you
installed the OpenLNS Server, you can use the Echelon License Wizard to activate OpenLNS
Server (and OpenLNS CT if purchased together) after you complete the software installation. You
can activate your software via the Internet if your computer is now online, or you can manually
activate your software via e-mail or phone if your computer is still offline. To use the License
Wizard to activate your OpenLNS software, follow these steps:

8 Installing an OpenLNS Server
