Echelon IzoT Resource Editos User Manual

IzoTTM Resource
Editor’s Guide

Create, view, and modify resource definitions for
IzoT™ and LONWORKS® applications and devices.

078-0508-01A

Echelon, FTXL, LonScanner, LonSupport, LON, LonWorks,
Neuron, 3120, 3150, LonMark, LonPoint, LonTalk,
NodeBuilder, ShortStack, and the Echelon logo are
trademarks of Echelon Corporation that may be
registered in the United States and other countries.

Other brand and product names are trademarks or
registered trademarks of their respective holders.

Neuron Chips and other OEM Products were not
designed for use in equipment or systems which involve
danger to human health or safety or a risk of property
damage and Echelon assumes no responsibility or
liability for use of the Neuron Chips or LonPoint Modules
in such applications.

Parts manufactured by vendors other than Echelon and
referenced in this document have been described for
illustrative purposes only, and may not have been tested
by Echelon. It is the responsibility of the customer to
determine the suitability of these parts for each
application.

ECHELON MAKES NO REPRESENTATION, WARRANTY, OR
CONDITION OF ANY KIND, EXPRESS, IMPLIED, STATUTORY,
OR OTHERWISE OR IN ANY COMMUNICATION WITH YOU,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, SATISFACTORY
QUALITY, FITNESS FOR ANY PARTICULAR PURPOSE,
NONINFRINGEMENT, AND THEIR EQUIVALENTS.

No part of this publication may be reproduced, stored in
a retrieval system, or transmitted, in any form or by any
means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written
permission of Echelon Corporation.

Printed in the United States of America.
Copyright ©1997–2014 by Echelon Corporation.
Echelon Corporation
www.echelon.com

ii

Table of Contents

Preface .................................................................................................... v

Purpose .......................................................................................................... vi

Audience ......................................................................................................... vi

Content ........................................................................................................... vi

Related Manuals ............................................................................................. vi

For More Information and Technical Support ................................................. vii

1 Introduction to Resource Files ........................................................ 1

Introduction to Resource Files ......................................................................... 2

2 Getting Started .................................................................................. 5

Installing the Resource Editor.......................................................................... 6

Starting the Resource Editor ........................................................................... 7

Setting Resource Editor Options ..................................................................... 7

3 Using Resource Folders ................................................................... 9

Introduction to Resource Folders .................................................................. 10

Browsing the Resource Catalog .................................................................... 10

Adding a Resource Folder ............................................................................. 12

Removing a Resource Folder ........................................................................ 12

Moving a Resource Folder ............................................................................ 12

Refreshing the Resource Catalog ................................................................. 13

Searching for a Resource .............................................................................. 13

4 Creating and Modifying a Resource File Set ................................ 15

Creating and Modifying a Resource File Set ................................................. 16

Using the Standard Program ID Calculator ............................................ 20

Viewing Resource File Properties ................................................................. 24

5 Creating and Modifying Resources ............................................... 25

Introduction to Creating and Modifying Resources ....................................... 26

Creating and Modifying a Network Variable or Configuration Property

Type ............................................................................................................... 26

Using the OpenLNS CT Browser to Calculate Raw Values.................... 31

Creating and Modifying a Structure or Union NV or CP Type ................ 32

Creating and Modifying an Enumerated NV or CP Type ........................ 32

Creating and Modifying a Bitfield ............................................................ 33

Creating and Modifying a Reference NV or CP Type ............................. 34

Creating and Modifying a Functional Profile .................................................. 35

Adding a Network Variable Member to a Functional Profile ................... 38

Adding a Configuration Property Member to a Functional Profile .......... 41

Using Cascading Resource File Sets ..................................................... 44

Creating and Modifying an Enumeration Type ....................................... 45

Creating and Modifying a Language String ................................................... 48

Adding a String to a Language File ......................................................... 48

Adding a String While Defining a Resource ............................................ 49

Searching for a Language String ............................................................ 50

Creating, Modifying, and Translating a Language File ........................... 53

Creating and Modifying a Resource Format .................................................. 55

Using The Text Format Specifier ............................................................ 58

Using Conversion Specifications ...................................................... 60

Using a Conditional Format .............................................................. 61

IzoT Resource Editor User's Guide iii

Using a Scaling Factor and Unit String ............................................ 61

Using Localized List Separators ....................................................... 62

Using Localized Time and Date Formats ......................................... 62

Copying Resources ....................................................................................... 63

Removing and Obsoleting Resources ........................................................... 64

Purging a Resource File Set ................................................................... 64

Converting a Resource File Set..................................................................... 65

6 Generating Resource Files ............................................................ 69

Generating Resource Files ............................................................................ 70

Resource Reports .......................................................................................... 71

Appendix A: Language File Extensions ............................................. 73

Appendix B: NodeBuilder Resource Editor Software License

Agreement ............................................................................................ 75

iv Preface

Preface

This document describes LONMARK resource files and how to use the IzoT

Resource Editor to view, create, and modify them.

.

IzoT Resource Editor User's Guide v

OpenLNS CT User’s Guide (078­0488-01A)

Describes how to use the OpenLNS CT Commissioning
Tool to design, commission, modify, and maintain
LONWORKS networks.

Purpose

This document describes resource files and how to use the IzoT Resource Editor to view,
create, and modify them.

Audience

This document is intended for device manufacturers who are creating resource files for
their IzoT and LONWORKS® devices, and is also intended for network integrators who
need to view resource definitions.

Content

This guide includes the following content:

 Chapter 1, Introduction to Resource Files, presents an introduction to resource files.

It describes the types of resources contained within resource files and how they are
used by network tools.

 Chapter 2, Getting Started, describes how to install and start the IzoT Resource

Editor.

 Chapter 3, Using Resource Folders, describes how to use the resource catalog to view

all available resource folders on your computer, and how to add, move, and remove
resource folders.

 Chapter 4, Creating and Modifying a Resource File Set, describes how to create or

modify a resource file set.

 Chapter 5, Creating and Modifying Resources, describes how to define new resources

and how to modify existing resources.

 Chapter 6, Generating Resource Files, describes how to generate resource files once

you have made changes using the resource editor.

 Appendix A, Language File Extensions, lists the file extensions used for language

files.

 Appendix B, NodeBuilder Resource Editor Software License Agreement, contains the

software license that you must agree to.

Related Manuals

The documentation related to the IzoT Resource Editor is provided as Adobe® PDF files.
The PDF files are installed in the Echelon NodeBuilder program folder when you
install the NodeBuilder tool. You can download the latest NodeBuilder documentation,

including the latest version of this guide, from Echelon’s website at

www.echelon.com/support/documentation/manuals.

The following manuals provide supplemental information to the material in this guide.
You can download these documents from Echelon’s Web site at www.echelon.com.

vi Preface

LONMARK SNVT and SCPT
Guide

Documents the standard network variable types
(SNVTs), standard configuration property types
(SCPTs), and standard enumeration types that you can
declare in your applications.

Neuron C Reference Guide (078­0140-02G)

Provides reference information for writing programs
using the Neuron C language.

Neuron C Programmer’s Guide
(078-0002-02I)

Describes how to write programs using the Neuron® C
Version 2.2 language.

Region

Languages Supported

Contact Information

The Americas

English
Japanese

Echelon Corporation
Attn. Customer Support
550 Meridian Avenue
San Jose, CA 95126
Phone (toll-free):
1-800-258-4LON (258-4566)
Phone: [phone]
Fax: [phone]

[e-mail]

Europe

English
German
French
Italian

Echelon Europe Ltd.
Suite 12
Building 6
Croxley Green Business
Park
Hatters Lane
Watford
Hertfordshire WD18 8YH
United Kingdom
Phone: [phone]
Fax: [phone]

[e-mail]

For More Information and Technical Support

The NodeBuilder Resource Editor ReadMe file provides descriptions of known
problems, if any, and their workarounds. To view the NodeBuilder ReadMe, click

Start, point to Programs, point to NodeBuilder, and then select NodeBuilder
Resource Editor ReadMe First.

If you have technical questions that are not answered by this document, the NodeBuilder
Resource Editor online help, or the NodeBuilder Resource Editor ReadMe file, you can
contact technical support. To receive technical support from Echelon, you must purchase
support services from Echelon or an Echelon support partner. See

www.echelon.com/support for more information on Echelon support and training

services.

You can also enroll in training classes at Echelon or an Echelon training center to learn
more about developing devices. You can find additional information about device
development training at www.echelon.com/training/courses/default.htm.

You can obtain technical support via phone, fax, or e-mail from your closest Echelon
support center. The contact information is as follows:

IzoT Resource Editor User's Guide vii

Region

Languages Supported

Contact Information

Japan

Japanese

Echelon Japan
Holland Hills Mori Tower,
18F
5-11-2 Toranomon, Minato­ku
Tokyo 105-0001
Japan
Phone: [phone]
Fax: [phone]

[e-mail]

China

Chinese
English

Echelon Greater China
Rm. 1007-1008, IBM Tower
Pacific Century Place
2A Gong Ti Bei Lu
Chaoyang District
Beijing 100027, China
Phone: [phone]
Fax: [phone]

[e-mail]

Other Regions

English

Phone: [phone]
Fax: [phone]

[e-mail]

You can submit a feedback form with suggestions on how to improve the product’s

functionality and documentation at www.echelon.com/company/feedback. This feedback
form is not forwarded to technical support and should not be used to submit technical or
product support related issues. Please send technical support questions to your Echelon
support center.

viii Preface

Introduction to Resource Files

This chapter presents an introduction to resource files. It describes the

types of resources contained within resource files and how they are used

by network tools.

1

IzoT Resource Editor User's Guide 1

Network Variable Types

Type information for network variables. This
information includes the size, units, scaling
factors, and type category (float, integer, signed,
etc) for each type. Network variables can

Introduction to Resource Files

Resource files provide definitions of functional profiles, type definitions, enumerations,
and formats that can be used by network tools such as the OpenLNS Commissioning tool.
The type definitions include definitions for network variable types and configuration
property types.

Resource files are grouped into resource file sets, where each set applies to a specified
range of program IDs. The program ID range is determined by a program ID template in
the file, and a scope value for the resource file set that specifies the fields of the program
ID template that are used when matching the program ID template to the program ID of
a device. The program ID template has an identical structure to the program ID of a
device, except that the applicable fields may be restricted by the scope. The scope value
can be seen as a filter, indicating the relevant parts of the program ID. The scope may be
one of the following:

0 – Standard

3 – Manufacturer

4 – Manufacturer and Device Class

5 – Manufacturer, Device Class, and Device Subclass

6 – Manufacturer, Device Class, Device Subclass, and Device Model

For a device to use a resource file set, the program ID of the device must match the
program ID template of the resource file set to the degree specified by the scope. This
allows each LONWORKS manufacturer to create resource files that are unique to their
devices.

For example, consider a resource file set with a program ID template of
81:23:45:01:02:05:04:00 and manufacturer and device class scope (scope 4). Any
device with the manufacturer ID fields of the program ID set to 1:23:45 and the device
class ID fields set to 01:02 would be able to use types defined in this resource file set,
whereas resources on devices of the same class but by a different manufacturer could not
access this resource file set.

A resource file set may also reference information in any resource file set with a
numerically lower scope provided the relevant fields of their program ID templates
match. For example, a scope 4 resource file set can reference resources in a scope 3

resource file set, provided the manufacturer ID components of the resource file sets’

program ID templates match.

Scopes 0 through 2 are reserved for standard resource definitions published by Echelon
and distributed by the LONMARK association. Scope 0 applies to all devices, and scopes 1
and 2 are reserved for future use. Since scope 0 applies to all devices, there is a single
scope 0 resource file set called the standard resource file set. A standard resource file set
is included with the NodeBuilder tool, but periodic updates are available from the
LONMARK association at www.lonmark.org. You can define your own functional profiles,
types, and formats in scope 3 through 6 resource files.

Each resource file set may contain definitions for the following resources:

2 Introduction to Resource Files

contain a single value or they can contain a
structure or union containing multiple fields (for
example, the SNVT_date_cal network variable
contains 3 fields for the year, month, and day).
Network variables can also contain enumerated
values which allow the network variable to be
set to one of a discrete number of values.
Network variables types are defined in a
resource file with a “.typ” extension. The
maximum size of a network variable is 228
bytes.

Configuration Property
Types

Type information for configuration properties.
This information includes the size, units, scaling
factors, and type category (float, integer, signed,
etc) for each type. Like network variables,
configuration properties can contain structures,
unions, and enumerated values. Configuration
property types are defined in a resource file with

a “.typ” extension (this is the same file used for

network variable types).

Functional Profiles

Functional profiles define a template for
functional blocks. A functional block is a
collection of network variables and configuration
properties designed to perform a single function
on a device. Each functional profile can define
mandatory and optional configuration properties
and network variables. When a functional block
implements a functional profile, it must
implement all mandatory network variables and
configuration properties defined by the
functional profile, and it may implement some,
all, or none of the optional network variables
and configuration properties. Functional
profiles are defined in a resource file with an

“.fpt” extension. Functional profiles are also

called functional profile templates.

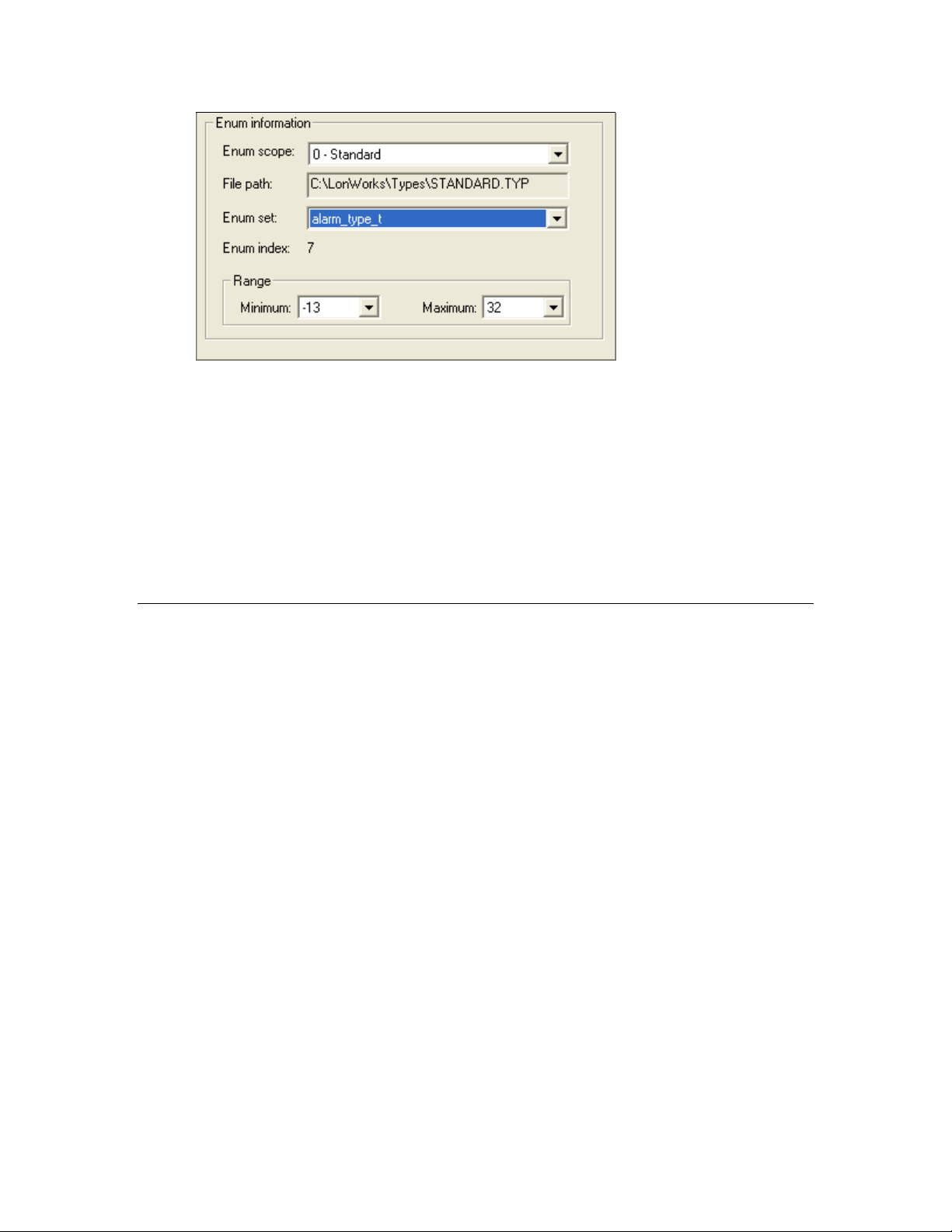

Enumeration Types

An enumeration type is a list of numerical
values, each associated with a mnemonic name.
If a network variable or configuration property
type contains an enumeration, the definitions of
the enumerated values are maintained
separately as an enumeration type.
Enumeration types are defined in a resource file
with a “.typ” extension (along with network
variable and configuration property types), and
may also be defined in a separate C header file
(“.h” extension).

Language Strings

Network variable types, configuration property
types, functional profiles, and enumeration types
can all reference text information used to
describe their name, units, and function. This

IzoT Resource Editor User's Guide 3

text information is contained in separate
language files. There is one language file for
every language your resource file set supports.
When a language file is translated, the
references contained in the network variable
types, configuration property types, and
functional profiles still point to the appropriate
strings. The file extension of each language file
depends on the language. The standard
language extensions are listed in Appendix A,
Language File Extensions.

Formats

Each network variable and configuration
property type must have at least one format
defined. This format describes how the value
will be displayed to or entered by network
integrators and network operators. It is possible
to define multiple formats for a network variable
type or configuration property type. Different
formats can provide the information in a
different order (if the value is a structure or
union) or provide a different scaling factor (for
example, the SNVT_temp_f network variable
type has three formats, one for Fahrenheit, one
for differential Fahrenheit, and one for Celsius).
Formats are defined in format files with an
“.fmt” extension.

4 Introduction to Resource Files

Getting Started

This chapter describes how to install and start the IzoT Resource Editor.

2

IzoT Resource Editor User's Guide 5

User Name

Your name.

Organization

The company you work for.

Phone Number

A phone number where a contact can be reached.

Email Address

An email address where a contact can be reached.

Web Address

Your company's Web site.

LonMark Manufacturer
ID

If your company has a LONMARK manufacturer
ID, enter it here. If you do not have a
manufacturer ID, get a free temporary
manufacturer ID from www.lonmark.org/mid.

Installation Option

Click Anyone Who Uses this Computer to
make the resource editor available to all users on
this computer.

Installing the Resource Editor

The IzoT Resource Editor is available as a standalone application, and is also available
as part of certain tools such as Echelon's NodeBuilder Development Tool. This chapter
describes how to install the standalone resource editor. See the documentation for your
application to install a NodeBuilder Resource Editor as part of that application.

To install the standalone resource editor, follow these steps:

1. Download the ResEdit.exe file to your computer. The file is available from the

Members area of the LONMARK Web site.

2. Click the Windows Start menu, click Run, and then open ResEdit.exe. The

NodeBuilder Resource Editor Setup application appears.

3. Enter a temporary folder to unpack the Setup application into, and then click

Continue. If this is a new folder, a confirmation window appears. Click Yes to

create the folder. The Setup application files are unpacked and the Welcome window
appears.

4. If a window appears that states than an older version of Windows Installer was

found, click OK to continue.

5. Click Next. The License Agreement window appears.

6. Read through the license. If you agree with the terms of the license, click I Accept

the Terms of the License Agreement, and then click Next. The Customer

Information window appears. If you do not agree with the terms of the license
agreement, click Cancel and do not install the software.

7. Enter the following information. Much of this information is automatically entered

into resource files that you will create with the resource editor, so it will save you
time later if you enter complete information now.

8. Click Next. The Destination Folder window appears.

9. Select a destination folder for the NodeBuilder Resource Editor, and then click Next.

The Setup Type window appears.

10. Select Complete, and then click Next. The Ready to Install window appears.

11. Click Install. The installation completes.

6 Getting Started

Sort Device Resources

Displays resource items sorted by name or by
index. If By Name is selected, resource items are
sorted alphabetically. If By Index is selected,
they are sorted by resource file index.

Active Language

Determines the language file that new strings will
be placed in. This is called the active language

file. See Creating and Modifying a Language
String.

Show Obsolete Resource
Items

Display resource items that have been marked
obsolete. See Removing and Obsoleting Resources.

Show Removed Resource
Items

Display resource items that have been removed.
See Removing and Obsoleting Resources.

Starting the Resource Editor

You can use the IzoT Resource Editor to create, modify, and view resource files, and also
to add user resource files to the resource catalog. To start the Resource Editor, click the
Windows Start button, point to Programs > Echelon NodeBuilder >, and then click
NodeBuilder Resource Editor. The Resource Editor window appears.

Setting Resource Editor Options

You can set resource editor options that control how resources are displayed and specify
the active language file. To view and modify resource editor options, follow these steps:

1. Click View, and then click Options. The Options dialog opens:

2. Enter the following information:

3. Click OK.

IzoT Resource Editor User's Guide 7

Using Resource Folders

This chapter describes how to use the resource catalog to view all

available resource folders on your computer, and how to add, move, and

remove resource folders.

3

IzoT Resource Editor User's Guide 9

Introduction to Resource Folders

A resource folder is a directory containing one or more resource file sets. You will
typically create your resource file sets in a resource folder with your company name that
is contained in the LONWORKS Types\User folder. For example, if you work for MyCo,
you may create a resource folder in C:\LonWorks\Types\User\MyCo. If you anticipate
creating many resource file sets, you may organize them in resource folders contained
within your company resource folder.

A resource catalog is a file containing a list of resource folders. The resource catalog file
is a file with a .cat extension. By default, the resource catalog file is contained in your
LONWORKS Types folder and is named ldrf.cat (the full path is
C:\LonWorks\Types\ldrf.cat by default. Network tools use the resource catalog to find
all the resources that are defined on your computer. The resource editor also uses the
resource catalog to display all of your available resources.

The resource editor displays a hierarchical view of your resource catalog, and all the
resource folders and resource files that it contains. The resource catalog is the top of the
hierarchy. The second level of the hierarchy below the resource catalog file contains
entries for each of the resource folders contained in the resource catalog. In the following
figure, the resource catalog file is C:\LonWorks\type\Ldrf.Cat and it contains two
resource folders: C:\LonWorks\Types and C:\LonWorks\Types\User\Echelon. The
C:\LonWorks\Types folder contains the standard resource file set, and the
C:\LonWorks\Types\User\Echelon folder contains Echelon-specific resource file sets.

Browsing the Resource Catalog

You can browse the resource catalog to view all the resource definitions contained within
it. Click the icon next to a resource folder to expand the hierarchy beneath it.

When you expand a resource folder you will see all resource file sets contained in that
folder. Each folder can hold multiple resource file sets. Each resource file set in the
folder is listed with its name and its scope. For example, the Echelon user resource
folder may appear as shown in the following figure:

10 Using Resource Folders

Network Variable Types

Contains the network variable types defined by
this resource file set. Network variable types
are used to implement network variables. They
can also be referenced by other network variable
or configuration property types, and may be
referenced by functional profile templates.

Configuration Property
Types

Contains the configuration property types
defined by this resource file set. Configuration
property types are used to implement
configuration properties. These types will
typically be referenced by one or more functional
profile templates.

Functional Profile Templates

Contains the functional profiles defined by this
resource file set.

Enumerations

Contains the enumeration types defined by this
resource file set. Network variable and
configuration property types can use these
enumeration types.

Language Files

Contains the language files defined by this
resource file set. Each language file contains a
set of strings translated into a specific language.
Expand a language file to browse the individual
strings in the language file.

Language string resources are used to provide
language-dependent details for all of the above
resources.

Formats

Contains the formats defined by this resource
file set. Each network variable type and
configuration property type must have at least
one format.

To view or modify the contents of a resource file set, expand it using the button. When
you expand a resource file set you will see six folders containing resource file
components, as shown in the following figure:

Each resource file set contains all of these folders, but some of them may be empty:
Expand these folders to view or modify the following resources:

IzoT Resource Editor User's Guide 11

Adding a Resource Folder

You can add a new resource folder to the resource catalog. This makes all resource file
sets contained within the folder available to network tools running on your computer,
and also allows you to view and modify the resource files contained within the folder
using the resource editor. To add a resource folder, follow these steps:

1. Right-click the resource catalog file at the top of the resource catalog, and then click

Add Folder on the shortcut menu. You can also click the Add Folder ( ) button on

the toolbar, or open the File menu and then click Add Folder. An Add Folder
window appears.

2. Browse to the folder to be added to the resource catalog, and then click OK. The

folder should be located in a Types\User\<Manufacturer Name> folder within
your LONWORKS folder (this is C:\LonWorks\Types\User\<Manufacturer Name>
by default). The resource folder appears in the resource catalog.

Removing a Resource Folder

You can remove a resource folder from the resource catalog. Removing a resource folder
deregisters that folder from the resource catalog; it does not delete the resource files
within the folder. Use Windows Explorer to delete the files if you want to delete the
resource folder and its content.

To remove a resource folder, right-click the resource folder to be removed in the resource
catalog, and then click Remove on the shortcut menu. The resource folder name is
removed from the resource catalog.

Be careful not to remove resource folders that contain resource file sets that are
referenced by your remaining resource file sets, as this could render other resources
invalid.

Moving a Resource Folder

You can move a resource folder to a different directory. To move a resource folder, follow
these steps:

1. Use Windows Explorer to create the new folder.

2. Use Windows Explorer to move the resource file set to the new folder. A resource file

set consists of a type file (“.typ” extension), functional profile file (“.fpt” extension),
format file (“.fmt” extension), and one or more language files with an extension
dependent on the language (“.enu” for English US strings). A resource file set may

become unusable if one or more of these files are missing, so copy all of these files
together if you copy or move the resource file set to another directory or computer.

3. Remove the old resource folder from the resource catalog as described in Removing a

Resource Folder.

4. Add the new resource folder to the resource catalog as described in Adding a

Resource Folder.

12 Using Resource Folders

Find What

The string to search for. You can enter all or part
of a variable type name, configuration property
type name, functional profile name, enumeration
type name, language string, or format name. For

Refreshing the Resource Catalog

The resource catalog may get out of sync with the resource files on your computer if you
update resource files using a tool other than the resource editor, if you delete a resource
file set using Windows Explorer, if you update the resource file API on your computer, or
if you copy new resource files into a resource folder using Windows Explorer. If this
occurs, refresh the resource catalog in the resource editor by right-clicking the resource
catalog file at the top of the resource catalog and then clicking Refresh Catalog on the
shortcut menu. Any empty resource folders are removed when you refresh the resource
catalog.

Any folders that are not present in your file system will automatically be removed from
the resource catalog. This means that if you add a resource folder that is in a network or
removable drive, and that folder becomes inaccessible, you will have to add the folder to
the resource catalog again once the folder becomes available.

Searching for a Resource

You can search for specific resources in the resource catalog. You can search for network
variable types, configuration property types, functional profiles, enumerations, language
strings, or formats. You can search an individual resource file, a resource file set, a
resource folder, or the entire resource catalog. To search for a resource, follow these
steps:

1. Right-click the folder to search in the resource catalog and then click Search on the

shortcut menu. The search will cover all resources within the folder that you select.
The Search dialog opens:

2. Enter the parameters for the search entering the following information:

IzoT Resource Editor User's Guide 13

example, you can enter “switch” to search for
SNVT_switch.

Look In

The resource catalog, resource folder, resource file
set, or resource file to search. By default, this will
contain the folder you selected to begin the search.
Click the arrow to increase the scope of the
search. A list of your original selection and all
levels of the resource catalog above your selection
appears.

Resource Types

The type of resource to search for. You can limit
the search to Network Variable Types,

Configuration Property Types, Functional
Profile Templates, Enumerations, Resource
Strings, or Formats. Clear Resource Types to

search all resource types.

Match Case

Searches for strings with the same case that you
enter in Find What.

Find Whole Word Only

Searches for strings where the whole string
matches what you enter in Find What. The
search will not return results that contain the
string in the Find What field if it is part of a
larger word.

3. Click Find. The first search result appears in the resource catalog. Close the Search

window to operate on the result, or click Find Next to search for more results. To
stop a search in progress, click Stop.

14 Using Resource Folders

4

Creating and Modifying a Resource File

Set

This chapter describes how to create or modify a resource file set.

IzoT Resource Editor User's Guide 15

Creating and Modifying a Resource File Set

You can create a new scope 3, 4, 5, or 6 resource file set within any resource folder. Each
resource file set has a number of properties that you will set when you create the set.
You can edit these properties at any time.

The number of resource file sets that you will create will depend on the number of device
types that you expect your company to develop, and the level of coordination that exists
between your developers. For all but the largest enterprises, you may find it easiest to
create a single manufacturer scope (scope selector 3) resource file set for your company,

and use it to maintain and distribute all of your company’s user types. Larger

enterprises may find it easier to coordinate manufacturer and device class scope (scope
selector 4) resource file sets, where a unique resource file set is created for each class of
devices. Very large enterprises can request multiple manufacturer IDs from the
LONMARK association, assign a different manufacturer ID to each major division that
does LONWORKS development, and then maintain a separate scope selector 3 resource file
set for each division. If your company has multiple LONWORKS developers, you may find
it useful to initially create manufacturer, device class, and device subclass scope (scope
selector 5) resource file sets during development, and then copy the definitions to the
appropriate scope selector 3 or 4 resource file set when complete. You can create a
manufacturer, device class, device subclass, and device model scope (scope selector 6)
resource file set for any special-purpose types that you want to apply to a single device
type.

To create a new resource file set or edit an existing one, follow these steps:

1. Add a resource folder for your company if you do not have one already as described in

Adding a Resource Folder.

2. To create a new resource file set, right-click the resource folder, and then click New

Resource File Set on the shortcut menu. To modify the properties for an existing

resource file set, right-click the resource file set, and then click Open on the shortcut
menu. The Modify Resource File Set dialog opens with the General tab selected:

16 Creating and Modifying a Resource File Set

Scope/Program ID
Locked

Prevents modification of the scope or program ID
template for this resource file set. This option is
not displayed when you are creating a new
resource file set because the scope and program
ID template can be freely changed when you are
creating a resource file set. This option appears
when you are modifying a resource file set because
modifying these options in an existing resource
file set can break resources that reference this
resource file set. You can modify the Scope and
Program ID for an existing resource file set my
clearing Scope/Program ID Locked. Be sure to
fix any references to the resource file set if you do
this

Scope

The scope for the resource file set. See
Introduction to Resource Files for more
information.

Program ID

The program ID template for the resource file set.
Click Calculator to open the Standard Program
ID Calculator (see Using the Standard Program
ID Calculator). You only need to specify the
program ID template fields that are required for
the selected scope. Set all other fields to 0. If you
use the standard program ID calculator, verify
that these fields are set to 0 after closing the
calculator. The Standard Development

3. Enter the following information about the resource file set:

IzoT Resource Editor User's Guide 17

Program ID setting is always ignored for
resource files and should be cleared. The required
values for each scope are as follows:

 Scope 3: Manufacturer.
 Scope 4: Manufacturer and Device class.
 Scope 5: Manufacturer, Device Class,

Usage, Channel Type, Has Changeable
Interface, and Usage Field Values Defined
by Functional Profile.

 Scope 6: Manufacturer, Device class,

Usage, Channel Type, Has Changeable
Interface, Usage Field Values Defined by
Functional Profile, and Model Number.

To change the program ID of an existing resource
file set, create a new resource file set with the
desired program ID and copy the resources from
the old resource file set to the new one.

If you attempt to add or create a resource file set
with a duplicate scope and program ID template
to an existing resource file set, a warning is
displayed when you generate the resource file set.
You can resolve the conflict by removing one of
the conflicting sets, or by changing the scope and
program ID template of one of the sets.

Resource File Set Name

The name of the resource file set as it will appear
in the resource catalog. To change the name of an
existing resource file set, you must copy it and
remove the old resource file set, or edit the
resource file names using Windows Explorer and
restart the Resource Editor.

Resource File Set
Location

The resource folder containing the resource file
set. Depending on which method you used to
create the resource file set, you may be able to
change the resource folder. If enabled, click
to create or select a new folder. If you select a
folder that is not in the resource catalog, it will
automatically be added. You cannot change the
location for an existing resource file set. To
change the location of an existing resource file set,
copy it to the new location, then remove the old
resource file set.

Data Version

The version number of the resource files. By
default, Major is set to 1 and Minor is set to 0 for
a new resource file set (i.e. version 1.0). Increment
the major or minor version number whenever you
publish new resource files (see Generating Resource
Files Using the Resource Editor).

18 Creating and Modifying a Resource File Set

Creator

The name of the company, and optionally the
person, to contact about this resource file set.

Phone Number

The phone number to contact for questions about
this resource file set.

Web ID

The Web address of the company that created this
resource file set.

Email Address

The email address to write to for more
information about this resource file set. Enter a
valid email address for general inquiries, such as

[e-mail], or the specific email

address of the resource file set creator (e.g.
[e-mail]).

File Description

Text descriptions for the type file, functional
profile, or language file (depending on what tab is
selected). The default value is a string specifying
the scope and file type.

Creator Description

Optional additional creator information (company
name, contact information, etc) for the type file,
functional profile, or string file (depending on
what tab is selected). The default value is a string
containing the information from the NodeBuilder
Registration Properties tab. Changing the

Creator, Phone Number, Web ID, and Email

4. Click the File Header tab.

5. Enter the following company information for the resource file set:

IzoT Resource Editor User's Guide 19
