Ebac WM80 User Manual

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

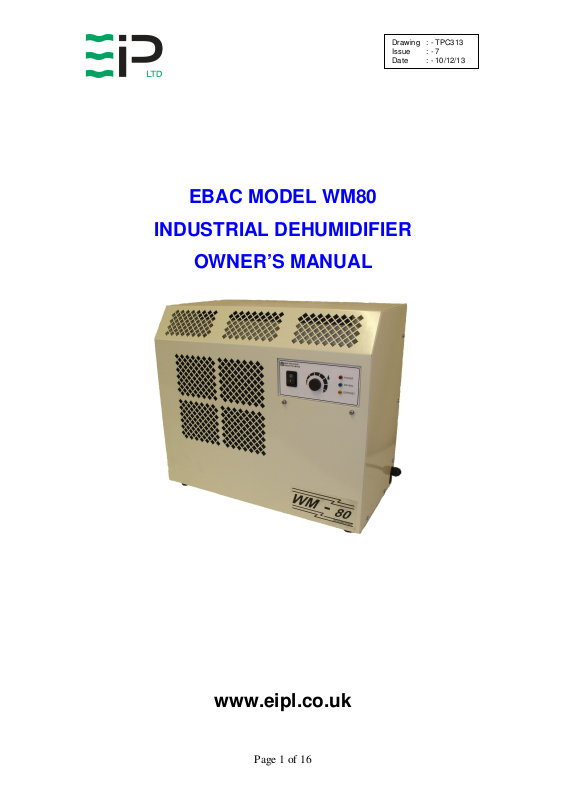

EBAC MODEL WM80

INDUSTRIAL DEHUMIDIFIER

OWNER’S MANUAL

www.eipl.co.uk

Page 1 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

WM80

PACKAGE CONTENTS

Item Description Quantity

10284GL-US Dehumidifier 1

3082214 Brass wood screws 4

3088525 Rawl plug 4

3086144 Quick release hose coupling 1

3944110 PVC tube – 3/8” I/D 7.8M

TPC313 Manual 1

Page 2 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

INTRODUCTION

Designed for a wide range of applications, the WM80 is a rugged, industrial
unit, which utilizes an energy-efficient compressor and a compact portable
design to provide easy efficient drying.

The WM80 has a number of special features:

•

High efficiency rotary compressor

•

Ebac’s “Hot Gas” defrost system

•

Integral pump out system

•

Provision for permanent drainage

•

Exterior epoxy powder-coated finish

•

Extra long power cord

•

Free Standing or Wall Mountable

•

Status Indicators

•

Control Humidistat

The fan draws the moist air through the cold evaporator coil, which cools the
air below its dew point. Moisture forms on the evaporator coil and is collected
in the condensate tray, which is equipped with a permanent drain. The cooled
air then passes through the hot condenser coil where it is reheated using the
same energy removed during the cooling phase, plus the additional heat
generated by the compressor. The air is, therefore, discharged from the
dehumidifier at a slightly higher temperature with a lower absolute humidity
than that which entered. Continuous circulation of air through the
dehumidifier gradually reduces the relative humidity within the area.

The WM80 dehumidifier is a reliable drying unit designed to operate
effectively over a broad range of temperature and humidity conditions. An
active hot gas defrost system, controlled by an electronic timer, guarantees
positive de-icing, thereby optimizing operation at low temperatures.

Page 3 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

SPECIFICATIONS

M

ODEL

:

10284GL-US

H

EIGHT

: 19.4” (495mm)

W

IDTH

: 22” (560mm)

D

EPTH

: 11.4” (290mm)

W

EIGHT

: 81.5 lbs (37Kg)

A

IRFLOW

: 360 CFM (600M3/hr)

P

OWER SUPPLY

: 110V - 60Hz - 1 ph

F

INISH

Powder-coated

:

Epoxy

O

PERATING RANGE

: 33°F – 105°F

R

EFRIGERANT

: R-407c (13 oz)

"This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The

refrigeration system is hermetically sealed.

The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac

Industrial Products Ltd is as follows

R134a – 1300
R407c – 1610

For type and weight of refrigerant contained in this unit, please refer to the product data label"

Page 4 of 16

Drawing : - TPC313

CAUTION:

DO NOT REMOVE COVERS WHEN UNIT IS IN OPERATION

CAUTION:

Issue : - 7
Date : - 10/12/13

OPERATION

The following procedures should be followed to test the WM80 for correct
operation:

1. After unpacking, examine all external features to confirm damage­free shipment. Report all defects and damage at once. Connect the
power cable to a grounded 13 Amp electrical socket

2. Check dehumidification process as follows:

a. Place unit on a level surface.

b. Start up unit by switching to “ON” and turning the humidistat

clockwise.

c. Check that the compressor is running.

d. Leave the machine running for 15 minutes.

e. Observe the evaporator coils through the rear upper grille, to

confirm frost formation.

f. If the air temperature is below 25ºC, an even coating of frost

should cover the entire evaporator coil.

g. If the air temperature is above 25°C, frost and/or droplets of

condensed water should cover the entire evaporator coil.

h. After continuous running time of approximately 55 minutes, unit

will enter “Hot Gas” defrost mode for several minutes and then
automatically return to normal operation.

If, after carrying out the above procedures, the unit does not appear to

function properly, refer to the Trouble Shooting section, which follows,

or contact the Factory Service Center.

ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT

LEAST FIVE MINUTES BEFORE RESTARTING.

After using the WM80, turn it off for five minutes to allow the

condensate on the coils to drain into the pump reservoir.

Page 5 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

INSTALLATION

The WM80 Dehumidifier can be left free standing unit, alternatively can be
wall mounted for instructions on mounting the unit please read the following:

A full installation kit is included in the package to allow a problem free install.
This kit comprises of the following :-

1 X WM80 Dehumidifier
1 X Mounting Bracket
4 X Rawl plugs and screws
4 X M6 Hex Head Bolts, flat and spring washers

For mounting the WM80 Dehumidifier to a wall you will first need to remove
the cover from the unit and detach the wall mounting bracket from the rear of
the unit by removing the 4 bolts that secures it.

With reference to the installation drawing at the rear of this manual, maintain
the minimum clearances from adjacent objects (ie walls celings etc).
Maintaining these distances will ensure easy access for installation and
maintaining the unit during the products life

Place the wall mounting bracket onto the wall, ensuring the correct
orientation, and the bracket is level. Mark off 4 points on the wall where you
will be securing the bracket, the bracket has numerous holes and slots to
allow the bracket to be mounted at different points depending on the wall you
are mounting it to. It is advised to have the fixing points spaced out as far as
possible to allow a more ridged and secure installation.

Using a 7mm masonry bit, drill the 4 points you marked off earlier to a depth
of 40mm, insert the 4 Rawl plugs into the wall that are supplied with this unit.

Secure the wall mounting bracket to the wall using the 4 brass screws
supplied with the unit.

Ensure all fixings are tight and bracket is secured to the wall.

Screw 2 X M6 Bolts into the top fixings on the bracket, only screwing them in
a 2-3 turns. Lift the unit onto the bracket and hook the unit onto the bolts using
the keyhole slots in the rear of the unit do not tighten the bolts yet. Fit the 2
remaining bolts through bottom holes in the rear of unit and into the wall
mounting bracket and tighten all 4 bolts.

Check to make sure the unit is secure to the wall mounting bracket.

Replace cover and refit all fixings that have been removed.

Page 6 of 16

Drawing : - TPC313

WARNING:

MAINTNENANCE

WARNING:

Issue : - 7
Date : - 10/12/13

ROUTINE MAINTENANCE

ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN

To ensure continued full efficiency of the dehumidifier, maintenance
procedures should be performed as follows:

S

DISCONNECTED BEFORE CARRYING OUT ROUTINE

1. Clean the surface of the evaporator and condenser coils by blowing
the dirt out from behind the fins with compressed air. Hold the nozzle
of the air hose away from the coil to avoid damaging the fins.
Alternatively, vacuum clean the coils.

DO NOT STEAM CLEAN REFRIGERATION COILS

2. Remove the air filter and clean by either blowing compressed air
through, vacuuming or washing in warm water

3. Check that the fan is firmly secured to the motor shaft and that the
fan rotates freely. The fan motor is sealed for life and therefore
does not need oiling.

4. To check the refrigerant charge, run the unit for 15 minutes and
briefly remove the top cover. The evaporator coil should be evenly
frost coated across its surface. At temperatures above 25°C, the coil
may be covered with droplets of water rather than frost. Partial
frosting accompanied by frosting of the thin capillary tubes, indicates
loss of refrigerant gas or low charge. During this inspection, check
visually to ensure that the pump rollers are turning.

5. Check all wiring connections.

6. To check the operation of the defrost system, switch the machine on
and leave it running for approximately 55 minutes. The machine will
then enter “Hot Gas” defrost mode for approximately 5 minutes
before returning to normal operation. If the unit will not defrost, the
printed circuit timer board may be defective or the by-pass valve may
be inoperable.

I

F ANY OF THE PRECEDING PROBLEMS OCCUR, CONTACT THE EBAC

ERVICE CENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO

PREVENT PERMANENT DAMAGE.

Page 7 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

REPAIRS

1. Should an electrical component fail, consult the Factory Service

Center to obtain the proper replacement part.

2. If refrigerant gas is lost from the machine, it will be necessary to use

a Refrigeration technician to correct the fault. Contact the Factory
Service Center prior to initiating this action.

Any competent refrigeration technician will be able to service the

equipment. The following procedure must be used:

a. The source of the leak must be determined and corrected.

b. The machine should be thoroughly evacuated before

recharging.

c. The unit must be recharged with refrigerant measured

accurately by weight.

d. For evacuation and recharging of the machine, use the crimped

and brazed charging stub attached to the side of the refrigerant
compressor.

The charging stub should be crimped and rebrazed after

servicing. N
any part of the circuit. Service valves may leak causing further
loss of refrigerant gas.

3. The refrigerant compressor fitted to the dehumidifier is a durable
unit that should give many years of service. Compressor failure can
result from the machine losing its refrigerant gas. The compressor
can be replaced by a competent refrigeration technician.

Failure of the compressor can be confirmed by the following

procedure:

a. Establish that power is present at the compressor terminals

using a voltmeter.

b. With the power disconnected, check the continuity of the internal

winding by using meter across the compressor terminals. An
open circuit indicates that the compressor should be replaced.

c. Check that the compressor is not grounded by establishing that

a circuit does not exist between the compressor terminals and
the shell of the compressor.

EVER

allow permanent service valves to be fitted to

Page 8 of 16

Drawing : - TPC313

S

C

R

Issue : - 7
Date : - 10/12/13

TROUBLESHOOTING

YMPTOM

Unit inoperative 1. No power to unit

1. Loose fan on shaft

2. Fan motor burnt out

Little or no airflow

3. Dirty refrigeration coils /
filter

4. Loose electrical wiring

1. Insufficient air flow

Little or no water
extraction

2. Compressor fault

3. Loss of refrigerant gas

Little or no defrost
when required

Unit vibrates
excessively

Water flooding inside
the machine

1. Faulty timer

2. Faulty by-pass valve

1. Loose compressor

2. Damaged fan

1. Drain pipe blocked/frozen

2. Drain pipe too high

3. Crimped or blocked tubing

AUSE

EMEDY

1. Check the power from
power supply panel

1. Tighten fan

2. Replace the fan motor

3. See Routine Maintenance
Section

4. Check the wiring diagram
to find fault and repair

1. Check all of the above

2. Contact the Factory
Service Center

3. Contact the Factory
Service Center

1. Contact the Factory
Service Center

2. Contact the Factory
Service Center

1. Tighten the nuts on the
compressor mounts

2. Replace fan

1. Clear the obstruction

2. Ensure that no section of
the drain hose is above the
level of the water outlet

3. Straighten, clear, or replace
tubing

Page 9 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

WM80

SPARE PARTS LIST

P

ART

N

UMBER

D

ESCRIPTION

N

UMBER

Q

UANTITY

1 Filter 2028420 1

2 Timer 1600500 1

3 Evaporator Coil 2026074 1

4 Condenser Coil 2026014 1

5 Drain Tray 2131107 1

6 Capillary Tube 3014251 48”

7 Solenoid Valve 3020814 1

8 Filter Dryer 3020901 1

9 Compressor 3022169 1

10 Solenoid Coil 3030421 1

11 Capacitor 3030908 1

12 Fan Motor 3040199 1

13 Black Rubber Foot 3101436 4

14 Mains Lead 3035148 1

Spare parts available online

www.EIPLDIRECT.com

Page 10 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

300mm

300mm

300mm

300mm

Page 11 of 16

Drawing : - TPC313

PLEASE NOTE

WARRANTY REGISTRATION

Issue : - 7
Date : - 10/12/13

LIMITED WARRANTY

Our products carry a one-year unconditional warranty against any defects in
workmanship or material. This warranty will cover all parts and labor required
to repair your Ebac product. This warranty is invalid if the unit has been
abused, damaged, whether intentional or accidental, or if any modifications
have been made to the unit.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS ISSUED IN LIEU OF
ALL OTHER WARRANTIES (WHETHER WRITTEN, ORAL, OR IMPLIED)
INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. EBAC
INDUSTRIAL PRODUCTS, INC. DISCLAIMS ANY LIABILITY FOR
CONSEQUENTIAL DAMAGES, LOST PROFITS, OR INCIDENTAL
DAMAGES FOR BREACH OF ANY WRITTEN OR IMPLIED WARRANTY
WITH RESPECT TO THE FOREGOING DESCRIBED MERCHANDISE.

For Your Records: Model:
____________________
S/N:
______________________
Date Received: ______________

SAVE THIS SECTION FOR YOUR RECORDS

CLIP AND RETURN THIS CARD

To ensure that your
Ebac Dehumidifier is
accorded the full
coverage provided by
this warranty, please
complete and mail this
card at your earliest
convenience.

Thank You

Page 12 of 16

DATE

MODEL ___________ S/N ________________ RECEIVED ________________

OWNER __________________________________________________________

ADDRESS ________________________________________________________

CITY __________________________ STATE ________ ZIP _______________

COMMENTS ______________________________________________________

_________________________________________________________________

Ebac Industrial Products.

700 Thimble Shoals Boulevard, Suite 109, Newport News, Virginia. 23606-2575

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

Page 13 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

Page 14 of 16

Drawing : - TPC313
Issue : - 7
Date : - 10/12/13

Page 15 of 16

Drawing : - TPC313

UK Head Office

American Sales Office

German Sales Office

Issue : - 7
Date : - 10/12/13

Ebac Industrial Products Ltd

St Helens Trading Estate

Bishop Auckland

County Durham

DL14 9AD

Tel: [phone]

Fax: [phone]

www.eipl.co.uk

[e-mail]

Page 16 of 16

Ebac Industrial Products Inc

700 Thimble Shoals Blvd.
Suite 109, Newport News

Virginia, 23606-2575

Tel: [phone]

Fax: [phone]

www.ebacusa.com

[e-mail]

USA

Ebac Industrial Products Ltd.

Gartenfelder Str. 29-37

Gebäude 35

D-13599, Berlin

Germany

Tel: [phone]

Fax: [phone]

www.eip-ltd.de

[e-mail]
