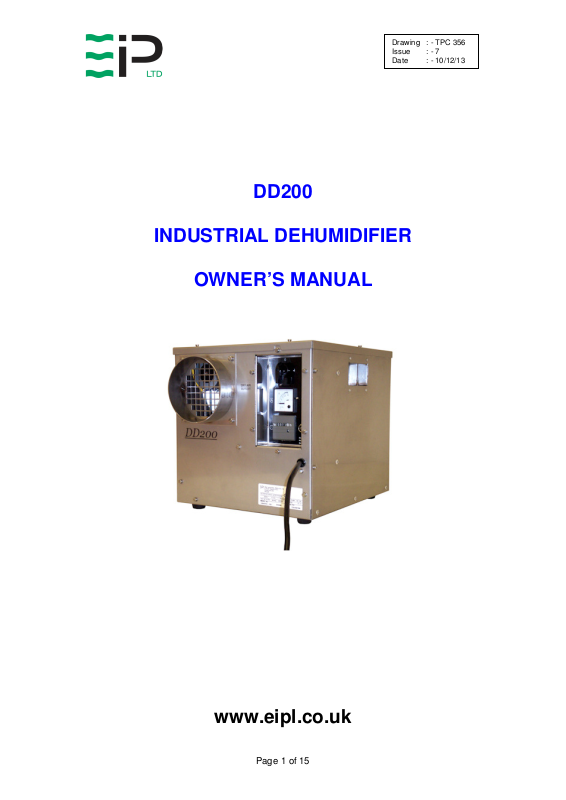

DD200
Page 1 of 15
Drawing : - TPC 356
Issue : - 7
Date : - 10/12/13
DD200
INDUSTRIAL DEHUMIDIFIER
OWNER’S MANUAL
www.eipl.co.uk
Page 2 of 15
Drawing : - TPC 356
Issue : - 7
Date : - 10/12/13
DD200
PACKAGE CONTENTS
Item Description Quantity
10502SS-US Dehumidifier 1
3033807 Free plug 1
TPC356 Manual 1
Page 3 of 15
Drawing : - TPC 356
Issue : - 7
Date : - 10/12/13
UNPACKING
Carefully remove the DD200 dehumidifier unit from its transit box and visually
check for signs of transit damage. If there is evidence of damage DO NOT
attempt to operate the unit, call your supplier for advice. Do not discard the
packing, it will be useful when transporting the dehumidifier unit in the future.
INTRODUCTION
Dehumidifiers remove moisture from the air that is circulating through the unit.
The resulting reduction of relative humidity helps prevent rust, rot, mould,
mildew and condensation within the room, or other enclosed spaces where
the dehumidifier is used.
The DD200 is of the desiccant wheel type designed to dry air by passing a
large volume of air, the “process” air through a slowly rotating Silica gel rotor.
Silica gel is a hygroscopic material that absorbs moisture direct from the air.
As the air passes through the rotor the humidity of the air is reduced, whilst
the moisture content of the rotor is increased. A smaller volume of air, the
reactivation air, is heated by an internal heater and passes through a portion
of the rotor in the opposite direction. As this heated air passes through the
rotor it will “reactivate” it by removing the moisture content from the silica gel
material. The reactivation air will leave the humidifier as warm, moist air and
must be vented to outside of the building.
Continuous circulation of the room air through the dehumidifier unit gradually
reduces the relative humidity in the room.
The DD200 dehumidifier is a robust, compact unit designed to control the
humidity in the enclosed space in which it is placed. The casing is fabricated
from Stainless Steel 304 and has been designed for the exacting conditions
which can prevail in offices, shops, houses, restaurants, public houses etc. It
combines lightness and compactness with high reliability and strength. Carry
handles are provide to contribute to its portability.
The unit is thermally protected and will switch off if the maximum operating
temperature of 40ºC is exceeded.
The dehumidifier has a single filter positioned at the air inlet and is used to
clean the air entering the dehumidifier.
Page 4 of 15
Drawing : - TPC 356
Issue : - 7
Date : - 10/12/13
SPECIFICATIONS
M
ODEL
:
DD200
H
EIGHT
:
13.3” (340mm)
W
IDTH
:
13” (330mm)
D
EPTH
:
15” (380mm)
W
EIGHT
:
37.5 lbs (17 Kg)
D
RY
A
IRFLOW
:
115
CFM
(196
M
³/
HR
)
W
ET
A
IRFLOW
:
38
CFM
(64
M
³/
HR
)
P
OWER
S
UPPLY
:
115V, 1 ph, 60Hz
P
OWER
0.8 kW (max)
F
INISH
:
Stainless steel 304
D
EHUMIDIFICATION CAPACITY
(
AT
27°C
AND
60%
RH)
36 ppd (17l/day)
N
OISE
67dB(A)
Page 5 of 15
Drawing : - TPC 356
Issue : - 7
Date : - 10/12/13
INSTALLATION
POSITIONING:
The DD200 is designed for indoor use. Position the dehumidifier unit in the
center of the room to be conditioned if at all possible.
NOTE: Both the air inlets and outlets of the dehumidifier unit must have clear
space around them and not be obstructed in anyway.
DUCT CONNECTION
The wet air outlet from the dehumidifier must be exhausted to outside of the
room being dried by means of a suitable duct. All duct connections to the
dehumidifier have been designed for connections to standard size ducts.
The duct should be as short as possible to reduce the risk of condensation of
the wet air. The duct should slope downwards away from the unit to stop any
condensed water from flowing back into the unit.
The dry air outlet is also provided with a means of attaching a duct. This can
be used to direct the air towards more severe damp patches.
WIRING:
The DD200 is provided with a standard plug and is designed to operate from
a 13 Amp supply.
IMPORTANT – The wires in the mains lead are coloured in accordance with
the following code:
GREEN…………….…………EARTH
WHITE..……………………….NEUTRAL
BLACK.....…………………….LIVE
If the supply cord is damaged it must be replaced by qualified Ebac Industrial
Products Ltd personnel or other similar qualified persons in order to avoid
hazard
.
-
WARNING
-
THIS APPLIANCE MUST BE EARTHED
