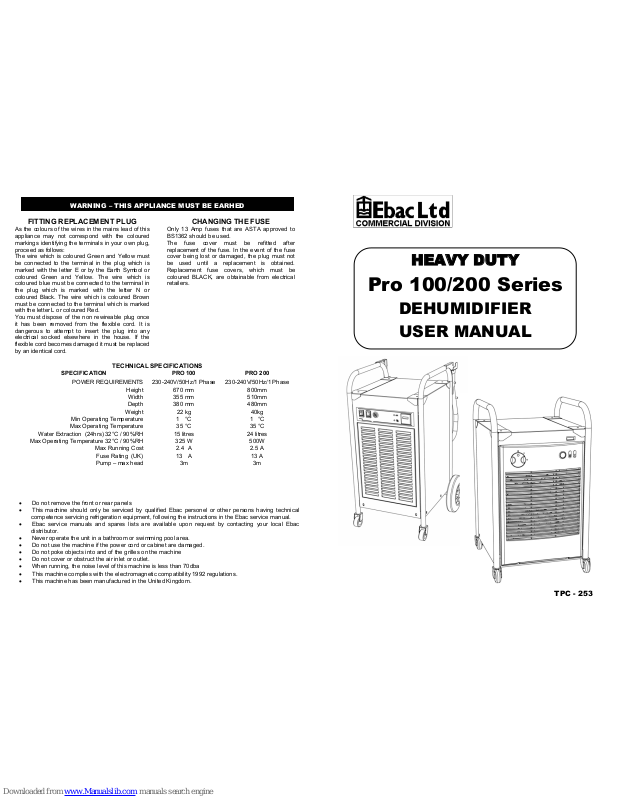

W
ARNING – THIS APPLIANCE MUST BE EARHED
CHANGING THE FUSE
Only 13 Amp fuses that are ASTA approved to
BS1362 should be used.
The fuse cover must be refitted after
replacement of the fuse. In the event of the fuse
cover being lost or damaged, the plug must not
be used until a replacement is obtained.
Replacement fuse covers, which must be
coloured BLACK, are obtainable from electrical
retailers.
FITTING REPLACEMENT PLUG
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your own plug,
proceed as follows:
The wire which is coloured Green and Yellow must
be connected to the terminal in the plug which is
marked with the letter E or by the Earth Symbol or
coloured Green and Yellow. The wire which is
coloured blue must be connected to the terminal in
the plug which is marked with the letter N or
coloured Black. The wire which is coloured Brown
must be connected to the terminal which is marked
with the letter L or coloured Red.
You must dispose of the non rewireable plug once
it has been removed from the flexible cord. It is
dangerous to attempt to insert the plug into any
electrical socked elsewhere in the house. If the
flexible cord becomes damaged it must be replaced
by an identical cord.

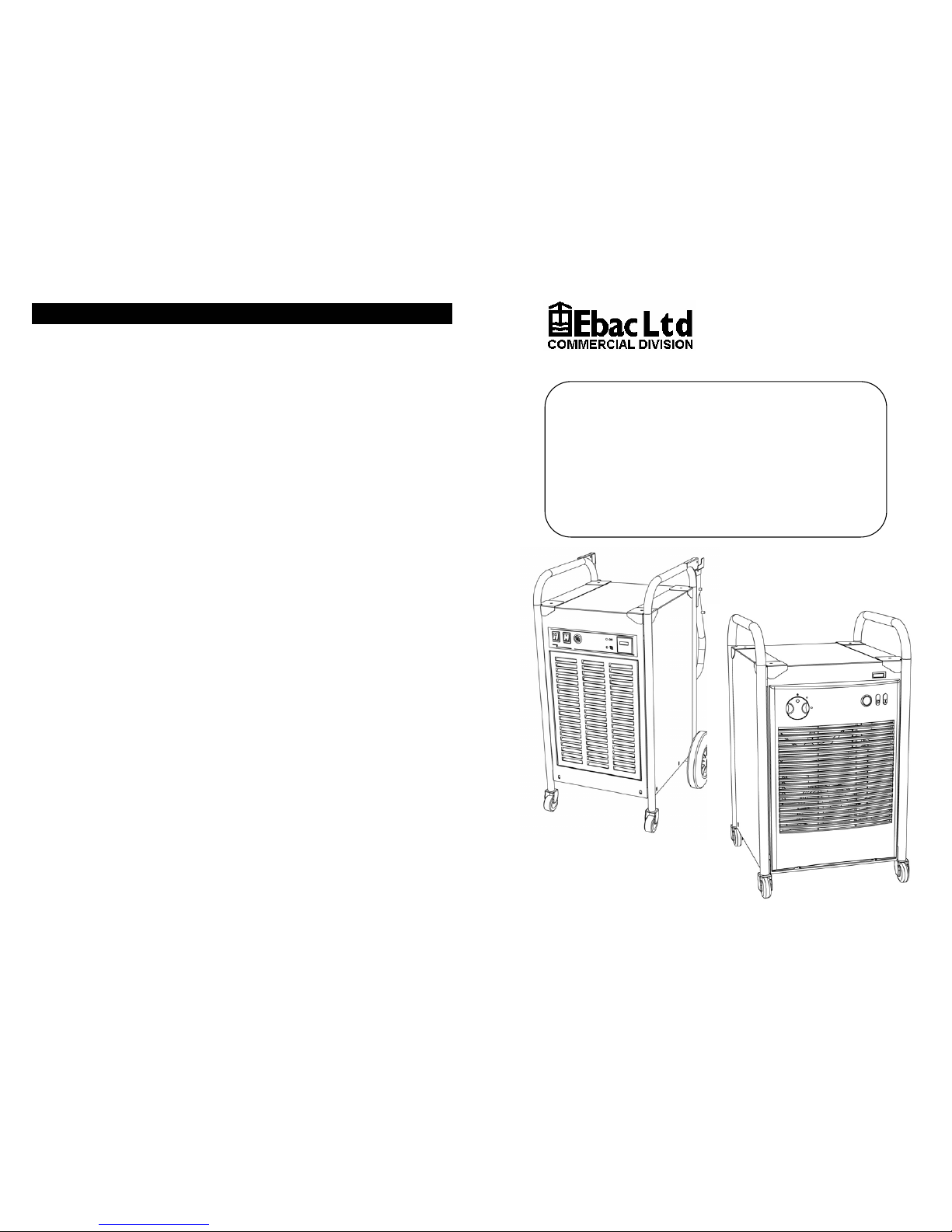

HEAVY DUTY
Pro 100/200 Series
DEHUMIDIFIER
USER MANUAL
TPC - 253
TECHNICAL SPECIFICATIONS
SPECIFICATION PRO 100 PRO 200
POWER REQUIREMENTS 230-240V/50Hz/1 Phase
230-240V/50Hz/1 Phase
Height 670 mm 800mm
Width
355 mm 510mm
Depth 380 mm 480mm
Weight 22 kg 40kg
Min Operating Temperature 1 °C 1 °C
Max Operating Temperature 35 °C 35 °C
Water Extraction (24hrs) 32°C / 90%RH 15 litres 24 litres
Max Operating Temperature 32°C / 90%RH 325 W 500W
Max Running Cost 2.4 A 2.5 A
Fuse Rating (UK) 13 A 13 A
Pump – max head 3m 3m
• Do not remove the front or rear panels
• This machine should only be serviced by qualified Ebac personel or other persons having technical
competence servicing refrigeration equipment, following the instructions in the Ebac service manual.
• Ebac service manuals and spares lists are available upon request by contacting your local Ebac
distributor.
• Never operate the unit in a bathroom or swimming pool area.
• Do not use the machine if the power cord or cabinet are damaged.
• Do not poke objects into and of the grilles on the machine
• Do not cover or obstruct the air inlet or outlet.
• When running, the noise level of this machine is less than 70dba
• This machine complies with the electromagnetic compatibility 1992 regulations.
• This machine has been manufactured in the United Kin
g
dom.
IMPORTANT
CONTROLS
Plastic Fronted Version
Metal Fronted Version
SWITCHING ON YOUR DEHUMIDIFIER
Before connecting it to the mains you should
ensure that the pump outlet hose at the back
of the machine is connected to a permanent
drain. The drain can be up to 3m above the
dehumidifier. The pump hose has a snap
connector near the back of the machine.
Plastic Fronted Machine
Connect to mains power (230-240V) and turn
the main control knob to the high speed fan
symbol (3 fan blades) for maximum
extraction. The green dehumidifying indicator
will illuminate.
Metal Fronted Version
Connect to mains power (230-240V) and turn
the machine on. Set the fan speed to high for
maximum extraction. The green
dehumidifying indicator will illuminate.
Running your Dehumidifier
Pump – The dehumidifier will now extract
water and store it in the pump tank, when this
is full it will automatically empty via the outlet
hose. The red light will illuminate when this
happens.
2 Speed Fan (where applicable) – Pro
Series dehumidifiers are fitted with a 2 speed
fans. This allows the machine to run in quiet
mode as required in occupied premises.
Extraction is reduced in quiet mode.
Hourmeter (where applicable) – The
hourmeter is activated in dehumidifying mode
only – the fan must be running.
Pump Purge Switch – This allows the pump
tank to be emptied prior to moving the
dehumidifier. See on completion of drying.
Compressor – To protect the compressor,
you should allow 5 minutes between
switching off and on again.
Defrosting – At lower temperatures ice will
form on the cooling fins inside your
dehumidifier and therefore must be defrosted.
All models feature an automatic defrost
system which will clear any build up of ice.
IF YOUR DEHUMIDIFIER FAILS TO
OPERATE
1. Check that the plug is fully pushed into
the socket and is switched on.
2. Check with some other electrical device
that the wall socket is “live”. If it is not,
contact a qualified electrician.
3. Check the fuse in the plug. If you
replace the fuse, refit with a 13Amp
fuse.
4. Check the main control knob is turned
clockwise or the on/off switch is
switched on as appropriate.
5. Should none of the above remedies
work, then disconnect from the mains.
Contact the help line on 01388605061.
DO NOT attempt to repair the unit or
unscrew the outer casing
ON COMPLETION OF DRYING
To prevent any spillage of water when moving the
machine, switch it off and let it stand for 10
minutes to allow any ice to melt and drain into the
pump tank. Any residual water in the tank can
now be pumped out by switching the machine
back on and using the pump purge switch.
Empty water from the hose by draining it below
the dehumidifier and disconnect it using the snap
connector.
ELECTRICAL CONNECTION
If this appliance is fitted with a plug which your
socket is unsuitable, then it should be cut off and
an appropriate plug fitted..
This appliance complies with the suppression
requirements of the EEC direction 82/199/EEC as
embodied in BS800:1988
IMPORTANT:- The wires in this mains lead are
coloured in accordance with the following code:-
Green & Yellow
Earth
Blue Neutral
Brown Live
OPERATING YOUR DEHUMIDIFIER
The amount of moisture removed by your
dehumidifier will vary according to the
conditions in which it is operating. For
example, operating in very cold temperatures
will reduce water extraction levels.
The time taken to dry an area will depend on
the size of area to be dried and level of
moisture beging with. To achieve maximum
benefit from your dehumidifier, you should
ensure:a) It is connected to the mains at all times
via plug and socket, and the fan is set to
high speed.
b) The pump tube is connected to a
permanent drain
c) It is not switched off for long periods of
time
d) Doors to areas not to be dried are kept
closed
e) External doors and windows are kept
closed as much as possible
HOW YOUR DEHUMIDIFIER WORKS
Your dehumidifier draws the moist air,
cooling it to a temperature where excess
moisture will condense, thereby
removing the excess moisture. This in
turn dries anything in the immediate area
which is damp. The moisture is collected
in the water container. The air is
rewarmed and passed back
approximately 2ºC warmer.
INTRODUCTION
Your Ebac Heavy Duty Dehumidifier is
designed to help dry flooded or damp
areas. Ideal where natural drying is
just too slow. Drying with a
dehumidifier enables fast drying
without problems associated with heat
drying plaster. etc can crack.
Your Ebac Dehumidifier is packed in a
plastic wrapper- please ensure it is
disposed of safely and where it will not
be a danger to children.
