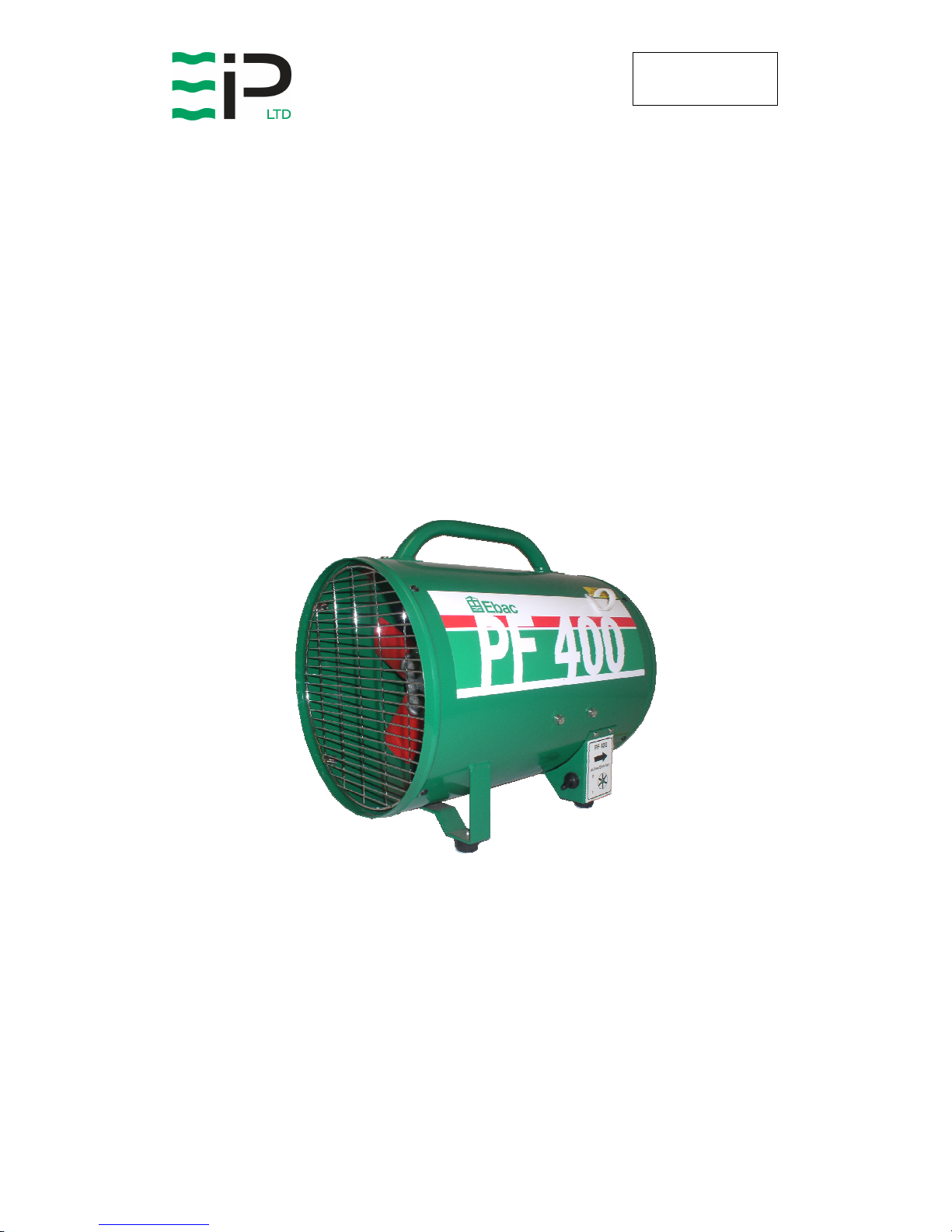

PF400
OPERATING MANUAL
www.eipl.co.uk
Page 2 of 8
Drawing : - TPC386
Issue : - 4
Date : - 24/11/16
INTRODUCTION
This user manual tells you how to operate the PF400. Please read thoroughly
before operating the unit. If you have any questions please contact our
Customer Services Department at the address shown at the back of this
manual.
IMPORTANT
Your PF400 is packed in a plastic wrapping – please ensure that it is disposed
of safely and where it will not be a danger to small children.
UNPACKING
Carefully remove the unit from its transit box and wrapping, and visually check
for any signs of transit damage. If there are any signs of damage DO NOT
attempt to operate the unit, call your supplier for advice. Retain the packaging
for further use, or dispose of it considerately.
GENERAL
The PF400 should only be operated in the horizontal position and with the unit
standing on a firm, level floor. A flexible duct can be attached to either inlet or
outlet in order to transport the air over longer distances. Connection to the
PF400 is done by using the quick release “Belted Cuff”, unique to the Ebac
PF400 Ventilator. Connect the power cord to a suitable supply and the unit is
ready for operation.
SWITCHING ON
The PF400 ON / OFF switch is located on the inside of the rear foot. To start
the unit, depress the switch.
Since the PF400 a considerable high suction power, always ensure that the
inlet grille is kept free of any obstruction during operation.
SWITCHING OFF
Set the ON / OFF to the OFF position. Turn off the power and disconnect.
ELECTRICAL CONNECTIONS
-WARNING-
THIS APPLIANCE MUST BE EARTHED
IMPORTANT – The wires in the mains lead are coloured in accordance with
the following code: Blue Neutral
Brown Live
Green & Yellow Earth
Page 3 of 8
Drawing : - TPC386
Issue : - 4
Date : - 24/11/16
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your own
plug, proceed as follows.
The wire which is coloured Green & Yellow must be connected to the
terminal marked E or by the Earth Symbol or coloured Green or Green &
Yellow.
The wire which is coloured Blue must be connected to the terminal in the plug
which is marked with the letter N or coloured Black.
The wire which is coloured Brown must be connected to the terminal in the
plug which is marked with the letter L or coloured Red.
You must safely dispose of the non rewireable plug once it has been removed
from the flexible cord. It is dangerous to attempt to insert the plug into any
electrical socket.
