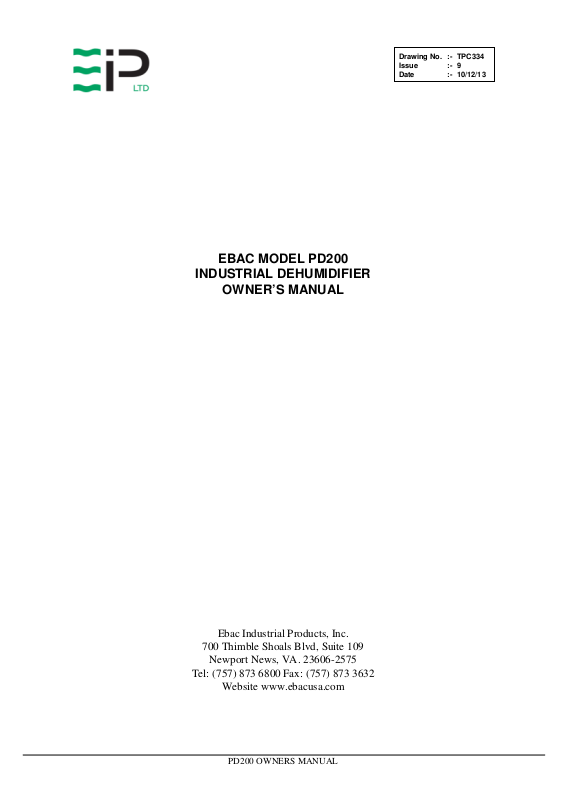

Ebac PD200 User Manual
PD200 OWNERS MANUAL
Date :-
10/12/13
Drawing No. :- TPC334
Issue :- 9
EBAC MODEL PD200
INDUSTRIAL DEHUMIDIFIER
OWNER’S MANUAL
Ebac Industrial Products, Inc.
700 Thimble Shoals Blvd, Suite 109
Newport News, VA. 23606-2575
Tel: (757) 873 6800 Fax: (757) 873 3632
Website www.ebacusa.com
PD200 OWNERS MANUAL
Date :-
10/12/13
PD200
PD200
PD200PD200
PACKAGE CONTENTS
PACKAGE CONTENTS
PACKAGE CONTENTSPACKAGE CONTENTS
Item Description Quantity
1028250 Dehumidifier 1
3014338 PVC Tube – 3/8” I/D 3M
3086101 Jubilee clip 1
Drawing No. :- TPC334
Issue :- 9
3035157 Humidistat 1
TPC334 Manual 1
PD200 OWNERS MANUAL
Date :-
10/12/13
Drawing No. :- TPC334
Issue :- 9
UNPACKING
Carefully remove the PD200 dehumidifier unit from its transit box and visually check for signs
of transit damage. If there is evidence of damage DO NOT attempt to operate the unit, call your
supplier for advice. Do not discard the packing, it will be useful when transporting the
dehumidifier unit in the future.
INTRODUCTION
The Ebac PD200 industrial dehumidifier removes moisture from the air through the refrigeration
process.
The Ebac PD200 is basically comprised of:
1) A compressor
2) A refrigerant evaporator coil
3) A refrigerant condenser coil
4) One circulation fan
5) A remote humidistat
6) A cabinet to house the above components
The fan draws the moist air through the cold evaporator coil which cools the air below its dew
point. Moisture forms on the evaporator coil and is collected in the condensate tray which is
equipped with a permanent drain. The cooled air then passes through the hot condenser coil
where it is reheated using the same energy removed during the cooling phase, plus the additional
heat generated by the compressor. The air is therefore discharged from the dehumidifier at a
slightly higher temperature with a lower absolute humidity than with which it entered.
Continuous circulation of air through the dehumidifier gradually reduces the relative humidity
within the area.
The PD200 dehumidifier is a rugged, reliable drying unit designed to operate effectively over a
broad range of temperature and humidity conditions.
The PD200 dehumidifier uses a remotely mounted adjustable humidistat to enable you to select
the level of dryness.
PD200 OWNERS MANUAL
Date :-
10/12/13
MMMM
ODEL
ODEL
ODELODEL
HHHH
EIGHT
EIGHT
EIGHTEIGHT
WWWW
DDDD
EPTH
EPTH
EPTHEPTH
SPECIFICATIONS
::::
::::
IDTH
IDTH
::::
IDTHIDTH
::::
Drawing No. :- TPC334
Issue :- 9
Ebac PD200
17.5” (445mm)
27” (690mm)
26” (660mm)
WWWW
AAAA
IRFLOW
IRFLOW
IRFLOWIRFLOW
POWER
POWER
POWERPOWER
PPPP
OWER
OWER
OWER OWER
FFFF
RRRR
EFRIGERANT
EFRIGERANT
EFRIGERANT EFRIGERANT
EIGHT
EIGHT
EIGHTEIGHT
SSSS
UPPLY
UPPLY
UPPLYUPPLY
INISH
INISH
INISHINISH
TTTT
::::
::::
::::
::::
YPE
YPE
YPEYPE
::::
/Q
/Q
/Q/Q
TY
TY
TYTY
176 lbs (80Kg)
Low 585 CFM (995M3/hr)
High 664 CFM (1130M3/hr)
2250 W
220V/60Hz/1ph
Powder-coated Epoxy
::::
R407c
PD200 OWNERS MANUAL
Date :-
10/12/13
Drawing No. :- TPC334
Issue :- 9
INSTALLATION
POSITIONING:
Position the dehumidifier unit in the center of the room to be conditioned if at all possible.
However if a damp patch is particularly apparent the outlet grille should be pointed towards it if
possible.

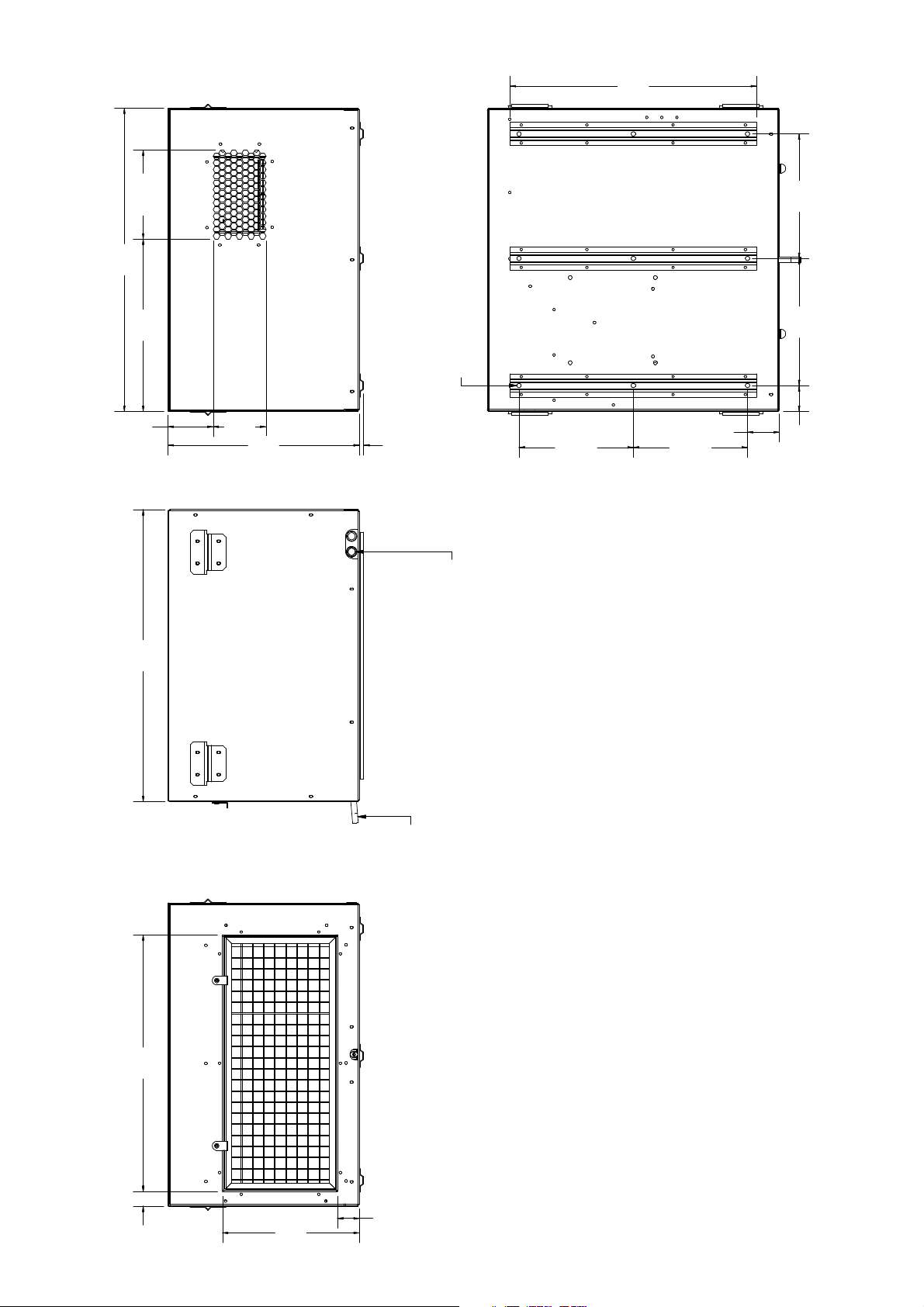

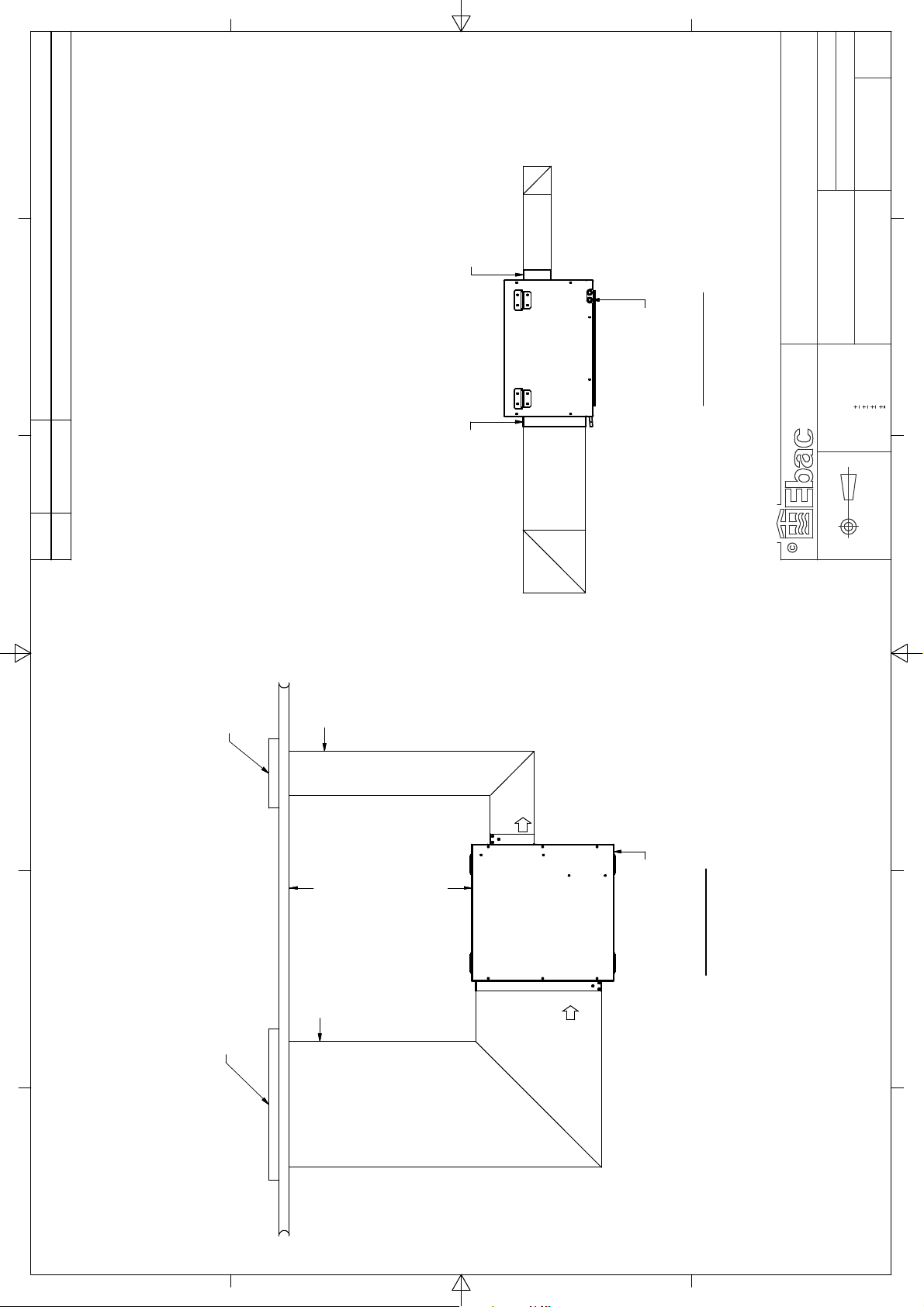

This unit can also be used in a duct system where applicable, please see the diagrams on the
following pages which identify the overall sizes of the unit and also the mounting points.
NOTE: Both inlet grille and outlet grille of the dehumidifier unit must have clear space around
them and not be obstructed in anyway.
Before connecting this unit to the relevant power supply the following must be carried out.
Selecting the correct fan speed – The PD200 has a low fan speed and a high fan speed and the
required speed must be chosen before installation. To select the correct fan speed firstly remove
the air inlet cover via the 10off M4 hex head bolts, then remove the electrical box cover via the
4off M4 hex head bolts. Once the electrical box cover is removed the supplied link wire must be
wired between either the ‘C’ and ‘L’ or the ‘C’ and ‘H’ terminals on the terminal block. This is
shown below.
Before the unit will switch on it must have a low voltage humidistat wired into it with the NC
contacts wired to the terminal block inside the electrical box as shown below.
