Ebac ORION User Manual

Drawing : - TPC381
Issue : - 3
Date : - 10/12/13

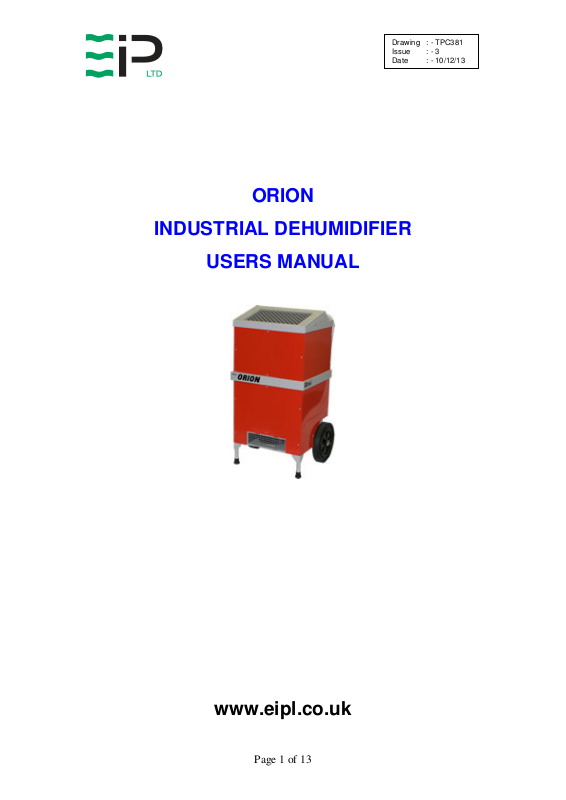

ORION

INDUSTRIAL DEHUMIDIFIER

USERS MANUAL

www.eipl.co.uk

Page 1 of 13

Drawing : - TPC381
Issue : - 3
Date : - 10/12/13

ORION

PACKAGE CONTENTS

Item Description Quantity

10270GR-US Dehumidifier 1

3086144 Quick release hose coupling 1

3944110 PVC Tube – 3/8” I/D 7.8M

TPC381 Manual 1

Page 2 of 13

Drawing : - TPC381
Issue : - 3
Date : - 10/12/13

UNPACKING

Thank you for deciding to purchase an Ebac dehumidifier. Like the many tens
of thousands of people who have already bought an Ebac dehumidifier we are
confident you will find it is the most effective answer to the problem of
condensation and dampness related problems
Carefully remove the Orion dehumidifier unit from its transit box and visually
check for signs of transit damage. If there is evidence of damage DO NOT
attempt to operate the unit, call your supplier for advice. Do not discard the
packing; it will be useful when transporting the dehumidifier unit in the future.
Your dehumidifier is packed in a plastic wrapping, please ensure that it is
disposed of safely and where it will not be a danger to children.

INTRODUCTION

This user manual tells you how to use the Orion dehumidifier. Please read it
thoroughly before operating the dehumidifier. If you have any questions about
the unit please contact our Customer Services Department at the address
shown at the back of the section or phone [phone].
Dehumidifiers remove moisture from the air circulating through it.
Continuous operation reduces the relative humidity the air and this helps
prevent rust, rot, mould, mildew and condensation.
The Orion dehumidifier consists of an air to air heat exchange, motor,
compressor unit, a refrigerant condenser and air circulating fan, a refrigerated
surface, a means for collecting and disposing of the condensed moisture and
a cabinet to house these components.

GENERAL

The Orion dehumidifier must only be stored and transported in the vertical
position. To operate, stand the unit on level ground, and connect power
supply and it is ready for operation.
When a generator is used to supply the power, it is essential to check the
minimum kva required in the technical section within this manual. The
generator must be started before connection is made to the dehumidifier.

Page 3 of 13

Drawing : - TPC381
Issue : - 3
Date : - 10/12/13

OPERATION

The fan draws the moist air through the refrigerated surfaces which cools it
below its dew point, removing moisture which is collected and lead away. The
cool air then passes over the hot condenser, where it is repeated. With the
addition of other radiated heat the air is discharged into the room at a higher
temperature but a lower relative humidity than when it entered the unit.
Continuous circulation of the room air through the dehumidifier unit gradually
reduces the relative humidity in the room.
The Orion dehumidifier is a robust, compact unit designed to control the
humidity in the enclosed space in which it is placed.
The unit is thermally protected and will switch off for a period if maximum
operating temperature of 40ºC is exceeded.

ELECTRICAL CONNECTIONS

WARNING THIS APPLIANCE MUST BE EARTHED

WIRING:

Connect the power mains cable/plug of the dehumidifier unit as follows:-

Brown Live
Blue Neutral
Green/Yellow Earth (ground)

As the colour of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminal in your own
plug, proceed as follows.
The wire which is coloured Green and Yellow must be connected to the
terminal marked E or by the Earth symbol or coloured Green or Green and
Yellow. The wire which is coloured Blue must be connected to the terminal in
the plug which is marked the letters N or coloured Black. The wire which is
coloured Brown must be connected to the terminal which is marked with the
letter L or coloured Red.
You must safely dispose of the non re-wireable plug once it has been
removed from the flexible cord. It is dangerous to attempt to insert the plug
into any electrical socket.

CHANGING THE FUSE

13 Amp fuses that are ASTA approved to BS1362 should only be used.

NON REWIREABLE PLUGS

The fuse cover must be refitted after the replacement of the fuse.

Page 4 of 13
