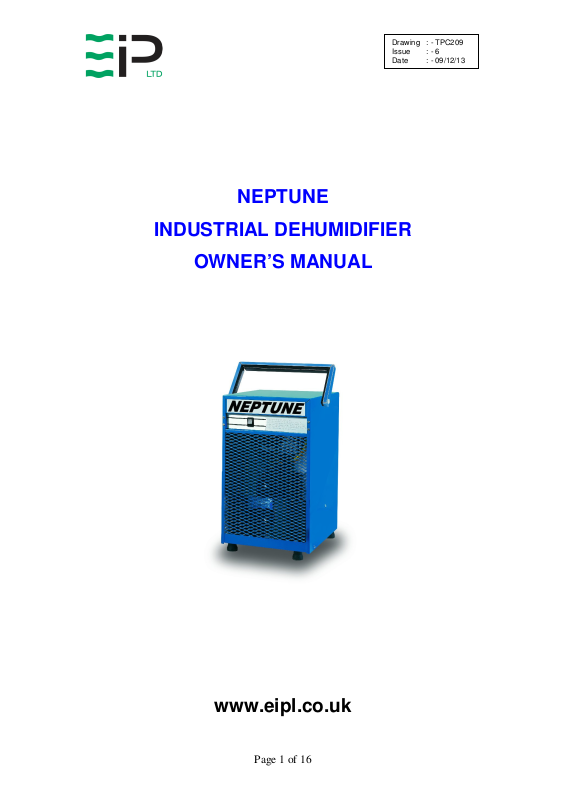

Ebac NEPTUNE User Manual

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

NEPTUNE

INDUSTRIAL DEHUMIDIFIER

OWNER’S MANUAL

www.eipl.co.uk

Page 1 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

NEPTUNE

PACKAGE CONTENTS

Item Description Quantity

10199GR-US Dehumidifier 1

3014336 PVC Tube – 3/8” I/D 1.5M

3086116 Jubilee clip 1

TPC209 Manual 1

Page 2 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

INTRODUCTION

Designed for a wide range of applications, the Neptune dehumidifier is a
super high capacity industrial unit which provides fast and efficient drying.

The Neptune has a number of special features:

•

Super high efficiency rotary compressor

•

Temperature-sensitive microprocessor controlled defrost system

•

Exterior epoxy powder-coated finish

•

Internal condensate pump (optional)

•

Rugged portable design

•

Heavy duty carrying handle

•

Extra long power cord

The fan draws the moist air through the inlet grille on the back of the unit, and
then through the cold evaporator coil, which cools the air below its dew point.
Moisture forms on the evaporator coil and is collected in the condensate tray,
which is equipped with a permanent drain. The cooled air then passes
through the hot condenser coil where it is reheated using the same energy
removed during the cooling phase, plus the additional heat generated by the
compressor. The air is, therefore, discharged from the dehumidifier at a
slightly higher temperature with a lower absolute humidity than that which
entered. Continuous circulation of air through the dehumidifier gradually
reduces the relative humidity within the area.

The dehumidifier is a rugged, reliable drying unit designed to operate
effectively over a broad range of temperature and humidity conditions.

The unit incorporates a welded and galvanized steel chassis and is finished in
an epoxy coating for resilience to damage caused by rough handling.

Page 3 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

SPECIFICATIONS

P

OWER SUPPLY

O

PERATING RANGE

R

"This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The

refrigeration system is hermetically sealed.

The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac

Industrial Products Ltd is as follows

For type and weight of refrigerant contained in this unit, please refer to the product data label"

M

ODEL

H

EIGHT

W

IDTH

D

EPTH

W

EIGHT

A

IRFLOW

F

INISH

EFRIGERANT

R134a – 1300
R407c – 1610

: Neptune

: 24” (610mm)

: 14” (355mm)

: 15” (381mm)

: 60 lbs (30 Kg)

: 282 CFM (476 M3/Hr)

: 110V/ 60Hz/ 1 ph

: Powder-coated Epoxy

: 33°F – 95°F

: R-407c (16.2 oz)

Page 4 of 16

Drawing : - TPC209

CAUTION:

DO NOT

REMOVE COVERS WHEN UNIT IS IN OPERATION

CAUTION:

Issue : - 6
Date : - 09/12/13

OPERATION

The following procedures should be followed to test the Neptune for correct
operation:

1. After unpacking, examine all external features to confirm damage­free shipment. Report all defects and damage at once. Connect the
power cable to a grounded 15 Amp electrical outlet.

2. Check dehumidification process as follows:

A. Place unit on a level surface.

B. Start up unit by switching to “ON”.

C. Check that air is being delivered through the front outlet grille

and the compressor is running.

D. Leave the machine running for 60 minutes.

E. Check to ensure there is sign of water extraction through the

condensate drain.

If, after carrying out the above procedures, the unit does not appear to
function properly, refer to the Trouble Shooting section, which follows,
or contact the Factory Service Center.

ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT

LEAST FIVE MINUTES BEFORE RESTARTING.

Page 5 of 16

Drawing : - TPC209

WARNING:

MAINTNENANCE

WARNING

:

Issue : - 6
Date : - 09/12/13

ROUTINE MAINTENANCE

ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN

To ensure continued full efficiency of the dehumidifier, maintenance
procedures should be performed as follows:

1. Replace or clean the inlet air grille as required. Clean the surface

2. Check that the fan is firmly secured to the motor shaft and that the

3. To check the refrigerant charge, run the unit for 15 minutes and

4. Check all wiring connections.

S

DISCONNECTED BEFORE CARRYING OUT ROUTINE

of the evaporator and condenser coils by blowing the dirt out from
behind the fins with compressed air. Hold the nozzle of the air hose
away from the coil to avoid damaging the fins. Alternatively,
vacuum clean the coils.

DO NOT STEAM CLEAN REFRIGERATION COILS

fan rotates freely. The fan motor is sealed for life and therefore
does not need oiling.

briefly remove the top cover. The evaporator coil should be evenly
frost coated across its surface. At temperatures above 70°F, the

coil may be covered with droplets of water rather than frost. Partial
frosting accompanied by frosting of the thin capillary tubes,
indicates loss of refrigerant gas or low charge.

I

F ANY OF THE PRECEDING PROBLEMS OCCUR, CONTACT THE EBAC

ERVICE CENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO

PREVENT PERMANENT DAMAGE

.

Page 6 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

REPAIRS

1. Should an electrical component fail, consult the Factory Service
Center to obtain the proper replacement part.

2. If refrigerant gas is lost from the machine, it will be necessary to use
a refrigeration technician to correct the fault. Contact the Factory
Service Center prior to initiating this action.

Any competent refrigeration technician will be able to service the

equipment. The following procedure must be used:

a. The source of the leak must be determined and corrected.

b. The machine should be thoroughly evacuated before

recharging.

c. The unit must be recharged with refrigerant measured

accurately by weight.

d. For evacuation and recharging of the machine, use the crimped

and brazed charging stub attached to the side of the refrigerant
compressor.

The charging stub should be crimped and rebrazed after

servicing. N
any part of the circuit. Service valves may leak causing further
loss of refrigerant gas.

3. The refrigerant compressor fitted to the dehumidifier is a durable
unit that should give many years of service. Compressor failure can
result from the machine losing its refrigerant gas. The compressor
can be replaced by a competent refrigeration technician.

Failure of the compressor can be confirmed by the following

procedure:

a. Establish that power is present at the compressor terminals

using a voltmeter.

b. With the power disconnected, check the continuity of the internal

winding by using meter across the compressor terminals. An
open circuit indicates that the compressor should be replaced.

c. Check that the compressor is not grounded by establishing that

a circuit does not exist between the compressor terminals and
the shell of the compressor.

EVER

allow permanent service valves to be fitted to

Page 7 of 16

Drawing : - TPC209

S

C

R

Issue : - 6
Date : - 09/12/13

TROUBLESHOOTING

YMPTOM

Unit inoperative 1. No power to unit

1. Loose fan on shaft

2. Fan motor burnt out

Little or no airflow

3. Dirty refrigeration coils

4. Loose electrical wiring

1. Insufficient air flow

Little or no water
extraction

2. Compressor fault

3. Loss of refrigerant gas

Little or no defrost
when required

Unit vibrates
excessively

1. Faulty timer

2. Faulty by-pass valve

1. Loose compressor

2. Damaged fan

1. Drain pipe blocked/frozen

Water flooding inside
the machine

2. Drain pipe too high

3. Crimped or blocked tubing

AUSE

EMEDY

1. Check the power from
power supply panel

1. Tighten fan

2. Replace the fan motor

3. See Routine Maintenance
Section

4. Check the wiring diagram
to find fault and repair

1. Check all of the above

2. Contact the Factory
Service Center

3. Contact the Factory
Service Center

1. Contact the Factory
Service Center

2. Contact the Factory
Service Center

1. Tighten the nuts on the
compressor mounts

2. Replace fan

1. Clear the obstruction

2. Ensure that no section of
the drain hose is above the
level of the water outlet

3. Straighten, clear, or replace
tubing

Page 8 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

NEPTUNE

SPARE PARTS LIST

P

ART

Q

N

UMBER

D

1 Compressor (RGA5456EXA) 3022170 1

2 Compressor Overheat Protector N/A 1

3 Compressor Capacitor 3030908 1

4 Evaporator/Condenser Coil 2139330 1

5 Black Rubber Foot 3101436 4

6 Filter Dryer 3020901 1

ESCRIPTION

N

UMBER

UANTITY

7 Fan Motor 3035788 1

8 By-pass Valve 3020811 1

9 Electronic Timer 1609850 1

10 Axial Fan 3040129 1

11 Rocker Switch 3035914 1

12 Thermistor Assy 3035142 1

13 Solenoid Coil 3030421 1

14 PVC Clear Tube 3014336 1

15 Drain Tray 2131107 1

16 Capillary Tube 0.052” I/D 3014249 4.2 ft

Spare parts available online

www.EIPLDIRECT.com

Page 9 of 16

Drawing : - TPC209

PLEASE NOTE

WARRANTY REGISTRATION

Issue : - 6
Date : - 09/12/13

Ebac

Our products carry a one-year unconditional warranty against any defects in
workmanship or material. This warranty will cover all parts and labour
required to repair your Ebac product. This warranty is invalid if the unit has
been abused, damaged, whether intentional or accidental, or if any
modifications have been made to the unit.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS ISSUED IN LIEU OF
ALL OTHER WARRANTIES (WHETHER WRITTEN, ORAL, OR IMPLIED)
INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. EBAC
SYSTEMS, INC. DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL
DAMAGES, LOST PROFITS, OR INCIDENTAL DAMAGES FOR BREACH
OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THE
FOREGOING DESCRIBED MERCHANDISE.

For Your Records: Model:____________________
S/N:______________________
Date Received:______________

LIMITED WARRANTY

SAVE THIS SECTION FOR YOUR RECORDS

CLIP AND RETURN THIS CARD

To ensure that your
Ebac Dehumidifier is
accorded the full
coverage provided by
this warranty, please
complete and mail this
card at your earliest
convenience.

Thank You

Page 10 of 16

DATE

MODEL ___________ S/N ________________ RECEIVED ________________

OWNER __________________________________________________________

ADDRESS ________________________________________________________

CITY __________________________ STATE ________ ZIP _______________

COMMENTS ______________________________________________________

_________________________________________________________________

Ebac Industrial Products, Inc.700 Thimble Shoals Blvd, Suite 109

Newport News, VA. 23606-2575Tel: [phone] Fax: [phone]

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

Page 11 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

Page 12 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

Page 13 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

Page 14 of 16

Drawing : - TPC209
Issue : - 6
Date : - 09/12/13

Page 15 of 16

Drawing : - TPC209

UK Head Office

American Sales Office

German Sales Office

Issue : - 6
Date : - 09/12/13

Ebac Industrial Products Ltd

St Helens Trading Estate

Bishop Auckland

County Durham

DL14 9AD

Tel: [phone]

Fax: [phone]

www.eipl.co.uk

[e-mail]

Page 16 of 16

Ebac Industrial Products Inc

700 Thimble Shoals Blvd.
Suite 109, Newport News

Virginia, 23606-2575

Tel: [phone]

Fax: [phone]

www.ebacusa.com

[e-mail]

USA

Ebac Industrial Products Ltd.

Gartenfelder Str. 29-37

Gebäude 35

D-13599, Berlin

Germany

Tel: [phone]

Fax: [phone]

www.eip-ltd.de

[e-mail]
