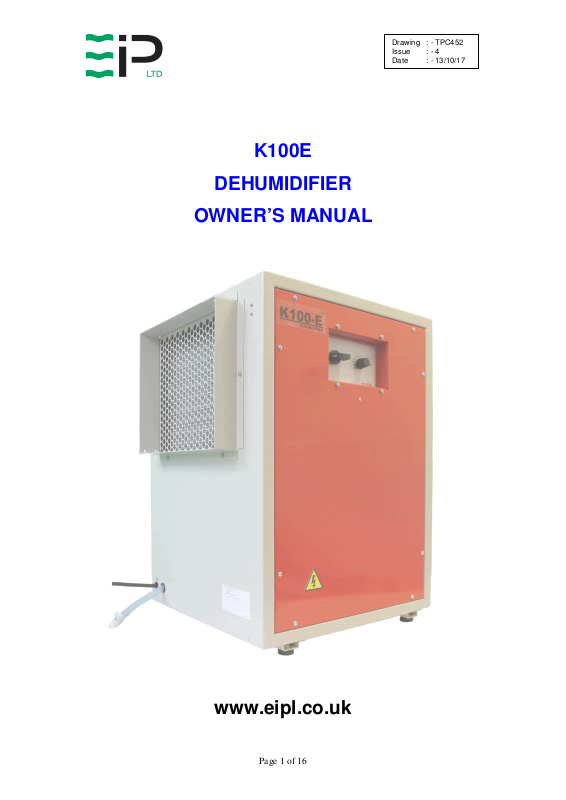

Ebac K100E User Manual

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

K100E

DEHUMIDIFIER

OWNER’S MANUAL

www.eipl.co.uk

Page 1 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

K100E

PACKAGE CONTENTS

Item Description Quantity

10185GE-US Dehumidifier 1 off

3086144 Quick release hose coupling 1 off

3944110 PVC Tube – 3/8” I/D 7.8M

TPC452 Manual 1 off

Page 2 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

INTRODUCTION

Dehumidifiers remove moisture from the air that is circulating through the unit.
The resulting reduction of relative humidity helps prevent rust, rot, mold,
mildew and condensation within the room, or other enclosed spaces where
the dehumidifier is used.

The K100E has a number of special features:

•

Ebac’s “Reverse Cycle” defrost system

•

Integral pump out system

•

Provision for permanent drainage

•

Exterior epoxy powder-coated finish

•

Extra long power cord

•

Free Standing or Wall Mountable

•

Status Indicator

•

Electronic Humidity Control

The fan draws air through the refrigerated surface and cools it below its dew
point, removing moisture which is collected and led away. The cool air then
passes the hot condenser, where it is reheated. With the addition of other
radiated heat the air is discharged into the room at a higher temperature but
lower relative humidity than when the air entered the unit. Continuous
circulation of the room air through the dehumidifier unit gradually reduces the
relative humidity in the room.

The K100E controls consist of an electronic humidity controller, incorporating
Bluetooth connectivity and Real Time Clock, allowing the unit to interface with
Android and IOS smart phones and provide additional control and data
logging features. The respective apps are available for free download through
the normal channels

Smartphone App
The Smartphone interface allows the following additional functions
a) Real time monitoring of the relay status and room conditions
b) Adjustment of Control set point (To allow this functionality, the link fitted to
J3 on the main controller board, will need removing)
c) Data logging of, Time, Temperature, Humidity, Relay Status, Control and
Alarm Set points
d) Adjusting the data Logging Interval
e) Resetting the data log
f) Downloading logged data
g) Emailing logged data in RAW or CSV formats (Allowing importing into
Excel)

Page 3 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

Download the app from apps.ebacusa.com

The K100E dehumidifier is a rugged reliable drying unit designed to operate
effectively over a broad range of temperature and humidity conditions. A
powerful and reliable reverse cycle defrost system, controlled by an electronic
timer, guarantees positive de-icing and thereby optimizing operation at low
temperatures.

The unit incorporates a welded steel chassis and is finished in epoxy coated
steel covers for resilience to damage caused by rough handling.

This appliance can be used by children from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning
use of the application in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.

Page 4 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

SPECIFICATIONS

M

ODEL

:

10185GE-US

H

EIGHT

: 27.2” (692mm)

W

IDTH

: 22.8” (580mm)

D

EPTH

: 18.3” (464mm)

W

EIGHT

: 117 Lbs (53Kg)

A

IRFLOW

P

OWER SUPPLY

P

F

R

EFRIGERANT TYPE/QTY

: 300 CFM (510 M3/Hr)

: 110V 1Ph 60Hz

OWER

INISH

1500 W (max)

: Epoxy coated steel

: R407C (540g)

"This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The

refrigeration system is hermetically sealed.

The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac

Industrial Products Ltd is as follows

R134a – 1300
R407c – 1610

For type and weight of refrigerant contained in this unit, please refer to the product data label"

Page 5 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

INSTALLATION

POSITIONING:

Position the dehumidifier unit in the center of the room to be conditioned if at
all possible. However if a damp patch is particularly apparent the outlet grille
should be pointed towards it.

NOTE: Both inlet grille and outlet grille of the dehumidifier unit must have
clear space around them and not be obstructed in anyway. For correct
installation and operation the unit must have a clearance of 0.5M from all
adjacent surfaces and or structures.

WIRING:

Connect the power mains cable to a designated 30 Amp breaker. As follows:-

For Models without plugs:-

Brown Live

Blue Neutral

Green/Yellow Earth (ground)

If the SUPPLY CORD is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified person in order to avoid hazard.

DRAINAGE:

The K100E has a water pump fitted as standard which is capable of
discharging the condensate water 20ft vertical lift away from the unit & 100ft
horizontal. The water can, therefore, be discharged into a drain some distance
away.

Page 6 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

OPERATION

The following procedures should be followed to test the K100E for correct
operation:

1. After unpacking, examine all external features to confirm damage­free shipment. Report all defects and damage at once. Connect the
power cable to a grounded electrical outlet.

2. Setting the Digital Humidistat

• Turn fully clockwise

3. Check dehumidification process as follows:

TO ENSURE CONTINUED FULL EFFICIENCY OF THE

DEHUMIDIFEIR, MAINTENANCE PROCEDURES SHOULD BE

PERFORMED AS FOLLOWS:

A. Place unit on a level surface.

B. Start up unit by turning the ON/OFF switch to ON

C. Check that the compressor is running.

D. Leave the machine running for 15 minutes.

E. Observe the evaporator coils through the rear upper grill, to

confirm frost operation.

i. If the air temperature is below 80°F, an even coating of

frost should cover the entire evaporator coil

ii. If the air temperature is above 80°F, frost and/or droplets

of condensed water should cover the entire
evaporator coil.

F. After continuous running time of approximately 55 minutes, the

unit will enter “Hot Gas” defrost mode for 5 minutes and then
automatically return to normal operation.

Page 7 of 16

Drawing : - TPC452

CAUTION:

Issue : - 4
Date : - 13/10/17

If, after carrying out the above procedures, the unit does not appear to
function properly, refer to the Trouble Shooting section, which follows,
or contact the Factory Service Center.

ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT LEAST FIVE

MINUTES BEFORE RESTARTING.

Discharge Pump

The pump works automatically and periodically pumps away collected
moisture to a drain or container. The pump is capable of discharging water to
a vertical height of 20ft.

Warnings.

• Due to the high pressures within the refrigeration circuit, under no
circumstances must direct heat be applied to the evaporator coil in an
attempt to remove the build up of ice.

• No attempt should be made to cut open any part of the refrigeration circuit
due to high pressures and gas involved.

• If the unit is switched off at the mains power supply for any reason, the unit

must be allowed to stand at rest for at least three minutes before
restarting.

Page 8 of 16

Drawing : - TPC452

WARNING:

WARNING:

Issue : - 4
Date : - 13/10/17

ROUTINE SERVICE

To ensure continued full efficiency of the dehumidifier, maintenance
procedures should be performed as follows:

ENSURE THAT THE POWER CORD TO THE MACHINE HAS

BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE

SERVICE. THE SERVICING AND REPAIR OF THIS UNIT

SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED

PERSON.

1. Clean the surface of the evaporator and condenser coils by blowing the
dirt out from behind the fins with compressed air. Hold the nozzle of the air
hose away from the coil (approx 6”) to avoid damaging the fins.
Alternatively, vacuum clean the coils.

DO NOT STEAM CLEAN REFRIGERATION COILS

2. Check that the fan is firmly secured to the motor shaft and that the
fan rotates freely.

THE FAN IS SEALED FOR LIFE AND DOES NOT NEED LUBRICATING.

3. To check the refrigerant charge, run the unit for 20 minutes (with
humidistat set to maximum). The evaporator coil should be evenly
frost coated across its surface. At temperatures above 77°f, the coil
may be covered with droplets of water rather than frost. Partial
frosting accompanied by frosting of the thin capillary tubes,
indicates loss of refrigerant gas or low charge.

4. Check all wiring connections.

I

F ANY OF THE PRECEDING PROBLEMS OCCUR, CONTACT THE EBAC

S

ERVICE CENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO

PREVENT PERMANENT DAMAGE

.

Page 9 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

REPAIRS

1. Should an electrical component fail, consult the Factory Service
Center to obtain the correct replacement part.

2. If refrigerant gas is lost from the machine, it will be necessary to use
a refrigeration technician to correct the fault. Contact the Factory
Service Center prior to initiating this action.

Any licensed refrigeration technician will be able to service the

equipment. The following procedure must be used:

a. The source of the leak must be determined and corrected.

b. The machine should be thoroughly evacuated before

recharging.

c. The unit must be recharged with refrigerant measured

accurately by weight.

d. For evacuation and recharging of the machine, use the crimped

and brazed charging stub attached to the side of the refrigerant
compressor.

The charging stub should be crimped and rebrazed after

servicing. N
any part of the circuit. Service valves may leak causing further
loss of refrigerant gas.

3. The refrigerant compressor fitted to the dehumidifier is a durable
unit that should give many years of service. Compressor failure can
result from the machine losing its refrigerant gas. The compressor
can be replaced by a licensed refrigeration technician.

Failure of the compressor can be confirmed by the following

procedure:

a. Establish that power is present at the compressor terminals

using a voltmeter.

b. With the power disconnected, check the continuity of the internal

winding by using meter across the compressor terminals. An
open circuit indicates that the compressor should be replaced.

c. Check that the compressor is not grounded by establishing that

a circuit does not exist between the compressor terminals and
the shell of the compressor.

EVER

allow permanent service valves to be fitted to

Page 10 of 16

Drawing : - TPC452

S

C

R

Issue : - 4
Date : - 13/10/17

TROUBLESHOOTING

YMPTOM

Little or no airflow

Little or no water
extraction

Little or no defrost
when required

1. Loose fan on shaft

2. Fan motor burnt out

3. Dirty refrigeration coils

4. Loose electrical wiring

1. Insufficient air flow

2. Compressor fault

3. Loss of refrigerant gas

1. Faulty Timer

2. Faulty bypass timer

AUSE

EMEDY

1. Tighten fan

2. Replace the fan motor

3. See Routine Maintenance
Section

4. Check the wiring diagram
to find fault and repair

1. Check all of the above

2. Contact the Factory
Service Center

3. Contact the Factory
Service Center

1. Contact the Factory
Service Center

2. Contact the Factory
Service Center

Unit vibrates
excessively

Water flooding inside
machine

1. Loose compressor
mounts

2. Damaged fan

1. Faulty water pump

2. Sticking float switch

3. Drain tray blocked

1. Tighten nuts on
compressor mounts

2. Replace with a new fan

1. Replace water pump

2. Remove obstruction

3. Remove obstruction

Spare parts available online

www.EIPLDIRECT.com

Page 11 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

K100E

SPARE PARTS LIST

P

ART

Q

N

UMBER

D

ESCRIPTION

N

UMBER

UANTITY

1 HUMIDITY SENSOR 1619514

2 DEFROST TIMER 1619516

3 CAPILLIARY TUBE .047 2pcs. 3014251

4 COMPRESSOR (R407c) 3944915

5 CONDENSER COIL 3020727

6 EVAPORATOR COIL 3020732

7 DEFROST VALVE 3020833

8 FILTER DRYER 3020957

9 CONTACTOR 3930732

10 SOLENOID COIL 3030453

11 ROTARY SWITCH 3030557

12 MOTOR 3030126

13 CAPACITOR 3036337

14 USA PLUG 3934515

1

1

48” x2

1

1

1

1

1

1

1

1

1

1

1

15 AXIAL FAN 3940002

16 PUMP 3160145

Page 12 of 16

1

1

Drawing : - TPC452

PLEASE NOTE

WARRANTY REGISTRATION

Issue : - 4
Date : - 13/10/17

LIMITED WARRANTY

Our products carry a one-year unconditional warranty against any defects in
workmanship or material. This warranty will cover all parts and labor required
to repair your Ebac product. This warranty is invalid if the unit has been
abused, damaged, whether intentional or accidental, or if any modifications
have been made to the unit.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS ISSUED IN LIEU OF
ALL OTHER WARRANTIES (WHETHER WRITTEN, ORAL, OR IMPLIED)
INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. EBAC
INDUSTRIAL PRODUCTS, INC. DISCLAIMS ANY LIABILITY FOR
CONSEQUENTIAL DAMAGES, LOST PROFITS, OR INCIDENTAL
DAMAGES FOR BREACH OF ANY WRITTEN OR IMPLIED WARRANTY
WITH RESPECT TO THE FOREGOING DESCRIBED MERCHANDISE.

For Your Records: Model:____________________
S/N:______________________
Date Received:______________

SAVE THIS SECTION FOR YOUR RECORDS

CLIP AND RETURN THIS CARD

To ensure that your
Ebac Dehumidifier is
accorded the full
coverage provided by
this warranty, please
complete and mail this
card at your earliest
convenience.

DATE

MODEL ___________ S/N ________________ RECEIVED ________________

OWNER __________________________________________________________

ADDRESS ________________________________________________________

CITY __________________________ STATE ________ ZIP _______________

COMMENTS ______________________________________________________

_________________________________________________________________

Thank You

Page 13 of 16

700 Thimble Shoals Boulevard, Suite 109, Newport News, Virginia. 23606-2575

Ebac Industrial Products.

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

WARNINGS

This appliance can be used by children from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the application in a safe way and

understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified person in order to avoid hazard.

This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The

refrigeration system is hermetically sealed.

The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac

Industrial Products Ltd is as follows

R134a – 1300
R407c – 1610

For type and weight of refrigerant contained in this unit, please refer to the product data label

Due to the high pressures within the refrigeration circuit, under no

circumstances must direct heat be applied to the evaporator coil in an attempt

to remove the build-up of ice.

No attempt should be made to cut open any part of the refrigeration circuit

due to high pressures and gas involved.

If the unit is switched off at the mains power supply for any reason, the unit must be allowed to

stand at rest for at least three minutes before restarting.

For correct installation and operation the unit inlet and outlet must have a

clearance of 0.5M from all adjacent surfaces and or structures.

Page 14 of 16

Drawing : - TPC452
Issue : - 4
Date : - 13/10/17

Page 15 of 16

Drawing : - TPC452

UK Head Office

American Sales Office

German Sales Office

Issue : - 4
Date : - 13/10/17

Ebac Industrial Products Ltd

St Helens Trading Estate

Bishop Auckland

County Durham

DL14 9AD

Tel: [phone]

Fax: [phone]

www.eipl.co.uk

[e-mail]

Page 16 of 16

Ebac Industrial Products Inc

700 Thimble Shoals Blvd.

Suite 109, Newport News

Virginia, 23606-2575

Tel: [phone]

Fax: [phone]

www.ebacusa.com

[e-mail]

USA

Ebac Industrial Products Ltd.

Gartenfelder Str. 29-37

Gebäude 35

D-13599, Berlin

Germany

Tel: [phone]

Fax: [phone]

www.eip-ltd.de

[e-mail]
