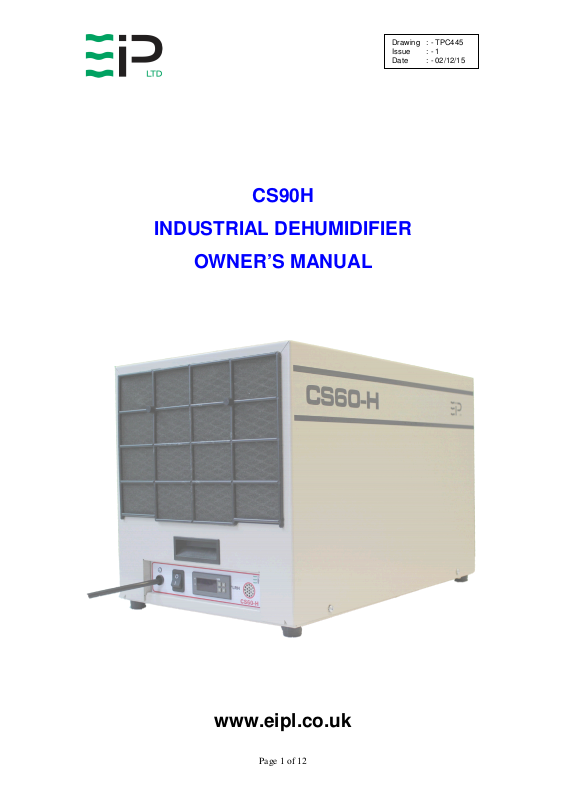

Ebac CS90H User Manual

Drawing : - TPC445
Issue : - 1
Date : - 02/12/15

CS90H

INDUSTRIAL DEHUMIDIFIER

OWNER’S MANUAL

www.eipl.co.uk

Page 1 of 12

Drawing : - TPC445
Issue : - 1
Date : - 02/12/15

CS90H

PACKAGE CONTENTS

Item Description Quantity

10590GH-US Dehumidifier 1

3944110 PVC tube – 3/8” I/D 7.8 M

3086144 Quick release hose coupling 1

TPC445 Manual 1

Page 2 of 12

Drawing : - TPC445
Issue : - 1
Date : - 02/12/15

INTRODUCTION

Designed for a wide range of applications, the CS90H dehumidifier is a
rugged, industrial unit which utilizes an energy-efficient compressor and a
compact portable design to provide easy efficient drying.

The CS90H has a number of special features:

•

Compact Size

•

High efficiency rotary compressor

•

Ebac’s “Hot Gas” defrost system

•

Exterior epoxy powder-coated finish

•

Provision for permanent drainage

•

Extra long power cord

•

Integral condensate pump

•

Digital humidistat controller

The fan draws the moist air through the cold evaporator coil, which cools the
air below its dew point. Moisture forms on the evaporator coil and is collected
in the condensate tray, which is equipped with a permanent drain. The cooled
air then passes through the hot condenser coil where it is reheated using the
same energy removed during the cooling phase, plus the additional heat
generated by the compressor. The air is, therefore, discharged from the
dehumidifier at a slightly higher temperature with a lower absolute humidity
than that which entered. Continuous circulation of air through the
dehumidifier gradually reduces the relative humidity within the area.

A digital Humidistat is included which allows for precise humidity control. A
programmable display lets you set a specific desired humidity level.

The CS90H dehumidifier is a rugged, reliable drying unit designed to operate
effectively over a broad range of temperature and humidity conditions. An
active hot gas defrost system, controlled by an electronic timer, guarantees
positive de-icing, thereby optimizing operation at low temperatures.

The unit incorporates a welded and galvanized steel chassis and is finished in
an epoxy coating for resilience to damage caused by rough handling.

Page 3 of 12

Drawing : - TPC445
Issue : - 1
Date : - 02/12/15

SPECIFICATIONS

M

ODEL

H

W

D

W

A

IRFLOW

P

OWER SUPPLY

F

O

PERATING RANGE

R

EFRIGERANT

"This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The

refrigeration system is hermetically sealed.

The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac

Industrial Products Ltd is as follows

For type and weight of refrigerant contained in this unit, please refer to the product data label"

: CS60H

EIGHT

: 15.2” (386mm)

IDTH

: 14” (353mm)

EPTH

: 22” (564mm)

EIGHT

: 84lbs (38 kg)

: 230 CFM (390M3/hr)

: 110V/ 60Hz/ 1 ph

INISH

: Powder-coated Epoxy

: 33°F – 95°F

: R-407c (15.2 oz)

R134a – 1300
R407c – 1610

Page 4 of 12

Drawing : - TPC445
Issue : - 1
Date : - 02/12/15

OPERATION

The following procedures should be followed to test the CS90H for correct
operation:

1. After unpacking, examine all external features to confirm damage­free shipment. Report all defects and damage at once. Connect the
power cable to a grounded 15 Amp electrical outlet.

2. Setting the Digital Humidistat

The Digital Humidistat is factory preset to give the optimum
level of control. Only adjustment of the desired set point is
required.

During normal operation, the display shows the current % Relative
Humidity within the space being conditioned.

The required humidity level can be set as follows:

• Press the “S” button once to access the set point

• Press the ▲ or ▼ button to change the display to the

desired Humidity level

• Press the “S” button again to save the set point – The
control returns to displaying the current % Relative
Humidity

3. Check dehumidification process as follows:

TO ENSURE CONTINUED FULL EFFICIENCY OF THE

DEHUMIDIFEIR, MAINTENANCE PROCEDURES SHOULD BE

PERFORMED AS FOLLOWS:

A. Place unit on a level surface.

B. Start up unit by turning the ON/OFF switch to ON

C. Check that the compressor is running.

D. Leave the machine running for 15 minutes.

E. Observe the evaporator coils through the rear upper grill, to

confirm frost operation.

Page 5 of 12

Drawing : - TPC445

CAUTION:

Issue : - 1
Date : - 02/12/15

i. If the air temperature is below 80° F, an even coating of

frost should cover the entire evaporator coil

ii. If the air temperature is above 80° F, frost and/or droplets

of condensed water should cover the entire
evaporator coil.

F. After continuous running time of approximately 55 minutes, the

unit will enter “Hot Gas” defrost mode for 5 minutes and then
automatically return to normal operation.

When the unit is defrosting, the % Relative Humidity displayed on the
digital controller may increase as a result of the ice / frost melting. This
is quite normal and the display will return to its normal reading when the
unit returns to dehumidifying mode. (Fan running)

If, after carrying out the above procedures, the unit does not appear to
function properly, refer to the Trouble Shooting section, which follows,
or contact the Factory Service Center.

ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT

LEAST FIVE MINUTES BEFORE RESTARTING.

Page 6 of 12

Drawing : - TPC445

WARNING:

MAINTNENANCE

WARNING:

Issue : - 1
Date : - 02/12/15

ROUTINE MAINTENANCE

ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN

To ensure continued full efficiency of the dehumidifier, maintenance
procedures should be performed as follows:

1. Clean the surface of the evaporator and condenser coils by blowing

2. Check that the fan rotates freely. The fan motor is sealed for life

3. To check the refrigerant charge, run the unit for 15 minutes and

4. Check all wiring connections.

5 In order to check the defrost operation, the unit needs to be

S

DISCONNECTED BEFORE CARRYING OUT ROUTINE

the dirt out from behind the fins with compressed air. Hold the
nozzle of the air hose away from the coil to avoid damaging the fins.
Alternatively, vacuum clean the coils.

DO NOT STEAM CLEAN REFRIGERATION COILS

and therefore does not need oiling.

briefly remove the top cover. The evaporator coil should be evenly
frost coated across its surface. At temperatures above 80°F, the

coil may be covered with droplets of water rather than frost. Partial
frosting accompanied by frosting of the thin capillary tubes,
indicates loss of refrigerant gas or low charge.

operated in an ambient temperature of less than 15°C for at least 1
hour. When operated In this condition the unit should defrost at
least once every hour. The defrost mode can be monitored by
observing the ice melting on the coil face, prior to defrost the face
will show a white coating of frost, which should clear during defrost

I

F ANY OF THE PRECEDING PROBLEMS OCCUR, CONTACT THE EBAC

ERVICE CENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO

PREVENT PERMANENT DAMAGE

.

Page 7 of 12

Drawing : - TPC445
Issue : - 1
Date : - 02/12/15

REPAIRS

1. Should an electrical component fail, consult the Factory Service
Center to obtain the proper replacement part.

2. If refrigerant gas is lost from the machine, it will be necessary to use
a refrigeration technician to correct the fault. Contact the Factory
Service Center prior to initiating this action.

Any competent refrigeration technician will be able to service the

equipment. The following procedure must be used:

a. The source of the leak must be determined and corrected.

b. The machine should be thoroughly evacuated before

recharging.

c. The unit must be recharged with refrigerant measured

accurately by weight.

d. For evacuation and recharging of the machine, use the crimped

and brazed charging stub attached to the side of the refrigerant
compressor.

The charging stub should be crimped and rebrazed after

servicing. N
any part of the circuit. Service valves may leak causing further
loss of refrigerant gas.

3. The refrigerant compressor fitted to the dehumidifier is a durable
unit that should give many years of service. Compressor failure can
result from the machine losing its refrigerant gas. The compressor
can be replaced by a competent refrigeration technician.

Failure of the compressor can be confirmed by the following

procedure:

a. Establish that power is present at the compressor terminals

using a voltmeter.

b. With the power disconnected, check the continuity of the internal

winding by using meter across the compressor terminals. An
open circuit indicates that the compressor should be replaced.

c. Check that the compressor is not grounded by establishing that

a circuit does not exist between the compressor terminals and
the shell of the compressor.

EVER

allow permanent service valves to be fitted to

Page 8 of 12

Drawing : - TPC445

S

C

R

Issue : - 1
Date : - 02/12/15

TROUBLESHOOTING

YMPTOM

Unit inoperative 1. No power to unit

1. Fan motor burnt out

Little or no airflow

2. Dirty refrigeration coils

3. Loose electrical wiring

Little or no water
extraction

Little or no defrost
when required

Unit vibrates
excessively

Water flooding inside
the machine

1. Insufficient air flow

2. Compressor fault

3. Loss of refrigerant gas

1. Faulty timer

2. Faulty by-pass valve

1. Loose compressor

2. Damaged fan

1. Drain pipe blocked/frozen

2. Drain pipe too high

3. Crimped or blocked tubing

AUSE

EMEDY

1. Check the power from
power supply panel

1. Replace the fan motor

2. See Routine Maintenance
Section

3. Check the wiring diagram
to find fault and repair

1. Check all of the above

2. Contact the Factory
Service Center

3. Contact the Factory
Service Center

1. Contact the Factory
Service Center

2. Contact the Factory
Service Center

1. Tighten the nuts on the
compressor mounts

2. Replace fan

1. Clear the obstruction

2. Ensure that no section of
the drain hose is above the
level of the water outlet

3. Straighten, clear, or replace
tubing

Page 9 of 12

Drawing : - TPC445
Issue : - 1
Date : - 02/12/15

CS90H

SPARE PARTS LIST

P

ART

N

UMBER

1 Defrost Timer 1619508 1

2 Filter 2013831 1

3 Condenser Coil 2059000 1

4 Evaporator Coil 2059001 1

D

ESCRIPTION

N

UMBER

Q

UANTITY

5 Capillary Tube 3014249 2 x 30”

6 Drain Tubing 3014338 9 Feet

7 Solenoid Valve 3020837 1

8 Filter Dryer 3020901 1

9 Compressor 3022198 1

10 Defrost Relay 3030269 1

11 Solenoid Coil 3030451 1

12 Capacitor 3030908 1

13 Humidity Controller 3031530 1

14 Mains Lead 3035148 1

15 ON / OFF Switch 3035914 1

16 Power Relay 3036157 1

17 Fan Motor 3040277 1

18 Rubber Foot 3101436 1

Spare parts available online

www.EIPLDIRECT.com

Page 10 of 12

Drawing : - TPC445

PLEASE NOTE

WARRANTY REGISTRATION

Issue : - 1
Date : - 02/12/15

LIMITED WARRANTY

Our products carry a one-year unconditional warranty against any defects in
workmanship or material. This warranty will cover all parts and labor required
to repair your Ebac product. This warranty is invalid if the unit has been
abused, damaged, whether intentional or accidental, or if any modifications
have been made to the unit.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS ISSUED IN LIEU OF
ALL OTHER WARRANTIES (WHETHER WRITTEN, ORAL, OR IMPLIED)
INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. EBAC
INDUSTRIAL PRODUCTS, INC. DISCLAIMS ANY LIABILITY FOR
CONSEQUENTIAL DAMAGES, LOST PROFITS, OR INCIDENTAL
DAMAGES FOR BREACH OF ANY WRITTEN OR IMPLIED WARRANTY
WITH RESPECT TO THE FOREGOING DESCRIBED MERCHANDISE.

For Your Records: Model:____________________
S/N:______________________
Date Received:______________

SAVE THIS SECTION FOR YOUR RECORDS

CLIP AND RETURN THIS CARD

To ensure that your
Ebac Dehumidifier is
accorded the full
coverage provided by
this warranty, please
complete and mail this
card at your earliest
convenience.

Thank You

Page 11 of 12

DATE

MODEL ___________ S/N ________________ RECEIVED ________________

OWNER __________________________________________________________

ADDRESS ________________________________________________________

CITY __________________________ STATE ________ ZIP _______________

COMMENTS ______________________________________________________

_________________________________________________________________

Ebac Industrial Products.

700 Thimble Shoals Boulevard, Suite 109, Newport News, Virginia. 23606-2575

Drawing : - TPC445

UK Head Office

American Sales Office

German Sales Office

Issue : - 1
Date : - 02/12/15

Ebac Industrial Products Ltd

St Helens Trading Estate

Bishop Auckland

County Durham

DL14 9AD

Tel: [phone]

Fax: [phone]

www.eipl.co.uk

[e-mail]

Page 12 of 12

Ebac Industrial Products Inc

700 Thimble Shoals Blvd.
Suite 109, Newport News

Virginia, 23606-2575

Tel: [phone]

Fax: [phone]

www.ebacusa.com

[e-mail]

USA

Ebac Industrial Products Ltd.

Gartenfelder Str. 29-37

Gebäude 35

D-13599, Berlin

Germany

Tel: [phone]

Fax: [phone]

www.eip-ltd.de

[e-mail]
